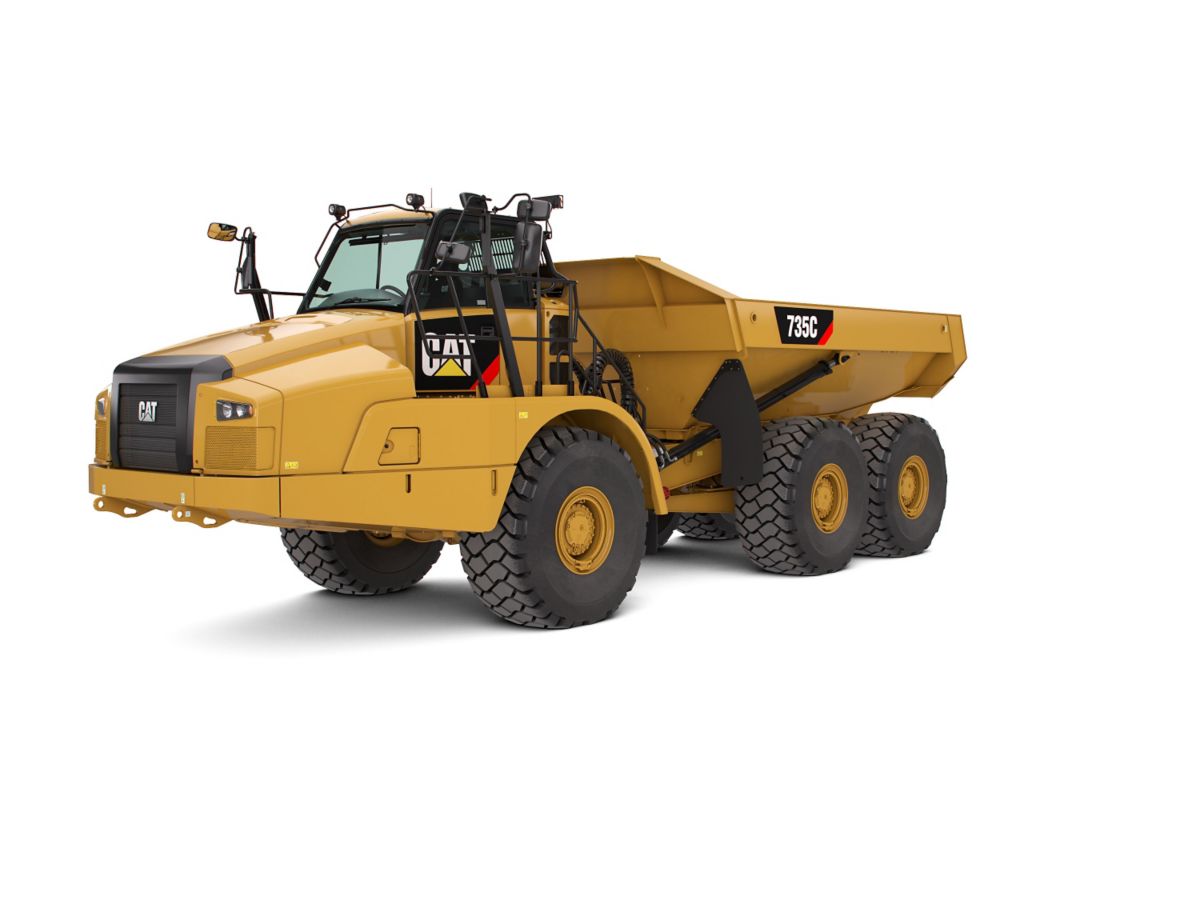

735C Articulated Truck
US
Metric
Overview
The Cat 735C with a 22 m3 (28.7 yd3) 32.7 tonnes (36 tons) capacity offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs. With many updated and improved features, an all new power train and new ease of operation features including Automatic Retarder Control, the 735C is now more productive than ever before.
Engine
Engine Model
Cat C15 ACERT
Gross Power – SAE J1995
452.00 hp
337.00 kW
Net Power – SAE J1349
441.00 hp
329.00 kW
Bore
5.40 in
137.00 mm
Stroke
6.75 in
171.50 mm
Displacement
926.00 in3
15.20 L
Engine Model – U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final
Cat® C15 ACERT™
Net Power – ISO 14396
447.00 hp
333.00 kW
Weights
Rated Payload
36.00 t
32.70 t
Body Capacities
Heaped (SAE 2:1)
26.80 yd³
20.50 m³
Struck
19.60 yd³
15.00 m³
Tailgate Heaped SAE 2:1
28.70 yd³
22.00 m³
Tailgate Struck
20.30 yd³
15.50 m³
Transmission
Forward 1
3.70 mph
6.00 km/h
Forward 2
4.90 mph
7.90 km/h
Forward 3
6.80 mph
11.00 km/h
Forward 4
8.60 mph
13.90 km/h
Forward 5
11.40 mph
18.40 km/h
Forward 6
14.00 mph
22.50 km/h
Forward 7
19.30 mph
31.00 km/h
Reverse - 1
3.90 mile/h
6.30 km/h
Reverse - 2
8.90 mile/h
14.40 km/h
Operating Weights
Front Axle - Empty
41844.00 lb
18980.00 kg
Center Axle - Empty
13977.00 lb
6340.00 kg
Rear Axle - Empty
13404.00 lb
6080.00 kg
Total - Empty
69225.00 lb
31400.00 kg
Front Axle - Rated Load
5864.00 lb
2660.00 kg
Center Axle - Rated Load
33113.00 lb
15020.00 kg
Rear Axle - Rated Load
33113.00 lb
15020.00 kg
Total - Rated Load
72091.00 lb
32700.00 kg
Front Axle - Loaded
47708.00 lb
21640.00 kg
Center Axle - Loaded
47091.00 lb
21360.00 kg
Rear Axle - Loaded
46517.00 lb
21100.00 kg
Total - Loaded
141316.00 lb
64100.00 kg
Body Plate
Type
High strength Brinell HB450 wear resistant steel
Service Refill Capacities
Fuel Tank
126.80 gal
480.00 L
Cooling System
23.70 gal
90.00 L
DEF Tank
6.60 gal
25.00 L
Engine Crankcase
10.60 gal (US)
40.00 l
Transmission/OTG
19.80 gal
75.00 L
Final Drives (each)
1.30 gal
5.00 L
Axles (each)
15.80 gal
60.00 L
Sound Levels
Interior Cab
79.00 dB(A)
79.00 dB(A)
Body Hoist
Raise Time
12.00 s
12.00 s
Lower Time
7.00 s
7.00 s
Standards
Brakes
ISO 3450-2011
Cab - FOPS
ISO 3449 Level II-2005
Cab - ROPS
ISO 3471-2008
Steering
ISO 5010-2007
Steering
Lock to Lock
4.6 seconds @ 60 rpm
Turning Circle
Note
Dimensions are for machines equipped with 26.5R25 tires.
Turning Dimensions - Aisle Width
221.00 in
5607.00 mm
45°
Turning Dimensions - Clearance Radius
331.00 in
8420.00 mm
Turning Dimensions - Inside Radius
157.00 in
3978.00 mm
Turning Dimensions - SAE Turning Radius
314.00 in
7968.00 mm
Turning Dimensions: Aisle Width
221.00 in
5607.00 mm
Engine
No Engine De-rating Required Below
10000.00 ft
3050.00 m
Peak Engine Torque Gross (SAE J1995)
1931.00 lbf-ft
2618.00 N·m
Peak Engine Torque Net (SAE J1349)
1887.00 ft·lbf
2558.00 N·m
Peak Engine Torque Speed
1200.00 rpm
1200.00 rpm
Transmission
Forward - 8
23.10 mile/h
37.30 km/h
Forward - 9
33.50 mile/h
53.90 km/h
Service Refill Capacities
Brake Cooling Tank
17.69 gal (US)
67.00 l
Steering/Hoist Hydraulic System
36.90 gal (US)
140.00 l
Engine
Engine Model
Cat C15 ACERT
Bore
5.40 in
137.00 mm
Stroke
6.75 in
171.50 mm
Displacement
926.00 in³
15.20 l
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final
Cat® C15 ACERT™
Gross Power - SAE J1995
452.00 HP
337.00 kW
Net Power - ISO 14396
447.00 HP
333.00 kW
Net Power - SAE J1349
441.00 HP
329.00 kW
Transmission
Forward - 1
3.70 mile/h
6.00 km/h
Forward - 2
4.90 mile/h
7.90 km/h
Forward - 3
6.80 mile/h
11.00 km/h
Forward - 4
8.60 mile/h
13.90 km/h
Forward - 5
11.40 mile/h
18.40 km/h
Forward - 6
14.00 mile/h
22.50 km/h
Forward - 7
19.30 mile/h
31.00 km/h
Body Plate
Type
High strength Brinell HB450 wear resistant steel
Service Refill Capacities
Fuel Tank
126.80 gal (US)
480.00 l
Cooling System
23.70 gal (US)
90.00 l
Axles - Each
15.80 gal (US)
60.00 l
DEF Tank
6.60 gal (US)
25.00 l
Final Drive - Each
1.30 gal (US)
5.00 l
Transmission - OTG
19.80 gal (US)
75.00 l
Standards
Brakes
ISO 3450-2011
Steering
ISO 5010-2007
Turning Circle
Turning Dimensions - Steer Angle - Left/Right
45°
Engine
No Engine De-rating Required Below
10000.00 ft
3050.00 m
Peak Engine Torque Gross (SAE J1995)
1931.00 ft·lbf
2618.00 N·m
Peak Engine Torque Speed
1200.00 r/min
1200.00 r/min
Features
Engine
Transmission
Automatic Features
Suspension and Braking
Operator Environment
Ease of Operation
Durability and Reliability
Integrated Technologies
Serviceability
Complete Customer Support
Sustainability
Safety
Sales Features
Engine
Optimized performance, proven reliabilityTransmission
Class leading transmission technologyAutomatic Features
Ease of use, improved performanceSuspension and Braking
Performance with comfortOperator Environment
Improved productivity with a comfortable and confident operatorEase of Operation
Designed around the operatorDurability and Reliability
Proven structures and componentsIntegrated Technologies
The right information at the right timeServiceability
Maximize uptime and reduce costsComplete Customer Support
A commitment to your successSustainability
Making sustainable progress possibleSafety
Designed and built into every machineStandard Equipment
- ROPS/FOPS cab, machine operation monitoring system includes:
- Action lamp, engine oil pressure, primary steering system, left turn signal, high beam, coolant temperature, tachometer, parking brake, fuel level, right turn signal, transmission oil temperature, brake system, transmission hold, hoist control, hydraulic system, charging system, retarder, transmission fault, traction control system, check engine lamp
- Diesel Exhaust Fluid (DEF) level, emission malfunction lamp, regeneration active, Diesel Particulate Filter (DPF), regeneration disabled
- Liquid Crystal Display (LCD):
- Alert indicator, selected gear and direction, speed or auto shift, review Operation and Maintenance Manual (OMM), primary steering failure, seat belt warning, secondary steering failure, DPF regeneration filter, Machine Security System (MSS), secondary steering energy source engaged, hour meter and retarder active
Optional Equipment
- Auto lube installation for automatic greasing of bearings
- Body liners
- Bluetooth radio stereo system
- Cold weather coolant –51° C (–60° F)
- Cold weather start attachment
- Engine block heater
- Ether start
- Exhaust heated body
- Fast fuel fill
- Flashing LED beacon
- Fuel additive-anti-waxing
- Heated seat
- Heated rearview motorized mirrors
- Machine Security System (MSS)
- Product Link: PL321, PL522, VIMS™ Cellular, VIMS Satellite (where available)
- Roof mounted High Intensity Discharge (HID) work lights
- Scissor tailgate
- 775/65 R29 wide tires
- Cat production measurement payload monitoring system
