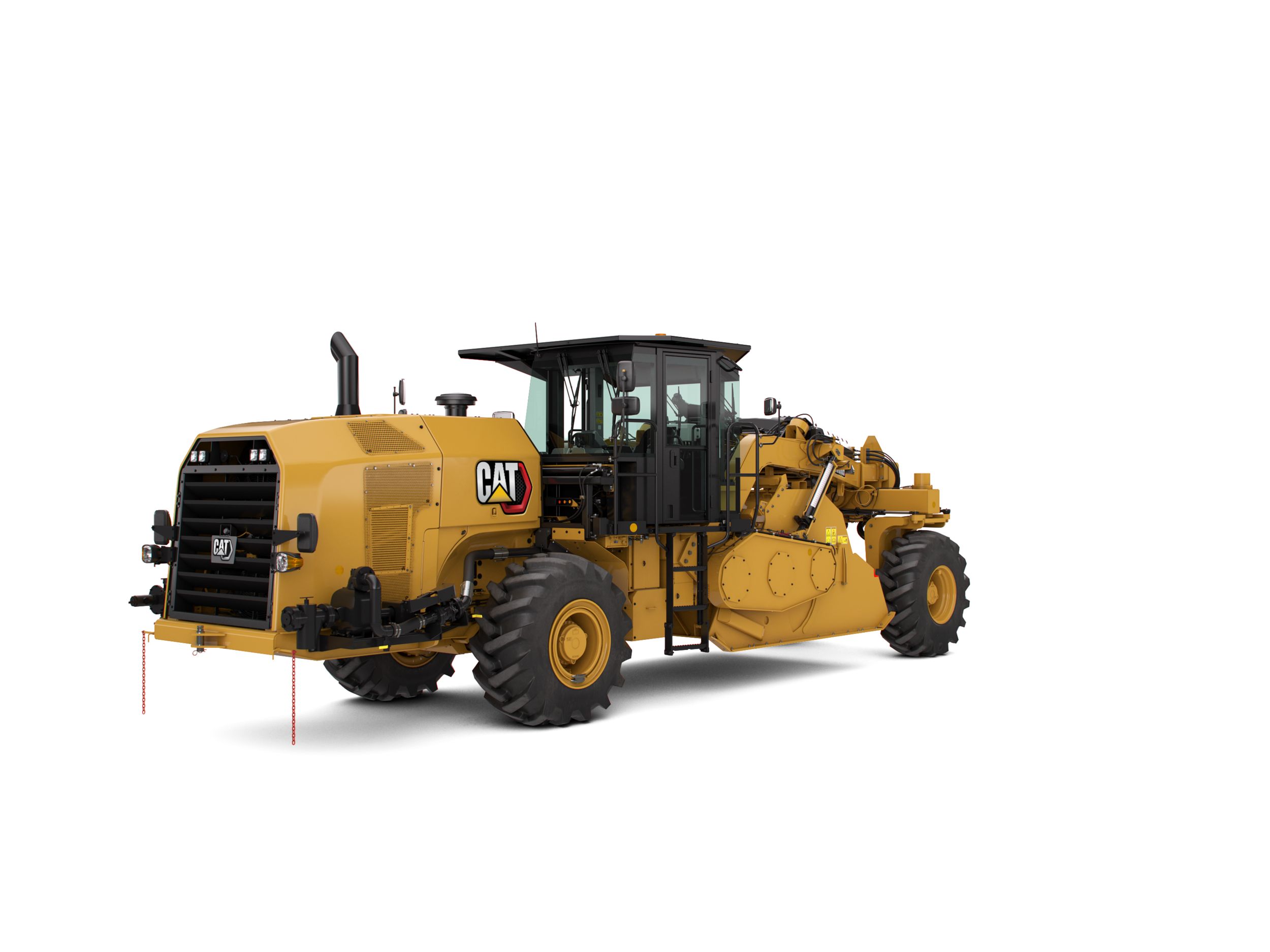

RM500B Rotary Mixer
US
Metric
Overview

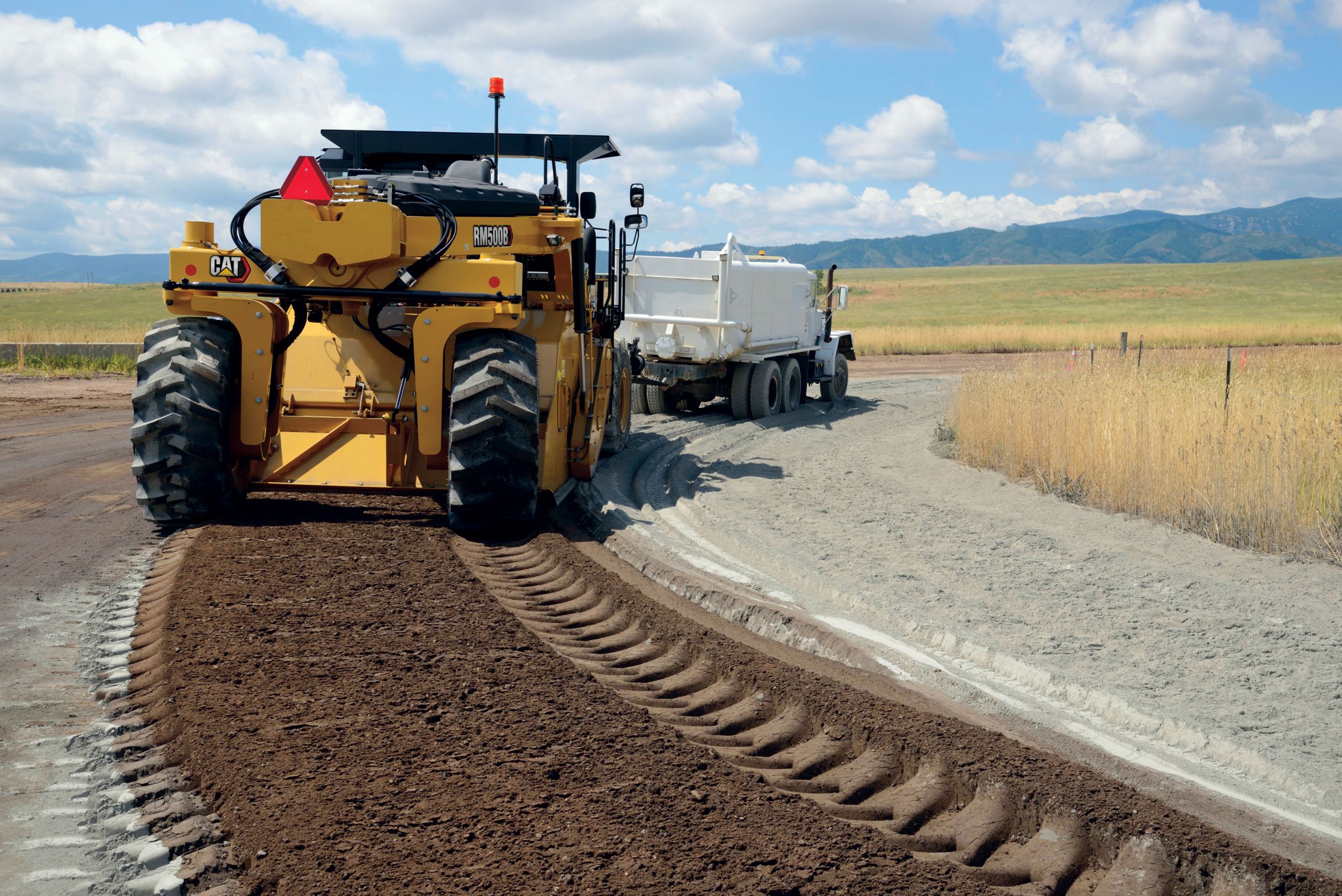

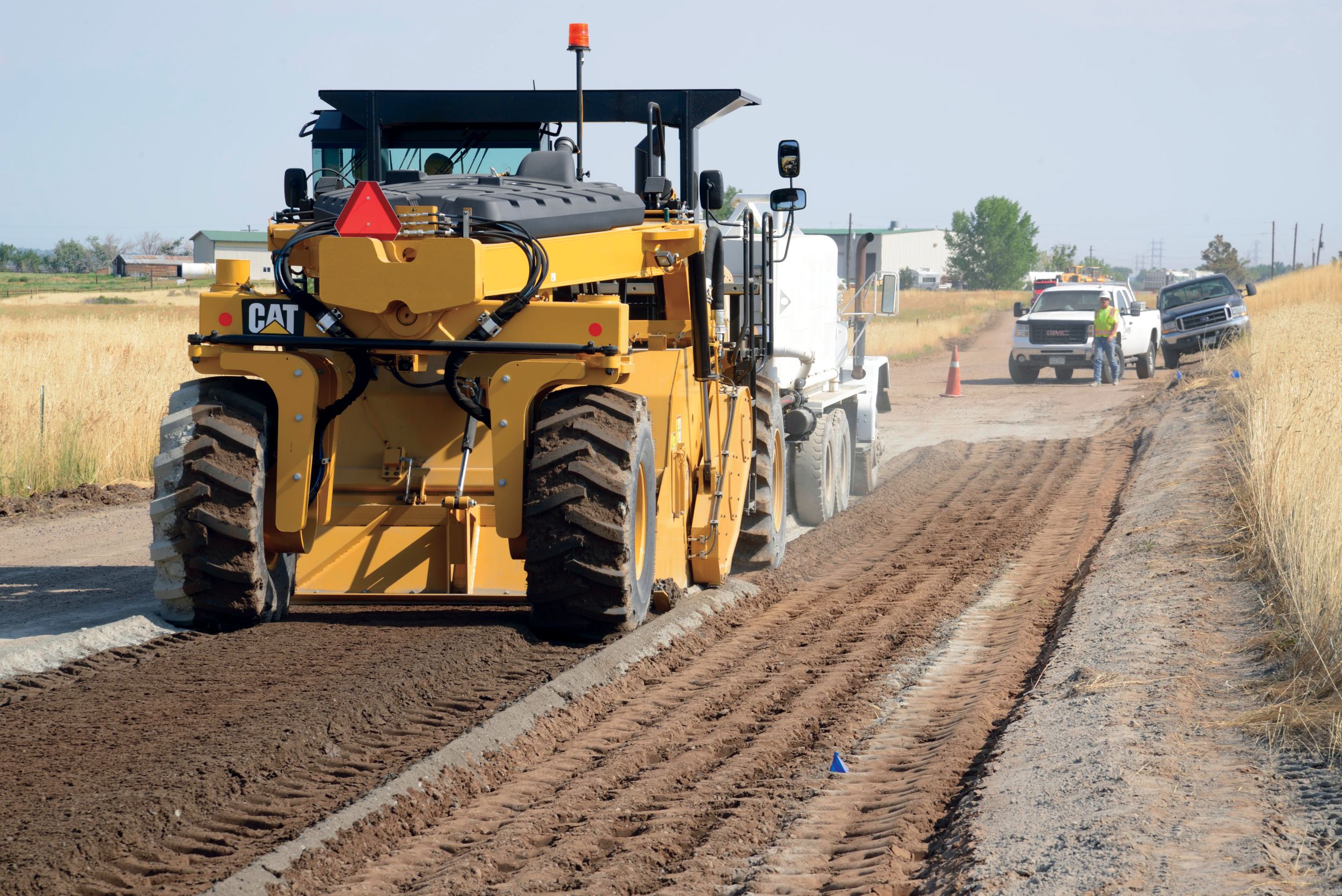

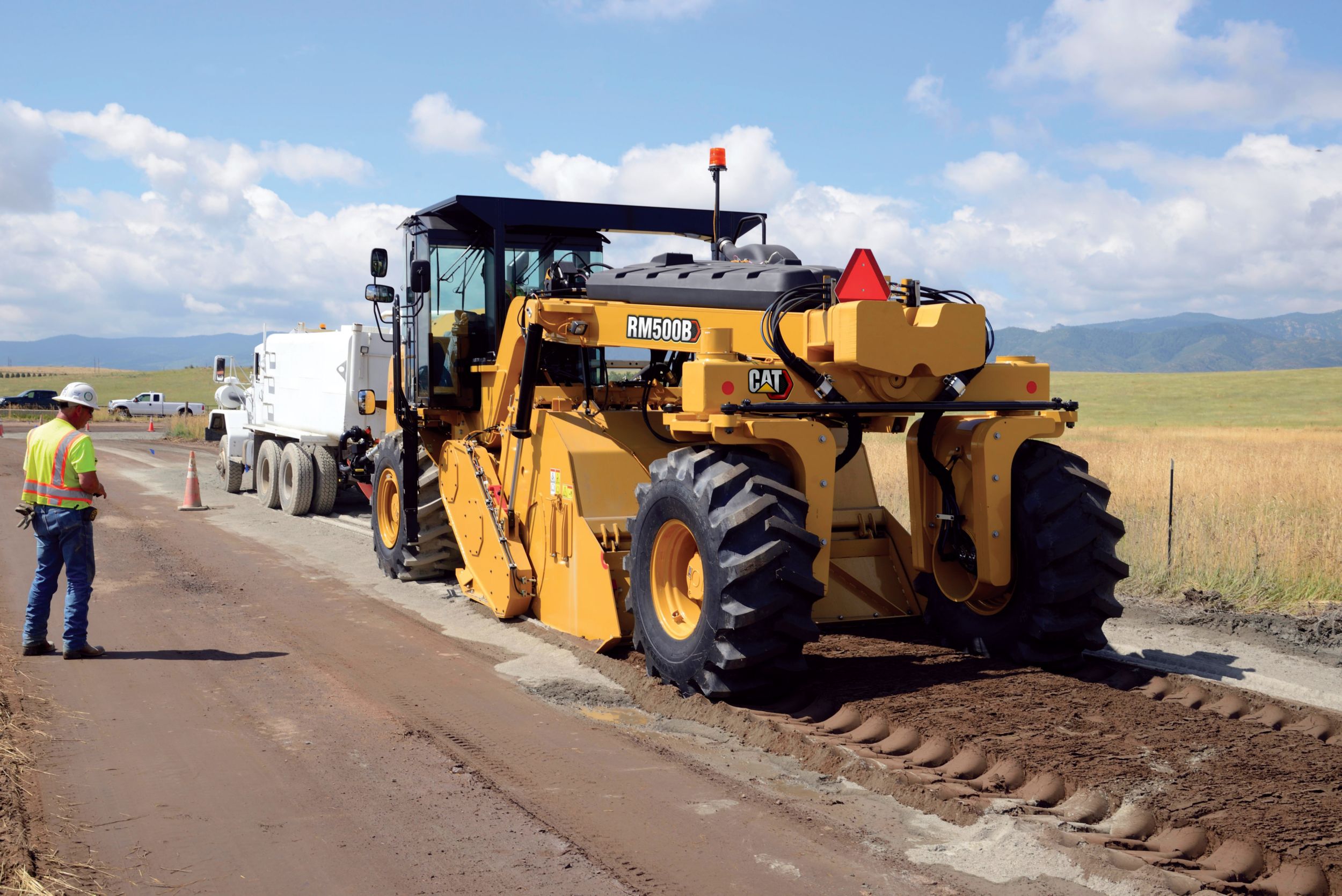

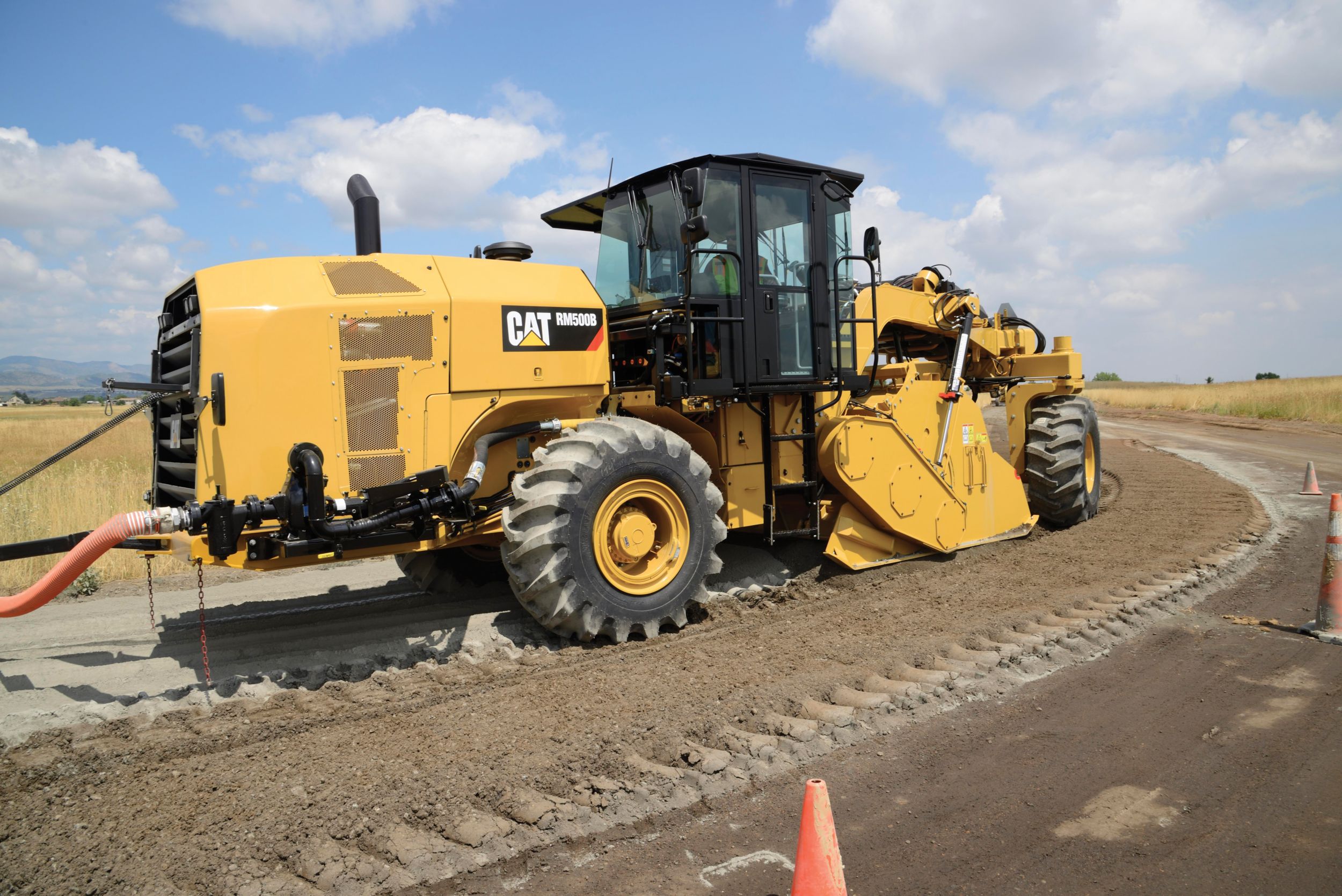

The RM500B Rotary Mixer combines superior performance and reliability to achieve the most demanding job specifications while maximizing machine uptime. With many enhanced features and options, the RM500B is designed to work well in both full depth reclamation and soil stabilization applications.
Weights
Maximum Operating Weight
62611.00 lb
28400.00 kg
Operating Specifications
Cutting/Mixing Width
96.00 in
2438.00 mm
Maximum Cutting/Mixing Depth
20.00 in
508.00 mm
Maximum Travel Speed
6.20 mile/h
10.00 km/h
Operating Speed
2.00 mile/h
3.20 km/h
Rotor Options
Universal, Combination, Soil
Rotor Speed - First (at 2100 Engine rpm)
110.00 r/min
110.00 r/min
Rotor Speed - Second (at 2100 Engine rpm)
152.00 r/min
152.00 r/min
Rotor Speed - Third (at 2100 Engine rpm)
205.00 r/min
205.00 r/min
Engine
Gross Power
546.00 HP
407.00 kW
Engine Model
C15
Dimensions
Ground Clearance
19.90 in
506.00 mm
Length
33.83 ft
10.32 m
Maximum Height
11.78 ft
3.59 m
Wheel Base
21.33 ft
6.55 m
Width
9.58 ft
2.98 m
Service Refill Capacities
Fuel Tank Capacity
279.00 gal (US)
1056.00 l
Features
C15 Engine
Robust Cooling System
Electronically Controlled All-wheel Drive
Cab
Operator's Station
Electronic Control Modules
Rotor Drive
Mixing Chamber
Hydraulic Front Door
Rotors
Serviceability
Sales Features

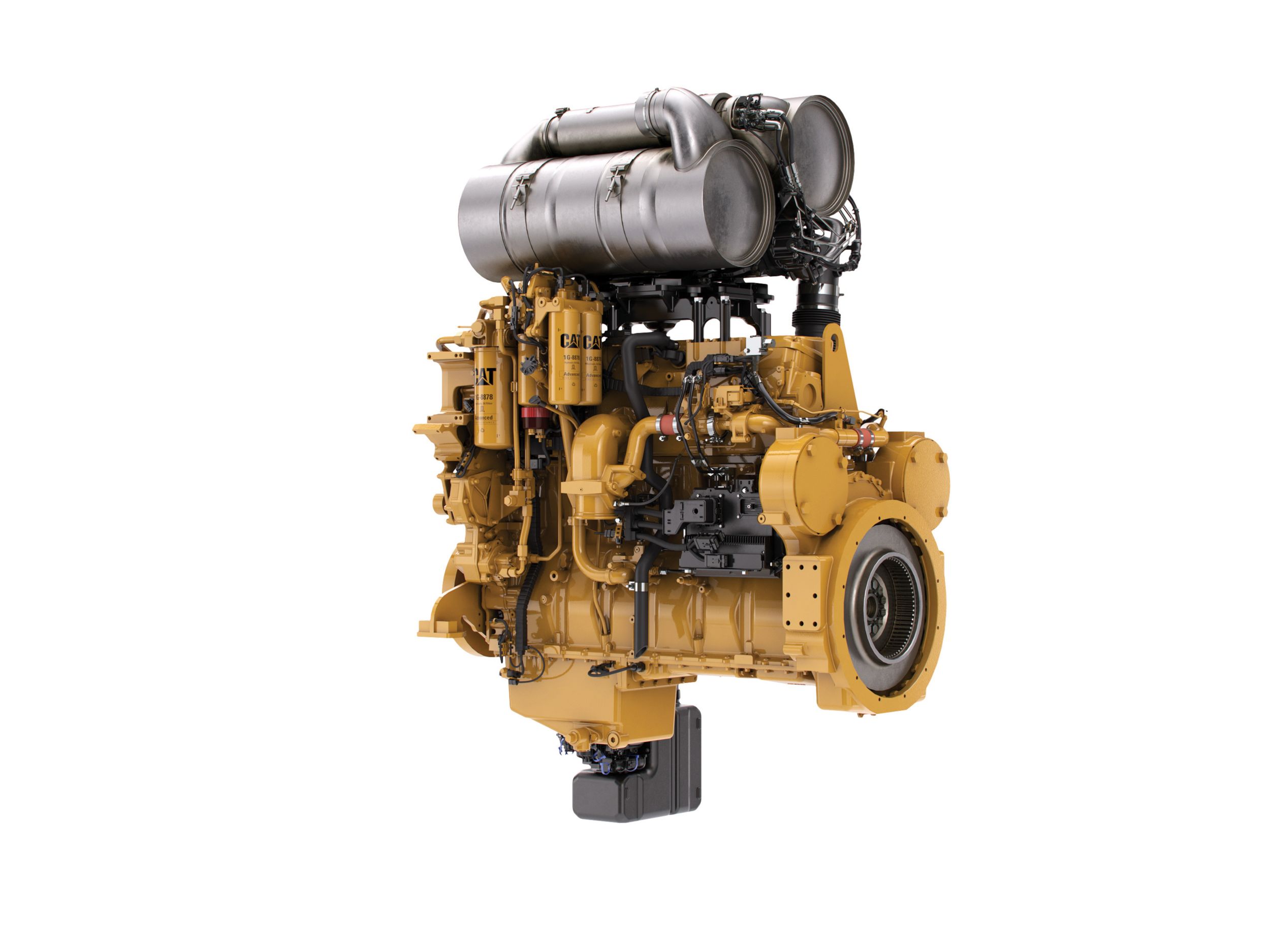

C15 Engine with ACERT™ Technology
Powerful Cat C15 ACERT engine meets US EPA Tier 4 Final and EU Stage IV emission standards.Robust Cooling System

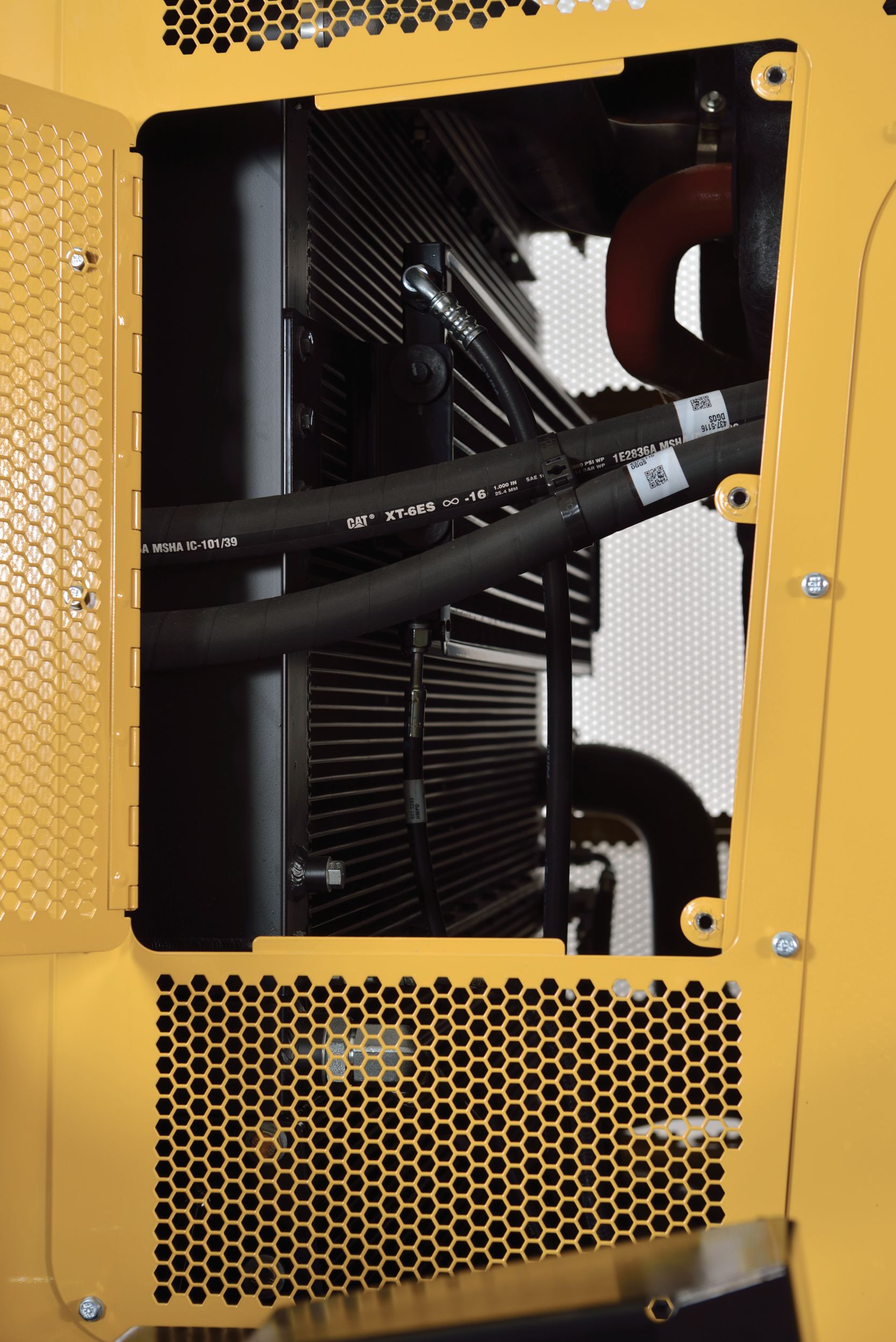

Provides cool air intake to maximize fuel efficiency and minimize emissions. An on -demand variable speed fan draws ambient air from a separate compartment in front of the engine through the cooling package. The exhaust air exits from the front of the machine, maintaining a cool engine compartment.Electronically Controlled All-wheel Drive
Hydrostatic drive system has four pumps and four motors that are electronically controlled for optimized traction in extreme conditions.Four Steering Modes

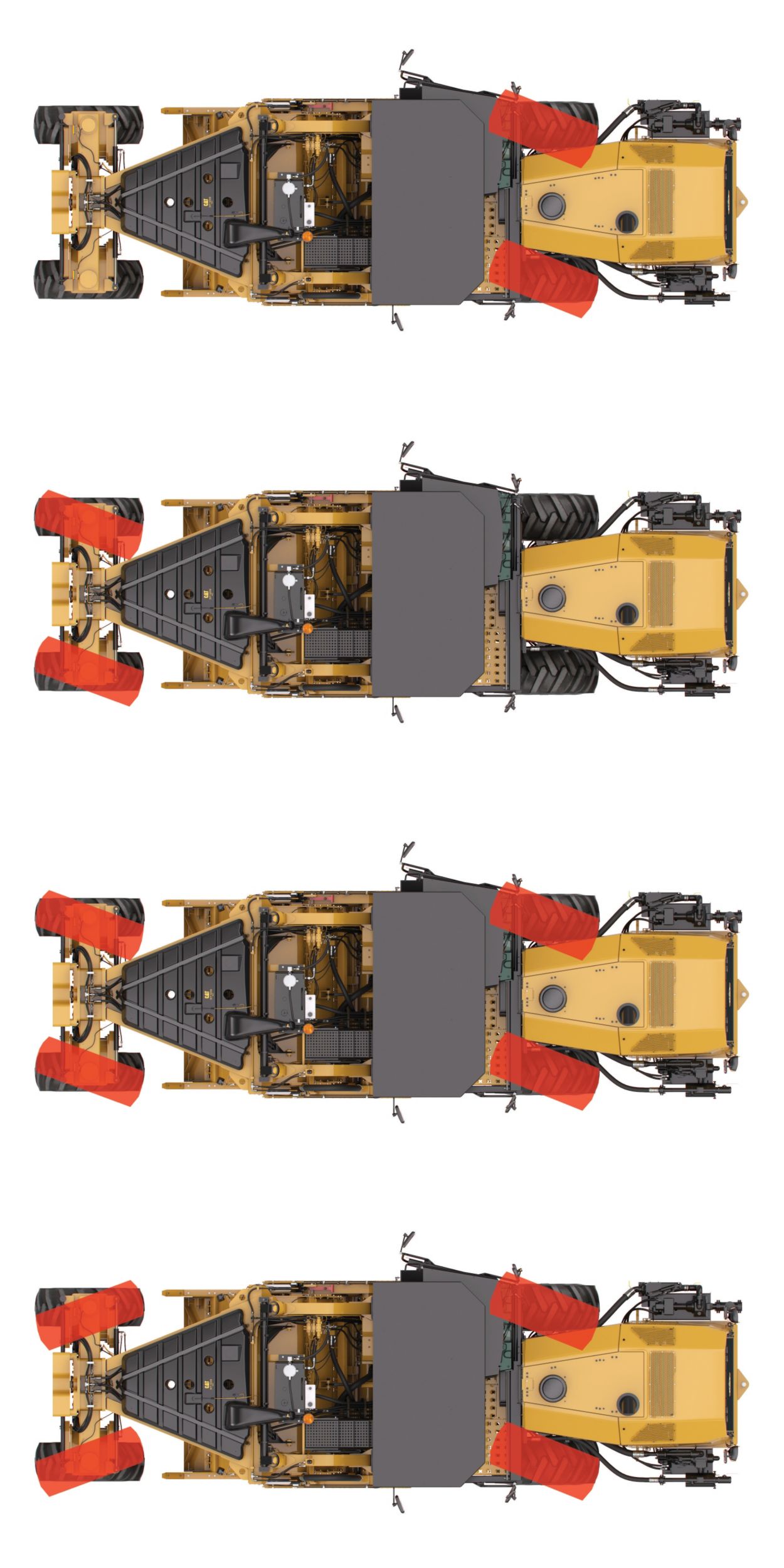

The RM500B provides four steering modes: Front Steer, Rear Steer, Crab Steer and Coordinated Steer. This endows the machine with remarkable maneuverability.Cab

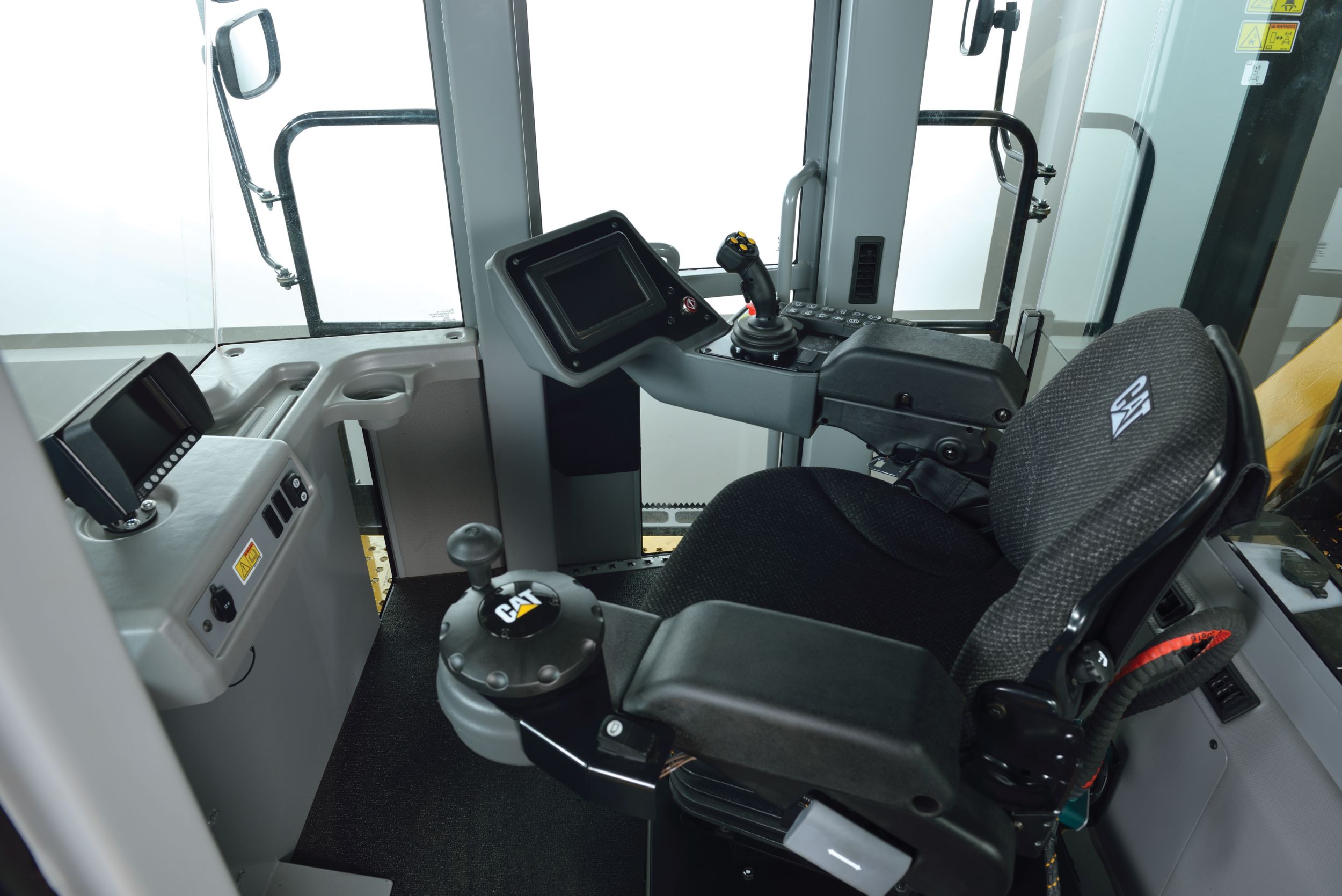

The cab provides excellent year-round comfort. The cab is fully pressurized and includes climate control. Plenty of glass provides ample views to optimize operator precision. Two doors allow the operator to enter the cab from either side of the machine.Operator's Station
Ergonomic design emphasizes operator comfort, visibility and easy operation. The cab slides side-to-side, enhancing visibility to the cutting edge to increase versatility and productivity while reducing operator fatigue.Electronic Control Modules

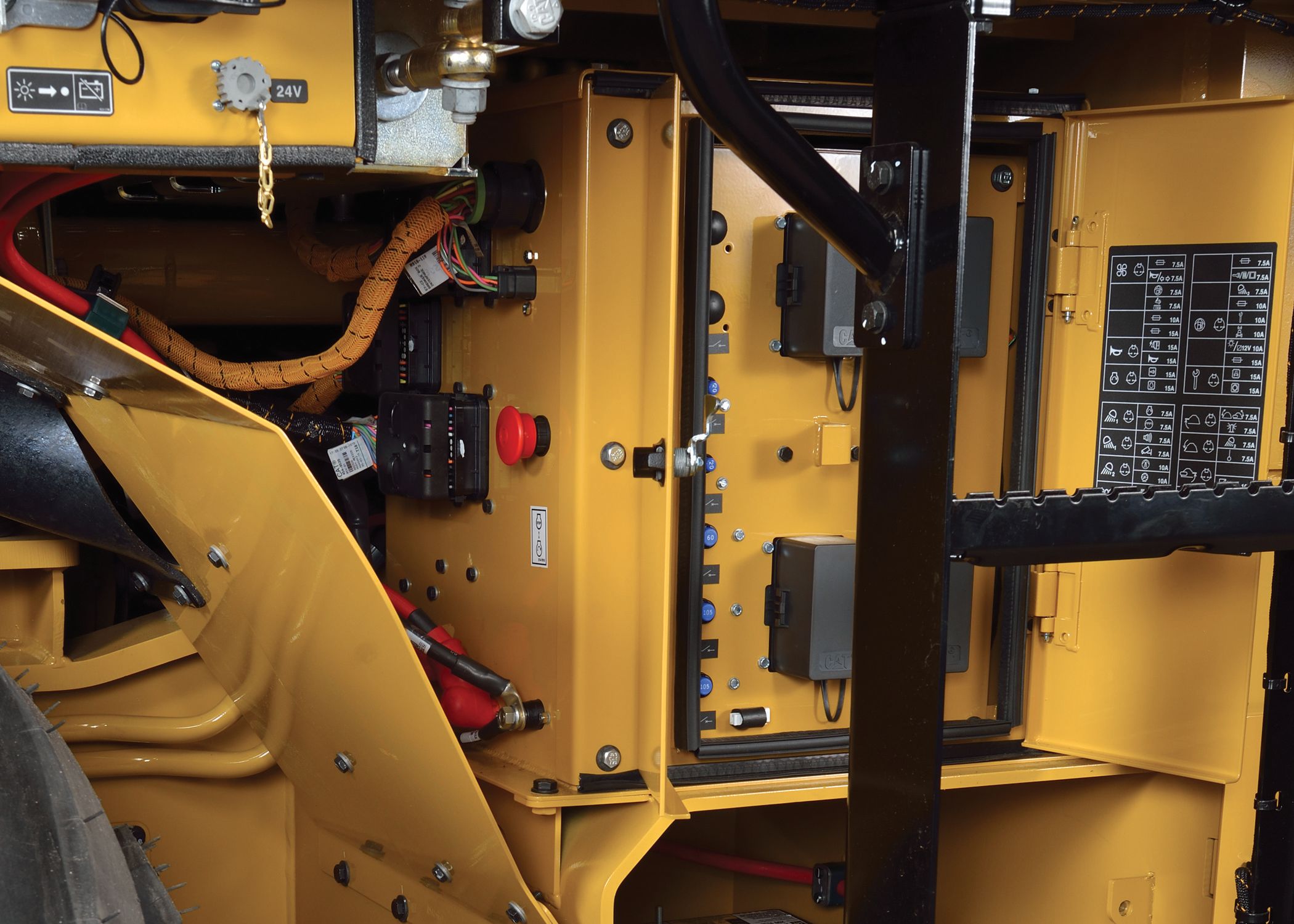

Reliable field-proven technology makes machine operation simple and self-diagnostics simplifies troubleshooting.Rotor Drive

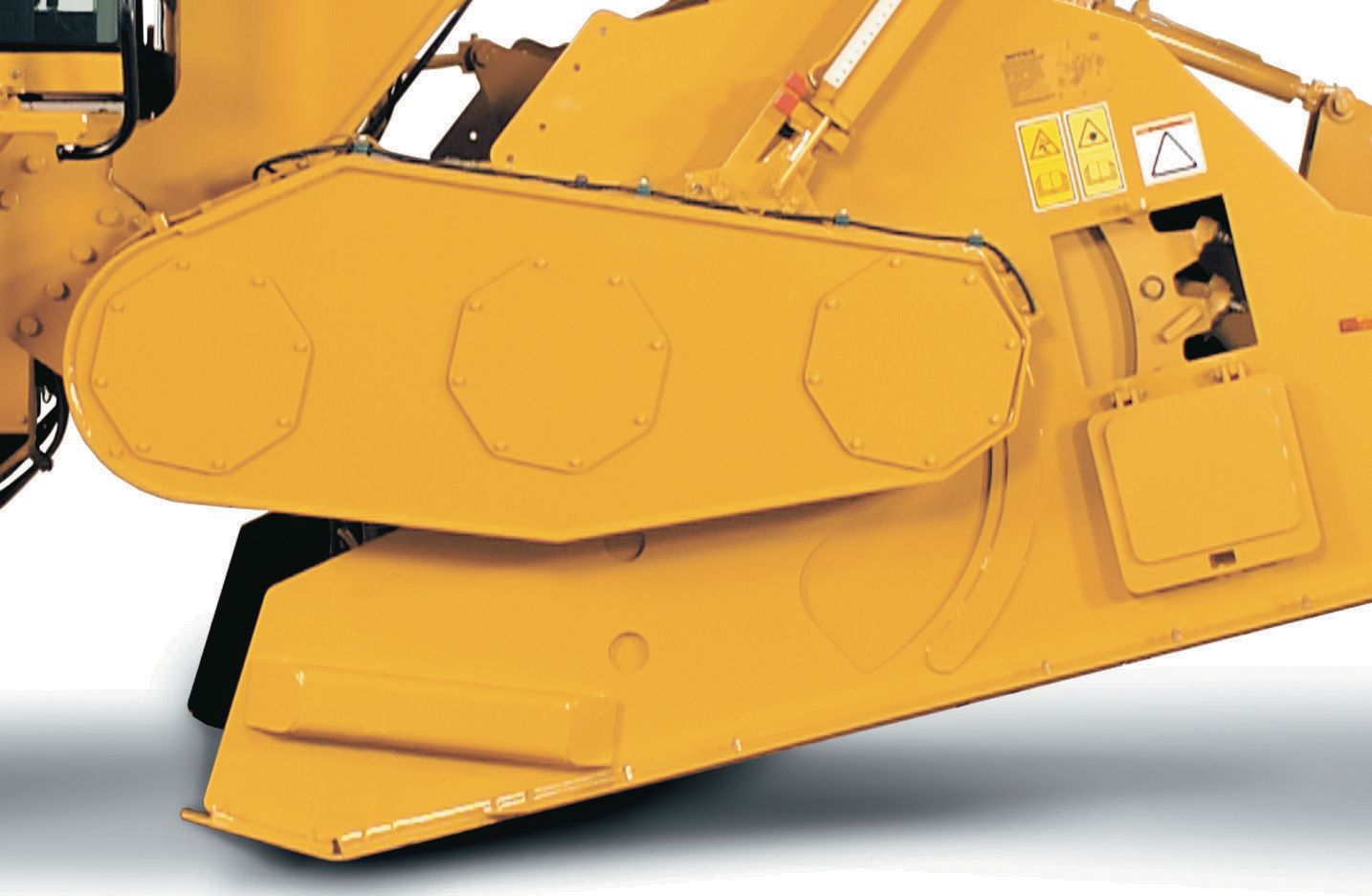

Maximum production with high reliability. A Cat powershift transmission provides three rotor speeds for maximum performance in a variety of materials and cutting depths.Mixing Chamber
The mixing chamber is a heavy-duty hood with large volume to handle deep mixing. Ensures depth control, proper sizing and thorough blending of reclaimed materials.Hydraulic Front Door

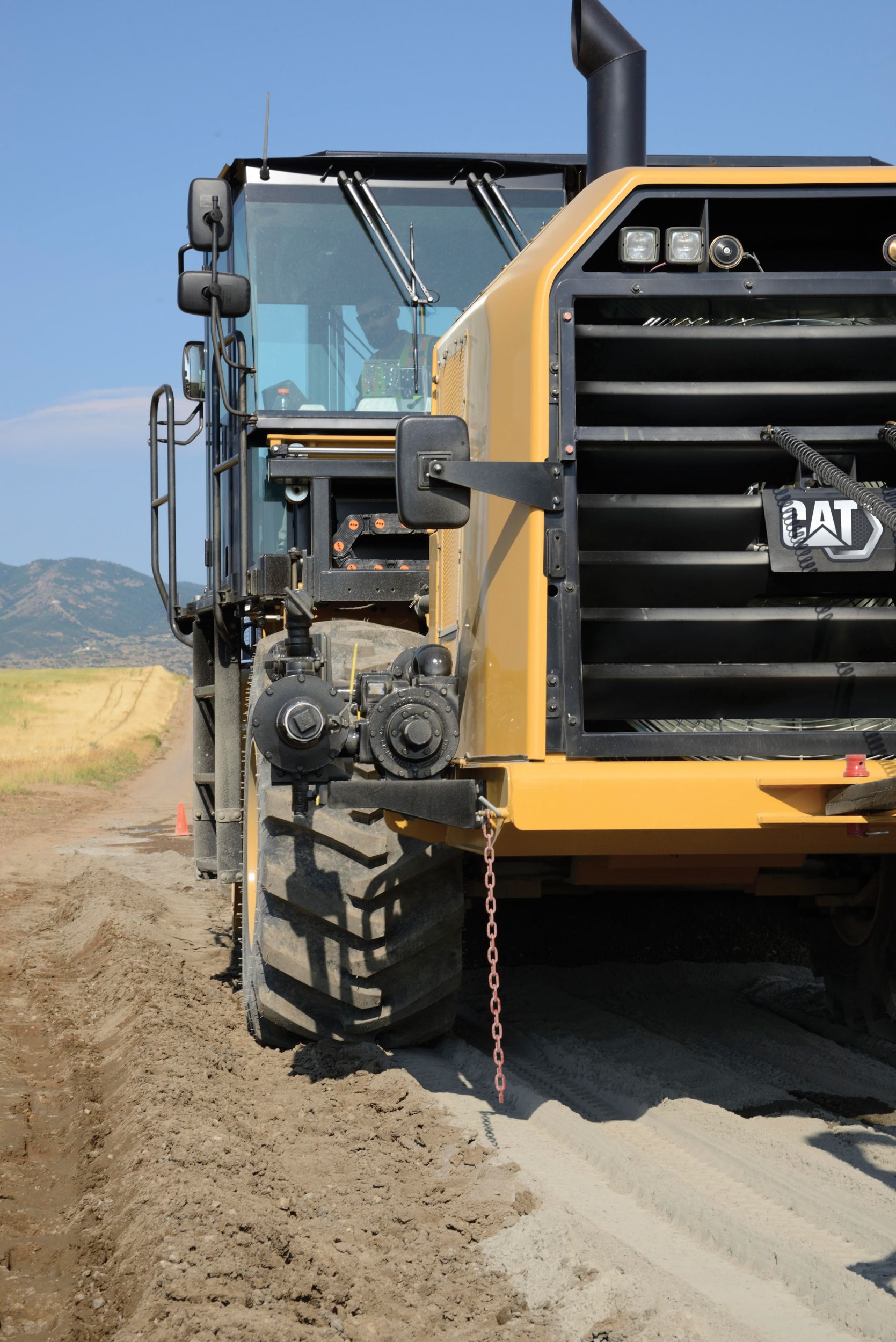

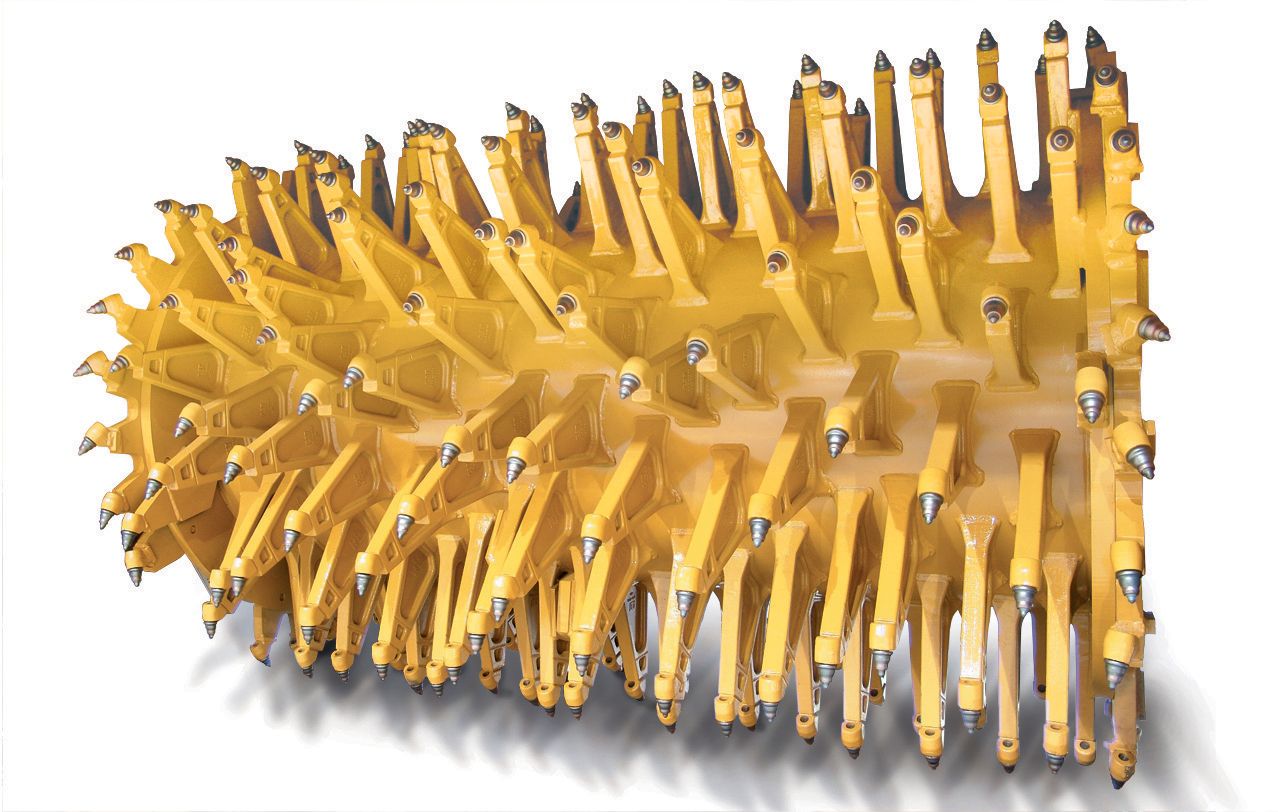

Heavy-duty front door is ideal for peak efficiency on soil stabilization, bio-remediation or mixing passes on asphalt reclamation.Universal Rotors
Two universal rotors for different tasks.Combination Rotor
Designed primarily for soil stabilization applications in cohesive soils. Designed for deep-cut soil mixing where pulverization and gradation is of lesser importance than higher working speeds. Performs well in cohesive soils and has a secondary application of surface mining for non-engineered substances such as coal, shale, or limestone.Soil Rotor
Designed primarily for soil stabilization applications in semi-cohesive or granular soils. An ideal choice for mixing additives with semi-cohesive or granular materials where soil gradation is critical. Also can perform light reclamation applications where the asphalt layer is thin and deteriorated.Serviceability

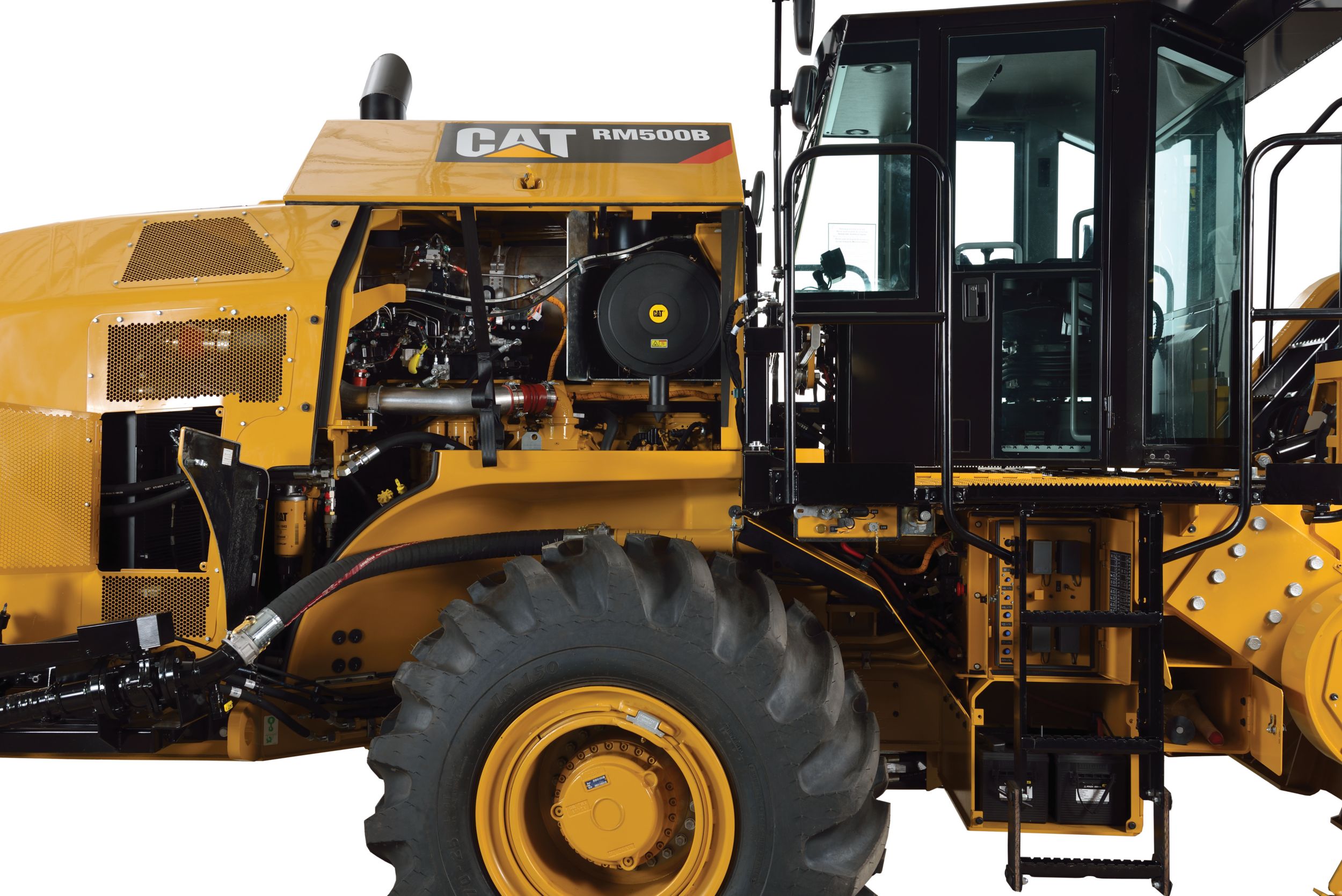

The RM500B features ground level access to most service items. Less time on maintenance means more time on the job.Optional Equipment
- Push Bar
- Torque Limiter
- Product Link
- Mirror Package
- Roll Over Protective Structure
- Universal Rotor
- Combination Rotor
- Soil Rotor
- Water Spray System
- Ultra Low-flow Water Spray System
- Emulsion Spray System
- Roading Light Package
- Counterweight Kit
- Amber Warning Beacon Light
- Remote Camera - Rear Mixing Chamber Door
