Overview

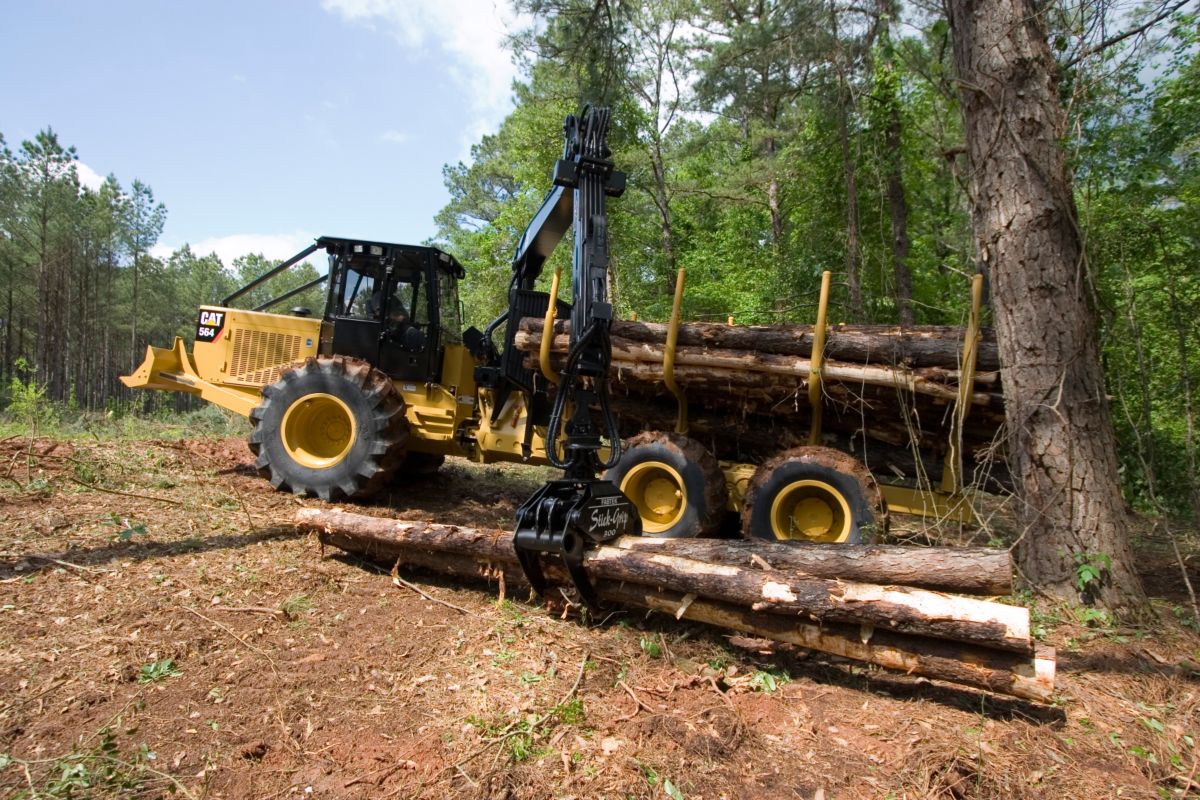

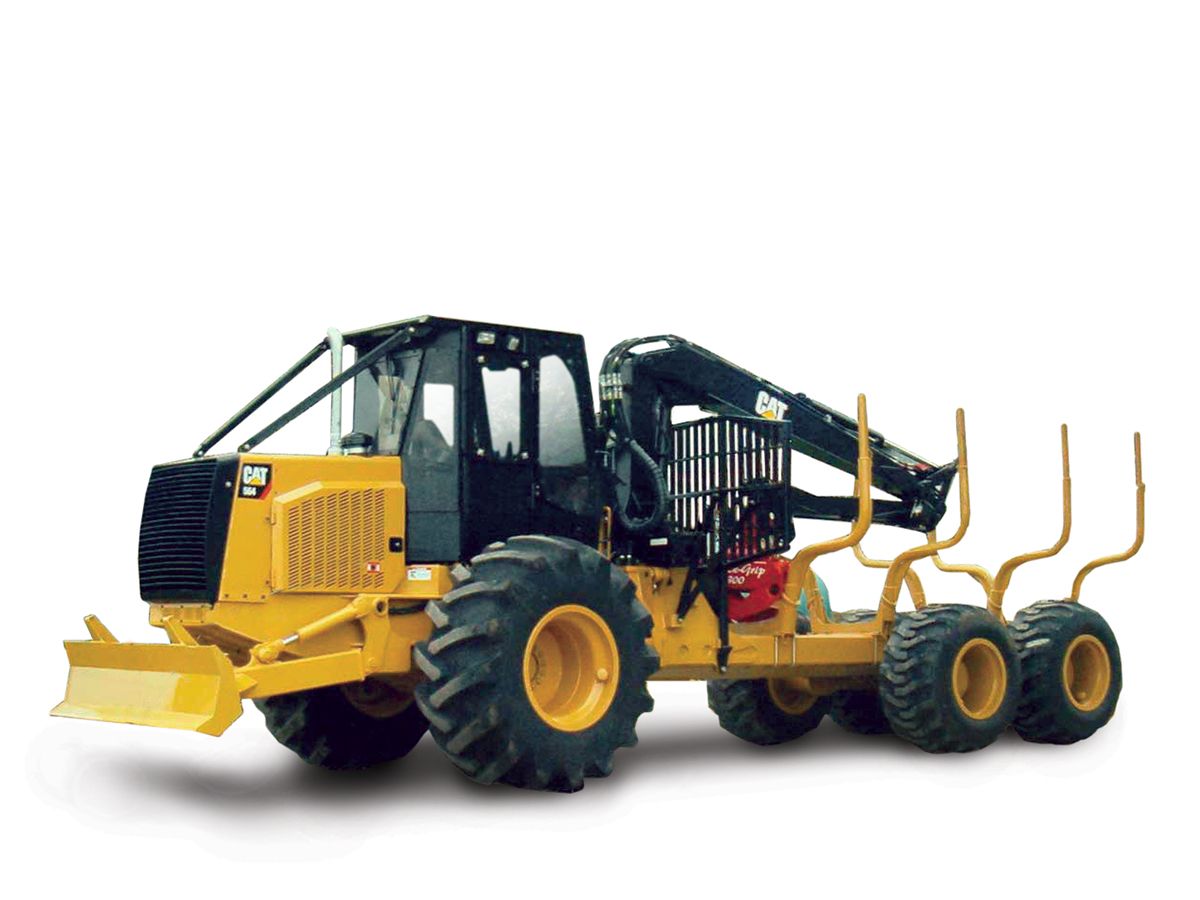

Caterpillar forwarders have proven, over-sized components including heavy-duty axles and torque converter power shift transmission. The spacious, comfortable operator station is designed for exceptional visibility.

Operating Specifications

Load Capacity
30000.00 lb
13608.00 kg
Loader Reach
22.90 ft
6.90 m
Load Capacity - With Clam Bunk Attachment
26000.00 lb
11793.00 kg
Max Travel Speed
14.48 mph
23.30 km/h
Maximum Speed - 6WD
14.50 mile/h
23.30 km/h
Payload
30000.00 lb
13607.80 kg
Wood Bunk Length
192.00 in
4877.00 mm

Engine

Gross Power
174.00 hp
130.00 kW
Engine Model
Cat® C6.6 ACERT

Service Refill Capacities

Fuel Tank
47.00 gal
178.00 L

Weights

Gross (Loaded) Machine Weight
35999.24 lb
16329.00 kg
Operating Weight
36000.00 lb
16329.00 kg

Transmission

Transmission
Electric Power Shift
Gears
4/4

Fuel Tank

Fuel Tank Capacity
47.02 gal
178.00 L

Hydraulic System

Flow Rate
66.00 gal/min
250.00 l/min
Hydraulic Fluid Reservoir
32.00 gal (US)
121.00 l

Engine

Gross Power
174.00 HP
130.00 kW
Engine Model
Cat® C6.6 ACERT

Operating Specifications

Maximum Travel Speed
14.48 mile/h
23.30 km/h

Transmission

Transmission
Electric Power Shift

Fuel Tank

Fuel Tank Capacity
47.02 gal (US)
178.00 l

Weights

Operating Weight
36000.00 lb
16329.00 kg

Service Refill Capacities

Fuel Tank
47.00 gal (US)
178.00 l
Features

Power Train

  • Field proven CAT ACERT diesel engines
  • Torque converter power shift transmission
  • 4-speed electronic shift
  • Wet disc axle and parking brakes

Control System

  • IQAN computer control system
  • Closed center proportional control valves
  • Hydraulic oil cooler with thermal bypass

Operator Station

  • Scratch resistant 12.7 mm (1/2 in) tinted polycarbonate windows
  • Side windows double as escape routes
  • Heater/air conditioner
  • Fire extinguisher
  • 360° lighting package
  • Hydraulic tilt cab
  • Isolation mounted cab

Structures

  • Large engine side covers
  • Heavy-duty engine and radiator house
  • Purpose-built blade with wear resistant front cutting edge
  • Optional brush sweeps
  • Heavy frame articulation points
  • Full 40° articulation with frame lock
  • Adjustable log bunks with floating cam stakes

Loader Features

  • Rear mounted loader with durable rack and pinion swing system
  • Wrapped hoses
  • Full load high reach boom
  • 250˚ rotation
  • European style butt-bypass grapple with high strength steel dampener
Sales Features

Power Train

  • Field proven CAT ACERT diesel engines
  • Torque converter power shift transmission
  • 4-speed electronic shift
  • Wet disc axle and parking brakes

Control System

  • IQAN computer control system
  • Closed center proportional control valves
  • Hydraulic oil cooler with thermal bypass

Operator Station

  • Scratch resistant 12.7 mm (1/2 in) tinted polycarbonate windows
  • Side windows double as escape routes
  • Heater/air conditioner
  • Fire extinguisher
  • 360° lighting package
  • Hydraulic tilt cab
  • Isolation mounted cab

Structures

  • Large engine side covers
  • Heavy-duty engine and radiator house
  • Purpose-built blade with wear resistant front cutting edge
  • Optional brush sweeps
  • Heavy frame articulation points
  • Full 40° articulation with frame lock
  • Adjustable log bunks with floating cam stakes

Loader Features

  • Rear mounted loader with durable rack and pinion swing system
  • Wrapped hoses
  • Full load high reach boom
  • 250˚ rotation
  • European style butt-bypass grapple with high strength steel dampener
Standard Equipment
  • Funk 1200 Front Axle
  • NAF Bogie (HD) Rear Axle
  • Front Axle Bogie lift
  • Cat C6.6 ACERT Engine
  • 28 L x 26 Front Tire
  • 700/50 x 26.5 Rear Tire
  • Electric Power Shift Transmission
  • PVG 100 cc Variable displacement load sensing piston pump
  • Loader with Telescopic Boom - 6.93m (22 ft, 9 in) Reach
Optional Equipment
  • 30.5 x 32 Front Tire
  • 800/50 x 26.5 Rear Tire
  • 8.53 m (28 Sq ft) Clam Bunk
  • Bogie Tracks
