Overview

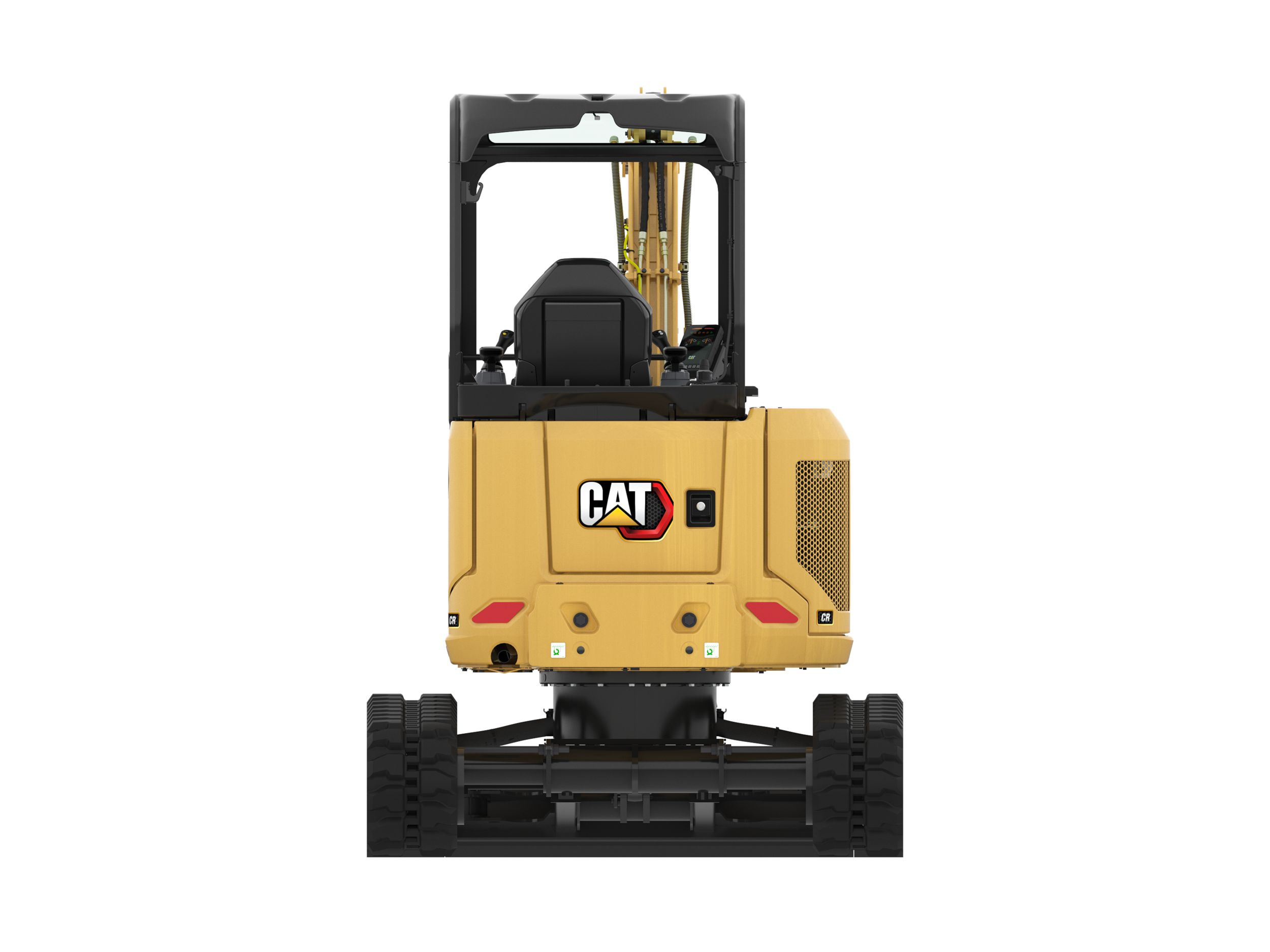

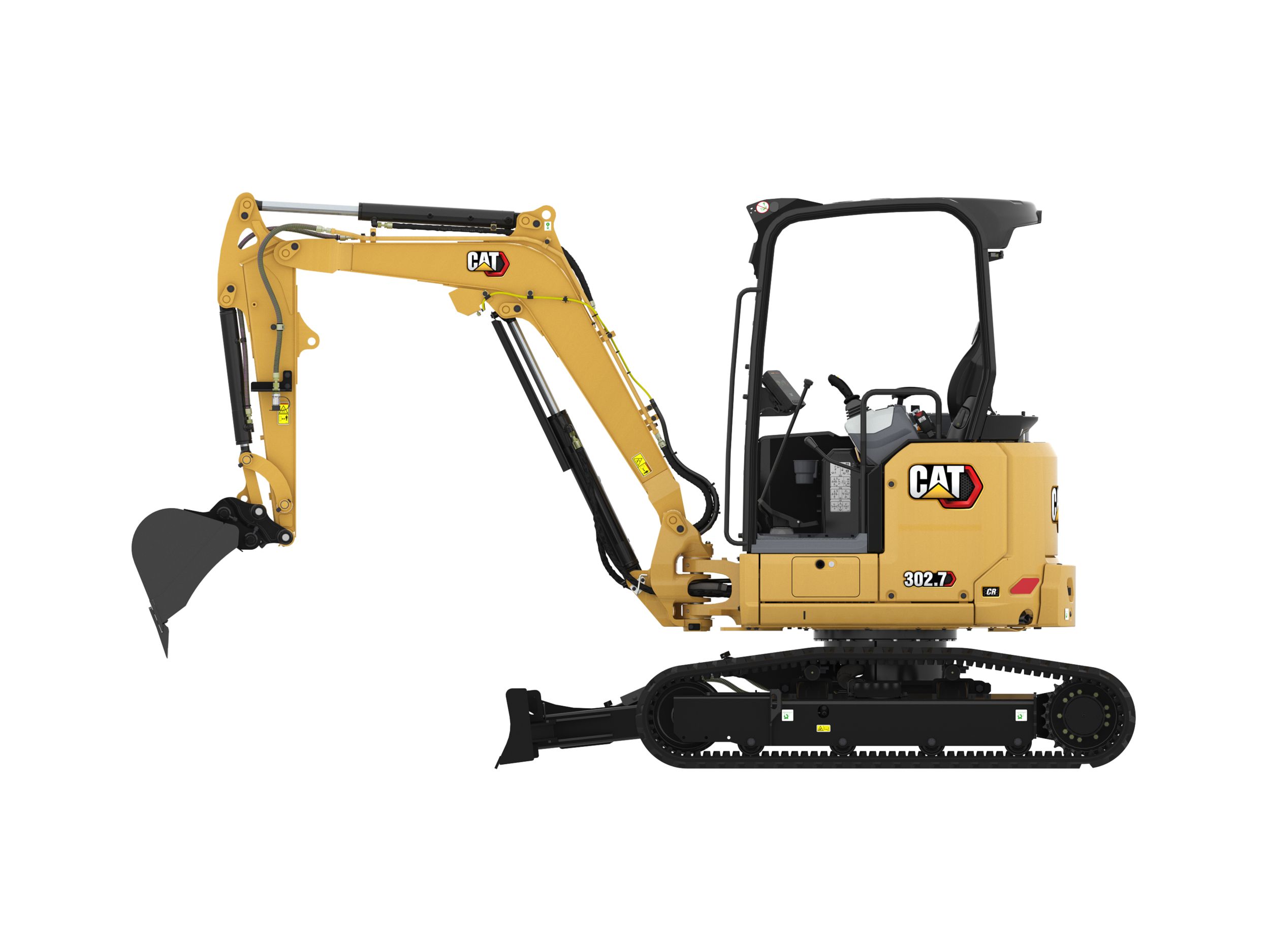

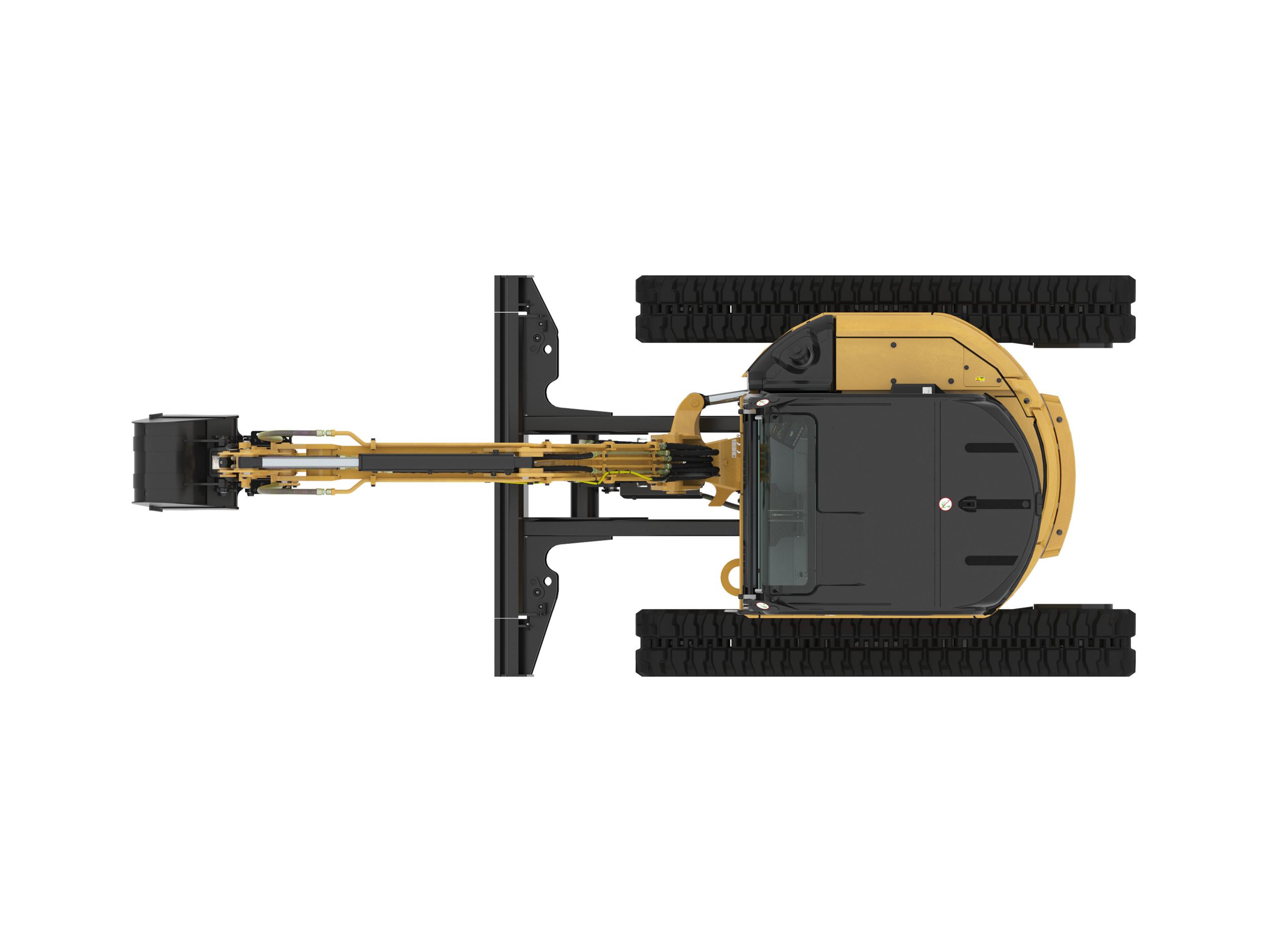

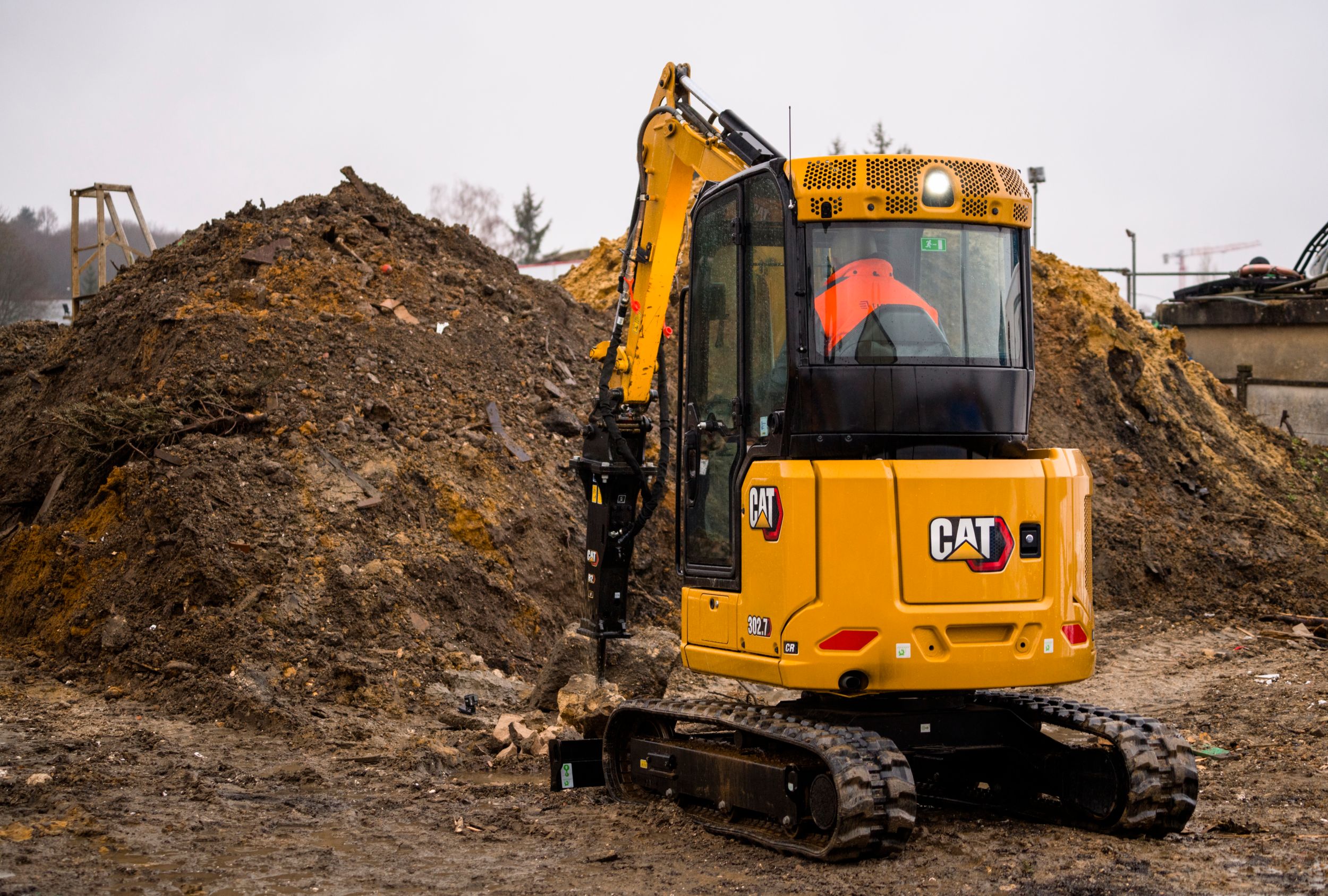

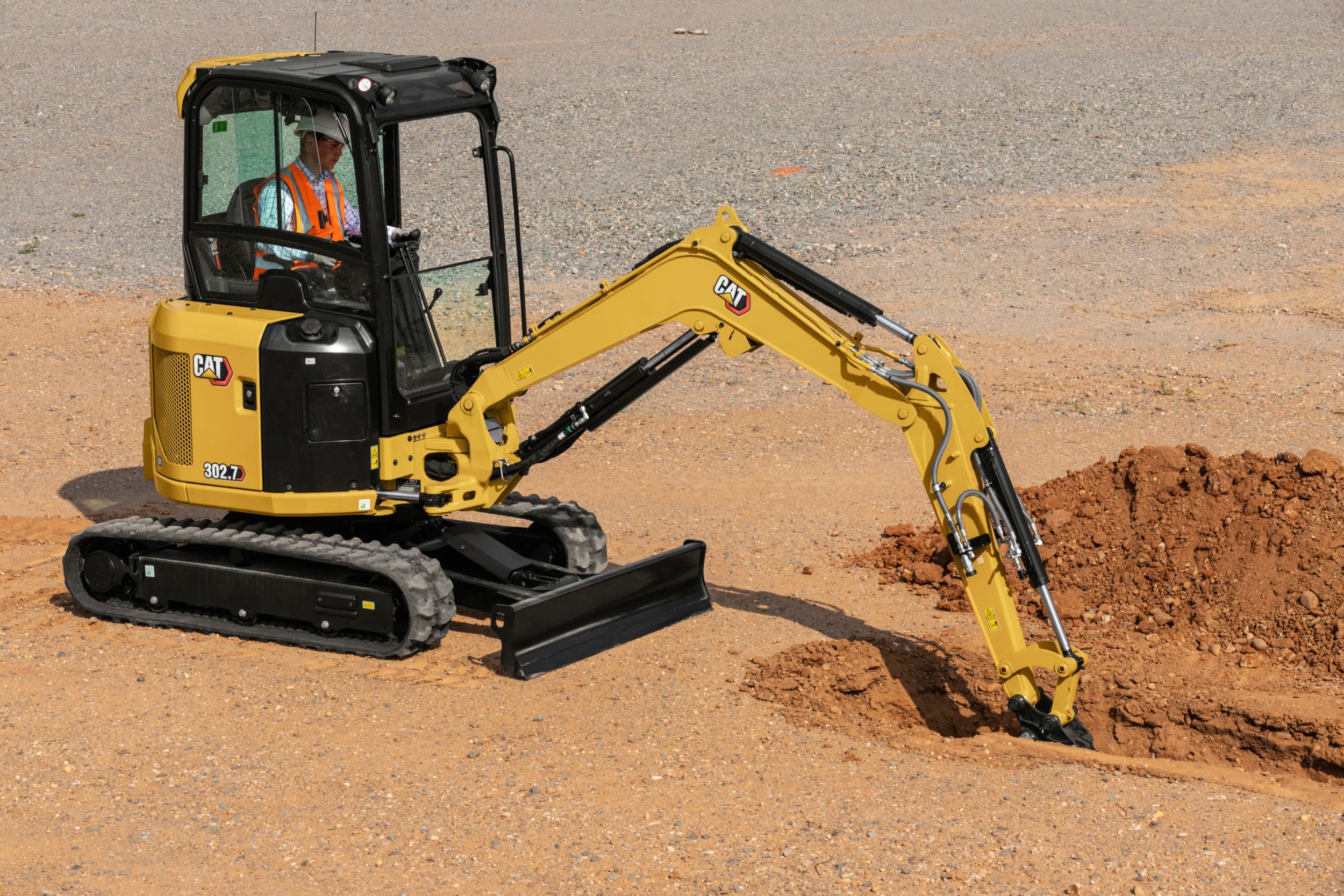

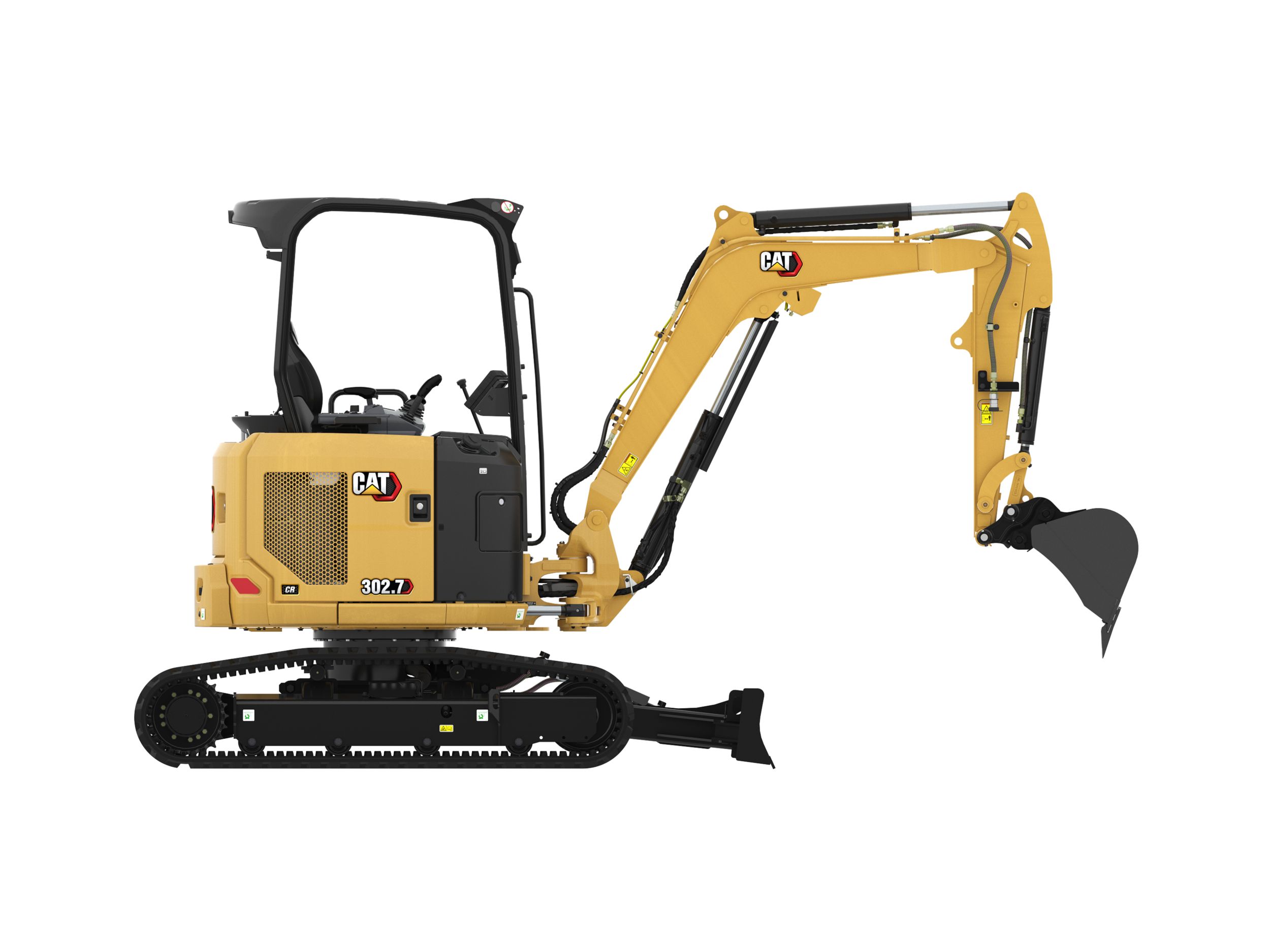

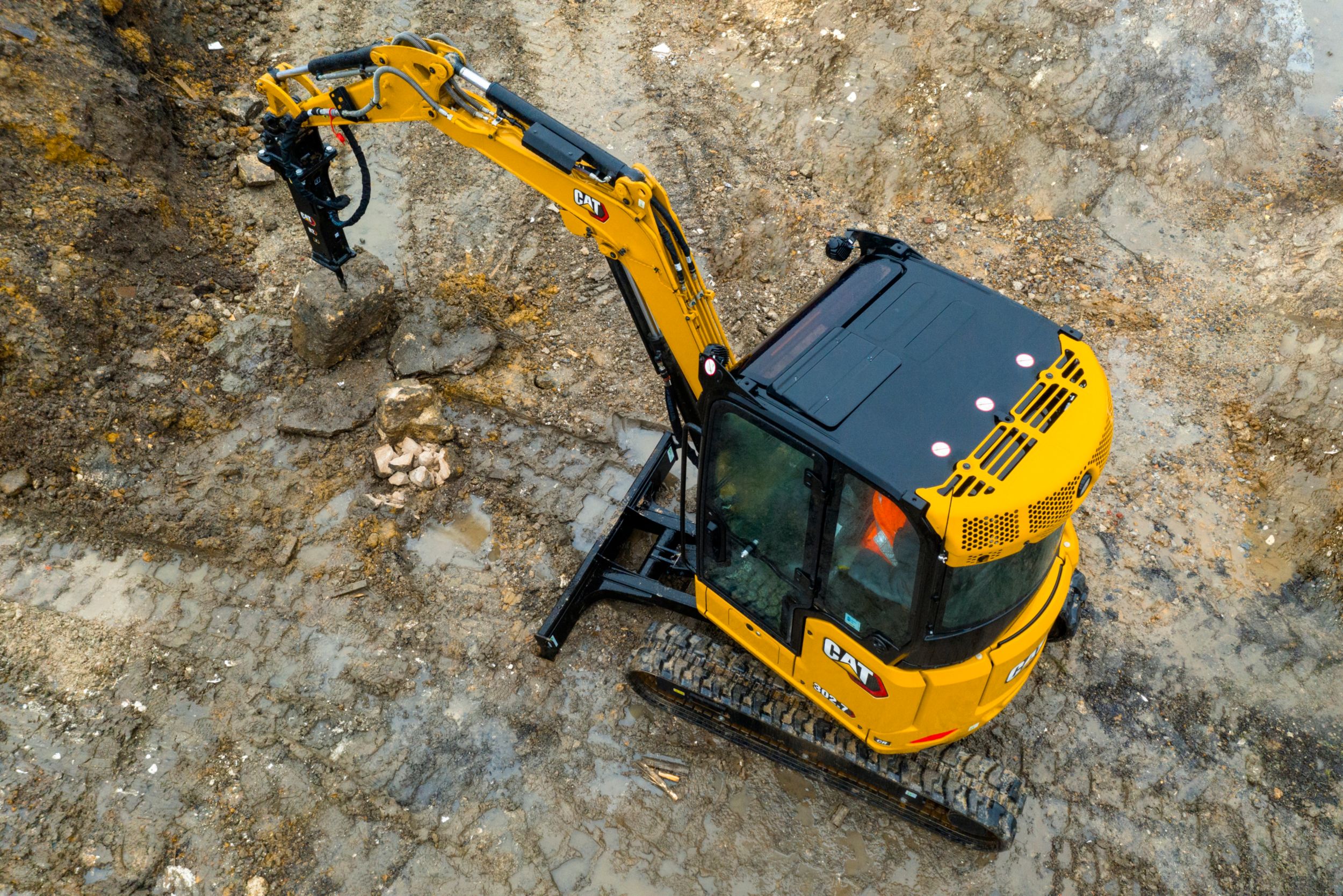

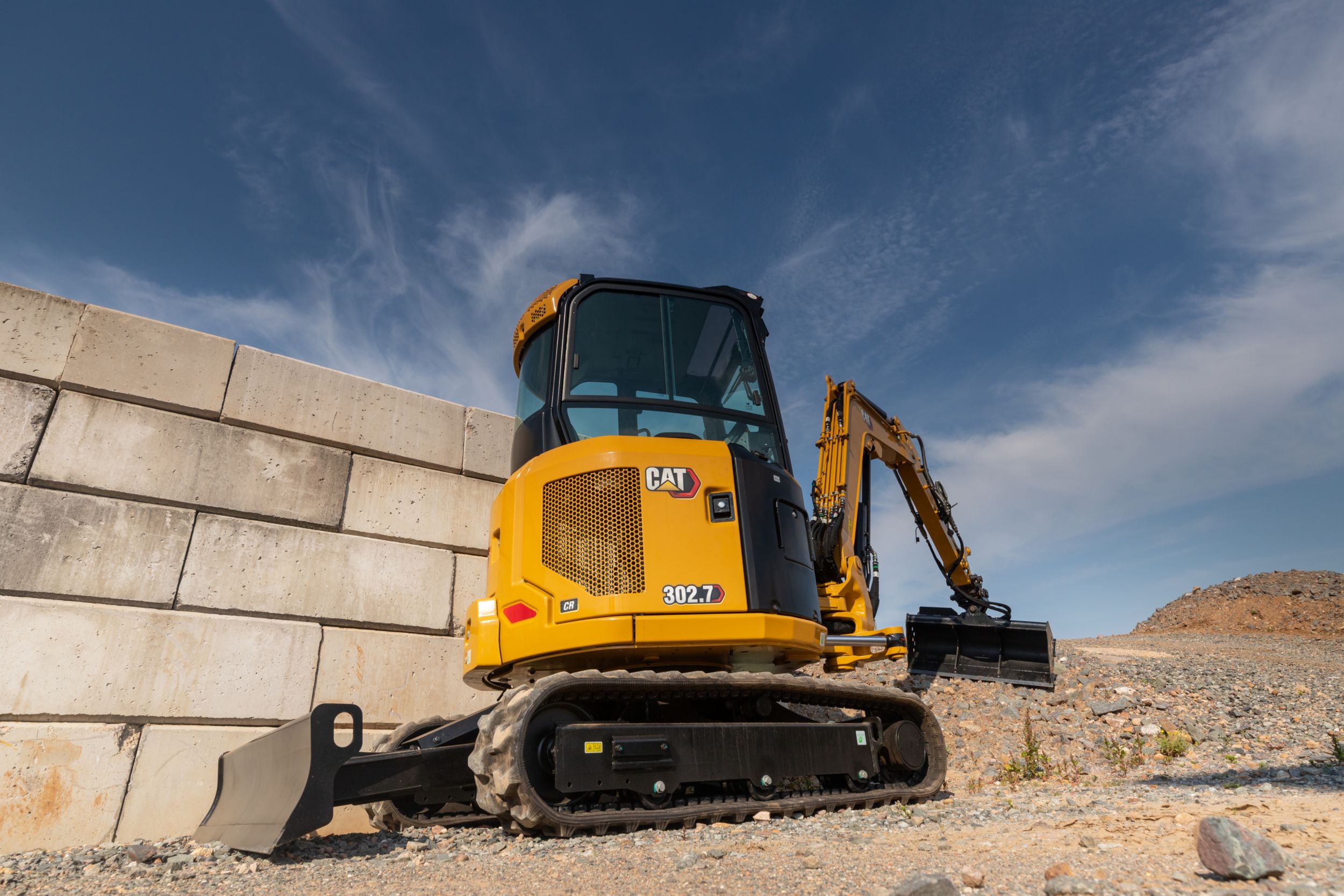

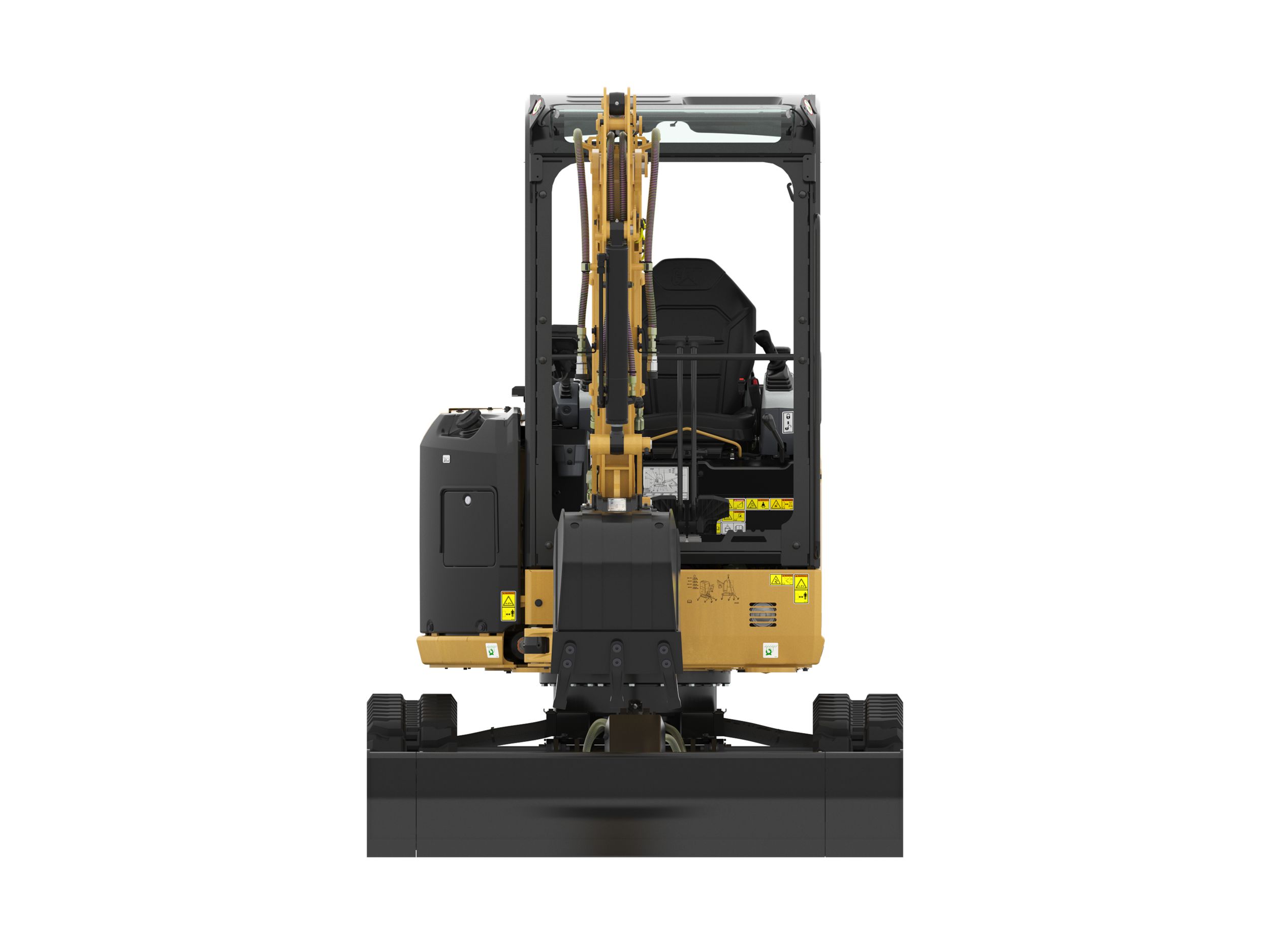

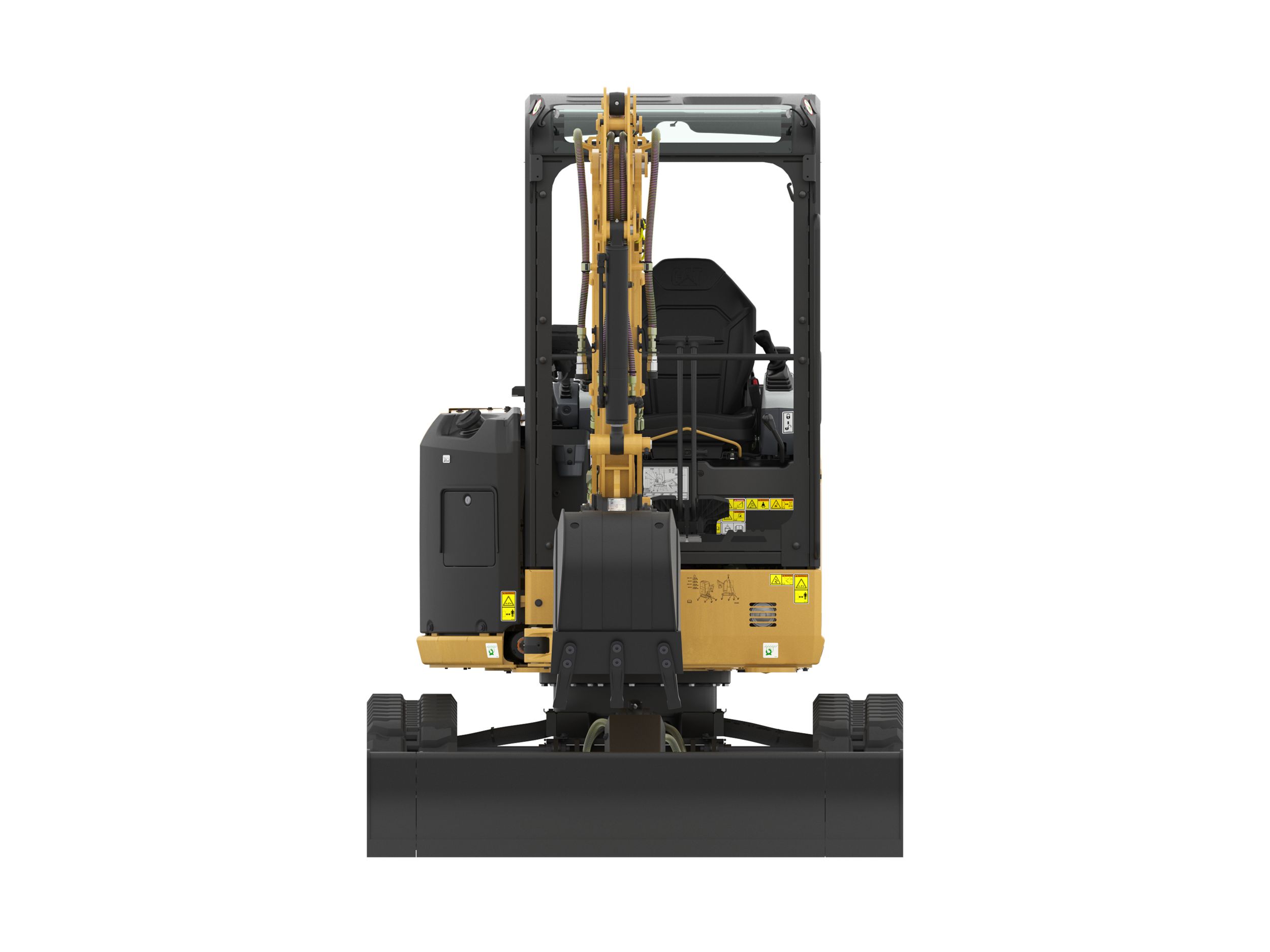

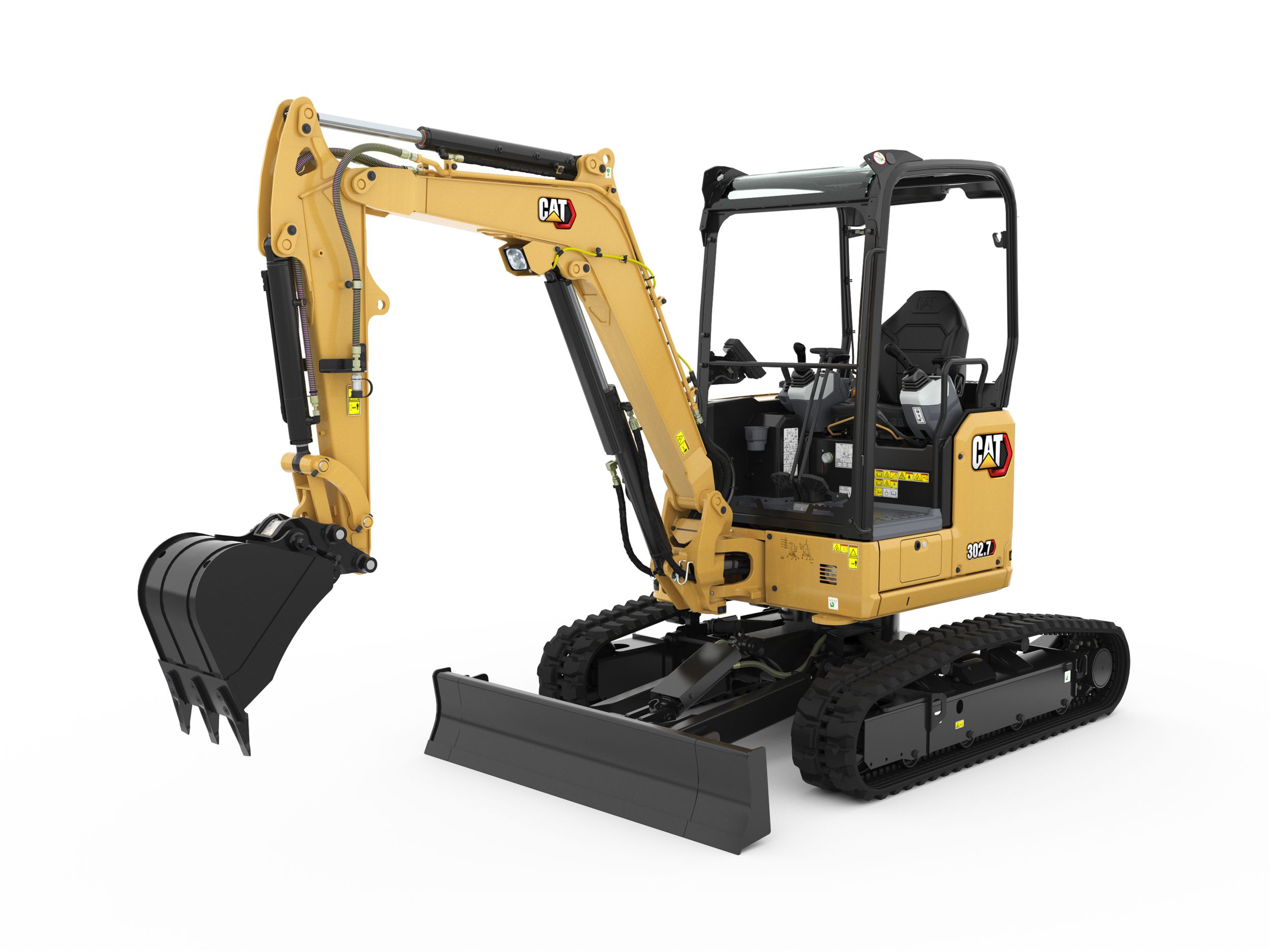

The Cat® 302.7 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Engine

Net Power
23.60 hp
17.60 kW
Engine Model
C1.1 Turbo
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC
23.60 hp
17.60 kW
Note
Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Bore
3.00 in
77.00 mm
Displacement
69.00 in³
1.10 l
Emissions
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Stroke
3.20 in
81.00 mm
Gross Power - 2,400 rpm - SAE J1995:2014
24.70 hp
18.40 kW

Weights

Operating Weight
6725.00 lb
3050.00 kg
Minimum Operating Weight with Canopy*
5645.00 lb
2560.00 kg
Maximum Operating Weight with Canopy**
6450.00 lb
2925.00 kg
Minimum Operating Weight with Cab*
5909.00 lb
2680.00 kg
EU: CE Plate Weight with Canopy***
5942.00 lb
2695.00 kg
EU: CE Plate Weight with Cab***
6174.00 lb
2800.00 kg
Note (2)
**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, bucket and extra counterweight.
Note (1)
*Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.
Maximum Operating Weight with Cab**
6725.00 lb
3050.00 kg
Note (3)
***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

Weight Increase from Minimum Configuration

Long Stick
33.00 lb
15.00 kg
Steel Tracks
221.00 lb
100.00 kg
Cab
276.00 lb
125.00 kg
Counterweight (extra)
551.00 lb
250.00 kg
Counterweight (light)
221.00 lb
100.00 kg

Travel System

Ground Pressure - Maximum Weight
4.20 psi
29.00 kPa
Ground Pressure - Minimum Weight
3.50 psi
24.20 kPa
Travel Speed - Low
1.60 mile/h
2.60 km/h
Gradeability - Maximum
30 degrees
Maximum Traction Force - High Speed
3507.00 lbf
15.60 kN
Travel Speed - High
2.80 mile/h
4.50 km/h
Maximum Traction Force - Low Speed
6025.00 lbf
26.80 kN

Service Refill Capacities

Hydraulic System
9.20 gal (US)
35.00 l
Hydraulic Tank
4.80 gal (US)
18.00 l
Fuel Tank
11.90 gal (US)
45.00 l
Engine Oil
1.10 gal (US)
4.00 l
Cooling System
1.10 gal (US)
4.00 l

Hydraulic System

Digging Force - Stick - Standard
3102.00 lbf
13.80 kN
Auxiliary Circuit - Primary - Pressure
3553.00 psi
245.00 bar
Operating Pressure - Swing
2553.00 psi
176.00 bar
Auxiliary Circuit - Secondary - Flow
7.00 gal/min
25.00 l/min
Auxiliary Circuit - Primary - Flow
17.00 gal/min
65.00 l/min
Auxiliary Circuit - Secondary - Pressure
3553.00 psi
245.00 bar
Operating Pressure - Equipment
3553.00 psi
245.00 bar
Digging Force - Stick - Long
2765.00 lbf
12.30 kN
Digging Force - Bucket
5238.00 lbf
23.30 kN
Operating Pressure - Travel
3553.00 psi
245.00 bar
Pump Flow at 2,400 rpm
26.00 gal/min
100.00 l/min
Type
Load Sensing Hydraulics with Variable Displacement Piston Pump
Note
Flow and pressure are not combinable. Under load, as flow rises pressure goes down.

Swing System

Machine Swing Speed
9.00 r/min
9.00 r/min
Boom Swing - Left
75 Degrees
Boom Swing - Right
50 Degrees

Blade

Height
12.60 in
320.00 mm
Width
61.80 in
1570.00 mm

Certification - Cab and Canopy

Top Guard
ISO 10262:1998 (Level I)
Tip Over Protective Structure (TOPS)
ISO 12117:1997
Roll Over Protective Structure (ROPS)
ISO 12117-2:2008

Sound

Operator Sound Pressure (ISO 6396:2008)
78.00 dB(A)
78.00 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)
94.00 dB(A)
94.00 dB(A)
Note
European Union Directive “2000/14/EC”

Dimensions - Standard Stick

Overall Shipping Length*
166.90 in
4240.00 mm
Boom In Reach
67.30 in
1710.00 mm
O/A Shipping Height
97.60 in
2480.00 mm
Swing Bearing - Height
22.00 in
560.00 mm
Stick Length
41.70 in
1060.00 mm
Maximum Reach
183.50 in
4660.00 mm
Maximum Dump Clearance
116.10 in
2950.00 mm
Maximum Dig Height
168.10 in
4270.00 mm
Tail Swing without Counterweight
30.50 in
775.00 mm
Tail Swing with Extra Counterweight
35.00 in
890.00 mm
Boom Swing - Right
32.70 in
830.00 mm
O/A Undercarriage Length
79.10 in
2010.00 mm
Vertical Wall
73.60 in
1870.00 mm
Note
*Overall Shipping Length depends on blade position during shipment.
Maximum Reach - Ground Level
177.60 in
4510.00 mm
Dig Depth
98.80 in
2510.00 mm
Track Belt/Shoe Width
11.80 in
300.00 mm
Maximum Blade Height
15.60 in
395.00 mm
Maximum Blade Depth
20.30 in
515.00 mm
Boom Swing - Left
23.80 in
605.00 mm
Ground Clearance
12.20 in
310.00 mm
Boom Height - Shipping Position
61.40 in
1560.00 mm
Tail Swing - with Light Counterweight
33.30 in
845.00 mm

Dimensions - Long Stick

Dig Depth
106.70 in
2710.00 mm
Boom Height - Shipping Position
65.00 in
1650.00 mm
Boom Swing - Right
32.70 in
830.00 mm
Maximum Reach - Ground Level
185.40 in
4710.00 mm
Maximum Blade Height
15.60 in
395.00 mm
Maximum Reach
190.90 in
4850.00 mm
Boom Swing - Left
23.80 in
605.00 mm
Maximum Blade Depth
20.30 in
515.00 mm
O/A Shipping Height
97.60 in
2480.00 mm
Maximum Dig Height
172.80 in
4390.00 mm
Stick Length
49.60 in
1260.00 mm
Tail Swing without Counterweight
30.50 in
775.00 mm
Boom In Reach
68.10 in
1730.00 mm
Maximum Dump Clearance
120.90 in
3070.00 mm
Swing Bearing - Height
22.00 in
560.00 mm
Vertical Wall
80.70 in
2050.00 mm
O/A Undercarriage Length
79.10 in
2010.00 mm
Ground Clearance
12.20 in
310.00 mm
Track Belt/Shoe Width
11.80 in
300.00 mm
Overall Shipping Length*
168.50 in
4280.00 mm
Note
*Overall Shipping Length depends on blade position during shipment.
Tail Swing - with Extra Counterweight
35.00 in
890.00 mm
Track Width
61.80 in
1570.00 mm
Tail Swing - with Light Counterweight
33.30 in
845.00 mm

Sustainability

Recyclability
95%
Features

ALL DAY COMFORT

  • Choose either a canopy or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat option to help keep you working comfortably all day long.

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped.

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

  • Strong lift and dig performance helps you get the job done faster. The compact radius design and retractable undercarriage let you access and work in the tightest areas. Dozer float allows for easy clean up.

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab or canopy lets you reach additional service areas when needed.

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

  • Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

  • The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
  • The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)
Standard Equipment
  • ENGINE
    • Cat® C1.1 Turbo Engine (U.S. EPA Tier 4 Final/EU Stage V)
    • Automatic Engine Idle
    • Automatic Engine Shutdown
    • Automatic Two Speed Travel
    • Fuel Water Separator
    • Power on Demand (not available in all regions)
    • Variable Displacement Piston Pump
    • Load Sensing/Flow Sharing Hydraulics
  • HYDRAULICS
    • Smart Tech Electronic Pump
    • Accumulator
    • Automatic Swing Brake
    • Auxiliary Hydraulic Lines
    • One and Two Way Auxiliary Flow
    • Continuous Auxiliary Flow
    • Auxiliary Line Quick Disconnects
  • OPERATOR ENVIRONMENT
    • Tilt-up Canopy or Tilt-Up Cab
    • Top Guard ISO 10262:1998 Level I
    • ROPS – ISO 12117-2:2008
    • TOPS – ISO 12117:1997
    • Stick Steer Mode
    • Travel Cruise Control
    • Control Pattern Changer (optional in some regions)
    • Adjustable Wrist Rests
    • Washable Floor Mat
    • Travel Pedals and Hand Levers
    • Machine Security
    • Standard Key with Pass Code
    • Fabric Suspension Seat (Cab only)
    • Vinyl Suspension Seat (Canopy only)
    • Hydraulic Lockout – All Controls
    • Retractable High Visibility Seat Belt (75 mm/3 in)
    • Coat Hook
    • Cup Holder
    • Storage Pocket
    • Skylight
    • Mounting Bosses for Front
    • Signaling/Warning Horn
    • Interior Light (Cab only)
    • Boom Light, Halogen (not available in all regions)
    • Utility Space for Mobile Phone
    • Next Generation Color LCD Monitor (IP66)
      – Fuel Level and Coolant Temperature Gauges
      – Maintenance and Machine Monitoring
      – Performance and Machine Adjustments
      – Numeric Security Code
      – Multiple Languages
      – Hour Meter with Wake Up Switch
      – Jog Dial (Cab only)
  • UNDERCARRIAGE
    • Rubber Belt (300 mm/11.8 in wide)
    • Dozer Blade
    • Dozer Blade Float
    • Tie Downs on Track Frame
  • BOOM, STICK AND LINKAGES
    • One Piece Boom (2085 mm/82.1 in)
    • Standard Stick (1060 mm/41.7 in)
    • Front Shovel Capable
    • Front Shovel Capable – Pin-On
    • Thumb Ready (not available in all regions)
    • Certified Lifting Eye (optional in some regions)
  • ELECTRICAL
    • 12 Volt Battery
    • Software (machine and monitor)
    • Maintenance Free Battery
    • Battery Disconnect
    • Signaling/Warning Horn
    • 12 Volt Power Socket
Optional Equipment
  • OPERATOR ENVIRONMENT
    • Cab with Air Conditioning
    • Cab with Heater
    • No Travel Pedals and Hand Levers (optional in some regions)
    • Push to Start with Key Fob/Pass Code
    • Vinyl Non-Suspension Seat (Canopy only) (not available in all regions)
    • LED Front Lights
    • LED Front and Rear Lights
    • LED Boom Light
    • Mirrors Left and Right
    • Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
    • Next Generation Advanced Monitor
      – Touchscreen
      – Site Reference System
      – High Definition Camera Capable (IP68 and IP69K)
      – Numeric Security Code
  • UNDERCARRIAGE
    • Steel Track (300 mm/11.8 in wide)
  • BOOM, STICK AND LINKAGES
    • Long Stick (1260 mm/49.6 in)
    • Front Shovel Capable – Dual Lock Manual Coupler
    • Attachments including Couplers, Thumbs, Buckets, Augers and Hammers
    • 2nd Auxiliary Hydraulic Lines
    • Bucket Divert Lines
    • Boom Lowering Check Valve
    • Stick Lowering Check Valve
    • Hydraulic Quick Coupler Lines (not available in all regions)
  • ELECTRICAL
    • Product Link PL243 (regulations apply)
    • Product Link PLE643 (regulations apply)
    • Travel Alarm (standard in some regions)
  • GUARDING
    • Polycarbonate Half Height Front Guard (Canopy only)
    • Polycarbonate Front Guard (ISO 10262 1998 Level I and EN356 P5A)
  • OTHER
    • Bio Oil Capable
    • Eco Drain
    • Water Jacket Heater
    • Light Counterweight (100 kg/221 lb)
    • Extra Counterweight (250 kg/551 lb)
