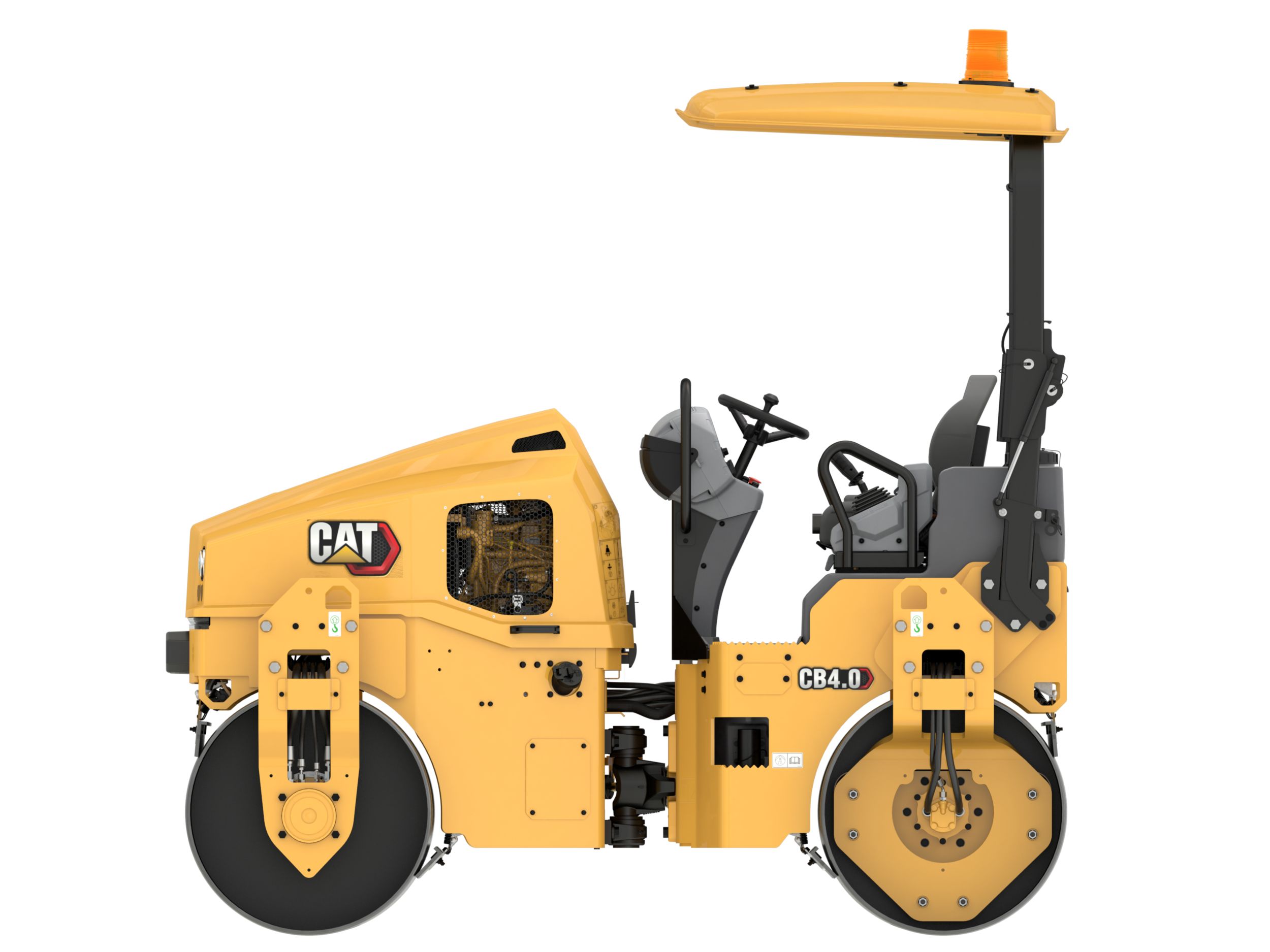

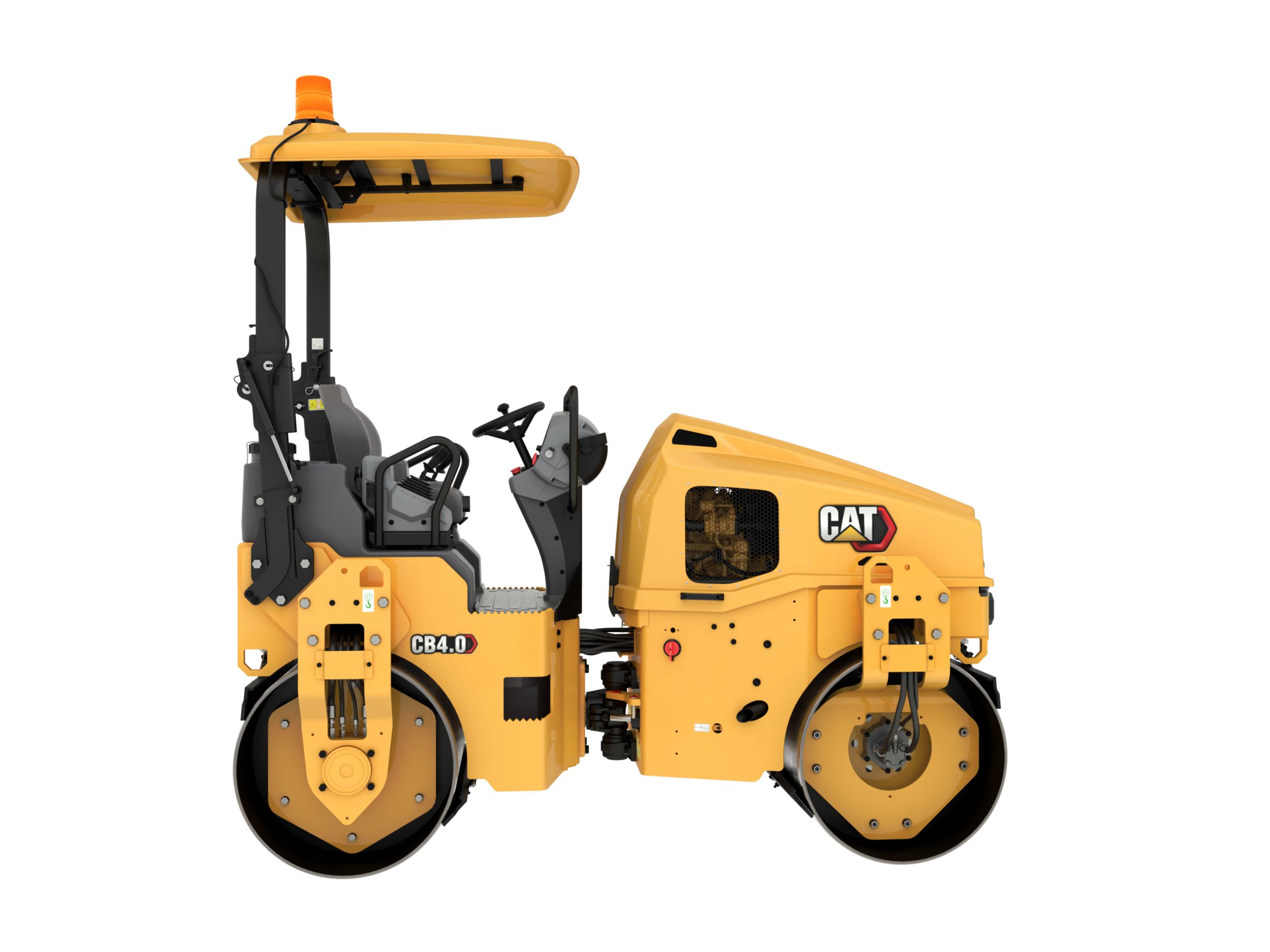

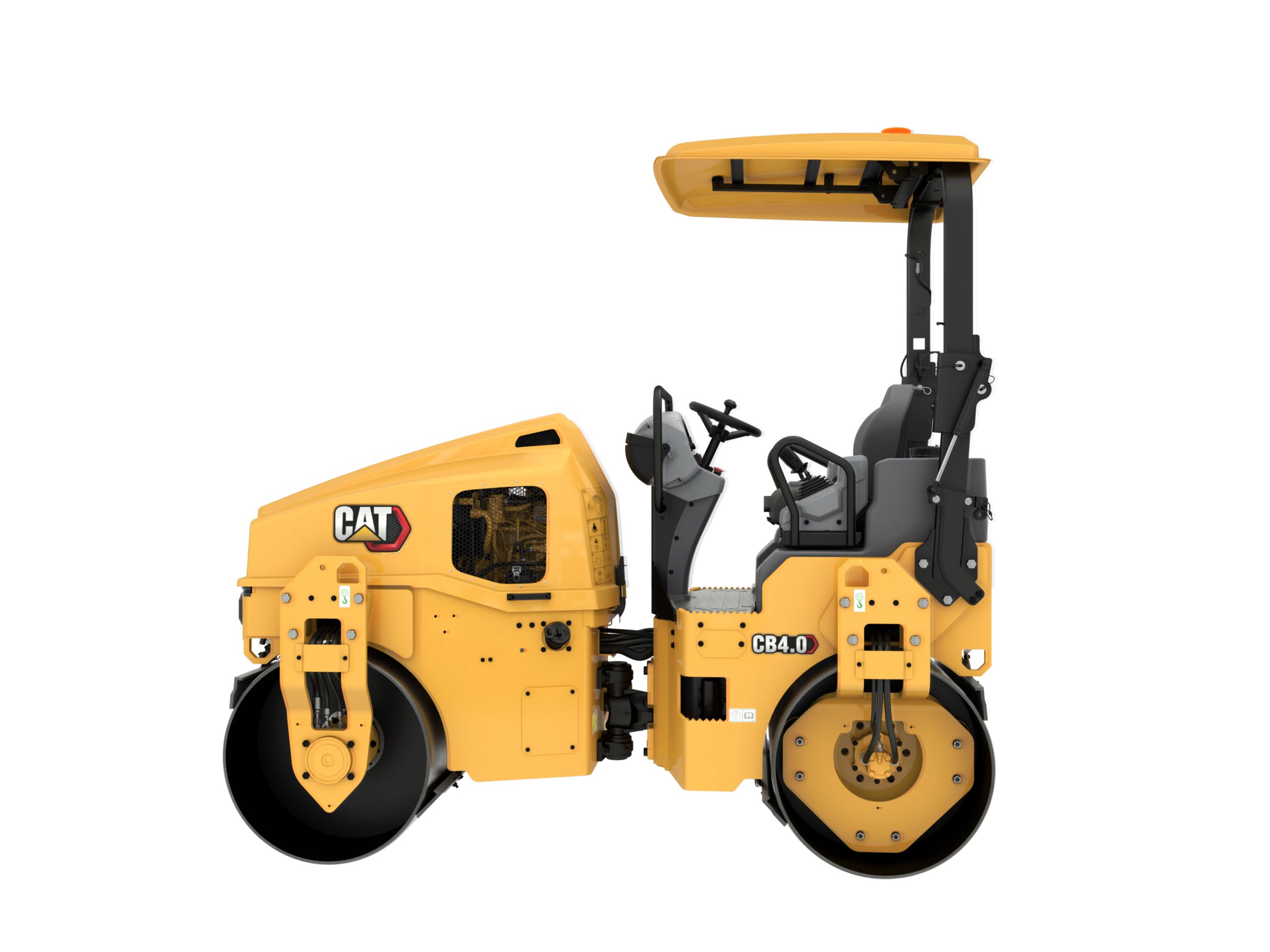

CB4.0 Utility Compactor
US
Metric
Overview

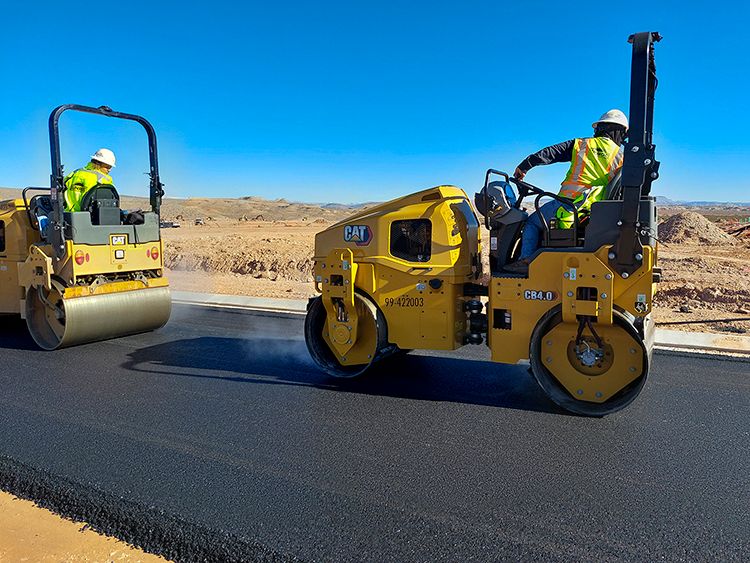

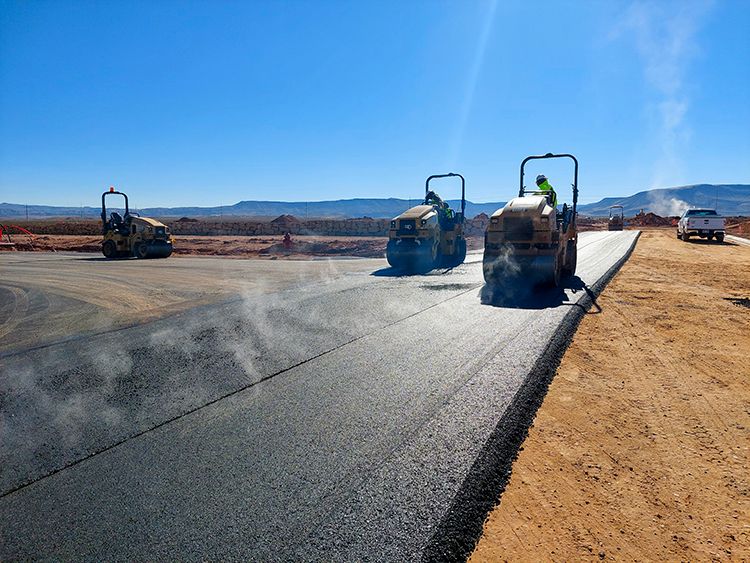

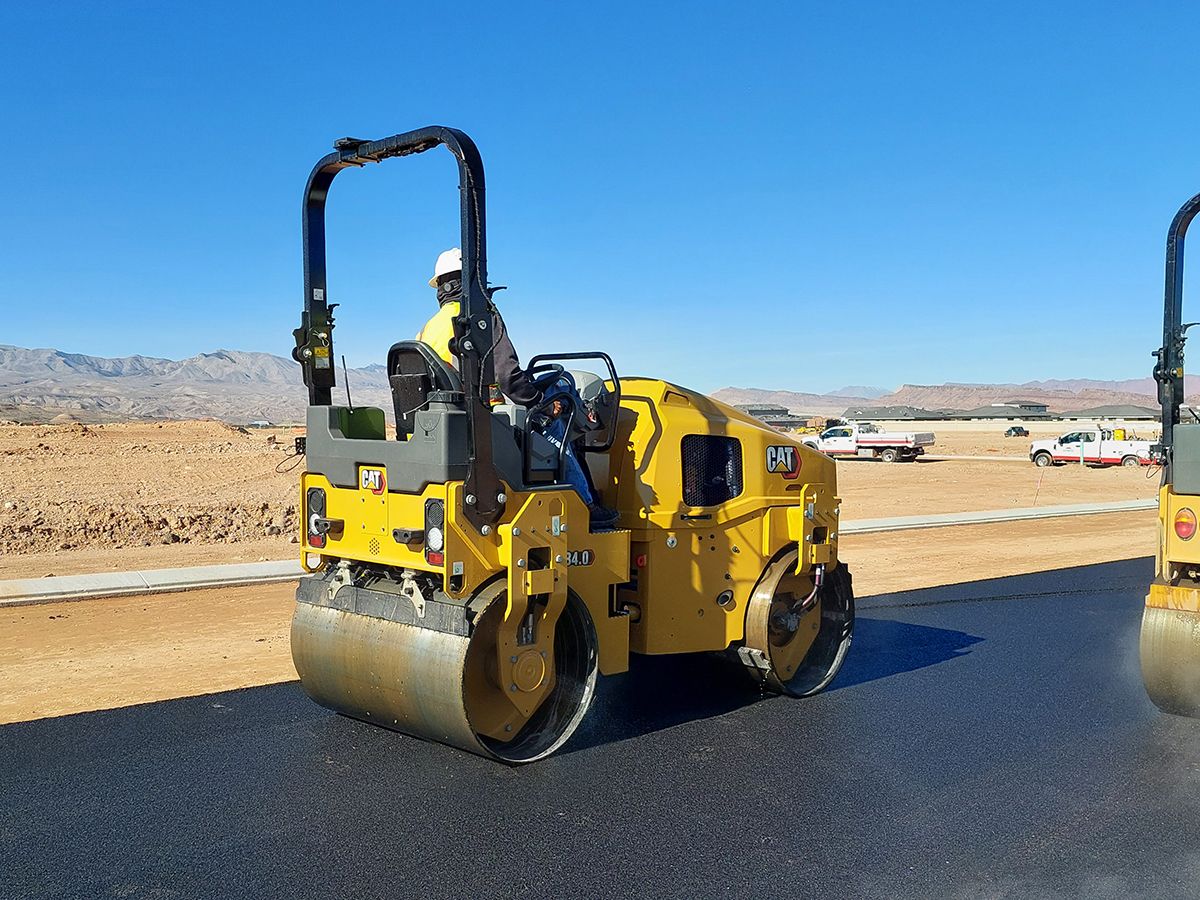

The CB4.0 is a 3-5 metric ton compactor with 800 mm (31.5 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.
Weights
Standard Operating Weight with ROPS
7971.00 lb
3623.00 kg
Maximum Operating Weight with ROPS
9493.00 lb
4315.00 kg
Static Linear Load
59.80 lb/in
13.90 kg/cm
Dimensions
Compaction Width
51.20 in
1300.00 mm
Overall Length
112.30 kg/cm
2853.00 mm
Operating Specifications
Drum Offset
2.00 in
50.00 mm
Dimensions
Overall Width
55.10 in
1400.00 mm
Operating Specifications
Curb Clearance
19.60 in
499.00 mm
Dimensions
Drum Width
51.20 in
1300.00 mm
Operating Specifications
Ground Clearance
11.20 in
284.00 mm
Dimensions
Drum Diameter
31.50 in
800.00 mm
Operating Specifications
Travel Speed - Maximum
8.10 mile/h
13.00 km/h
Dimensions
Wheel Base
80.70 in
2050.00 mm
Operating Specifications
Turning Radius - Inside Drum Edge
115.20 in
2926.00 mm
Dimensions
Height - ROPS
104.70 in
2660.00 mm
Operating Specifications
Turning Radius - Outside Drum Edge
166.40 in
4226.00 mm
Engine
Gross Power
48.20 HP
36.00 kW
Engine Model
C1.7T
Net Power - ISO 9249
47.60 HP
35.50 kW
Vibratory System
Frequency
55/45 Hz (3300/2700 vpm)
Nominal Amplitude - High
0.02 in
0.50 mm
Centrifugal Force - Maximum
7524.00 lb/ft
33.47 kN
Service Refill Capacities
Fuel Tank Capacity
21.43 gal (US)
81.00 l
Water Spray Tank Capacity
79.00 gal (US)
300.00 l
Vibratory System
Frequency
3300.00 VPM
55.00 Hz
Weights
Operating Weight - At Front Drum with ROPS/FOPS
3837.00 lb
1744.00 kg
Operating Weight - At Rear Drum with ROPS/FOPS
4134.00 lb
1879.00 kg
Features
Simple to Operate
Proven Productivity
Technology Ready
Superior Safety
Easy to Service
Standard Equipment
- OPERATOR ENVIRONMENT
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
- COMPACTON SYSTEM
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
- POWERTRAIN
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
- TECHNOLOGY
- Telematics
- ELECTRICAL
- LED Working Lights
- OTHER
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
Optional Equipment
- OPERATOR ENVIRONMENT
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
- COMPACTON SYSTEM
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 400 kg (880 lb)
- Ballast Kit - 542 kg (1194.91 lb)
- POWERTRAIN
- Traction Control
- TECHNOLOGY
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
- ELECTRICAL
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
- OTHER
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
