Waste Handler Track Loaders

963K WH Waste Handler Track Loader

Request A Quote 963K WH Attachments New and Used Inventory

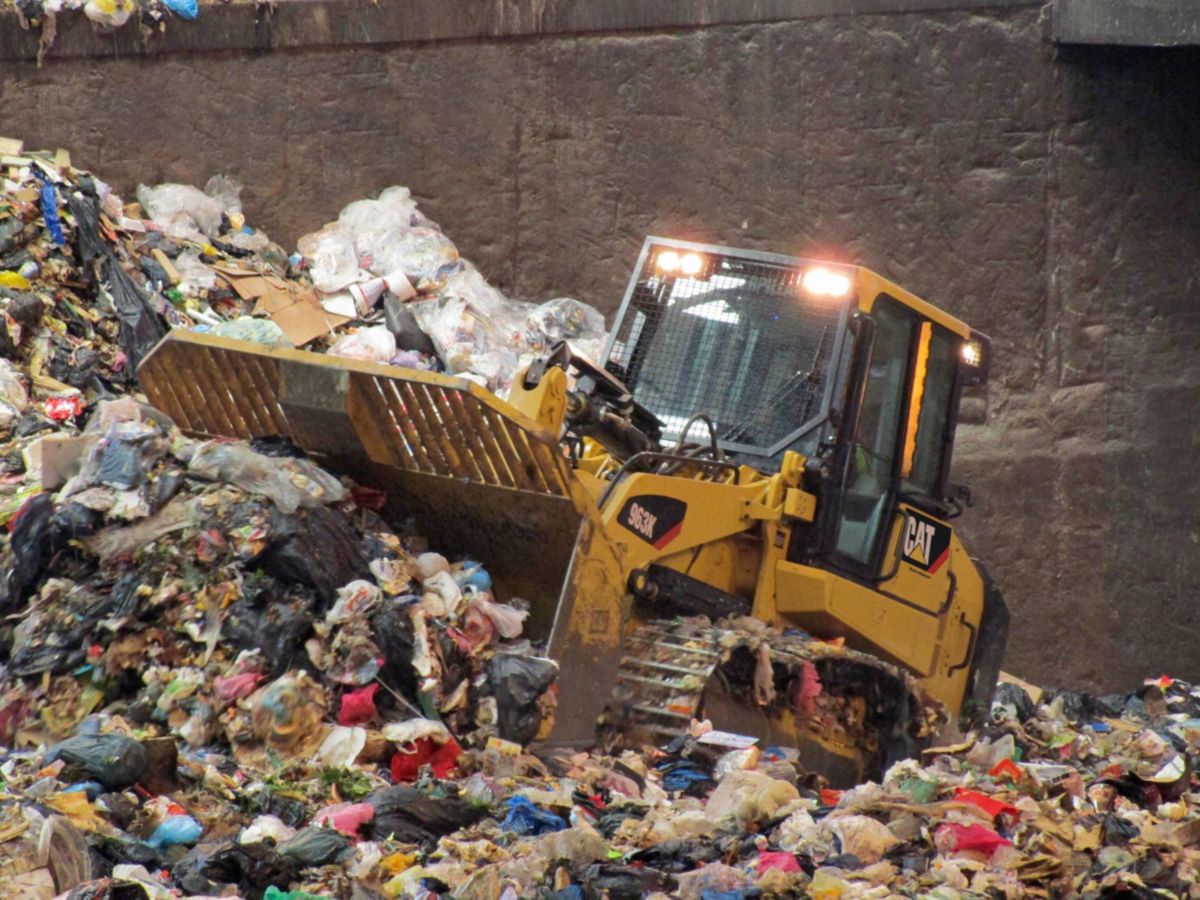

963K WH Waste Handler Track Loader

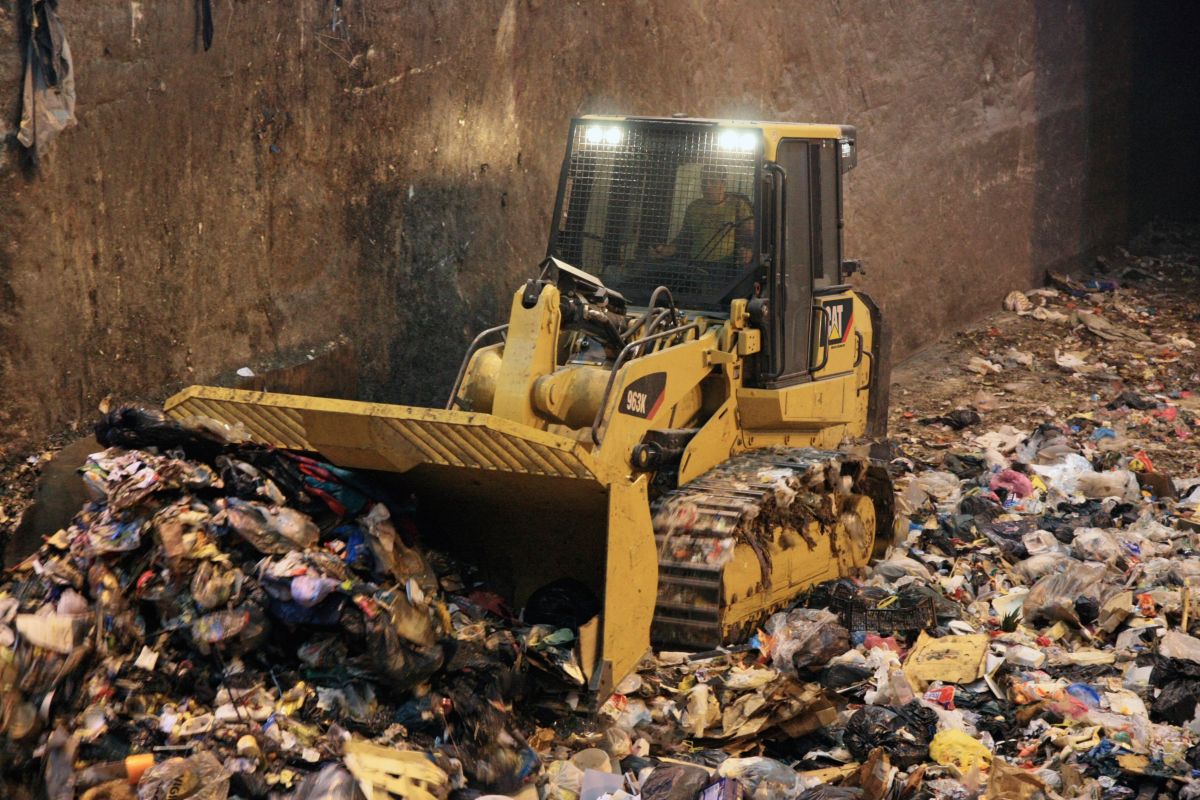

963K WH Waste Handler Track Loader

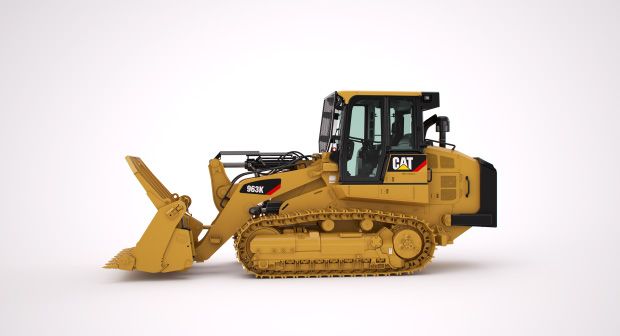

963K WH Waste Handler Track Loader
963K WH Waste Handler Track Loader

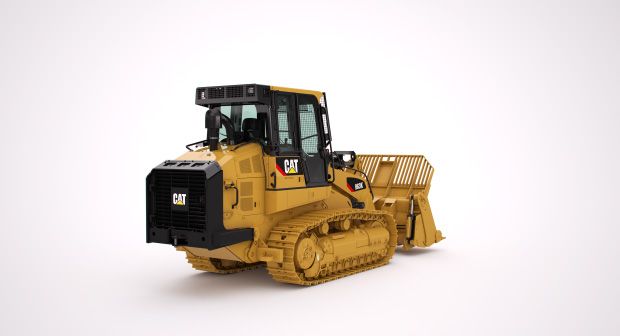

963K WH Waste Handler Track Loader

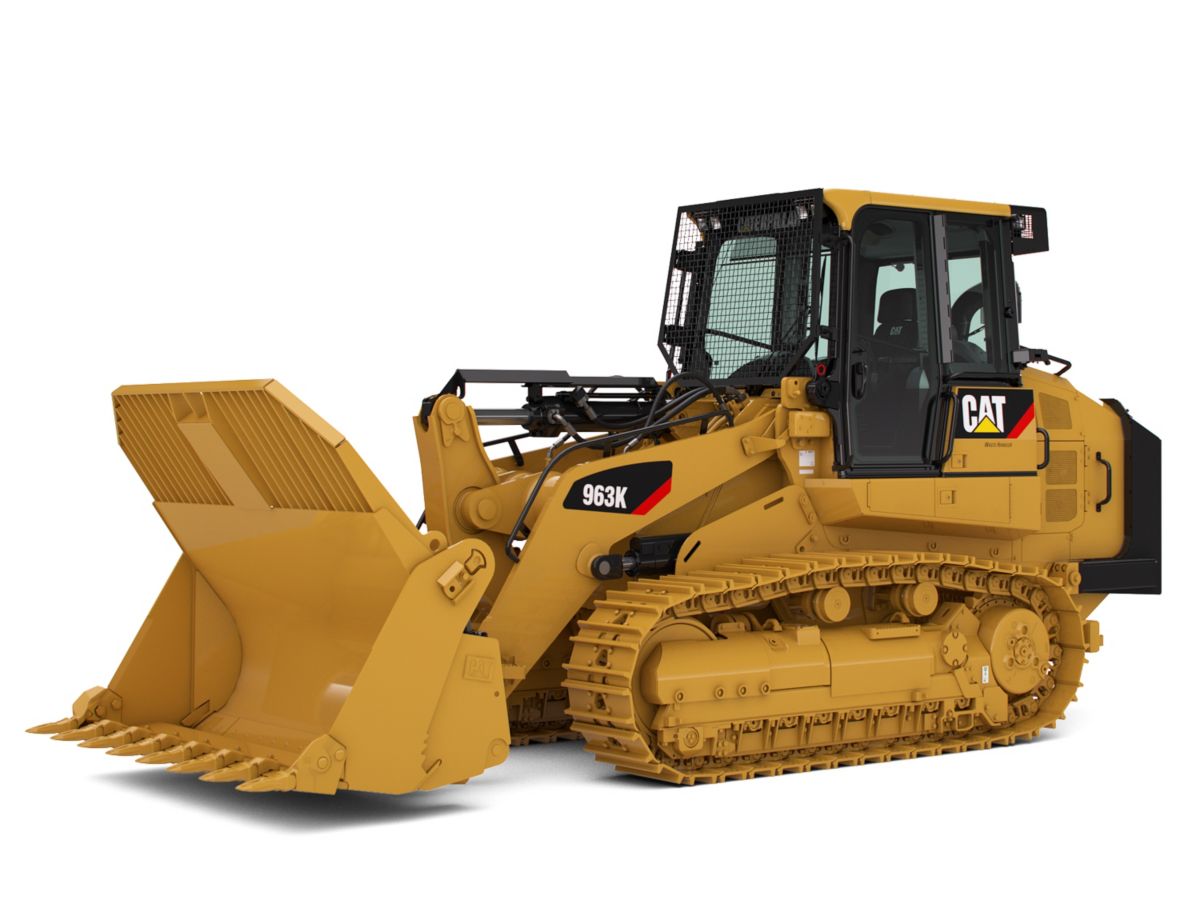

963K WH Waste Handler Track Loader

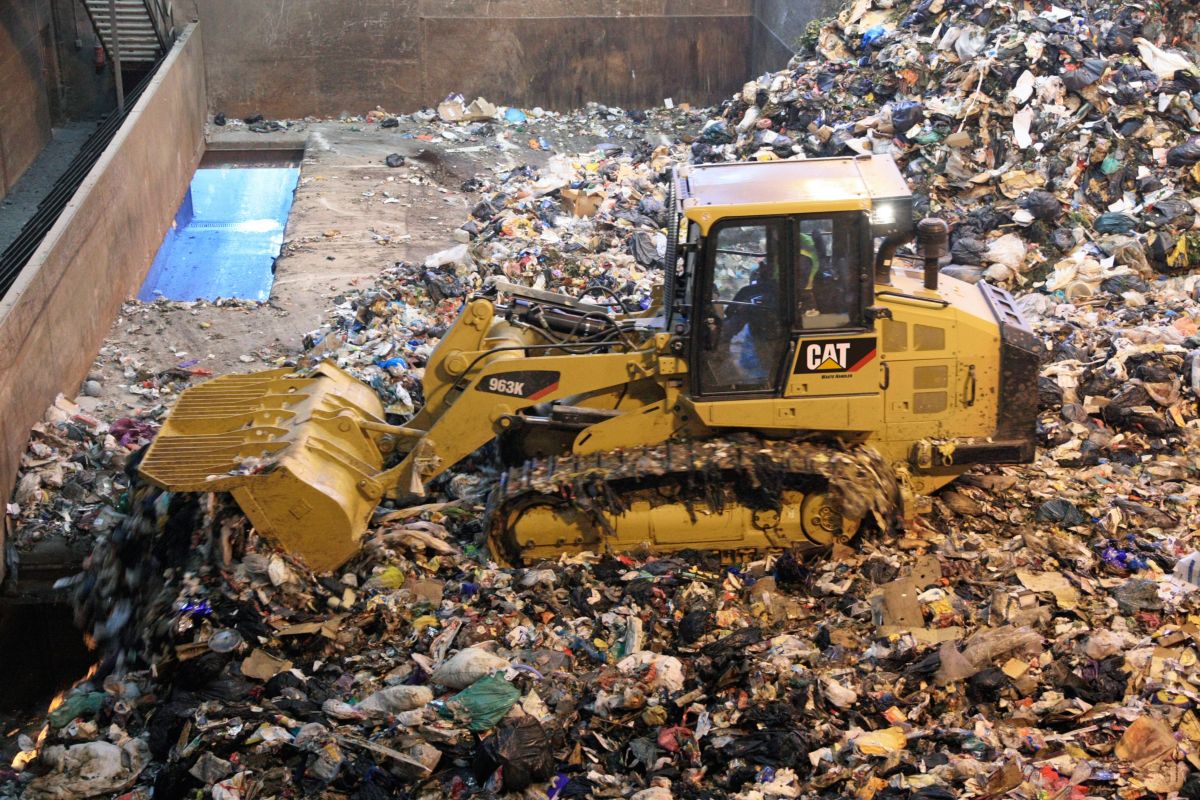

963K WH Waste Handler Track Loader
US
Metric

Overview

From loading to sorting to excavation and spreading cover material, the track loader is one of the most versatile pieces of equipment in your landfill or transfer station. The Waste Handling Arrangement features added guarding and seals to gives you a machine that is purpose built to take on the challenges of waste applications. A choice of buckets and track shoes allow you to further optimize the machine for greater performance and service life. The new 963K offers added fuel efficiency over the previous model, as well as greater comfort and improved implement and steering response. The 963K meets U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 emission standards.

Engine

Engine Model
Cat® C7.1 ACERT™
Engine Power (Maximum) – ISO 14396
221.00 hp
165.00 kW

Weights

Operating Weight
46518.00 lb
21100.00 kg

Buckets

Capacity - General Purpose Landfill
4.05 yd³
3.10 m³
Capacity – General Purpose
3.20 yd3
2.45 m3
Capacity – Landfill
4.05 yd3
3.10 m3
Capacity – Multi-Purpose
2.48 yd3
1.90 m3
Capacity – Performance Series
3.66 yd3
2.80 m3
Bucket Width - Landfill
102.80 in
2612.00 mm
Bucket Width – General Purpose
102.80 in
2612.00 mm
Bucket Width - Performance Series
106.80 in
2712.00 mm

Undercarriage

Track Shoe Width – Standard
21.60 in
550.00 mm
Track Shoe Width – Optional
17.70 in
450.00 mm
Track Gauge
72.80 in
1850.00 mm
Track on Ground
100.00 in
2542.00 mm
Ground Contact Area – Standard Shoe
4340.00 in2
2.80 m2
Ground Contact Area – Optional Shoe
3565.00 in2
2.30 m2
Ground Pressure – Standard Shoe
10.30 psi
70.90 kPa
Ground Pressure – Optional Shoe
12.40 psi
85.50 kPa
Track Shoe Type
Double Grouser

Service Refill Capacities

Fuel Tank
84.50 gal
320.00 L
Cooling System
8.45 gal
32.00 L
Crankcase (with filter)
4.40 gal
16.50 L
Final Drives (each)
4.00 gal
15.00 L
Hydraulic Tank
23.70 gal
90.00 L

Ripper Specifications

Type
Radial
Number of Pockets
3
Overall Width/Beam
76.70 in
1950.00 mm
Penetration
11.60 in
295.00 mm
Ripping Width
72.30 in
1836.00 mm

Engine

Engine Power (Maximum) – ISO 14396 (DIN)
224.00 hp
165.00 kW
Net Power (Rated) – ISO 9249/SAE J1349
193.00 hp
144.00 kW
Net Power (Rated) – ISO 9249/SAE J1349 (DIN)
196.00 hp
144.00 kW
Emissions
Tier 4 Final/Stage IV/Korea Tier 4
Bore
4.13 in
105.00 mm
Stroke
5.31 in
135.00 mm
Displacement
427.80 in3
7.01 L

Undercarriage

Track Rollers – Each Side
7
Number of Shoes – Each Side
38
Grouser Height – Double Grouser
1.65 in
42.00 mm

Drive System

Track Motor
Two, variable displacement, bent axis motors
Drive System
Hydrostatic drive with infinite machine speeds to 10.0 km/h (6.2 mph)
Drive Pump
Two, variable displacement, slipper-type axial piston pumps
Relief Valve Setting
6890.00 psi
47500.00 kPa

Service Refill Capacities

Pivot Shaft
0.50 gal
1.80 L
DEF Tank
4.22 gal
16.00 L

Buckets

Bucket Width – Multi-Purpose
101.30 in
2575.00 mm

Bucket Cycle Times

Lift
5.50 seconds
5.50 seconds
Power Down
3.70 seconds
3.70 seconds
Float Down
2.00 seconds
2.00 seconds
Dump at Maximum Height (from full rackback)
1.30 seconds
1.30 seconds
Rackback at Maximum Height (from full dump)
1.40 seconds
1.40 seconds

Ripper Specifications

Shank Cross Section
58.5 mm × 138 mm (50 in × 5.4 in)
Ground Clearance
23.40 in
595.00 mm
Cylinders – Bore
4.50 in
114.30 mm
Cylinders – Stroke
11.30 in
289.00 mm
Added Machine Length with Ripper in Transport Position
24.00 in
610.00 mm

Hydraulic System – Equipment

Type
Closed center, load sensing piston
Output
60.80 gal/min
230.00 L/min
Main Relief Valve Setting
3989.00 psi
27500.00 kPa

Standards

ROPS
Meets ROPS criteria SAE J1040 MAY94, ISO 3471:1994 DLV criteria SAE J397B, ISO 3164:1995
FOPS
Meets SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II DLV criteria SAE J397B, ISO 3164:1995
Brakes
Meet SAE J/ISO 10265 MAR99 ISO 10265:1998
Cab (1)
Declared dynamic operator sound pressure level is 73 dB(A) when “ISO 6396:2008” is used to measure value for enclosed cab
Cab (2)
Hearing protection is recommended when operating with an open operator station and cab
Cab (3)
Declared exterior sound power level is 108 dB(A) when value is measured according to “ISO 6395:2008”
Cab (4)
The labeled sound power level is 111 dB(A) measured according to the test procedure and conditions specified in 2000/14/EC.

Dimensions (Approximate)

Overall Machine Width without Bucket: With Standard Tracks - 550 mm (21.6 in) Shoes
94.50 in
2400.00 mm
Overall Machine Width without Bucket: With Narrow Tracks - 450 mm (17.7 in) Shoes
90.50 in
2300.00 mm
Ground Clearance
18.50 in
471.00 mm
Machine Height to Top of Cab
130.90 in
3325.00 mm
Length to Front of Track
197.00 in
5005.00 mm
Overall Machine Length*
278.00 in
7063.00 mm
Carry Position Approach Angle
15°
Digging Depth*
5.40 in
138.00 mm
Maximum Rollback at Ground
43°
Maximum Rollback at Carry Position
50°
Bucket Height in Carry Position
18.00 in
457.00 mm
Reach at Full Lift Height and 45° Dump*
54.00 in
1373.00 mm
Clearance at Full Lift Height and 45° Dump*
114.80 in
2915.00 mm
Maximum Rollback, Fully Raised
52°
Maximum Dump, Fully Raised
53°
Grading Angle
63°
Height to Bucket Hinge Pin
155.10 in
3940.00 mm
Overall Machine Height, Bucket Fully Raised
212.70 in
5402.00 mm
Height to Top of Seat with Headrest
110.60 in
2808.00 mm
Height to Top of Stack
115.70 in
2940.00 mm
Ramp Angle
29°
Note
* With general purpose bucket and extra duty teeth.

Engine

Engine Model
Cat® C7.1 ACERT™
Engine Power - Maximum - ISO 14396
221.00 HP
165.00 kW

Undercarriage

Track Gauge
72.80 in
1850.00 mm
Track on Ground
100.00 in
2542.00 mm
Track Shoe Type
Double Grouser
Ground Contact Area - Optional Shoe
3565.00 in²
2.30 m²
Ground Contact Area - Standard Shoe
4340.00 in²
2.80 m²
Ground Pressure - Optional Shoe
12.40 psi
85.50 kPa
Ground Pressure - Standard Shoe
10.30 psi
70.90 kPa
Track Shoe Width - Optional
17.70 in
450.00 mm
Track Shoe Width - Standard
21.60 in
550.00 mm

Service Refill Capacities

Cooling System
8.45 gal (US)
32.00 l
Crankcase - With Filter
4.40 gal (US)
16.50 l
Final Drive - Each
4.00 gal (US)
15.00 l
Fuel Tank
84.50 gal (US)
320.00 l
Hydraulic Tank
23.70 gal (US)
90.00 l

Weights

Operating Weight
46518.00 lb
21100.00 kg

Buckets

Bucket Width - General Purpose
102.80 in
2612.00 mm
Capacity - General Purpose
3.20 yd³
2.45 m³
Capacity - Landfill
4.05 yd³
3.10 m³
Capacity - Multi-Purpose
2.48 yd³
1.90 m³
Capacity - Performance Series
3.66 yd³
2.80 m³

Ripper Specifications

Type
Radial
Number of Pockets
3
Overall Width/Beam
76.70 in
1950.00 mm
Penetration
11.60 in
295.00 mm
Ripping Width
72.30 in
1836.00 mm

Bucket Cycle Times

Dump at Maximum Height - From Full Rackback
1.30 s
1.30 s
Float Down
2.00 s
2.00 s
Lift
5.50 s
5.50 s
Power Down
3.70 s
3.70 s
Rack Back - Maximum Height - From Full Dump
1.40 s
1.40 s

Buckets

Bucket Width - Multi-Purpose
101.30 in
2575.00 mm

Dimensions (Approximate)

Bucket Height - Carry Position
18.00 in
457.00 mm
Carry Position Approach Angle
15°
Clearance at Full Lift Height and 45° Dump*
114.80 in
2915.00 mm
Digging Depth*
5.40 in
138.00 mm
Grading Angle
63°
Ground Clearance
18.50 in
471.00 mm
Height - Bucket Hinge Pin
155.10 in
3940.00 mm
Height - Top of Seat with Headrest
110.60 in
2808.00 mm
Height - Top of Stack
115.70 in
2940.00 mm
Length - Front of Track
197.00 in
5005.00 mm
Machine Height - Top of Cab
130.90 in
3325.00 mm
Maximum Dump, Fully Raised
53°
Maximum Rollback - Carry Position
50°
Maximum Rollback - Fully Raised
52°
Maximum Rollback - Ground
43°
Note
* With general purpose bucket and extra duty teeth.
Overall Machine Height - Bucket Fully Raised
212.70 in
5402.00 mm
Overall Machine Length*
278.00 in
7063.00 mm
Ramp Angle
29°
Reach at Full Lift Height and 45° Dump*
54.00 in
1373.00 mm

Drive System

Drive Pump
Two, variable displacement, slipper-type axial piston pumps
Drive System
Hydrostatic drive with infinite machine speeds to 10.0 km/h (6.2 mph)
Relief Valve Setting
6890.00 psi
47500.00 kPa
Track Motor
Two, variable displacement, bent axis motors

Engine

Bore
4.13 in
105.00 mm
Displacement
427.80 in³
7.01 l
Emissions
Tier 4 Final/Stage IV/Korea Tier 4
Engine Power - Maximum - ISO 14396 (DIN)
224.00 HP
165.00 kW
Net Power - Rated - ISO 9249/SAE J1349
193.00 HP
144.00 kW
Net Power - Rated - ISO 9249/SAE J1349 (DIN)
196.00 HP
144.00 kW
Stroke
5.31 in
135.00 mm

Hydraulic System - Equipment

Main Relief Valve Setting
3989.00 psi
27500.00 kPa
Output
60.80 gal/min
230.00 l/min
Type
Closed center, load sensing piston

Ripper Specifications

Added Machine Length with Ripper in Transport Position
24.00 in
610.00 mm
Cylinders - Bore
4.50 in
114.30 mm
Cylinders - Stroke
11.30 in
289.00 mm
Ground Clearance
23.40 in
595.00 mm
Shank Cross Section
58.5 mm × 138 mm (50 in × 5.4 in)

Service Refill Capacities

DEF Tank
4.22 gal (US)
16.00 l
Pivot Shaft
0.50 gal (US)
1.80 l

Standards

Brakes
Meet SAE J/ISO 10265 MAR99 ISO 10265:1998
FOPS
Meets SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II DLV criteria SAE J397B, ISO 3164:1995
ROPS
Meets ROPS criteria SAE J1040 MAY94, ISO 3471:1994 DLV criteria SAE J397B, ISO 3164:1995

Undercarriage

Grouser Height - Double Grouser
1.65 in
42.00 mm
Number of Shoes - Each Side
38
Track Rollers - Each Side
7

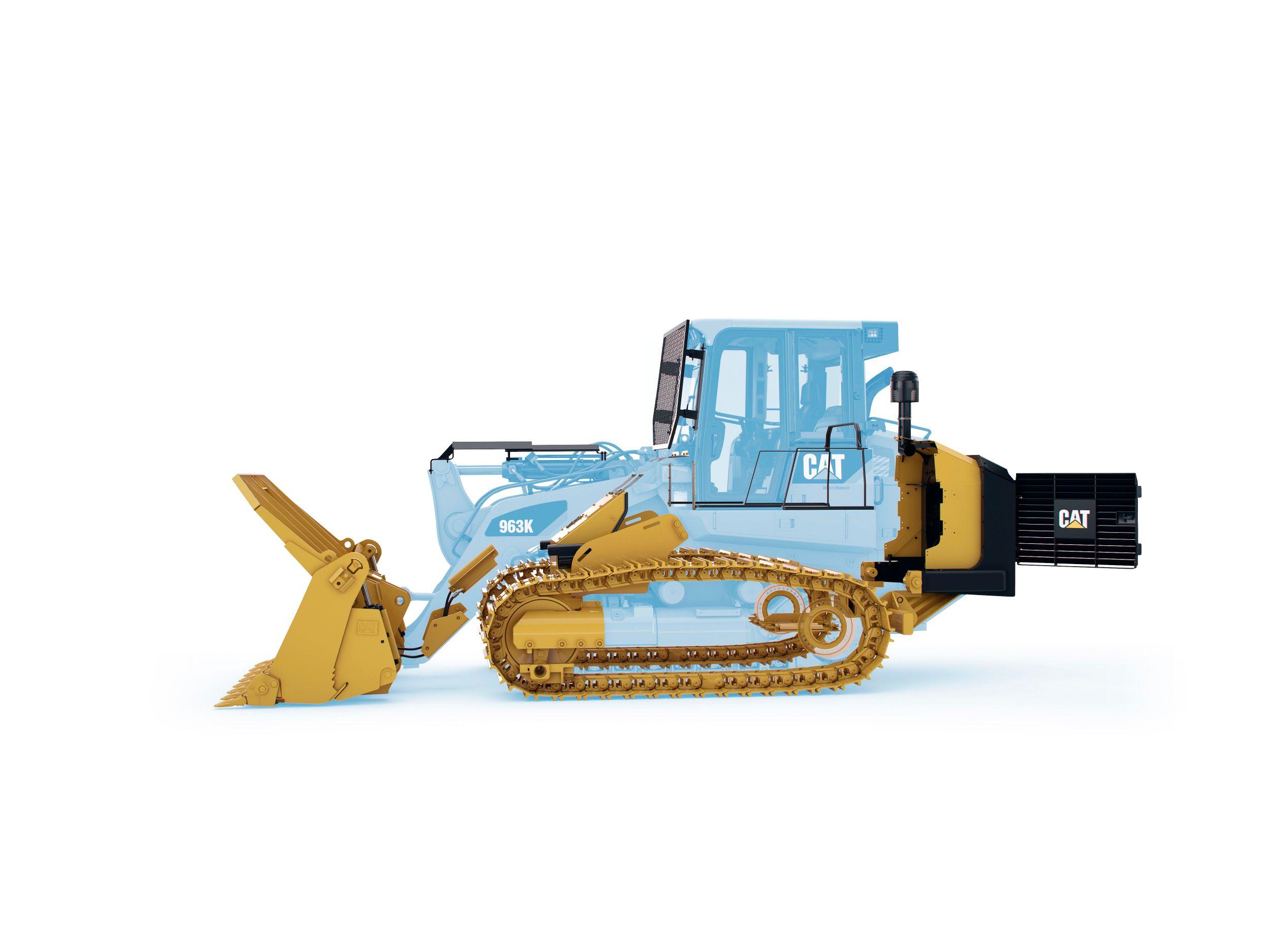

Features

(1) Final drive seal guards feature a metallic outside ring welded to the final drive to help protect seals from damage due to wrapping of wire or plastic.

(2) Idler guards protect and limit the entry of debris to the tensioning system. Includes scrapers mounted around idler.

(3) Idler with seal protection has steel rings integrated into the idler design. Helps keep wire, strapping, etc. from damaging the Duo-Cone™ seals.

(4) Engine compartment seals limit debris entry and plugging of radiator core. Gaps sealed between sheet metal and other components for added protection.

(5) Windshield screen helps protect windshield and operator from breakage and debris.

(6) Guarding helps protect lift lines coming out of the chassis and lift cylinder hydraulic tube.

(7) Tilt cylinder guard helps protect rod surface from damage by falling debris.

(8) Guarding helps protect bucket hydraulic lines from damage.

(9) Turbine precleaner reduces particles coming into the engine air inlet for extended engine filter life.

(10) Hydraulic reversible fan purges debris from the radiator and engine compartment air inlets by reversing the airflow. Limits radiator plugging, increases maintenance interval.

(11) Radiator fan folds out for easier cleaning/maintenance access to fan and radiator. Angled louvers direct air upward away from the ground.

(12) Heavy duty rear bumper offers optimal protection to the back of the machine – especially the cooling system. Includes a heavy duty grill with latch for quick opening, as well as a hitch.

(13) Optional rear vision camera/display helps improve visibility behind the machine.

(14) Rear striker bars help keep trash from damaging the fenders. Highly recommended in waste application to help extend sheet metal life.

(15) Center-hole track is recommended for waste applications. The design allows sprocket to push out debris, helping to reduce packing within the track links. Helps limit wear on track components and extend undercarriage life.

  • Double Grouser Shoes provide good balance of traction and a smooth ride. Recommended over single grouser for reduced damage when working on concrete.
  • Single Grouser Track is aggressive for good chopping action. Offers the best traction in poor underfoot conditions.

(16) The landfill bucket is equipped with heavy-duty trash rack to increase bucket capacity, reduce spillage, and help protect tilt cylinder rod. General purpose and multi-purpose bucket options are also available.

(17) Eight lights – four at top front corner of windshield, four on air conditioning compressor guard – illuminate work area in low light conditions.

Sales Features

963K Waste Handler Features

Purpose-built for performance

963K Waste Handler Features

Purpose-built for performance
Standard Equipment
  • POWER TRAIN
    • Cat C7.1 ACERT diesel engine
    • Tier 4 Final/Stage IV/Korea Tier 4 emission standards
    • Twin turbocharged with ATAAC
    • Modular cooling system for engine air intake, oil and water
    • Fan radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
    • Electro Hydrostatic Control (EHC) for transmission with travel and work modes
    • Electric fuel pump
    • Water separator
    • Air cleaner dry-type, axial seal with integral precleaner and dust ejection system, electronic filter condition indicator
    • Engine mounted aftertreatment
    • Muffler, under hood
    • Starting aid, glow plug
    • Cat extended life coolant
  • UNDERCARRIAGE
    • Cat Enhanced Sealed and Lubricated Track (ESALT) tracks
    • Track guiding guards, end section
    • Track adjuster, hydraulic
    • Sprocket rims, with replaceable bolt-on Tough Steel segments
    • Guards, sprocket
    • Seven track rollers per side, with two upper carrier rollers, lifetime lubricated
    • Idlers, conventional type, lifetime lubricated
    • Oscillating track roller frames
  • ELECTRICAL
    • Alternator, 24V, heavy duty brushless
    • Alarm, backup
    • Horn, electric
    • Two heavy duty batteries, high output, maintenance free, 1,120 CCA
    • Switch, main disconnect
    • Starter, electric (heavy duty, 24V)
    • Four halogen lights, two facing forward, roof mounted; two facing rearward integrated into A/C unit
  • OPERATOR ENVIRONMENT
    • Pressurized, sound suppressed, ROPS/FOPS
    • Cab with tinted glass and right side sliding window
    • Air conditioning and heating
    • Heater/defroster with automatic temperature control
    • Seat, fabric-covered, air suspended adjustable
    • Electro hydraulic, seat mounted control levers with faster processing
    • Seat belt, retractable, with indicator on dash
    • Electronic Monitoring System with gauges for: – Engine coolant temperature – Hydraulic oil temperature – DEF level – Fuel level
    • Mirror, rearview, inside, adjustable
    • Radio ready – includes 24V to 12V converter, speakers, antenna and two 12V power outlets
    • Coat hook
    • Storage compartments under left armrest
    • Document holder on right console
    • Floor mat, rubber, heavy duty
    • Windshield washers and wipers, multiple speed front and rear
    • Durable metal roof
    • Parking brake switch and “brake-on” indicator light
    • Fender
  • OTHER STANDARD EQUIPMENT
    • Sound suppression, exterior
    • Z-bar loader linkage
    • Load sensing variable displacement implement pump
    • Implement cylinders sensors
    • Operator programmable lift and tilt
    • Engine enclosure with lockable doors
    • Radiator core 6.5 fpi, debris resistant
    • Hinged radiator guard and swing out fan
    • Guards, full bottom
    • Ecology drains on hydraulic oil tank
    • Product Link ready
    • Oil sampling valves
    • Hoses, Cat XT™
    • HYDO™ Advanced 10
