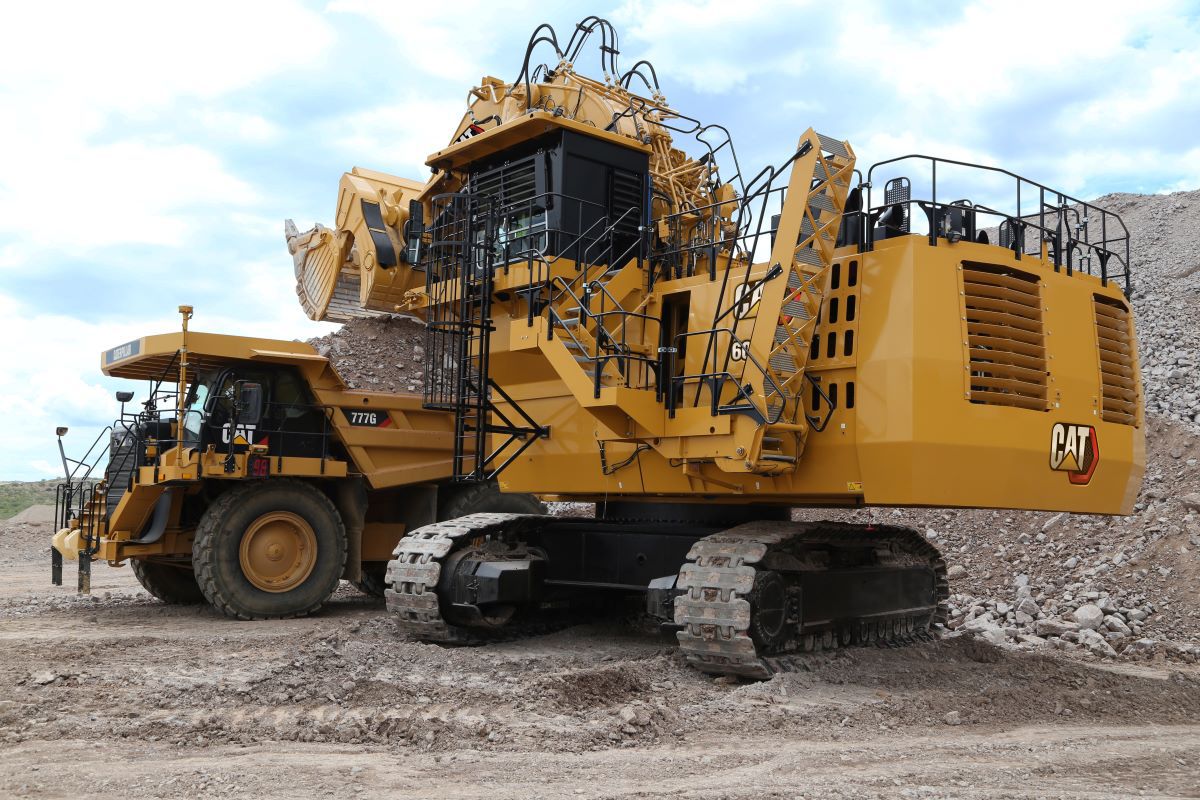

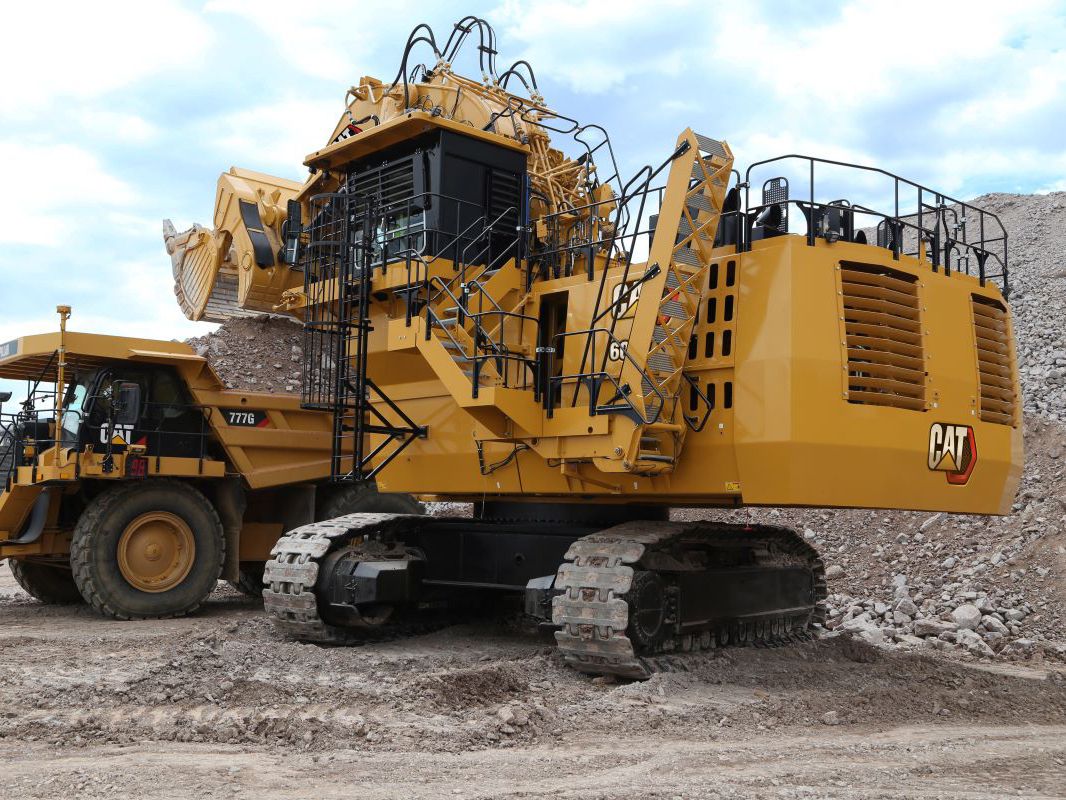

General
Engine Output - SAE J1995
Note

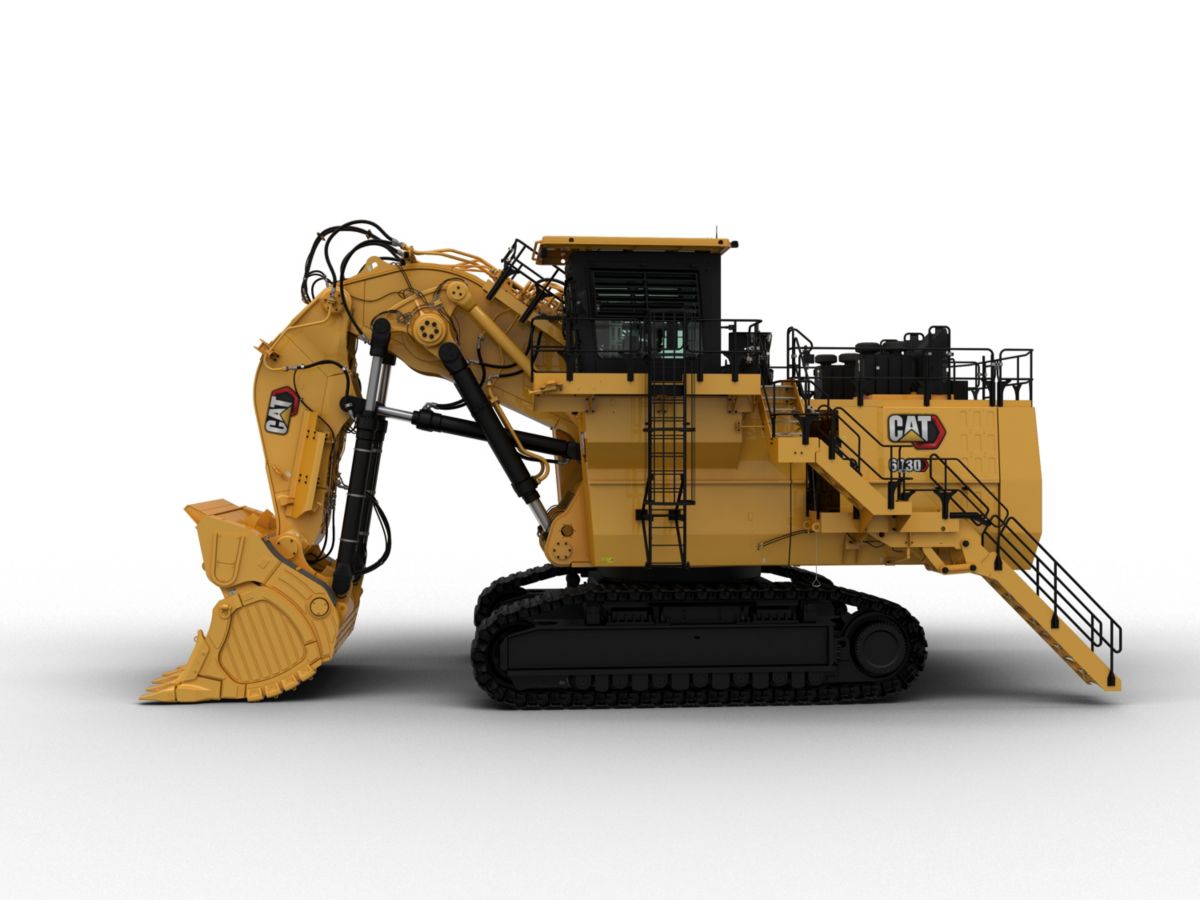

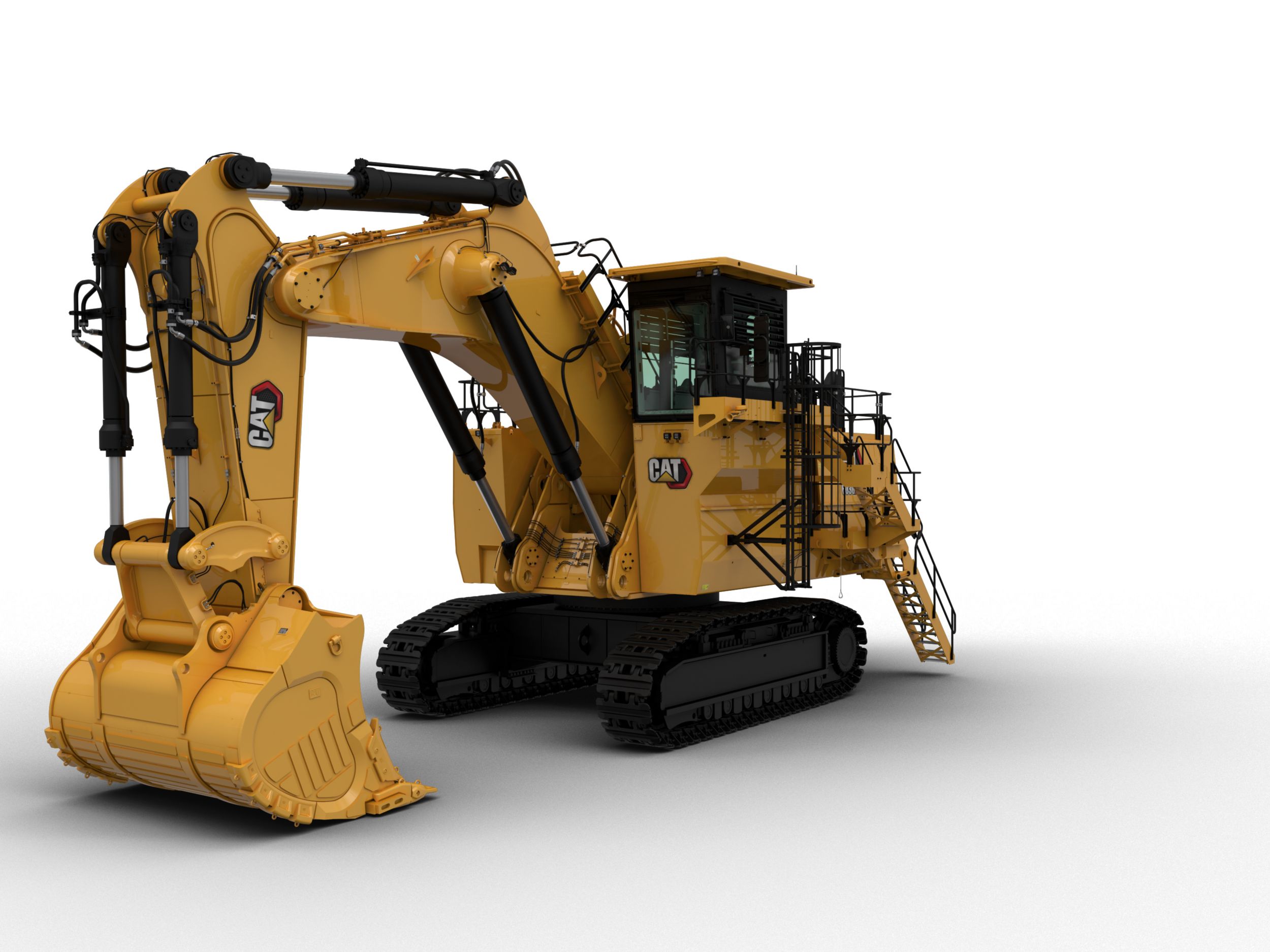

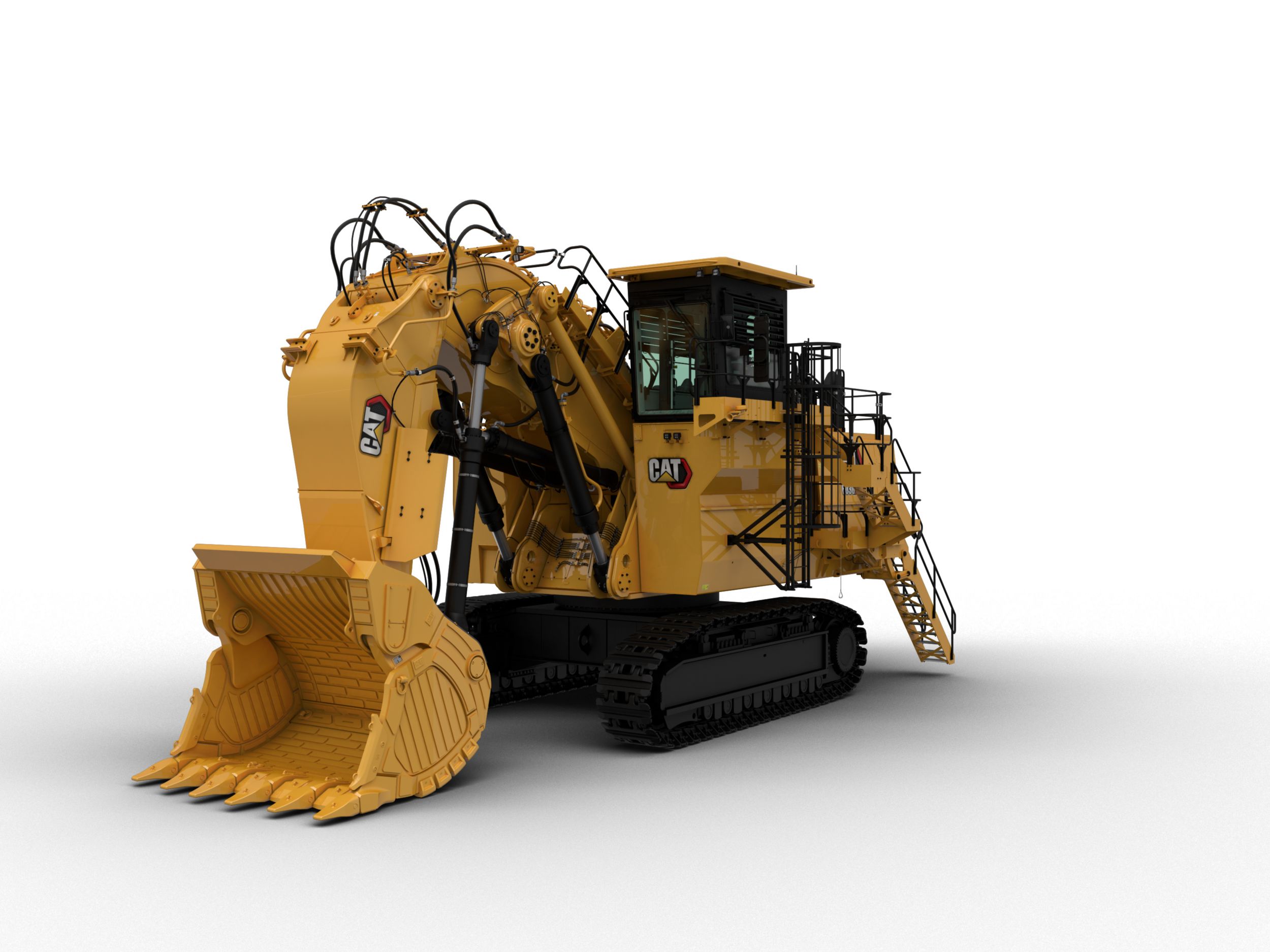

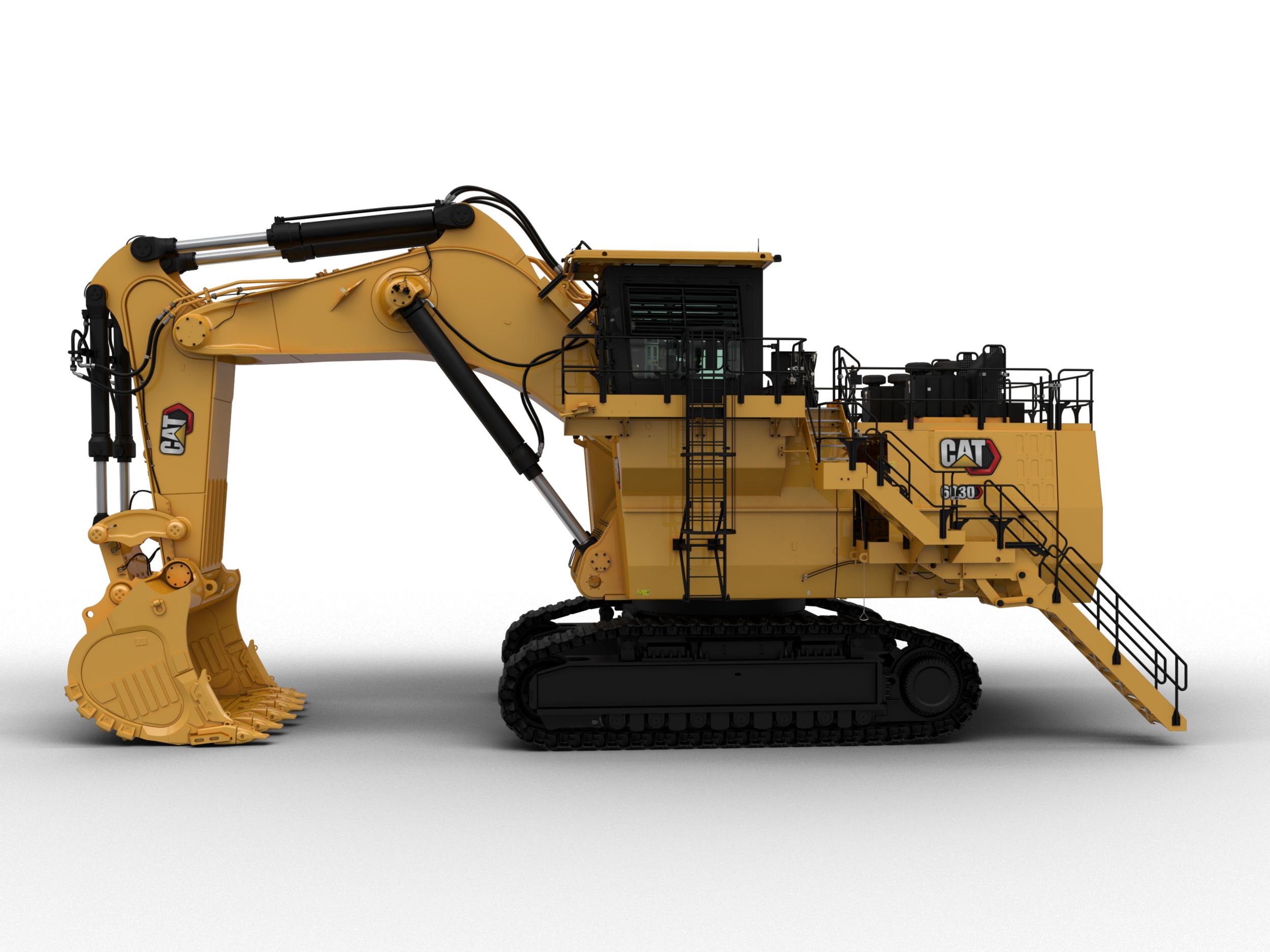

Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available.
Engine
Note
Electric drive option available (1000 kW) on 6030 AC
Diesel Engines
Number of Cylinders - Each Engine
Aspiration
Turbocharged and air-to-air aftercooled
Components (1)
Hydraulically driven radiator fan with electronically controlled fan speed
Components (2)
Micro processed engine management
Components (4)
Two-stage fuel filter, including water separator
Components (5)
Additional high-capacity water separator
Fuel Tank Capacity
1342.00 gal (US)
5080.00 l
Emissions
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards
Electrical System - Diesel Drive
Batteries in Series/Parallel Installation
4 x 210 Ah at 12V each; 420 Ah with 24V in total
Electrical System
Batteries
4 maintenance free batteries
Electrical System - Diesel Drive
Components (2)
Emergency stop switches accessible from ground level and in engine module
Components (3)
14 LED high-brightness working flood lights
Operating Weights
6030 FS - Standard Track Pads
6030 FS - Operating Weight
648810.00 lb
294300.00 kg
6030 FS - Ground Pressure
6030 - Standard Track Pads
6030 - Operating Weight
653660.00 lb
296500.00 kg
Note
Other track pads available on request. Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, and 100 fuel and lubricants.
Hydraulic System with Pump Managing System
Hydraulic Tank Capacity - Approximately
660.00 gal (US)
2500.00 l
Total Volume of Hydraulic Oil - Approximately
925.00 gal (US)
3500.00 l
Main Pumps
4 x variable swash plate pumps
Main Pumps - Maximum Oil Flow - Diesel Version
4 x 552 L/min (4 x 146 gal/min)
Maximum Pressure - Attachment
Maximum Pressure - Travel
Swing Pumps
2 x reversible swash plate double pumps
Swing Pumps - Maximum Oil Flow - Diesel Version
4 x 197 L/min (4 x 52 gal/min)
Maximum Pressure - Swing Pumps
Hydraulic Oil Cooling
Oil Flow of Cooling Pumps - Diesel Version
2 x 467 L/min (2 x 123 gal/min)
Swing System
Swing Drive
2 compact planetary transmissions with axial piston motors
Parking Brakes
Wet multiple-disc brake, spring-loaded/hydraulically released
Swing Ring
Triple-race roller bearing with sealed internal gearing
Maximum Swing Speed - AC Version
Maximum Swing Speed - Diesel Version
Undercarriage
Travel Speed - 1st Stage - Maximum
Travel Speed - 2nd Stage - Maximum
Gradeability - Travel Drives - Approximate
Bottom Rollers - Each Side
Support Rollers - Each Side
2 plus a skid plate in between
Travel Drives - Each Side
1 planetary transmission with 2 two-stage axial piston motors
Parking Brakes
Wet multiple disc brake, spring loaded/hydraulically released
Components (1)
All running surfaces of sprockets, idlers, rollers and pad links, as well as teeth contact areas of sprocket and pad links, are hardened
Components (2)
Cast double-grouser combined pad-links with bushings connected by hardened full floating pins
Components (3)
Fully hydraulic self-adjusting track tensioning system with membrane accumulator
Components (4)
Automatic hydraulic retarder valve to prevent over-speed on downhill travel
Operator's Cab
Operator's Eye Level - Approximately
Internal Dimensions of Cab - Length
Internal Dimensions of Cab - Width
Internal Dimensions of Cab - Height
Components (1)
Under roof mounted heating ventilating and air conditioning system
Components (2)
External sun shields at side and rear windows
Components (3)
Robust instrument panel including large colored BCS screen with transflective technology
Components (4)
Board Control System (BCS) electronic monitoring and data logging system for vital signs and service data of engines, hydraulic system and lubrication system
Components (5)
Hydraulically operated 45°access stairway
Components (6)
Emergency egress ladder with ladder cage
Components (7)
Switch in seat cushion to automatically neutralize the hydraulic controls when operator leaves the seat
Components (8)
Pneumatically cushioned and multi-adjustable comfort seat with lumbar support, seat heating, safety belt, head- and armrests
Components (9)
Roller blinds at all windows
Components (10)
Windshield with parallel intermittent wiper/washer
Components (11)
All-round safety glass, armored windshield and sliding side window
Components (12)
Operator Protective Guards (ISO 10262:1998 Level II
Components (13)
Joystick controls integrated in independently adjustable seat consoles
Components (14)
Fold-away auxiliary seat with safety belt
Automatic Lubrication System
Capacity - Grease Container
Type (1)
Dual-circuit system with hydraulically driven heavy-duty pump and electronic time relay control to adjust the pause/lube times
Type (2)
Connected to the lubrication system are the swing roller bearing with internal gearing and all pivot points of attachment, bucket and cylinders
Type (3)
Lubricated pinion for greasing of internal gearing of swing ring
Type (4)
System failures displayed by Board Control System
Type (5)
Grease filters (200 µm) between service station and container as well as directly behind grease pump

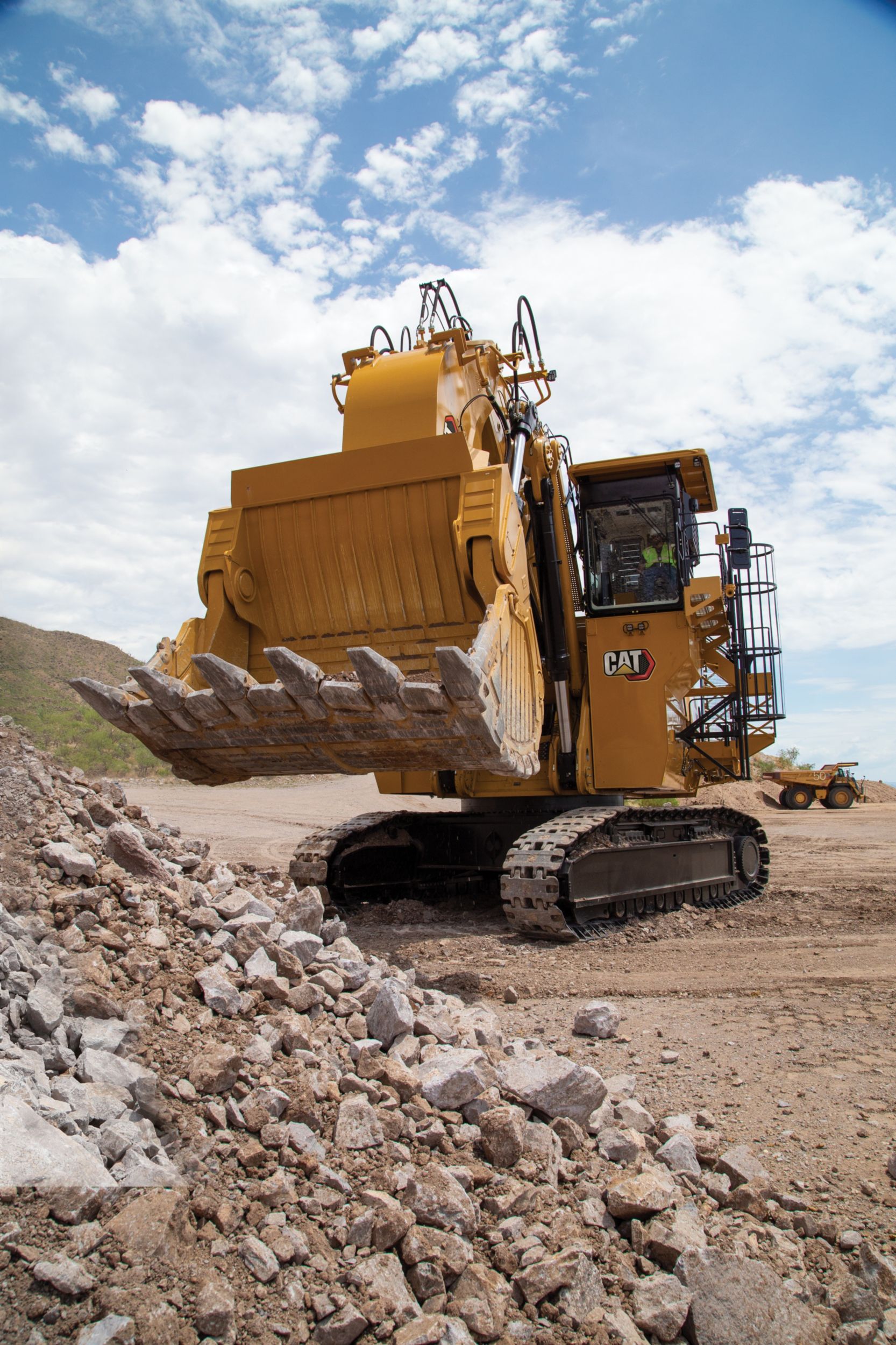

Attachments
Shovel attachment with unique TriPower kinematics ensuring the following main features: (1)
Automatic roll-back limiter to prevent material spillage and kinematic assistance to hydraulic forces
Shovel attachment with unique TriPower kinematics ensuring the following main features: (2)
Horizontal automatic constant-angle bucket guidance and vertical automatic constant-angle bucket guidance
Shovel attachment with unique TriPower kinematics ensuring the following main features: (3)
Constant boom momentum throughout the whole lift arc and crowd force assistance
All buckets (FS and BH) are equipped with a wear package consisting of: (1)
Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth
All buckets (FS and BH) are equipped with a wear package consisting of: (2)
Wing shrouds on side walls and heel shrouds at bottom edges
Type (1)
Catwalks with rails at booms
Type (2)
Special wear packages for highly abrasive materials on request
Type (3)
Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
Type (4)
Welding procedures allow for internal counter-welding (double prep weld) wherever possible
Type (5)
Booms and sticks are stress-relieved after welding
Type (6)
Booms and sticks are torsion-resistant, welded box design of high-tensile steel with solid steel castings at pivot areas
Bucket
Bucket Capacity - Face Shovel (heaped 2:1)
Bucket Capacity - Backhoe (heaped 1:1)
Hydraulic System with Pump Managing System
Swing Pumps - Maximum Oil Flow - AC Version
2 x 426 L/min (2 x 113 gal/min)
Electric Motor - 6030 AC/6030 AC FS
Hydraulic Oil Cooling
Oil Flow of Cooling Pumps - AC Version
2 x 459 L/min (2 x 121 gal/min)
Electric Motor - 6030 AC/6030 AC FS
Operating Specifications
Operating Weight - Face Shovel
Operating Weight - Backhoe
Diesel Engines
Total Rated Gross Power - SAE J1995
1209 kW 1,800 min-1 (1,620 hp 1,800 min-1)
Hydraulic System with Pump Managing System
Main Pumps - Maximum Oil Flow - AC Version
4 x 543 L/min (4 x 143 gal/min)
Operating Specifications
Diesel Engines
Electric Motor - 6030 AC/6030 AC FS
Revolutions
1,500 min-1 (1,800 min-1 at 60 Hz)
Diesel Engines
Total Rated Net Power - SAE J1349
1192 kW 1,800 min-1 (1,597 hp 1,800 min-1)
Retractable Service Station
Installation
Retractable service station installed underneath the engine module and easily accessible from ground.
Electric Motor - 6030 AC/6030 AC FS
Starting current
450% of IN (253% of IN optional)
Diesel Engines
Total Rated Net Power - ISO 3046/1
1194 kW 1,800 min-1 (1,600 hp 1,800 min-1)
Electric Motor - 6030 AC/6030 AC FS
Voltage
6.3 kV ± 10% (other on request)
Hydraulic Oil Cooling
Diesel Engines
Maximum Altitude - Without Deration - At 25° C (77° F) Above Sea Level
Electric Motor - 6030 AC/6030 AC FS
Type
Squirrel cage induction motor
