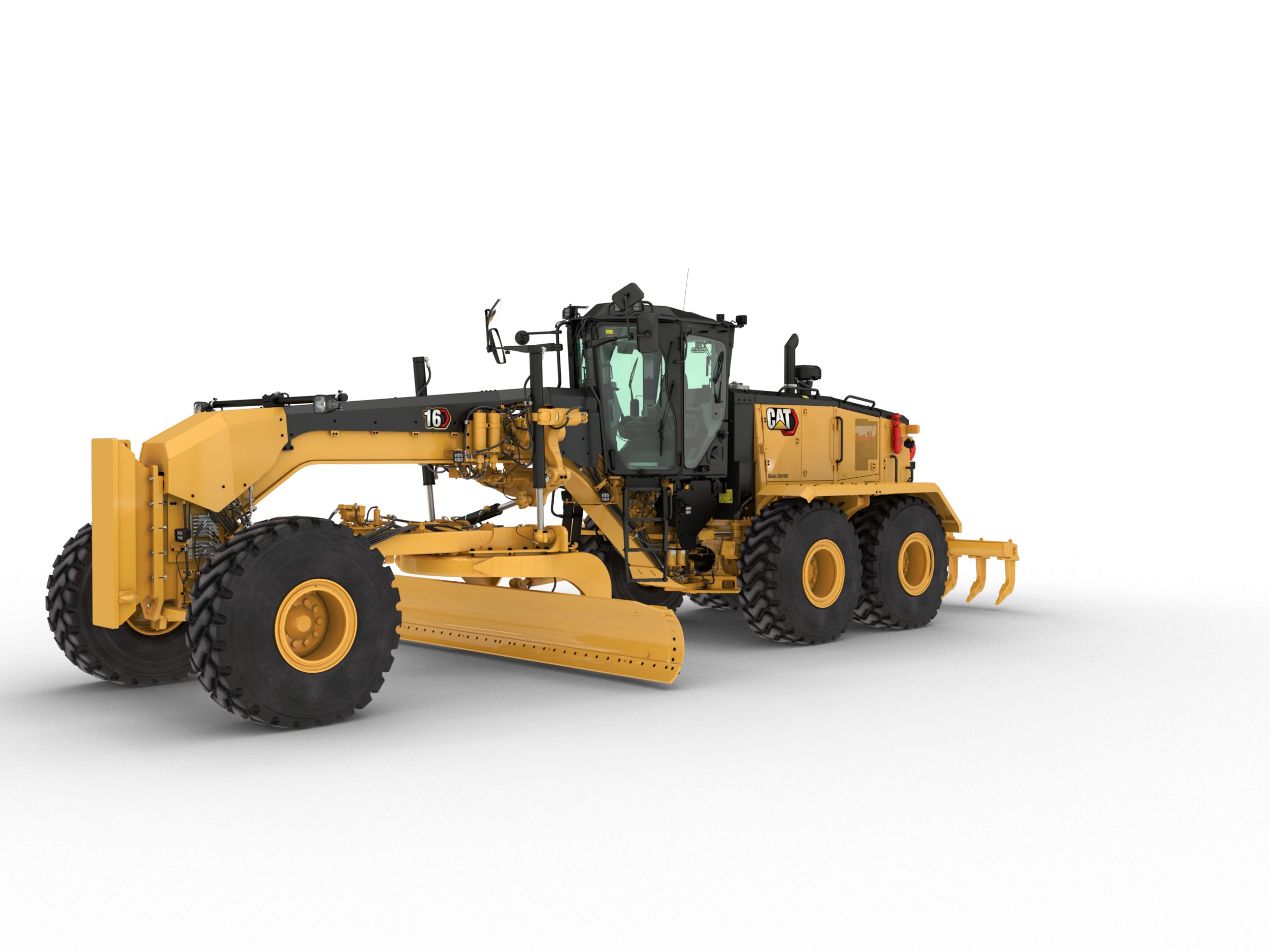

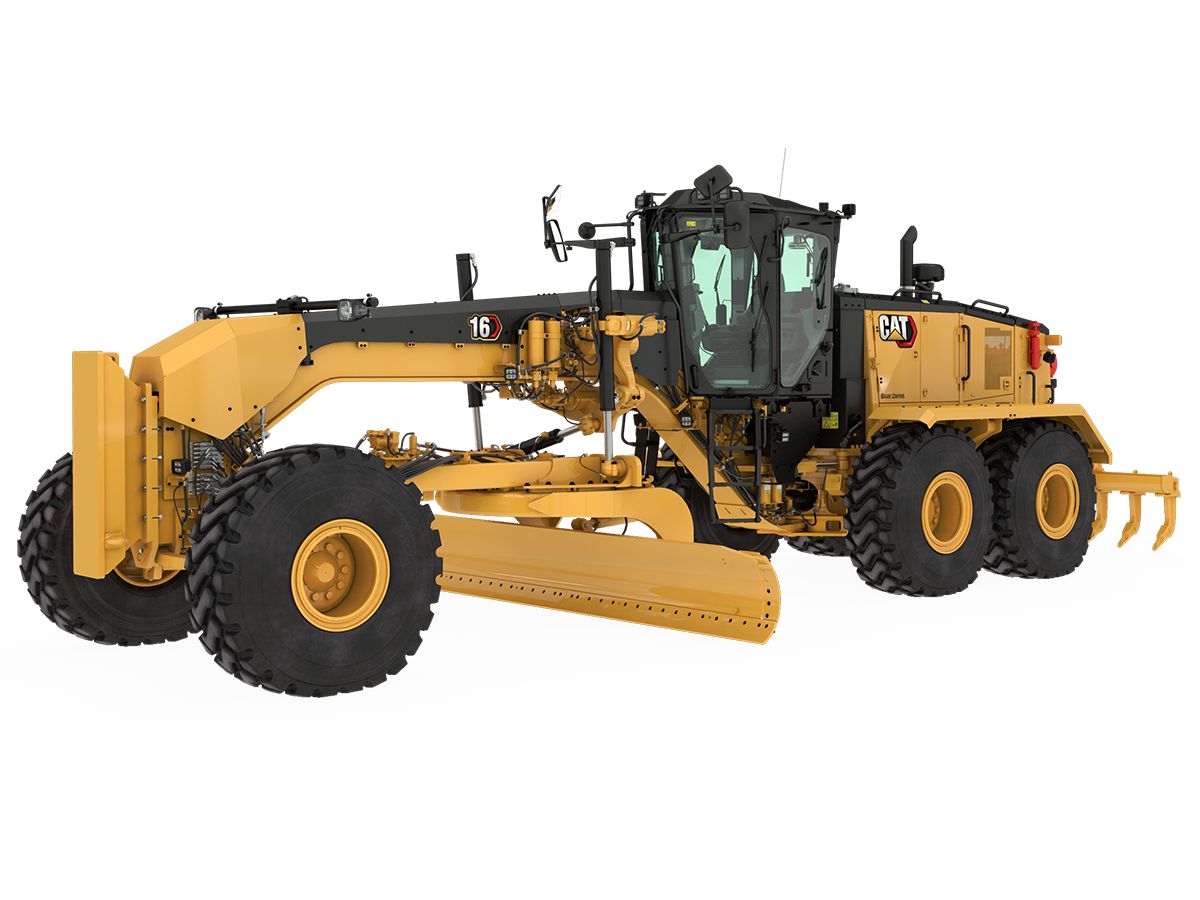

16 Motor Grader with push block and ripper

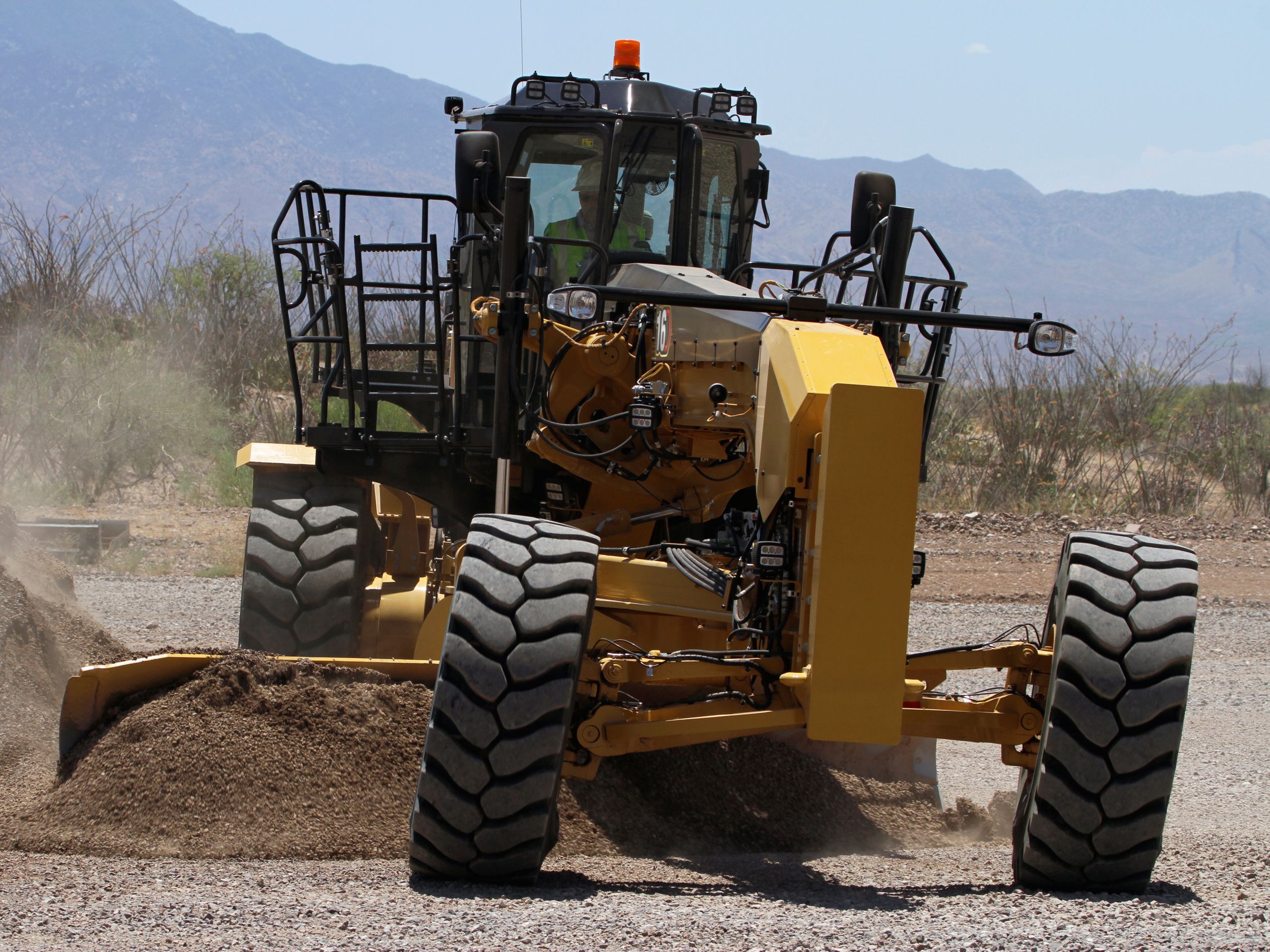

16 grader heavy slope grading

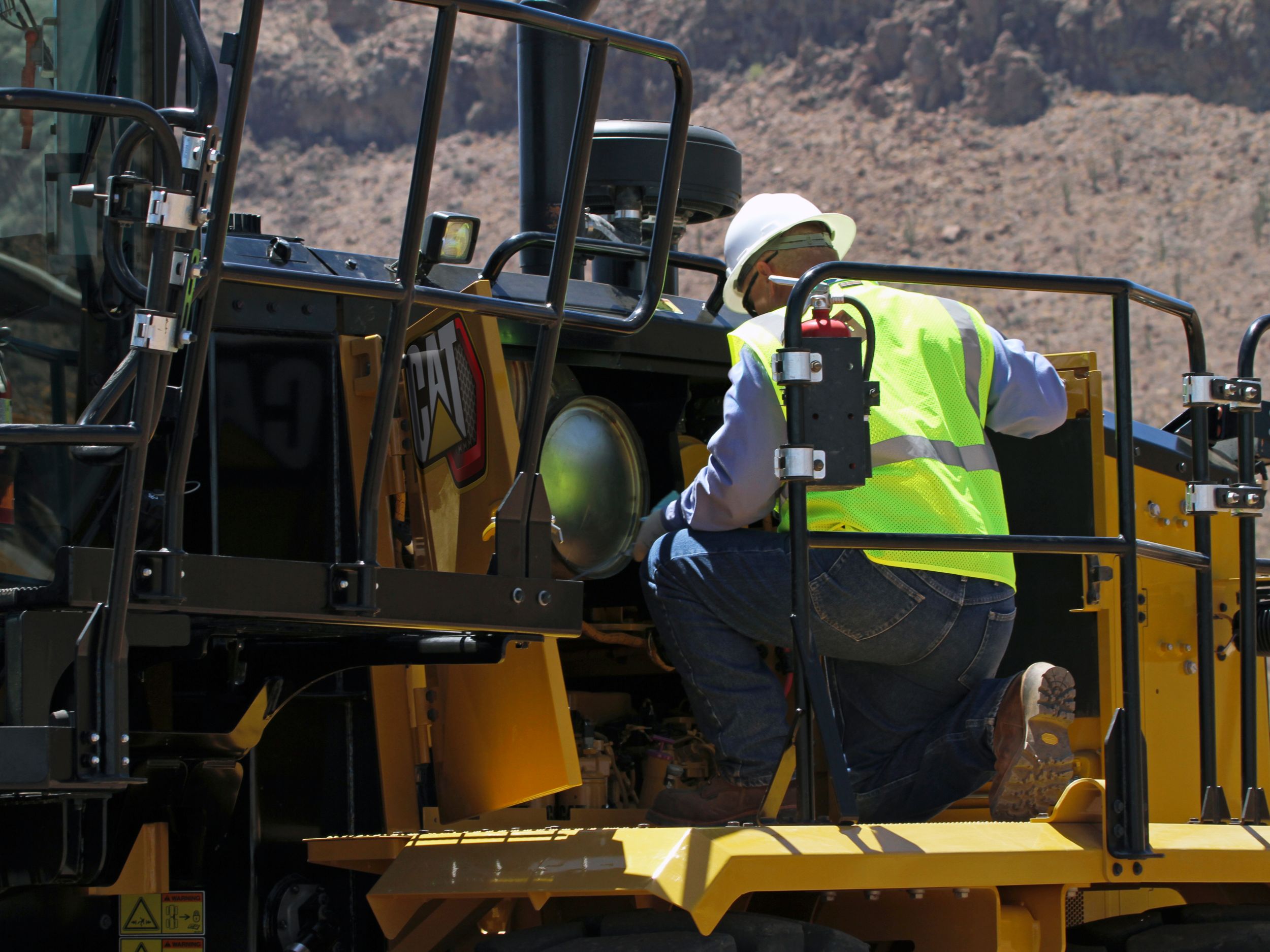

Inspecting 16 Motor Grader engine and filters

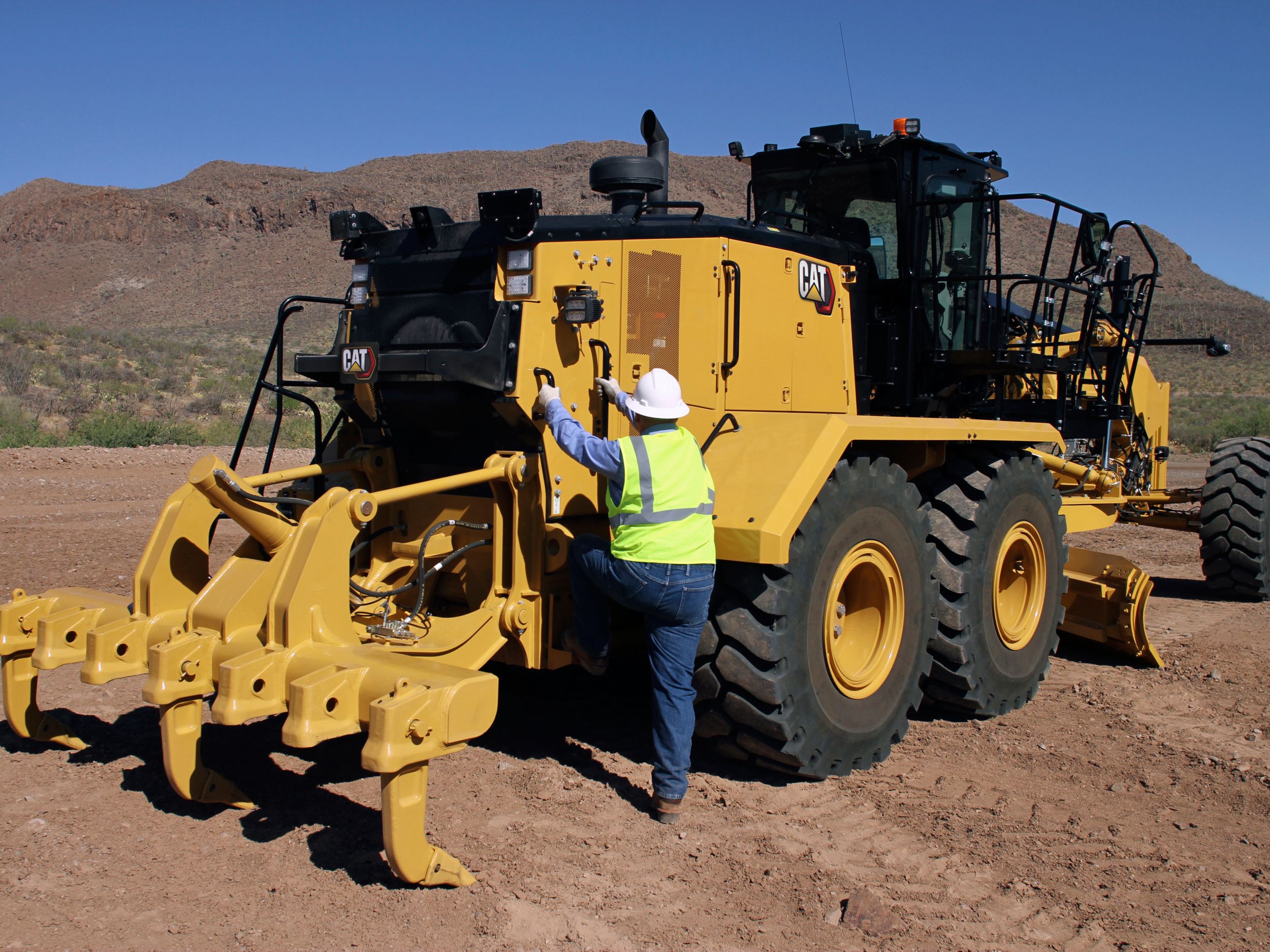

Operator climbing onto 16 motor grader

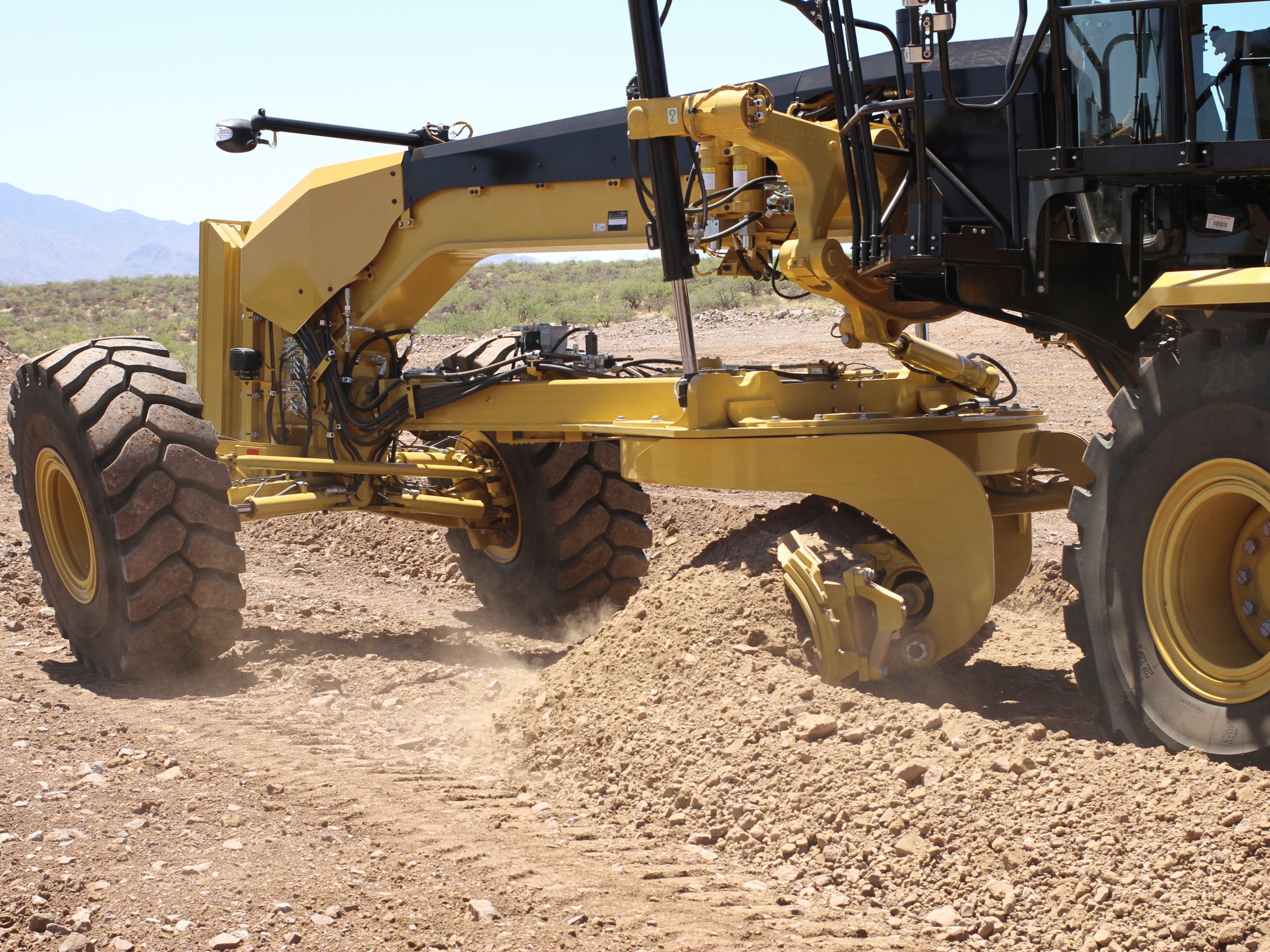

Heavy blading with the 16 Motor Grader

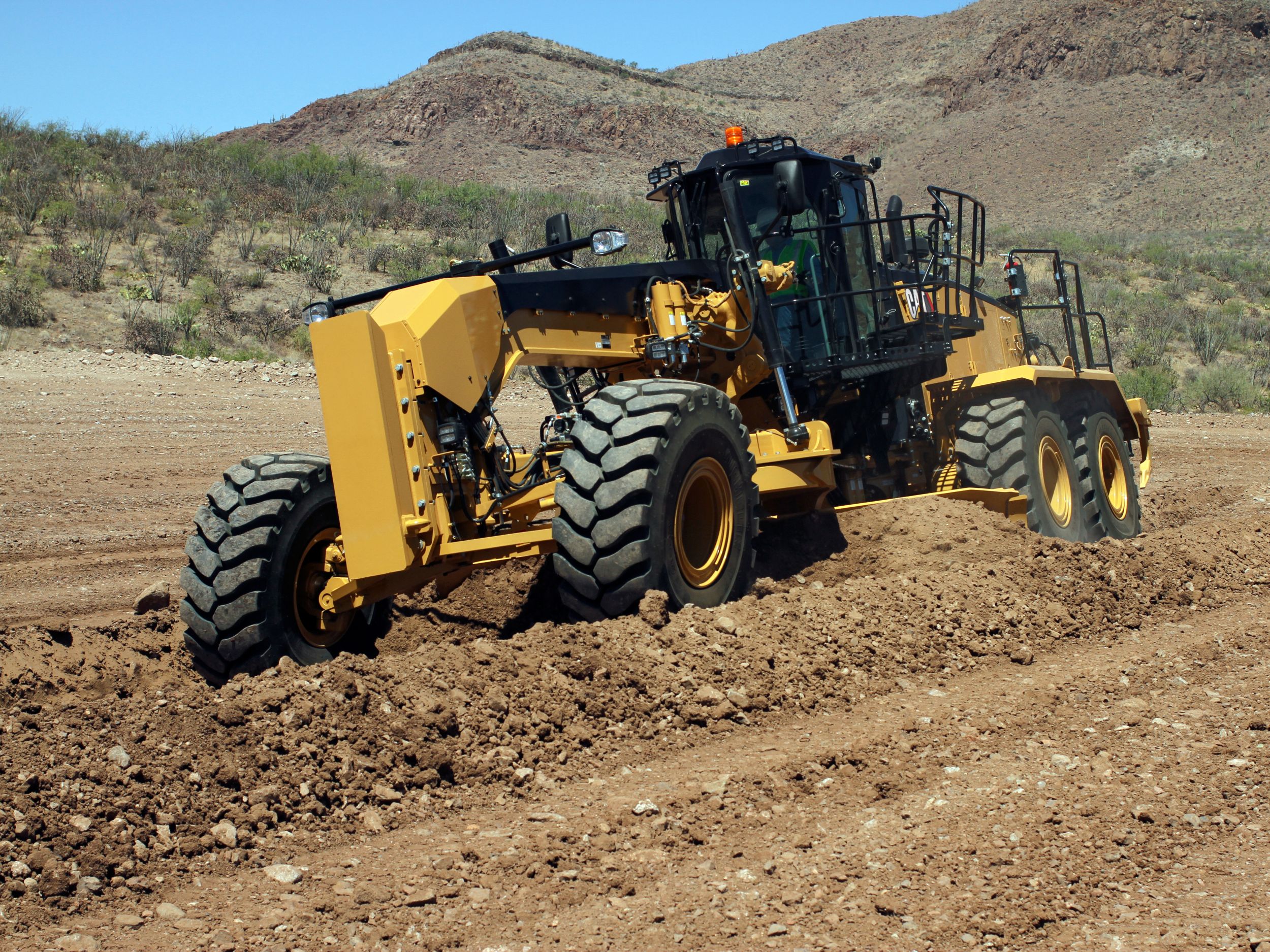

16 Motor Grader bringing road to grade

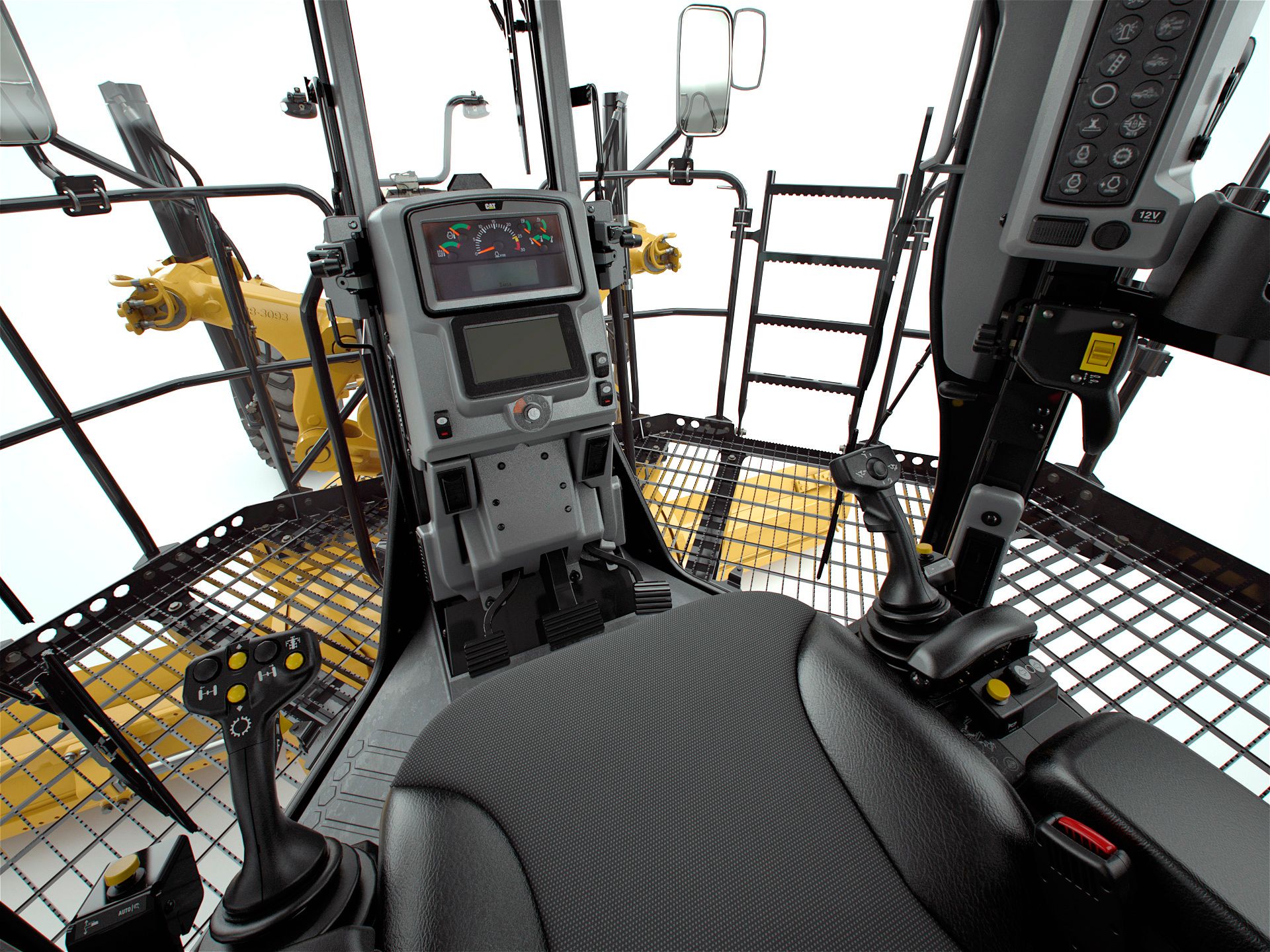

Operator environment on the 16 motor grader
US
Metric

Overview

Specially configured for mine operation and haul road development and maintenance, the Cat® 16 maximizes availability and controls operating costs. Fuel efficient technologies and legendary Cat robust design and construction ensure these machines help your operation optimize profits.

Engine

Base Power (1st Gear) - Net
290.00 hp
216.00 kW
Engine Model
Cat® C13
Bore
5.10 in
130.00 mm
Stroke
6.20 in
157.00 mm
Speed at Rated Power
2,000 rpm
Derating Altitude - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent
12176.00 ft
3711.00 m
Maximum Torque - ISO 9249 - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent
1270.00 lb/ft
1721.00 N·m
Maximum Torque - ISO 9249 - Tier 4/Stage IV/Japan 2014 (Tier 4)
1306.00 lb/ft
1771.00 N·m
Maximum Torque - ISO 9249 - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent
1270.00 lb/ft
1721.00 N·m
Emissions (2)
Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent Emission Standards – depending on emission standards of specific country
Torque Rise - Tier 4/Stage IV/Japan 2014 (Tier 4)
43%
Torque Rise - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent
39%
Standard - Ambient Capability
122.00 °F
50.00 °C
Derating Altitude - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent
12973.00 ft
3954.00 m
VHP Range - Net - Metric
216-259 kW (294-353 hp)
Base Power (1st Gear) - Net - Metric
294.00 hp
216.00 kW
Standard - Fan Speed - Minimum
550 rpm
Standard - Fan Speed - Maximum
1,450 rpm
Emissions (3)
Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent Emission Standards – depending on emission standards of specific country
Torque Rise - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent
39%
Emissions (1)
U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final)
VHP Range - Net
216-259 kW (290-348 hp)
Derating Altitude - Tier 4/Stage IV/Japan 2014 (Tier 4)
12500.00 ft
3810.00 m
Displacement
763.00 in³
12.50 l
Number of Cylinders
6

Power Train

Forward/Reverse Gears
8 Forward/6 Reverse
Transmission
Direct drive, power shift, countershaft
Brakes - Dynamic Brake Torque per Wheel
27069.27 lb/ft
36701.00 N·m
Brakes - Secondary
Oil-actuated, oil-disc
Brakes - Service
Oil-actuated, oil disc
Brakes - Parking
Spring applied, hydraulically released

Hydraulic System

Circuit Type
Electro-hydraulic load sensing, closed center
Pump Type
Variable piston
Maximum System Pressure
3590.00 psi
24750.00 kPa
Standby Pressure
856.00 psi
5900.00 kPa
Pump Output*
74.00 gpm
280.00 L/min
Note
*Pump output measured at 2,150 rpm.

Operating Specifications

Steering Range - Left/Right
47.5°
Forward - 6th
16.00 mile/h
25.80 km/h
Forward - 4th
7.60 mile/h
12.30 km/h
Forward - 5th
11.80 mile/h
19.00 km/h
Turning Radius - Outside Front Tires
30.50 ft
9.30 m
Forward - 7th
22.00 mile/h
35.50 km/h
Top Speed - Forward
32.10 mile/h
51.70 km/h
Forward - 3rd
5.50 mile/h
8.90 km/h
Reverse - 6th
25.30 mile/h
40.80 km/h
Reverse - 5th
17.40 mile/h
28.00 km/h
Reverse - 2nd
4.10 mile/h
6.60 km/h
Reverse - 3rd
6.00 mile/h
9.70 km/h
Forward - 8th
32.10 mile/h
51.70 km/h
Reverse - 1st
2.20 mile/h
3.60 km/h
Forward - 1st
2.80 mile/h
4.50 km/h
Top Speed - Reverse
25.40 mile/h
40.80 km/h
Forward - 2nd
3.80 mile/h
6.10 km/h
Reverse - 4th
9.30 mile/h
15.00 km/h
Articulation Angle - Left/Right
20°

Service Refill

Fuel Capacity
131.00 gal (US)
496.00 l
Cooling System
18.50 gal (US)
70.00 l
DEF Tank
4.20 gal (US)
16.00 l
Hydraulic System - Total
38.60 gal (US)
146.00 l
Hydraulic System - Tank
18.50 gal (US)
70.00 l
Engine Oil
9.50 gal (US)
36.00 l
Transmission - Differential - Final Drives
34.00 gal (US)
98.50 l
Tandem Housing - Each
34.00 gal (US)
129.00 l
Front Wheel Spindle Bearing Housing
0.24 gal (US)
0.90 l
Circle Drive Housing
2.60 gal (US)
10.00 l

Frame

Front Frame Structure - Height
18.10 in
460.00 mm
Front Frame Structure - Width
14.00 in
356.00 mm
Drawbar - Width
3.00 in
76.00 mm
Drawbar - Height
8.00 in
203.00 mm
Front Axle - Total Oscillation per Side
35°
Circle - Diameter
71.70 in
1822.00 mm
Circle - Blade Beam Thickness
2.00 in
50.00 mm
Front Frame Structure - Thickness
0.60 in
14.00 mm
Front Axle - Wheel Lean
18° Left/17° Right
Front Axle - Height to Center
26.40 in
670.00 mm

Tandems

Tandem Oscillation - Front Up
15°
Sidewall Thickness - Outer
0.90 in
22.00 mm
Sidewall Thickness - Inner
0.90 in
22.00 mm
Tandem Oscillation - Front Down
25°
Height
25.50 in
648.00 mm
Width
9.30 in
236.00 mm
Drive Chain Pitch
2.50 in
63.50 mm
Wheel Axle Spacing
72.50 in
1841.00 mm

Moldboard

Blade Width
16.00 ft
4.90 m
Arc Radius
16.30 in
413.00 mm
Throat Clearance
5.00 in
126.00 mm
Thickness
1.00 in
25.00 mm
End Bit - Width
6.00 in
152.00 mm
Blade Pull* - Base GVW
41039.00 lb
18615.00 kg
Cutting Edge Width
8.00 in
203.00 mm
Cutting Edge Thickness
1.00 in
25.00 mm
Down Force - Maximum GVW
43861.00 lb
19895.00 kg
Height
31.00 in
787.00 mm
Width
16.00 ft
4.90 m
Down Force - Base GVW
30743.00 lb
13945.00 kg
Blade Pull* - Maximum GVW
52878.00 lb
23985.00 kg
End Bit - Thickness
0.75 in
19.00 mm

Blade Range

Maximum Blade Position Angle
65°
Maximum Lift Above Ground
15.70 in
400.00 mm
Maximum Depth of Cut
18.50 in
470.00 mm
Maximum Shoulder Reach Outside of Tires - Right
91.00 in
2311.00 mm
Moldboard Sideshift - Left
29.10 in
740.00 mm
Circle Centershift - Right
22.00 in
560.00 mm
Circle Centershift - Left
27.20 in
690.00 mm
Moldboard Sideshift - Right
31.10 in
790.00 mm
Maximum Shoulder Reach Outside of Tires - Left
91.00 in
2311.00 mm
Blade Tip Range - Forward
40°
Blade Tip Range - Backward
5°

Ripper

Ripping Depth - Maximum
17.80 in
452.00 mm
Shank Holder Spacing - Minimum
17.50 in
445.00 mm
Ripper Shank Holders
7
Penetration Force
30311.00 lb
13749.00 kg
Pry-Out Force
43700.00 lb
19822.00 kg
Machine Length Increase, Beam Raised
63.40 in
1610.00 mm

Weights

Operating Weight - Typically Equipped
71454.00 lb
32411.00 kg

Weights Tier 4/Stage IV/Japan 2014 (Tier 4 Final)*

Gross Vehicle Weight - Maximum Tested - Total
84877.00 lb
38500.00 kg
Gross Vehicle Weight - Base** - Total
63528.00 lb
28816.00 kg
Gross Vehicle Weight - Typically Equipped - Rear Axle
52201.00 lb
23678.00 kg
Gross Vehicle Weight - Typically Equipped - Total
71454.00 lb
32411.00 kg
Gross Vehicle Weight - Maximum Tested - Front Axle
26125.00 lb
11850.00 kg
Gross Vehicle Weight - Typically Equipped - Front Axle
19253.00 lb
8733.00 kg
Gross Vehicle Weight - Maximum Tested - Rear Axle
58753.00 lb
26650.00 kg
Gross Vehicle Weight - Base** - Front Axle
17932.00 lb
8134.00 kg
Gross Vehicle Weight - Base** - Rear Axle
45596.00 lb
20682.00 kg

Dimensions (Approximate)

Ground Clearance - Rear Axle
15.60 in
396.00 mm
Length - Counterweight to Ripper
474.40 in
12051.00 mm
Length - Front Axle to Moldboard
120.70 in
3066.00 mm
Length - Front Axle to Mid Tandem
290.00 in
7365.00 mm
Height - Top of Cylinders
121.60 in
3088.00 mm
Width - Tire Center Lines
106.40 in
2703.00 mm
Width - Outside Rear Tires
134.30 in
3411.00 mm
Length - Between Tandem Axles
72.50 in
1841.00 mm
Height - Top of Cab
146.40 in
3719.00 mm
Width - Outside Front Tires
134.30 in
3411.00 mm
Height - Front Axle Center
28.90 in
733.00 mm
Length - Front Tire to Rear of Machine - Including Tow Hitch
417.00 in
10593.00 mm
Height - Exhaust Stack
140.00 in
3557.00 mm

Standards

Steering
ISO 5010:2007
Brakes
ISO 3450:2011
Sound
ISO 6394:2008/ISO 6395:2008/ISO 6396:2008
ROPS/FOPS
ISO 3471:2008/ISO 3449:2005

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Net

Gear - Reverse 3rd-6th
298.00 hp
222.00 kW
Gear - Forward 8th
348.00 hp
259.00 kW

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Metric

Gear - Forward 4th
309.00 hp
227.00 kW

Optional Tire Arrangements

Wheel Group - 19.5×25 MP (1)
Tires: 23.5R25 Bridgestone VKT 2 Star

Moldboard

Note
*Blade pull calculated at 0.9 traction coefficient, which is equal to ideal no-slip conditions, and Gross Machine Weight.

Optional Tire Arrangements

Wheel Group - 19.5×25 MP (2)
Tires: 23.5R25 Bridgestone VKT 1 Star

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Metric

Gear - Reverse 1st
294.00 hp
216.00 kW

Weights Tier 4/Stage IV/Japan 2014 (Tier 4 Final)*

Note (1)
*For machines not equipped with Tier 4 Final emission engine, subtract 150 kg (331 lb) from rear axle weight and total weight.

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Net

Gear - Forward 3rd
298.00 hp
222.00 kW

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Metric

Gear - Forward 3rd
302.00 hp
222.00 kW

Optional Tire Arrangements

Wheel Group - 19.5×25 MP (3)
Tires: 23.5R25 Bridgestone VJT 1 Star

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Metric

Gear - Reverse 3rd-6th
302.00 hp
222.00 kW
Gear - Reverse 2nd
294.00 hp
216.00 kW
Gear - Forward 7th
332.00 hp
244.00 kW
Gear - Forward 6th
325.00 hp
239.00 kW

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Net

Gear - Forward 6th
320.00 hp
239.00 kW

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Metric

Gear - Forward 8th
353.00 hp
259.00 kW

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Net

Gear - Forward 5th
311.00 hp
232.00 kW

Weights Tier 4/Stage IV/Japan 2014 (Tier 4 Final)*

Note (2)
**Base operating weight calculated on standard machine configuration with 23.5 R25 tires, full fuel tank operator and ROPS cab.

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Net

Gear - Reverse 1st
290.00 hp
216.00 kW
Gear - Reverse 2nd
290.00 hp
216.00 kW

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Metric

Gear - Forward 1st
294.00 hp
216.00 kW

Standards

Note (1)
The dynamic spectator sound power level is 109 dB(A) for Stage IV certified configurations and 109 dB(A) for Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standard machines when measured according to the dynamic test procedures that are specified in ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. The machine was equipped with a sound suppression system.

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Net

Gear - Forward 4th
304.00 hp
227.00 kW

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Metric

Gear - Forward 5th
315.00 hp
232.00 kW

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Net

Gear - Forward 7th
328.00 hp
244.00 kW
Gear - Forward 1st
290.00 hp
216.00 kW
Gear - Forward 2nd
290.00 hp
216.00 kW

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Metric

Gear - Forward 2nd
294.00 hp
216.00 kW

Optional Tire Arrangements

Wheel Group - 19.5×25 MP (4)
Tires: 23.5R25 Michelin XHA 2 Star

Ripper

Shank Holder Spacing - Maximum
20.00 in
500.00 mm

Optional Tire Arrangements

Wheel Group - 19.5×25 MP (5)
Tires: 23.5R25 Michelin XLDD 2 Star L5

Standards

Note (2)
The dynamic operator sound pressure level is 71 dB(A) for Stage IV certified configurations and 72 dB(A) for Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standard machines when measured according to the dynamic test procedures that are specified in ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed, with the cab doors and the cab windows closed. The cab was properly installed and maintained. The machine was equipped with a sound suppression system.

Operating Specifications

Note
Calculated with no slip and 23.5 R25 L-3 tires.

Engine

Optimized VHP Range - Net
216-259 kW (290-348 hp)

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 2.0 kg (4.4 lb) of refrigerant which has a CO2 equivalent of 2.860 metric tonnes (3.152 tons).
Features

RELIABILITY YOU CAN COUNT ON


  • Reduce downtime and operating cost through improved serviceability, fuel economy and reduced maintenance, maximizing availability.
    •
  • Major components are modular, so most can be removed and reinstalled without disturbing other components for peak repair efficiency.
    •
  • C13 engine has been optimized to be as efficient without compromising performance. Eco mode can be activated to control high engine idle speed and ensure the engine is performing as efficiently as possible, offering additional fuel savings.
    •
  • Center shift section of the front frame is a heavy-duty steel casting improving stress distribution for enhanced durability.
    •
  • Rear frame structure is lengthened providing easy access to components in the engine enclosure as well as improved machine balance.
    •
  • Front axle steering cylinder enhances durability and hydraulic lines are routed to improve reliability.
    •
  • Modular cooling package provides simple removal and installation of components on the cooling system reducing service time.
    •
  • Engine enclosure doors provide complete access to the engine without any enclosure post.
    •
  • Extended maintenance intervals reduce the number of touches and downtime.
    •
  • Fluid monitoring systems help prevent critical components from damage when levels are low.
    •
  • Information Display in cab shows service/maintenance concerns and diagnostic codes are logged.

PERFORMANCE AND PRODUCTIVITY

  • Motor graders have a direct impact on how productively all other mining machines operate – in particular in their role in haul road maintenance. The 16is optimized exactly to this goal:
  • Additional weight along with adjusted weight balance offers enhanced performance improving traction and the ability to keep ground speed, especially when carrying a large load.
  • Available with three variations of the C13 engine depending upon sales region.
  • Emissions reduction technology is transparent, with no action required from the operator.
  • Multi-color / touch screen information display is the operator's gateway to monitoring machine performance and provides convenient way of modifying machine parameters to tailor performance to the current task. Assist in providing service information for troubleshooting.
  • Cat Product Link™ Elite integrates into the machine, taking guesswork out of equipment management. Provides easy access to machine location, hours, fuel usage, idle time and event codes via the online VisionLink® user interface helping you manage your fleet and operating costs.
  • Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.

ENSURING A SAFE JOB SITE

  • Caterpillar considers the safety of everyone in, on or around Cat equipment when developing products or enhancing safety features.
  • The 16has safety features including -
  1. Access to Tandem
  2. Rear View Camera
  3. Seat Belt Indicator
  4. Access Platform – optional
  5. Service Access Platform – optional
  6. Fire Suppression Ready System – optional

TOP-TIER SERVICE AND SUPPORT

  • Cat dealers are committed to helping you succeed, ensuring you have the right machine for the job, making parts available, operator training and providing a wide range of versatile work tools.
Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Adjustable Electric Arm rest
    • Adjustable wrist rest
    • Air conditioner with heater
    • Articulation, automatic Return-to-Center
    • Centershift pin indicator
    • Coat hook
    • Cup holder
    • Display, digital speed and gear
    • Doors, left and right side with wiper
    • Gauges (analog) inside the cab (includes fuel, articulation, engine coolant temp, engine rpm, and hydraulic oil temp)
    • Gauges, machine level
    • Information display touch screen
    • Joystick gear selection
    • Joystick hydraulic controls for implements, steering, transmission
    • Ladders, cab, left and right side
    • Lights, left and right side lights
    • Lights, night time cab
    • Meter, hour, digital
    • Mirror, inside rearview, wide angle
    • Power port, 12V
    • Radio ready, entertainment
    • ROPS cab, sound suppressed, less than 73 dB(A) ISO 6394 (70% fan speed)
    • Seat, cloth-covered, comfort air suspension
    • Storage compartments
    • Throttle control, electronic
  • POWER TRAIN
    • Air cleaner, dual stage dry type radial seal with service indicator through messenger and automatic dust ejector
    • Air-to-air after cooler (ATAAC)
    • Auto Diff Lock
    • Belt, serpentine, automatic tensioner
    • Brake wear indication
    • Brakes, oil disc, four-wheel, hydraulic
    • Consistent Power to ground
    • Critically Low Fluid Level Monitoring System
    • Differential, lock/unlock
    • Drain, engine oil, high speed
    • Electronic over speed protection
    • Engine ECO Mode: Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) and Tier 2/Stage II/Japan 2001 (Tier 2) equivalent emission standards
    • Engine, compression brake
    • Ether starting aid
    • Fuel tank, fast fill, ground level
    • Fuel-water separator
    • Hydraulic Demand Fan
    • Muffler, under hood (Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3)
    • OK-to-Start
    • Optimized VHP
    • Parking brake – multi disc, sealed, oil-cooled
    • Priming pump, fuel
    • Rear axle, modular
    • Sediment drain, fuel tank
    • Three variations of the C13 engine. One meets U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final) emission standards and is required for sale in higher regulated countries. The other options are capable of meeting Tier 2/Stage II/Japan 2001 (Tier 2) or Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standards and are available for lesser or non-regulated countries, depending on the emission standards of the specific country.
    • Transmission, 8F/6R, power shift
    • VIMS no telematics
  • ELECTRICAL
    • Alternator, 150 ampere, sealed
    • Batteries, maintenance free, heavy duty, 1,400 CCA
    • Breaker panel
    • Electrical system, 24V
    • Lights: brake, reversing, roof-mounted roading, stop and tail (LED), work front
    • Product Link
    • Starter, electric, heavy duty
  • SAFETY
    • Alarm, back up
    • Ground level engine shutdown
    • Hammer (emergency exit)
    • Horn, electric
    • Lockout, hydraulic implement for roading
    • Operator not present monitoring System
    • Paint, glare reducing – top of front frame, rear enclosure an ripper cylinders
    • Rearview camera
    • Seat belt indicator
    • Seat belt, retractable 76 mm (3 in)
    • Secondary steering
    • Windows, laminated glass: – Fixed front with intermittent wiper – Door with intermittent wipers (2)
    • Windows, tempered: – Left and right side wipers – Rear with intermittent wiper
  • OTHER STANDARD EQUIPMENT
    • 3-Bolt blade Bracket
    • AccuGrade ARO
    • Accumulators, blade lift
    • Brake accumulators, dual certified
    • Cat Grade Control Cross Slope
    • CD ROM Parts Book
    • Clutch, circle drive slip
    • Cutting edges, curved DH-2 steel: – 203 mm × 25 mm (8 in × 1 in) – 19 mm (3∕4 in) mounting bolts
    • Doors (four), engine compartment, (two left, two right hand) locking
    • Doors, two service, left and right side
    • Drawbar – six shoe with replaceable wear strips
    • End bits, 16 mm (5∕8 in) DH-2 steel, 19 mm (3∕4 in) mounting bolts
    • Fast fill fuel, 567.8 L/min (150 gpm)
    • Fluid check
    • Frame, articulated, with safety lock
    • Hydraulics, load-sensing
    • Metallic Fuel tank, 496 L (131 gal)
    • Metallic DCM wear strips
    • Modular cooling package
    • Moldboard: – 4880 mm × 787 mm × 25 mm (16 ft × 31 in × 1 in) – Hydraulic side shift and tip
    • Radiator, two cleanout access doors
    • Rear bumper
    • Rear tandem access steps and hand bars
    • S∙O∙S ports: engine, hydraulic, transmission, coolant
    • Tandem walkway
    • Top adjust circle wear strips
    • Tow hitch (not available with ripper)
  • TIRES, RIMS, AND WHEELS
    • A partial allowance for tires on 597 mm × 609.6 mm (23.5 in × 24 in) multi-piece rims is included in the base machine price and weight
  • FLUIDS
    • Extended Life Coolant to –35° C (–31° F)
  • WORK TOOLS/G.E.T.
    • 4.9 m (16 ft) blade with curved cutting edge 203 mm × 25 mm (8 in × 1 in)
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Air horn
    • Comfort package
    • Heated door
    • Mirrors high visibility
    • Mirrors, outside heated 24V
    • Mirrors, outside mounted
    • Seat heated
    • Seat heated/ventilated
    • Windows cleaning platform and ladders left-right hand side
  • POWER TRAIN
    • Transmission, autoshift
  • GUARDS
    • Debris guard
    • Front axle cylinder guard
    • Rear fenders
    • Sound suppression, engine enclosure and transmission
    • Transmission guard
  • ELECTRICAL
    • Light, LED, warning strobe
    • Lights front LED
    • Lights, front headlights high
    • Lights, front headlights low
    • Mounting, for warning light
    • Service lights
    • Working lights halogen
    • Working lights LED
  • SAFETY
    • Additional monitor for rearview camera
    • Enhanced access platform
    • Fire suppression ready
    • Machine Security System Key
    • Service access platform
  • OTHER ATTACHMENTS
    • Auto-lube, Centro-matic
    • Auto-lube, ripper enhancement
    • Control, blade, variable float
    • Heater, engine coolant, 120V
    • Heater, engine coolant, 240V
    • Hydraulic arrangements with additional hydraulic valves Base+1
    • Hydraulic arrangements with additional hydraulic valves Base+5
    • Product Link Elite dual
    • Rim, 495.3 mm × 635 mm (19.5 in × 25 in) MP (spare)
    • Weather, Cold Plus package
  • WORK TOOLS/G.E.T.
    • 4.9 m (16 ft) blade with flat cutting edge 254 mm × 35 mm (10 in × 1 3∕8 in)
    • Push block, counterweight
    • Ripper, rear
    • Tooth, ripper
  • FLUIDS
    • Coolant, –51° C (–60° F)
