430F2/430F2 IT Backhoe Loader

Request A Quote 430F2/430F2 IT Attachments New and Used Inventory

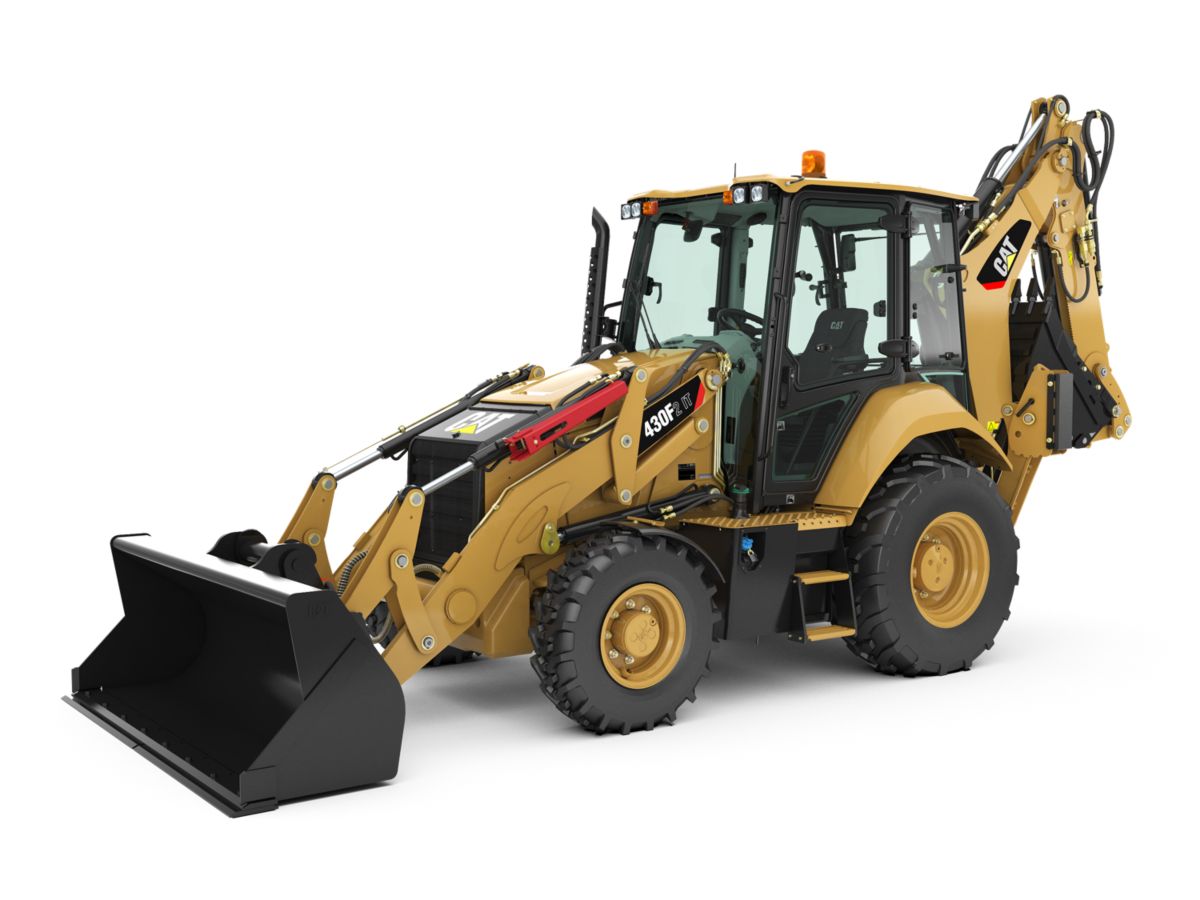

430F2/430F2 IT Backhoe Loader
US
Metric

Overview

Experience the Backhoe Loader designed around customer feedback. The Cat 430F2 Backhoe Loader puts all the machine controls at the operator's fingertips. Operate all auxiliary controls with thumb rollers. Move from job site to job site quickly and smoothly with the additional 6th gear on the autoshift transmission and optional lock-up torque converter.

Engine

Net Power – SAE J1349
108.00 hp
80.00 kW
Engine Model
Cat® C4.4 ACERT™
Gross Power – SAE J1995
117.00 hp
87.00 kW
Gross Power – ISO 14396
115.00 hp
86.00 kW
Rated Net Power @ 2,200 rpm – SAE J1349
108.00 hp
80.00 kW
Rated Net Power @ 2,200 rpm – ISO 9249
109.00 hp
81.00 kW
Rated Net Power - 2,200 rpm - EEC 80/1269
109.00 HP
81.00 kW
Net Peak Power - 1,800 rpm - SAE J1349
110.00 HP
82.00 kW
Net Peak Power - 1,800 rpm - ISO 9249
111.00 HP
83.00 kW
Net Peak Power - 1,800 rpm - EEC 80/1269
111.00 HP
83.00 kW
Bore
4.13 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
268.00 in3
4.40 L
Net Torque Rise - 1,400 rpm - SAE J1349
39%

Backhoe

Dig Depth - Standard
15.40 ft
4686.00 mm

Weights

Operating Weight – Maximum
24251.00 lb
11000.00 kg
Operating Weight - Minimum
17141.00 lb
7775.00 kg
Operating Weight - Maximum - ROPS Capacity
24251.00 lb
11000.00 kg
Auto-Shift Transmission
525.00 lb
238.00 kg
Ride Control
31.00 lb
14.00 kg
Air Conditioning
93.00 lb
42.00 kg
MP Bucket (0.96 m3/1.25 yd3) (no forks or teeth)
1642.00 lb
745.00 kg
Air Conditioning
93.00 lb
42.00 kg
Extendible Stick
673.00 lb
305.00 kg
MP Bucket (0.96 m3/1.25 yd3) - No Forks or Teeth
1642.00 lb
745.00 kg
Extendible Stick
673.00 lb
305.00 kg
Counterweights (Option 3)
1015.00 lb
460.00 kg

Hydraulic System

Type
Closed Center
Pump Capacity @ 2,200 rpm
43.00 gal/min
163.00 L/min
System Pressure – Backhoe
3600.00 psi
25000.00 kPa
System Pressure - Backhoe
3600.00 psi
25000.00 kPa
System Pressure - Loader
3600.00 psi
25000.00 kPa
Variable Flow, Axial Piston

Transmission

Power Shuttle Transmission - Forward 1st
3.40 mile/h
5.40 km/h
Power Shuttle Transmission - Forward 2nd
5.60 mile/h
9.00 km/h
Power Shuttle Transmission - Forward 3rd
13.00 mile/h
21.00 km/h
Power Shuttle Transmission - Forward 4th
25.00 mile/h
40.00 km/h
Power Shuttle Transmission - Reverse 1st
3.40 mile/h
5.40 km/h
Power Shuttle Transmission - Reverse 2nd
5.60 mile/h
9.00 km/h
Power Shuttle Transmission - Reverse 3rd
13.00 mile/h
21.00 km/h
Power Shuttle Transmission - Reverse 4th
25.00 mile/h
40.00 km/h
Auto-Shift - Optional - Forward 1st
3.60 mile/h
5.80 km/h
Auto-Shift - Optional - Forward 2nd
5.70 mile/h
9.30 km/h
Auto-Shift - Optional - Forward 3rd
7.00 mile/h
12.00 km/h
Auto-Shift - Optional - Forward 4th
12.00 mile/h
19.00 km/h
Auto-Shift - Optional - Forward 5th
16.00 mile/h
26.00 km/h
Auto-Shift - Optional - Forward 6th
25.00 mile/h
40.00 km/h
Auto-Shift - Optional - Reverse 1st
3.60 mile/h
5.80 km/h
Auto-Shift - Optional - Reverse 2nd
7.60 mile/h
12.00 km/h

Axle Ratings

Front Axle (2WD) - Static
50582.00 lb
22964.00 kg
Front Axle (2WD) - Dynamic
20233.00 lb
9186.00 kg
Front Axle, 4WD – Static
50582.00 lb
22964.00 kg
Front Axle (4WD) - Dynamic
20233.00 lb
9186.00 kg
Rear Axle – Static
50582.00 lb
22964.00 kg
Rear Axle - Dynamic
20233.00 lb
9186.00 kg

Service Refill Capacities

Cooling System with Air Conditioning
5.90 gal (US)
22.50 B
Fuel Tank
42.00 gal
160.00 L
Diesel Exhaust Fluid*
5.00 gal
19.00 L
Engine Oil with Filter
2.30 gal
8.80 L
Transmission - Power Shuttle - 4WD
4.00 gal (US)
15.00 B
Rear Axle
4.40 gal (US)
16.50 B
Rear Axle - Planetaries
0.40 gal (US)
1.70 B
Front Axle (4WD)
2.90 gal (US)
11.00 B
Front Axle (4WD) - Planetaries
0.20 gal (US)
0.70 B
Front Axle (4WD) – Planetaries
0.20 gal
0.70 L
Hydraulic System
25.10 gal
95.00 L

Engine

Net Peak Torque @ 1,400 rpm
360.00 lbf-ft
488.00 N·m
Note
Engine meets Tier 4 Final emission standards.

Transmission

Auto-Shift - Optional - Reverse 3rd
17.00 mile/h
28.00 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 1st
3.60 mile/h
5.80 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 2nd
5.70 mile/h
9.30 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 3rd
7.00 mile/h
12.00 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 4th
12.00 mile/h
19.00 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 5th
14.00 mile/h
23.00 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 5th LUC
15.00 mile/h
25.00 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 6th
25.00 mile/h
40.00 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Reverse - 1st
3.60 mile/h
5.80 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Reverse - 2nd
7.60 mile/h
12.00 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Reverse - 3rd
17.00 mile/h
28.00 km/h

Steering

Type
Front Wheel
Power Steering
Hydrostatic
Bore
2.60 in
65.00 mm
Stroke
4.70 in
120.00 mm
Rod Diameter
1.40 in
36.00 mm
Axle Oscillation
11°
Turning Circle - 4WD (inner wheel not braked) - Outside, Front Wheels
26.80 ft
8.18 m
Turning Circle - 4WD (inner wheel not braked) - Outside, Widest Loading Bucket
36.00 ft
10.97 m

Service Refill Capacities

Hydraulic Tank
10.60 gal
40.00 L
Note
* Must meet the requirements outlined in ISO 22241.

Tires

Choice 1
Front: 12.5/80-18 (12 ply) 1-3; Rear: 19.5L-24 (12 ply) ATU
Choice 2
Front: 12.5/80-18 NHS (12 ply) 1-3; Rear: 21L-24 (16 ply) R4 ATU
Choice 3
Front: 340/80R18; Rear: 19.5L-24 (12 ply) R4 ATU
Choice 4
Front: 340/80R18; Rear: 500/70R24 RT

Engine

Rated Net Power – SAE J1349
108.00 hp
80.00 kW
Rated Net Power – ISO 9249
109.00 hp
81.00 kW

Weights

Operating Weight – Maximum (ROPS Capacity)
24251.00 lb
11000.00 kg

Backhoe

Dig Depth – E-Stick Extended
19.50 ft
5935.00 mm

Transmission

Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 6th LUC
25.00 mile/h
40.00 km/h

Axle Ratings

Axle Oscillation
10 Degrees

Service Refill Capacities

Note
Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur.

Standards

Brakes
SAE J/ISO 3450; ISO 3450 1996
Cab – ROPS
SAE J1040 MAY94; ISO 3741 1994
Cab – FOPS
SAE J/ISO 3449 APR98 LEVEL II and ISO 3449: 1992 LEVEL II
Cab – Sound
ANSI/SAE J1166 OCT98 is 79 dB(A)
Exterior Sound
SAE J188 JUN86 is 76 dB(A)

Engine Features

Feature
Regeneration is passive and does not require any input from the operator or disrupt work.
Feature
Three-ring pistons made of lightweight, silicon/aluminum alloy for strength and maximum thermal conductivity.
Feature
Forged chrome/molybdenum-steel crankshaft with crankshaft with either induction hardened or nitrocarburized journals.
Feature
Front and rear crankshaft oil seals are “lip” type Viton and PTFE designs featuring an integral dust lip.
Feature
Heat resistant, silicone-chrome steel intake and STELLITE-faced exhaust valves provide long life.
Feature
Cylinder block is high strength, cast iron alloy of deep skirt, monobloc design for increased strength and long life.
Feature
Cylinder head is high strength, cast iron alloy construction with extra duty wall and deck thickness.
Feature
Cylinder head's intake and exhaust ports are precision cast to promote optimum gas flow.
Feature
Direct injection fuel system provides accurate fuel delivery; remote mounted electric lift pump improves serviceability.
Feature
Dry-type axial seal air cleaner with integral precleaner, automatic dust ejection system, and filter condition indicator.
Feature
Direct electric, 12-volt starting and charging system with 880 CCA Group 31 maintenance free battery.
Feature
Standard glow plug starting aid system for efficient cold weather starting.
Feature
High contact ratio/gear train, peripheral fixed isolation top cover and open deck block design reduce bare engine noise.
Feature
Higher low end torque for better engine/machine performance.
Feature
Engine is equipped with electric fuel priming pump.

Brakes

Feature
Brakes meet the following standards: SAE J1473 and ISO 3450 requirements.
Feature
Self-adjusting, completely enclosed and sealed.
Feature
Foot operated brake pedals can be interlocked for roading.
Feature
Parking/secondary brakes are independent of the service brake system.
Feature
Parking brake is mechanically applied through an adjustable hand lever located on the right console.

Engine

Net Power - SAE J1349
108.00 HP
80.00 kW
Bore
4.13 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
268.00 in³
4.40 B
Engine Model
Cat® C4.4 ACERT™
Gross Power - ISO 14396
115.00 HP
86.00 kW
Gross Power - SAE J1995
117.00 HP
87.00 kW
Rated Net Power - 2,200 rpm - ISO 9249
109.00 HP
81.00 kW
Net Power - 2,200 rpm - SAE J1349
108.00 HP
80.00 kW

Weights

Operating Weight - Maximum
24251.00 lb
11000.00 kg
Cab - ROPS/FOPS
359.00 lb
163.00 kg
Ride Control
31.00 lb
14.00 kg
Counterweights - Option 1
255.00 lb
115.00 kg
Counterweights - Option 2
530.00 lb
240.00 kg
Counterweights - Option 3
1015.00 lb
460.00 kg
Loader, IT with Quick Coupler
699.00 lb
317.00 kg

Hydraulic System

Pump Type
Variable Flow, Axial Piston
Pump Capacity at 2,200 rpm
43.00 gal/min
163.00 l/min
Type
Closed Center

Service Refill Capacities

Diesel Exhaust Fluid*
5.00 gal (US)
19.00 B
Engine Oil - With Filter
2.30 gal (US)
8.80 B
Fuel Tank
42.00 gal (US)
160.00 B
Hydraulic System
25.10 gal (US)
95.00 B
Transmission - Auto-Shift - 4WD
4.80 gal (US)
18.00 B

Axle Ratings

Front Axle (4WD) - Static
50582.00 lb
22964.00 kg
Rear Axle - Static
50582.00 lb
22964.00 kg

Backhoe

Dig Depth - E-Stick Extended
19.50 ft
5935.00 mm

Brakes

Feature (1)
Brakes meet the following standards: SAE J1473 and ISO 3450 requirements.
Feature (2)
Self-adjusting, completely enclosed and sealed.
Feature (3)
Foot operated brake pedals can be interlocked for roading.
Feature (4)
Parking/secondary brakes are independent of the service brake system.
Feature (5)
Parking brake is mechanically applied through an adjustable hand lever located on the right console.

Engine

Net Peak Torque - 1,400 rpm
360.00 ft-lb
488.00 N·m
Note
Engine meets Tier 4 Final emission standards.
Rated Net Power - ISO 9249
109.00 HP
81.00 kW
Rated Net Power - SAE J1349
108.00 HP
80.00 kW

Engine Features

Feature (1)
Regeneration is passive and does not require any input from the operator or disrupt work.
Feature (10)
Dry-type axial seal air cleaner with integral precleaner, automatic dust ejection system, and filter condition indicator.
Feature (11)
Direct electric, 12-volt starting and charging system with 880 CCA Group 31 maintenance free battery.
Feature (12)
Standard glow plug starting aid system for efficient cold weather starting.
Feature (13)
High contact ratio/gear train, peripheral fixed isolation top cover and open deck block design reduce bare engine noise.
Feature (14)
Higher low end torque for better engine/machine performance.
Feature (15)
Engine is equipped with electric fuel priming pump.
Feature (2)
Three-ring pistons made of lightweight, silicon/aluminum alloy for strength and maximum thermal conductivity.
Feature (3)
Forged chrome/molybdenum-steel crankshaft with crankshaft with either induction hardened or nitrocarburized journals.
Feature (4)
Front and rear crankshaft oil seals are “lip” type Viton and PTFE designs featuring an integral dust lip.
Feature (5)
Heat resistant, silicone-chrome steel intake and STELLITE-faced exhaust valves provide long life.
Feature (6)
Cylinder block is high strength, cast iron alloy of deep skirt, monobloc design for increased strength and long life.
Feature (7)
Cylinder head is high strength, cast iron alloy construction with extra duty wall and deck thickness.
Feature (8)
Cylinder head's intake and exhaust ports are precision cast to promote optimum gas flow.
Feature (9)
Direct injection fuel system provides accurate fuel delivery; remote mounted electric lift pump improves serviceability.

Service Refill Capacities

Hydraulic Tank
10.60 gal (US)
40.00 B
Note (1)
* Must meet the requirements outlined in ISO 22241.
Note (2)
Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur.

Standards

Cab - FOPS
SAE J/ISO 3449 APR98 LEVEL II and ISO 3449: 1992 LEVEL II
Cab - ROPS
SAE J1040 MAY94; ISO 3741 1994
Cab - Sound
ANSI/SAE J1166 OCT98 is 79 dB(A)

Steering

Axle Oscillation
11°
Bore
2.60 in
65.00 mm
Power Steering
Hydrostatic
Rod Diameter
1.40 in
36.00 mm
Stroke
4.70 in
120.00 mm
Type
Front Wheel

Tires

Choice 1
Front: 12.5/80-18 (12 ply) 1-3; Rear: 19.5L-24 (12 ply) ATU
Choice 2
Front: 12.5/80-18 NHS (12 ply) 1-3; Rear: 21L-24 (16 ply) R4 ATU
Choice 3
Front: 340/80R18; Rear: 19.5L-24 (12 ply) R4 ATU
Choice 4
Front: 340/80R18; Rear: 500/70R24 RT

Standards

Brakes
SAE J/ISO 3450; ISO 3450 1996
Exterior Sound
SAE J188 JUN86 is 76 dB(A)
Features

Operator Station



Power Train



Advanced Hydraulics



Backhoe Performance



Loader Performance



Work Tools



Serviceability



Customer Support



Sales Features

Operator Station

A cab designed for maximum comfort and productivity.

Power Train

Always built for performance, power and efficiency.

Advanced Hydraulics

Matching system power to job site demands.

Backhoe Performance

Superior digging forces.

Loader Performance

Powerful front loader.

Work Tools

Do more jobs with one machine.

Serviceability

Easy maintenance helps keep your machine working.

Customer Support

Unmatched support makes the difference.
Standard Equipment
  • Adjustable auxiliary controls, backhoe loader
  • Air cleaner
  • Alarm, back-up
  • Alternator, 150 amp
  • Audible system fault alarm
  • Automatic Engine Speed Control (AESC)
  • Battery, maintenance-free, 880 CCA
  • Battery disconnect switch
  • Battery remote jumpstart
  • Boom transport lock
  • Brace, lift cylinder
  • Brake, secondary parking
  • Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
  • Bucket level indicator
  • Canopy, ROPS/FOPS
  • Cat cushion swing system
  • Coat restraint
  • Coolant/antifreeze, extended life
  • Counterweight, bumper
  • Dome light (cab only)
  • Diagnostic port for engine, machine and gauge cluster Electronic Control Modules
  • Differential lock, loader joystick
  • Engine, Cat C4.4 ACERT (Direct Injection Turbocharged), meets Tier 4 Final emission standards, selective catalyst reduction, diesel oxidation catalyst (DOC)
  • Engine enclosure, sound suppression removal panels
  • Face seals, O-ring
  • Fan, suction and guard
  • Fast reversing shuttle, all gears
  • Fenders, rear
  • Filters, spin-on: fuel, engine oil, transmission oil, water separator
  • Filters, bowl and cartridge: hydraulic fluid
  • Flashing hazards/signal lights
  • Floor mat
  • Four Wheel Drive
  • Fuel tank, fully enclosed
  • Fully hinged front grill for cooling package cleaning access
  • Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level
  • Ground level fuel fill and DEF fill
  • High ambient cooling package
  • Hood lock, inside cab
  • Hydraulic hose, XT™
  • Hydraulic oil cooler
  • Hydraulic oil level sight gauge
  • Hydraulic valve, hydrostatic steering
  • Hydraulic valves, loader 2 function
  • Hydraulic valves, backhoe 5 function
  • Hydraulics, load sensing with variable displacement piston pump
  • Indicator lights: Eco mode active, water in fuel, remote dial throttle active, engine warning, warning lamp, emissions module malfunction, AESC active, low battery/charging system warning, high hydraulic oil temperature; LCD warnings: engine oil pressure, machine locked (if equipped), service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass
  • Instrument panel lights
  • Joystick controls: pilot operated, excavator-style with pattern changer
  • Key start/stop system
  • LCD screen: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, oil life reset, DPF force regeneration, maintenance intervals, ECM/system info
  • Lights, working (4 front, 4 rear)
  • Loader, self-leveling, return-to-dig and transmission disconnect switch
  • Loader, single tilt
  • Mirror, rearview
  • One-touch low idle
  • Open circuit breather
  • Pattern changer, in cab
  • Power receptacle, 12 volt, 2 internal, 1 external
  • Power steering, hydrostatic
  • Radio ready cab
  • Seat belt, retractable, 51 mm (2 in)
  • Socket, two roof
  • Stabilizer shoes, street
  • Steering knob
  • Seat, air suspension, fabric or vinyl cover, with armrest
  • Starting system, glow plugs
  • Steering, hydrostatic
  • Storage compartment, lockable
  • Storage tray
  • Stop and tail lights
  • Swing transport lock
  • Tilt steering wheel
  • Tires
  • Toolbox, external, lockable
  • Torque converter
  • Throttle, hand and foot, electronic
  • Transmission, four speed, syncromesh
  • Transmission neutralizer switch
  • Transport tie-downs
  • Vandalism locks, four
  • Warning horn, electric
Optional Equipment
  • Battery, additional, 880 CCA
  • Cab, deluxe
  • Cold weather fuel (–30° C/–22° F)
  • Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
  • Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
  • Fenders, front with integral steps
  • Guard, boom protection plate
  • Guard, stabilizer, rock
  • Hydraulic valves, loader (3rd valve for GP, MP or Quick Coupler)
  • Hydraulic valves, backhoe 6 function
  • Hydraulic lines, combined function auxiliary
  • Loader, IT with Quick Coupler and pilot loader control
  • Product Link, satellite, PL631E
  • Product Link, cellular, PL641I
  • Quick Coupler, hydraulic, dual lock
  • Quick Coupler, manual, dual lock
  • Quick Coupler, pin lock
  • Radio and CD player
  • Radio and CD player, Bluetooth
  • Ride Control
  • Rotating beacon, magnetic mount
  • Seat belt, 75 mm (3 in)
  • Seat, heated
  • Security system keypad
  • Stabilizer pads, reversible
  • Stick, extendible
  • Storage box
  • Transmission, AutoShift
  • Transmission, AutoShift with lock-up torque converter
  • Vandalism protection, gauge cover

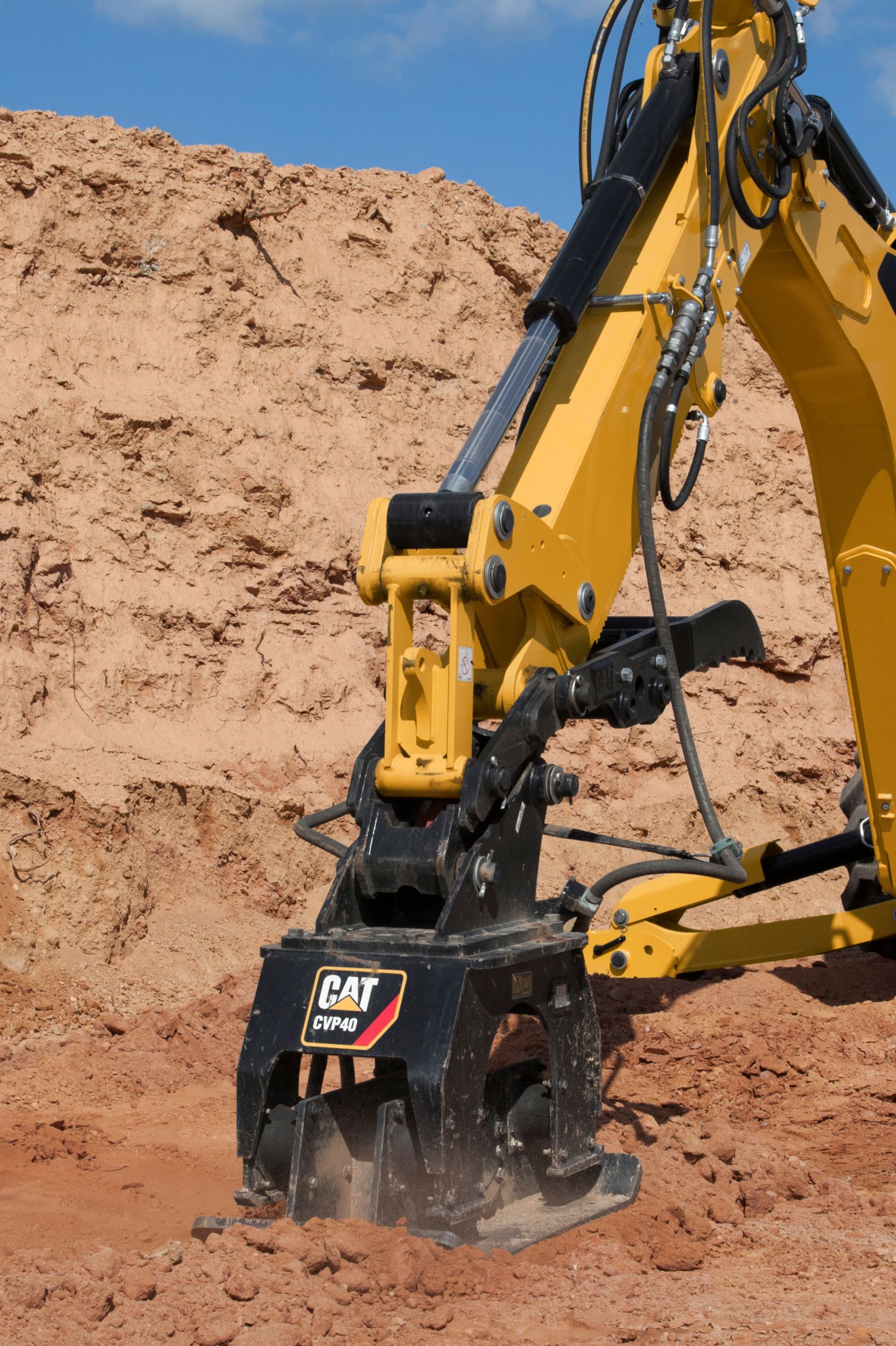

  • Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.
