Repair Options for 320 Excavators

While excavator applications vary, certain goals remain — keep owning and operating costs down and equipment uptime high. Peterson offers repair options to maintain performance and profitable operations of excavators.

We want to help you reduce your cost of ownership.

Contact Us

Download PDF




Engine Repair Options

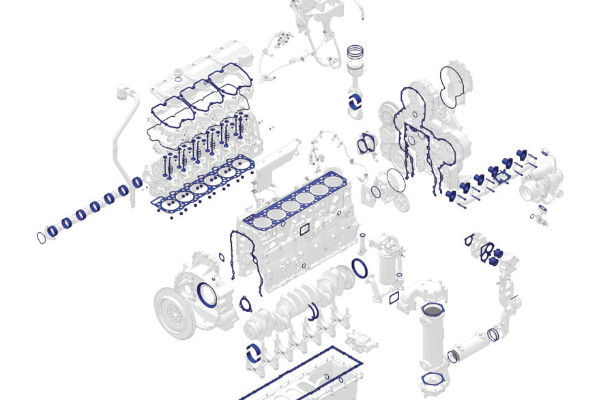

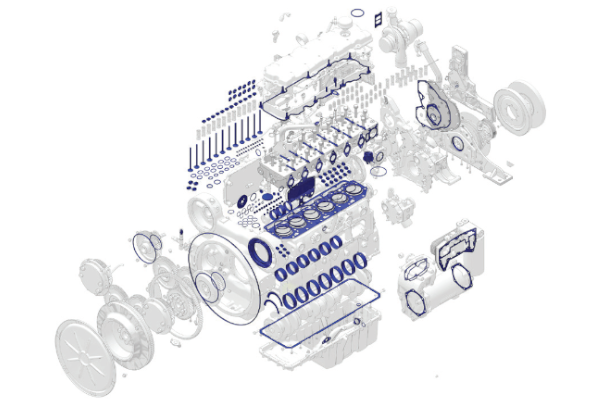

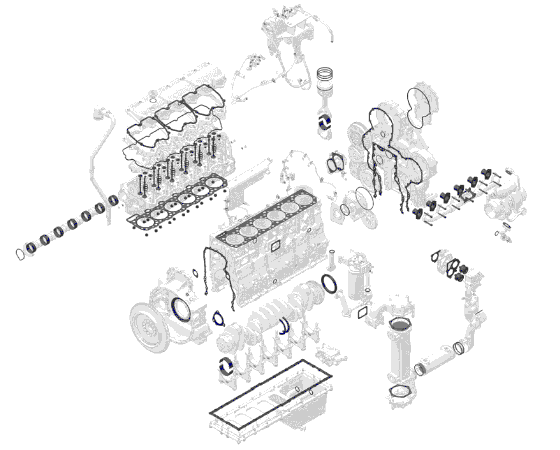

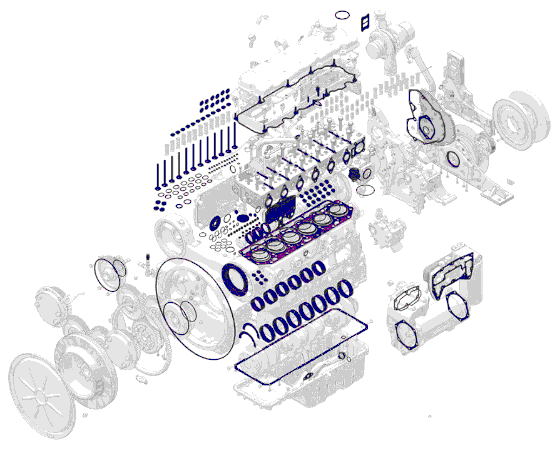

Engine Repair Example

Inspect or Test:

  • Camshaft
  • Cooling system
  • Cooling fan
  • Coolant hoses
  • Radiator
  • Crankshaft
  • Cylinder block
  • ECM
  • Engine mounts
  • Engine oil cooler
  • Exhaust & intake manifolds
  • Fan drive, pulleys, belts & belt tensioner
  • Flywheel & ring gear
  • Front gear train
  • Fuel injectors
  • Fuel transfer pump & fuel lines
  • Fumes disposal & clamps
  • Piston spray jets
  • Pushrods, lifters & spring guides
  • Rocker arm assemblies
  • Intake & exhaust
  • Rocker arm shaft
  • Turbocharger, aftercooler/hoses & clamps
  • Unit injection hydraulic pump
  • Vibration damper
  • Wiring harnesses, switches & sensors



Level 1
Minor Overhaul

Includes: bearings, seals, gaskets and normal onelife wear parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines.

Does not include: external parts, including turbos, exhaust, electrical and electronics.

Level 2
Major Overhaul

Includes: all Level 1 parts and turbocharger. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 3
Complete Rebuild

Includes: complete component rebuild including all Level 1 & 2 parts. Replacement of sensors and harness.

Does not include: replacement of major housings/castings.

Level 4
Remanufactured

Replace engine with Cat remanufactured

Includes: starter and alternator.



Quote Level 1 Level 2 Level 3 Level 4
Recondition, repair, or replace In-frame Out-of-fram Out-of-frame Reman
Camshaft bearings x x x
Coolant temperature regulator x x x
Crankshaft thrust plates x x x
Exhaust manifold studs/locknuts x x x
Gaskets & seals for components that are removed x x x
Main bearings & rod bearings x x x
Breather x x x
PM Service - oil, fuel, & air filters x x x
Turbocharger (mounting) studs/locknuts x x x
Cylinder head x x x
Cylinder pack x x x
Water pump   x x
Turbocharger   x x
Engine oil pump x x x
Fuel injectors x x x
Paint engine   x x
Fuel transfer pump   x x
Engine oil cooler   x x
Rocker shaft and arm assemblies (as needed)     x
Electrical wiring harness and sensors     x
Piston spray jets     x
Front gear train bearings   x x
V-belt     x
Polish crankshaft     x
Inspect fuel lines and replace (as needed)     x
Dyno test engine   x x
Replace with Cat remanufactured, includes starter and alternator       x

Contact Us




Final Drive Repair Options

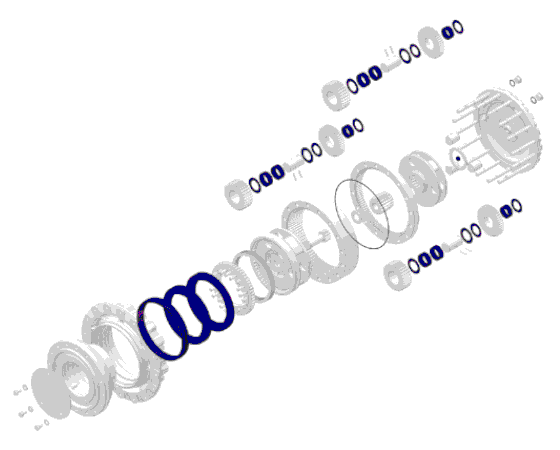

FINAL DRIVE REPAIR OPTIONS

Inspect or Test:

  • Gears
  • Shaft
  • Carrier
  • Wheel spindle
  • Operational test



Level 1
Final Drive

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines.

Does not include: replacing housings, carriers, shafts, machine work, or other critical parts not meeting Caterpillar reuse guidelines.

Level 2
Final Drive

Includes: all Level 1 parts. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Level 3
Final Drive

Replace final drive with Cat remanufactured.



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Duo-Cone seal x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Planet gears   x
Sun gears   x
Planet shafts   x
Cylinder head   x
Cylinder pack   x
Ring gear   x
Wheel spindle   x
Case repairs   x
Shafts   x
Housings & carriers   x
Replace with Cat remanufactured     x

Contact Us

Repair Options for 322C Excavators

While excavator applications vary, certain goals remain — keep owning and operating costs down and equipment uptime high. Peterson offers repair options to maintain performance and profitable operations of excavators.

We want to help you reduce your cost of ownership.

Contact Us

Download PDF




Engine Repair Options

Engine Repair Example

Inspect or Test:

  • Camshaft
  • Cooling system
  • Cooling fan
  • Coolant hoses
  • Radiator
  • Crankshaft
  • Cylinder block
  • ECM
  • Engine mounts
  • Engine oil cooler
  • Exhaust & intake manifolds
  • Fan drive, pulleys, belts & belt tensioner
  • Flywheel & ring gear
  • Front gear train
  • Fuel injectors
  • Fuel transfer pump & fuel lines
  • Fumes disposal & clamps
  • Piston spray jets
  • Pushrods, lifters & spring guides
  • Rocker arm assemblies
  • Intake & exhaust
  • Rocker arm shaft
  • Turbocharger, aftercooler/hoses & clamps
  • Unit injection hydraulic pump
  • Vibration damper
  • Wiring harnesses, switches & sensors



Level 1
Minor Overhaul

Includes: bearings, seals, gaskets and normal onelife wear parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines.

Does not include: external parts, including turbos, exhaust, electrical and electronics.

Level 2
Major Overhaul

Includes: all Level 1 parts and turbocharger. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 3
Complete Rebuild

Includes: complete component rebuild including all Level 1 & 2 parts. Replacement of sensors and harness.

Does not include: replacement of major housings/castings.

Level 4
Remanufactured

Replace engine with Cat remanufactured

Includes: starter and alternator.



Quote Level 1 Level 2 Level 3 Level 4
Recondition, repair, or replace In-frame Out-of-fram Out-of-frame Reman
Camshaft bearings x x x
Coolant temperature regulator x x x
Crankshaft thrust plates x x x
Exhaust manifold studs/locknuts x x x
Gaskets & seals for components that are removed x x x
Main bearings & rod bearings x x x
Breather x x x
PM Service - oil, fuel, & air filters x x x
Turbocharger (mounting) studs/locknuts x x x
Cylinder head x x x
Cylinder pack x x x
Water pump   x x
Turbocharger   x x
Engine oil pump x x x
Fuel injectors x x x
Paint engine   x x
Fuel transfer pump   x x
Engine oil cooler   x x
Rocker shaft and arm assemblies (as needed)     x
Electrical wiring harness and sensors     x
Piston spray jets     x
Front gear train bearings   x x
V-belt     x
Polish crankshaft     x
Inspect fuel lines and replace (as needed)     x
Dyno test engine   x x
Replace with Cat remanufactured, includes starter and alternator       x

Contact Us




Final Drive Repair Options

FINAL DRIVE REPAIR OPTIONS

Inspect or Test:

  • Gears
  • Shaft
  • Carrier
  • Wheel spindle
  • Operational test



Level 1
Final Drive

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines.

Does not include: replacing housings, carriers, shafts, machine work, or other critical parts not meeting Caterpillar reuse guidelines.

Level 2
Final Drive

Includes: all Level 1 parts. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Level 3
Final Drive

Replace final drive with Cat remanufactured.



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Duo-Cone seal x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Planet gears   x
Sun gears   x
Planet shafts   x
Cylinder head   x
Cylinder pack   x
Ring gear   x
Wheel spindle   x
Case repairs   x
Shafts   x
Housings & carriers   x
Replace with Cat remanufactured     x

Contact Us

Repair Options for 324D Excavators

While excavator applications vary, certain goals remain — keep owning and operating costs down and equipment uptime high. Peterson offers repair options to maintain performance and profitable operations of excavators.

We want to help you reduce your cost of ownership.

Contact Us

Download PDF




Engine Repair Options

Engine Repair Example

Inspect or Test:

  • Camshaft
  • Cooling system
  • Cooling fan
  • Coolant hoses
  • Radiator
  • Crankshaft
  • Cylinder block
  • ECM
  • Engine mounts
  • Engine oil cooler
  • Exhaust & intake manifolds
  • Fan drive, pulleys, belts & belt tensioner
  • Flywheel & ring gear
  • Front gear train
  • Fuel injectors
  • Fuel transfer pump & fuel lines
  • Fumes disposal & clamps
  • Piston spray jets
  • Pushrods, lifters & spring guides
  • Rocker arm assemblies
  • Intake & exhaust
  • Rocker arm shaft
  • Turbocharger, aftercooler/hoses & clamps
  • Unit injection hydraulic pump
  • Vibration damper
  • Wiring harnesses, switches & sensors



Level 1
Minor Overhaul

Includes: bearings, seals, gaskets and normal onelife wear parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines.

Does not include: external parts, including turbos, exhaust, electrical and electronics.

Level 2
Major Overhaul

Includes: all Level 1 parts and turbocharger. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 3
Complete Rebuild

Includes: complete component rebuild including all Level 1 & 2 parts. Replacement of sensors and harness.

Does not include: replacement of major housings/castings.

Level 4
Remanufactured

Replace engine with Cat remanufactured

Includes: starter and alternator.



Quote Level 1 Level 2 Level 3 Level 4
Recondition, repair, or replace In-frame Out-of-fram Out-of-frame Reman
Camshaft bearings x x x
Coolant temperature regulator x x x
Crankshaft thrust plates x x x
Exhaust manifold studs/locknuts x x x
Gaskets & seals for components that are removed x x x
Main bearings & rod bearings x x x
Breather x x x
PM Service - oil, fuel, & air filters x x x
Turbocharger (mounting) studs/locknuts x x x
Cylinder head x x x
Cylinder pack x x x
Water pump   x x
Turbocharger   x x
Engine oil pump x x x
Fuel injectors x x x
Paint engine   x x
Fuel transfer pump   x x
Engine oil cooler   x x
Rocker shaft and arm assemblies (as needed)     x
Electrical wiring harness and sensors     x
Piston spray jets     x
Front gear train bearings   x x
V-belt     x
Polish crankshaft     x
Inspect fuel lines and replace (as needed)     x
Dyno test engine   x x
Replace with Cat remanufactured, includes starter and alternator       x

Contact Us




Final Drive Repair Options

FINAL DRIVE REPAIR OPTIONS

Inspect or Test:

  • Gears
  • Shaft
  • Carrier
  • Wheel spindle
  • Operational test



Level 1
Final Drive

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines.

Does not include: replacing housings, carriers, shafts, machine work, or other critical parts not meeting Caterpillar reuse guidelines.

Level 2
Final Drive

Includes: all Level 1 parts. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Level 3
Final Drive

Replace final drive with Cat remanufactured.



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Duo-Cone seal x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Planet gears   x
Sun gears   x
Planet shafts   x
Cylinder head   x
Cylinder pack   x
Ring gear   x
Wheel spindle   x
Case repairs   x
Shafts   x
Housings & carriers   x
Replace with Cat remanufactured     x

Contact Us

Repair Options for 325D Excavators

While excavator applications vary, certain goals remain — keep owning and operating costs down and equipment uptime high. Peterson offers repair options to maintain performance and profitable operations of excavators.

We want to help you reduce your cost of ownership.

Contact Us

Download PDF




Engine Repair Options

Engine Repair Example

Inspect or Test:

  • Camshaft
  • Cooling system
  • Cooling fan
  • Coolant hoses
  • Radiator
  • Crankshaft
  • Cylinder block
  • ECM
  • Engine mounts
  • Engine oil cooler
  • Exhaust & intake manifolds
  • Fan drive, pulleys, belts & belt tensioner
  • Flywheel & ring gear
  • Front gear train
  • Fuel injectors
  • Fuel transfer pump & fuel lines
  • Fumes disposal & clamps
  • Piston spray jets
  • Pushrods, lifters & spring guides
  • Rocker arm assemblies
  • Intake & exhaust
  • Rocker arm shaft
  • Turbocharger, aftercooler/hoses & clamps
  • Unit injection hydraulic pump
  • Vibration damper
  • Wiring harnesses, switches & sensors



Level 1
Minor Overhaul

Includes: bearings, seals, gaskets and normal onelife wear parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines.

Does not include: external parts, including turbos, exhaust, electrical and electronics.

Level 2
Major Overhaul

Includes: all Level 1 parts and turbocharger. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 3
Complete Rebuild

Includes: complete component rebuild including all Level 1 & 2 parts. Replacement of sensors and harness.

Does not include: replacement of major housings/castings.

Level 4
Remanufactured

Replace engine with Cat remanufactured

Includes: starter and alternator.



Quote Level 1 Level 2 Level 3 Level 4
Recondition, repair, or replace In-frame Out-of-fram Out-of-frame Reman
Camshaft bearings x x x
Coolant temperature regulator x x x
Crankshaft thrust plates x x x
Exhaust manifold studs/locknuts x x x
Gaskets & seals for components that are removed x x x
Main bearings & rod bearings x x x
Breather x x x
PM Service - oil, fuel, & air filters x x x
Turbocharger (mounting) studs/locknuts x x x
Cylinder head x x x
Cylinder pack x x x
Water pump   x x
Turbocharger   x x
Engine oil pump x x x
Fuel injectors x x x
Paint engine   x x
Fuel transfer pump   x x
Engine oil cooler   x x
Rocker shaft and arm assemblies (as needed)     x
Electrical wiring harness and sensors     x
Piston spray jets     x
Front gear train bearings   x x
V-belt     x
Polish crankshaft     x
Inspect fuel lines and replace (as needed)     x
Dyno test engine   x x
Replace with Cat remanufactured, includes starter and alternator       x

Contact Us




Final Drive Repair Options

FINAL DRIVE REPAIR OPTIONS

Inspect or Test:

  • Gears
  • Shaft
  • Carrier
  • Wheel spindle
  • Operational test



Level 1
Final Drive

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines.

Does not include: replacing housings, carriers, shafts, machine work, or other critical parts not meeting Caterpillar reuse guidelines.

Level 2
Final Drive

Includes: all Level 1 parts. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Level 3
Final Drive

Replace final drive with Cat remanufactured.



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Duo-Cone seal x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Planet gears   x
Sun gears   x
Planet shafts   x
Cylinder head   x
Cylinder pack   x
Ring gear   x
Wheel spindle   x
Case repairs   x
Shafts   x
Housings & carriers   x
Replace with Cat remanufactured     x

Contact Us

Repair Options for 330 Excavators

While excavator applications vary, certain goals remain — keep owning and operating costs down and equipment uptime high. Peterson offers repair options to maintain performance and profitable operations of excavators in the 30-ton size class.

We want to help you reduce your cost of ownership.

Contact Us

Download PDF




Engine Repair Options

Engine Repair Example

Inspect or Test:

  • Camshaft
  • Cooling system
  • Cooling fan
  • Coolant hoses
  • Radiator
  • Crankshaft
  • Cylinder block
  • ECM
  • Engine mounts
  • Engine oil cooler
  • Exhaust & intake manifolds
  • Fan drive, pulleys, belts & belt tensioner
  • Flywheel & ring gear
  • Front gear train
  • Fuel injectors
  • Fuel transfer pump & fuel lines
  • Fumes disposal & clamps
  • Piston spray jets
  • Pushrods, lifters & spring guides
  • Rocker arm assemblies
  • Intake & exhaust
  • Rocker arm shaft
  • Turbocharger, aftercooler/hoses & clamps
  • Unit injection hydraulic pump
  • Vibration damper
  • Wiring harnesses, switches & sensors



Level 1
Minor Overhaul

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines

Does not include: external parts, including turbos, exhaust, electrical and electronics

Level 2
Major Overhaul

Includes: all Level 1 parts and turbocharger. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 3
Complete Rebuild

Includes: complete component rebuild including all Level 1 & 2 parts. Replacement of sensors and harness.

Does not include: replacement of major housings/castings.

Level 4
Remanufactured

Replace engine with Cat remanufactured

Includes: starter and alternator.



Quote Level 1 Level 2 Level 3 Level 4
Recondition, repair, or replace In-frame Out-of-fram Out-of-frame Reman
Camshaft bearings x x x
Coolant temperature regulator x x x
Crankshaft thrust plates x x x
Exhaust manifold studs/locknuts x x x
Gaskets & seals for components that are removed x x x
Main bearings & rod bearings x x x
Breather x x x
PM Service - oil, fuel, & air filters x x x
Turbocharger (mounting) studs/locknuts x x x
Cylinder head x x x
Cylinder pack x x x
Water pump   x x
Turbocharger   x x
Engine oil pump x x x
Fuel injectors x x x
Paint engine   x x
Fuel transfer pump   x x
Engine oil cooler   x x
Rocker shaft and arm assemblies (as needed)     x
Electrical wiring harness and sensors     x
Piston spray jets     x
Front gear train bearings   x x
V-belt     x
Polish crankshaft     x
Inspect fuel lines and replace (as needed)     x
Dyno test engine   x x
Replace with Cat remanufactured, includes starter and alternator       x

Contact Us




Final Drive Repair Options

FINAL DRIVE REPAIR OPTIONS

Inspect or Test:

  • Gears
  • Shaft
  • Carrier
  • Wheel spindle
  • Operational test



Level 1
Final Drive

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines

Does not include: replacing housings, carriers, shafts, machine work, or other critical parts not meeting Caterpillar reuse guidelines.

Level 2
Final Drive

Includes: all Level 1 parts. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Level 3
Final Drive

Replace final drive with Cat remanufactured



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Duo-Cone seal x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Planet gears   x
Sun gears   x
Planet shafts   x
Cylinder head   x
Cylinder pack   x
Ring gear   x
Wheel spindle   x
Case repairs   x
Shafts   x
Housings & carriers   x
Replace with Cat remanufactured     x

Contact Us

Repair Options for 568 Forest Machines

While forest machine applications vary, certain goals remain — keep owning and operating costs down and equipment uptime high. Peterson offers repair options to maintain performance and profitable operations of forest machines.

We want to help you reduce your cost of ownership.

Contact Us

Download PDF




Engine Repair Options

Engine Repair Example

Inspect or Test:

  • Camshaft
  • Cooling system
  • Cooling fan
  • Coolant hoses
  • Radiator
  • Crankshaft
  • Cylinder block
  • ECM
  • Engine mounts
  • Engine oil cooler
  • Exhaust & intake manifolds
  • Fan drive, pulleys, belts & belt tensioner
  • Flywheel & ring gear
  • Front gear train
  • Fuel injectors
  • Fuel transfer pump & fuel lines
  • Fumes disposal & clamps
  • Piston spray jets
  • Pushrods, lifters & spring guides
  • Rocker arm assemblies
  • Intake & exhaust
  • Rocker arm shaft
  • Turbocharger, aftercooler/hoses & clamps
  • Unit injection hydraulic pump
  • Vibration damper
  • Wiring harnesses, switches & sensors



Level 1
Minor Overhaul

Includes: bearings, seals, gaskets and normal onelife wear parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines.

Does not include: external parts, including turbos, exhaust, electrical and electronics.

Level 2
Major Overhaul

Includes: all Level 1 parts and turbocharger. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 3
Complete Rebuild

Includes: complete component rebuild including all Level 1 & 2 parts. Replacement of sensors and harness.

Does not include: replacement of major housings/castings.

Level 4
Remanufactured

Replace engine with Cat remanufactured

Includes: starter and alternator.



Quote Level 1 Level 2 Level 3 Level 4
Recondition, repair, or replace In-frame Out-of-fram Out-of-frame Reman
Camshaft bearings x x x
Coolant temperature regulator x x x
Crankshaft thrust plates x x x
Exhaust manifold studs/locknuts x x x
Gaskets & seals for components that are removed x x x
Main bearings & rod bearings x x x
Breather x x x
PM Service - oil, fuel, & air filters x x x
Turbocharger (mounting) studs/locknuts x x x
Cylinder head x x x
Cylinder pack x x x
Water pump   x x
Turbocharger   x x
Engine oil pump x x x
Fuel injectors x x x
Paint engine   x x
Fuel transfer pump   x x
Engine oil cooler   x x
Rocker shaft and arm assemblies (as needed)     x
Electrical wiring harness and sensors     x
Piston spray jets     x
Front gear train bearings   x x
V-belt     x
Polish crankshaft     x
Inspect fuel lines and replace (as needed)     x
Dyno test engine   x x
Replace with Cat remanufactured, includes starter and alternator       x

Contact Us




Final Drive Repair Options

FINAL DRIVE REPAIR OPTIONS

Inspect or Test:

  • Gears
  • Shaft
  • Carrier
  • Wheel spindle
  • Operational test



Level 1
Final Drive

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines.

Does not include: replacing housings, carriers, shafts, machine work, or other critical parts not meeting Caterpillar reuse guidelines.

Level 2
Final Drive

Includes: all Level 1 parts. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Level 3
Final Drive

Replace final drive with Cat remanufactured.



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Duo-Cone seal x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Planet gears   x
Sun gears   x
Planet shafts   x
Cylinder head   x
Cylinder pack   x
Ring gear   x
Wheel spindle   x
Case repairs   x
Shafts   x
Housings & carriers   x
Replace with Cat remanufactured     x

Contact Us

Repair options for D6R/T Dozers

Cat D6R and D6T Dozers excel in a wide range of applications from dozing, ripping, scraper work and land clearing to finish grading, backfilling trenches, building pads, and working landfills. The elevated sprocket, rugged structures and proven systems give you long life and durability.

Peterson offers repair options to keep your D6R and D6T productive and profitable. We want to help you reduce your cost of ownership.

Contact Us

Download PDF




Engine Repair Options

Level 1 Engine Repair Example

Inspect or Test:

  • Camshaft
  • Cooling system
  • Cooling fan
  • Coolant hoses
  • Radiator
  • Crankshaft
  • Cylinder block
  • ECM
  • Engine mounts
  • Engine oil cooler
  • Exhaust & intake manifolds
  • Fan drive, pulleys, belts & belt tensioner
  • Flywheel & ring gear
  • Front gear train
  • Fuel injectors
  • Fuel transfer pump & fuel lines
  • Fumes disposal & clamps
  • Piston spray jets
  • Pushrods, lifters & spring guides
  • Rocker arm assemblies
  • Intake & exhaust
  • Rocker arm shaft
  • Turbocharger, aftercooler/hoses & clamps
  • Unit injection hydraulic pump
  • Vibration damper
  • Wiring harnesses, switches & sensors



Level 1
Minor Overhaul

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines

Does not include: external parts, including turbos, exhaust, electrical and electronics

Level 2
Major Overhaul

Includes: all Level 1 parts and turbocharger. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 3
Complete Rebuild

Includes: complete component rebuild including all Level 1 & 2 parts. Replacement of sensors and harness.

Does not include: replacement of major housings/castings.

Level 4
Remanufactured

Replace engine with Cat remanufactured

Includes: starter and alternator.



Quote Level 1 Level 2 Level 3 Level 4
Recondition, repair, or replace In-frame Out-of-fram Out-of-frame Reman
Camshaft bearings x x x
Coolant temperature regulator x x x
Crankshaft thrust plates x x x
Exhaust manifold studs/locknuts x x x
Gaskets & seals for components that are removed x x x
Main bearings & rod bearings x x x
Breather x x x
PM Service - oil, fuel, & air filters x x x
Turbocharger (mounting) studs/locknuts x x x
Cylinder head x x x
Cylinder pack x x x
Water pump   x x
Turbocharger   x x
Engine oil pump x x x
Fuel injectors x x x
Paint engine   x x
Fuel transfer pump   x x
Engine oil cooler   x x
Rocker shaft and arm assemblies (as needed)     x
Electrical wiring harness and sensors     x
Piston spray jets     x
Front gear train bearings   x x
V-belt     x
Polish crankshaft     x
Inspect fuel lines and replace (as needed)     x
Dyno test engine   x x
Replace with Cat remanufactured, includes starter and alternator       x

Contact Us




Transmission Repair Options

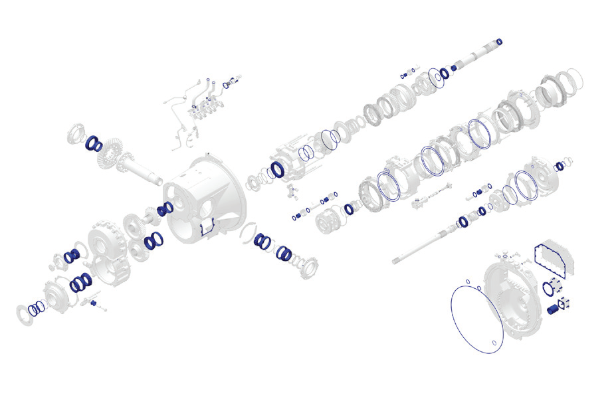

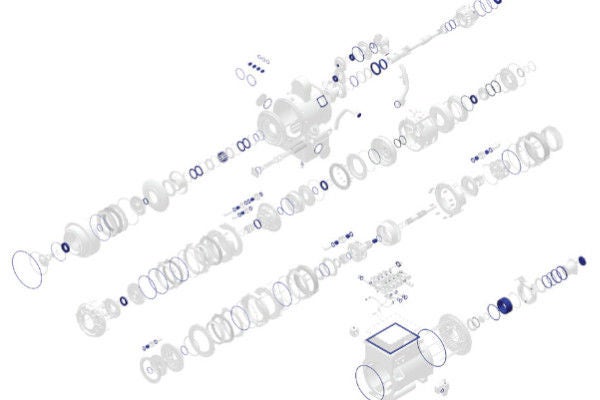

Level 1 Transmission Repair Example

Inspect or Test:

  • Clutch discs and plates
  • Gears
  • Shafts
  • Clutch pistons
  • Clutch housings
  • ECM
  • Yokes
  • Transfer gears
  • Springs
  • Planet carriers
  • Impeller (model specific)
  • Turbine (model specific)
  • Stator (model specific)



Level 1
Transmission & Torque Converter

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 2
Transmission & Torque Converter

Includes: all Level 1 parts. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Level 3
Transmission & Torque Converter

Replace Transmission and torque converter with Cat remanufactured



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Shift solenoids & harness x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Planet gears   x
Cluch discs   x
Clutch plates   x
Planet gears   x
Sun gears   x
Planet shafts   x
Clutch pistons   x
Clutch housings   x
Planet carriers   x
Springs   x
Paint   x
Yokes   x
Bevel gear   x
Valve bodies   x
Transfer gears   x
Transmission oil cooler   x
ECM   x
Shafts   x
Housings & carriers   x
Electrical components   x
Bench testing   x
Replace with Cat remanufactured     x

Contact Us




Torque Converter Repair Options

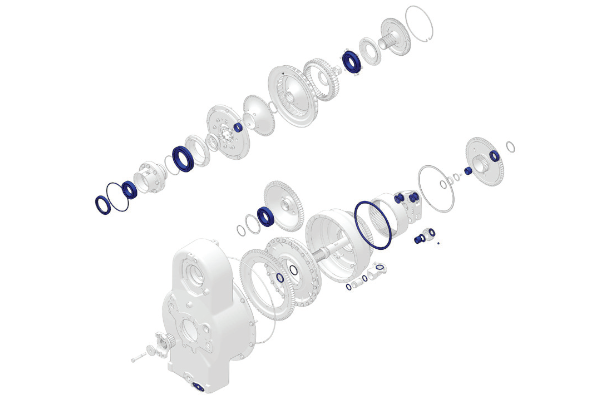

Level 1 Torque Converter Repair Example

Inspect or Test:

  • Clutch discs and plates
  • Gears
  • Shafts
  • Clutch pistons
  • Clutch housings
  • Impeller
  • Turbine
  • Stator
  • Planet carriers



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Impeller   x
Clutch disc and plates   x
Turbine   x
Stator   x
Main shafts   x
Planet gears   x
Ring gear   x
    x
Sun gear   x
Planet shafts   x
Planet carrier   x
Paint   x
Replace with Cat remanufactured     x

Contact Us

Repair Options for D8R/T and D9R/T Dozers

Cat D8R/T and D9R/T Dozers move matterial in the most demanding conditions. Your dozer came with over a century of design, refinement, and lessons learned.

Peterson offers repair options to keep your D8R/T and D9R/T safe, productive, and profitable. We want to help you reduce your cost of ownership.

Contact Us

Download PDF




Engine Repair Options

Cat D9 Engine Repair

Inspect or Test:

  • Camshaft
  • Cooling system
  • Cooling fan
  • Coolant hoses
  • Radiator
  • Crankshaft
  • Cylinder block
  • ECM
  • Engine mounts
  • Engine oil cooler
  • Exhaust & intake manifolds
  • Fan drive, pulleys, belts & belt tensioner
  • Flywheel & ring gear
  • Front gear train
  • Fuel injectors
  • Fuel transfer pump & fuel lines
  • Fumes disposal & clamps
  • Piston spray jets
  • Pushrods, lifters & spring guides
  • Rocker arm assemblies
  • Intake & exhaust
  • Rocker arm shaft
  • Turbocharger, aftercooler/hoses & clamps
  • Unit injection hydraulic pump
  • Vibration damper
  • Wiring harnesses, switches & sensors



Level 1
Minor Overhaul

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines

Does not include: external parts, including turbos, exhaust, electrical and electronics

Level 2
Major Overhaul

Includes: all Level 1 parts and turbocharger. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 3
Complete Rebuild

Includes: complete component rebuild including all Level 1 & 2 parts. Replacement of sensors and harness.

Does not include: replacement of major housings/castings.

Level 4
Remanufactured

Replace engine with Cat remanufactured

Includes: starter and alternator.



Quote Level 1 Level 2 Level 3 Level 4
Recondition, repair, or replace In-frame Out-of-fram Out-of-frame Reman
Camshaft bearings x x x
Coolant temperature regulator x x x
Crankshaft thrust plates x x x
Exhaust manifold studs/locknuts x x x
Gaskets & seals for components that are removed x x x
Main bearings & rod bearings x x x
Breather x x x
PM Service - oil, fuel, & air filters x x x
Turbocharger (mounting) studs/locknuts x x x
Cylinder head x x x
Cylinder pack x x x
Water pump   x x
Turbocharger   x x
Engine oil pump x x x
Fuel injectors x x x
Paint engine   x x
Fuel transfer pump   x x
Engine oil cooler   x x
Rocker shaft and arm assemblies (as needed)     x
Electrical wiring harness and sensors     x
Piston spray jets     x
Front gear train bearings   x x
V-belt     x
Polish crankshaft     x
Inspect fuel lines and replace (as needed)     x
Dyno test engine   x x
Replace with Cat remanufactured, includes starter and alternator       x

Contact Us




Transmission Repair Options

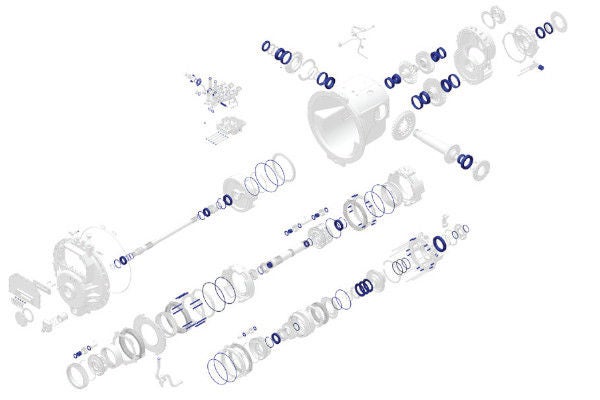

Cat D9 Transmission Repair

Inspect or Test:

  • Clutch discs and plates
  • Gears
  • Shafts
  • Clutch pistons
  • Clutch housings
  • ECM
  • Yokes
  • Transfer gears
  • Springs
  • Planet carriers
  • Impeller (model specific)
  • Turbine (model specific)
  • Stator (model specific)



Level 1
Transmission & Torque Converter

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 2
Transmission & Torque Converter

Includes: all Level 1 parts. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Level 3
Transmission & Torque Converter

Replace Transmission and torque converter with Cat remanufactured



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Shift solenoids & harness x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Planet gears   x
Cluch discs   x
Clutch plates   x
Planet gears   x
Sun gears   x
Planet shafts   x
Clutch pistons   x
Clutch housings   x
Planet carriers   x
Springs   x
Paint   x
Yokes   x
Bevel gear   x
Valve bodies   x
Transfer gears   x
Transmission oil cooler   x
ECM   x
Shafts   x
Housings & carriers   x
Electrical components   x
Bench testing   x
Replace with Cat remanufactured     x

Contact Us




Torque Converter Repair Options

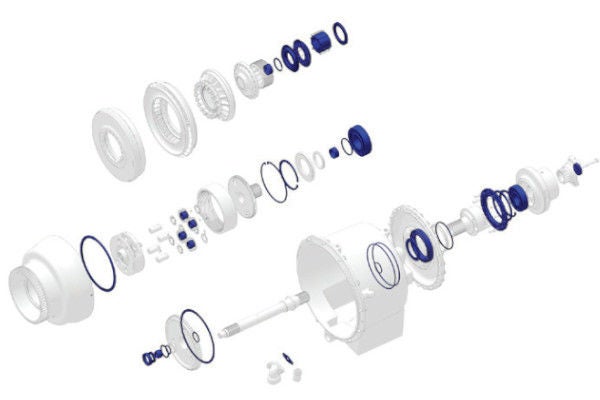

Cat D9 Torque Converter Repair

Inspect or Test:

  • Clutch discs and plates
  • Gears
  • Shafts
  • Clutch pistons
  • Clutch housings
  • Impeller
  • Turbine
  • Stator
  • Planet carriers



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Impeller   x
Clutch disc and plates   x
Turbine   x
Stator   x
Main shafts   x
Planet gears   x
Ring gear   x
    x
Sun gear   x
Planet shafts   x
Planet carrier   x
Paint   x
Replace with Cat remanufactured     x

Contact Us

Repair Options for Articulated Trucks

Cat articulated trucks haul tons of material across miles of earth. These trucks are durable, reliable, and flexible — offering years of service in nearly any application or underfoot condition.

Peterson offers repair options to keep your articulated trucks safe, productive, and profitable. We want to help you reduce your cost of ownership.

Contact Us

Download PDF




Engine Repair Options

Level 1 Engine Repair Example

Inspect or Test:

  • Camshaft
  • Cooling system
  • Cooling fan
  • Coolant hoses
  • Radiator
  • Crankshaft
  • Cylinder block
  • ECM
  • Engine mounts
  • Engine oil cooler
  • Exhaust & intake manifolds
  • Fan drive, pulleys, belts & belt tensioner
  • Flywheel & ring gear
  • Front gear train
  • Fuel injectors
  • Fuel transfer pump & fuel lines
  • Fumes disposal & clamps
  • Piston spray jets
  • Pushrods, lifters & spring guides
  • Rocker arm assemblies
  • Intake & exhaust
  • Rocker arm shaft
  • Turbocharger, aftercooler/hoses & clamps
  • Unit injection hydraulic pump
  • Vibration damper
  • Wiring harnesses, switches & sensors



Level 1
Minor Overhaul

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines

Does not include: external parts, including turbos, exhaust, electrical and electronics

Level 2
Major Overhaul

Includes: all Level 1 parts and turbocharger. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 3
Complete Rebuild

Includes: complete component rebuild including all Level 1 & 2 parts. Replacement of sensors and harness.

Does not include: replacement of major housings/castings.

Level 4
Remanufactured

Replace engine with Cat remanufactured

Includes: starter and alternator.



Quote Level 1 Level 2 Level 3 Level 4
Recondition, repair, or replace In-frame Out-of-fram Out-of-frame Reman
Camshaft bearings x x x
Coolant temperature regulator x x x
Crankshaft thrust plates x x x
Exhaust manifold studs/locknuts x x x
Gaskets & seals for components that are removed x x x
Main bearings & rod bearings x x x
Breather x x x
PM Service - oil, fuel, & air filters x x x
Turbocharger (mounting) studs/locknuts x x x
Cylinder head x x x
Cylinder pack x x x
Water pump   x x
Turbocharger   x x
Engine oil pump x x x
Fuel injectors x x x
Paint engine   x x
Fuel transfer pump   x x
Engine oil cooler   x x
Rocker shaft and arm assemblies (as needed)     x
Electrical wiring harness and sensors     x
Piston spray jets     x
Front gear train bearings   x x
V-belt     x
Polish crankshaft     x
Inspect fuel lines and replace (as needed)     x
Dyno test engine   x x
Replace with Cat remanufactured, includes starter and alternator       x

Contact Us




Transmission Repair Options

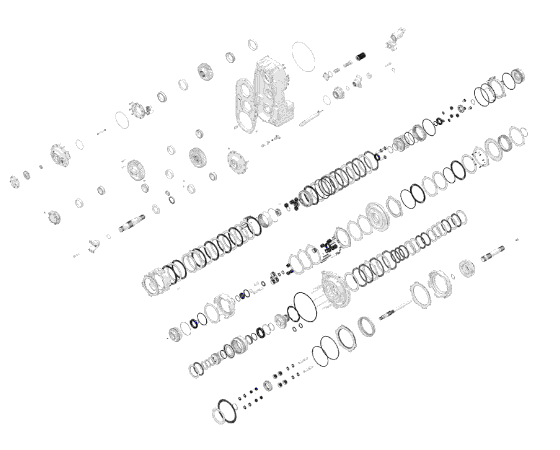

Level 1 Transmission Repair Example

Inspect or Test:

  • Clutch discs and plates
  • Gears
  • Shafts
  • Clutch pistons
  • Clutch housings
  • ECM
  • Yokes
  • Transfer gears
  • Springs
  • Planet carriers
  • Impeller (model specific)
  • Turbine (model specific)
  • Stator (model specific)



Level 1
Transmission & Torque Converter

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 2
Transmission & Torque Converter

Includes: all Level 1 parts. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Level 3
Transmission & Torque Converter

Replace Transmission and torque converter with Cat remanufactured



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Shift solenoids & harness x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Planet gears   x
Cluch discs   x
Clutch plates   x
Planet gears   x
Sun gears   x
Planet shafts   x
Clutch pistons   x
Clutch housings   x
Planet carriers   x
Springs   x
Paint   x
Yokes   x
Bevel gear   x
Valve bodies   x
Transfer gears   x
Transmission oil cooler   x
ECM   x
Shafts   x
Impeller   x
Turbine   x
Stator   x
Housings & carriers   x
Electrical components   x
Bench testing x x
Replace with Cat remanufactured     x

Contact Us

Repair Options for 950G/H/M Wheel Loaders

Cat 950 Wheel Loaders set the standard for wheel loader productivity, serviceability, and styling. Peterson offers repair options to maintain the safety, efficiency, and aggressive performance of your machine.

We want to help you reduce your cost of ownership.

Contact Us

Download PDF




Engine Repair Options

Engine Repair Example

Inspect or Test:

  • Camshaft
  • Cooling system
  • Cooling fan
  • Coolant hoses
  • Radiator
  • Crankshaft
  • Cylinder block
  • ECM
  • Engine mounts
  • Engine oil cooler
  • Exhaust & intake manifolds
  • Fan drive, pulleys, belts & belt tensioner
  • Flywheel & ring gear
  • Front gear train
  • Fuel injectors
  • Fuel transfer pump & fuel lines
  • Fumes disposal & clamps
  • Piston spray jets
  • Pushrods, lifters & spring guides
  • Rocker arm assemblies
  • Intake & exhaust
  • Rocker arm shaft
  • Turbocharger, aftercooler/hoses & clamps
  • Unit injection hydraulic pump
  • Vibration damper
  • Wiring harnesses, switches & sensors



Level 1
Minor Overhaul

Includes: bearings, seals, gaskets and normal onelife wear parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines.

Does not include: external parts, including turbos, exhaust, electrical and electronics.

Level 2
Major Overhaul

Includes: all Level 1 parts and turbocharger. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 3
Complete Rebuild

Includes: complete component rebuild including all Level 1 & 2 parts. Replacement of sensors and harness.

Does not include: replacement of major housings/castings.

Level 4
Remanufactured

Replace engine with Cat remanufactured

Includes: Starter and alternator.



Quote Level 1 Level 2 Level 3 Level 4
Recondition, repair, or replace In-frame Out-of-fram Out-of-frame Reman
Camshaft bearings x x x
Coolant temperature regulator x x x
Crankshaft thrust plates x x x
Exhaust manifold studs/locknuts x x x
Gaskets & seals for components that are removed x x x
Main bearings & rod bearings x x x
Breather x x x
PM Service - oil, fuel, & air filters x x x
Turbocharger (mounting) studs/locknuts x x x
Cylinder head x x x
Cylinder pack x x x
Water pump   x x
Turbocharger   x x
Engine oil pump x x x
Fuel injectors x x x
Paint engine   x x
Fuel transfer pump   x x
Engine oil cooler   x x
Rocker shaft and arm assemblies (as needed)     x
Electrical wiring harness and sensors     x
Piston spray jets     x
Front gear train bearings   x x
V-belt     x
Polish crankshaft     x
Inspect fuel lines and replace (as needed)     x
Dyno test engine   x x
Replace with Cat remanufactured, includes starter and alternator       x

Contact Us




Transmission/Torque Converter Repair Options

TRANSMISSION REPAIR OPTIONS

Inspect or Test:

  • Clutch discs and plates
  • Gears
  • Shafts
  • Clutch pistons
  • Clutch housings
  • ECM
  • Yokes
  • Transfer gears
  • Springs
  • Planet carriers
  • Impeller (model specific)
  • Turbine (model specific)
  • Stator (model specific)



Level 1
Transmission & Torque Converter

Includes: bearings, seals, gaskets and normal one-life “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 2
Transmission & Torque Converter

Includes: all Level 1 parts. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Level 3
Transmission & Torque Converter

Replace transmission & torque converter with Cat remanufactured



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Shift solenoids & harness x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Clutch discs   x
Clutch plates   x
Planet gears   x
Sun gears   x
Planet shafts   x
Clutch pistons   x
Clutch housings   x
Planet carriers   x
Springs   x
Paint   x
Yokes   x
Bevel gear   x
Valve bodies   x
Transfer gears   x
Transmission oil cooler   x
ECM   x
Shafts   x
Impeller   x
Turbine   x
Stator   x
Housings & carriers   x
Electrical components   x
Bench testing   x
Replace with Cat remanufactured     x

Contact Us

Repair Options for 966D/F/G/H/M Wheel Loaders

Cat® 966 Wheel Loaders set the standard for wheel loader productivity, serviceability, and styling. Peterson offers repair options to maintain the safety, efficiency, and aggressive performance of your machine.

We want to help you reduce your cost of ownership.

Contact Us

Download PDF




Engine Repair Options

Engine Repair Example

Inspect or Test:

  • Camshaft
  • Cooling system
  • Cooling fan
  • Coolant hoses
  • Radiator
  • Crankshaft
  • Cylinder block
  • ECM
  • Engine mounts
  • Engine oil cooler
  • Exhaust & intake manifolds
  • Fan drive, pulleys, belts & belt tensioner
  • Flywheel & ring gear
  • Front gear train
  • Fuel injectors
  • Fuel transfer pump & fuel lines
  • Fumes disposal & clamps
  • Piston spray jets
  • Pushrods, lifters & spring guides
  • Rocker arm assemblies
  • Intake & exhaust
  • Rocker arm shaft
  • Turbocharger, aftercooler/hoses & clamps
  • Unit injection hydraulic pump
  • Vibration damper
  • Wiring harnesses, switches & sensors



Level 1
Minor Overhaul

Includes: bearings, seals, gaskets and normal onelife wear parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines.

Does not include: external parts, including turbos, exhaust, electrical and electronics.

Level 2
Major Overhaul

Includes: all Level 1 parts and turbocharger. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 3
Complete Rebuild

Includes: complete component rebuild including all Level 1 & 2 parts. Replacement of sensors and harness.

Does not include: replacement of major housings/castings.

Level 4
Remanufactured

Replace engine with Cat remanufactured

Includes: Starter and alternator.



Quote Level 1 Level 2 Level 3 Level 4
Recondition, repair, or replace In-frame Out-of-fram Out-of-frame Reman
Camshaft bearings x x x
Coolant temperature regulator x x x
Crankshaft thrust plates x x x
Exhaust manifold studs/locknuts x x x
Gaskets & seals for components that are removed x x x
Main bearings & rod bearings x x x
Breather x x x
PM Service - oil, fuel, & air filters x x x
Turbocharger (mounting) studs/locknuts x x x
Cylinder head x x x
Cylinder pack x x x
Water pump   x x
Turbocharger   x x
Engine oil pump x x x
Fuel injectors x x x
Paint engine   x x
Fuel transfer pump   x x
Engine oil cooler   x x
Rocker shaft and arm assemblies (as needed)     x
Electrical wiring harness and sensors     x
Piston spray jets     x
Front gear train bearings   x x
V-belt     x
Polish crankshaft     x
Inspect fuel lines and replace (as needed)     x
Dyno test engine   x x
Replace with Cat remanufactured, includes starter and alternator       x

Contact Us




Transmission/Torque Converter Repair Options

TRANSMISSION REPAIR OPTIONS

Inspect or Test:

  • Clutch discs and plates
  • Gears
  • Shafts
  • Clutch pistons
  • Clutch housings
  • ECM
  • Yokes
  • Transfer gears
  • Springs
  • Planet carriers
  • Impeller (model specific)
  • Turbine (model specific)
  • Stator (model specific)



Level 1
Transmission & Torque Converter

Includes: bearings, seals, gaskets and normal one-life “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 2
Transmission & Torque Converter

Includes: all Level 1 parts. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Level 3
Transmission & Torque Converter

Replace transmission & torque converter with Cat remanufactured



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Shift solenoids & harness x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Clutch discs   x
Clutch plates   x
Planet gears   x
Sun gears   x
Planet shafts   x
Clutch pistons   x
Clutch housings   x
Planet carriers   x
Springs   x
Paint   x
Yokes   x
Bevel gear   x
Valve bodies   x
Transfer gears   x
Transmission oil cooler   x
ECM   x
Shafts   x
Impeller   x
Turbine   x
Stator   x
Housings & carriers   x
Electrical components   x
Bench testing   x
Replace with Cat remanufactured     x

Contact Us

Repair Options for 980G/H/M Wheel Loaders

Cat 950 Wheel Loaders set the standard for wheel loader productivity, serviceability, and styling. Peterson offers repair options to maintain the safety, efficiency, and aggressive performance of your machine.

We want to help you reduce your cost of ownership.

Contact Us

Download PDF




Engine Repair Options

Engine Repair Example

Inspect or Test:

  • Camshaft
  • Cooling system
  • Cooling fan
  • Coolant hoses
  • Radiator
  • Crankshaft
  • Cylinder block
  • ECM
  • Engine mounts
  • Engine oil cooler
  • Exhaust & intake manifolds
  • Fan drive, pulleys, belts & belt tensioner
  • Flywheel & ring gear
  • Front gear train
  • Fuel injectors
  • Fuel transfer pump & fuel lines
  • Fumes disposal & clamps
  • Piston spray jets
  • Pushrods, lifters & spring guides
  • Rocker arm assemblies
  • Intake & exhaust
  • Rocker arm shaft
  • Turbocharger, aftercooler/hoses & clamps
  • Unit injection hydraulic pump
  • Vibration damper
  • Wiring harnesses, switches & sensors



Level 1
Minor Overhaul

Includes: bearings, seals, gaskets and normal onelife “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines

Does not include: external parts, including turbos, exhaust, electrical and electronics

Level 2
Major Overhaul

Includes: all Level 1 parts and turbocharger. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 3
Complete Rebuild

Includes: complete component rebuild including all Level 1 & 2 parts. Replacement of sensors and harness.

Does not include: replacement of major housings/castings.

Level 4
Remanufactured

Replace engine with Cat remanufactured

Includes: Starter and alternator.



Quote Level 1 Level 2 Level 3 Level 4
Recondition, repair, or replace In-frame Out-of-fram Out-of-frame Reman
Camshaft bearings x x x
Coolant temperature regulator x x x
Crankshaft thrust plates x x x
Exhaust manifold studs/locknuts x x x
Gaskets & seals for components that are removed x x x
Main bearings & rod bearings x x x
Breather x x x
PM Service - oil, fuel, & air filters x x x
Turbocharger (mounting) studs/locknuts x x x
Cylinder head x x x
Cylinder pack x x x
Water pump   x x
Turbocharger   x x
Engine oil pump x x x
Fuel injectors x x x
Paint engine   x x
Fuel transfer pump   x x
Engine oil cooler   x x
Rocker shaft and arm assemblies (as needed)     x
Electrical wiring harness and sensors     x
Piston spray jets     x
Front gear train bearings   x x
V-belt     x
Polish crankshaft     x
Inspect fuel lines and replace (as needed)     x
Dyno test engine   x x
Replace with Cat remanufactured, includes starter and alternator       x

Contact Us




Transmission/Torque Converter Repair Options

TRANSMISSION REPAIR OPTIONS

Inspect or Test:

  • Clutch discs and plates
  • Gears
  • Shafts
  • Clutch pistons
  • Clutch housings
  • ECM
  • Yokes
  • Transfer gears
  • Springs
  • Planet carriers
  • Impeller (model specific)
  • Turbine (model specific)
  • Stator (model specific)



Level 1
Transmission & Torque Converter

Includes: bearings, seals, gaskets and normal one-life “wear” parts. Assumes all multiple-life parts meet Caterpillar reuse guidelines

Does not include: replacement housings, carriers, valve bodies, shafts or machine work.

Level 2
Transmission & Torque Converter

Includes: all Level 1 parts. Reconditions or replaces other critical parts not meeting Caterpillar reuse guidelines.

Level 3
Transmission & Torque Converter

Replace transmission & torque converter with Cat remanufactured



Quote Level 1 Level 2 Level 3
Recondition, repair, or replace Rebearing reseal Repair or recondition as needed Reman
All bushings and anti-friction bearings x x
All seals and gaskets x x
Thrust washers x x
Shift solenoids & harness x x
Miscellaneous hardware x x
Replace, repair, or recondition as needed for the following:
Clutch discs   x
Clutch plates   x
Planet gears   x
Sun gears   x
Planet shafts   x
Clutch pistons   x
Clutch housings   x
Planet carriers   x
Springs   x
Paint   x
Yokes   x
Bevel gear   x
Valve bodies   x
Transfer gears   x
Transmission oil cooler   x
ECM   x
Shafts   x
Impeller   x
Turbine   x
Stator   x
Housings & carriers   x
Electrical components   x
Bench testing   x
Replace with Cat remanufactured     x

Contact Us
