Overview

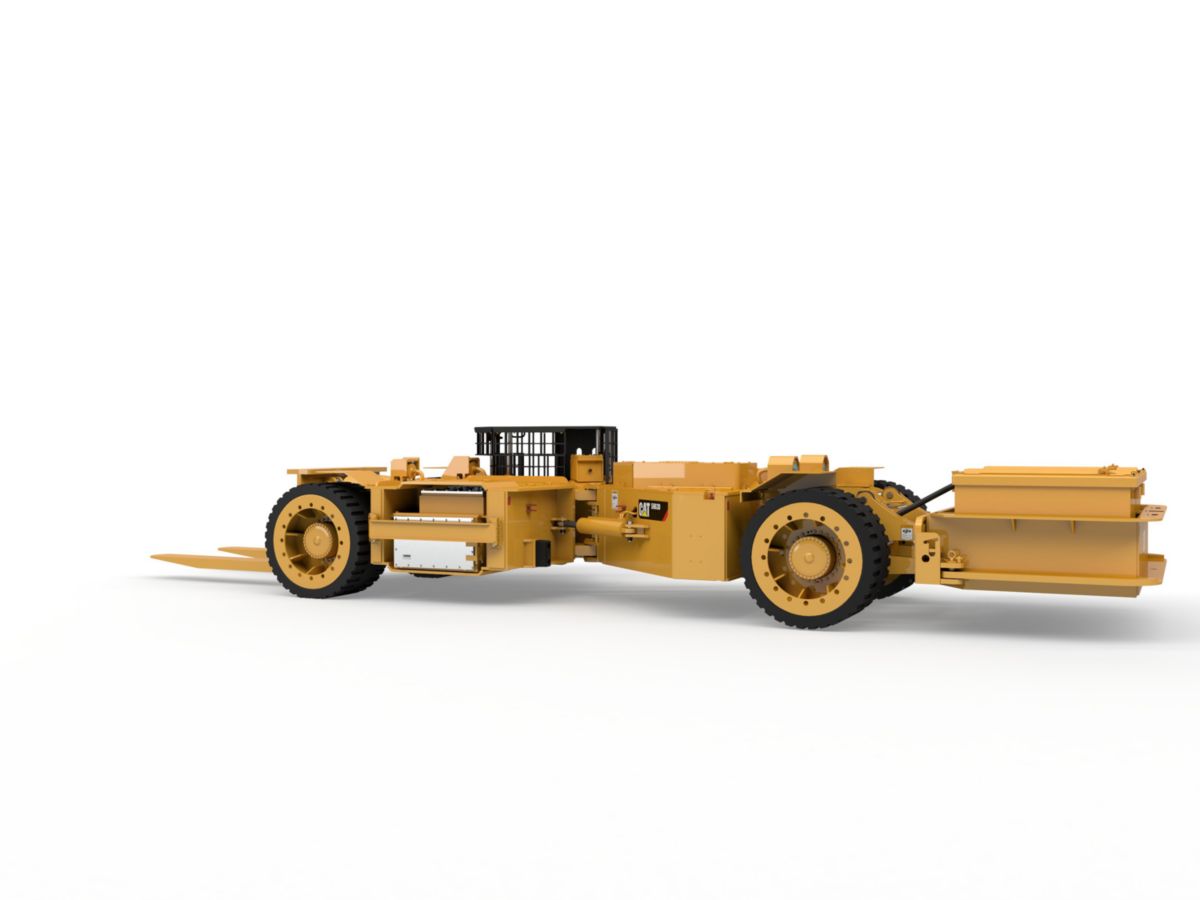

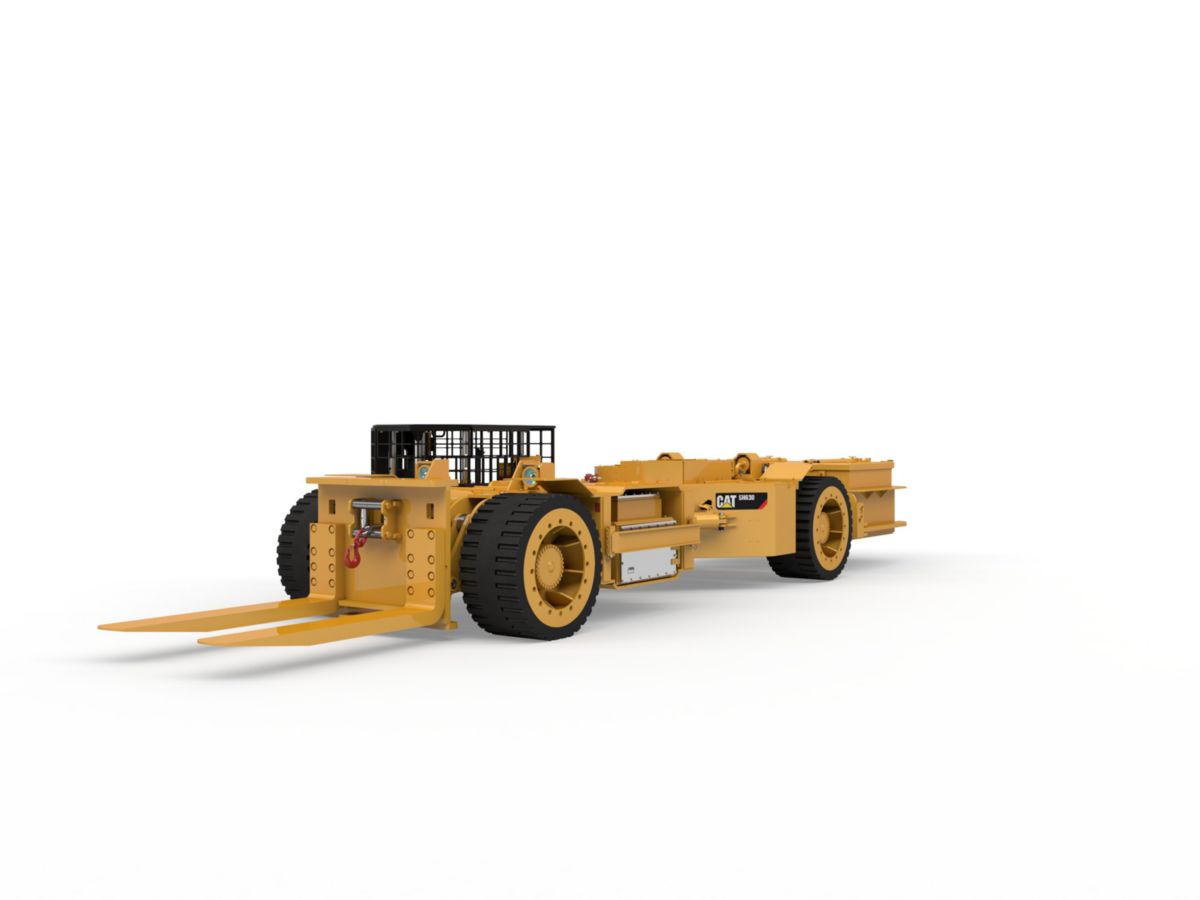

The SH630 is a versatile and reliable solution for loads up to 33 tonnes (36 tons). It has been the market leader in capability for many years. The SH630 is in service in major mining operations in the United States and China.

Specifications

Carry Capacity
36.00 tons
33.00 tonnes
Vehicle Length
35.70 ft
10.88 m
Vehicle Width
9.51 ft
2.90 m
Frame Oscillation
40.00 Degrees
40.00 Degrees
Gradients Possible (gradient data short-term only)
20°
Ground Clearance
15.00 in
381.00 mm
Maximum Speed
3.90 mph
6.30 km/h
Maximum Speed with Load
2.20 mph
3.60 km/h
Motor/Engine
DC/AC
Power Rated at
100.00 hp
74.00 kW
Pull Winch Rated at
23.00 tons
21.00 tonnes
Steering
Control stick
Steering Articulation
50.00 Degrees
50.00 Degrees
Torque/Tractive Effort
69996.00 lb
31750.00 kg
Turn Radius (outside)
23.65 ft
7.21 m
Wheel Base
16.83 ft
5.13 m

Speed

Tram Speed (calculated based on 2% rolling resistance) - Level and Empty on 0% Grade
3.60 mph
5.79 km/h
Tram Speed (calculated based on 2% rolling resistance) - Level and Loaded on 0% Grade
3.20 mph
5.14 km/h

Dimensions (Approximate)

Cab Height with 508 mm (20 in) Cab - with 1219.4 mm (48 in) Tires
68.00 in
1727.20 mm
Chassis Height with 1219.4 mm (48 in) Tires
48.00 in
1219.40 mm
Frame Oscillation
40 Degrees Total
Ground Clearance with 1219.4 mm (48 in) Tires
16.00 in
406.40 mm
Inside Turn Radius
13.58 ft
4140.20 mm
Length with 2133.6 mm (84 in) Lifting Fork
34.33 ft
10464.80 mm
Length with 2133.6 mm (84 in) Lifting Fork and Rear Ballast
35.17 ft
10718.80 mm
Length with Lift Plate Attachment
35.75 ft
10896.60 mm
Length with Lift Plate Attachment and Rear Ballast
36.58 ft
11150.60 mm
Length without Attachments and with Rear Ballast
28.67 ft
8737.60 mm
Outside Turn Radius
23.67 ft
7213.60 mm
Overall Length without Attachments
27.83 ft
8483.60 mm
Overall Width with Attachments
9.25 ft
2819.40 mm
Steering Articulation
100 Degrees Total
Wheelbase
16.33 ft
4978.40 mm

Weights

Empty Weights - Less Battery
49500.00 lb
22452.80 kg
Empty Weights - With 64-125-25 Battery
74000.00 lb
33565.80 kg
Empty Weights - With 64-125-25 Battery and Rear Ballast
80000.00 lb
36287.40 kg
Sales Features

The Clean Air Act

Cat battery-powered roof support carriers do not burden your mine’s ventilation with emissions or heat. Due to infinitely variable power control, they are the ideal vehicle for the installation or removal of longwall roof supports where heat, emissions and noise would impact work and where a flexible vehicle is needed.

The Power You Need

A combination of Cat battery- and diesel-powered vehicles can offer the ideal solution for longwall installations and moves. Battery-powered roof support carriers can position or remove roof supports from old and new faces.

Battery Power for Versatility

Cat battery-powered roof support carriers make longwall face moves simpler and less costly. The specially engineered ultra-heavy-duty vehicle range builds on the knowledge of many years of operational experience.

Stability and Traction

Cat roof support carriers have a tri-sectional chassis with dual motors located near the axles. The rear drive axle and the battery lift are incorporated into a single oscillating entity at the rear.

Battery Competence

Caterpillar has developed unparalleled experience and expertise in the design of batteries and battery changing systems. Current 2000 Ah batteries enable maximum performance at peak loads as well as lasting performance throughout the shift.

Maximum Battery Efficiency

The Cat IGBT control makes the most of battery power.

Optional VFD

The latest Caterpillar innovation is the HiPAC 10 VFD control system, which drives the motive traction and hydraulic systems and provides the operator with machine management information. The HiPAC 10 is a DC-to-AC variable frequency inverter control that drives high-performance AC electric motors, which have superior speed-torque characteristics.

RAS - Rapid Attachment System

The Rapid Attachment System available for the CL10 and CL15 makes an accessory change a one-man operation, allowing a broad range of accessories to be fitted in moments without removing the backing plate. Utilizing the LHD with RAS attachments during longwall relocations can greatly reduce lost production time.
