Overview

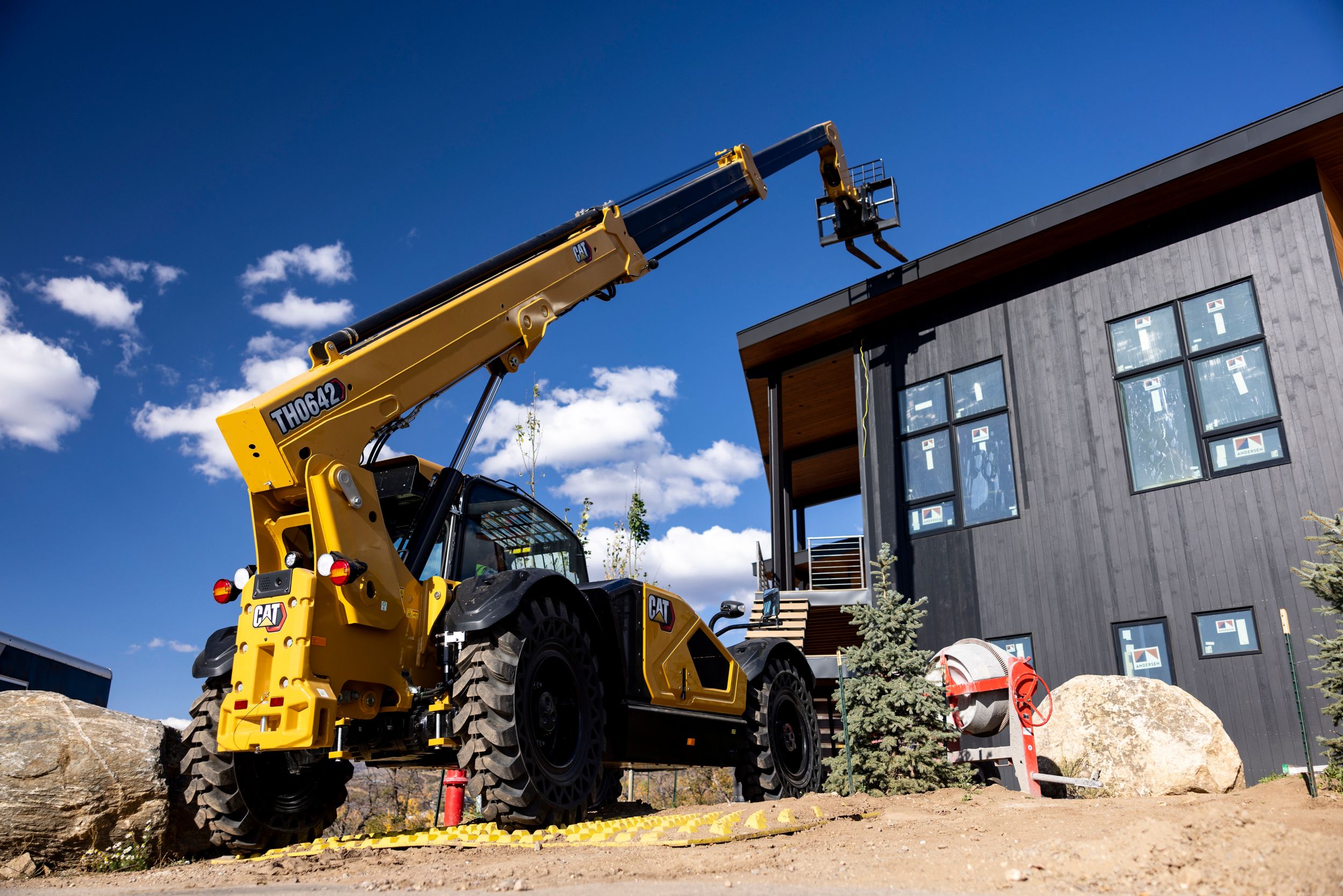

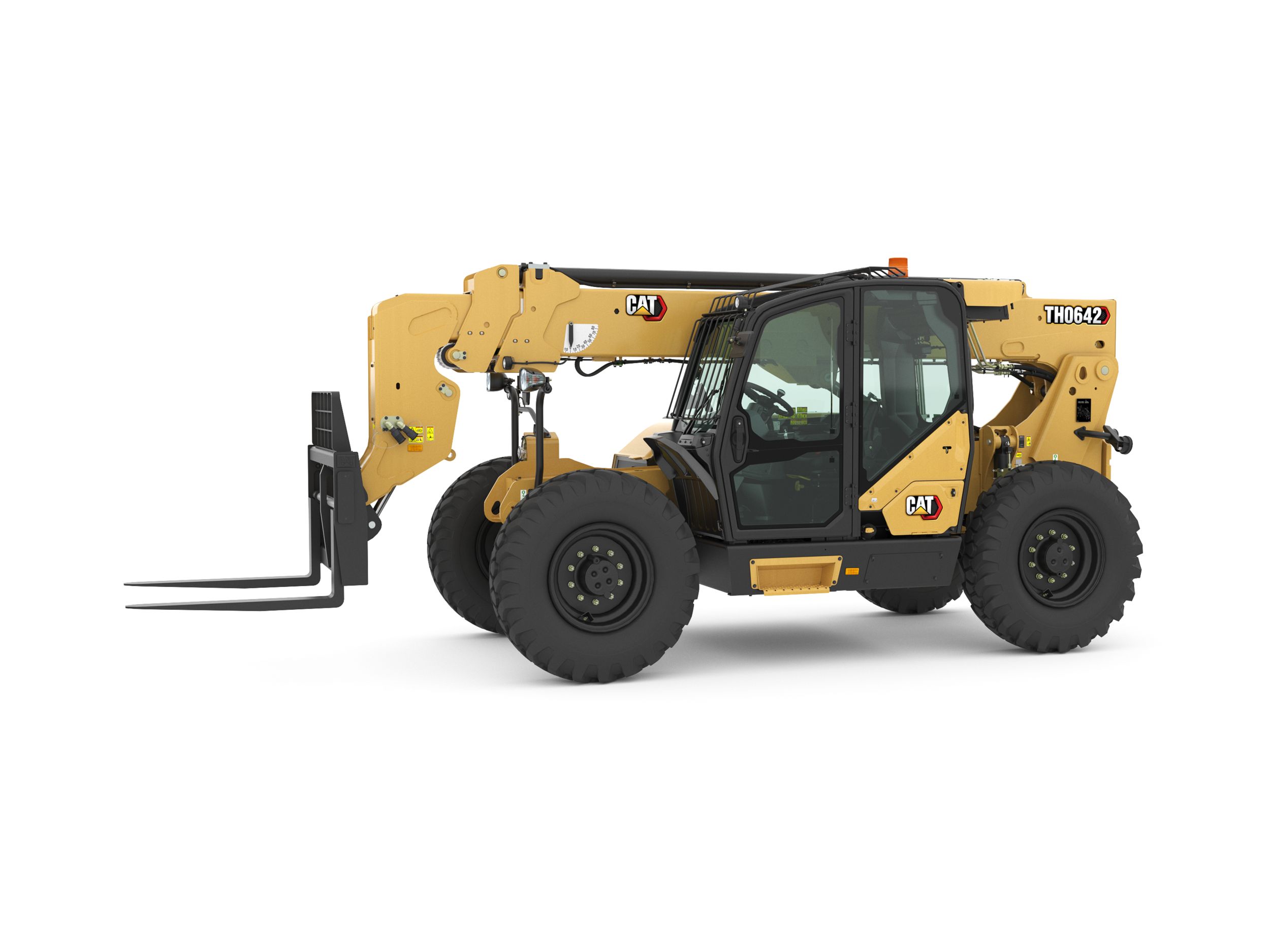

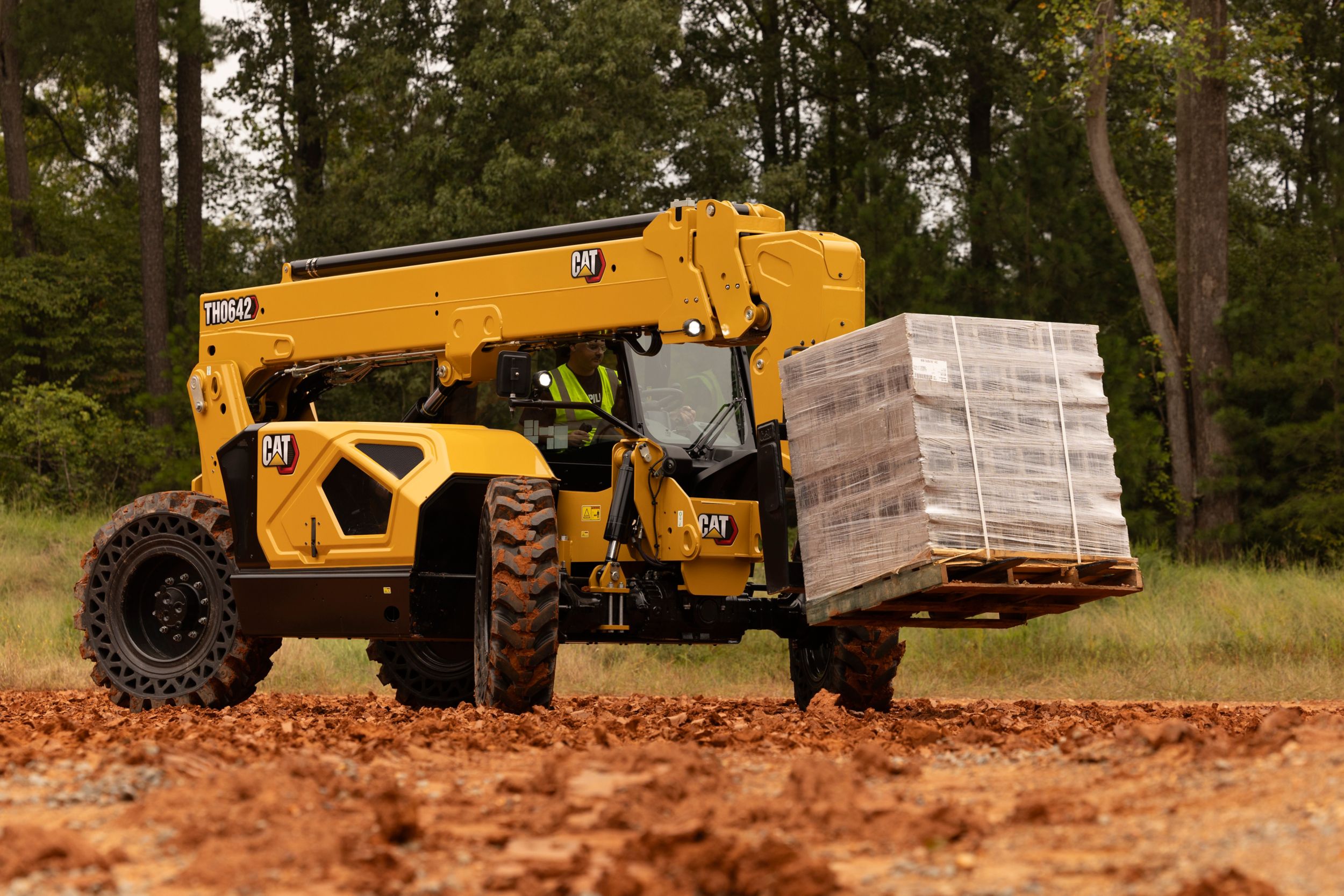

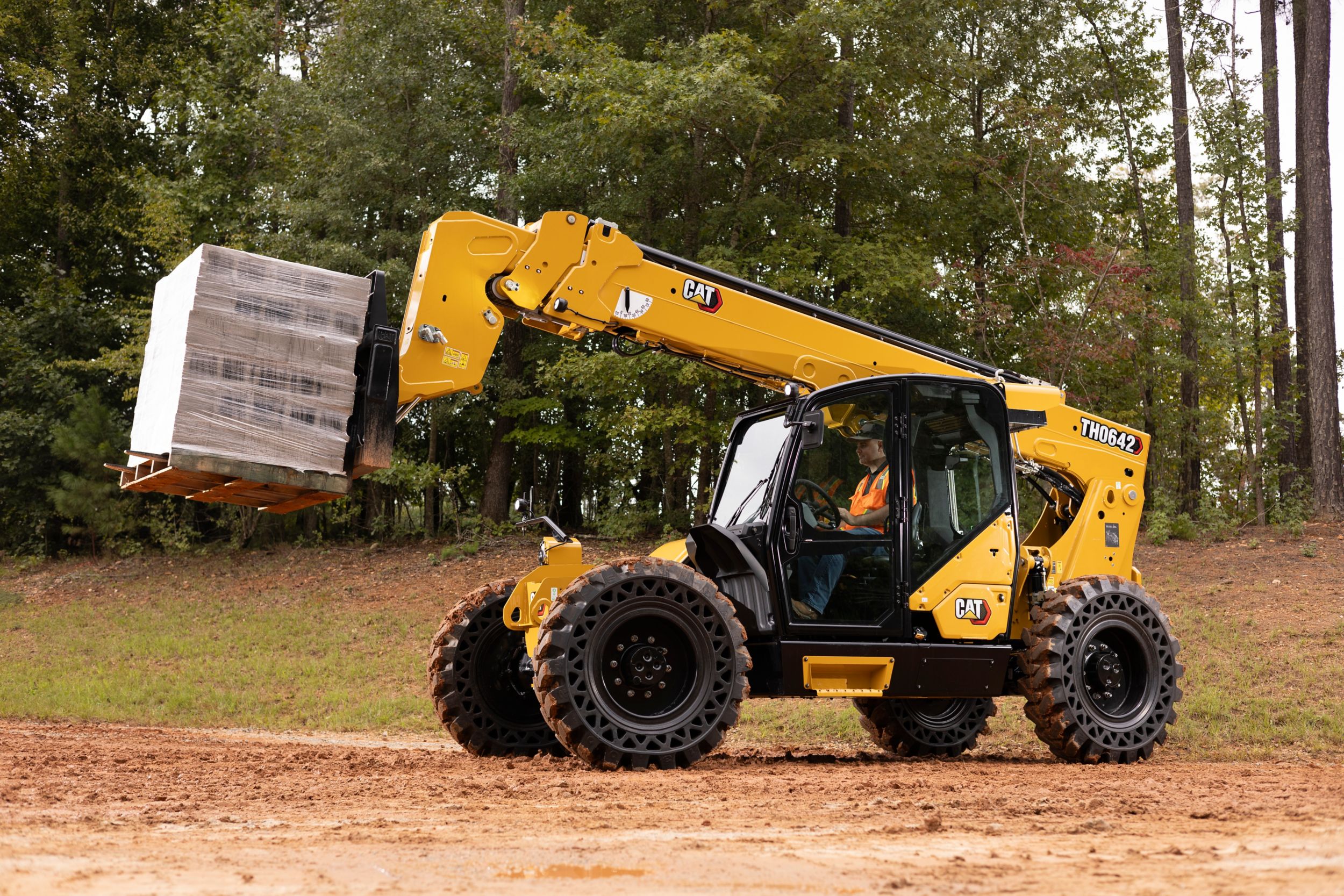

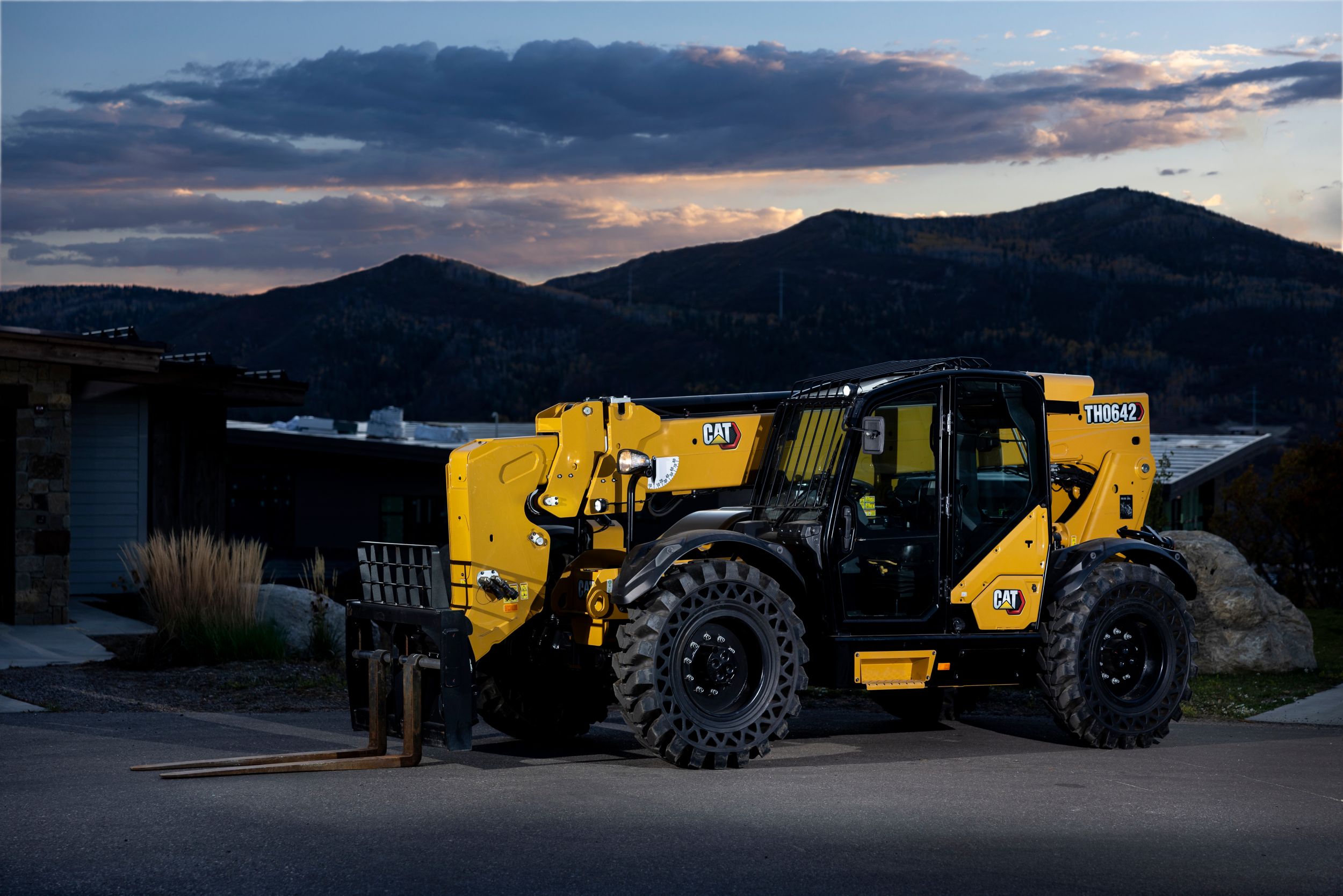

The Next Generation Cat® TH0642 Telehandler is focused on safety and ease of operation, with extended service intervals so it is ready to work when you are.

More than a machine – Cat Telehandlers are an extension of you.

Engine - Standard

Model
Cat C3.6
Emissions
Meets U.S. EPA Tier 4 Final/EU Stage V emissions standards.
Gross Power
ISO 14396:2002
Gross Power
74.00 hp
55.00 kW
Displacement
220.00 in³
3.60 l

Operating Specifications

Rated Load Capacity
6000.00 lb
2722.00 kg
Maximum Lift Height
42.10 ft
12.80 m
Maximum Forward Reach
27.60 ft
8.40 m
Frame Leveling
10 degrees
Drawbar Pull - Loaded
21064.00 lbf
93.70 kN
Capacity at Maximum Height
6000.00 lb
2722.00 kg
Capacity at Maximum Reach
900.00 lb
408.00 kg
Operating Weight
21647.00 lb
9819.00 kg
Maximum Ground Bearing Pressure (Solid Tires)
175.00 psi
1207.00 kPa
Maximum Ground Bearing Pressure (Pneumatic Tires)
140.00 psi
965.00 kPa
Travel Speed – Forward
19.00 mile/h
30.00 km/h
Travel Speed – Reverse
14.00 mile/h
22.00 km/h
Turning Radius over Tires (2-wheel steer)
261.00 in
6.64 m
Turning Radius over Tires (4-wheel steer)
156.00 in
3.97 m
Note
Operating Specifications, and Dimensions are based on 55 kW (74 hp) engine, pnuematic tires, open canopy, 1829 mm (72 in) standard carriage, 1829 mm (72 in) forks, full fluids, and 80 kg (176 lb) operator.

Weight Additions (add to base configured weight)

Enclosed Cab (with Air Conditioning)
364.00 lb
165.00 kg
Solid Tires
1737.00 lb
788.00 kg
Fenders (set of 4)
119.00 lb
54.00 kg

Hydraulic System

Auxiliary Hydraulic Flow
14.50 gpm
55.00 L/min
Auxiliary Hydraulic Pressure
4061.00 psi
280.00 bar
Maximum Pump Flow
37.00 gpm
141.00 L/min
System Operating Pressure
4061.00 psi
280.00 bar

Service Refill Capacities

Fuel Tank
39.00 gal (US)
146.00 l
Hydraulic Tank
24.00 gal (US)
90.00 l
Hydraulic System
44.00 gal (US)
165.00 l
Engine Crankcase
2.40 gal (US)
9.00 l
Transmission
5.30 gal (US)
20.00 l
Transfer Case
0.70 gal (US)
2.70 l

Transmission Speeds

Forward
4 Gears
Reverse
3 Gears

Tires

Option (1)
14-24 Galaxy Giraffe XLW L-2 (Air)
Option (2)
13-24 Camso TLH 792S (Solid)
Option (3)
13-24 Maxam MS709 (Solid)

Braking System

Service Brakes
Inboard wet disc brakes on front and rear axles
Parking Brakes
Wet disc, spring applied hydraulic release (front axle)

Boom Performance

Boom Down
14.2 sec
Boom Up
12.8 sec
Tele In
13.3 sec
Tele Out
13 sec

Dimensions (Approximate)

Height - Machine Rear
102.00 in
2.59 m
Overall Length to Front of Carriage
229.00 in
5.83 m
Overall Width - Standard Tires
93.00 in
2.36 m
Wheel Base
131.00 in
3.32 m
Ground Clearance
19.00 in
473.00 mm

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains 0.68 kg (1.5 lb) of refrigerant. The refrigerant is either R134a or R1234yf. If equipped with R134a (Global Warming Potential = 1430), the refrigerant in the system has a CO2 equivalent of 0.972 metric tonnes (1.07 tons).

Sustainability

Recyclability
97%

Sound

Exterior Sound
82 dB(A)
Operator Sound
79.00 dB(A)
79.00 dB(A)
Features

Comfortable Operator Station

Cat Telehandlers offer a roomy operator station, with standard features like a tilt steering column, dual charging ports, cupholder, and options like an enclosed cab with air conditioning and a top window sunshade to deliver excellent comfort when operating.

Easy To Operate

Pilot controlled joystick with excellent multi-function capability, makes the Cat Telehandler easy to use. The intuitive LCD monitor provides easy to read machine information, with a choice of languages, and delivers a standard multi-operator code security system.

Safety On The Job Site

Your safety is our top priority and the Cat Telehandler is designed to help keep you safer on the job. Standard equipment like the load stability indication (LSI) system, operator presence seat switch, rearview camera, high-visibility orange seat belt, and optional features such as the seat belt reminder system and hydraulic lockout switch, are just a few of the safety features we’ve built into the machine.

Simple Service For More Uptime

With extended service intervals, spend more time working and less time on maintenance. Daily check points are at ground level with grouped service points, and an easy-to-use service tool that allows quick checks of the chain for tension, link wear, or stretching. And rest easy with the standard 5-year/5,000-hour warranty for the main frame and boom.

Lower Operating Costs

Equipped with features such as 500-hour greasing interval, 500-hour boom maintenance interval, 3,000-hour hydraulic oil, 6,000-hour extended life coolant, engine idle shutdown, and efficient hydraulics with a variable displacement pump, the Cat Telehandler was designed to help reduce your operating costs.

Cat Attachments

Combining a wide selection of Cat Telehandler attachments with either the industry-standard TH coupler or the Integrated Tool Carrier (IT) coupler, the Next Generation Cat Telehandlers deliver exceptional versatility to meet the varied demands of today's job sites.

Standard Equipment
  • ENGINE
    • 55 kW (74 hp)
  • COLD WEATHER
    • Battery disconnect with lockout feature
  • OPERATOR STATION
    • Canopy
  • OPERATING ENHANCERS
    • Operator Presence Seat Switch
    • Camera, rearview
    • Load Stability Indicator (LSI)
  • OPERATOR SEAT
    • Seat – Mechanical Suspension
  • SEAT BELT
    • Seat belt – 51 mm (2 in)
  • OPERATOR STATION ACCESSORIES
    • USB dual charging port (USB-A and USB-C)
    • Security, 4 digit operator code enabled
    • Wiper, front (enclosed cab only)
  • FENDERS
    • Cab fender (Left Hand front)
  • OTHER OPTIONS
    • Frame cover
    • Retrieval hitch
  • LIGHTS
    • LED work lights – cab, boom
  • TELEMATICS
    • PLE643 – Product Link™ Elite
  • ATTACHMENT COUPLER
    • TH Coupler (Manual)
  • AUXILIARY HYDRAULIC CONNECTIONS
    • Capped auxiliary hydraulic lines
Optional Equipment
  • COLD WEATHER
    • Cold Weather Package
    • Dual Battery, heavy duty
    • Engine Block Heater
    • Ether Starting Aid
  • OPERATOR STATION
    • Enclosed Cab, heat
    • Enclosed Cab, heat, air conditioner
  • OPERATOR SEAT
    • Seat – Mechanical Suspension Plus
  • SEAT BELT
    • Seat belt – 75 mm (3 in)
    • Seat belt with Indicator – 75 mm (3 in)
  • OPERATOR STATION ACCESSORIES
    • Security, Bluetooth® key
    • Hydraulic lockout switch
    • Wiper, rear (enclosed cab only)
    • Wiper, roof (enclosed cab only)
    • Sunshade (top window)
    • Padlocks (set of 4)
  • FENDERS
    • Fenders (4 Wheels)
  • GUARDING
    • Window guard, front
    • Window guard, top
  • OTHER OPTIONS
    • Boom prop
  • LIGHTS
    • Beacon
    • Roading lights
  • TIRES
    • Galaxy – pneumatic directional
    • Camso – solid directional
    • Maxam – solid non-directional
  • ATTACHMENT COUPLER
    • IT Coupler (Manual)
    • IT Coupler (Hydraulic)
  • AUXILIARY HYDRAULIC CONNECTIONS
    • Twist to connect hydraulic quick disconnects
  • CARRIAGE
    • Standard – 1270 mm (50 in)
    • Standard – 1829 mm (72 in)
    • Side Tilt/Rotating – 1270 mm (50 in)
    • Side Tilt/Rotating – 1829 mm (72 in)
    • Hydraulic Fork Positioner – 1829 mm (72 in)
  • FORKS
    • Pallet Forks – 1220 mm (48 in)
    • Pallet Forks – 1525 mm (60 in)
    • Pallet Forks – 1829 mm (72 in)
  • OTHER WORK TOOL ATTACHMENTS
    • General Purpose Bucket
    • Truss Boom – 3.7 m (12 ft)
