Overview

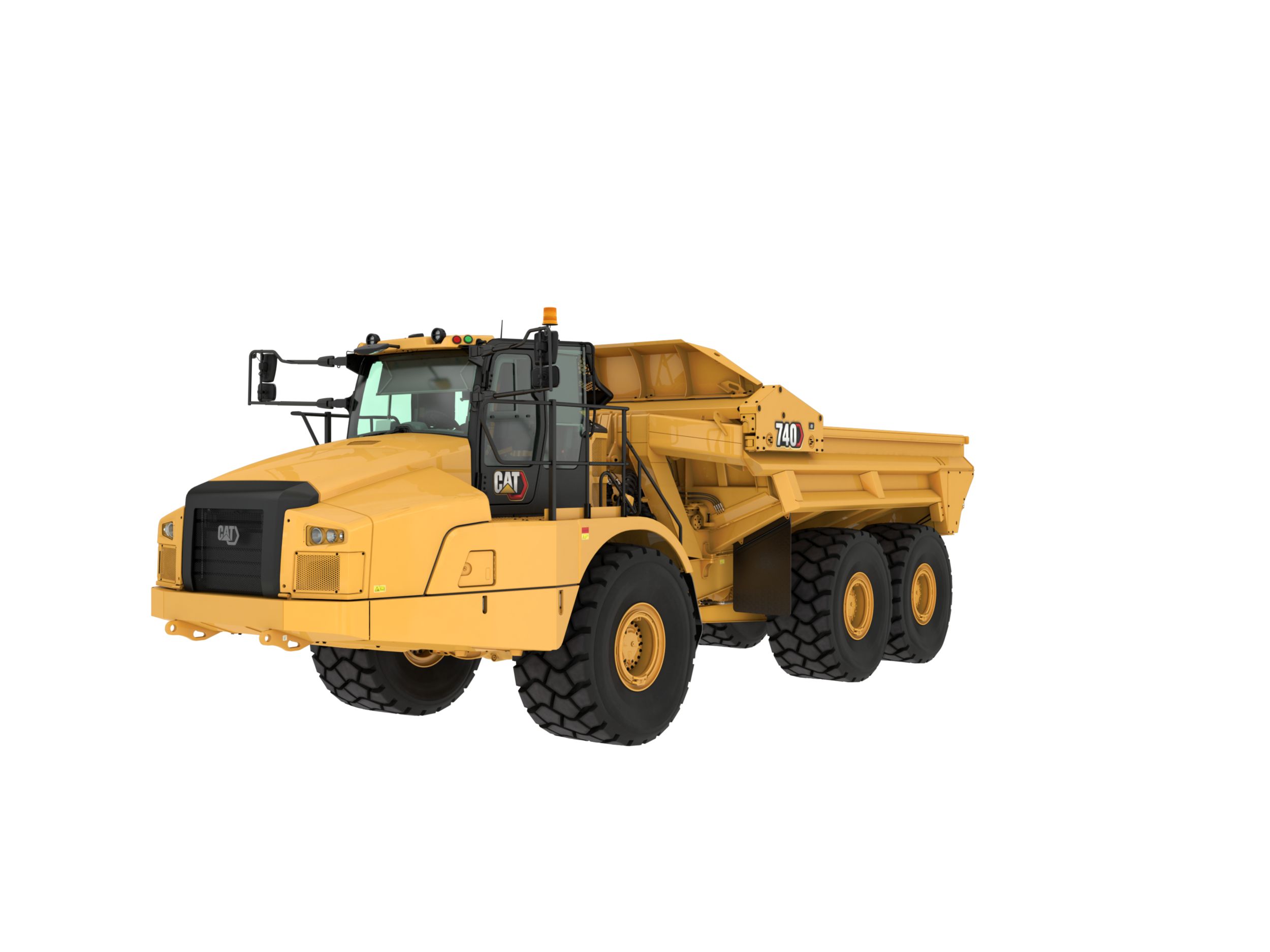

The Cat 740 EJ with a 23 m³ (30.1 yd³) 38 tonnes (42 tons) capacity brings a new level of operator comfort and features to the market in addition to the durability, high productivity and lower operating costs Cat Articulated Trucks are known for. The all-new operator cabin is a leap into the next generation for Articulated Trucks, providing our operators the best place to help build the future.

Engine

Engine Model
Cat® C18 ACERT™
Gross Power – SAE J1995
511.00 hp
381.00 kW
Net Power – SAE J1349
496.00 hp
370.00 kW
Bore
5.70 in
145.00 mm
Stroke
7.20 in
183.00 mm
Displacement
1106.00 in3
18.10 L
Engine Model – U.S. EPA Tier 4 Final, EU Stage IV, Japan 2014, Korea Tier 4 Final
Cat C18 ACERT
Net Power – ISO 14396
504.00 hp
376.00 kW

Weights

Rated Payload
42.00 ton (US)
38.00 t

Body Capacities

Heaped (SAE 2:1)
30.10 yd³
23.00 m³
Struck
23.50 yd³
18.00 m³

Transmission

Forward 1
3.80 mph
6.10 km/h
Forward 2
5.00 mph
8.10 km/h
Forward 3
7.00 mph
11.20 km/h
Forward 4
8.80 mph
14.10 km/h
Forward 5
11.60 mph
18.70 km/h
Forward 6
14.20 mph
22.90 km/h
Forward 7
19.60 mph
31.50 km/h
Reverse - 1
4.00 mile/h
6.40 km/h
Reverse - 2
9.10 mile/h
14.60 km/h

Operating Weights

Front Axle - Empty
45305.00 lb
20550.00 kg
Center Axle - Empty
16998.00 lb
7710.00 kg
Rear Axle - Empty
16424.00 lb
7450.00 kg
Total - Empty
78727.00 lb
35710.00 kg
Front Axle - Rated Load
3534.00 lb
1603.00 kg
Center Axle - Rated Load
40120.00 lb
18198.00 kg
Rear Axle - Rated Load
40120.00 lb
18198.00 kg
Total - Rated Load
83776.00 lb
37999.00 kg
Front Axle - Loaded
48841.00 lb
22154.00 kg
Center Axle - Loaded
57117.00 lb
25908.00 kg
Rear Axle - Loaded
56544.00 lb
25648.00 kg
Total - Loaded
162503.00 lb
73710.00 kg

Body Plate

Type
High Strength Brinell HB450 Wear Resistant Steel

Service Refill Capacities

Fuel Tank
145.30 gal
550.00 L
DEF Tank
5.30 gal
25.00 L
Cooling System
23.70 gal
90.00 L
Engine Crankcase
13.70 gal (US)
52.00 l
Steering/Hoist Hydraulic System
36.90 gal
140.00 L
Engine Crankcase
13.70 gal
52.00 L
Transmission/OTG
19.80 gal
75.00 L

Sound Levels

Interior Cab
72.00 dB(A)
72.00 dB(A)

Standards

Brakes
ISO 3450 – 2011
Cab - FOPS
ISO 3449 Level II – 2005
Cab - ROPS
ISO 3471 – 2008
Steering
ISO 5010 – 2007

Steering

Lock to Lock
4.8 seconds @ 60 rpm

Turning Circle

Note
Dimensions are for machines equipped with 29.5R25 tires.
Turning Dimensions - Aisle Width
233.00 in
5925.00 mm
45 deg
Turning Dimensions - Clearance Radius
356.00 in
9045.00 mm
Turning Dimensions - Inside Radius
173.00 in
4413.00 mm
Turning Dimensions - SAE Turning Radius
339.00 in
8624.00 mm
Turning Dimensions: Aisle Width
233.00 in
5925.00 mm

Engine

No Engine De-rating Required Below
10000.00 ft
3050.00 m
Peak Engine Torque Gross (SAE J1995)
1931.00 lbf-ft
2618.00 N·m
Peak Engine Torque Net (SAE J1349)
1887.00 lbf-ft
2558.00 N·m
Peak Engine Torque Speed
1200.00 rpm
1200.00 rpm

Transmission

Forward 8
23.50 mph
37.90 km/h
Forward 9
34.00 mph
54.80 km/h

Service Refill Capacities

Final Drives (each)
1.30 gal
5.00 L
Axles (each)
15.80 gal
60.00 L

Engine

Note
The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard.
Note
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Note
Net power when the fan is at maximum speed is 348 kW (467 hp) per the SAE reference conditions.
Emissions
The 740 EJ meets Tier 4 Final/Stage IV emission standards.
Note
DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.

Sound Levels

Note
The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 76 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.
Note
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.

Body Plate

Front
0.28 in
7.00 mm
Chute
0.55 in
14.00 mm
Side
0.43 in
11.00 mm
Base
0.55 in
14.00 mm

Optimal Loader/Truck Pass Matching

Hydraulic Excavator: 390 - Passes
4
Hydraulic Excavator: 374 - Passes
5
Wheel Loader: 982 - Passes
4
Wheel Loader: 980 - Passes
4–5
Wheel Loader: 972 - Passes
4–5
Note
An optimum system match gives you a major productivity advantage. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.

Blade Eject/Retract

Eject (manual)
17.00 seconds
17.00 seconds
Eject (automatic)
16.00 seconds
16.00 seconds
Retract (manual)
21.00 seconds
21.00 seconds
Retract (automatic)
21.00 seconds
21.00 seconds

Engine

Engine Model
Cat® C18
Bore
5.70 in
145.00 mm
Stroke
7.20 in
183.00 mm
Displacement
1106.00 in³
18.10 l
Engine Model - U.S. EPA Tier 4 Final, EU Stage IV, Japan 2014, Korea Tier 4 Final
Cat C18 ACERT
Gross Power - SAE J1995:2014
511.00 hp
381.00 kW
Net Power - ISO 14396
504.00 hp
376.00 kW
Net Power - SAE J1349:2011
496.00 hp
370.00 kW

Transmission

Forward - 1
3.80 mile/h
6.10 km/h
Forward - 2
5.00 mile/h
8.10 km/h
Forward - 3
7.00 mile/h
11.20 km/h
Forward - 4
8.80 mile/h
14.10 km/h
Forward - 5
11.60 mile/h
18.70 km/h
Forward - 6
14.20 mile/h
22.90 km/h
Forward - 7
19.60 mile/h
31.50 km/h

Body Plate

Type
High Strength Brinell HB450 Wear Resistant Steel

Service Refill Capacities

Fuel Tank
145.30 gal (US)
550.00 l
Cooling System
23.70 gal (US)
90.00 l
DEF Tank
5.30 gal (US)
25.00 l
Steering/Hoist Hydraulic System
36.90 gal (US)
140.00 l
Transmission - OTG
19.80 gal (US)
75.00 l
Brake Cooling Tank
17.70 gal (US)
67.00 l

Standards

Brakes
ISO 3450 – 2011
Steering
ISO 5010 – 2019

Turning Circle

Turning Dimensions - Steer Angle - Left/Right
45°

Transmission

Forward - 8
23.50 mile/h
37.90 km/h

Blade Eject/Retract

Eject (automatic)
16.00 s
16.00 s
Eject (manual)
17.00 s
17.00 s
Retract (automatic)
21.00 s
21.00 s
Retract (manual)
21.00 s
21.00 s

Engine

Emissions
The 740 EJ meets Tier 4 Final and Stage V emission standards.
No Engine De-rating Required Below
10000.00 ft
3050.00 m
Note (1)
Advertised power is tested at 1,700 rpm.
Note (2)
Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (3)
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Note (4)
Net power when the fan is at maximum speed is 370 kW (496 hp) per the SAE reference conditions.
Peak Engine Torque Gross (SAE J1995)
1931.00 lbf·ft
2618.00 N·m
Peak Engine Torque Net (SAE J1349)
1887.00 lbf·ft
2558.00 N·m
Peak Engine Torque Speed
1200.00 r/min
1200.00 r/min

Service Refill Capacities

Axles - Each
15.80 gal (US)
60.00 l
Final Drive - Each
1.30 gal (US)
5.00 l

Sound Levels

Note (1)
The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fan’s speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2)
Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or doors/windows open for extended periods or in noisy environments.

Transmission

Forward - 9
34.00 mile/h
54.80 km/h

Engine

Engine Model - U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), Korea Tier 4 Final
Cat C18
Gross Power (SAE J1995)
511.00 hp
381.00 kW
Net Power (SAE J1349)
496.00 hp
370.00 kW
Engine Power (ISO 14396)
504.00 hp
376.00 kW
Note (5)
The Cat C18 meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (6)
Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1:2006. ISO 22241-1:2006 requirements are met by many brands of DEF, including those that carry the AdBlue® or API certifications.

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons).
Features

MAXIMIZE PERFORMANCE

AUTOMATIC CONTROLS

HEAVY DUTY CONSTRUCTION

OPERATOR COMFORT AND CONTROL

BUILT TO PERFORM

TECHNOLOGY THAT GETS WORK DONE

BECAUSE UPTIME COUNTS

MORE SUSTAINABLE FUTURE

BUILT-IN SAFETY FEATURES

Sales Features

Ease of Operation

Designed for operators, by operators

Operator Environment

Improved productivity with a comfortable and confident operator

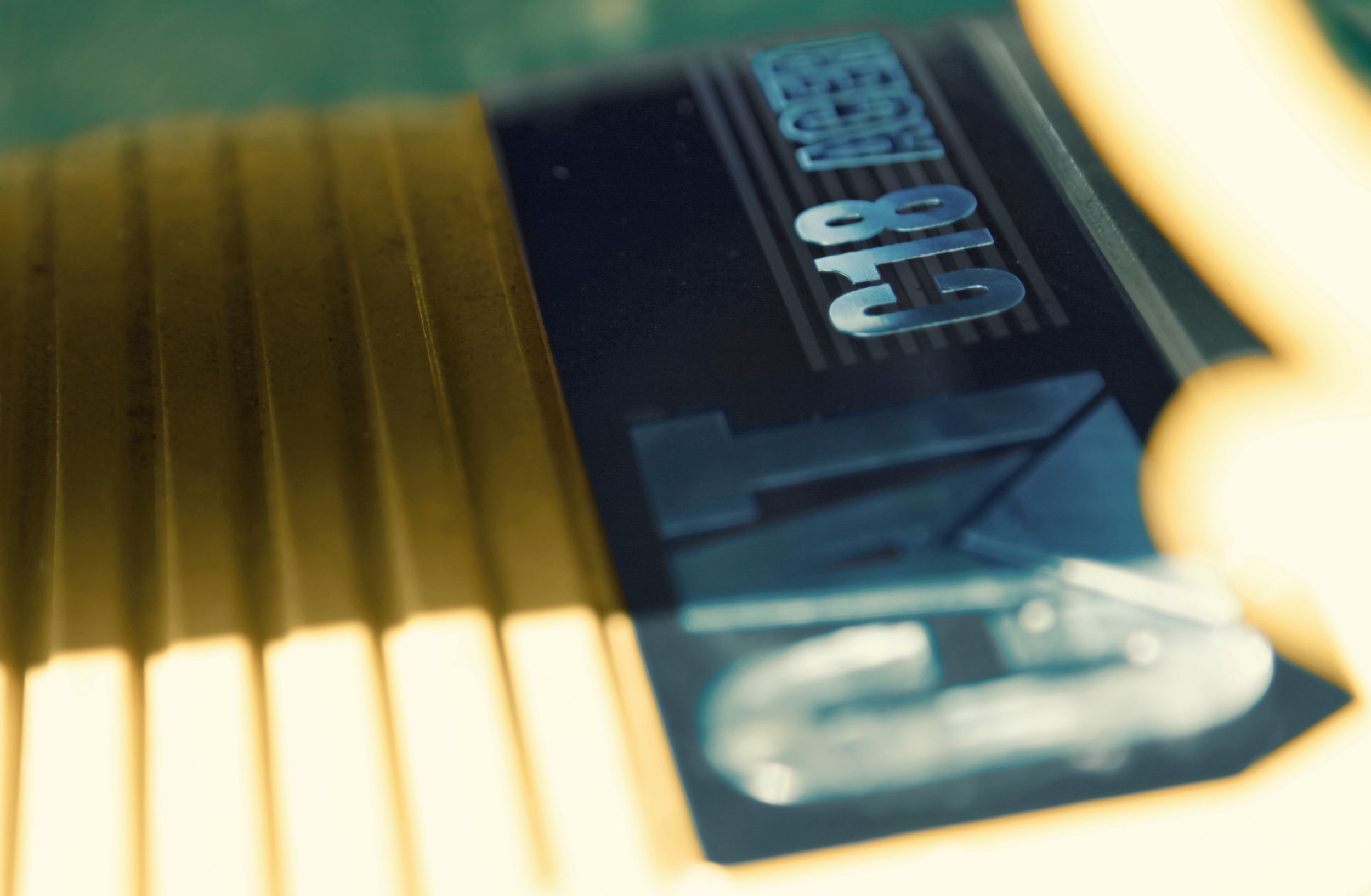

Engine

Optimized performance, proven reliability

Transmission

Class leading transmission technology

Automatic Features

Ease of use, improved performance

Suspension and Braking

Performance with comfort

Versatility

Pushing the operating envelope

Durability and Reliability

Proven structures and components

Integrated Technologies

Monitor, manage, and enhance job site operations

Serviceability

Maximize uptime and reduce costs

Complete Customer Support

A commitment to your success

Sustainability

Making sustainable progress possible

Safety

Designed into every machine
Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Air conditioning
    • Windshield wiper and washer, two speed, intermittent (front)
    • Windows opening side, tinted
    • Adjustable air vents
    • Two seat belts, operator's retractable
    • Storage:
      – Cup holder
      – Flask receptacle
      – Under seat storage
      – Door pocket
      – Behind seat storage
      – Coat hook
    • Mirrors: exterior
    • Tilt and telescopic steering wheel
    • Sun visor
    • Heater and defroster with variable speed fan
    • Secondary steering – electro hydraulic
    • Combined gear selection and eject control lever
    • Machine operation monitoring system includes:
      – Action lamp
      – Engine oil pressure
      – Primary steering system
      – Left and right turn signal
      – High beam
      – Coolant temperature
      – Tachometer
      – Parking brake
      – Fuel level
      – Transmission oil temperature
      – Brake system
      – Transmission hold
      – Hoist control
      – Hydraulic system
      – Charging system
      – Retarder
      – Transmission fault
      – Traction control system
      – Check engine lamp
    • Liquid Crystal Display (LCD):
      – Alert indicator
      – Selected gear and direction
      – Speed or auto shift
      – Review Operation and Maintenance Manual (OMM)
      – Primary steering failure
      – Seat belt warning
      – Secondary steering failure
      – DPF regeneration filter
      – Secondary steering energy source engaged
      – Hour meter
      – Retarder active
    • Glass windows: laminated and tinted-front toughened and tinted-sides and rear
    • Touchscreen display incorporating the rearview camera video feed
    • Seats:
      – Fully adjustable, air suspension
      – Padded trainer with lap belt
  • TECHNOLOGY
    • Product Link Cellular PLE643
    • Cat Detect with Stability Assist
  • ELECTRICAL AND LIGHTING
    • Batteries (two) maintenance free
    • Electrical system: 24 volt, 5A 24- to 12-volt converter
    • Horn
    • Lighting Systems:
      – Cab interior
      – Two head lamps
      – Two width marker
      – Two reversing
      – Work light
      – Two stop/tail lights
      – Front and rear direction indicators
    • Main disconnect switch
    • Remote starting receptacle (cables not included)
  • POWERTRAIN
    • Auto shift nine-speed forward and two reverse transmission
    • Cat C18 engine
    • Differentials: standard with automatic clutched inter and cross-axle differential locks
    • Dual circuit oil immersed, enclosed brakes – all wheels
    • Retarder: engine compression brake
    • Three axle, six-wheel drive
  • SAFETY
    • Reverse alarm
    • Rearview camera
    • Rollover protective structure/falling objects protective structure (ROPS/FOPS) cab
  • GUARDS
    • Rear window
    • Radiator
    • Crankcase
    • Front dump body spill guard, integral part of fabricated body
  • OTHER STANDARD EQUIPMENT
    • Hydraulic Tailgate
    • Mud flaps: wheel arch and body mounted with transportation tiebacks
    • Sound suppression (standard in some countries*)
      *Countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.
    • S·O·S sampling valves
    • Tires, six 29.5R25, radial
    • Vandalism protection: lockable caps for fuel tank and hydraulic oil tank
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Mirrors, heated motorized
    • Operator seat belt, four-point
    • Radio, Bluetooth® stereo system
    • Window blinds
    • Windshield wiper and washer, two speed (rear)
  • TECHNOLOGY
    • Machine Security System (MSS)
    • Cat® Payload monitoring system
    • Product Link Dual PLE683
  • ELECTRICAL AND LIGHTING
    • Cold weather start attachment
    • Engine block heater
    • Ether start
    • Flashing LED beacon
    • Roof-mounted LED work lights
  • OPTIONAL EQUIPMENT
    • Auto lube installation for automatic greasing of bearings
    • Body liners
    • Cold weather coolant –51° C (–60° F)
    • Exhaust heated body
    • Fast fuel fill
    • 875/65 R29 wide tires
    • Fuel additive – anti-waxing
    • Fender extension
