Overview

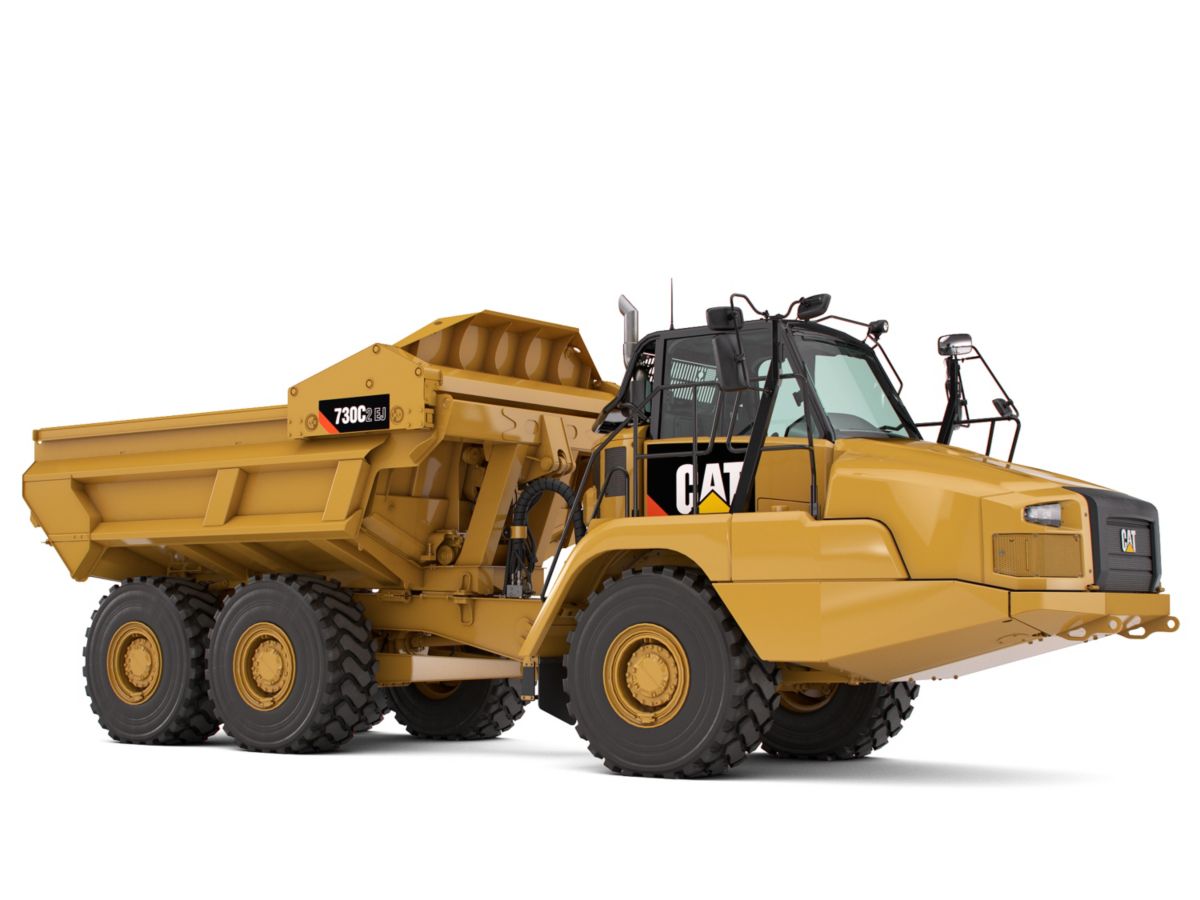

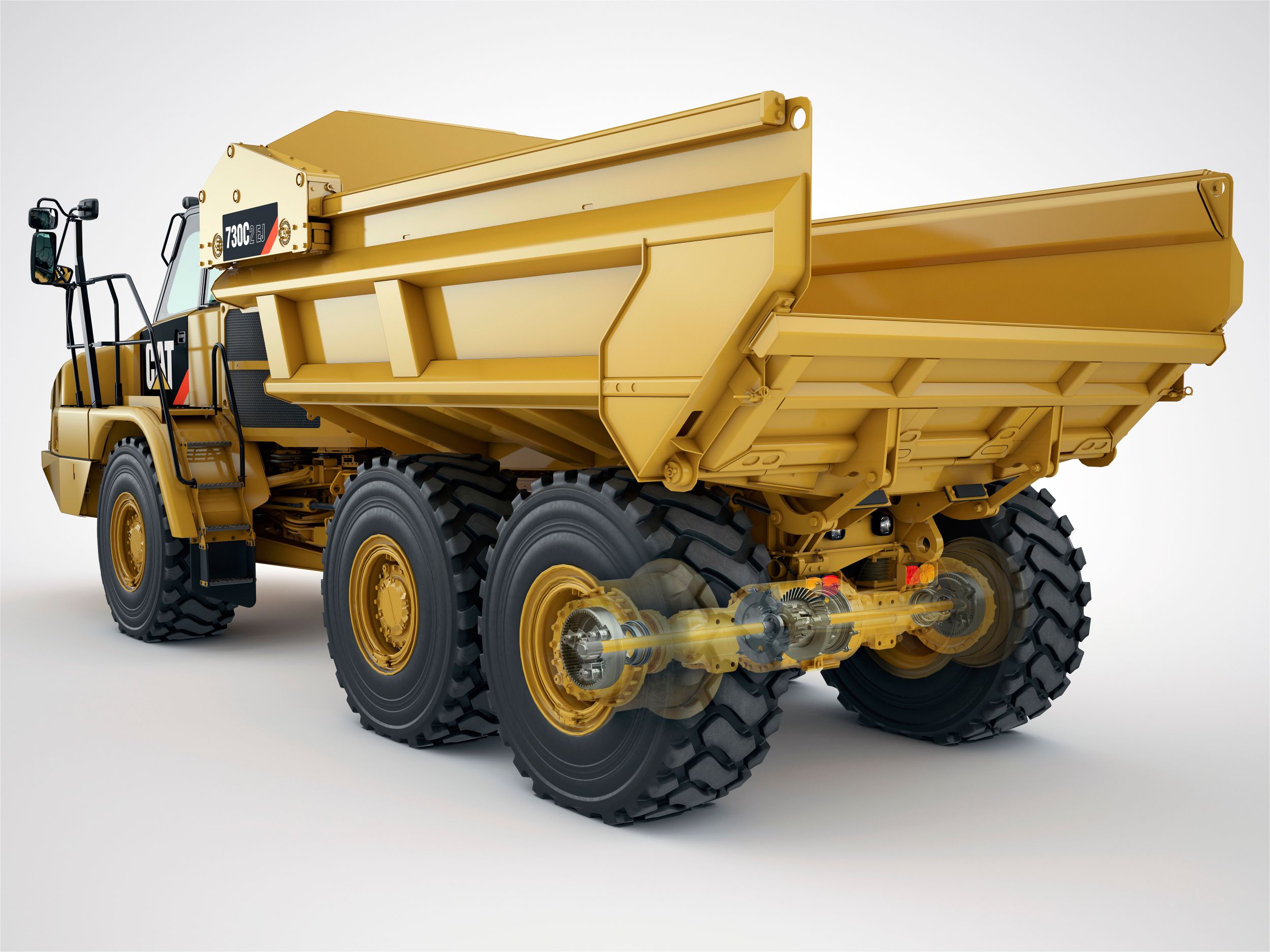

The Cat 730C2 EJ, with a 16.9 m3 (22.1 yd3) 28 tonnes (31 tons) capacity, offers demonstrated reliability and durability, high performance and productivity, superior operator comfort and lower operating costs. Updating the successful 730C EJ to include all axle enclosed wet brakes makes the 730C2 EJ a more attractive proposition for our customers. Class leading levels of performance and operator comfort make for a productive machine all day long.

Engine

Engine Model
Cat® C13 ACERT™
Gross Power – SAE J1995
375.00 hp
280.00 kW
Net Power – SAE J1349
367.00 hp
274.00 kW
Bore
5.10 in
130.00 mm
Stroke
6.20 in
157.00 mm
Displacement
762.80 in3
12.50 L
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV
Cat C13 ACERT
Net Power – ISO 14396
370.00 hp
276.00 kW
No Engine De-rating Below
12500.00 ft
3810.00 m
Peak Engine Torque Gross (SAE J1995)
1579.00 ft·lbf
2141.00 N·m
Peak Engine Torque Net (SAE J1349)
1564.00 lbf-ft
2120.00 N·m
Peak Engine Torque Speed
1200.00 r/min
1200.00 r/min

Weights

Rated Payload
31.00 t
28.00 t

Body Capacities

Heaped (SAE 2:1)
22.10 yd³
16.90 m³
Struck
17.70 yd³
13.50 m³

Transmission

Forward 1
5.00 mph
8.00 km/h
Forward 2
9.00 mph
15.00 km/h
Forward 3
14.00 mph
22.00 km/h
Forward 4
21.00 mph
34.00 km/h
Forward 5
29.00 mph
47.00 km/h
Forward 6
34.00 mph
55.00 km/h
Reverse - 1
6.00 mile/h
9.00 km/h

Operating Weights

Front Axle - Empty
34535.00 lb
15665.00 kg
Center Axle - Empty
12103.00 lb
5490.00 kg
Rear Axle - Empty
11552.00 lb
5240.00 kg
Total - Empty
58190.00 lb
26395.00 kg
Front Axle - Rated Load
7231.00 lb
670.00 kg
Center Axle - Rated Load
27249.00 lb
13725.00 kg
Rear Axle - Rated Load
27249.00 lb
13725.00 kg
Total - Rated Load
61729.00 lb
28120.00 kg
Front Axle - Loaded
36013.00 lb
16335.00 kg
Center Axle - Loaded
42362.00 lb
19215.00 kg
Rear Axle - Loaded
41811.00 lb
18965.00 kg
Total - Loaded
120186.00 lb
54515.00 kg

Service Refill Capacities

Fuel Tank
108.80 gal
412.00 L
Cooling System
21.90 gal
83.00 L
Hydraulic System
29.10 gal (US)
110.00 l
Engine Crankcase
10.00 gal (US)
38.00 l
Transmission
12.40 gal (US)
47.00 l
Final Drives/Differential
33.00 gal (US)
125.00 l
Output Transfer Gear Box
6.30 gal (US)
24.00 l
DEF Tank
5.20 gal
20.00 L

Body Eject

Eject Time
12.00 s
12.00 s
Retract Time
15.00 s
15.00 s

Sound Levels

Interior Cab
76.00 dB(A)
76.00 dB(A)

Standards

Brakes
ISO 3450 – 2011
Cab - FOPS
ISO 3449 Level II – 2005
Cab - ROPS
ISO 3471 – 2008
Steering
ISO 5010 – 2007

Steering

Lock to Lock
4.75 seconds @ 60 rpm

Body Plate

Type
High strength Brinell HB450 wear resistant steel

Turning Circle

Note
Dimensions are for machines equipped with 750/65 tires.
Turning Dimensions - Aisle Width
210.00 in
5332.00 mm
Turning Dimensions - Clearance Radius
318.00 in
8075.00 mm
Turning Dimensions - Inside Radius
153.00 in
3879.00 mm
Turning Dimensions - SAE Turning Radius
294.00 in
7470.00 mm
Turning Dimensions: Steer Angle – Left/Right
45°

Engine

Note
The reference to Tier 4 Final/Stage IV includes U.S. EPA Tier 4 Final, EU Stage IV, Japan 2014 (Tier 4 Final), as well as Korea Tier 4.
Note
The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard.
Note
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Note
Net power when the fan is at maximum speed is 254 kW (341 hp) per the SAE reference conditions.
Emissions
The 730C2 EJ meets Tier 4 Final/Stage IV emission standards.
Note
DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.

Sound Levels

Note
The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT 98 is 76 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.
Note
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.

Engine

Engine Model
Cat® C13 ACERT™
Bore
5.10 in
130.00 mm
Stroke
6.20 in
157.00 mm
Displacement
762.80 in³
12.50 l
Gross Power - SAE J1995
375.00 HP
280.00 kW
Net Power - ISO 14396
370.00 HP
276.00 kW
Net Power - SAE J1349
367.00 HP
274.00 kW
No Engine De-rating Below
12500.00 ft
3810.00 m
Peak Engine Torque Net (SAE J1349)
1564.00 ft·lbf
2120.00 N·m

Transmission

Forward - 1
5.00 mile/h
8.00 km/h
Forward - 2
9.00 mile/h
15.00 km/h
Forward - 3
14.00 mile/h
22.00 km/h
Forward - 4
21.00 mile/h
34.00 km/h
Forward - 5
29.00 mile/h
47.00 km/h
Forward - 6
34.00 mile/h
55.00 km/h

Service Refill Capacities

Fuel Tank
108.80 gal (US)
412.00 l
Cooling System
21.90 gal (US)
83.00 l
DEF Tank
5.20 gal (US)
20.00 l

Standards

Brakes
ISO 3450 – 2011
Steering
ISO 5010 – 2007

Body Plate

Type
High strength Brinell HB450 wear resistant steel

Turning Circle

Turning Dimensions - Steer Angle - Left/Right
45°

Engine

Emissions
The 730C2 EJ meets Tier 4 Final/Stage IV emission standards.
Note (1)
The reference to Tier 4 Final/Stage IV includes U.S. EPA Tier 4 Final, EU Stage IV, Japan 2014 (Tier 4 Final), as well as Korea Tier 4.
Note (2)
The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard.
Note (3)
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Note (4)
Net power when the fan is at maximum speed is 254 kW (341 hp) per the SAE reference conditions.
Note (5)
DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.

Sound Levels

Note (1)
The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT 98 is 76 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.
Note (2)
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Features

Engine



Transmission



Automatic Features



Suspension and Braking



Operator Environment



Ease of Operation



Durability and Reliability



Cat CONNECT Technology



Versatility



Serviceability



Complete Customer Support



Sustainability



Safety



Sales Features

Engine

Optimized Performance, Proven Reliability

Transmission

Class Leading Transmission Technology

Automatic Features

Ease of Use, Improved Performance

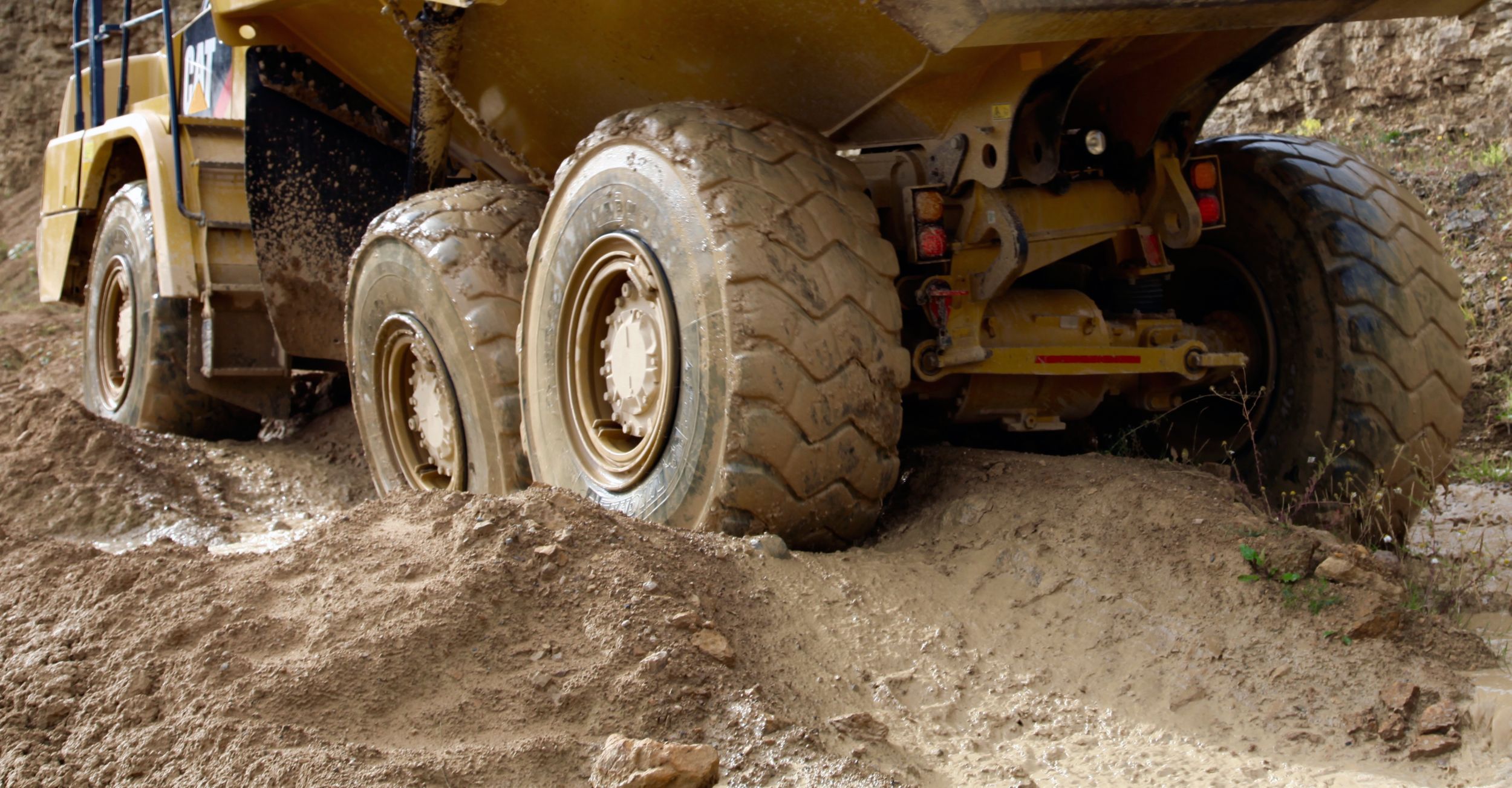

Suspension and Braking

Performance and Comfort

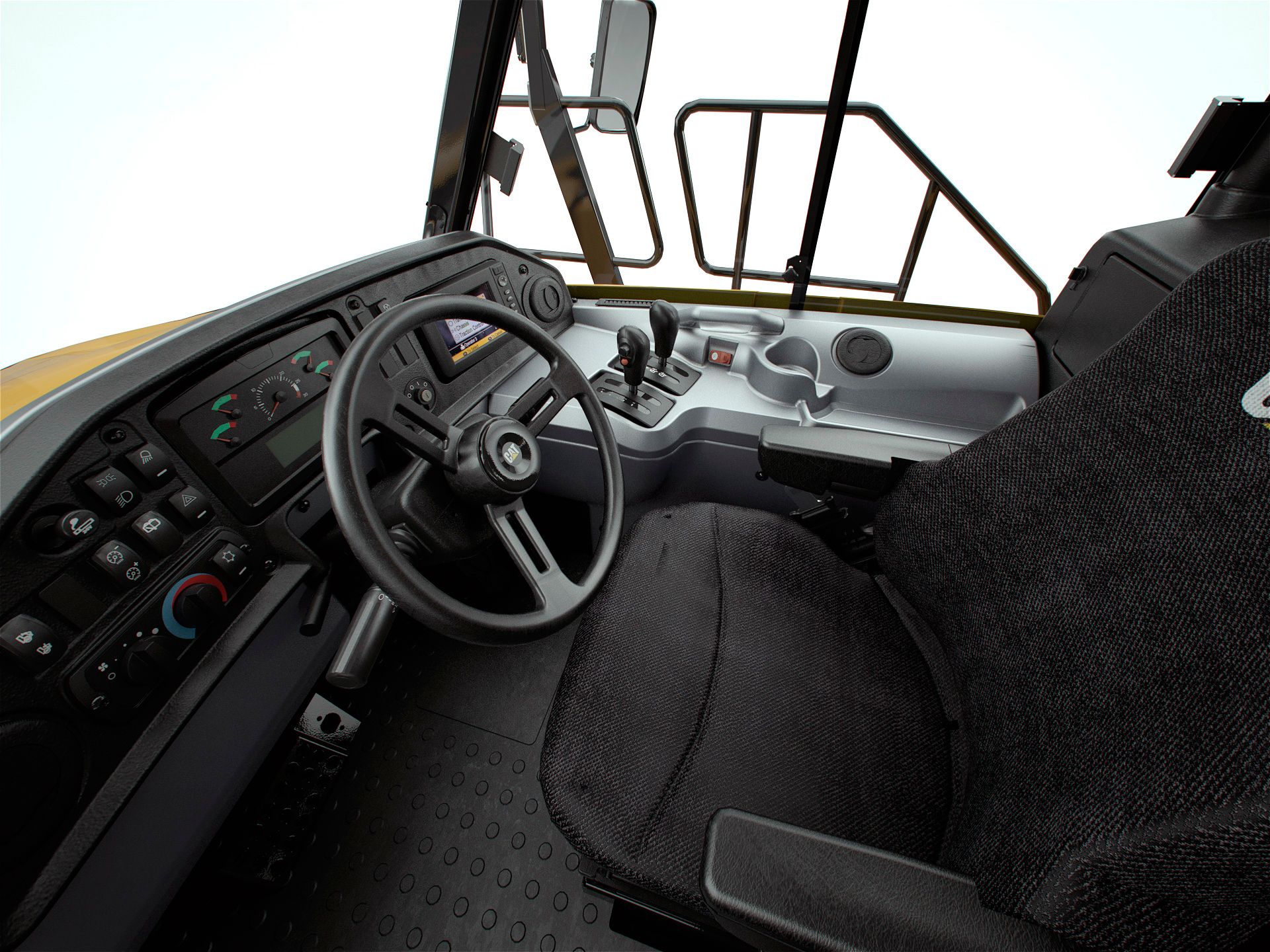

Operator Environment

Improve Productivity with a Comfortable and Confident Operator

Ease of Operation

Designed Around the Operator

Durability and Reliability

Proven Structures and Components

Cat CONNECT Technology

Monitor, Manage, and Enhance Job Site Operations

Versatility

Faster Cycles and Lower Spreading Costs

Serviceability

Maximize Uptime and Reduce Costs

Complete Customer Support

A Commitment to Your Success

Sustainability

Making Sustainable Progress Possible

Safety

Designed and Built into Every Machine
Standard Equipment
  • Dashboard Liquid Crystal Display (LCD)
    • Alert indicator, selected gear and direction, speed or auto shift, review Operation and Maintenance Manual (OMM), primary steering failure, seat belt warning, secondary steering failure, Machine Security System (MSS), secondary steering energy source engaged, hour meter and retarder active
  • Machine Operation Monitoring System includes
    • Action lamp, engine oil pressure, primary steering system, left turn signal, high beam, coolant temperature, tachometer, parking brake, fuel level, right turn signal, transmission oil temperature, brake system, transmission hold, hoist control, hydraulic system, charging system, retarder, transmission fault, traction control system, check engine lamp
Optional Equipment
  • Auto lube installation for automatic greasing of bearings
  • Bluetooth radio stereo system
  • Caterpillar Production Measurement (CMP) payload monitoring system
  • Cold weather coolant –51° C (–60° F)
  • Cold weather start attachment
  • Engine block heater
  • Ether start
  • Exhaust heated body
  • Fast fuel fill
  • Four point safety harness
  • Flashing LED beacon
  • Fuel additive-anti-waxing
  • Heated seat
  • Heated rearview motorized mirrors
  • Machine Security System (MSS)
  • Product Link PL 321, PL 522, VIMS™ Cellular, VIMS Satellite (where available)
  • Roof mounted High Intensity Discharge (HID) work lights
  • 750/65 wide tires
