Overview

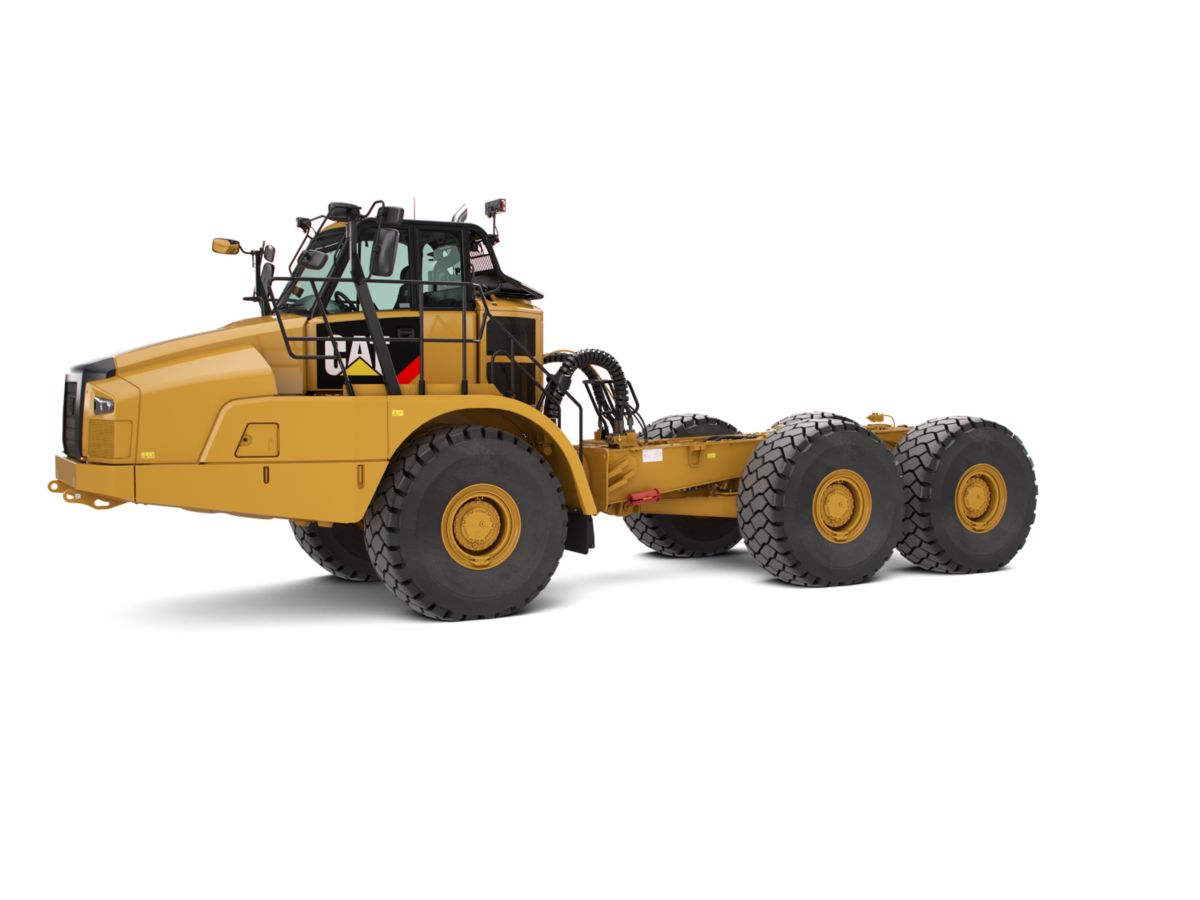

The Cat OEM 735C Bare Chassis with a 22 m3 (28.7 yd3) 32.7 tonnes (36 tons) capacity offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs. With many updated and improved features, an all new power train and new ease of operation features including Automatic Retarder Control, the 735C is now more productive than ever before.

Wheel Base Length

Standard Wheel Base
162.40 in
4126.00 mm
Long Wheel Base
228.40 in
5801.00 mm

Engine

Engine Model
Cat C15 ACERT
Gross Power – SAE J1995
452.00 hp
337.00 kW
Net Power – SAE J1349
441.00 hp
329.00 kW
Bore
5.40 in
137.00 mm
Stroke
6.75 in
171.50 mm
Displacement
926.00 in3
15.20 L
Engine Model – U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final
Cat® C15 ACERT™
Net Power – ISO 14396
447.00 hp
333.00 kW

Weights

Rated Payload
36.00 tons
32.70 tonnes

Transmission

Forward 1
3.70 mph
6.00 km/h
Forward 2
4.90 mph
7.90 km/h
Forward 3
6.80 mph
11.00 km/h
Forward 4
8.60 mph
13.90 km/h
Forward 5
11.40 mph
18.40 km/h
Forward 6
14.00 mph
22.50 km/h
Forward 7
19.30 mph
31.00 km/h
Reverse 1
3.90 mph
6.30 km/h
Reverse 2
8.90 mph
14.40 km/h

Service Refill Capacities

Fuel Tank
126.80 gal
480.00 L
Cooling System
23.70 gal
90.00 L
DEF Tank
6.60 gal
25.00 L
Engine Crankcase
10.60 gal
40.00 L
Transmission/OTG
19.80 gal
75.00 L
Final Drives (each)
1.30 gal
5.00 L
Axles (each)
15.80 gal
60.00 L

Sound Levels

Interior Cab
79.00 dB(A)
79.00 dB(A)

Standards

Brakes
ISO 3450-2011
Cab/FOPS
ISO 3449 Level II-2005
Cab/ROPS
ISO 3471-2008
Steering
ISO 5010-2007

Steering

Lock to Lock
4.6 seconds @ 60 rpm

Turning Circle

Note
Dimensions are for machines equipped with 26.5R25 tires.
Turning Dimensions: Steer Angle – Left/Right
45°
Turning Dimensions: SAE Turning Radius
314.00 in
7968.00 mm
Turning Dimensions: Clearance Radius
331.00 in
8420.00 mm
Turning Dimensions: Inside Radius
157.00 in
3978.00 mm
Turning Dimensions: Aisle Width
221.00 in
5607.00 mm

Engine

No Engine De-rating Required Below
10000.00 ft
3050.00 m
Peak Engine Torque Gross (SAE J1995)
1931.00 lbf-ft
2618.00 N·m
Peak Engine Torque Net (SAE J1349)
1887.00 lbf-ft
2558.00 N·m
Peak Engine Torque Speed
1200.00 rpm
1200.00 rpm

Transmission

Forward 8
23.10 mph
37.30 km/h
Forward 9
33.50 mph
53.90 km/h

Service Refill Capacities

Brake Cooling Tank
17.69 gal
67.00 L
Steering/Hoist Hydraulic System
36.90 gal
140.00 L
Sales Features

Long Wheel Base

The 735C can be ordered with or without hoist cylinders, and in standard wheel base (SWB) or long wheel base (LWB) configurations through your local Cat dealer on the standard Articulated Truck price list.

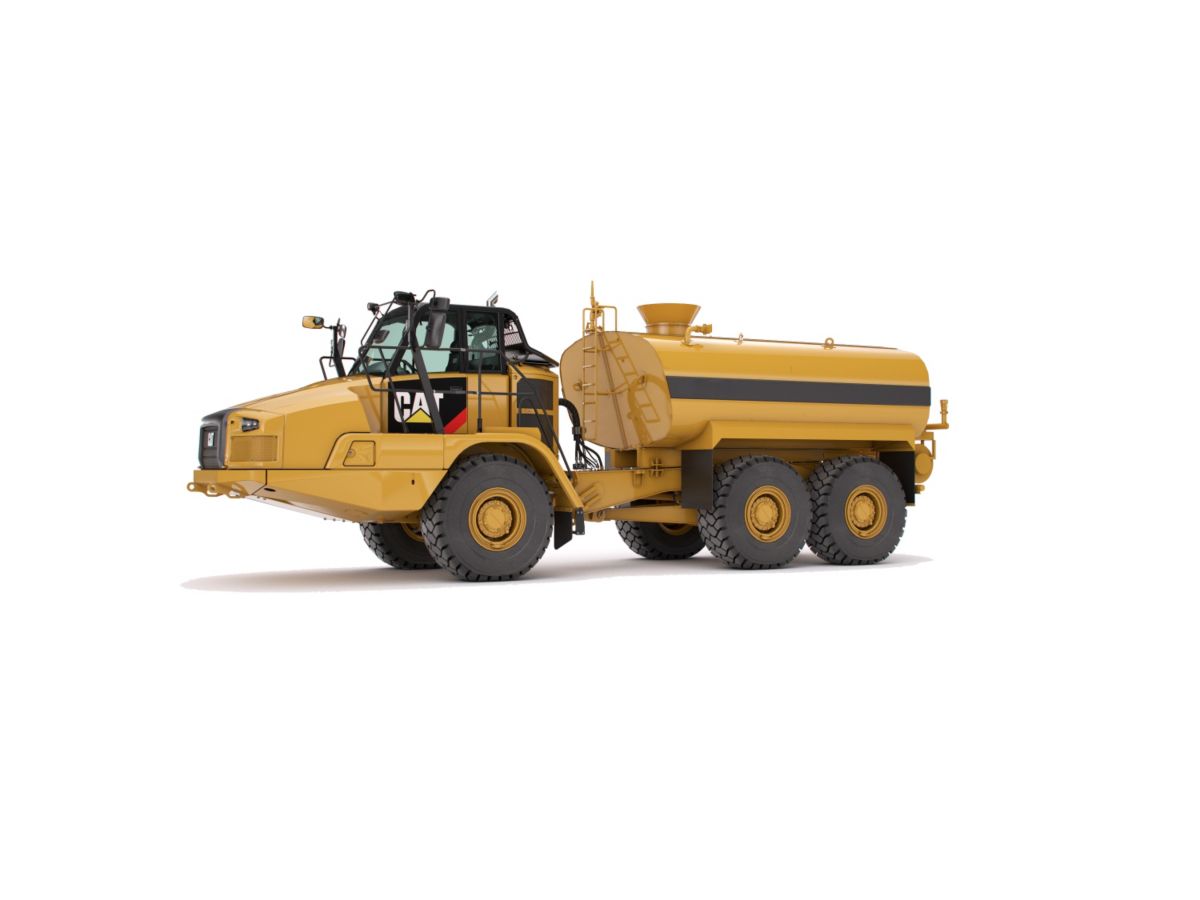

Water Truck Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects. Using an articulated truck bare chassis provides a flexible solution that is ideal for dust suppression, road construction, fire protection, and other applications. Caterpillar works with OEMs worldwide to match various size water tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

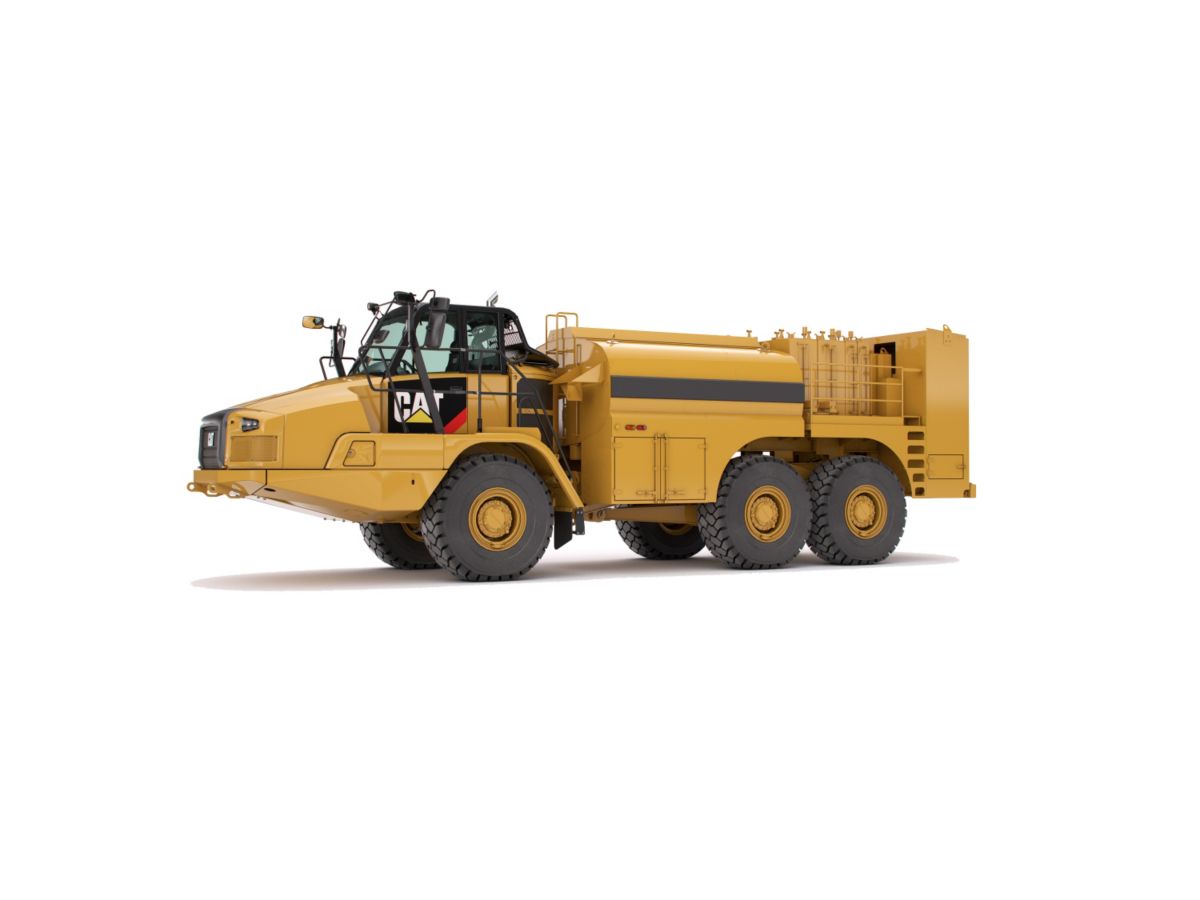

Service Truck Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects. Using an articulated truck bare chassis provides a flexible solution that is ideal for delivering fuel and preventive maintenance lubrication to your site's machine fleet. Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

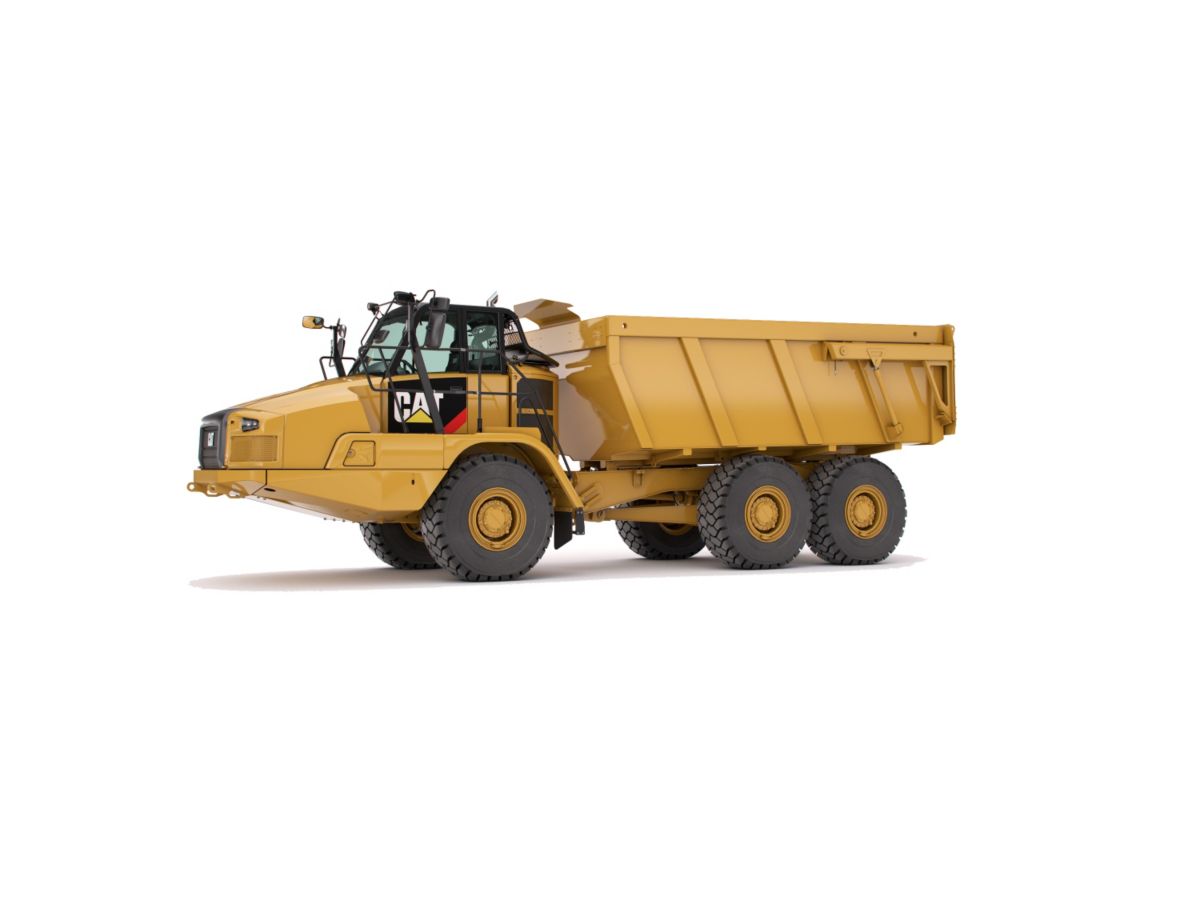

Specialty Body Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for specialty body applications. Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling coal or waste, container trucks or hooklifts, cable reel trucks, and other applications. Caterpillar works with OEMs worldwide to match various size specialty bodies with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

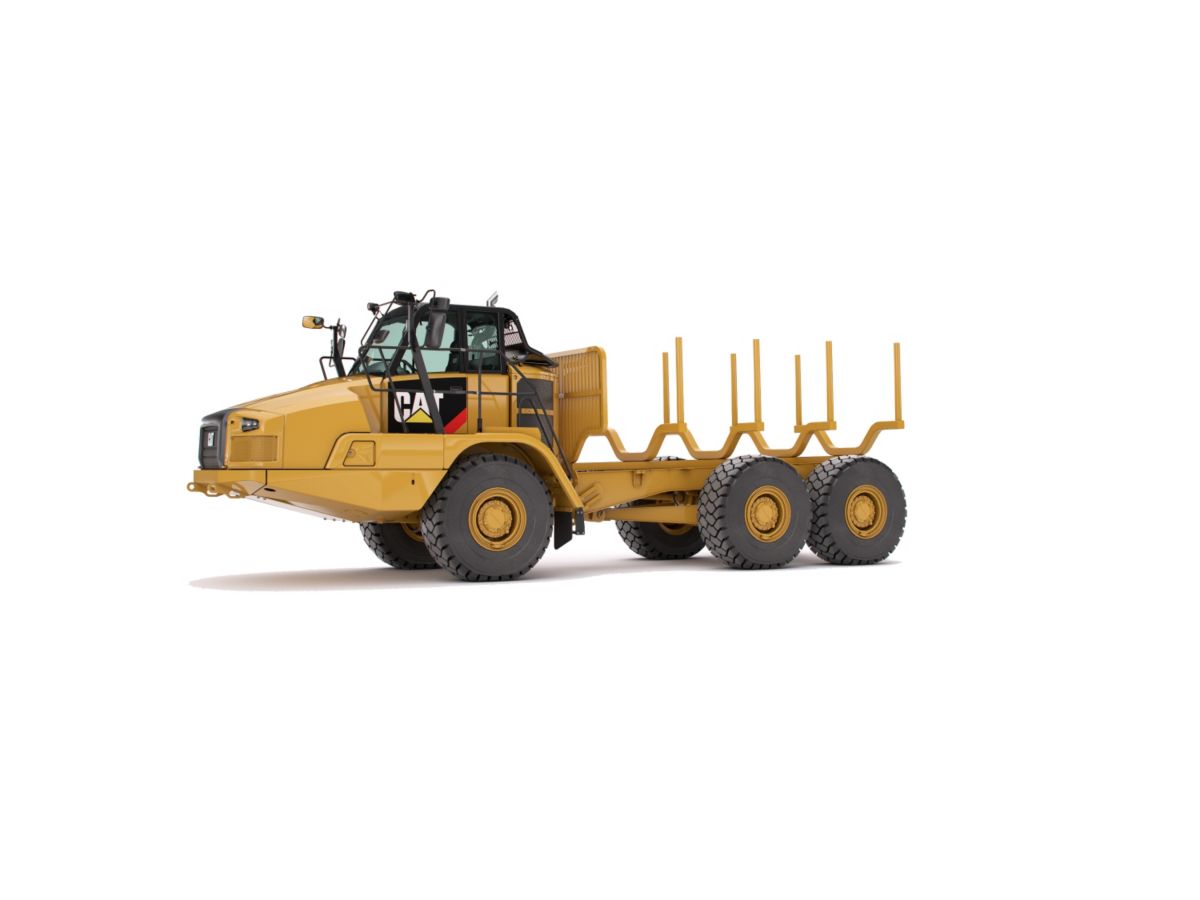

Forestry Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for forestry applications. Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling logs and other applications. Caterpillar works with OEMs worldwide to match various size specialty bodies with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.
Standard Equipment
  • For bare chassis standard and optional equipment, please reference the 735C Articulated Truck. For more information on 735C Bare Chassis options, please contact Caterpillar OEM Solutions at oemsolutions@cat.com.
