Overview

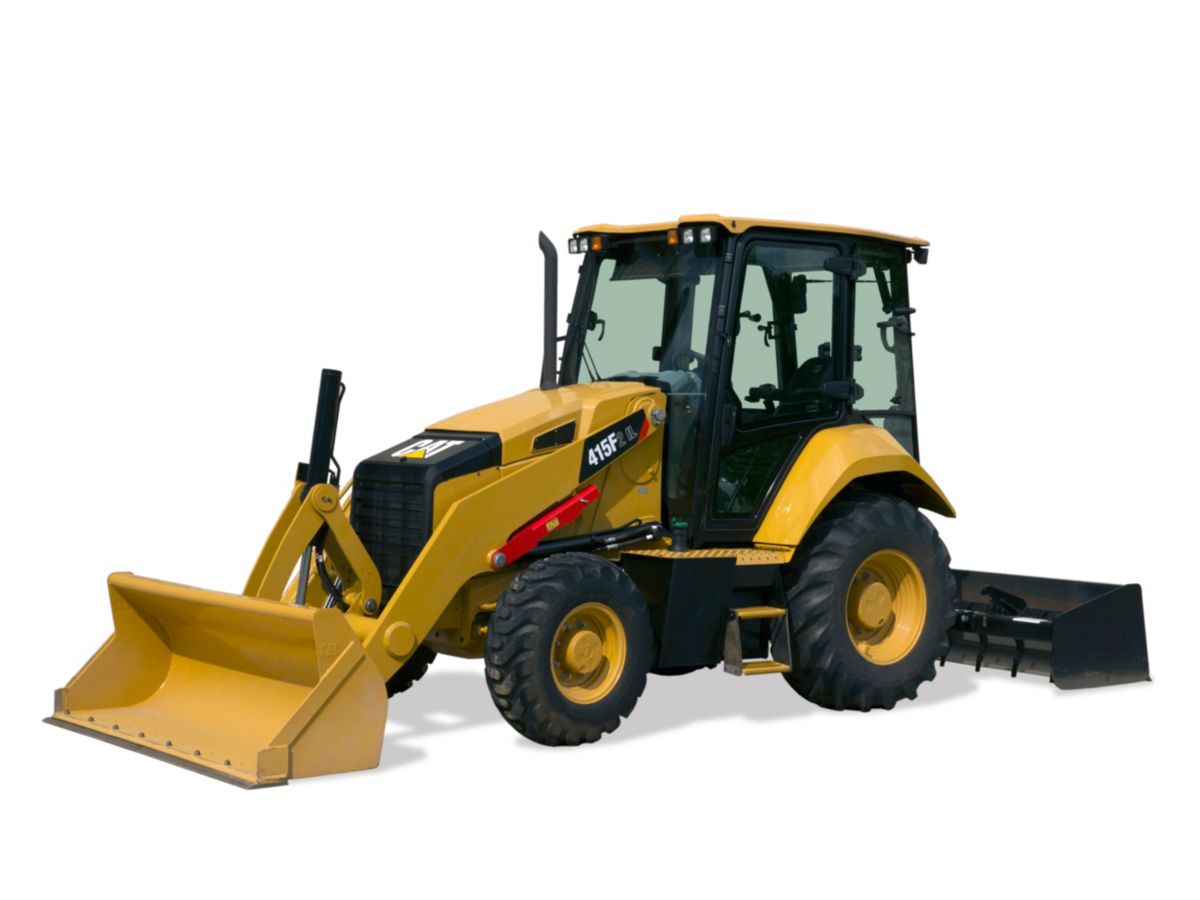

The Cat® 415F2 IL Industrial Loader delivers performance, fuel efficiency, superior hydraulic system and an all new operator station.

Engine

Net Power – SAE J1349
68.00 hp
51.00 kW
Engine Model
Cat C3.4B
Gross Power – SAE J1995
74.00 hp
55.00 kW
Gross Power – ISO 14396
74.00 hp
55.00 kW
Rated Net Power @ 2,200 rpm – SAE J1349
68.00 hp
51.00 kW
Rated Net Power @ 2,200 rpm – ISO 9249
68.00 hp
51.00 kW
Rated Net Power - 2,200 rpm - EEC 80/1269
69.00 HP
51.00 kW
Net Peak Power - 1,800 rpm - SAE J1349
72.00 HP
54.00 kW
Net Peak Power - 1,800 rpm - ISO 9249
73.00 HP
54.00 kW
Net Peak Power - 1,800 rpm - EEC 80/1269
73.00 HP
54.00 kW
Bore
3.90 in
99.00 mm
Stroke
4.33 in
110.00 mm
Displacement
207.00 in3
3.40 L
Net Torque Rise @ 1,200 rpm
88.00 %
88.00 %
Net Peak Torque SAE J1349
307.00 lbf-ft
416.00 N·m
Emissions
Engine meets U.S. EPA Tier 4 Final emission standards.

Loader Bucket

Dig Depth – Standard
3.00 in
83.00 mm

Weights

Operating Weight – Maximum
17637.00 lb
8000.00 kg
Operating Weight - Minimum
14035.00 lb
6366.00 kg
Operating Weight - Maximum - ROPS Capacity
17637.00 lb
8000.00 kg
Cab, ROPS/FOPS
359.00 lb
163.00 kg
Air Conditioning
101.00 lb
46.00 kg
MP Bucket (1.00 m3/1.31 yd3) – (with fold-over forks)
2018.00 lb
915.00 kg
MP Bucket (1.00 m3/1.31 yd3) – (without fold-over forks)
3622.00 lb
1642.00 kg
Front Counterweight – Counterweights (Option 1)
255.00 lb
115.00 kg
Front Counterweight - Counterweights - Option 2
530.00 lb
240.00 kg
Front Counterweight - Counterweights - Option 3
1015.00 lb
460.00 kg
Rear Counterweight
198.00 lb
90.00 kg

Transmission

Power Shuttle Transmission – Standard: Forward – 1st
3.40 mph
5.40 km/h
Power Shuttle Transmission – Standard: Forward – 2nd
5.50 mph
8.90 km/h
Power Shuttle Transmission – Standard: Forward – 3rd
13.00 mph
20.00 km/h
Power Shuttle Transmission – Standard: Forward – 4th
23.00 mph
36.00 km/h

Hydraulic System

System Pressure - Loader
2973.00 psi
20500.00 kPa

Transmission

Power Shuttle Transmission – Standard: Reverse – 2nd
5.50 mph
8.90 km/h
Power Shuttle Transmission – Standard: Reverse – 3rd
13.00 mph
20.00 km/h
Power Shuttle Transmission – Standard: Reverse – 4th
23.00 mph
36.00 km/h

Hydraulic System

Type
Closed Center
Pump Type
Variable Flow, Axial Piston
Pump Capacity @ 2,200 rpm
33.00 gal/min
125.00 L/min
System Pressure - Hitch/Box Scraper
2973.00 psi
20500.00 kPa
System Pressure – Loader
2973.00 psi
20500.00 kPa

Axle Ratings

Front Axle, 4WD – Static
50582.00 lb
22964.00 kg
Front Axle (4WD) - Dynamic
20233.00 lb
9186.00 kg
Rear Axle – Static
50582.00 lb
22964.00 kg
Rear Axle - Dynamic
20233.00 lb
9186.00 kg

Service Refill Capacities

Cooling System with Air Conditioning
4.40 gal (US)
16.50 l
Fuel Tank
42.00 gal
160.00 L
Engine Oil with Filter
2.30 gal
8.80 L
Transmission - Power Shuttle - 2WD
4.00 gal (US)
15.00 l
Transmission - Power Shuttle - 4WD
4.00 gal (US)
15.00 l
Rear Axle
4.40 gal (US)
16.50 l
Rear Axle - Planetaries
0.40 gal (US)
1.70 l
Front Axle (4WD)
2.90 gal (US)
11.00 l
Front Axle (4WD) - Planetaries
0.20 gal (US)
0.70 l
Hydraulic System
23.80 gal
90.00 L
Hydraulic Tank
10.60 gal
40.00 L
Note
Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur

Steering

Type
Front Wheel
Power Steering
Hydrostatic
Bore
2.60 in
65.00 mm
Stroke
4.70 in
120.00 mm
Rod Diameter
1.40 in
36.00 mm
Axle Oscillation
11°
Turning Circle – 2WD/4WD (inner wheel not braked): Outside, Front Wheels
26.80 ft
8.18 m
Turning Circle – 2WD/4WD (inner wheel not braked): Outside, Widest Loading Bucket
36.00 ft
10.97 m

Tires

Standard Configuration of Front/Rear Tires
Front: 12.5 80/16.9; Rear: 16.9-24

Engine

Note
No derating required up to 2286 m (7,500 ft).

Counterweights - Front - Minimum Recommendations

Standard Stick - GP Loader Bucket - 4WD
255.00 lb
116.00 kg
Standard Stick - MP Loader Bucket - 4WD
no counterweight

Engine

Net Power - SAE J1349
68.00 HP
51.00 kW
Bore
3.90 in
99.00 mm
Stroke
4.33 in
110.00 mm
Displacement
207.00 in³
3.40 l
Engine Model
Cat C3.4B
Gross Power - ISO 14396
74.00 HP
55.00 kW
Gross Power - SAE J1995
74.00 HP
55.00 kW
Net Torque Rise - 1,200 rpm
88.00 %
88.00 %
Rated Net Power - 2,200 rpm - ISO 9249
68.00 HP
51.00 kW
Rated Net Power - 2,200 rpm - SAE J1349
68.00 HP
51.00 kW

Weights

Operating Weight - Maximum
17637.00 lb
8000.00 kg
Cab - ROPS/FOPS
359.00 lb
163.00 kg
Front Counterweight - Counterweights - Option 1
255.00 lb
115.00 kg
MP Bucket (1.00 m3/1.31 yd3) - With Fold-Over Forks
2018.00 lb
915.00 kg
MP Bucket (1.00 m3/1.31 yd3) - Without Fold-Over Forks
3622.00 lb
1642.00 kg

Loader Bucket

Dig Depth - Standard
3.00 in
83.00 mm

Hydraulic System

Pump Type
Variable Flow, Axial Piston
Pump Capacity at 2,200 rpm
33.00 gal/min
125.00 l/min
Type
Closed Center

Transmission

Power Shuttle Transmission - Forward 1st
3.40 mile/h
5.40 km/h
Power Shuttle Transmission - Forward 2nd
5.50 mile/h
8.90 km/h
Power Shuttle Transmission - Forward 3rd
13.00 mile/h
20.00 km/h
Power Shuttle Transmission - Forward 4th
23.00 mile/h
36.00 km/h
Power Shuttle Transmission - Reverse 1st
3.40 mile/h
5.40 km/h
Power Shuttle Transmission - Reverse 2nd
5.50 mile/h
8.90 km/h
Power Shuttle Transmission - Reverse 3rd
13.00 mile/h
20.00 km/h
Power Shuttle Transmission - Reverse 4th
23.00 mile/h
36.00 km/h

Service Refill Capacities

Engine Oil - With Filter
2.30 gal (US)
8.80 l
Fuel Tank
42.00 gal (US)
160.00 l
Hydraulic System
23.80 gal (US)
90.00 l

Steering

Bore
2.60 in
65.00 mm
Power Steering
Hydrostatic
Rod Diameter
1.40 in
36.00 mm
Stroke
4.70 in
120.00 mm
Type
Front Wheel

Axle Ratings

Front Axle (4WD) - Static
50582.00 lb
22964.00 kg
Rear Axle - Static
50582.00 lb
22964.00 kg

Engine

Emissions
Engine meets U.S. EPA Tier 4 Final emission standards.
Net Peak Torque SAE J1349
307.00 ft·lbf
416.00 N·m
Note
No derating required up to 2286 m (7,500 ft).

Service Refill Capacities

Hydraulic Tank
10.60 gal (US)
40.00 l
Note
Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur

Steering

Axle Oscillation
11°
Turning Circle - 2WD/AWD (inner wheel not braked) - Outside Front Wheels
26.80 ft
8.18 m
Turning Circle - 2WD/AWD (inner wheel not braked) - Outside Widest Loader Bucket
36.00 ft
10.97 m

Weights

Operating Weight - Minimum
14035.00 lb
6366.00 kg
Features

Purpose-Built Design for Strength and Versatility

The Cat 415F2 IL Industrial Loader combines the design of the Cat 415F2 Backhoe Loader with purpose-built components made specifically for industrial loader applications, such as new hydraulic valves and controls, loader arms, three-point hitch and an available box blade scraper developed for the skip loader market.

Ergonomic Operator Station

Ample legroom inside the cab makes rotating the seat simple. The air suspension seat provides comfort to the operator while roading.

Complete Machine Control

The Cat Industrial Loader offers dual differential lock control. In adverse conditions, the operator has the option of engaging the differential lock from the floor mounted pedal or by using the push button on the loader joystick.

Superior Blade Controls

The Cat Industrial Loader offers finger lever pilot controls that require less operator effort. The new 415F2 IL comes standard with a five function hydraulic valve for increased versatility.

Machine Performance

The proven Cat C3.4B engine delivers solid performance, meets Tier 4 Final/Stage IV emission standards, and requires no diesel exhaust fluid (DEF).

Sales Features

Purpose-Built Design for Strength and Versatility

The Cat 415F2 IL Industrial Loader combines the design of the Cat 415F2 Backhoe Loader with purpose-built components made specifically for industrial loader applications, such as new hydraulic valves and controls, loader arms, three-point hitch and an available box blade scraper developed for the skip loader market.

Ergonomic Operator Station

Ample legroom inside the cab makes rotating the seat simple. The air suspension seat provides comfort to the operator while roading.

Complete Machine Control

The Cat Industrial Loader offers dual differential lock control. In adverse conditions, the operator has the option of engaging the differential lock from the floor mounted pedal or by using the push button on the loader joystick.

Superior Blade Controls

The Cat Industrial Loader offers finger lever pilot controls that require less operator effort. The new 415F2 IL comes standard with a five function hydraulic valve for increased versatility.

Machine Performance

The proven Cat C3.4B engine delivers solid performance, meets Tier 4 Final/Stage IV emission standards, and requires no diesel exhaust fluid (DEF).
Standard Equipment
  • Air cleaner
  • Alarm, back-up
  • Audible system fault alarm
  • Box Blade Controls, finger lever pilot
  • Battery, maintenance-free, 880 CCA
  • Battery disconnect switch
  • Battery remote jumpstart
  • Brace, lift cylinder
  • Brake, secondary parking
  • Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
  • Bucket level indicator
  • Canopy, ROPS/FOPS
  • Coat restraint
  • Coolant/antifreeze, extended life
  • Counterweight, bumper
  • Dome light (cab only)
  • Diagnostic port for engine
  • Differential lock, floor mounted
  • Differential lock, loader joystick
  • Drink holders, two
  • Engine, Cat C3.4B, meets Tier 4 Final emission standards, diesel particulate filter
  • Engine enclosure, sound suppression removal panels
  • Face seals, O-ring
  • Fan, suction and guard
  • Fast reversing shuttle, all gears
  • Fenders, rear
  • Filters, spin-on: fuel, engine oil, transmission oil, water separator
  • Filters, bowl and cartridge: hydraulic fluid
  • Flashing hazards/signal lights
  • Floor mat
  • Fuel tank, fully enclosed
  • Fully hinged front grill for cooling package cleaning access
  • Gauge cluster: coolant temperature, fuel level, torque converter temperature, battery voltage
  • Ground level fuel fill
  • High ambient cooling package
  • Hitch, rear 3-point
  • Hood lock, inside cab
  • Hydraulic hose, Cat XT™-3
  • Hydraulic oil cooler
  • Hydraulic oil level sight gauge
  • Hydraulic valve, hydrostatic steering
  • Hydraulic valves, loader 3 function
  • Hydraulic valves, rear 5 function
  • Hydraulics, load sensing with variable displacement piston pump
  • Indicator lights and LCD warnings for system status
  • Instrument panel lights
  • Key start/stop system
  • LCD screen with machine system information
  • Lights, working (2 front, 2 rear)
  • Loader, self-leveling, return-to-dig and transmission disconnect switch
  • Loader, single tilt
  • Mirror, rearview
  • Open circuit breather
  • Power receptacle, 12 volt, 2 internal, 2 external roof mounted
  • Power steering, hydrostatic
  • Seat belt, retractable, 75 mm (3 in)
  • Steering knob
  • Seat, mechanical suspension, fabric or vinyl cover, with armrest
  • Starting system, glow plugs
  • Steering, hydrostatic
  • Storage compartment, lockable
  • Storage tray
  • Stop and tail lights
  • Tires, 12.5/80-18 front, 16.9-24 rear
  • Toolbox, external, lockable
  • Torque converter
  • Throttle, foot, electronic
  • Transmission, four speed, syncromesh
  • Transmission neutralizer switch
  • Transport tie-downs
  • Four Wheel Drive
  • Warning horn, electric
Optional Equipment
  • Battery, additional, 880 CCA
  • Box, blade/scarifier
  • Cab, standard with air conditioning
  • Cold weather fuel (–30° C/–22° F)
  • Cold weather package, including additional battery, engine block heater, radiator antifreeze (–50° C/–58° F), cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
  • Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
  • Counterweight, rear 90 kg (198 lb)
  • Dual tilt rear hitch
  • Face fan
  • Fenders, front with integral steps
  • Four Wheel Drive
  • Hydraulic valve, loader 3 function
  • Product Link™, satellite, PL631E
  • Product Link, cellular, PL641I
  • Radio and CD player
  • Radio and CD player, Bluetooth
  • Ride Control
  • Rotating beacon, magnetic mount
  • Security system keypad
  • Vandalism protection, gauge cover
  • Work Tool Attachments such as buckets, forks, and material handling arms. See your Cat dealer for more information.
