Overview

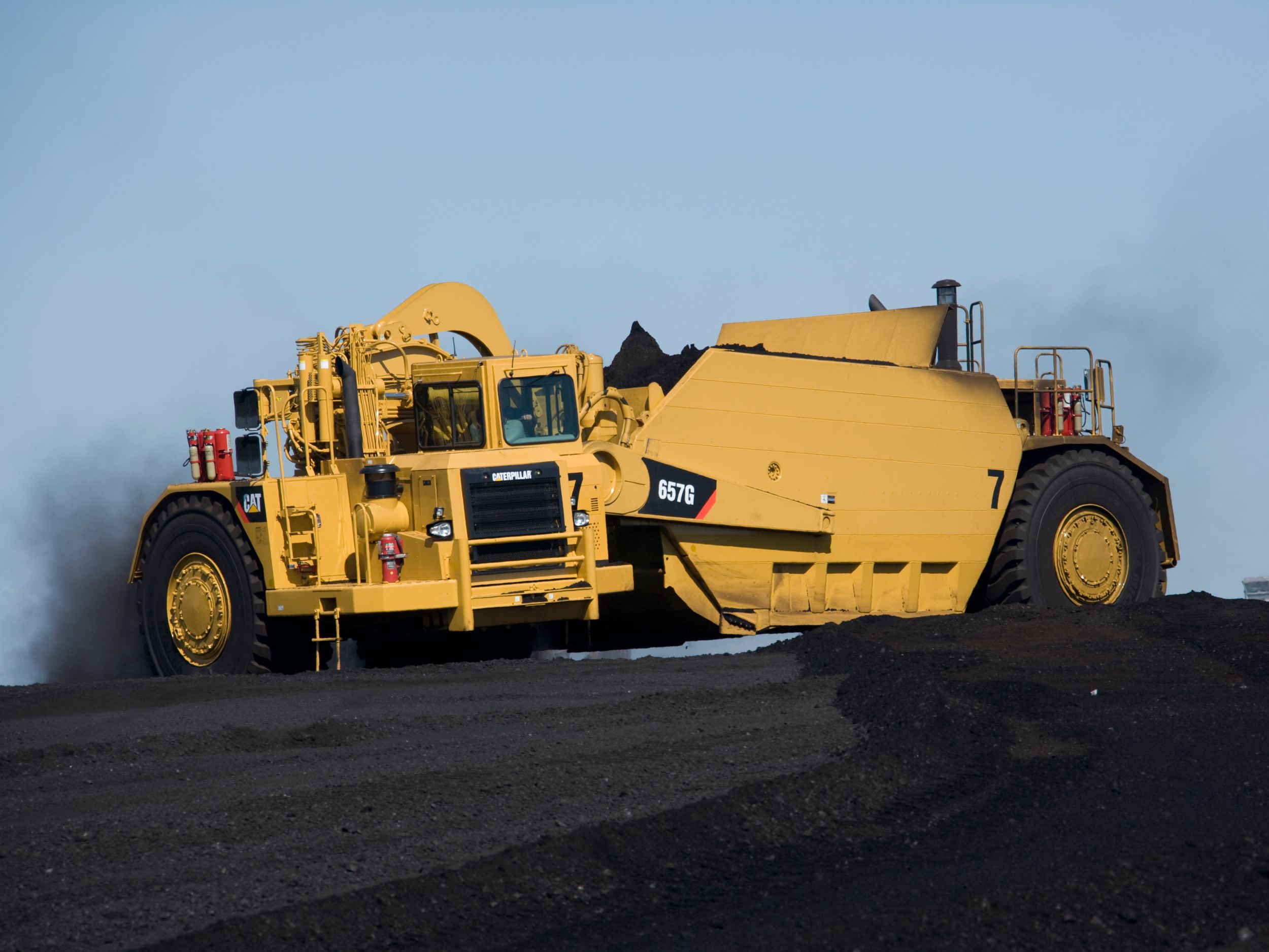

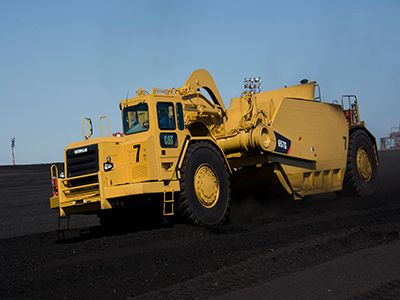

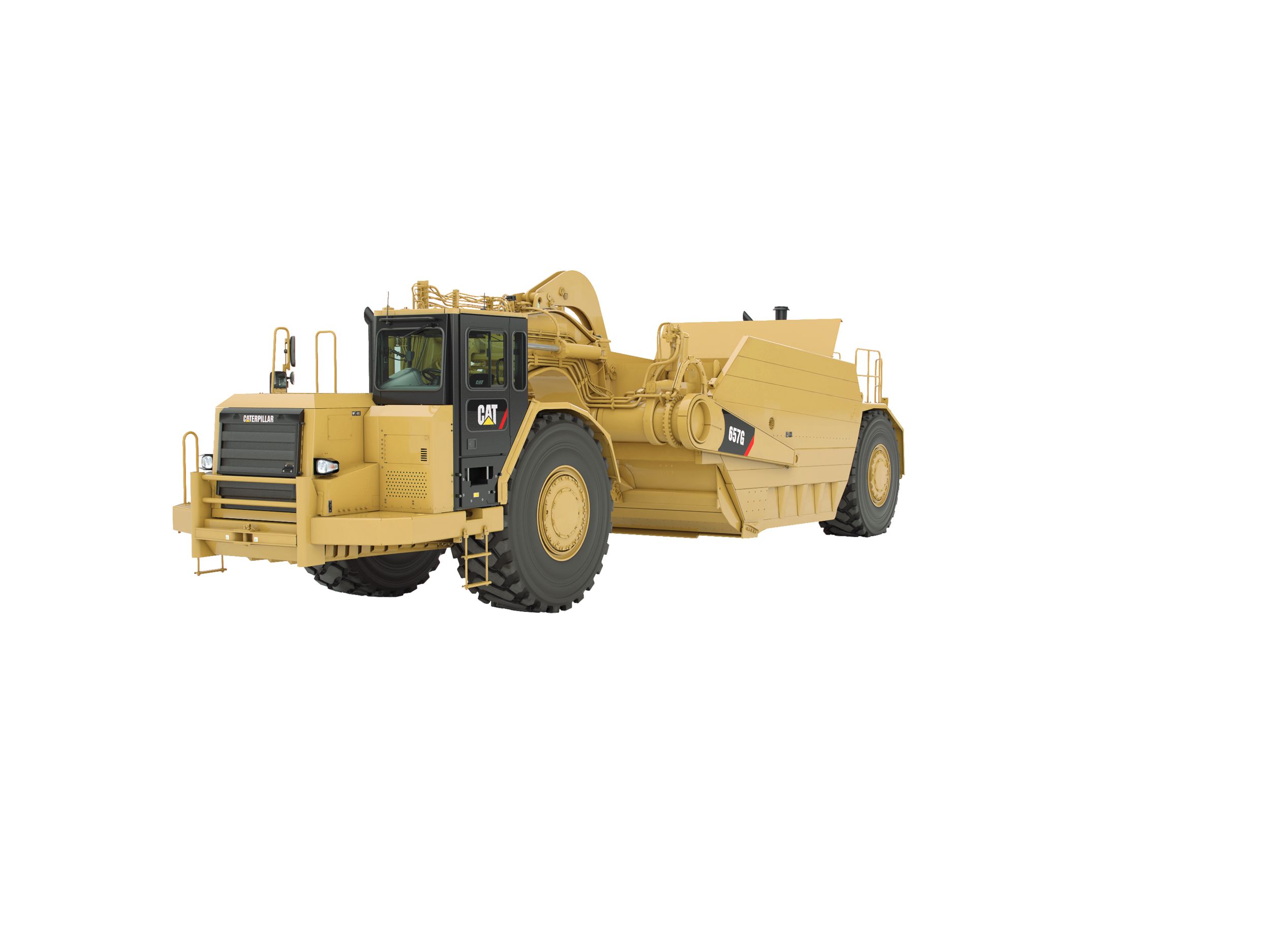

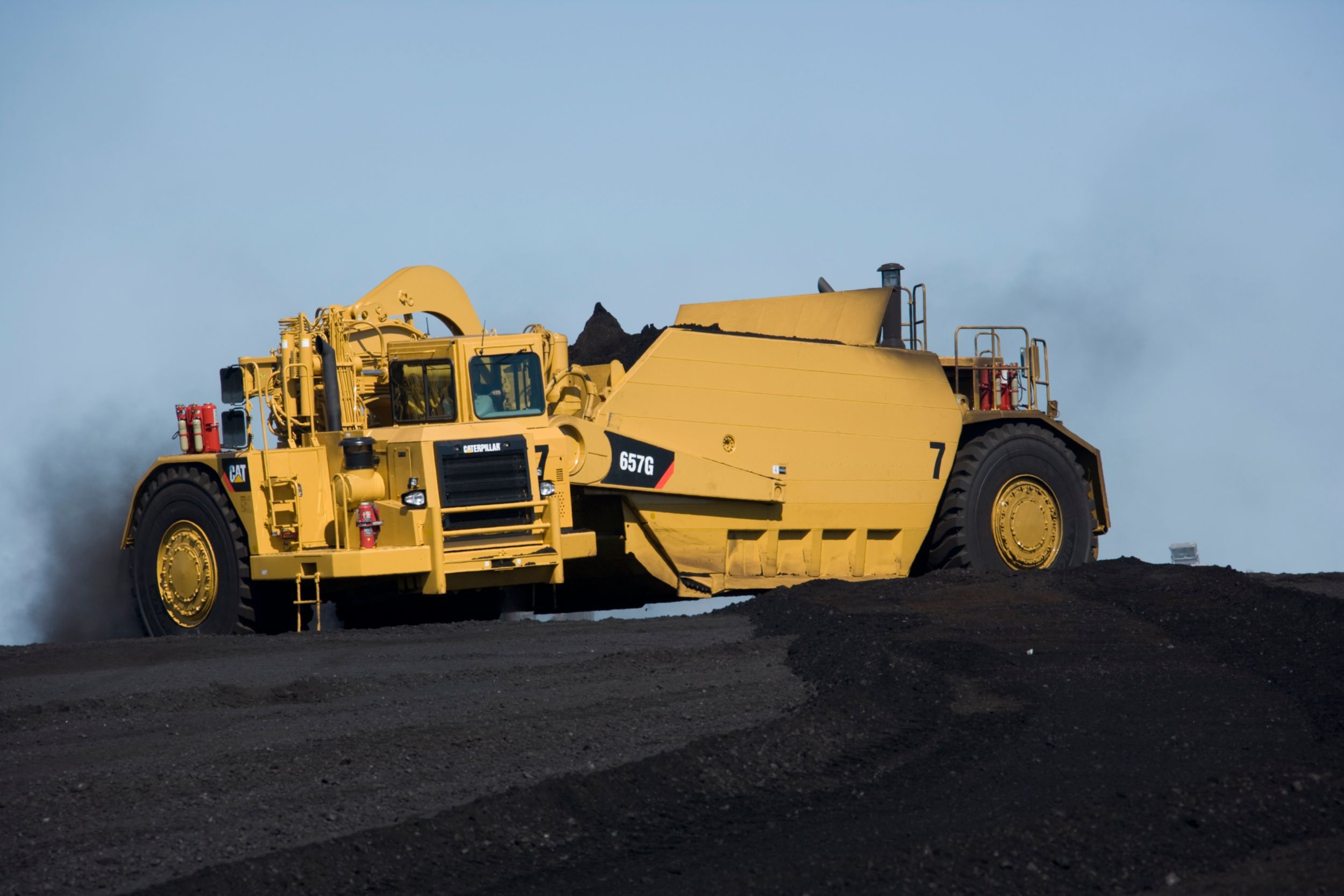

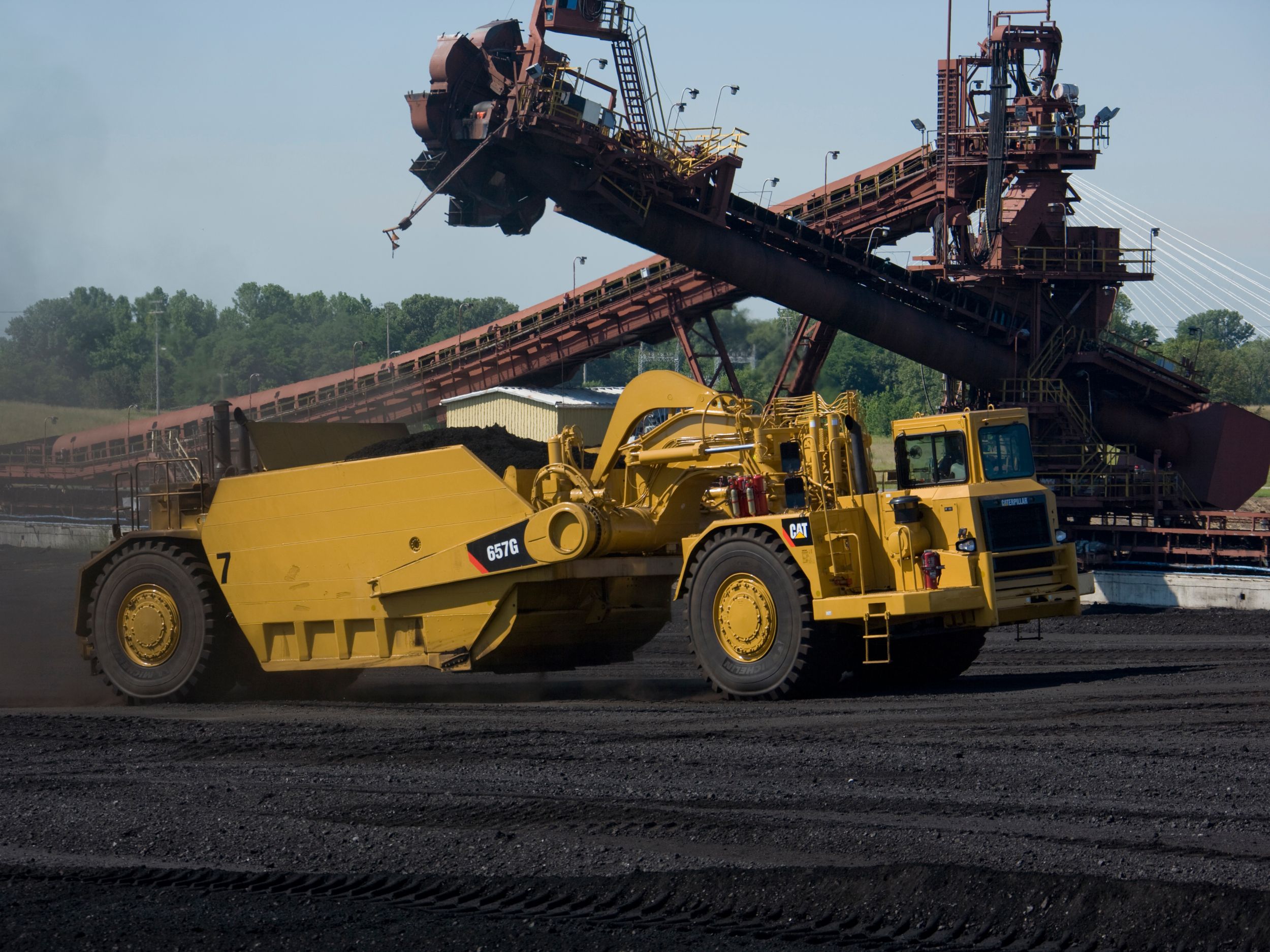

Quick loading, high travel speeds and the ability to load and dump on the run yield fast cycle times, allowing the Cat 657E Coal Scraper to consistently deliver high productivity at the lowest cost per ton.

Engine

Flywheel Power - Tractor/Scraper
447 kw (600 hp) / 337 kW (451 hp)
Flywheel Power - Tractor
421 / 447 kW (564 / 600 hp)
Flywheel Power - Scraper
306 / 337 kW (410 / 451 hp)
Tractor Engine
Cat C18
Scraper Engine
Cat C15

Operating Specifications

Scraper Capacity - Heaped
73.00 yd³
56.00 m³
Top Speed (Loaded)
33.00 mph
53.00 km/h
Rated Load
110000.00 lb
49895.00 kg
Scraper Capacity - Struck
59.00 yd³
45.00 m³
180° Curb-to-Curb Turning Width
51.25 ft
15.60 m

Weights

Operating Weight - Loaded - Approximate
268817.00 lb
121933.00 kg
Operating Weight - Empty - Approximate
158817.00 lb
72190.00 kg

Dimensions

Height - Top of Scraper
15.16 ft
4.62 m
Wheelbase
36.08 ft
11.01 m
Length - Overall
56.40 ft
15.47 m
Width - Overall
14.32 ft
4.35 m
Tread - Scraper
9.24 ft
2.81 m
Tread - Tractor
8.64 ft
2.63 m

Operating Specifications

Top Speed - Loaded
33.00 mile/h
53.00 km/h

Dimensions

Wheel Base
36.08 ft
11.01 m
Features

MAXIMIZE PERFORMANCE

  • Caterpillar Coal Scraper bowls come from the factory especially built for coal handling.
  • An auger mechanism in the bowl improves self-loading capabilities by lifting material off of the cutting edge and carrying it to the top of the load.

BUILT TO PERFORM

  • Proven Cat engines provide the power and torque rise for excellent lugging in tough loading conditions.
  • Variable injection timing and duration improve fuel efficiency and cold starting, decrease smoke and emissions.
  • Throttle back-up provides the operator with a preset engine speed control in the event of a throttle input failure.
  • Throttle lock allows the operator the capability of locking both engines at any operating level.
  • Directional shift management prevents the operator from shifting out of neutral when engine rpm is above a preset level.
  • Controlled throttle shifting increases drive train life by reducing the fuel injection rate just prior to shifting.
  • The aftercooler lowers intake charge air temperature to increase power and reduce thermal stresses that can cause premature wear of pistons, rings, and liners.
  • Engine oil cooler maintains optimum oil temperature for proper cooling and longer lubricant life.
  • Laminated thermal-shield improves tractor protection by reducing the temperature of exposed engine surfaces, cools engine and operating compartments, extends hose and wiring life.
  • Eight-speed power shift transmission provides automatic, on-the-go shifting for simple, reliable operation.
  • Top gear control helps prevent shifting above a programmed gear to better regulate haul road speeds.
  • The hydraulic retarder extends brake life when working on severe, downhill slopes.
  • Scraper driveline guard protects the output case, differential and ejector cylinder to help minimize driveline maintenance costs.

OPERATOR COMFORT AND CONTROL

  • Standard rubber-mounted cab reduces noise and vibration for comfortable, shift-long operation.
  • Hydraulic servo-steering system provides low-effort automotive feel and excellent maneuverability.
  • Tilt steering column adjusts to five different positions for operator comfort and control.
  • A suspension seat delivers a comfortable ride.
  • The Electronic Monitoring System checks important machine systems and provides a three-level warning.
  • Air conditioning to keep the operator comfortable.
  • The electronically controlled cushion hitch design dampens shocks to provide a smoother ride, and locks down for positive control of the cutting edge during loading and dumping.

SAVE ON MAINTENANCE TIME

  • Service points for the engine are grouped on the right side for easy access. Service platforms and numerous handholds improve access and safety. Folded core radiator allows individual cores to be replaced as modules, reducing service time and expense.
  • Diagnostic connector, with the aid of a service tool, allows quick analysis of the starting and charging circuits.
  • Electronic ground level shutoff enables the operator to stop the engine from the ground with the flip of a switch.
  • Centralized lubrication blocks for the hitch and steering reduce lube time.

BUILT-IN SAFETY FEATURES

  • Wide brake shoes and brake drums improve brake performance and reduce brake and drum wear.
  • Separate front and rear circuits. Secondary brakes engage automatically if service pressure drops.
  • Parking Brake features a spring-applied, air-released mechanism that operates the service brakes.
  • Differential Lock improves traction in slippery conditions.
Sales Features

Power Train

Proven components combine to deliver the most durable, reliable power train in the industry, keeping costs low and production high.

Electronically Controlled Cushion Hitch

Smoother ride improves productivity.

Scraper Bowl

Low, wide, large-capacity scraper bowl design boosts production and tandem power increases efficiency.

Operator's Station

Comfort and control increase operator efficiency.

Serviceability

Simplified service means more productive uptime.

Reliability

Cat is committed to provide the most dependable machines on the market.

Complete Customer Support

When you buy a Cat machine, you get Caterpillar's total commitment to customer support.
Standard Equipment
  • ELECTRICAL
    • Alarm, backup
    • Alternator, 80 amp - tractor engine
    • Alternator, 50 amp - scraper engine
    • Batteries Tractor (4), 12V Maintenance Free, High Output
    • Batteries Scraper (4), 12V Maintenance Free, High Output
    • Electrical System, 24V
    • Lighting System - Tractor
    • Lighting System - Scraper
    • Starting Receptacle - tractor and scraper engines
  • OPERATOR ENVIRONMENT
    • Air Conditioner (includes heater and defroster)
    • Automotive style fuse panel with fuse puller
    • Cigarette Lighter and Ashtray
    • Coat Hook
    • Cup holder
    • Diagnostic Connection Port (12V)
    • Dome Courtesy Light
    • Engine speed lock
    • Fan defroster
    • Gauge Group
    • Horn
    • Implement Control Joystick
    • Rearview Mirrors
    • Radio Ready
    • 2 radio openings, speakers, and 5-amp converter
    • ROPS Cab with Sound Suppression and Pressurization
    • Static Seatbelt
    • Scraper Engine Controls
    • Seat, Air Suspension, Caterpillar Comfort, cloth
    • Steering Wheel - tilt and telescoping
    • Storage Compartment
    • Transmission Hold
    • Windows - sliding side, swing out
    • Windshield - laminated glass
    • Windshield Wiper/Washer - front and rear
    • Wrist Rest/Grab Handle
  • POWER TRAIN
    • Tractor
    • Scraper
  • OTHER STANDARD EQUIPMENT
    • Tractor
    • Scraper
Optional Equipment
  • STEERING ARRANGEMENTS
    • Secondary Steering Arrangement
  • INTEGRATED TECHNOLOGIES
    • Product Link
  • OTHER ATTACHMENTS
    • Steering lock – external
  • AMBIENT CAPABILITY ARRANGEMENTS
    • Extended Life Coolant, -50° C (-58° F)
