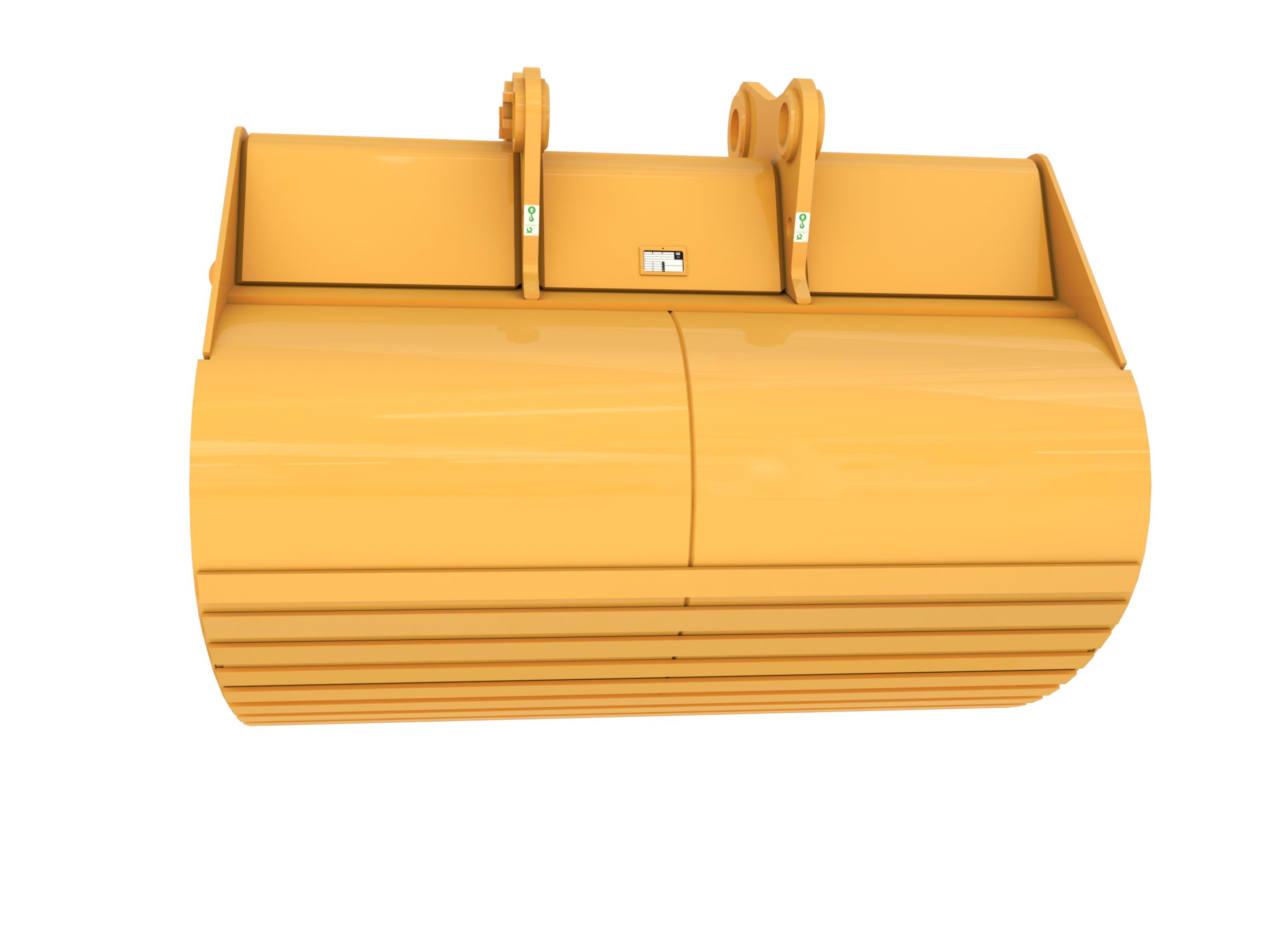

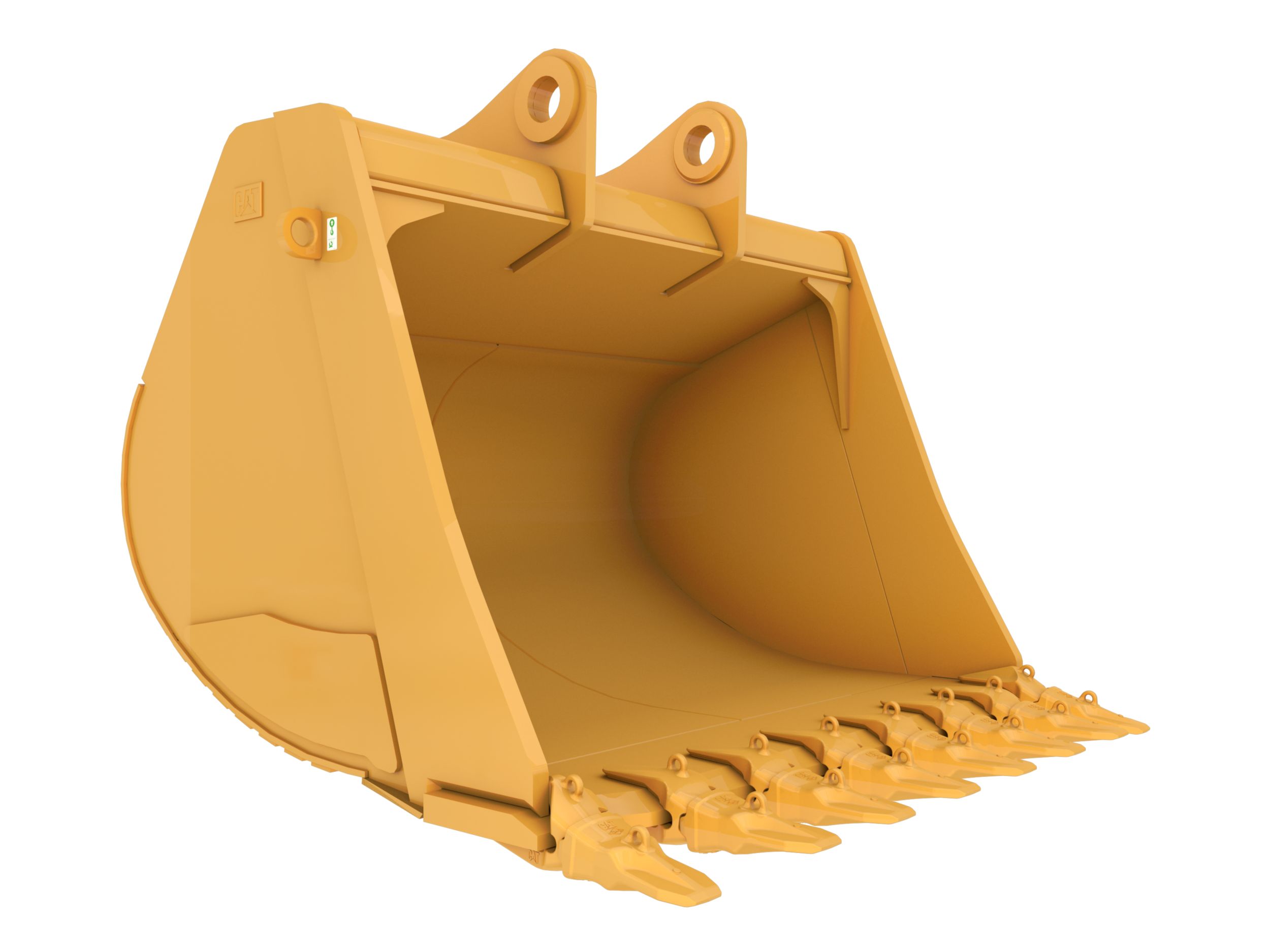

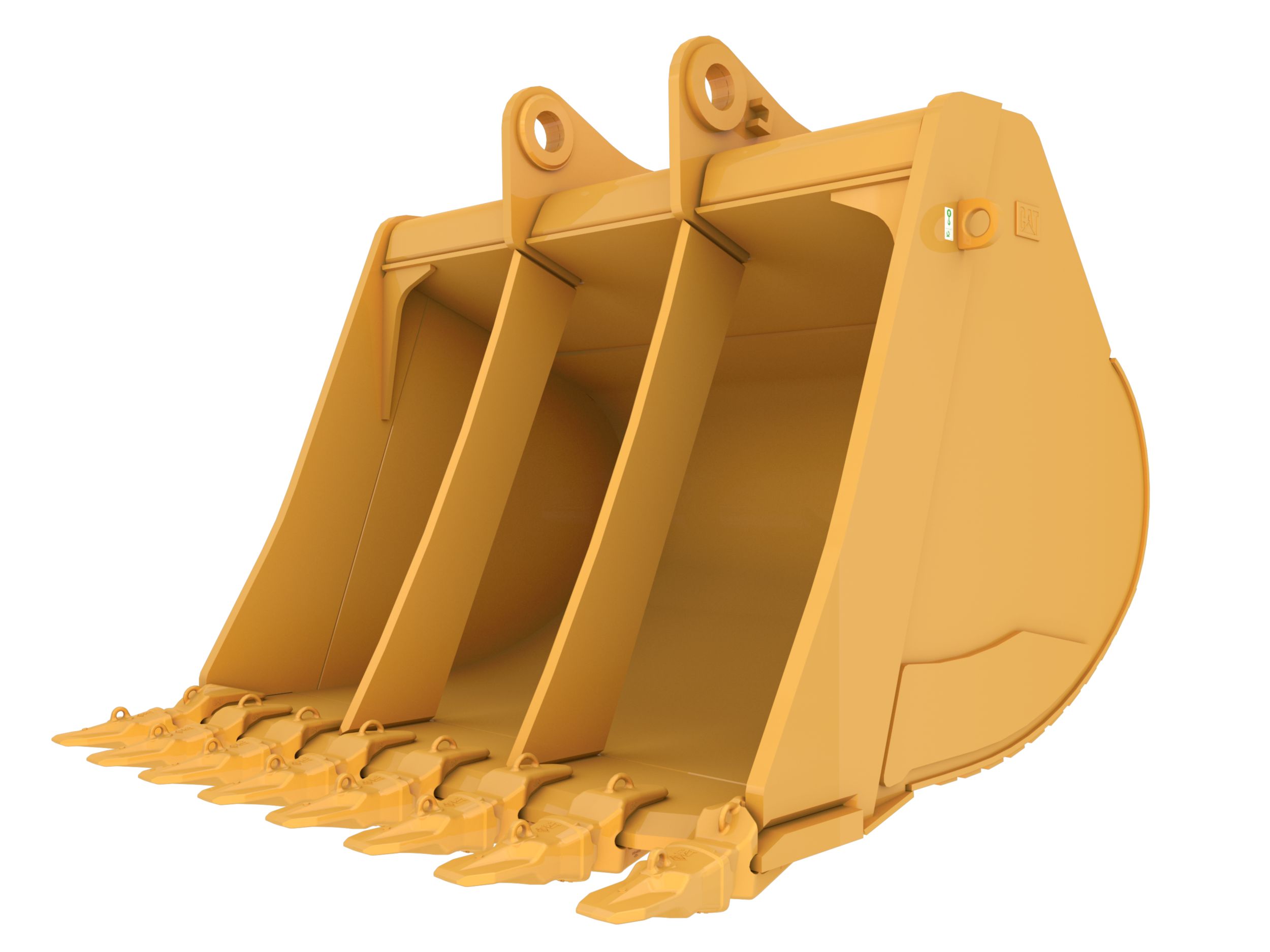

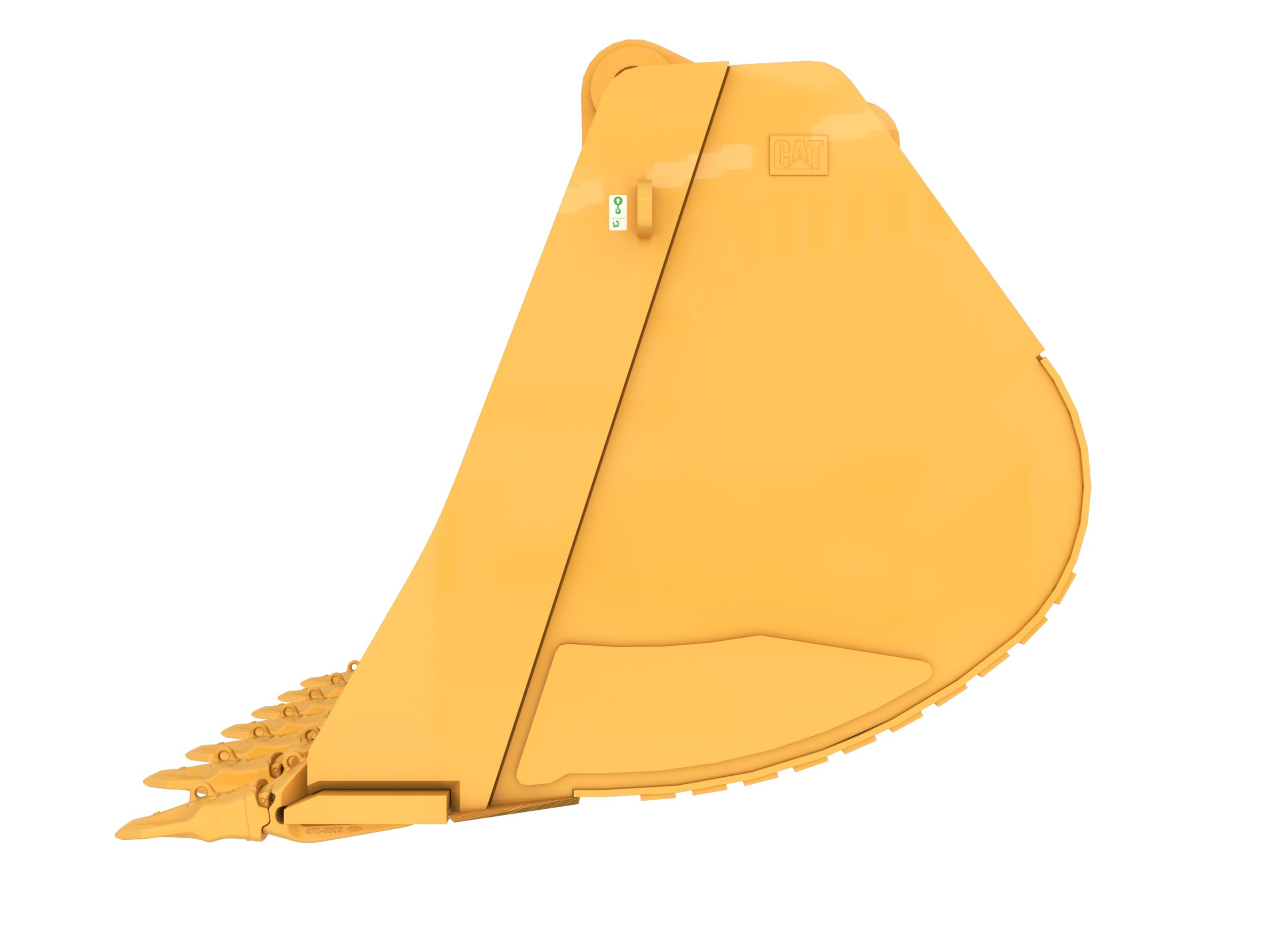

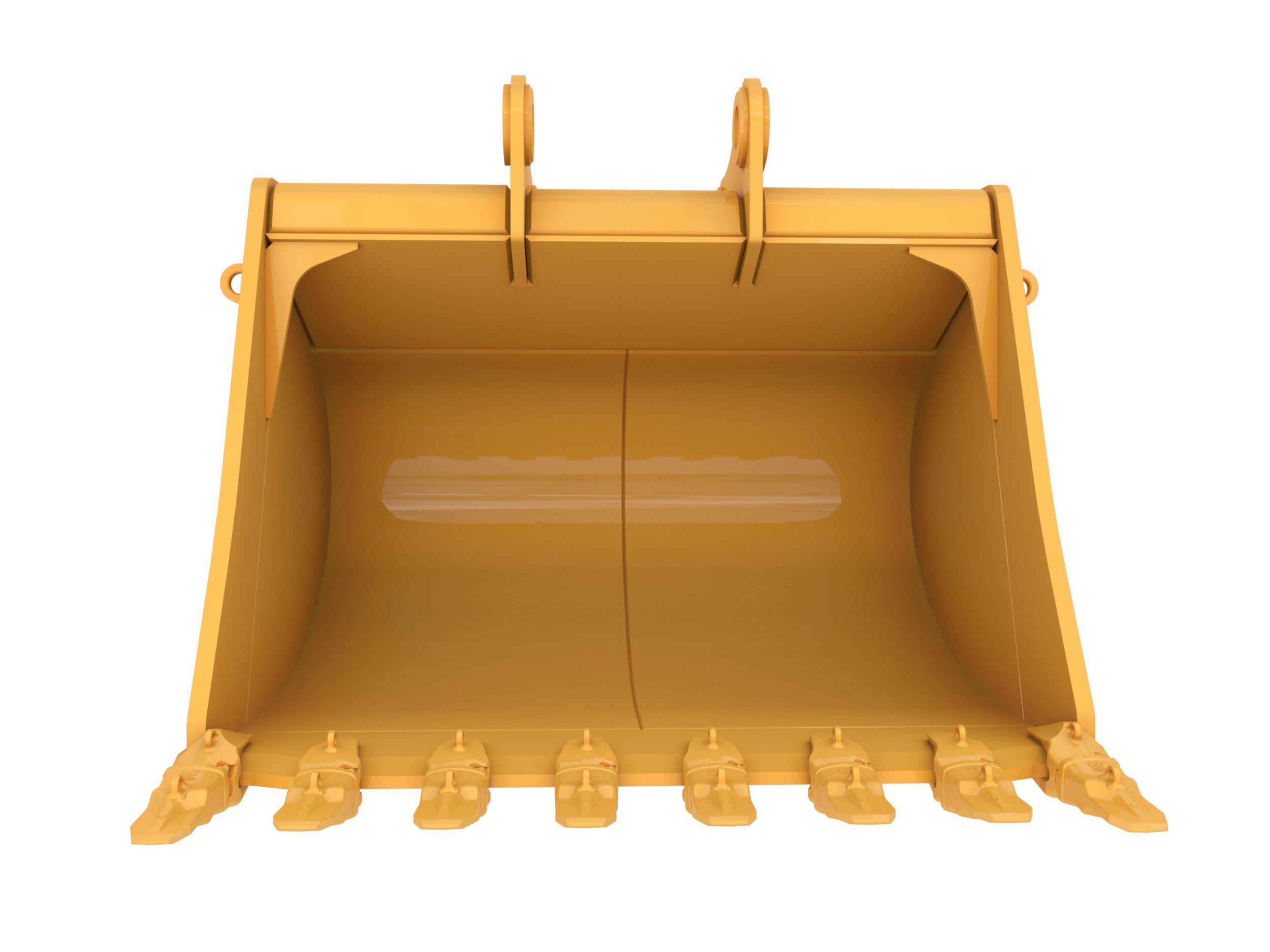

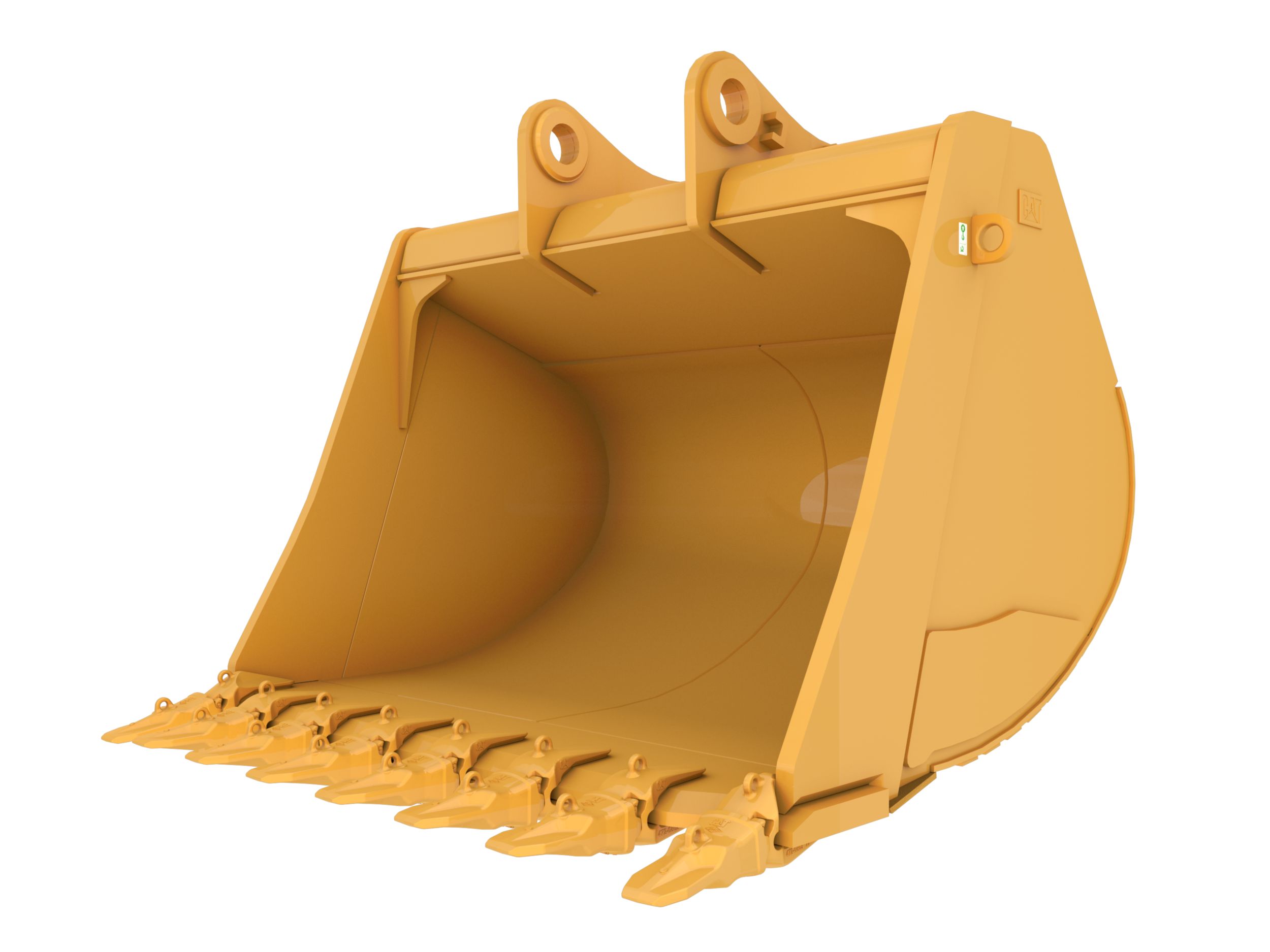

10.4 m³ (13.6 yd³) Coal bucket for the 6015 Hydraulic Mining Shovel

US
Metric

Overview

Cat Coal buckets are high capacity buckets for maximum material movement. Light weight construction for increased bucket volume and straight lip design with small sized GET allow for maximum payload. Special high strength steel with wear resistance is used for the plate lip. Coal buckets have the General Duty wear package. This package utilizes hardened plates on the exterior of the bucket in the highest wear areas and has optional coal breakers.
Material Density
1686.00 lb/yd³
1.00 t/m³
Wear Package
Light Duty - Coal

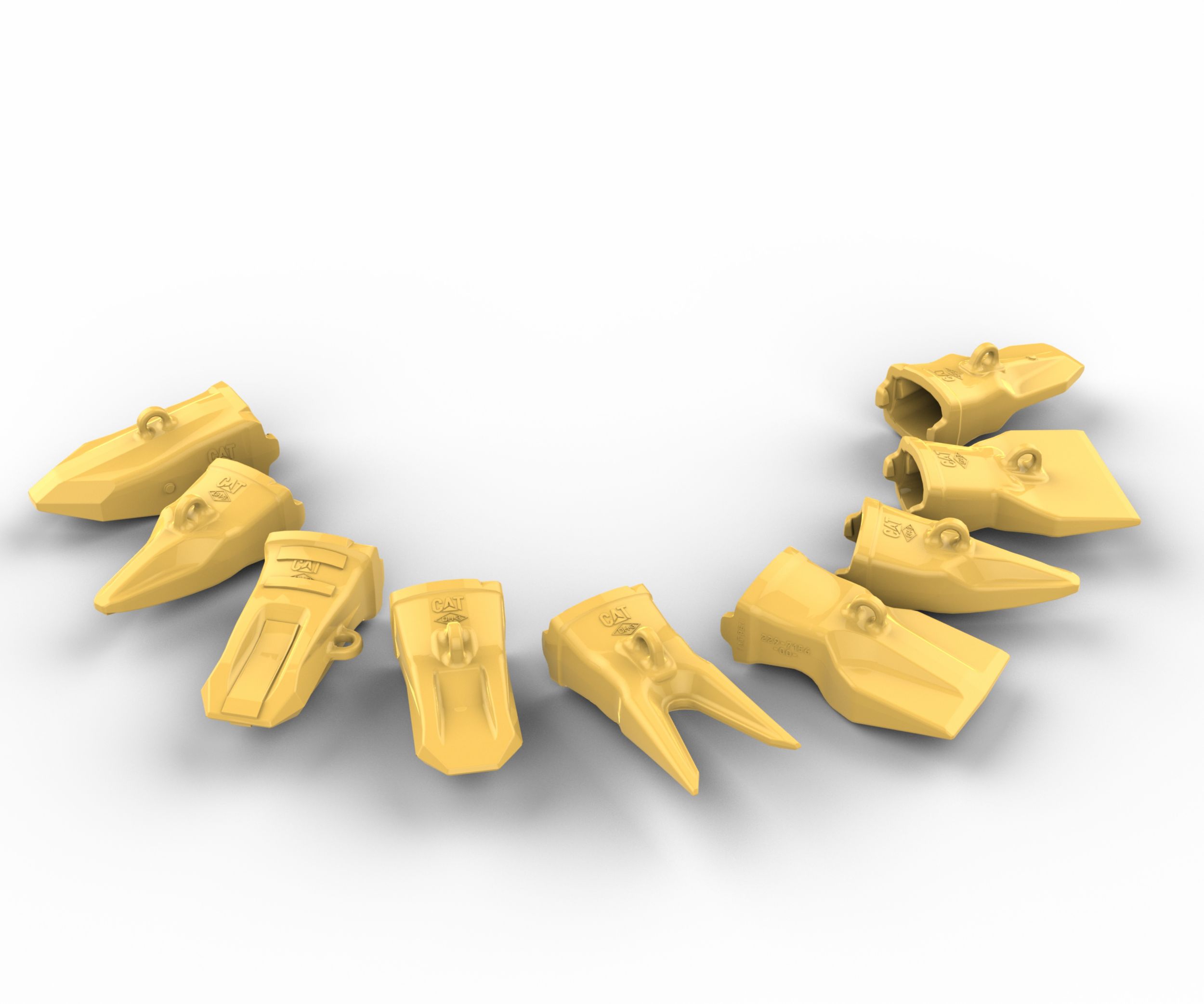

Ground Engaging Tool (GET) System
K150
Machine Model
6015
Capacity
13.60 yd³
10.40 m³
Weight
16543.00 lb
7504.00 kg
Outer Width
119.60 in
3040.00 mm
Inner Width
111.80 in
2841.00 mm
