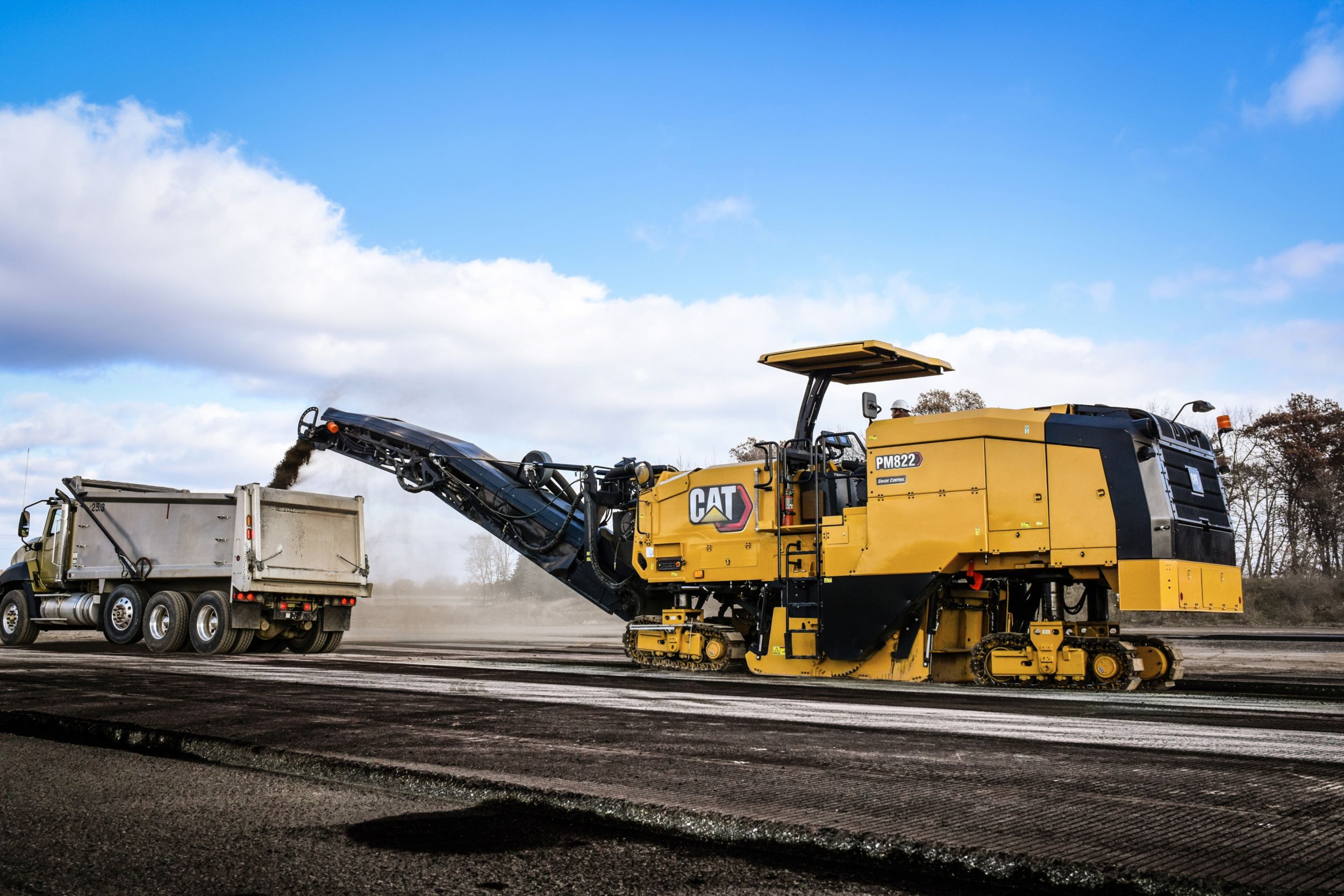

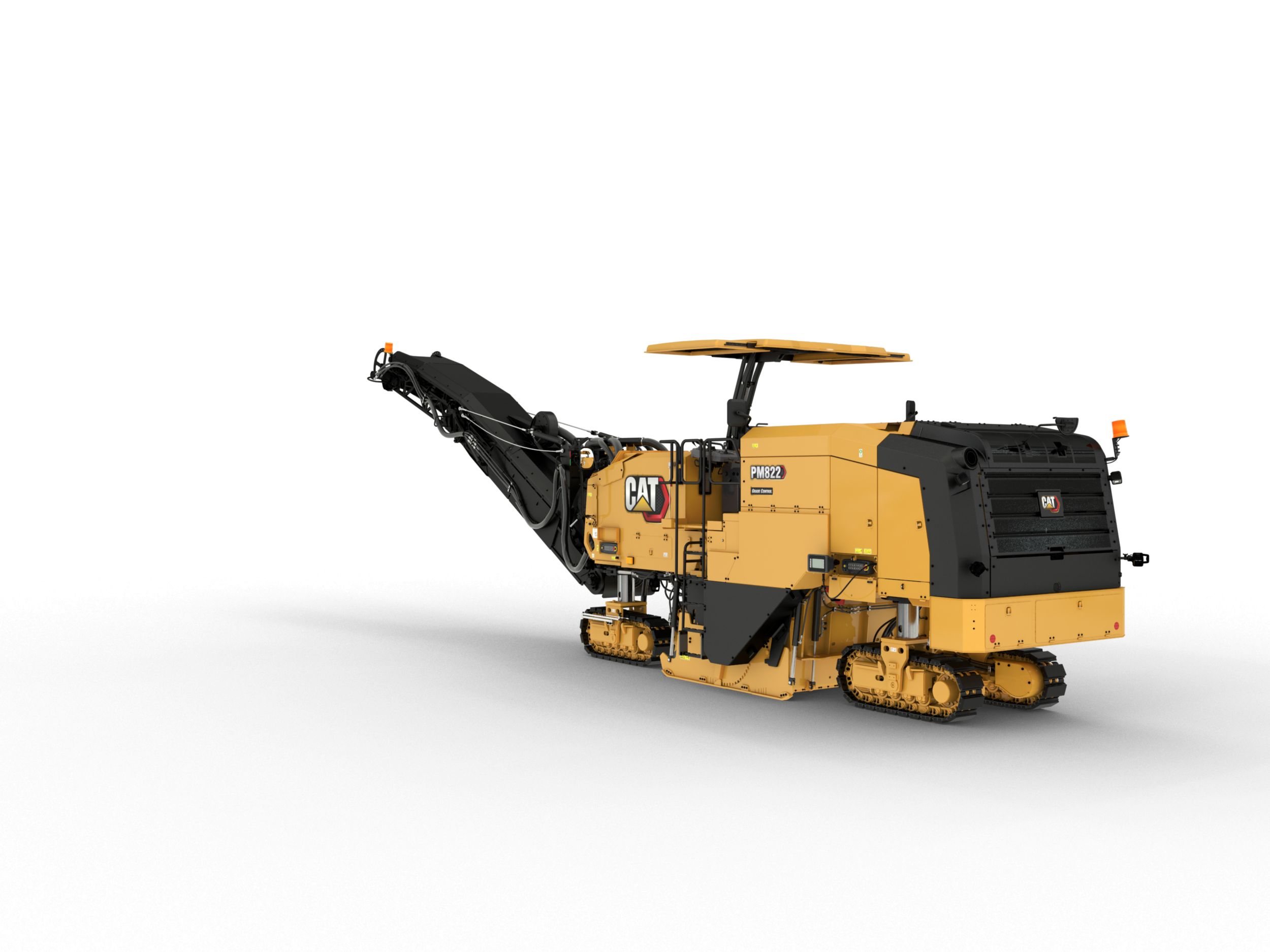

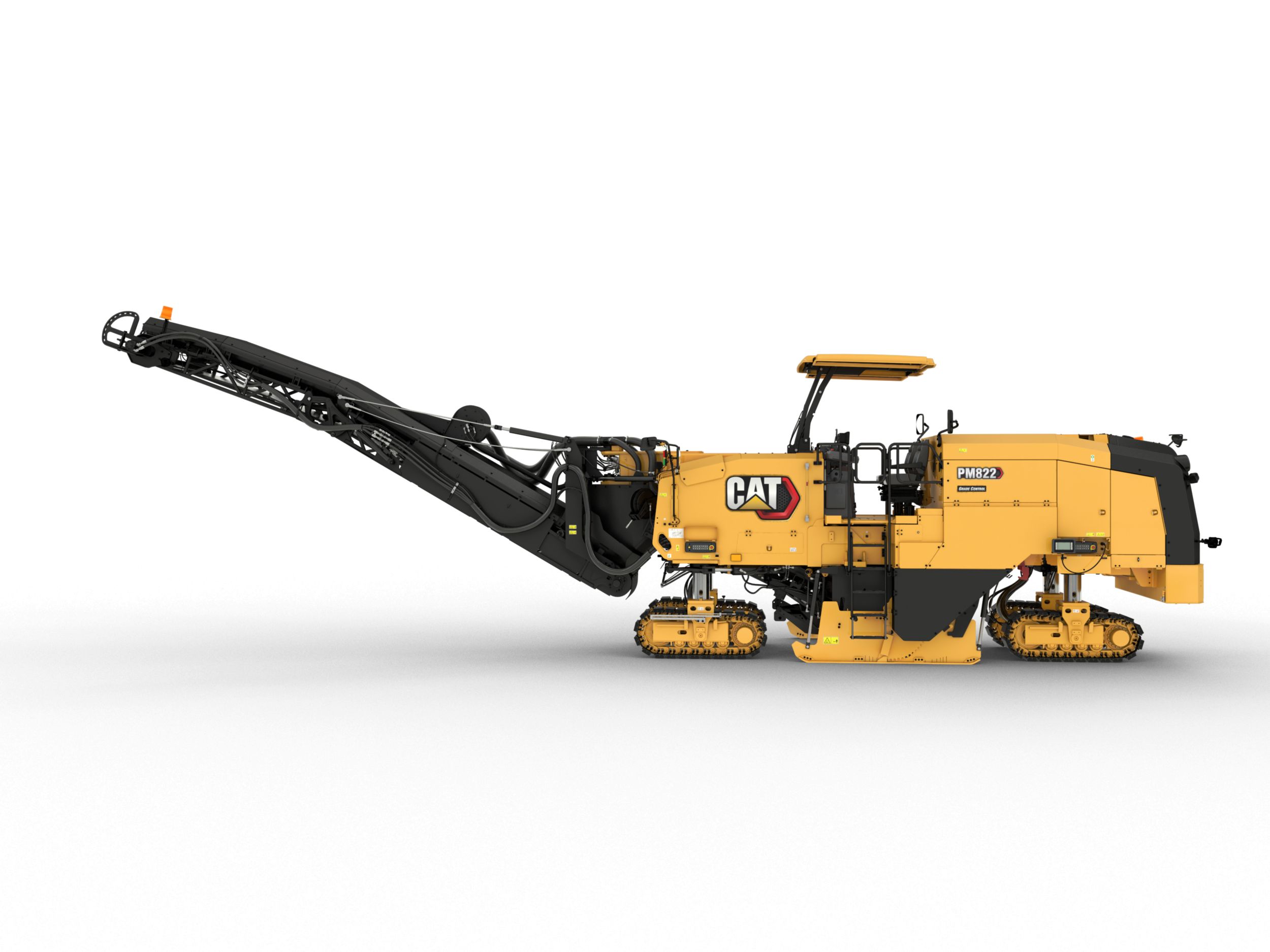

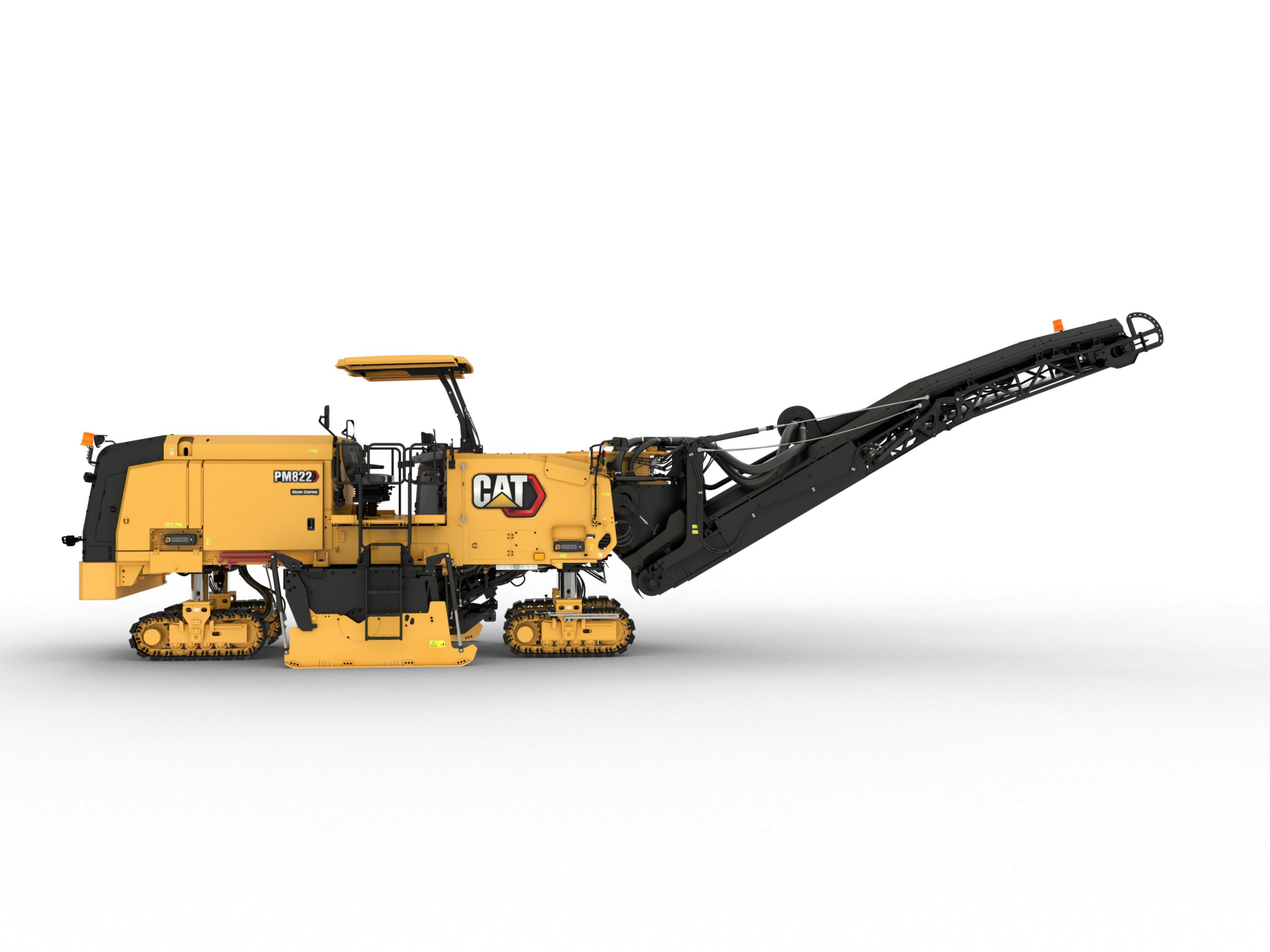

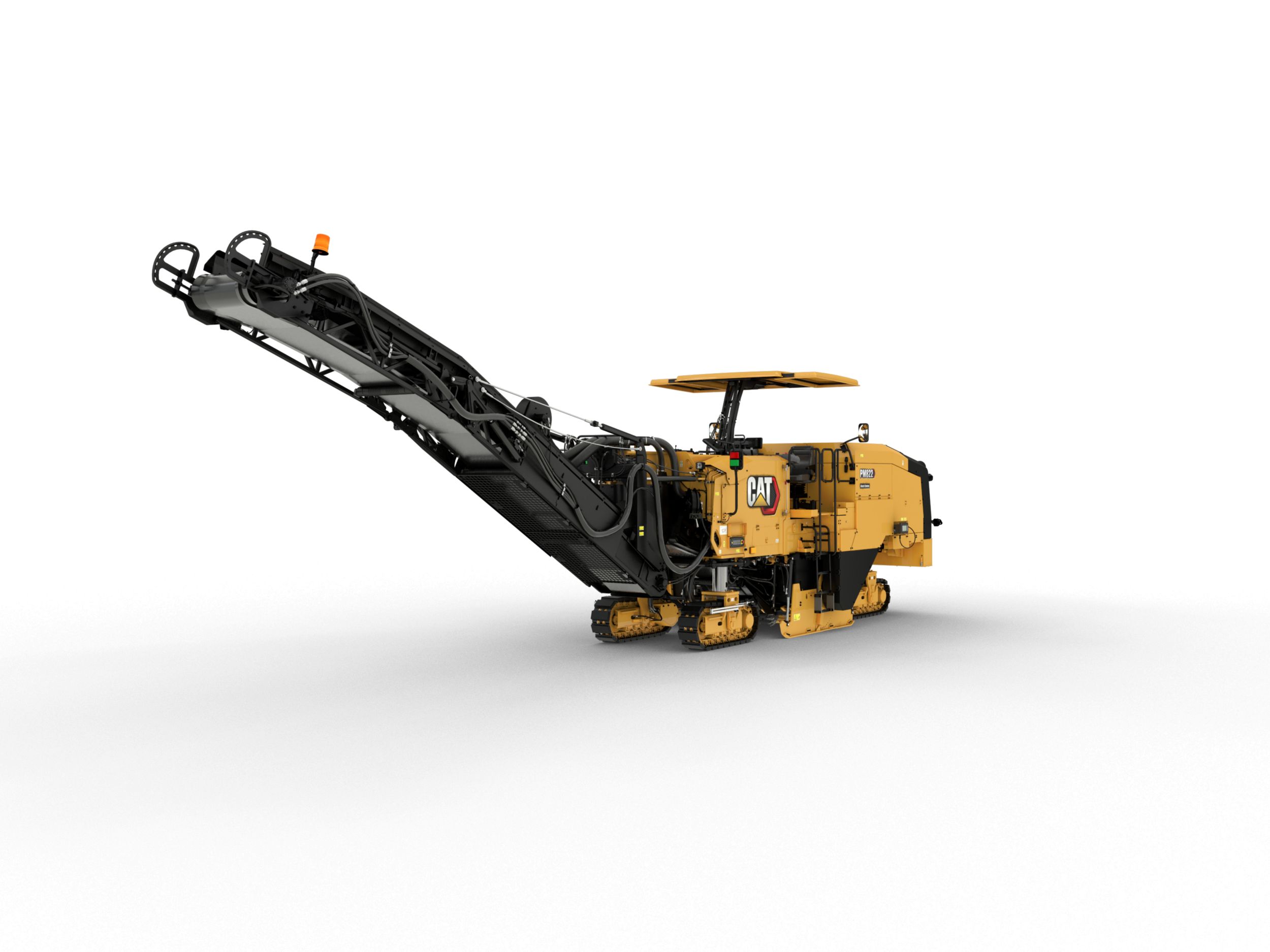

The PM822 is a high-production, half-lane milling machine with a cutting width of 2235 mm (88 in) that performs controlled full-depth removal of asphalt and concrete pavements in a single pass.


Operating Weight
80887.00 lb
36700.00 kg
Transport Weight
72312.00 lb
32800.00 kg


Operating Length - Conveyor Up
47.64 ft
14.52 m
Operating Width
9.27 ft
2.83 m
Height - Canopy
13.29 ft
4.05 m
Transport Length
40.79 ft
12.43 m
Transport Width
8.83 ft
2.70 m
Transport Height
9.84 ft
3.00 m
Maximum Truck Clearance
15.94 ft
4.86 m
Conveyor Swing
60 degrees from center
Minimum Left Cutting Radius
6.56 ft
2.00 m
Minimum Right Cutting Radius
5.91 ft
1.80 m

Power Train

Cat C18 twin-turbo
Rated Power
800.60 HP
597.00 kW
Global Emissions
Tier 4 Final / Stage IV
Maximum Milling Speed
328.00 ft/min
100.00 m/min
Maximum Travel Speed
3.70 mile/h
5.90 km/h

Cutting System

Milling Width
88.00 in
2235.00 mm
Maximum Milling Depth
13.00 in
330.00 mm
Number of Bits
Rotor Speeds
100 / 109 / 118 rpm

Service Refill Capacities

Fuel Tank
288.10 gal
1108.00 L
Cooling System
27.50 gal
104.00 L
Engine Oil
16.90 gal
65.00 L
Hydraulic Tank
29.40 gal
113.00 L
Water Spray System Tank
898.20 gal (US)
3400.00 l


Operating Width
10.20 ft
3.11 m
Transport Height
9.84 ft
3.00 m
Transport Length
40.78 ft
12.43 m
Transport Width
8.99 ft
2.74 m

Service Refill Capacities

Cooling System
27.50 gal (US)
104.00 l
Engine Oil
17.20 gal (US)
65.00 l
Fuel Tank
292.70 gal (US)
1108.00 l
Hydraulic Tank
29.90 gal (US)
113.00 l


Operating Weight
80910.00 lb
36700.00 kg

Efficient Performance

  • Powerful Cat® C18 twin-turbo engine meets regional emission standards
  • Smooth and efficient operation with Automatic Idle Control and multiple rotor speeds optimize output and demand on the engine
  • High capacity cooling system keeps engine at ideal temperatures for optimal fuel efficiency and lower emissions
  • Automatic load sensing on the rotor adjusts milling speed to prevent stalls and optimize production

Maneuverability and Control

  • Reliable track undercarriage leverages proven designs from Cat dozers and an automatic tensioning system to ensure consistent performance and longer track life
  • Robust propel system features two independent propel pumps to drive two crawler tracks each, in a high-traction, cross-drive pattern
  • Automatic traction control maintains consistent speed in the most challenging applications
  • Four steering modes with advanced alignment and tracking provides precise steering geometry and reduces track pad wear
  • Ability to electronically switch between rotor speeds during operation

Material Removal

  • High-capacity conveyors provide efficient removal of milled material with outstanding discharge control
  • A wide opening and seamless belt effectively clear the rotor chamber
  • Adjust the belt speed to match material type and production rate, while the built in “boost” feature provides a temporary surge in belt speed to eject material faster and farther
  • The belt reverses for faster clean-up, while magnetic vinyl covers provide quick access to inspect the rollers for wear

Comfortable Work Environment

  • Operate in comfort with height-adjustable operating consoles and intuitive, ergonomic controls
  • Retractable handrails stow and redeploy easily when approaching obstacles
  • Work day or night with backlit keypads and illuminate the work area around the machine with wide-dispersion and perimeter LED lighting options
  • Upgrade operator stations with optional suspension seats that reposition for improved visibility and comfort
  • Optional remote cameras enhance visibility to the cutting edge and conveyor
  • The single post, forward-folding powered canopy option with overhead LED lighting and integrated side extensions quickly stows and redeploys during operation to clear overhead obstacles with the simple push of a button, and optional windscreens can be added for increased comfort
  • Maximize dust removal from the working areas with the optional dust abatement system

Durable Cutting System

  • The rotor drive system features a heavy-duty dry clutch, automatic belt-tensioning to prevent slippage and two high tensile (five-rib) belts to drive the rotor
  • Reinforced cutting chamber offers enhanced durability
  • Improved access simplifies rotor changes
  • Hardened full length side plate skis, inboard ski shoe, and anti-slab shoes reduce wear and maintenance

Boost Precision with Integrated Technology

  • Achieve accurate, repeatable and automatic cutting precision with the integrated Cat GRADE with Grade and Slope system
  • Control boxes can be repositioned without the need to reconfigure settings and the background color changes to night mode when the work lights are activated
  • Obtain full control of grade and slope from any control box
  • Seamlessly switch between multiple grade sensors for uninterrupted accuracy during milling
  • Adjust the speed at which the rotor drops into the cut for optimal machine control
  • Set and automate transitions in/out of cuts and save settings for future jobs
  • Clear obstacles in the cutting path with ease using the obstacle jump feature
  • Enhance for full 3D milling operation (additional hardware required)

System K Rotors

  • Cat System K rotors feature efficient material flow with an excellent cutting pattern for numerous applications
  • A tapered dual-retention design secures toolholders in place without a retaining pin, bolt or setscrew, speeding up replacement and eliminating the need for fasteners or torqueing
  • Reversible paddles and high strength alloys reduce wear and abrasion to extend rotor life
  • Optional diamond bits can extend replacement intervals up to 80 times longer than conventional carbide bits

Simplified Service

  • Maintenance is easier and faster with large service doors and power hood for walk-in access to critical components
  • Maintenance-free track components and easy to replace track pads lower service costs
  • Standard ground-level controls and an optional electrically-operated rotor turning device with pendant simplify bit removal and replacement
  • High and low pressure washdown options connect to the onboard water tank for convenient clean-up
  • Operate select machine functions during maintenance and service with the accessory drive system
  • Electrical system wiring is color-coded and numbered for easy identification and wrapped in a protective, abrasion-resistant nylon braid for longer life
  • Extended hydraulic oil service intervals: 3000 hours without oil sampling, 6000 hours with oil sampling
  • Track scheduled maintenance with Cat Product Link™ telematics services
  • Electronic Control Modules (ECMs) monitor machine systems to alert the operator of performance issues and can be paired with Product Link options to enable additional remote services with your local Cat dealer
  • Multi-piece, cartridge-style engine filters are environmentally friendly, reducing waste and lowering replacement costs
  • Convenient parts availability, dealer locations and service repair kits simplify ordering of high wear components

Convenience Features

Cat cold planers offer a variety of features and options designed to make daily operation and maintenance tasks easier.

  • Pause and resume machine functions with the push of a button during truck exchanges
  • Optional magnetic paint can holders
  • Hooks for water hose storage
  • Angled water fill connection
  • Easily accessible shovel holder
  • Top and side view rotor depth indicators
  • Compressed air connection in center operator console
Sales Features

Simple Operation

The PM822 is simple and intuitive to operate.

Comfortable Operator's Station

A comfortable operator is focused and in control, ensuring maximum production with high precision.

Versatile and Productive

Highly capable with optional enhancements to boost productivity.

Designed for Easy Service

The machine is designed for simplified service, decreasing the time and cost of maintenance and service.
Standard Equipment
    • Ground control keypads
    • Single high-resolution LCD touchscreen display
    • 12-volt power receptacle
    • Cat Product Link
    • Cat GRADE
    • Grease tensioner
    • Material removal boost feature
    • Automatic plunge-cut
    • Automatic transition feature
    • Obstacle jump
    • Three cutting speeds
    • Auto engine idle control
    • High capacity cooling system
    • Dual propel pumps
    • Automatic load control
    • Dual pump hydraulic propel system
    • Traction control
    • Sampling ports for Scheduled Oil Sampling (S·O·S℠)
    • Power hood
    • Platform-level engine oil dipsticks
    • Rotor chamber water spray system
    • Air compressor
    • Accessory drive system
    • 3400 L (898 gal) onboard water tank
    • Side water fill valve
    • Platform handrails
    • Signaling/warning horn
    • Wide-dispersion LED work lights
Optional Equipment
    • Dual high-resolution LCD touchscreen displays
    • Hydraulically folding canopy with LEDs
    • Air-ride suspension seats
    • Windscreens
    • Inboard ski
    • Sonic sensor (averaging or string line)
    • Ground level grade controls and displays
    • Dust abatement system
    • Remote camera (loading conveyor)
    • System K Rotor - Course (25 mm)
    • System K Rotor - Course (18 mm)
    • System K Rotor - Standard (15 mm)
    • System K Rotor - Fine (8 mm)
    • System K Rotor - Micro (6 mm)
    • System H Rotor - Micro (6x2 mm)
    • Diamond bits
    • Bit bucket trays
    • Pneumatic bit removal tool
    • Tool holder extractor
    • Rotor turning device with pendant control
    • CE certificate
    • Water tank transfer pump
    • Fuel transfer pump
    • High pressure washdown
    • Low pressure washdown
    • Additional spray bars
    • Perimeter LED strip lights
    • Magnetic LED work light
    • Warning beacon (fixed or magnetic mount)
    • Truck signal lights
    • Remote camera (rear, front, magnetic mount)
