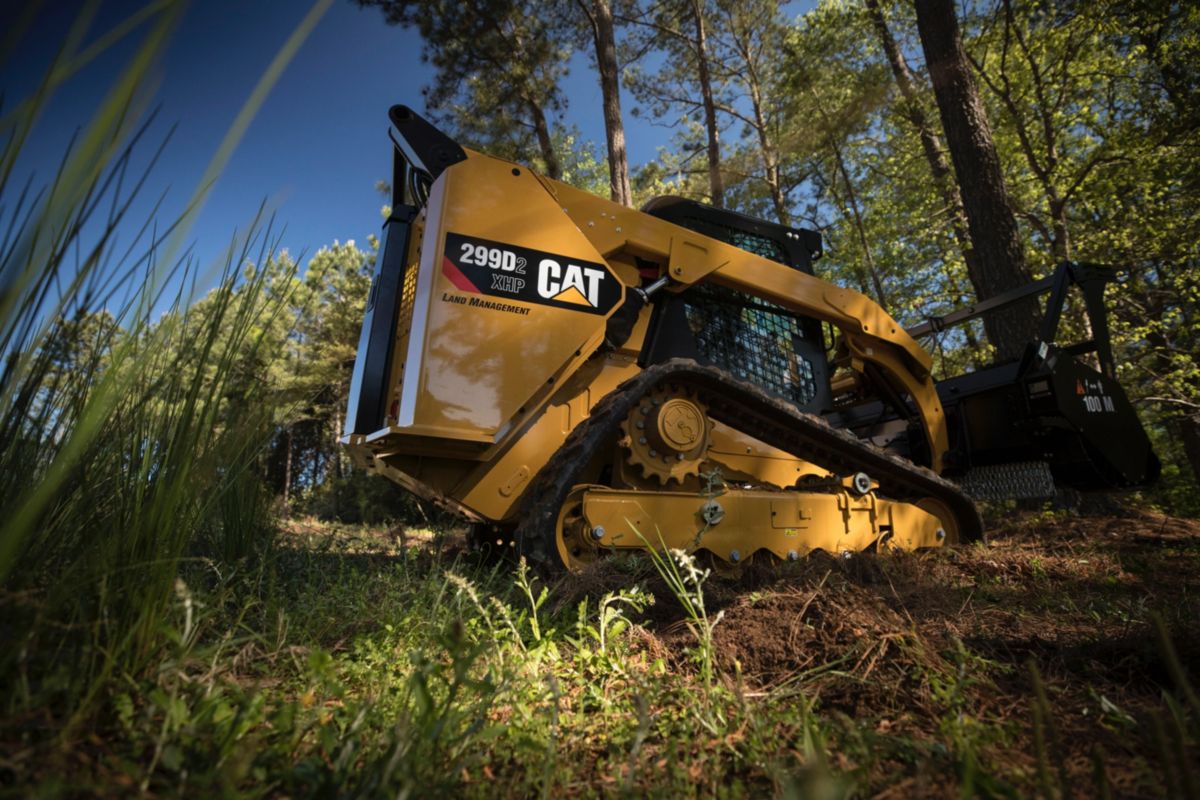

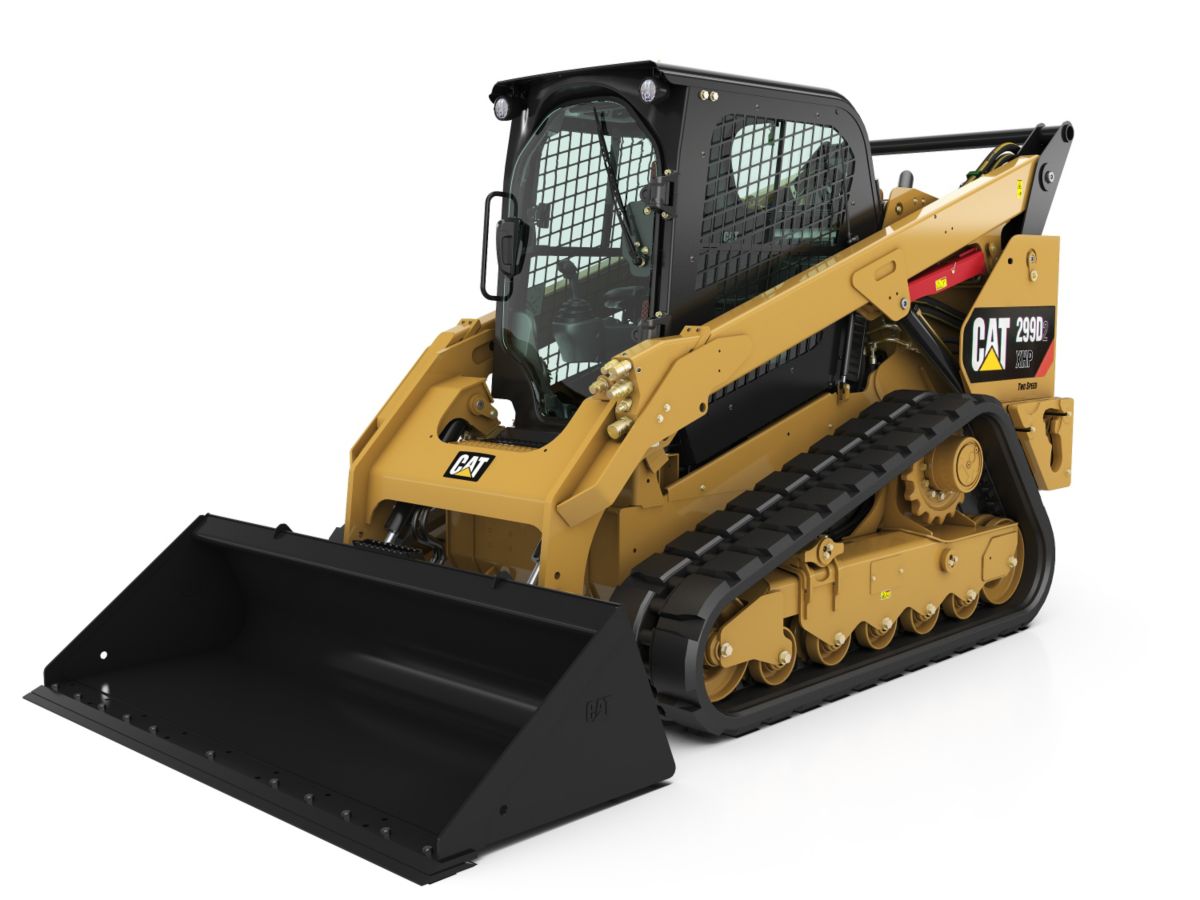

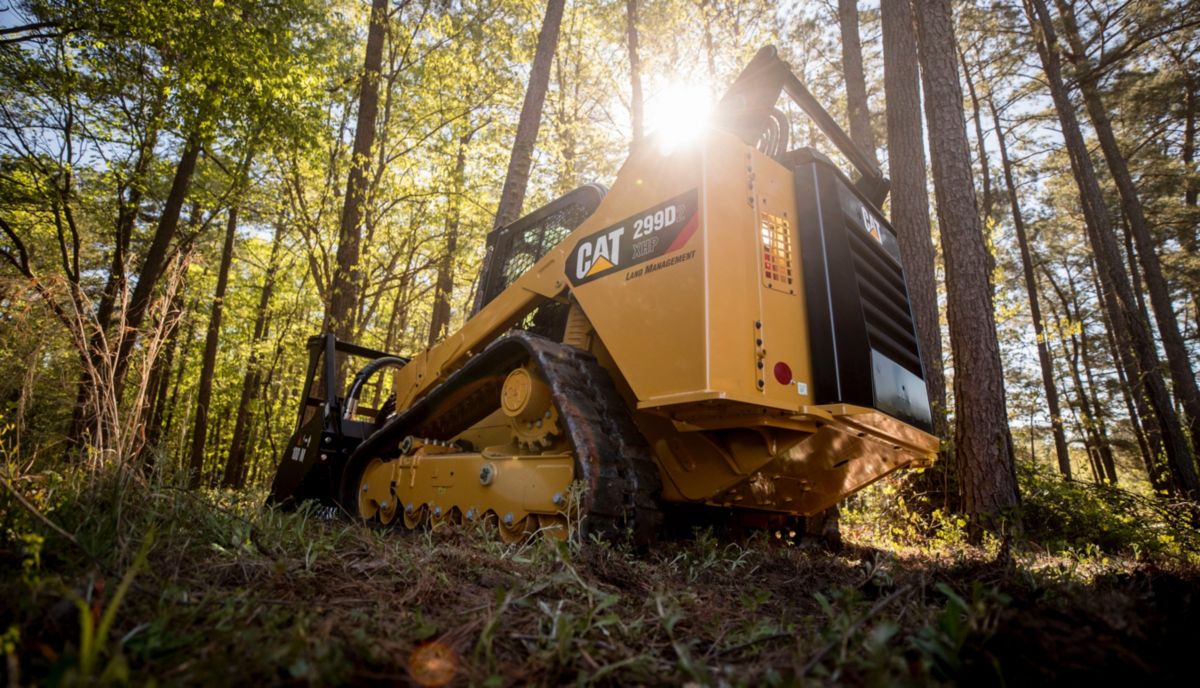

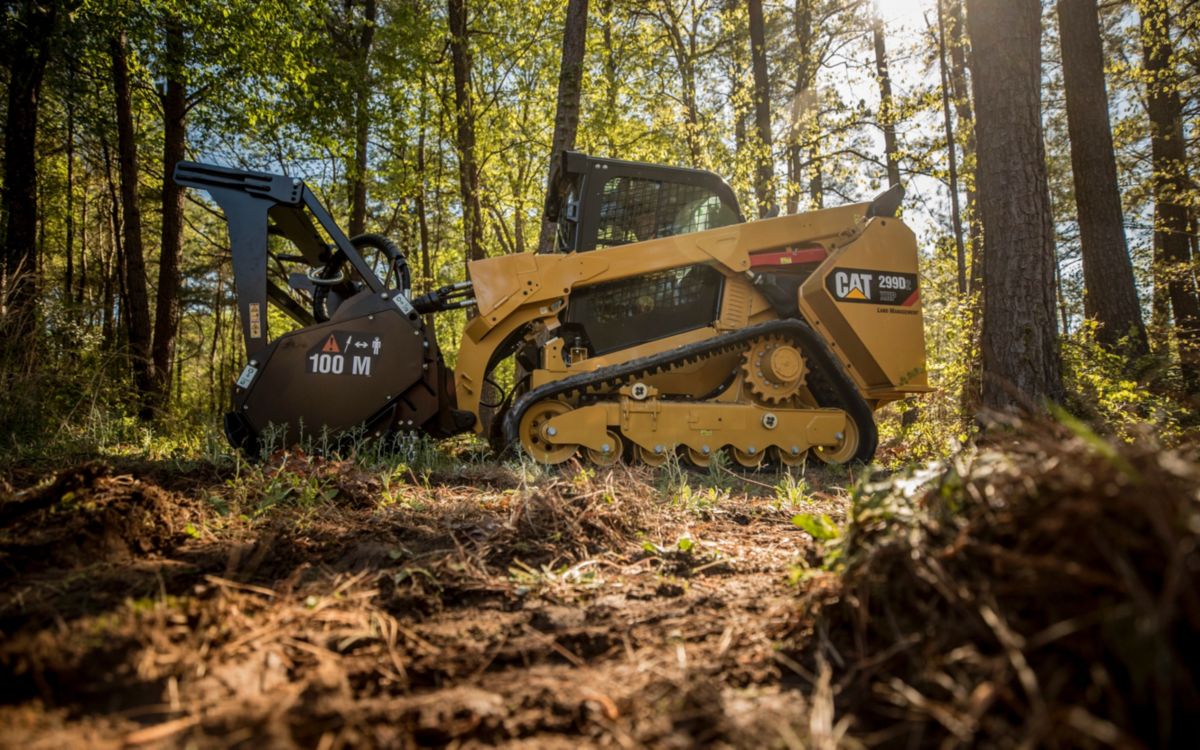

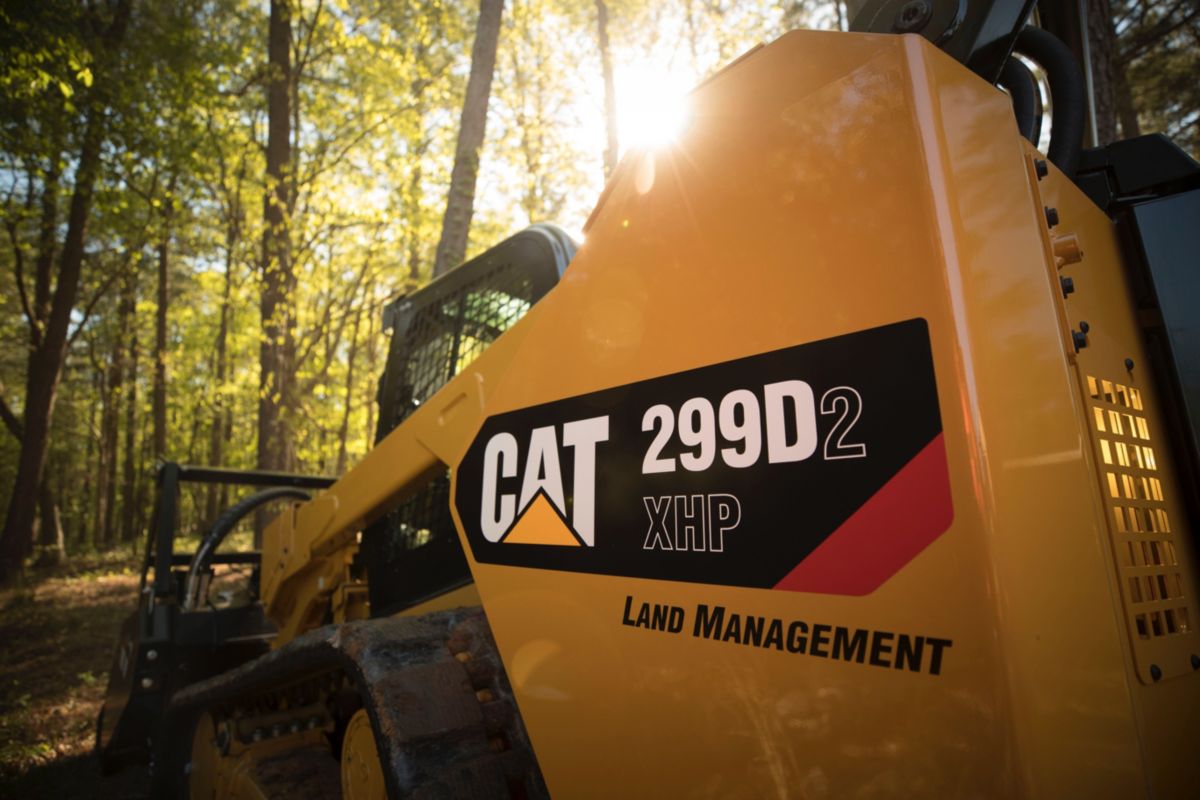

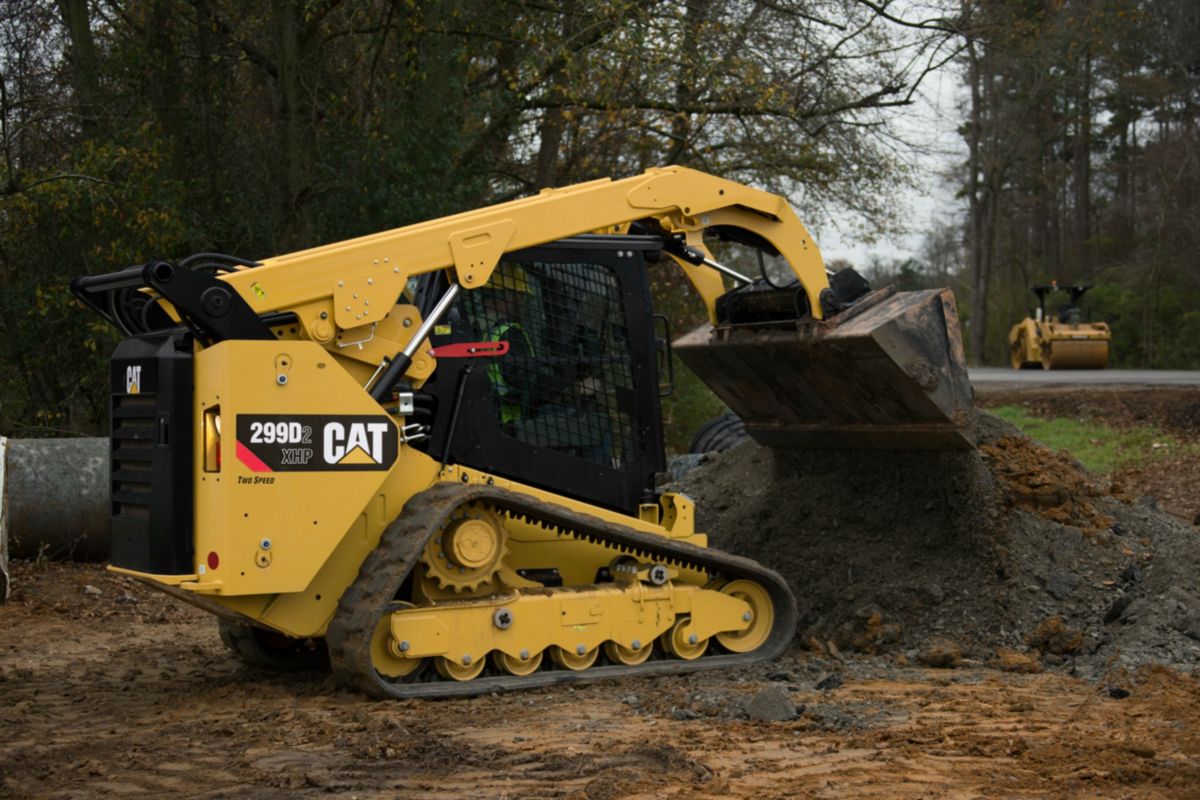

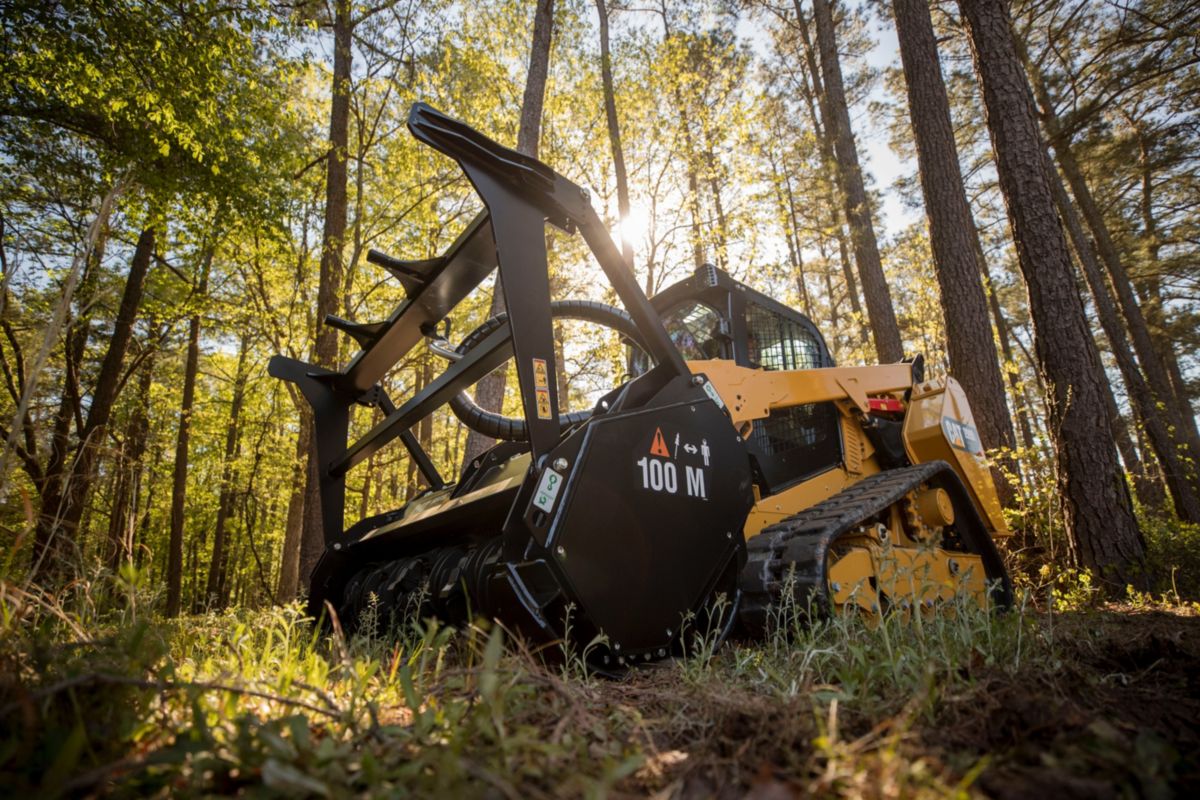

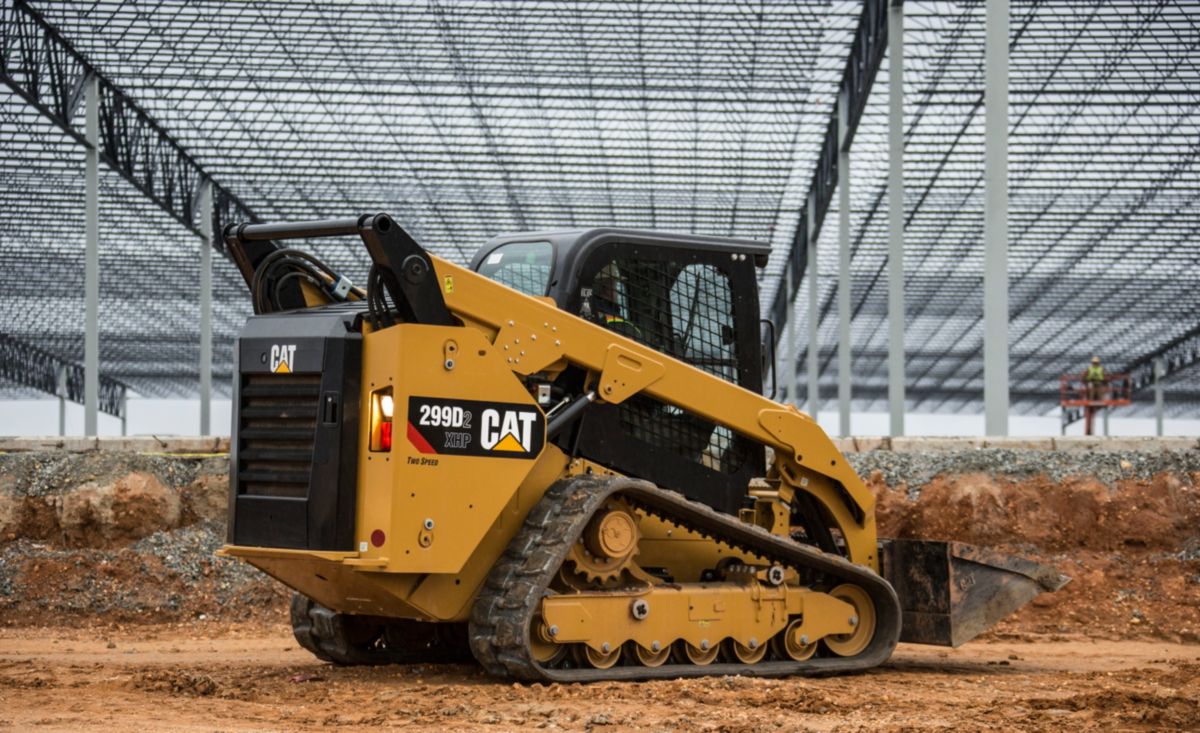

299D2 XHP Compact Track Loader

US
Metric

Overview

The Cat® 299D2 XHP Compact Track Loader, with its powerful engine, high output hydraulic system, high lift forces, vertical lift design and torsion axle suspension, provides the maximum performance for work tool productivity, digging, truck loading and material handling in a wide range of underfoot conditions and applications.

Engine

Engine Model
Cat C3.8 DIT (turbo)
Net Power
106.00 hp
79.00 kW
Gross Power SAE J1995
110.00 hp
82.00 kW
Net Power SAE 1349
106.00 hp
79.00 kW
Net Power ISO 9249
107.00 hp
80.00 kW
Displacement
232.00 in3
3.80 L
Bore
3.90 in
100.00 mm
Stroke
4.70 in
120.00 mm

Operating Specifications

Rated Operating Capacities - 50% Tipping Load
4725.00 lb
2143.00 kg
Rated Operating Capacities - 35% Tipping Load
3308.00 lb
1500.00 kg
Rated Operating Capacity with Optional Counterweight
4975.00 lb
2257.00 kg
Tipping Load
9450.00 lb
4286.00 kg
Breakout Force, Tilt Cylinder
7270.00 lb
3298.00 kg
Breakout Force, Lift Cylinder
6162.00 lb
2795.00 kg
Ground Contact Area
2184.00 in²
1.41 m²

Power Train

Travel Speed (Forward or Reverse): One Speed
5.20 mph
8.40 km/h
Travel Speed (Forward or Reverse): Two Speed
8.40 mph
13.50 km/h

Weights

Operating Weight
11608.00 lb
5265.00 kg
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).

Service Refill Capacities

Cooling System
4.10 gal
16.00 L
Engine Crankcase
3.50 gal
13.00 L
Fuel Tank
32.20 gal
122.00 L
Hydraulic System
14.50 gal
55.00 L
Hydraulic Tank
10.30 gal
39.00 L

Dimensions

Length of Track on Ground
69.60 in
1767.00 mm
Overall Length - Track
89.40 in
2270.00 mm
Length without Bucket
125.50 in
3189.00 mm
Length with Bucket on Ground
154.70 in
3931.00 mm
Height to Top of Cab
83.60 in
2125.00 mm
Maximum Overall Height
158.70 in
4032.00 mm
Bucket Pin Height at Maximum Lift
126.30 in
3208.00 mm
Bucket Pin Height at Carry Position
7.10 in
180.00 mm
Reach at Maximum Lift and Dump
33.60 in
852.00 mm
Clearance at Maximum Lift and Dump
94.50 in
2399.00 mm
Ground Clearance
9.60 in
245.00 mm
Departure Angle
33°
Maximum Dump Angle
54°
Vehicle Width (400 mm/15.7 in tracks)
76.00 in
1931.00 mm
Turning Radius from Center – Machine Rear
74.00 in
1881.00 mm
Turning Radius from Center – Coupler
58.10 in
1476.00 mm
Turning Radius from Center – Bucket (racked)
91.10 in
2314.00 mm
Maximum Reach with Arms Parallel to Ground
51.90 in
1319.00 mm
Rack Back Angle at Maximum Height
81°
Bucket Pin Reach at Maximum Lift
19.40 in
493.00 mm
Roll Back Angle
25°
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).

Hydraulic System

Hydraulic Flow – XHP: Maximum Loader Hydraulic Pressure
4061.00 psi
28000.00 kPa
Hydraulic Flow – XHP: Maximum Loader Hydraulic Flow*
40.00 gal/min
150.00 L/min
Hydraulic Flow – XHP: Hydraulic Power (calculated)
94.00 hp
70.00 kW
Note
*When equipped with Cat 400 Series work tools.
Standard Flow Mode: Loader Hydraulic Pressure
3335.00 psi
23000.00 kPa
Standard Flow Mode: Loader Hydraulic Flow
23.00 gal/min
86.00 L/min
Standard Flow Mode: Hydraulic Power (calculated)
44.00 hp
33.00 kW

Cab

ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level I
FOPS Level II
ISO 3449:2005 Level II

Engine

Peak Torque at 1,500 rpm SAE J1995
276.00 lbf-ft
374.00 N·m

Operating Specifications

Rated Operating Capacity: 50% Tipping Load
4725.00 lb
2143.00 kg
Ground Pressure
5.30 psi
36.70 kPa
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).

Service Refill Capacities

Diesel Exhaust Fluid (DEF) Tank
5.00 gal
19.00 L

Noise Level

Inside Cab*
83.00 dB(A)
83.00 dB(A)
Outside Cab**
104.00 dB(A)
104.00 dB(A)
Note
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Engine

Engine Model
Cat C3.8 DIT (turbo)
Net Power
106.00 HP
79.00 kW
Gross Power - SAE J1995
110.00 HP
82.00 kW
Net Power - SAE 1349
106.00 HP
79.00 kW
Displacement
232.00 in³
3.80 l
Bore
3.90 in
100.00 mm
Stroke
4.70 in
120.00 mm
Net Power - ISO 9249
107.00 HP
80.00 kW

Weights

Operating Weight
11608.00 lb
5265.00 kg

Operating Specifications

Tipping Load
9450.00 lb
4286.00 kg
Breakout Force - Tilt Cylinder
7270.00 lb
3298.00 kg
Breakout Force - Lift Cylinder
6162.00 lb
2795.00 kg
Rated Operating Capacity with Optional Counterweight
4975.00 lb
2257.00 kg

Dimensions

Length - Track on Ground
69.60 in
1767.00 mm
Height - Top of Cab
83.60 in
2125.00 mm
Ground Clearance
9.60 in
245.00 mm
Departure Angle
33°
Maximum Dump Angle
54°
Bucket Pin Height - Carry Position
7.10 in
180.00 mm
Bucket Pin Height - Maximum Lift
126.30 in
3208.00 mm
Bucket Pin Reach - Maximum Lift
19.40 in
493.00 mm
Clearance at Maximum Lift and Dump
94.50 in
2399.00 mm
Length - With Bucket on Ground
154.70 in
3931.00 mm
Length - Without Bucket
125.50 in
3189.00 mm
Maximum Overall Height
158.70 in
4032.00 mm
Maximum Reach - With Arms Parallel to Ground
51.90 in
1319.00 mm
Rack Back Angle - Maximum Height
81°
Reach - Maximum Lift/Dump
33.60 in
852.00 mm
Turning Radius from Center - Bucket (racked)
91.10 in
2314.00 mm
Turning Radius from Center - Coupler
58.10 in
1476.00 mm
Turning Radius from Center - Machine Rear
74.00 in
1881.00 mm

Hydraulic System

Hydraulic Flow - XHP - Hydraulic Power (Calculated)
94.00 HP
70.00 kW
Hydraulic Flow - XHP - Maximum Loader Hydraulic Flow*
40.00 gal/min
150.00 l/min
Hydraulic Flow - XHP - Maximum Loader Hydraulic Pressure
4061.00 psi
28000.00 kPa
Note
*When equipped with Cat 400 Series work tools.
Standard Flow Mode - Hydraulic Power - Calculated
44.00 HP
33.00 kW
Standard Flow Mode - Loader Hydraulic Flow
23.00 gal/min
86.00 l/min
Standard Flow Mode - Loader Hydraulic Pressure
3335.00 psi
23000.00 kPa

Cab

ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level I
FOPS Level II
ISO 3449:2005 Level II

Power Train

Travel Speed - Forward or Reverse - One Speed
5.20 mile/h
8.40 km/h
Travel Speed - Forward or Reverse - Two Speed
8.40 mile/h
13.50 km/h

Service Refill Capacities

Cooling System
4.10 gal (US)
16.00 l
Engine Crankcase
3.50 gal (US)
13.00 l
Fuel Tank
32.20 gal (US)
122.00 l
Hydraulic System
14.50 gal (US)
55.00 l
Hydraulic Tank
10.30 gal (US)
39.00 l

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Dimensions

Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Roll Back Angle
25°

Engine

Peak Torque - 1,500 rpm - SAE J1995
276.00 ft·lbf
374.00 N·m

Noise Level

Inside Cab*
83.00 dB(A)
83.00 dB(A)
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3)
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Outside Cab**
104.00 dB(A)
104.00 dB(A)

Operating Specifications

Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).

Service Refill Capacities

Diesel Exhaust Fluid (DEF) Tank
5.00 gal (US)
19.00 l

Weights

Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Features

Comfortable Cab

Industry leading sealed and pressurized cab option provides a cleaner and quieter operating environment with excellent Work Tool visibility. Available high-back, heated, air ride seat with seat mounted adjustable joystick controls makes Cat Compact Track Loaders the industry leader in operator comfort.

Advanced Display

Maximize machine capability and control with the standard Advanced Display providing on-screen adjustments for implement response, hystat response, and creep control, multi-language functionality with customizable layouts, security system, and rearview camera.

Powerful Performance

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability. XHP hydraulic system provides high flow and high pressure that delivers industry leading hydraulic horsepower to efficiently run even the most power hungry work tools. Electronically controlled Cat C3.8 aftercooled engine provides high horsepower and torque while meeting U.S. EPA Tier 4 Final/EU Stage IV emission standards. Cat “Intelligent Leveling” system (ILEV) provides industry leading technology, integration and features such as dual direction self level, work tool return to dig and work tool positioner.

Suspended Undercarriage

Standard fully independent torsion axle suspension combined with the Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.

Outstanding Versatility

Broad range of performance matched Cat Work Tools make the Cat Compact Track Loader the most versatile machine on the job site.

Easy Service

Ground level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.

Sales Features

Comfortable Cab

Industry leading sealed and pressurized cab option provides a cleaner and quieter operating environment with excellent Work Tool visibility. Available high-back, heated, air ride seat with seat mounted adjustable joystick controls makes Cat Compact Track Loaders the industry leader in operator comfort.

Advanced Display

Maximize machine capability and control with the standard Advanced Display providing on-screen adjustments for implement response, hystat response, and creep control, multi-language functionality with customizable layouts, security system, and rearview camera.

Powerful Performance

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability. XHP hydraulic system provides high flow and high pressure that delivers industry leading hydraulic horsepower to efficiently run even the most power hungry work tools. Electronically controlled Cat C3.8 aftercooled engine provides high horsepower and torque while meeting U.S. EPA Tier 4 Final/EU Stage IV emission standards. Cat “Intelligent Leveling” system (ILEV) provides industry leading technology, integration and features such as dual direction self level, work tool return to dig and work tool positioner.

Suspended Undercarriage

Standard fully independent torsion axle suspension combined with the Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.

Outstanding Versatility

Broad range of performance matched Cat Work Tools make the Cat Compact Track Loader the most versatile machine on the job site.

Easy Service

Ground level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
Standard Equipment
  • ELECTRICAL
    • 12 volt Electrical System
    • 100 ampere Alternator
    • Ignition Key Start/Stop Switch
    • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light
    • Backup Alarm
    • Heavy Duty Battery, 1,000 CCA, with Battery Disconnect
  • OPERATOR ENVIRONMENT
    • Gauges: Fuel Level, DEF Level, Hour Meter
    • Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Air Inlet Heater Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System
    • High Back Cloth Seat with Air Suspension, Heated with Recline and Lumbar Support and Fully Adjustable Seat Mounted Controls
    • Fold In Ergonomic Contoured Armrest
    • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
    • ROPS Cab, Enclosed, Tilt Up
    • FOPS, Level I
    • Top, Rear and Side Windows
    • Headliner, Deluxe
    • Floor Mat
    • Interior Rearview Mirror
    • 12 volt Electric Socket
    • Horn
    • Hand (Dial) and Foot Throttle, Electronic with Decel Feature
    • Advanced Display: Full Color, 127 mm (5 in) LCD Screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Drive Response, and Creep Control; Rearview Camera Included
    • Storage Compartment with Netting
  • POWER TRAIN
    • Cat C3.8, Turbo Diesel Engine, Meeting Tier 4 Final/Stage IV Emission Standards
    • Air Cleaner, Dual Element, Radial Seal
    • S·O·SSM Sampling Valve, Hydraulic Oil
    • Filters, Cartridge-type, Hydraulic
    • Filters, Cartridge-type, Fuel and Water Separator
    • Radiator/Hydraulic Oil Cooler (side-by-side)
    • Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brakes
    • Hydrostatic Transmission, Two Speed Travel
    • Suspension – Independent Torsion Axles (4)
    • Speed Sensitive Ride Control
  • OTHER
    • Engine Enclosure, Lockable
    • Extended Life Antifreeze, –37° C (–34° F)
    • Machine Tie Down Points (6)
    • Support, Lift Arm
    • Hydraulic Oil Level Sight Gauge
    • Radiator Coolant Level Sight Gauge
    • Radiator, Expansion Bottle
    • Cat ToughGuard™ Hose
    • Auxiliary, Hydraulics, Continuous Flow
    • Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
    • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
    • Electrical Outlet, Beacon
    • Belly Pan Cleanout
    • Variable Speed Demand Fan
    • Steel Imbed Rubber Track – 400 mm (15.7 in) with Triple Flange Idlers (front and rear)
    • Product Link™ PL240, Cellular
  • MANDATORY EQUIPMENT
    • Quick Coupler, Mechanical or Powered
    • Seat Belt, 50 mm (2 in) or 75 mm (3 in)
    • PERFORMANCE PACKAGE:
      • Performance Package H3: XHP Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, Electronic Snubbing (Raise and Lower)
    • COMFORT PACKAGE:
      • Enclosed ROPS with A/C (C3): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, Air Ride Seat (High Back and Heated) and Door (Glass or Polycarbonate)
Optional Equipment
  • OPTIONAL EQUIPMENT
    • Beacon, Rotating
    • Engine Block Heater – 120V
    • Oil, Hydraulic, Cold Operation
    • Paint, Custom
    • Variable Speed Demand Fan with Reversing Functionality
    • External Counterweights
    • Product Link PL641, Cellular
    • Bluetooth Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
    • Full Steel Track (Sealed and Lubricated – SALT) with Triple Grouser Shoes; One Speed Travel Only
