Overview

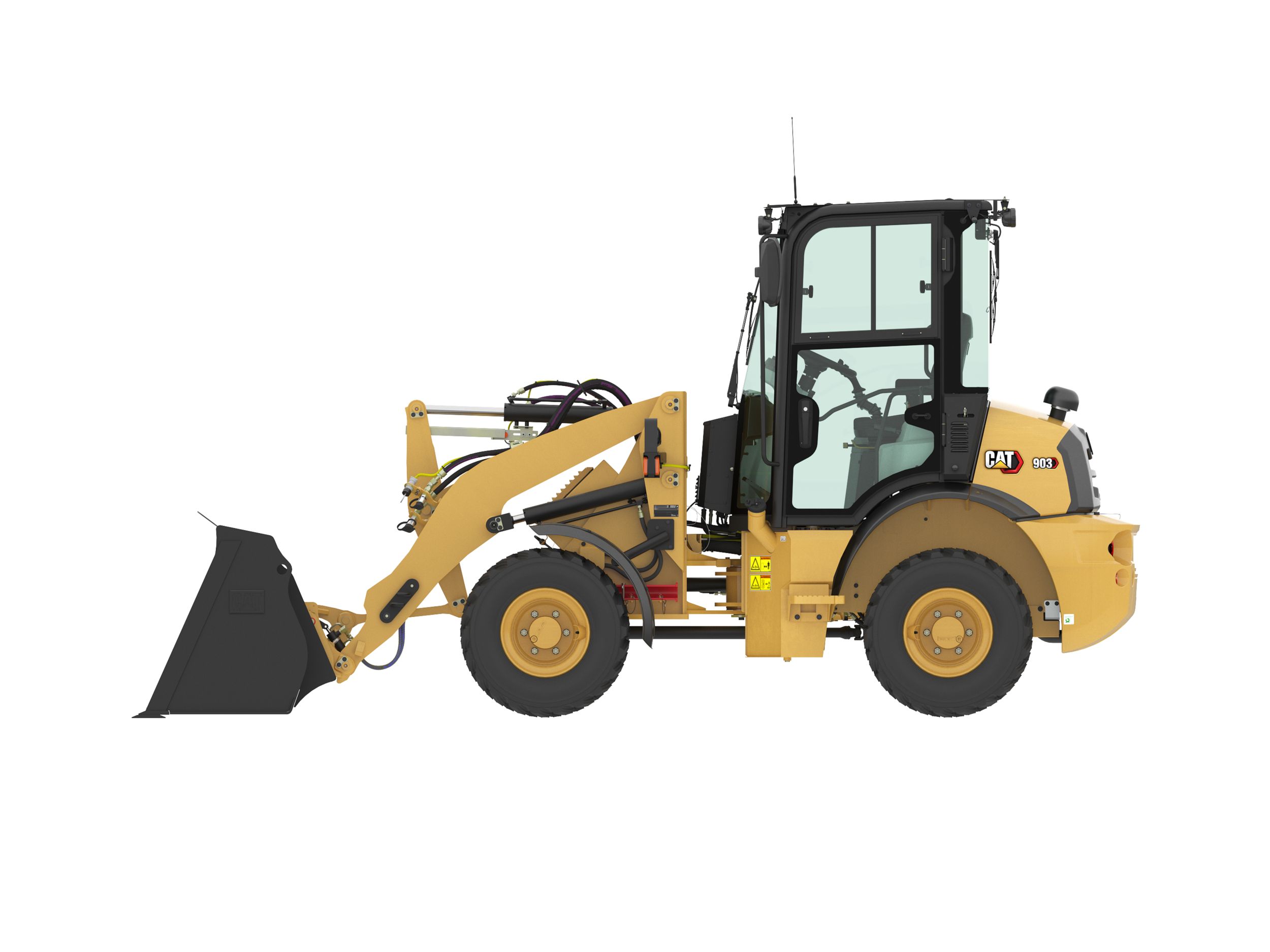

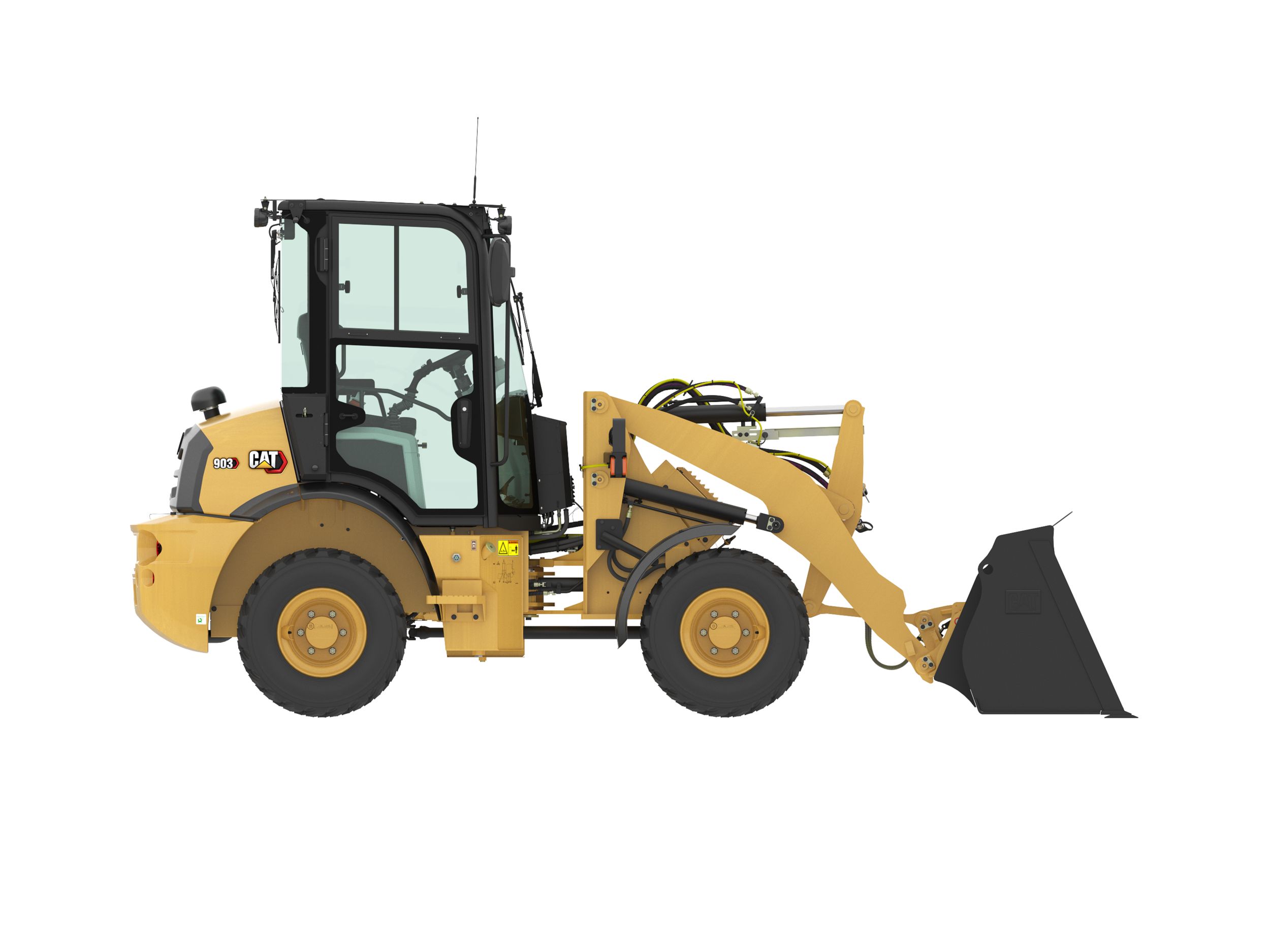

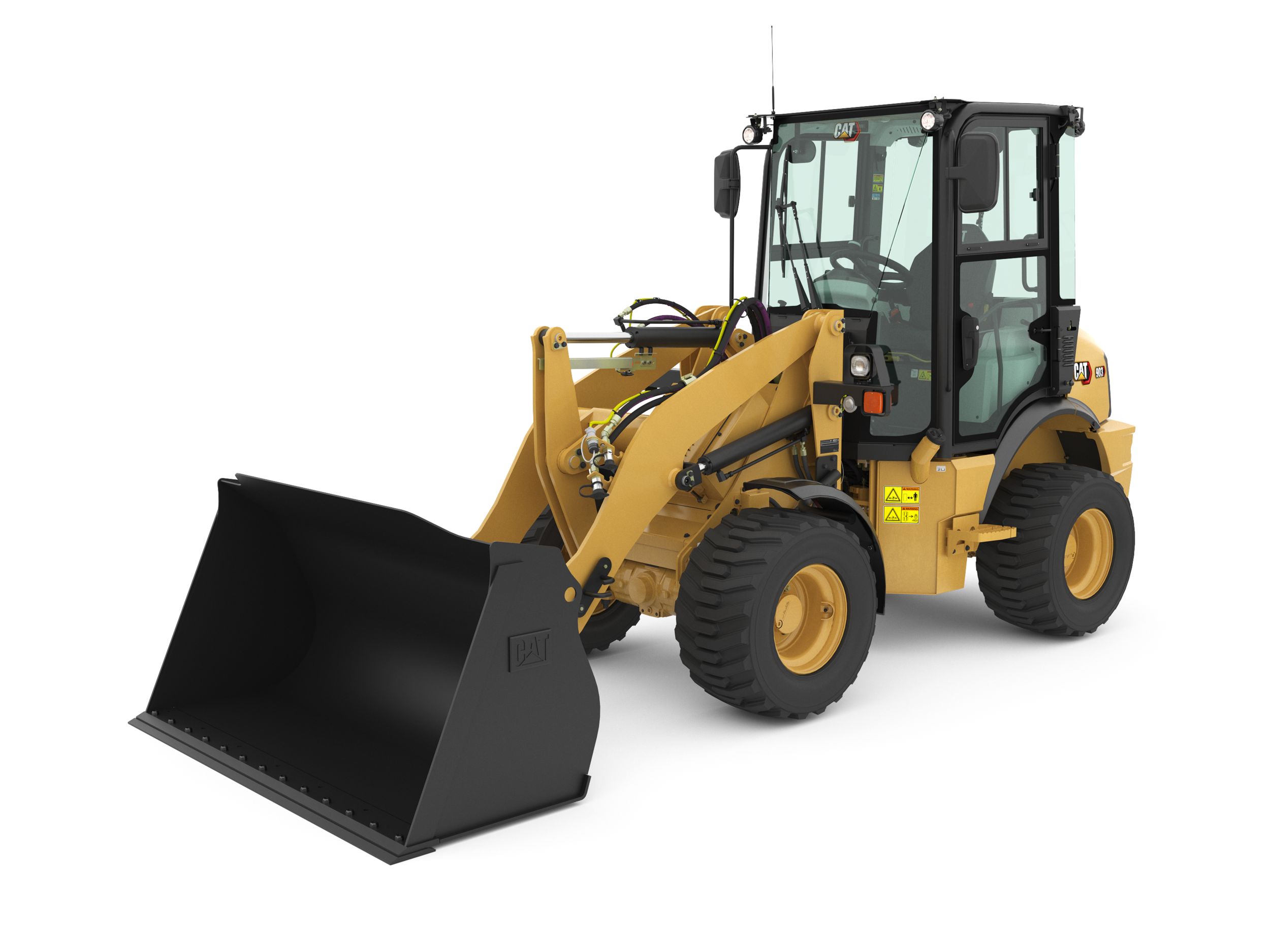

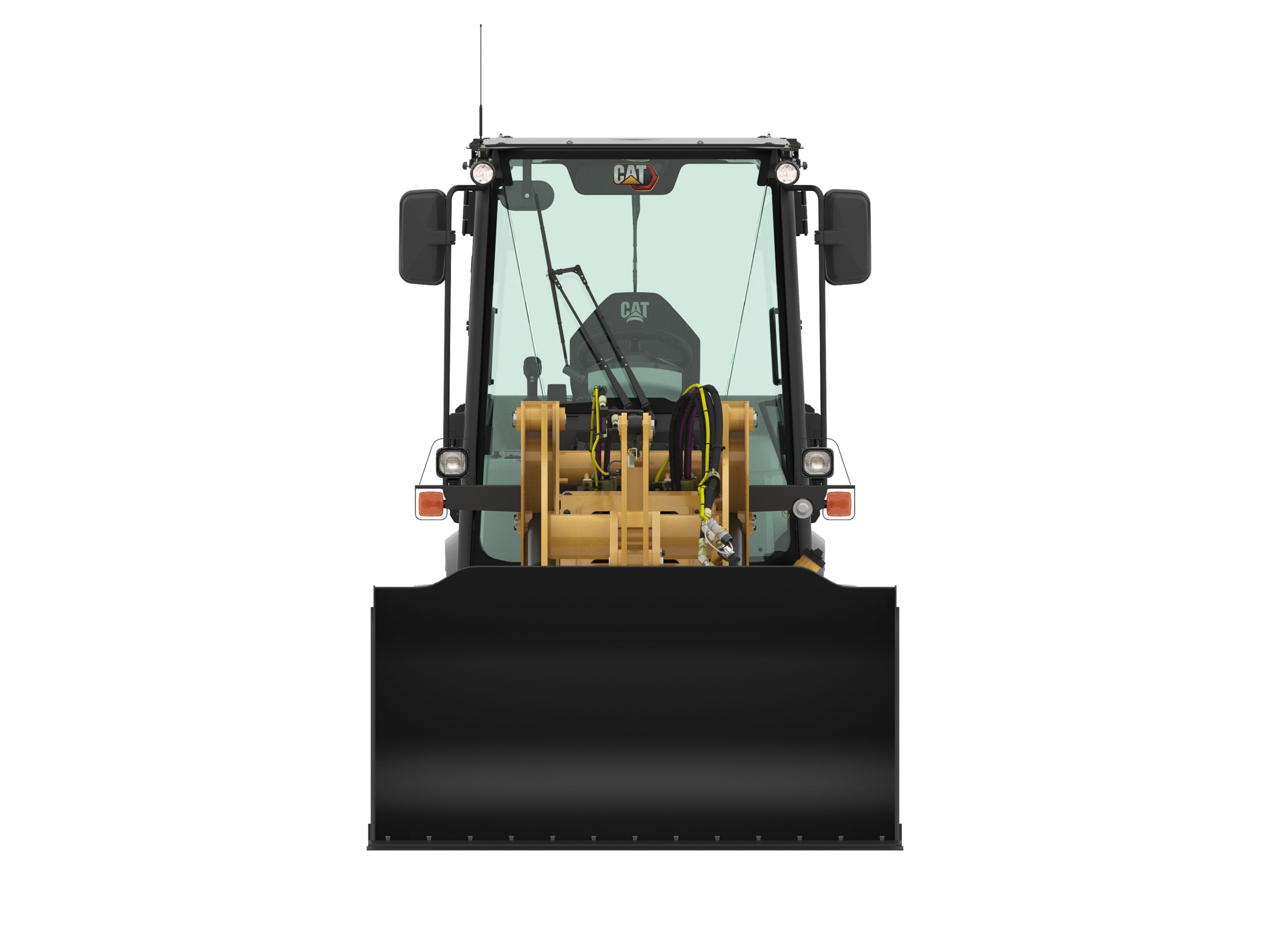

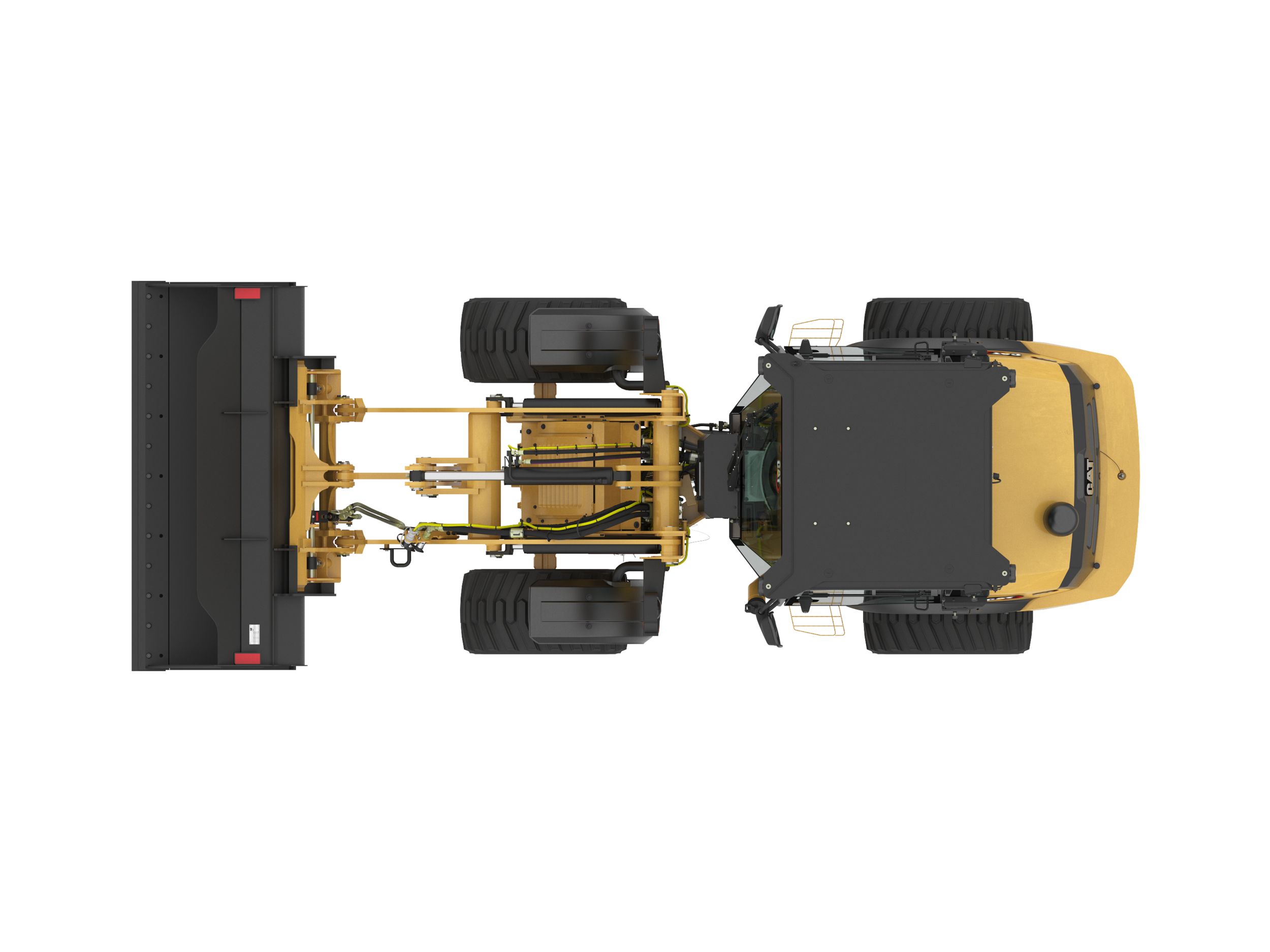

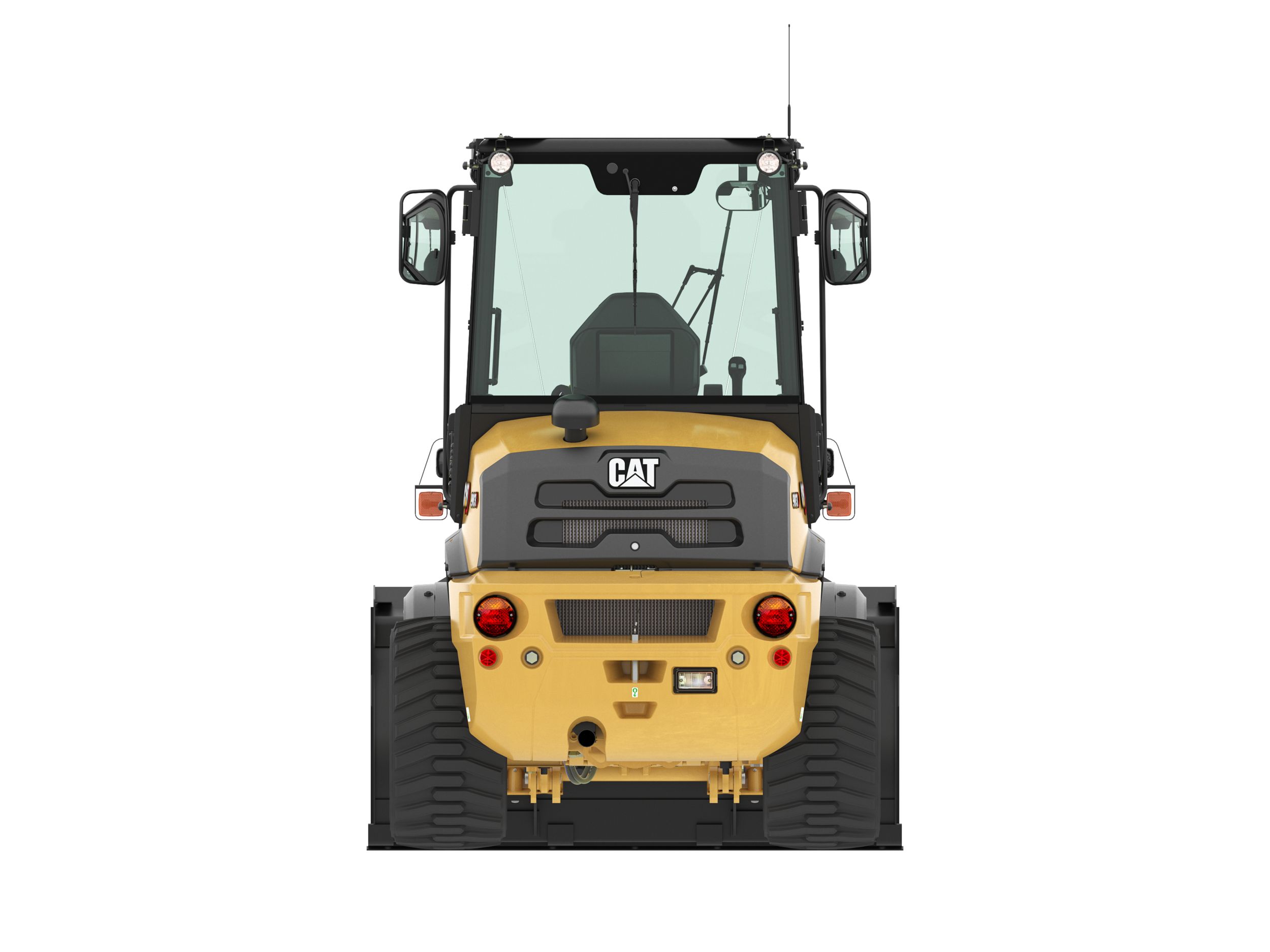

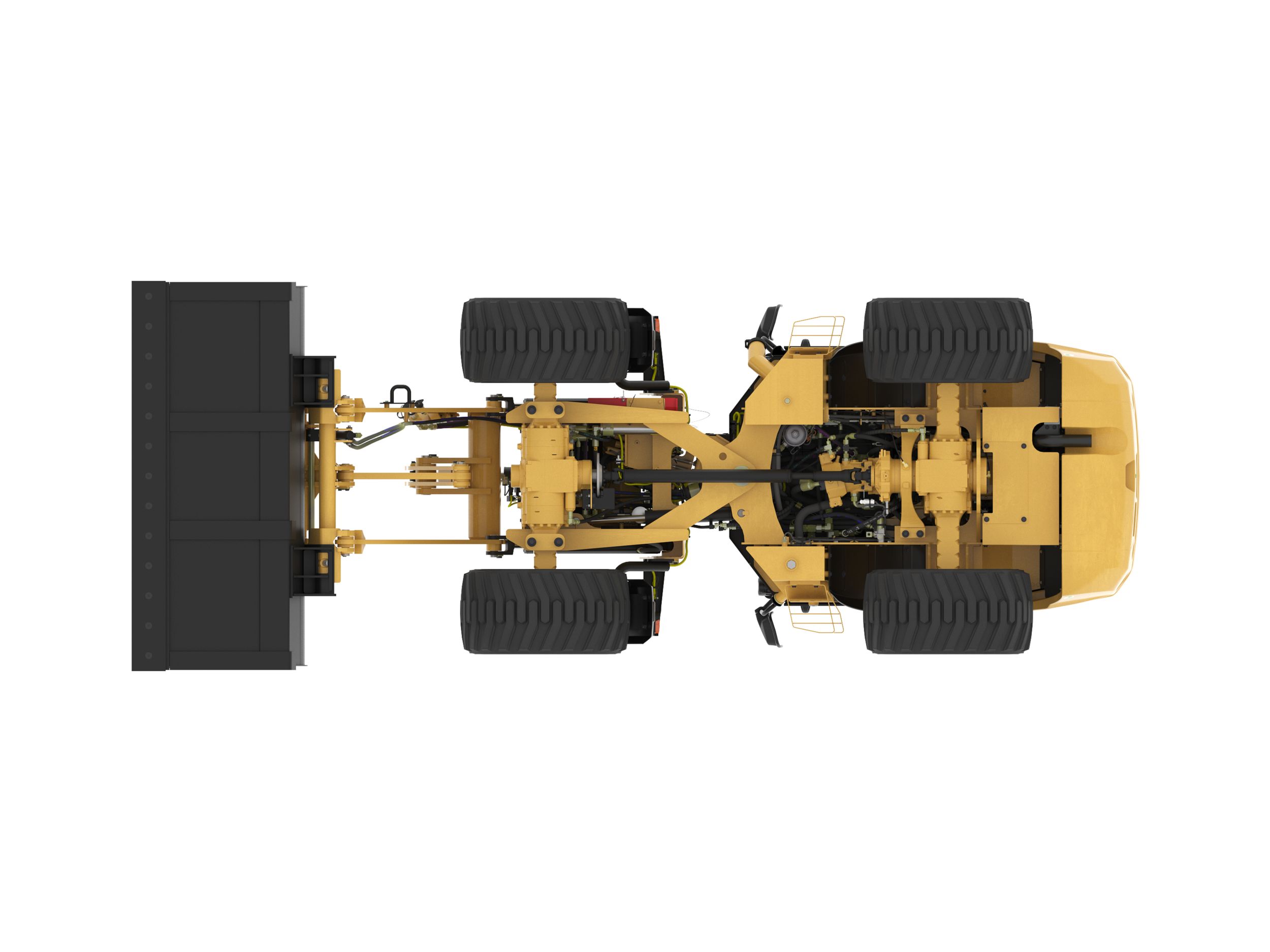

The Cat® 903 is compact, yet powerful, delivering high performance with outstanding versatility. The all new C1.7 engine provides better all-around performance. Features such as engine and ground speed control, provides customizable control when running hydromechanical work tools. With an ergonomic cab, multi-function joystick, and optional ride control, the 903 allows the operator to enjoy all day comfort.

Engine

Maximum Gross Power
48.00 hp
36.00 kW
Engine Model
Cat C1.7*
Net Power @ 2,200 rpm - SAE J1349:2011
45.00 hp
33.60 kW
Net Power @ 2,200 rpm - ISO 9249:2007
45.00 hp
33.60 kW
Bore
3.30 in
84.00 mm
Stroke
3.90 in
100.00 mm
Displacement
104.00 in²
1.70 l
Note (1)
Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)
Net power advertised is the power available at the flywheel.
Note
*Engine meets U.S. EPA Tier 4 Final emission standards.

Weights

Operating Weight
9200.00 lb
4173.00 kg

Buckets

Bucket Capacities
0.6-1.0 m3 (0.8-1.3 yd3)
Bucket Capacities - General Purpose
0.6 m3 (0.8 yd3)
Bucket Capacities - Light Material
1.0 m3 (1.3 yd3)

Transmission

Travel Speed
12.40 mile/h
20.00 km/h

Hydraulic System

Main Relief
3336.00 psi
230.00 bar
3rd Auxiliary Flow
14.10 gal/min
53.50 l/min
Hydraulic Cycle Time - Lift
4.50 s
4.50 s
Hydraulic Cycle Time - Dump
0.70 s
0.70 s
Hydraulic Cycle Time - Lower, Float
2.30 s
2.30 s

Cab

ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level II

Service Refill Capacities

Cooling System
3.00 gal (US)
11.00 l
Fuel Tank
11.40 gal (US)
43.00 l
Hydraulic System
6.30 gal (US)
24.00 l
Engine Oil
1.60 gal (US)
6.00 l

Dimensions (Approximate) - Standard Lift

Cab Height
8.25 ft
2510.00 mm
Ground Clearance
10.00 in
250.00 mm
Wheel Base
6.42 ft
1950.00 mm
Overall Length - With Bucket*
15.40 ft
4693.00 mm
Reach at Maximum Dump Height*
2.33 ft
705.00 mm
Dig Depth
5.00 in
131.00 mm
Maximum Dump Height*
7.75 ft
2355.00 mm
Load Over Height
9.25 ft
2832.00 mm
Hinge Pin at Maximum Height
10.08 ft
3086.00 mm
Departure Angle - Degrees
30°
Overall Length - With Forks
16.83 ft
5129.00 mm
Reach - Ground Level
2.50 ft
765.00 mm
Maximum Reach
4.33 ft
1311.00 mm
Fork Depth Above Ground
3.00 in
67.00 mm
Fork Height at Maximum Reach
4.75 ft
1447.00 mm
Maximum Fork Height
9.90 ft
3031.00 mm
Fork Reach at Maximum Height
1.75 ft
543.00 mm
Turning Radius - Over Bucket*
12.75 ft
3891.00 mm
Turning Radius - Inside Tire**
6.00 ft
1834.00 mm
Width - Over Bucket*
5.83 ft
1790.00 mm
Tire Gauge
4.33 ft
1314.00 mm
Machine Width**
5.58 ft
1708.00 mm
Articulation Angle
40°
Steering Angle
80°
Dump Angle at Maximum Height
40°
Note (1)
*Vary with bucket size.
Note (2)
**Vary with tire size.
Note (3)
Dimensions listed are based on a machine configured with cab, air conditioning, remote quick coupler, general purpose bucket or 1067 mm (42 in) forks, 75 kg (165 lb) operator, 33 × 15.5-16.5, 12 PR tires, without ride control, without precleaner.

Dimensions (Approximate) - High Lift

Cab Height
8.25 ft
2510.00 mm
Ground Clearance
10.00 in
250.00 mm
Wheel Base
6.42 ft
1950.00 mm
Overall Length - With Bucket*
16.03 ft
4894.00 mm
Reach at Maximum Dump Height*
2.33 ft
715.00 mm
Dig Depth
6.00 in
163.00 mm
Maximum Dump Height*
8.16 ft
2496.00 mm
Load Over Height
9.75 ft
2974.00 mm
Hinge Pin at Maximum Height
10.58 ft
3227.00 mm
Departure Angle - Degrees
30°
Overall Length - With Forks
17.25 ft
5263.00 mm
Reach - Ground Level
2.90 ft
900.00 mm
Maximum Reach
4.66 ft
1429.00 mm
Fork Depth Above Ground
2.00 in
40.00 mm
Fork Height at Maximum Reach
4.66 ft
1429.00 mm
Maximum Fork Height
10.40 ft
3172.00 mm
Fork Reach at Maximum Height
1.80 ft
552.00 mm
Turning Radius - Over Bucket*
13.40 ft
3977.00 mm
Turning Radius - Inside Tire**
6.00 ft
1834.00 mm
Width - Over Bucket*
5.83 ft
1790.00 mm
Tire Gauge
4.33 ft
1314.00 mm
Machine Width**
5.58 ft
1708.00 mm
Articulation Angle
40°
Steering Angle
80°
Dump Angle at Maximum Height
40°
Note (1)
*Vary with bucket size.
Note (2)
**Vary with tire size.
Note (3)
Dimensions listed are based on a machine configured with cab, air conditioning, remote quick coupler, general purpose bucket or 1067 mm (42 in) forks, 75 kg (165 lb) operator, 33 × 15.5-16.5, 12 PR tires, without ride control, without precleaner.

Operating Specifications - Standard Lift

Tire Size
33 × 15.5-16.5, 12 PR
Rated Bucket Capacity
0.80 yd³
0.60 m³
Breakout Force
6294.00 lbf
28.00 kN
Operating Weight
9200.00 lb
4173.00 kg
Rated Operating Load at Full Turn - Bucket***
2756.00 lb
1251.00 kg
Straight Tipping Load - Bucket***
6415.00 lb
2910.00 kg
Full Turn Static Tipping Load - Bucket (ISO 14397-1*)***
5516.00 lb
2502.00 kg
Full Turn Static Tipping Load - Bucket (Rigid Tire**)***
5626.00 lb
2552.00 kg
Rack Back - Transport Position
51°
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% FTSTL)***
3393.00 lb
1539.00 kg
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Rough Terrain, 500 mm [20 in] Load Center) (60% FTSTL)***
2544.00 lb
1154.00 kg
Note (1)
*Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification be-tween calculation and testing.
Note (2)
**Compliance to ISO 14397-1 (2007) Sections 1 thru 5.
Note (3)
***Manual quick coupler, precleaner hood.
Note (4)
Operating specifications shown are based on machine equipped with enclosed ROPS cab with air conditioning, remote quick coupler, 75 kg (165 lb) operator and general purpose bucket (GP), without ride control, without precleaner unless otherwise noted.

Operating Specifications - High Lift

Tire Size
33 × 15.5-16.5, 12 PR
Rated Bucket Capacity
0.80 yd³
0.60 m³
Breakout Force
6519.00 lbf
29.00 kN
Operating Weight
9231.00 lb
4187.00 kg
Rated Operating Load at Full Turn - Bucket***
2553.00 lb
1158.00 kg
Straight Tipping Load - Bucket***
5975.00 lb
2710.00 kg
Full Turn Static Tipping Load - Bucket (ISO 14397-1*)***
5108.00 lb
2317.00 kg
Full Turn Static Tipping Load - Bucket (Rigid Tire**)***
5238.00 lb
2376.00 kg
Rack Back - Transport Position
51°
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% FTSTL)***
3175.00 lb
1440.00 kg
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Rough Terrain, 500 mm [20 in] Load Center) (60% FTSTL)***
2381.00 lb
1080.00 kg
Note (1)
*Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification be-tween calculation and testing.
Note (2)
**Compliance to ISO 14397-1 (2007) Sections 1 thru 5.
Note (3)
***Manual quick coupler, precleaner hood.
Note (4)
Operating specifications shown are based on machine equipped with enclosed ROPS cab with air conditioning, remote quick coupler, 75 kg (165 lb) operator and general purpose bucket (GP), without ride control, without precleaner unless otherwise noted.

Maximum Material Densities - General Purpose

Bucket Type
General Purpose
Rated Capacity
0.80 yd³
0.60 m³
Dump Height
93.00 in
2355.00 mm
Maximum Material Density
3169.00 lb/yd³
1880.00 kg/m³
Bucket Width
70.00 in
1790.00 mm
Note
Based on ISO 7546:1983 and rated operating loads at full turn and standard linkage.

Maximum Material Densities - Light Material

Bucket Type
Light Material
Rated Capacity
1.30 yd³
1.00 m³
Dump Height
88.00 in
2225.00 mm
Maximum Material Density
1989.00 lb/yd³
1180.00 kg/m³
Bucket Width
74.00 in
1880.00 mm
Note
Based on ISO 7546:1983 and rated operating loads at full turn and standard linkage.

Sound Levels

Interior Sound
80.8 dB(A)
Exterior Sound
99.8 dB(A)

Sustainability

Recyclability
95%
Features

Work Made Easy

The 903 makes work easy with a 17% increase in horsepower with the all-new Cat C1.7 engine. This provides for improved performance when operating on grades and when using drive, steer, and lift simultaneously. The all-new optional hydraulic skid steer loader style coupler allows for faster and more efficient work tool changes while providing a viewing window that enables the operator to see the fork tips when using compact wheel loader style forks. Optional front and rear diff-lock can be activated on the fly, providing maximum traction in slick underfoot conditions.

Enjoy All Day Comfort

Operators will enjoy all day comfort with a multi-function joystick, spacious leg room, ergonomic pedal positioning, easy entry/exit, and optional speed sensitive ride control. The all-new seat provides optimal comfort, while featuring yellow adjustment touch points that make finding that perfect seat position easy. The minimal engine overhang provides excellent rear and corner visibility, making the 903 easy to operate in confined areas.

Configured for Success

Configure the 903 for success with new options such as engine and ground speed control, ideally suited for hydro-mechanical work such as using a broom. With the addition of a work tool electrical harness option, you can now run more tools than ever before. Two loader linkage options, standard and high lift, provide either improved capacity or improved lift height based on your application.

Simply Reliable

Fully opening rear hood allows easy access to the engine compartment featuring side-by-side coolers and transparent fuel/water separator with optional engine air pre-cleaner and radiator screen for high debris applications. Rear tie down locations under the machine allow for easy transport, while the service locations under the hood provide easy access for daily maintenance.

Standard Equipment
  • POWER TRAIN
    • Air cleaner, two stage with visual indicator
    • Cat C.7 engine:
      – Meets U.S. EPA Tier 4 Final emission standards
    • Closed circuit breather
    • Cold start plugs
    • Electrical fuel priming pump
    • Eco drain, engine oil
    • Extended life coolant protects to –37° C (–34° F)
    • Frame mounted heavy duty axles with outboard planetary reduction
    • Maintenance free, sealed for life, prop shaft and universal joints
    • Transmission, 20 km/h (12.4 mph)
  • ELECTRICAL
    • 12 volt direct electric starting
    • Alternator, 70A
    • Battery disconnect switch
    • Cab mounted fuse panel
    • Ignition key start/stop switch
    • Maintenance free, sealed for life, 650 CCA heavy duty battery
  • OPERATOR ENVIRONMENT
    • Cup holder
    • Digital service hour meter
    • Engine coolant temperature gauge
    • Fuel level gauge
    • Heavy duty, easy clean floor mat
    • Operator warning system indicators:
      – DPF monitor
      – Parking brake applied
      – Hydraulic oil temperature
      – Engine oil pressure
      – Service brake pressure
      – Hydraulic filter bypass
    • Seat:
      – Static, vinyl with 51 mm (2 in) retractable seat belt
    • Two external mirrors – knock back
  • OTHER STANDARD EQUIPMENT
    • 3rd valve auxiliary hydraulics with continuous flow detent, standard flow
    • Engine enclosure – lockable
    • Guarded front headlight
    • Hydraulic auxiliary lines with quick disconnects
    • Hydraulic oil level sight gauge
    • Lift arm safety brace
    • Loader arm float function
    • Lockable fuel filler cap
    • Manual quick coupler, skid steer loader compatible
    • Parking brake (secondary brake)
    • Product Link™, PL243
    • Quick release fuel filter/water separator
    • Reversing light
    • Self-canceling direction indicators
    • Work tool return to dig
    • Z-bar linkage
Optional Equipment
  • OPTIONAL EQUIPMENT
    • Air conditioning/heater
    • Alternator, 90 amp for air conditioning
    • Antifreeze/coolant, extended life, protects to –50° C (–58° F)
    • Beacon ready
    • Cab:
      – Open
      – Enclosed
    • Differential lock, front and rear axles
    • Hydraulic quick coupler, skid steer loader compatible
    • Engine air precleaner
    • Engine block heater 120V (dealer installed)
    • Engine Speed Control (Throttle Lock)
    • Fenders:
      – Rear only
      – Front and rear
    • Ground Speed Control (Creeper Control)
    • Linkage:
      – Standard lift
      – High lift
    • Radiator debris screen
    • Radio Ready or AM/FM radio
    • Ride Control
    • Seats:
      – Mechanical suspension, vinyl with 51 mm (2 in) seat belt
      – Mechanical suspension, vinyl with 75 mm (3 in) seat belt
      – Mechanical suspension, fabric with 51 mm (2 in) seat belt
      – Mechanical suspension, fabric with 75 mm (3 in) seat belt
    • Tires:
      – 12-16.5 10PR
      – Flotation 33-15.5 × 16.5
      – Flexport™ 33 × 6 × 11
    • Working lights, front and rear:
      – Halogen
      – LED
    • Work Tool Electrical Harness
  • WORK TOOLS
    • For all work tool options, consult your Cat dealer.
