Overview

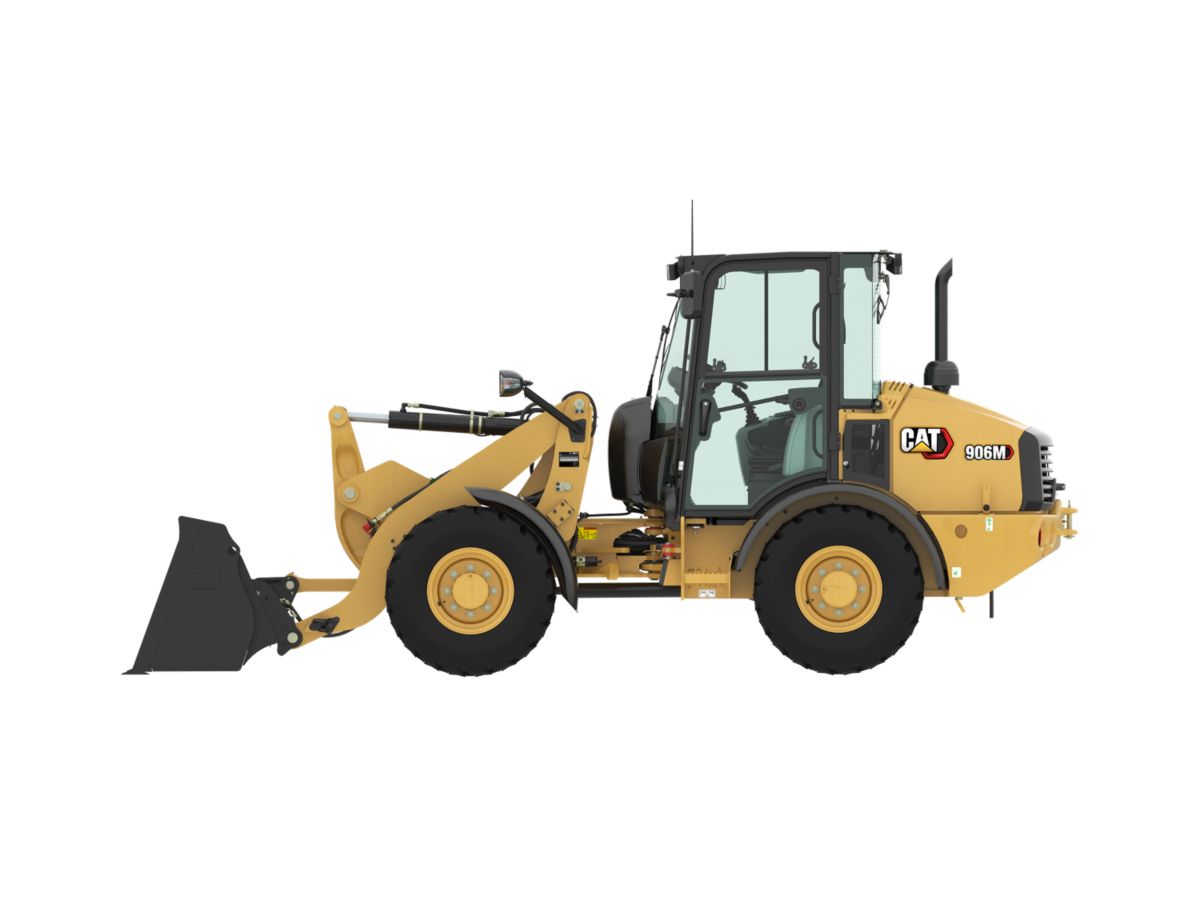

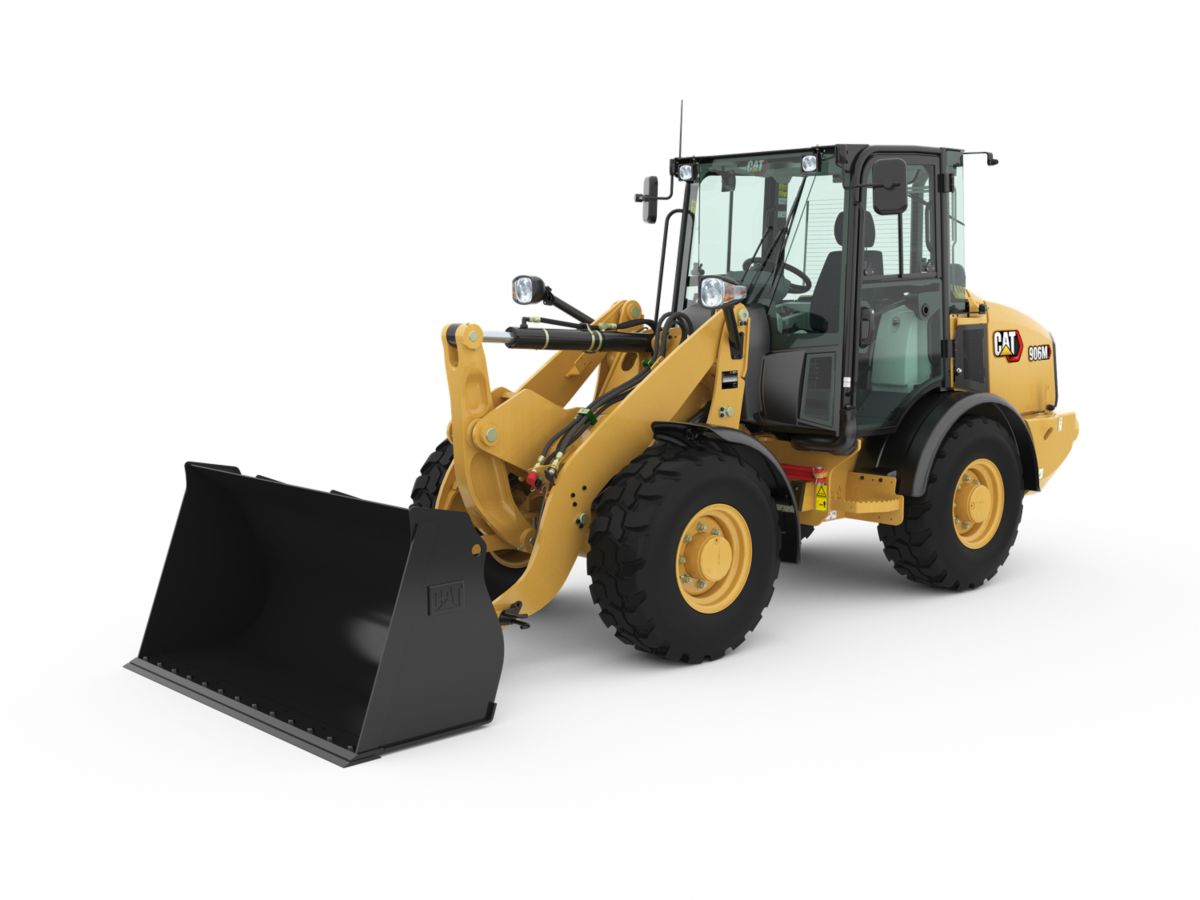

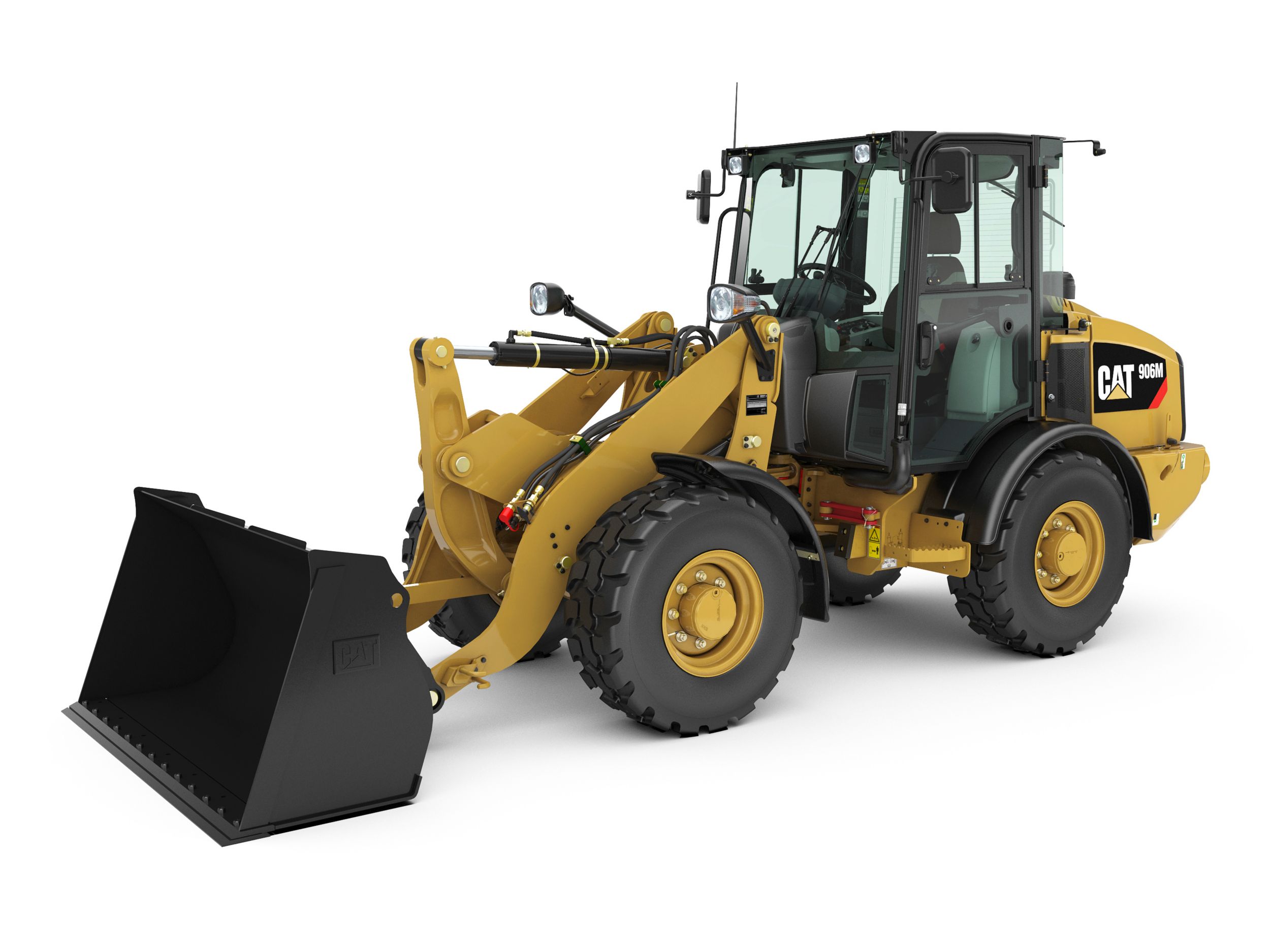

The Cat® 906M Compact Wheel Loader delivers high performance with outstanding versatility. On-the-go operator tuned hydraulics and drive train adjust the machine's response to the task at hand. Low sound levels, large spacious cab and intuitive controls keep you working comfortably all day long.

Engine

Net Power
74.00 hp
55.30 kW
Engine Model
Cat® C3.3B DIT*
Maximum Gross Power: ISO 14396 (DIN)
74.00 hp
55.00 kW
Maximum Gross Power - ISO 14396
73.00 HP
54.60 kW
Maximum Gross Power - SAE J1995
74.30 HP
55.40 kW
Rated net power @ 2,400 rpm – SAE J1349
73.00 hp
54.70 kW
Rated net power @ 2,400 rpm – ISO 9249 (1977)/EEC 80/1269
74.00 hp
55.30 kW
Emissions
*The Cat C3.3B DIT engine meets U.S. EPA Tier 4 Final/EU Stage IIIB emission standards or Tier 4 Interim/Stage IIIA equivalent emission standards.

Weights

Operating Weight
12346.00 lb
5600.00 kg

Loader Hydraulic System

Maximum flow – implement pump
19.00 gal/min
73.00 L/min
Maximum flow – implement pump: Auxiliary function standard flow
19.00 gal/min
73.00 L/min
Maximum flow – implement pump: Auxiliary function high flow
31.00 gal/min
116.00 L/min
Maximum Working Pressure - Implement Pump
3408.00 psi
23500.00 kPa
Relief pressure – tilt cylinder head
4496.00 psi
31000.00 kPa
Relief Pressure - Tilt Cylinder Rod
2756.00 psi
19000.00 kPa
3rd function maximum working pressure
3408.00 psi
23500.00 kPa

Service Refill Capacities

Cooling system
4.40 gal
16.50 L
Fuel tank
13.70 gal
52.00 L
Hydraulic system (including tank)
18.50 gal
70.00 L
Engine crankcase
3.00 gal
11.20 L

Operating Specifications

Full Turn Tipping Load
7507.00 lb
3405.00 kg
Tipping load – straight (ISO 14397-1)
8666.00 lb
3932.00 kg
Tipping load – full turn (ISO 14397-1)
7061.00 lb
3204.00 kg
Clearance: full lift and 45° dump
8.24 ft
2513.00 mm
Reach: full lift and 45° dump
2.34 ft
714.00 mm
Steering articulation angle each direction
39°

Dimensions with Bucket (Approximate): Standard Lift – with ISO Coupler

Height: ground to cab**
8.08 ft
2463.00 mm
Height: ground clearance**
11.00 in
300.00 mm
Length: wheel base
7.08 ft
2170.00 mm
Length: overall*
17.92 ft
5469.00 mm
Reach: bucket at 45°*
2.33 ft
725.00 mm
Dig depth**
3.70 in
95.00 mm
Clearance: bucket at 45°*
8.08 ft
2478.00 mm
Clearance: level bucket**
9.92 ft
3027.00 mm
Height: bucket pin**
10.58 ft
3227.00 mm
Width: bucket
6.17 ft
1890.00 mm
Width: tread center
4.58 ft
1420.00 mm
Turning radius: over bucket
14.50 ft
4420.00 mm
Turning radius: inside of tires
7.33 ft
2240.00 mm
Machine width
6.00 ft
1840.00 mm
Dump angle at full lift
45°
Departure angle
33°
Articulation angle
39°
Operating weight
12496.00 lb
5670.00 kg
Note
*Vary with bucket.
Note
**Vary with tire.
Note
Dimensions listed are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, no air conditioner and Dunlop 405/70 SPT9 tires.

Dimensions with Bucket (Approximate): Standard Lift – with SSL Coupler

Height: ground to cab**
8.08 ft
2463.00 mm
Height: ground clearance**
11.00 in
300.00 mm
Length: wheel base
7.08 ft
2170.00 mm
Length: overall*
18.42 ft
5620.00 mm
Reach: bucket at 45°*
2.67 ft
820.00 mm
Dig depth**
4.20 in
107.00 mm
Clearance: bucket at 45°*
7.67 ft
2359.00 mm
Clearance: level bucket**
9.92 ft
3035.00 mm
Height: bucket pin**
10.58 ft
3227.00 mm
Width: bucket
6.17 ft
1890.00 mm
Width: tread center
4.58 ft
1420.00 mm
Turning radius: over bucket
14.58 ft
4464.00 mm
Turning radius: inside of tires
7.33 ft
2240.00 mm
Machine width
6.00 ft
1840.00 mm
Dump angle at full lift
45°
Departure angle
33°
Articulation angle
39°
Operating weight
12481.00 lb
5663.00 kg
Note
*Vary with bucket.
Note
**Vary with tire.
Note
Dimensions listed are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, no air conditioner and Dunlop 405/70 SPT9 tires.

Operating Specifications

Rated Bucket Capacity
1.20 yd3
0.90 m3

Weights

Note
Specifications shown are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, Dunlop 405/70 SPT9 tires, full fuel, comfort EROPS cab, standard flow hydraulics and skid-steer coupler. – 906M is configured with a 0.9 m3 (1.2 yd3) bucket with bolt-on cutting edge.

Buckets

Bucket Capacities
0.75 m3-1.2 m3 (1.0 yd3-1.6 yd3)
General purpose
1.20 yd3
0.90 m3
Light material
1.57 yd3
1.20 m3

Engine

Maximum gross torque – ISO 14396
192.00 lbf-ft
261.00 N·m
Maximum net torque – SAE J1349
189.00 lbf-ft
257.00 N·m
Maximum net torque – ISO 9249 (1977)/EEC 80/1269
191.00 lbf-ft
260.00 N·m
Displacement
201.00 in3
3.30 L
Bore
3.70 in
94.00 mm
Stroke
4.70 in
120.00 mm
Note
Net power ratings are tested at the reference conditions for the specified standard.
Note
Net power shown is the power available at the flywheel when the engine is equipped with alternator, air cleaner, diesel exhaust filter, and fan at minimum speed.
Note
No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
Note
Flywheel per the SAE reference conditions with the fan at maximum speed.
Note
The Cat C3.3B Tier 4 Final/Stage IIIB uses an active regeneration system which requires no operator interaction under normal conditions.

Steering

Steering articulation angle each direction
39°
Steering cylinder: double acting – Bore diameter
3.10 in
80.00 mm
Steering cylinder: double acting – Rod diameter
1.40 in
35.00 mm
Steering cylinder: double acting – Stroke
11.80 in
300.00 mm
Nominal flow – steering pump
12.00 gal/min
43.90 L/min
Maximum working pressure – steering pump
3191.00 psi
22000.00 kPa
Maximum steering torque – 0° (straight machine)
37155.00 lbf-ft
50375.00 N·m
Maximum steering torque – 39° (full turn)
27747.00 lbf-ft
37620.00 N·m
Steering ac cycle times (full left to full right) – 2,620 rpm
3.00 seconds
3.00 seconds
Number of steering wheel turns – Full left to full right or full right to full left
<6 turns

Service Refill Capacities

Transmission (gear box)
2.20 gal
8.50 L
Axles – Front
N/A
