Overview

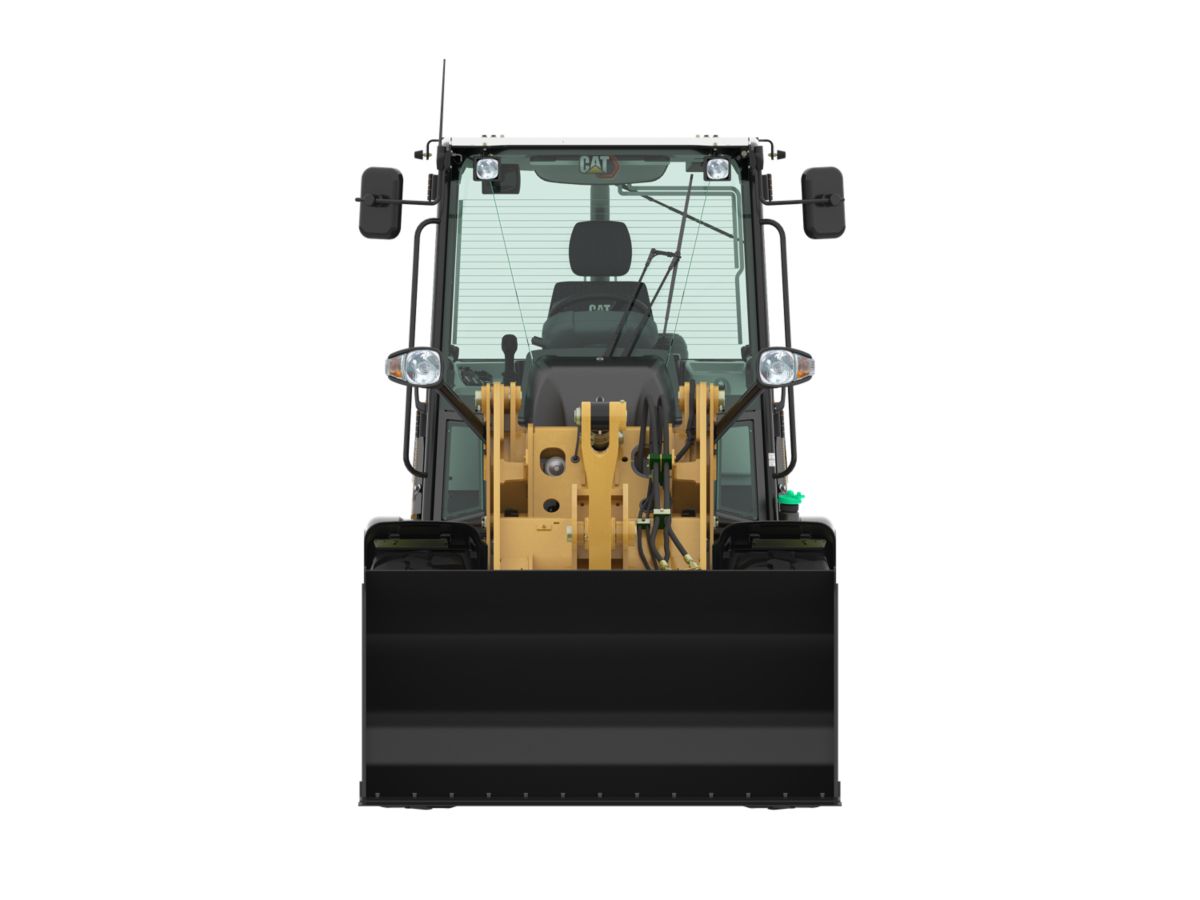

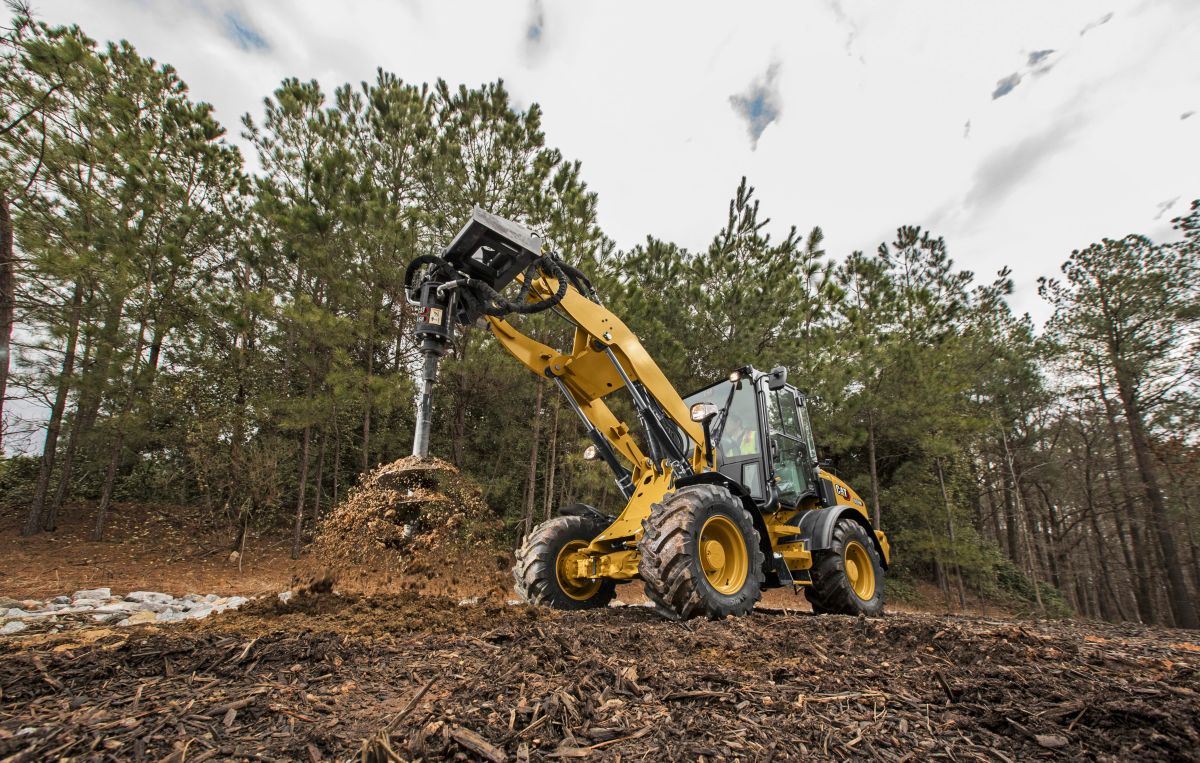

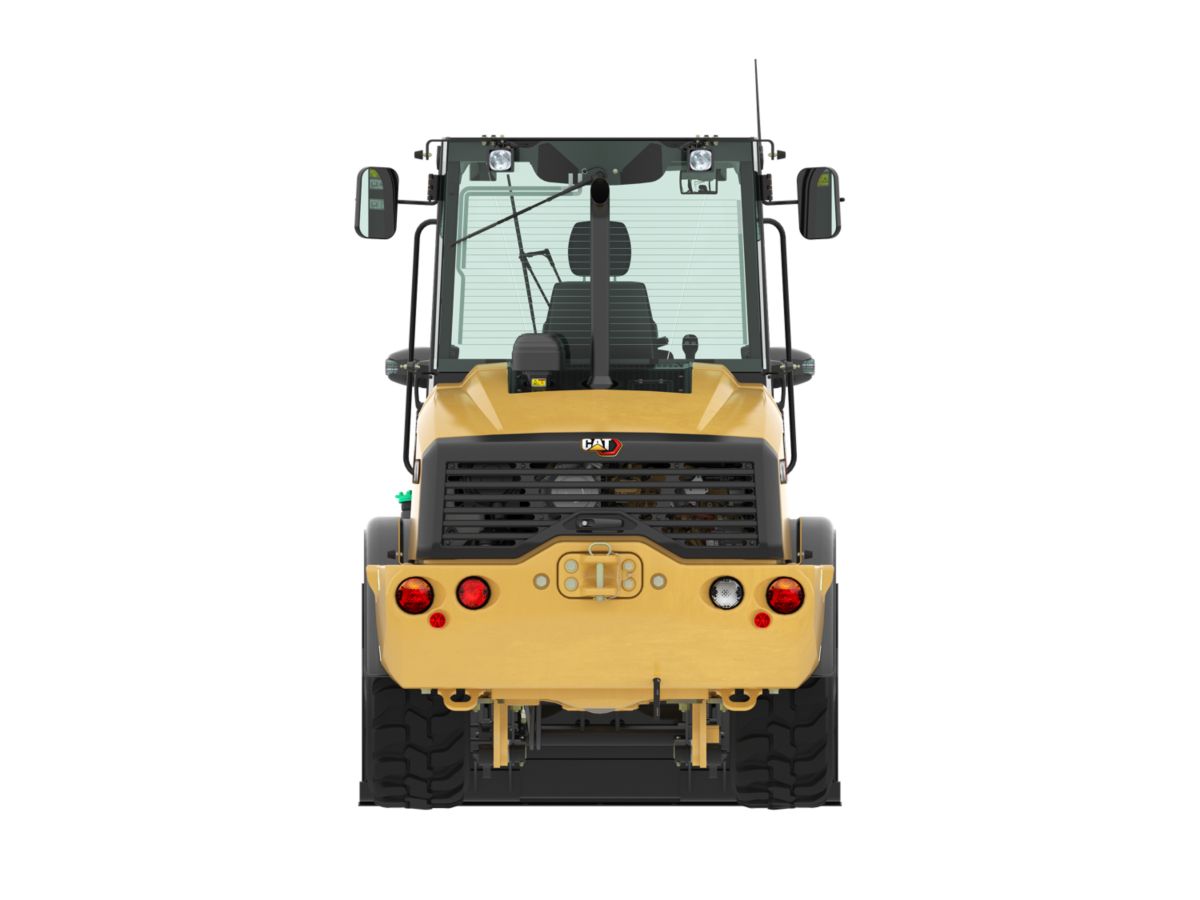

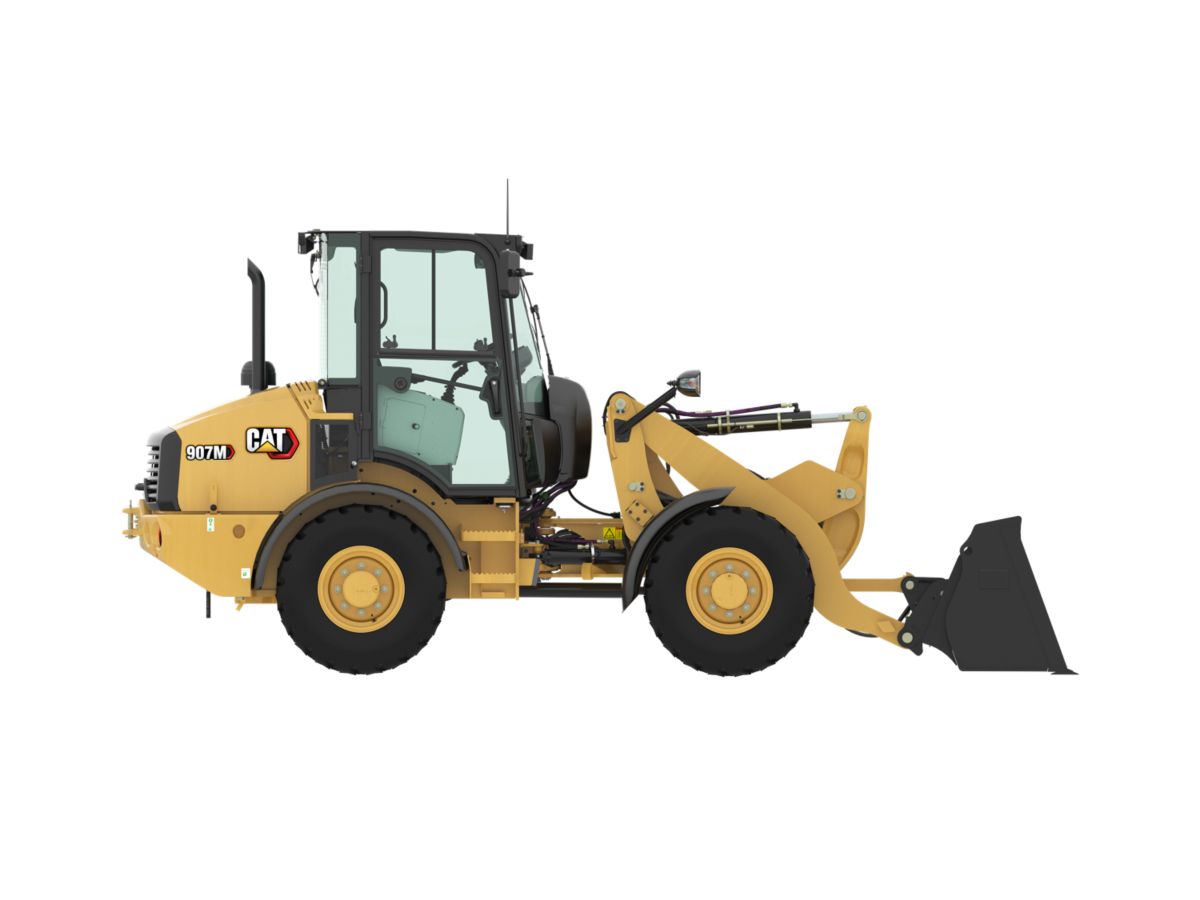

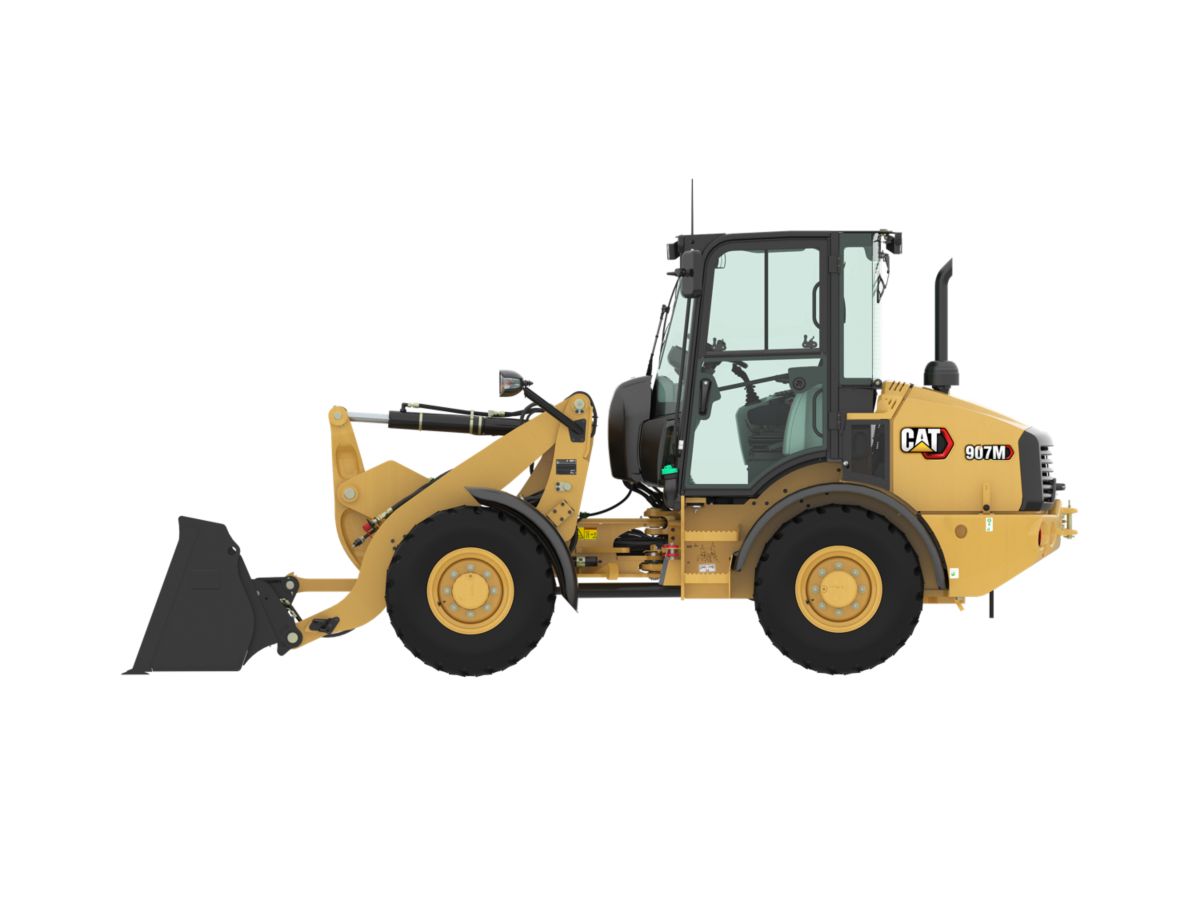

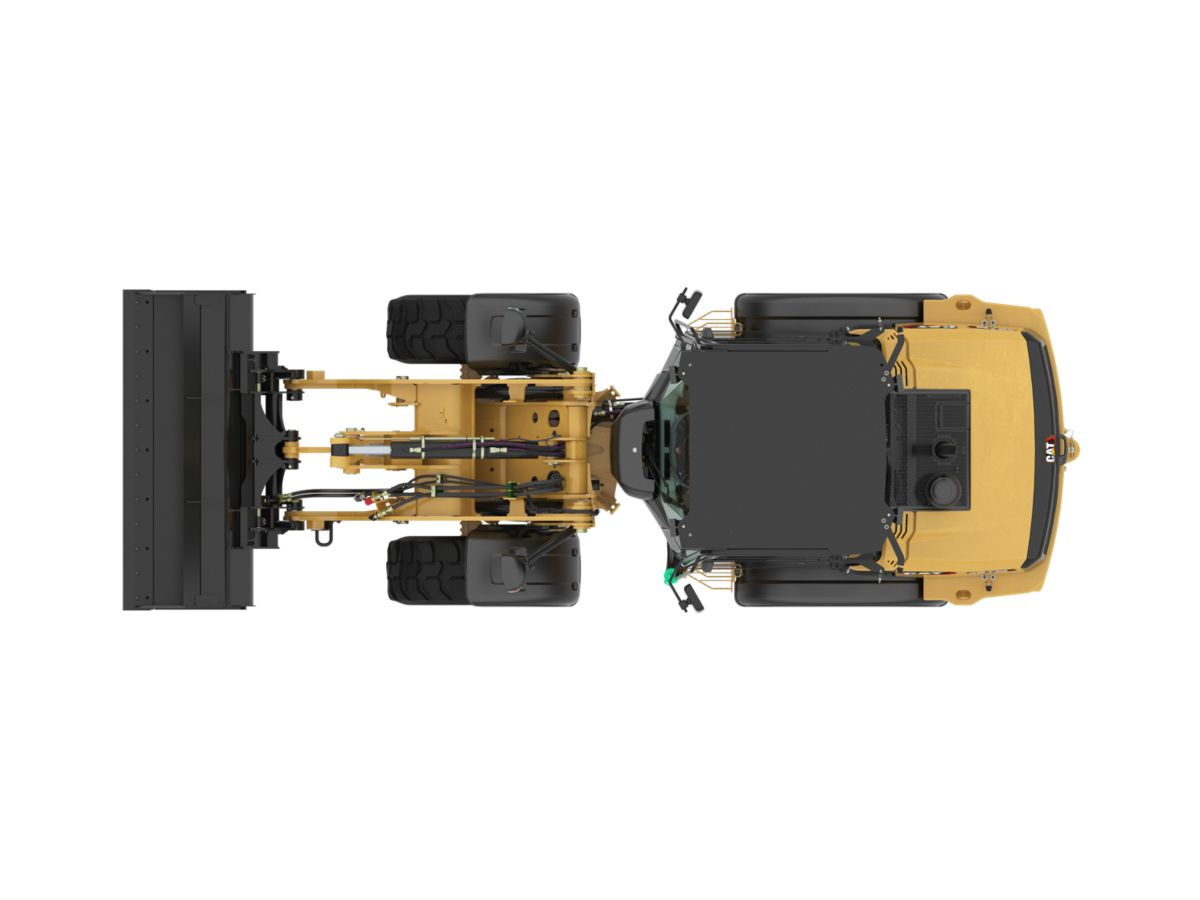

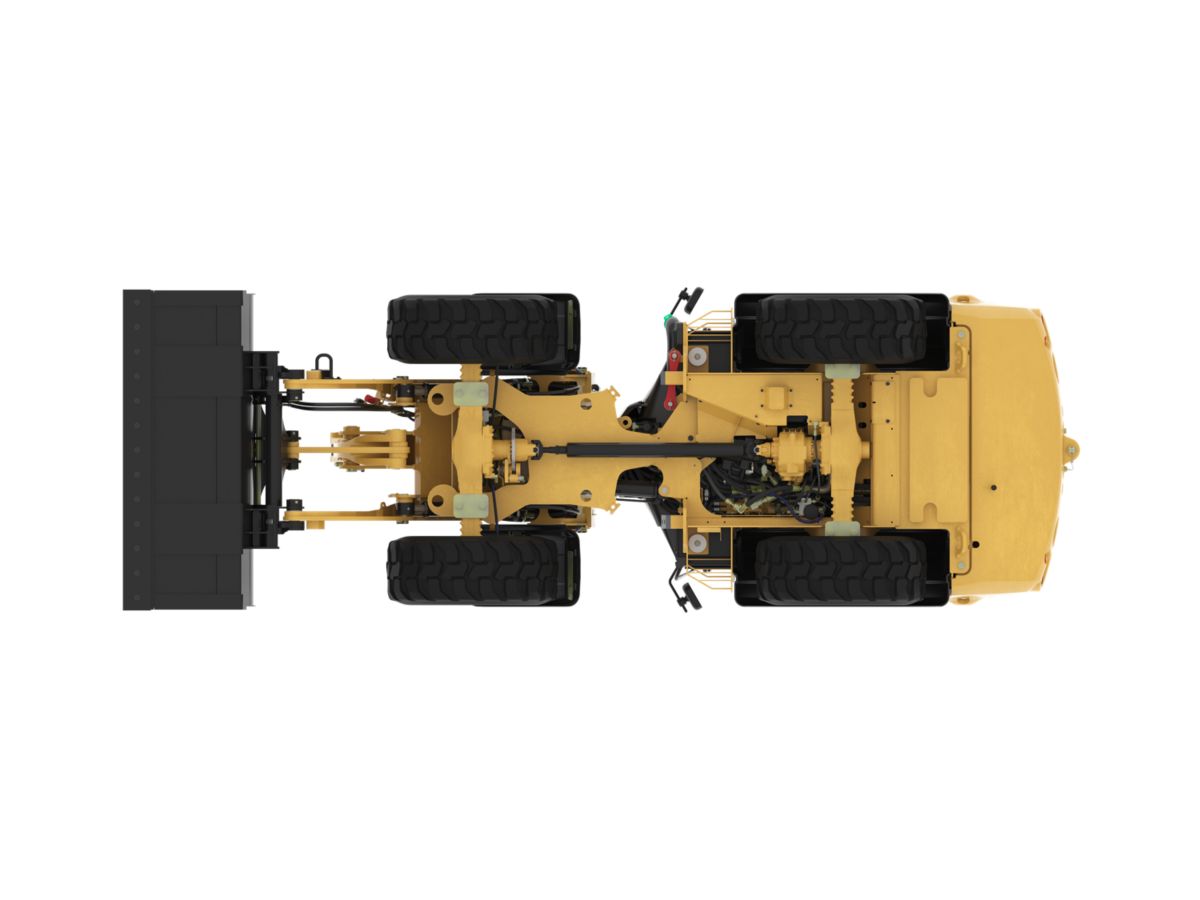

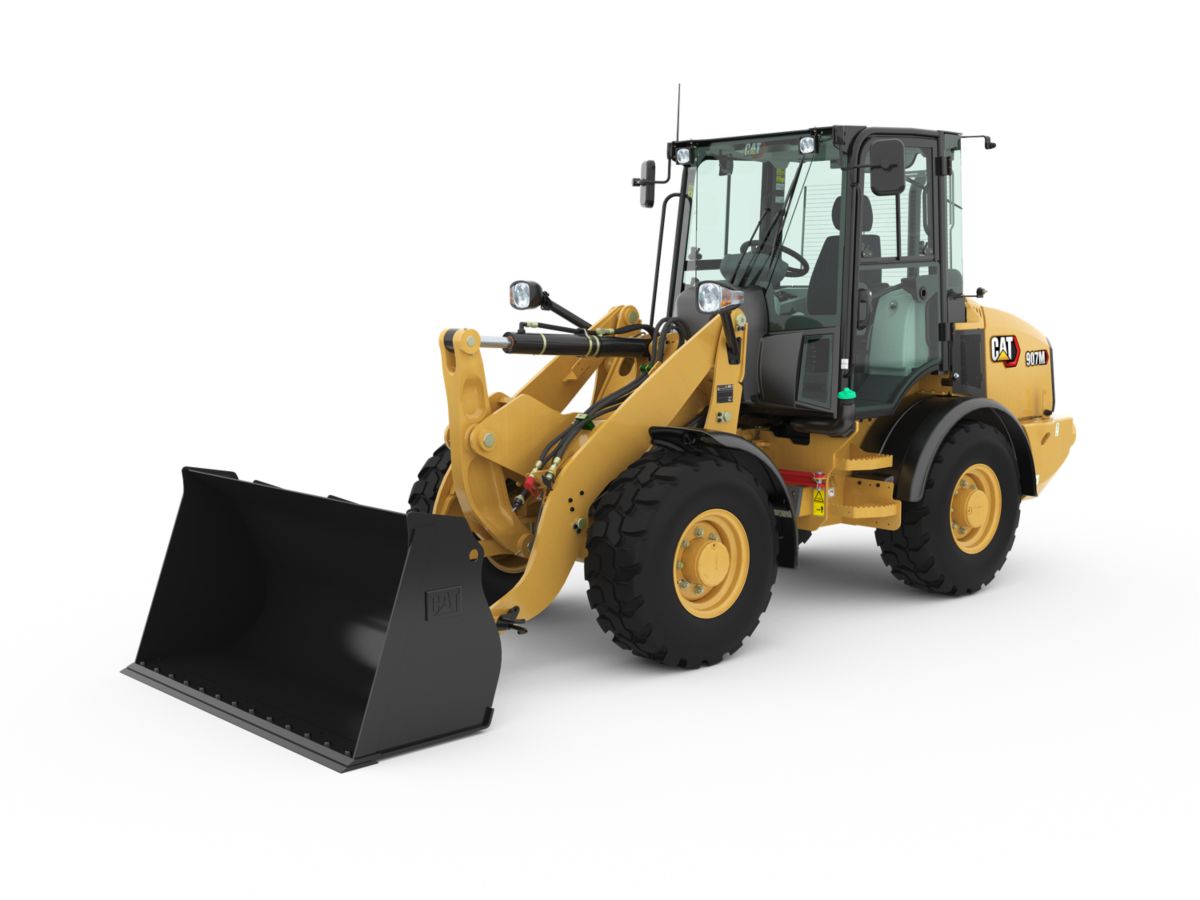

The Cat® 907M Compact Wheel Loader delivers high performance with outstanding versatility. On-the-go operator tuned hydraulics and drive train adjust the machine's response to the task at hand. Low sound levels, large spacious cab and intuitive controls keep you working comfortably all day long.

Engine

Net Power
74.00 hp
55.30 kW
Engine Model
Cat® C3.3B DIT*
Maximum Gross Power: ISO 14396 (DIN)
74.00 hp
55.00 kW
Maximum Gross Power - ISO 14396
73.20 HP
54.60 kW
Maximum Gross Power - SAE J1995
74.00 HP
55.00 kW
Rated net power @ 2,400 rpm – SAE J1349
73.00 hp
54.70 kW
Rated net power @ 2,400 rpm – ISO 9249 (1977)/EEC 80/1269
74.00 hp
55.30 kW
Emissions
*The Cat C3.3B DIT engine meets U.S. EPA Tier 4 Final/EU Stage IIIB emission standards or Tier 4 Interim/Stage IIIA equivalent emission standards.

Weights

Operating Weight
12677.00 lb
5750.00 kg

Operating Specifications

Rated Bucket Capacity
1.31 yd3
1.00 m3

Loader Hydraulic System

Maximum flow – implement pump
19.00 gal/min
73.00 L/min
Maximum flow – implement pump: Auxiliary function standard flow
19.00 gal/min
73.00 L/min
Maximum flow – implement pump: Auxiliary function high flow
31.00 gal/min
116.00 L/min
Maximum Working Pressure - Implement Pump
3408.00 psi
23500.00 kPa
Relief pressure – tilt cylinder head
4496.00 psi
31000.00 kPa
Relief Pressure - Tilt Cylinder Rod
2756.00 psi
19000.00 kPa
3rd function maximum working pressure
3408.00 psi
23500.00 kPa

Service Refill Capacities

Cooling system
4.50 gal
17.00 L
Fuel tank
20.60 gal
78.00 L
Hydraulic system (including tank)
18.50 gal
70.00 L
Engine crankcase
3.00 gal
11.20 L

Operating Specifications

Full Turn Tipping Load
7716.00 lb
3500.00 kg
Tipping load – straight (ISO 14397-1)
9007.00 lb
4087.00 kg
Tipping load – full turn (ISO 14397-1)
7339.00 lb
3330.00 kg
Clearance: full lift and 45° dump
7.97 ft
2429.00 mm
Reach: full lift and 45° dump
2.60 ft
792.00 mm
Steering articulation angle each direction
39°

Dimensions with Bucket (Approximate): Standard Lift – with ISO Coupler

Height: ground to cab**
8.42 ft
2586.00 mm
Height: ground clearance**
11.00 in
300.00 mm
Length: wheel base
7.08 ft
2170.00 mm
Length: overall*
17.92 ft
5469.00 mm
Reach: bucket at 45°*
2.33 ft
725.00 mm
Dig depth**
3.70 in
95.00 mm
Clearance: bucket at 45°*
8.08 ft
2478.00 mm
Clearance: level bucket**
9.92 ft
3027.00 mm
Height: bucket pin**
10.58 ft
3227.00 mm
Width: bucket
6.67 ft
2045.00 mm
Width: tread center
4.58 ft
1420.00 mm
Turning radius: over bucket
14.67 ft
4489.00 mm
Turning radius: inside of tires
7.33 ft
2240.00 mm
Machine width
6.00 ft
1840.00 mm
Dump angle at full lift
45°
Departure angle
33°
Articulation angle
39°
Operating weight
12913.00 lb
5859.00 kg
Note
*Vary with bucket.
Note
**Vary with tire.
Note
Dimensions listed are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, no air conditioner and Dunlop 405/70 SPT9 tires.

Dimensions with Bucket (Approximate): Standard Lift – with SSL Coupler

Height: ground to cab**
8.42 ft
2586.00 mm
Height: ground clearance**
11.00 in
300.00 mm
Length: wheel base
7.08 ft
2170.00 mm
Length: overall*
18.42 ft
5620.00 mm
Reach: bucket at 45°*
2.67 ft
820.00 mm
Dig depth**
4.20 in
107.00 mm
Clearance: bucket at 45°*
7.67 ft
2359.00 mm
Clearance: level bucket**
9.92 ft
3035.00 mm
Height: bucket pin**
10.58 ft
3227.00 mm
Width: bucket
6.67 ft
2045.00 mm
Width: tread center
4.58 ft
1420.00 mm
Turning radius: over bucket
14.67 ft
4473.00 mm
Turning radius: inside of tires
7.33 ft
2240.00 mm
Machine width
6.00 ft
1840.00 mm
Dump angle at full lift
45°
Departure angle
33°
Articulation angle
39°
Operating weight
12913.00 lb
5859.00 kg
Note
*Vary with bucket.
Note
**Vary with tire.
Note
Dimensions listed are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, no air conditioner and Dunlop 405/70 SPT9 tires.

Weights

Note
Specifications shown are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, Dunlop 405/70 SPT9 tires, full fuel, comfort EROPS cab, standard flow hydraulics and skid-steer coupler. – 907M is configured with a 1.0 m3 (1.31 yd3) bucket with bolt-on cutting edge.

Buckets

Bucket Capacities
0.75 m3-1.2 m3 (1.0 yd3-1.6 yd3)
General purpose
1.31 yd3
1.00 m3
Light material
1.57 yd3
1.20 m3

Engine

Maximum gross torque – ISO 14396
192.00 lbf-ft
261.00 N·m
Maximum net torque – SAE J1349
189.00 lbf-ft
257.00 N·m
Maximum net torque – ISO 9249 (1977)/EEC 80/1269
191.00 lbf-ft
260.00 N·m
Displacement
201.00 in3
3.30 L
Bore
3.70 in
94.00 mm
Stroke
4.70 in
120.00 mm
Note
Net power ratings are tested at the reference conditions for the specified standard.
Note
Net power shown is the power available at the flywheel when the engine is equipped with alternator, air cleaner, diesel exhaust filter, and fan at minimum speed.
Note
No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
Note
Flywheel per the SAE reference conditions with the fan at maximum speed.
Note
The Cat C3.3B Tier 4 Final/Stage IIIB uses an active regeneration system which requires no operator interaction under normal conditions.

Steering

Steering articulation angle each direction
39°
Steering cylinder: double acting – Bore diameter
3.10 in
80.00 mm
Steering cylinder: double acting – Rod diameter
1.40 in
35.00 mm
Steering cylinder: double acting – Stroke
11.80 in
300.00 mm
Nominal flow – steering pump
12.00 gal/min
43.90 L/min
Maximum working pressure – steering pump
3191.00 psi
22000.00 kPa
Maximum steering torque – 0° (straight machine)
37155.00 lbf-ft
50375.00 N·m
Maximum steering torque – 39° (full turn)
27747.00 lbf-ft
37620.00 N·m
Steering ac cycle times (full left to full right) – 2,620 rpm
3.00 seconds
3.00 seconds
Number of steering wheel turns – Full left to full right or full right to full left
<6 turns

Service Refill Capacities

Transmission (gear box)
2.20 gal
8.50 L
Axles – Front
N/A
Axles – Rear
N/A
Hydraulic tank
12.20 gal
46.00 L

Loader Hydraulic System

Boost flow maximum pressure
3191.00 psi
22000.00 kPa
Lift cylinder: double acting – Bore diameter
3.00 in
75.00 mm
Lift cylinder: double acting – Rod diameter
2.00 in
50.00 mm
Lift cylinder: double acting – Stroke
27.40 in
695.00 mm
Tilt cylinder: double acting – Bore diameter
3.50 in
90.00 mm
Tilt cylinder: double acting – Rod diameter
2.20 in
55.00 mm
Tilt cylinder: double acting – Stroke
16.40 in
417.00 mm
Hydraulic cycle times (1,800 rpm): Raise (ground level to maximum lift)
5.50 seconds
5.50 seconds
Hydraulic cycle times (1,800 rpm): Dump (at maximum lift height)
1.50 seconds
1.50 seconds
Hydraulic cycle times (1,800 rpm): Float down (maximum lift to ground level)
2.60 seconds
2.60 seconds
Hydraulic cycle times (1,800 rpm): Total cycle time
9.60 seconds
9.60 seconds
Hydraulic cycle times (1,000 rpm): Raise (ground level to maximum lift)
9.60 seconds
9.60 seconds
Hydraulic cycle times (1,000 rpm): Dump (at maximum lift height)
3.00 seconds
3.00 seconds
Hydraulic cycle times (1,000 rpm): Float down (maximum lift to ground level)
2.60 seconds
2.60 seconds

Drive Train

Forward – Range 1
6.00 mph
10.00 km/h
Forward – Range 2
12.00 mph
20.00 km/h
Forward – High range
22.00 mph
35.00 km/h
Reverse – Range 1
6.00 mph
10.00 km/h
Reverse – Range 2
12.00 mph
20.00 km/h
Reverse – High range
22.00 mph
35.00 km/h

Tires

Option
335/80 R18 XZSL Michelin
Option
340/80 R18 AT-R Firestone
Option
340/80 R18 XMCL Michelin
Option
340/80 R18 TRI2 Nokian
Option
340/80 R18 Bibload Michelin
Option
405/70 R18 SPT9 Dunlop*
Option
12.5/80 R18 Flexport™
Note
*Standard tire.
Note
Other tire choices available, contact your Cat dealer for details.
Note
In certain applications, the loader’s productive capabilities may exceed the tires’ tonnes-km/h (ton-mph) capabilities.
Note
Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Cab

ROPS
SAE J1040 MAY94, ISO 3471-1994.
FOPS
SAE J/ISO 3449 APR98, Level II, ISO 3449 1992 Level II.
Note
Cat cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note
When properly installed and maintained, the cab offered by Caterpillar, when tested with doors, and windows closed as per work cycle procedures specified in ISO 6395 2008, results in operator sound exposure Leq (Equivalent sound pressure level) of 66 dB(A) typical.

Engine

Maximum Gross Power
73.00 hp
54.60 kW
Net Power
74.00 HP
55.30 kW
Emissions
*The Cat C3.3B DIT engine meets EU Stage V/U.S. EPA Tier 4 Final emission standards.
Engine Model
Cat® C3.3B DIT*
Maximum Gross Power - ISO 14396 (DIN)
74.00 HP
55.00 kW
Rated Net Power - 2,400 rpm - ISO 9249 (1977)/EEC 80/1269
74.00 HP
55.30 kW
Rated Net Power - 2,400 rpm - SAE J1349
71.90 HP
53.60 kW

Weights

Operating Weight
12677.00 lb
5750.00 kg

Service Refill Capacities

Cooling System
4.50 gal (US)
16.50 l
Engine Crankcase
3.00 gal (US)
11.20 l
Fuel Tank
20.60 gal (US)
78.00 l
Hydraulic System - Including Tank
18.50 gal (US)
70.00 l

Operating Specifications

Rated Bucket Capacity
1.31 yd³
1.00 m³

Loader Hydraulic System

3rd Function Maximum Working Pressure
3408.00 psi
23500.00 kPa
Maximum Flow - Implement Pump
19.00 gal/min
73.00 l/min
Maximum Flow - Implement Pump - Auxiliary Function High Flow
31.00 gal/min
116.00 l/min
Maximum Flow - Implement Pump - Auxiliary Function Standard Flow
19.00 gal/min
73.00 l/min
Relief Pressure - Tilt Cylinder Head
4496.00 psi
31000.00 kPa

Operating Specifications

Clearance - Full Lift and 45° Dump
7.97 ft
2429.00 mm
Full Turn Tipping Load
7716.00 lb
3500.00 kg
Reach - Full Lift and 45° Dump
2.60 ft
792.00 mm
Steering Articulation Angle - Each Direction
39°
Tipping Load - Full Turn - ISO 14397-1
7339.00 lb
3330.00 kg
Tipping Load - Straight - ISO 14397-1
9007.00 lb
4087.00 kg

Dimensions with Bucket (Approximate) - Standard Lift - With ISO Coupler

Articulation Angle
39°
Clearance - Bucket at 45° *
8.08 ft
2478.00 mm
Clearance - Level Bucket**
9.92 ft
3027.00 mm
Departure Angle
33°
Dig Depth**
3.70 in
95.00 mm
Dump Angle at Full Lift
45°
Height - Bucket Pin**
10.58 ft
3227.00 mm
Height - Ground Clearance**
11.00 in
300.00 mm
Height - Ground to Cab**
8.42 ft
2586.00 mm
Length - Overall*
17.92 ft
5469.00 mm
Length - Wheel Base
7.08 ft
2170.00 mm
Machine Width
6.00 ft
1840.00 mm
Note (1)
*Vary with bucket.
Note (2)
**Vary with tire.
Note (3)
Dimensions listed are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, no air conditioner and Dunlop 405/70 SPT9 tires.
Operating Weight
12913.00 lb
5859.00 kg
Reach - Bucket at 45°*
2.33 ft
725.00 mm
Turning Radius - Inside of Tires
7.33 ft
2240.00 mm
Turning Radius - Over Bucket
14.67 ft
4489.00 mm
Width - Bucket
6.67 ft
2045.00 mm
Width - Tread Center
4.58 ft
1420.00 mm

Dimensions with Bucket (Approximate) - Standard Lift - With SSL Coupler

Articulation Angle
39°
Clearance - Bucket at 45° *
7.67 ft
2359.00 mm
Clearance - Level Bucket**
9.92 ft
3035.00 mm
Departure Angle
33°
Dig Depth**
4.20 in
107.00 mm
Dump Angle at Full Lift
45°
Height - Bucket Pin**
10.58 ft
3227.00 mm
Height - Ground Clearance**
11.00 in
300.00 mm
Height - Ground to Cab**
8.42 ft
2586.00 mm
Length - Overall*
18.42 ft
5620.00 mm
Length - Wheel Base
7.08 ft
2170.00 mm
Machine Width
6.00 ft
1840.00 mm
Note (1)
*Vary with bucket.
Note (2)
**Vary with tire.
Note (3)
Dimensions listed are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, no air conditioner and Dunlop 405/70 SPT9 tires.
Operating Weight
12913.00 lb
5859.00 kg
Reach - Bucket at 45°*
2.67 ft
820.00 mm
Turning Radius - Inside of Tires
7.33 ft
2240.00 mm
Turning Radius - Over Bucket
14.67 ft
4473.00 mm
Width - Bucket
6.67 ft
2045.00 mm
Width - Tread Center
4.58 ft
1420.00 mm

Engine

Maximum Gross Power
73.20 HP
54.60 kW

Buckets

Bucket Capacities
0.75-1.5 m3 (1.0-2.0 yd3)

Cab

ROPS
ROPS: ISO 3471:2008
FOPS
FOPS: ISO 3449:2005 Level II

Buckets

General Purpose
1.31 yd³
1.00 m³
Light Material
1.57 yd³
1.20 m³
1.2 m³ (1.6 yd³), 1.5 m³ (2.0 yd³)

Cab

Note (1)
Cat Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)
The declared dynamic operator Sound Pressure level per ISO 6396:2008*, when the cab is properly installed and maintained, is 75 dB(A). The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 101 dB(A). Optional Low Sound or Blue Angel selection will reduce this to 99 dB(A).

Drive Train

Forward - High Range
22.00 mile/h
35.00 km/h
Forward - Range 1
6.00 mile/h
10.00 km/h
Forward - Range 2
12.00 mile/h
20.00 km/h
Reverse - High Range
22.00 mile/h
35.00 km/h
Reverse - Range 1
6.00 mile/h
10.00 km/h
Reverse - Range 2
12.00 mile/h
20.00 km/h

Engine

Bore
3.70 in
94.00 mm
Displacement
201.00 in³
3.30 l
Maximum Gross Torque - ISO 14396
192.00 ft·lbf
261.00 N·m
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269
191.00 ft·lbf
260.00 N·m

Engine - Tier 4 Final/Stage IV

Maximum Net Torque - SAE J1349
189.00 ft·lbf
257.00 N·m

Engine

Note (1)
Net power ratings are tested at the reference conditions for the specified standard.
Note (2)
Net power shown is the power available at the flywheel when the engine is equipped with alternator, air cleaner, diesel exhaust filter, and fan at minimum speed.
Note (3)
No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
Note (4)
Flywheel per the SAE reference conditions with the fan at maximum speed.
Note (5)
The Cat C3.3B DIT Tier 4 Final/Stage V uses an active regeneration system which requires no operator interaction under normal conditions.
Stroke
4.70 in
120.00 mm

Loader Hydraulic System

Boost Flow Maximum Pressure
3191.00 psi
22000.00 kPa
Hydraulic Cycle Time - 1,000 rpm - Dump, at Maximum Lift Height
3.00 s
3.00 s
Hydraulic Cycle Time - 1,000 rpm - Float Down, Maximum Lift to Ground Level
2.60 s
2.60 s
Hydraulic Cycle Time - 1,000 rpm - Raise, Ground Level to Maximum Lift
9.60 s
9.60 s
Hydraulic Cycle Time - 1,800 rpm - Dump, at Maximum Lift Height
1.50 s
1.50 s
Hydraulic Cycle Time - 1,800 rpm - Float Down, Maximum Lift to Ground Level
2.60 s
2.60 s
Hydraulic Cycle Time - 1,800 rpm - Raise, Ground Level to Maximum Lift
5.50 s
5.50 s
Hydraulic Cycle Time - 1,800 rpm - Total Cycle Time
9.60 s
9.60 s
Lift Cylinder, Double Acting - Bore Diameter
3.00 in
75.00 mm
Lift Cylinder, Double Acting - Rod Diameter
2.00 in
50.00 mm
Lift Cylinder, Double Acting - Stroke
27.40 in
695.00 mm
Tilt Cylinder, Double Acting - Bore Diameter
3.50 in
90.00 mm
Tilt Cylinder, Double Acting - Rod Diameter
2.20 in
55.00 mm
Tilt Cylinder, Double Acting - Stroke
16.40 in
417.00 mm

Service Refill Capacities

Axles - Front
N/A
Axles - Rear
N/A
Hydraulic Tank
12.20 gal (US)
46.00 l
Transmission - Gear Box
2.20 gal (US)
8.50 l

Steering

Maximum Steering Torque - 0° (Straight Machine)
37155.00 ft·lbf
50375.00 N·m
Maximum Steering Torque - 39° (Full Turn)
27747.00 ft·lbf
37620.00 N·m
Maximum Working Pressure - Steering Pump
3191.00 psi
22000.00 kPa
Nominal Flow - Steering Pump
12.00 gal/min
43.90 l/min
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left
<6 turns
Steering AC Cycle Times - Full Left to Full Right - 2,620 rpm
3.00 s
3.00 s
Steering Articulation Angle - Each Direction
39°
Steering Cylinder, Double Acting - Bore Diameter
3.10 in
80.00 mm
Steering Cylinder, Double Acting - Rod Diameter
1.40 in
35.00 mm
Steering Cylinder, Double Acting - Stroke
11.80 in
300.00 mm

Tires

Note (1)
*Standard tire.
Note (2)
Other tire choices available, contact your Cat dealer for details.
Note (3)
In certain applications, the loader's productive capabilities may exceed the tires' tonnes-km/h (ton-mph) capabilities.
Note (4)
Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Option (1)
335/80 R18 XZSL Michelin
Option (2)
340/80 R18 AT-R Firestone
Option (3)
340/80 R18 XMCL Michelin
Option (4)
340/80 R18 TRI2 Nokian
Option (5)
340/80 R18 Bibload Michelin
Option (6)
405/70 R18 SPT9 Dunlop*
Option (7)
12.5/80 R18 Flexport™

Weights

Note
Specifications shown are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, Dunlop 405/70 SPT9 tires, full fuel, comfort ROPS cab, standard flow hydraulics and skid-steer coupler. The 907M is configured with a 1.0 m³ (1.31 yd³) bucket with bolt-on cutting edge.

Engine

Note (6)
Stage V engine available for Europe only.
Note (7)
Tier 4 Final engine will be offered for North America and Japan.
Note (8)
Tier 4 Final machines will not be offered or sold into Europe.

Buckets

General Purpose
0.8 m³ (1 yd³), 0.9 m³ (1.2 yd³), 1.0 m³ (1.3 yd³), 1.1 m³ (1.4 yd³), 1.3 m³ (1.7 yd³)
Grapple
0.9 m³ (1.2 yd³) heaped
Multi-Purpose
0.75 m³ (1.0 yd³), 0.9 m³ (1.2 yd³), 1.05 m³ (1.37 yd³)
Note
All capacities are applicable for each model. Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.

Engine

Maximum Gross Power - DIN ISO 14396
74.00 HP
55.00 kW

Cab

Note (3)
*The measurements were conducted with the cab doors and windows closed.

Engine

Rated Net Power - ISO 9249
72.90 HP
72.90 kW

Buckets

Bucket Capacities - ISO Coupler
0.75-1.5 m3

Engine

Maximum Gross Power - ISO 14396 (metric)
74.20 HP
74.20 HP

Buckets

Bucket Capacities - SSL Style Coupler
1.0-2.0 yd3

Engine

Rated Net Power - 2,400 rpm - ISO 9249
72.90 HP
53.60 kW
Maximum Net Torque - ISO 9249
191.00 ft·lbf
260.00 N·m

Service Refill Capacities

Engine Oil
3.00 gal (US)
11.20 l
Features

High Performance

With its high full turn tipping loads and breakout forces, the M Series delivers a powerful solution for all customer applications.

Ease of Operation

State of the art electro-hydraulic system provides low effort, fine control with fast cycle times. The all-in-one joystick helps keep eyes on the work. Machine responsiveness can be adjusted with the push of a button, which allows you to set up the machine exactly the way you want it based on the application.

Comfortable Cab

High visibility cab increases comfort with an available deluxe seat, intuitive controls and settings. Optional soft touch pad contains new electronic functions and settings including Implement Modulation and Hystat Aggressiveness, Ride Control, Return to Dig, Lift Kickout, Engine Speed Control, and Rimpull Control. Optional built-in Machine Security System prevents machine theft.

Cat Optimized Z-bar Loader Linkage

The Cat optimized Z-bar loader linkage combines the digging efficiency of a traditional Z-bar with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control.

Power Train

Heavy duty axles and 100% diff-lock come standard on both the 20 km/h (12 mph) standard speed machine as well as the 35 km/h (22 mph) high speed option. Ride control is also available as an option, for added comfort and load retention when having to travel longer distances.

Versatility

Whether using a horizontal style coupler (HPL-ISO or HPL-A) or the Skid Steer Loader (SSL) style coupler, combined with standard flow or optional high flow hydraulics, the Cat Compact Wheel Loaders can use a large range of work tools including hydro mechanical work tools.

Serviceability

The design of the M Series allows quick and easy servicing. Tilt up engine hood and side service doors give exceptional access to the major components safely from ground level. S·O·Soil ports and pressure test points enable easy preventative maintenance.

Sales Features

M Series Compact Wheel Loaders

A comprehensive range to suit all applications and environments.

Parallel Lift Loader Linkage

Cat Optimized Z-bar Loader delivers enhanced visibility with maximum productivity.

Industry Leading Operator Station

Superior visibility, ergonomics and comfort.

Power Train

Hydrostatic drive adjusts to be faster or smoother for the task.

Couplers

Making the Compact Wheel Loader even more versatile.

Hydraulics

Operator tuned hydraulics matches responsiveness to the task.

Work Tools

Do more jobs with one machine.

Reliability and Durability

Quality within, quality throughout.

Options

Customize your machine to meet your needs.

Serviceability

Easy service to keep your machine working.

Customer Support

Unmatched support makes the difference.
Standard Equipment
  • TRANSMISSION AND HYDRAULICS
    • 18° frame oscillation, 78° articulation
    • Demand based cooling fan
    • Hydrostatic drive
    • Loader arm float function
    • Parallel lift Z-bar loader
    • Proportional auxiliary hydraulic circuit
    • Transmission, 20 km/h (12.4 mph) with heavy duty axles
    • Transmission inching function
  • ENGINE
    • Cat C3.3B DIT EU Stage V/U.S. EPA Tier 4 Final engine.
    • Cat extended life coolant
    • Closed circuit breather
    • Easy quick release fuel filter/water separator
    • ECO mode
    • Engine oil drain valve (non-spill ECO drain)
    • Lockable engine compartments
    • Two stage air cleaner with visual indicator
  • ELECTRICAL
    • Alternator 90 amp
    • Battery disconnect switch
    • Cab mounted fuse panel
    • Engine cold starter aid
    • Heavy duty battery, 12V
    • Service point connector for electronic diagnosis (Cat Electronic Technician™)
    • Reversing alarm
  • GENERAL
    • E-coat paint primer
    • Pressure test points
    • Recovery hitch and pin
    • Scheduled Oil Sampling S·O·SSM ports
  • OPERATOR ENVIRONMENT
    • Adjustable internal mirror
    • Adjustable wrist rest
    • Auxiliary power sockets
    • Coat hook
    • Cup holder
    • Digital service hour meter
    • Easy clean cab floor
    • Gauges: fuel hydraulic temperature, coolant temperature, speedometer
    • Multifunction joystick with direction control
    • On board digital display cluster
    • Operator station on isolation mounts
    • Retractable seat belt
    • ROPS and FOPS certified canopy/cab
    • Sound suppression
    • Sun visor
    • Suspended brake/accelerator pedals
    • Suspension seat
    • Two doors (enclosed cab)
    • Two external knock back mirrors
    • Warning indicators for major systems
    • Wiper/washer front and rear (enclosed cab)
    • Warnings: master, park brake, hydraulic oil pressure, engine oil pressure, coolant temp, electrical system, hydraulic filter bypass
Optional Equipment
  • TRANSMISSION AND HYDRAULICS
    • 100% differential lock on both axles, selectable on the move
    • Adjustable speed control (creeper control)
    • Adjustable high stat response settings
    • Electronic throttle lock
    • Ride control
    • Rimpull control
    • Speeder, 35 km/h (21.7 mph) with secondary steering
  • ENGINE
    • Engine block heater 120V
    • Precleaner for engine air filter
  • ELECTRICAL
    • Machine Security System (MSS)
    • Magnetic rotating beacon
    • Halogen working lights, two front and two rear
    • LED working lights, two front and two rear
    • Work tool wiring harness
  • GENERAL
    • Custom color
    • Rear light guards
    • Tire options including heavy duty tires
  • FLUIDS
    • Cat extended life coolant (–50° C/–58° F)
  • LOADER
    • Adjustable implement modulation
    • High flow auxiliary hydraulics with pressure relieving quick disconnect manifold
    • Load check valves
    • Return To Dig tool positioner
  • WORK TOOLS
    • For all work tool options, consult your local Cat dealer
  • OPERATOR ENVIRONMENT
    • Air conditioning
    • Cabin light
    • Cat Radio/FM/DAB+/Bluetooth/Aux/Mic/Phone/USB
    • Comfort cab includes: cloth suspension seat, heated rear window, sliding left window and radio ready
    • Open canopy: fixed steering column, coat hook, sun visor (North America only)
    • Deluxe cab includes: Comfort cab options plus heated cloth air suspension seat with lumbar support and right sliding window
    • Heated rear window (enclosed cab)
    • Heater with window side and feet vents (enclosed cab)
    • Radio ready kit including speakers (enclosed cab)
    • Rear blind
