Overview

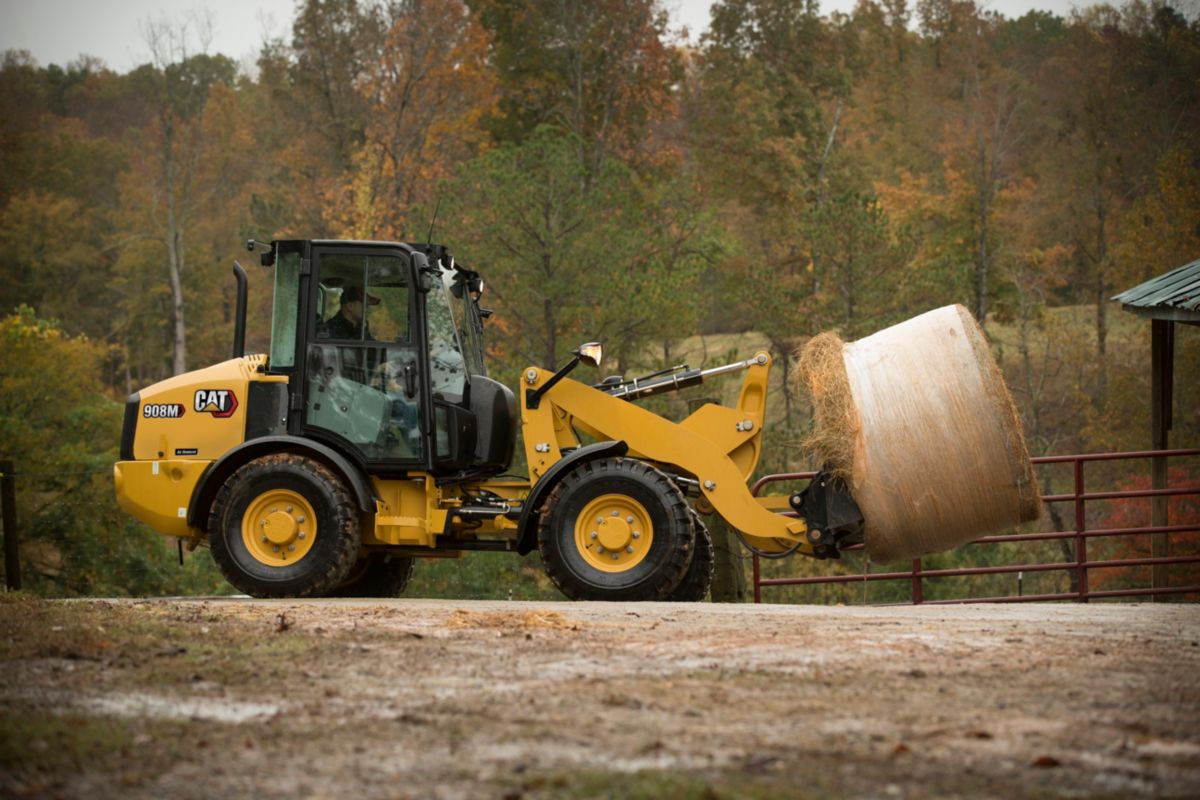

The Cat® 908M Ag Handler is compact, yet powerful, allowing you to do what you want, when you need to, in any agricultural application. The Ag Handler has features that will maximize the performance of the machine, making it a perfect fit to use around the farm.

Engine

Maximum Gross Power
73.20 HP
54.60 kW

Weights

Operating Weight
14402.00 lb
6535.00 kg

Buckets

Bucket Capacities
0.9-1.5 m³ (1.2-2.0 yd³)

Weights

Note
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, skid steer loader coupler (SSL) and general purpose bucket (GP).

Engine

Emissions
*The Cat C3.3B DIT engine meets EU Stage V/U.S. EPA Tier 4 Final emission standards.
Maximum Gross Power - ISO 14396
73.20 HP
54.60 kW

Buckets

Bucket Capacities - ISO Coupler
0.9-1.5 m³
Bucket Capacities - SSL Style Coupler
1.2-2.0 yd³

Travel Speeds

Speed 1
6.20 mile/h
10.00 km/h
Speed 2
12.40 mile/h
20.00 km/h
High Speed
21.70 mile/h
35.00 km/h

Hydraulic System

Main Relief - 3rd Aux Flow
3400.00 psi
235.00 bar
Main Relief - 3rd Aux Flow: Standard
22.00 gal/min
85.00 l/min
Main Relief - 3rd Aux Flow: High Flow
34.00 gal/min
130.00 l/min

Loader Hydraulic System

Hydraulic Cycle Time - Lift
5.2 seconds

Hydraulic System

Hydraulic Cycle Time - Lower
3.2 seconds

Loader Hydraulic System

Hydraulic Cycle Time - Dump
1.3 seconds

Hydraulic System

Hydraulic Cycle Time - Rackback
2.1 seconds

Service Refill Capacities

Engine Oil
3.00 gal (US)
11.20 l

Dimensions - With ISO Coupler - Approximate

Height - Ground to Cab
8.58 ft
2632.00 mm
Height - Ground Clearance
1.08 ft
335.00 mm
Length - Wheel Base
7.08 ft
2170.00 mm
Length - Overall with Bucket
18.25 ft
5578.00 mm
Reach - Bucket at 45°
3.42 ft
1055.00 mm
Dig Depth
5.70 in
147.00 mm
Clearance - Bucket at 45°
9.33 ft
2846.00 mm
Clearance - Level Bucket
10.33 ft
3159.00 mm
Height - Bucket Pin
11.00 ft
3366.00 mm
Departure Angle
33°
Length - Overall with Forks
19.92 ft
6093.00 mm
Reach - Ground
2.83 ft
878.00 mm
Reach - Level Arm
4.33 ft
1321.00 mm
Fork Dig Depth
6.40 in
163.00 mm
Clearance - Level Arm
4.42 ft
1358.00 mm
Clearance - Full Lift
10.25 ft
3143.00 mm
Fork Reach at Full Lift
1.50 ft
472.00 mm
Turning Radius - Over Bucket
14.67 ft
4478.00 mm
Turning Radius - Inside Tire
6.67 ft
2033.00 mm
Width - Bucket
6.75 ft
2060.00 mm
Width - Tread Center
5.08 ft
1570.00 mm
Width - Over Tires
6.50 ft
1990.00 mm
Articulation Angle
39°
Dump Angle at Full Lift
45°
Note
Dimensions shown are based on the machine equipped with general purpose bucket and standard 400/70 R20, XMCL tires.)

Dimensions - With SSL Coupler - Approximate

Height - Ground to Cab
8.58 ft
2632.00 mm
Height - Ground Clearance
1.08 ft
335.00 mm
Length - Wheel Base
7.08 ft
2170.00 mm
Length - Overall with Bucket
18.75 ft
5735.00 mm
Reach - Bucket at 45°
3.92 ft
1207.00 mm
Dig Depth
6.00 in
155.00 mm
Clearance - Bucket at 45°
9.17 ft
2806.00 mm
Clearance - Level Bucket
10.33 ft
3151.00 mm
Height - Bucket Pin
10.50 ft
3212.00 mm
Departure Angle
33°
Length - Overall with Forks
20.00 ft
6111.00 mm
Reach - Ground
2.92 ft
896.00 mm
Reach - Level Arm
4.75 ft
1452.00 mm
Fork Dig Depth
0.80 in
21.00 mm
Clearance - Level Arm
4.92 ft
1500.00 mm
Clearance - Full Lift
10.75 ft
3285.00 mm
Fork Reach at Full Lift
1.92 ft
603.00 mm
Turning Radius - Over Bucket
14.75 ft
4498.00 mm
Turning Radius - Inside Tire
6.67 ft
2033.00 mm
Width - Bucket
6.75 ft
2060.00 mm
Width - Tread Center
5.08 ft
1570.00 mm
Width - Over Tires
6.50 ft
1990.00 mm
Articulation Angle
39°
Dump Angle at Full Lift
45°
Note
Dimensions shown are based on the machine equipped with general purpose bucket and standard 400/70 R20, XMCL tires.)

Operating Specifications - ISO Coupler

Tire Size
400/70 R20
Operating Weight
14299.00 lb
6488.00 kg
Rated Bucket Capacity
1.50 yd³
1.15 m³
Breakout Force - Bucket
12337.00 lbf
55.00 kN
Rated Operating Load at Full Turn - Bucket
4396.00 lb
1994.00 kg
Straight Tipping Load - Bucket
10408.00 lb
4721.00 kg
Full Turn Static Tipping Load - Bucket
8789.00 lb
3988.00 kg
Rack Back - Transport Position
51°
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center)
5719.00 lb
2595.00 kg
Note
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, ISO coupler and general purpose bucket (GP).

Operating Specifications - SSL Coupler

Tire Size
400/70 R20
Operating Weight
14402.00 lb
6535.00 kg
Rated Bucket Capacity
1.50 yd³
1.15 m³
Breakout Force - Bucket
10215.00 lbf
46.00 kN
Rated Operating Load at Full Turn - Bucket
4385.00 lb
1989.00 kg
Straight Tipping Load - Bucket
10399.00 lb
4717.00 kg
Full Turn Static Tipping Load - Bucket
8766.00 lb
3978.00 kg

Engine

Rated Net Power - 2,400 rpm - SAE J1349
71.90 HP
53.60 kW
Engine Model
Cat® C3.3B DIT*
Maximum Gross Power - ISO 14396 (metric)
74.20 mhp
74.20 mhp
Rated Net Power - 2,400 rpm - ISO 9249
72.90 HP
53.60 kW

Operating Specifications - SSL Coupler

Rack Back - Transport Position
51°
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center)
5336.00 lb
2421.00 kg
Note
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, SSL coupler and general purpose bucket (GP).

Maximum Material Densities - General Purpose Bucket

Rated Capacity
1.40 yd³
1.10 m³
Dump Height
110.00 in
2806.00 mm
Maximum Material Density
2914.00 lb/yd³
1729.00 kg/m³
Bucket Width
81.00 in
2060.00 mm
Note
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Maximum Material Densities - Multi Purpose Bucket

Rated Capacity
1.20 yd³
0.90 m³
Dump Height
110.00 in
2799.00 mm
Maximum Material Density
4060.00 lb/yd³
2409.00 kg/m³
Bucket Width
81.00 in
2060.00 mm
Note
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Maximum Material Densities - Light Material Bucket

Rated Capacity
2.00 yd³
1.50 m³
Dump Height
111.00 in
2826.00 mm
Maximum Material Density
2771.00 lb/yd³
1644.00 kg/m³
Bucket Width
81.00 in
2060.00 mm
Note
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Service Refill Capacities

Cooling System
4.50 gal (US)
17.00 l
Fuel Tank
20.60 gal (US)
78.00 l
Hydraulic System
18.50 gal (US)
70.00 l
Features

Application Specific Configuration

The Ag Handler is configured with items such as a high speed transmission for quick travel from farm to field, engine air pre-cleaner for dusty environments, Ag specific tires to maximize traction and LED work lights when operating early in the morning, ensuring that this machine is configured for success.

Efficiently Powerful

Experience hybrid like fuel efficiency with an intelligent hydrostatic power train. Eco Mode will allow you to maximize fuel efficiency while maintaining the power going into the pile.

Work Made Easy

Move more with Caterpillar’s patented Optimized Z-Bar linkage. The parallel lift and high tilt forces throughout the working range allow you to safely and confidently handle loads with precise control. Multi-function work has never been easier with dedicated pumps for each system, allowing the operator to simultaneously lift, steer and drive without compromise.

Enjoy All Day Comfort

Have a seat and enjoy excellent all around visibility, whisper quiet sound levels, and low-effort joystick controls while riding on a fully adjustable seat suspension. The spacious cab combined with smooth hydraulic and power train controls make this the most comfortable seat on your job site.

Customize Your Experience

Meet your application requirements and individual preferences with Caterpillar’s industry first adjustable power train and implement response settings. Fine tune machine performance with adjustments at your fingertips through the soft touch button keypad.

Standard Equipment
  • LOADER
    • Return to dig work tool positioner
    • Adjustable implement modulation
  • TRANSMISSION/HYDRAULICS
    • Adjustable speed control (creeper control)
    • Rimpull control
    • Electronic throttle lock
    • Adjustable Hystat response settings
    • Ride control
    • 18° frame oscillation, 78° articulation
    • Transmission, 35 km/h (21.7 mph) with secondary steering and heavy duty axles
    • Transmission inching function
    • Hydrostatic drive
    • Work tool quick coupler
    • Proportional auxiliary hydraulic circuit
    • Loader arm float function
    • Connect under pressure hydraulic quick connector
    • Parallel lift Z-bar loader
    • Demand based cooling fan
  • ENGINE
    • Precleaner for engine air filter
    • Cat C3.3B DIT EU Stage V/U.S. EPA Tier 4 Final engine
    • Two stage air cleaner with visual indicator
    • Cat extended life coolant
    • Lockable engine compartments
    • Easy quick release fuel filter/water separator
    • Engine oil drain valve (non spill eco drain)
    • Closed circuit breather
    • Eco Mode
  • ELECTRICAL
    • Magnetic rotating beacon
    • Work tool wiring harness
    • Working lights, two front and two rear
    • Cab mounted fuse panel
    • Battery disconnect switch
    • Heavy duty battery, 12V
    • Engine cold starter aid
    • Alternator 90 amp
    • Service point connector for electronic diagnostics (Electronic Technician™)
    • Reverse alarm
  • GENERAL
    • E-coat paint primer
    • Pressure test points
    • Recovery hitch and pin
    • Scheduled Oil Sampling S·O·SSM ports
  • OPERATOR ENVIRONMENT
    • Adjustable steering column
    • Air conditioning
    • Heater with window, side and feet vents
    • Heated rear window
    • Radio/CD/MP3/WMA/AUX
    • Two doors with sliding window
    • Wiper/washer, front and rear
    • Cabin light
    • Pressurized cab
    • Cup holder
    • Sun visor
    • ROPS and FOPS certified canopy/cab
    • Adjustable arm rest
    • Retractable seat belt
    • Auxiliary power sockets
    • Coat hook
    • On board digital display cluster
    • Sound suppression
    • Multifunction joystick with direction control
    • Two external knock back mirrors
    • Warning indicators for major systems
    • Easy clean cab floor
    • Lockable storage box
    • Adjustable internal mirror
    • Operator station on isolation mounts
    • Digital service hour meter
    • Gauges: fuel hydraulic temp, coolant temp, speedometer
    • Warnings: master, park brake, hydraulic oil pressure, engine oil pressure, coolant temp, electrical system, hydraulic filter bypass
    • Suspended brake/accelerator pedals
    • Cloth, electric air suspension, arm/head rest, lumbar support, heated back seat
Optional Equipment
  • TRANSMISSION/HYDRAULICS
    • 100% differential lock on both axles, selectable on the move
  • LOADER
    • High flow auxiliary hydraulics with pressure relieving quick disconnect manifold
    • Load check valves
  • ENGINE
    • Engine block heater 120V
  • ELECTRICAL
    • Machine Security System (MSS)
  • GENERAL
    • Custom color
    • Tire options
  • FLUIDS
    • Cat extended life coolant (–50° C/–58° F)
  • OPERATOR ENVIRONMENT
    • Rear blind
  • WORK TOOLS
    • For all work tools and standard/high flow options (consult your Cat dealer)
