910M Compact Wheel Loader

Request A Quote 910M Attachments New and Used Inventory

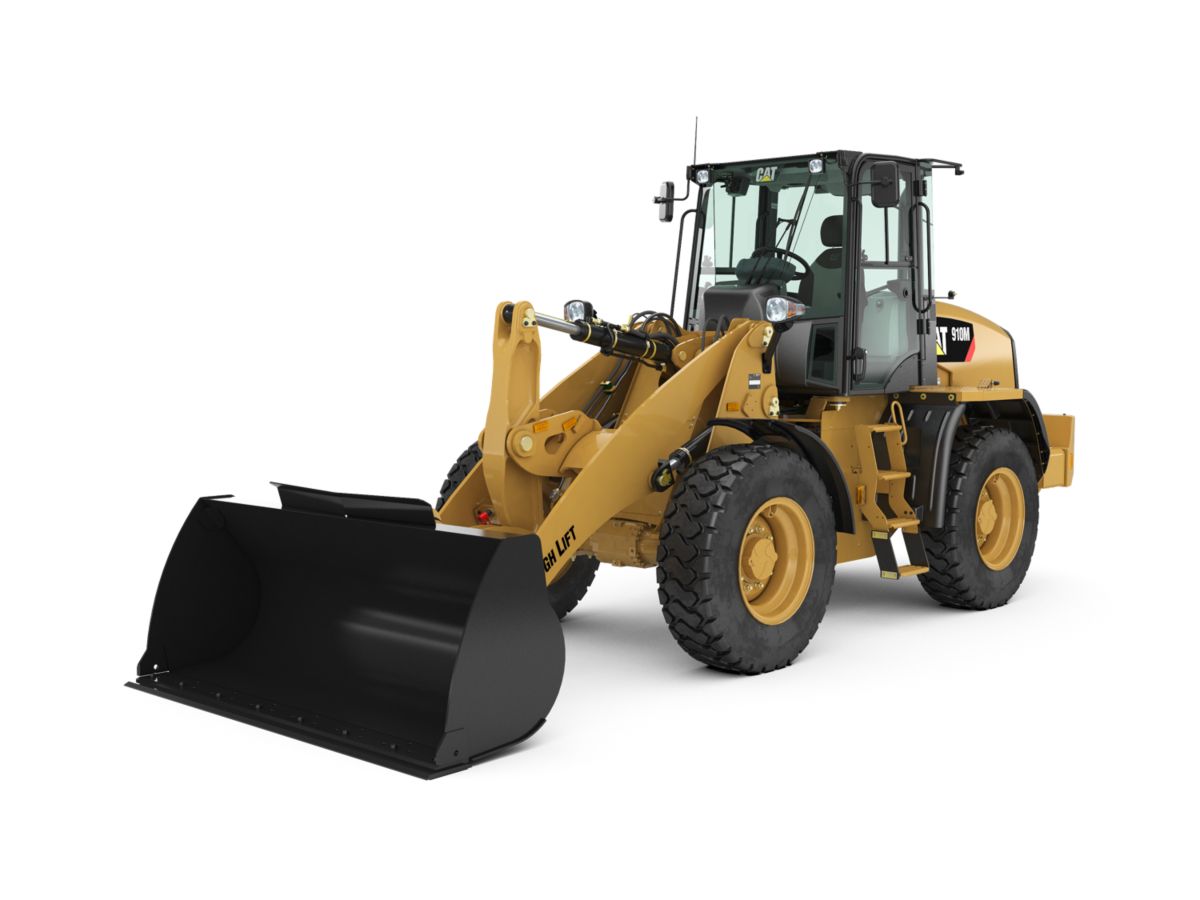

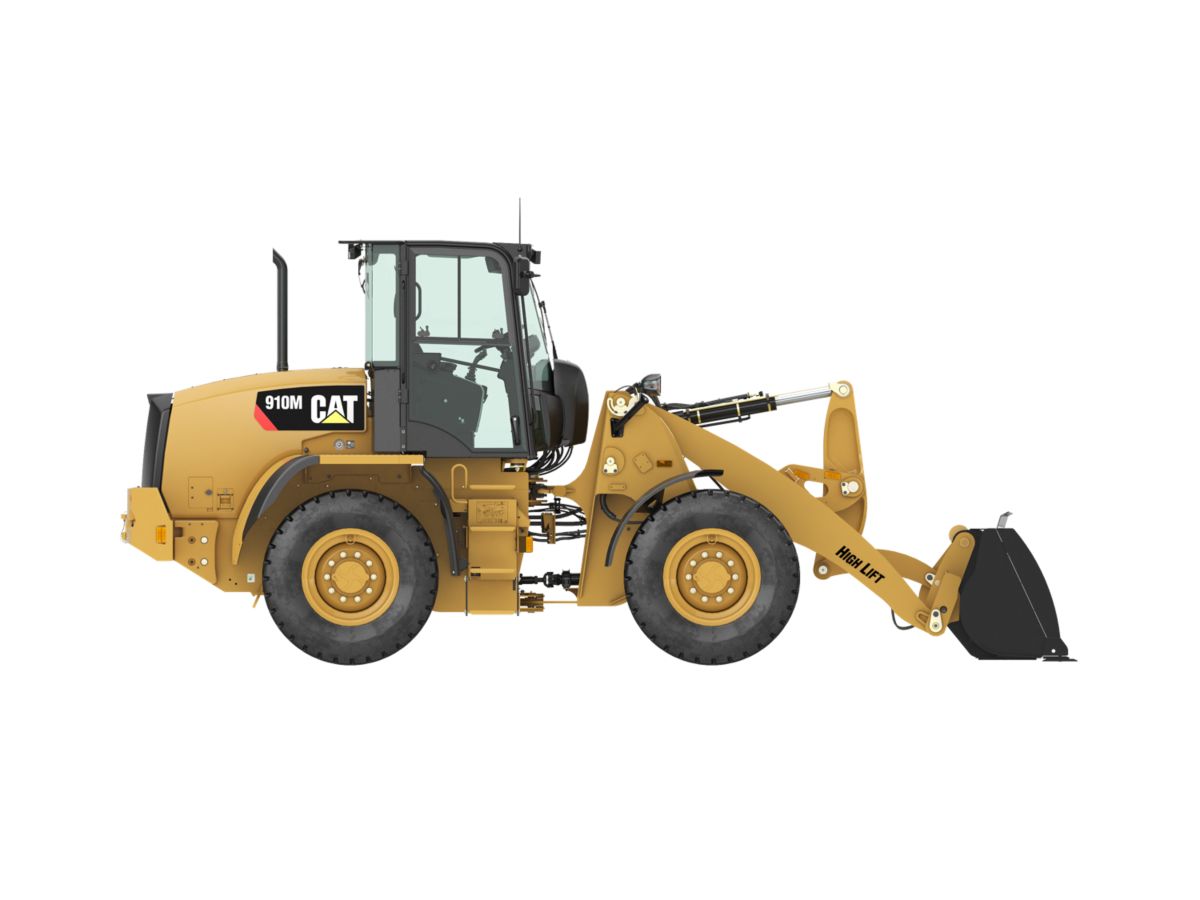

Studio Shot

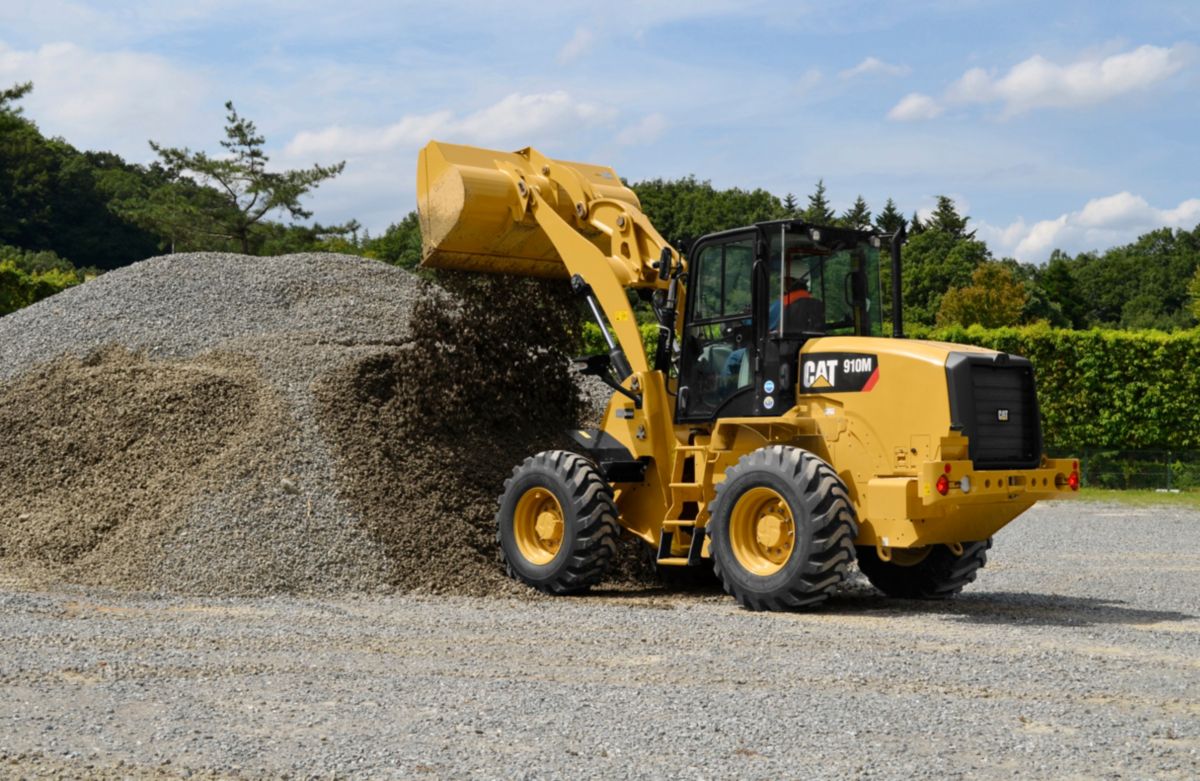

910M Compact Wheel Loader

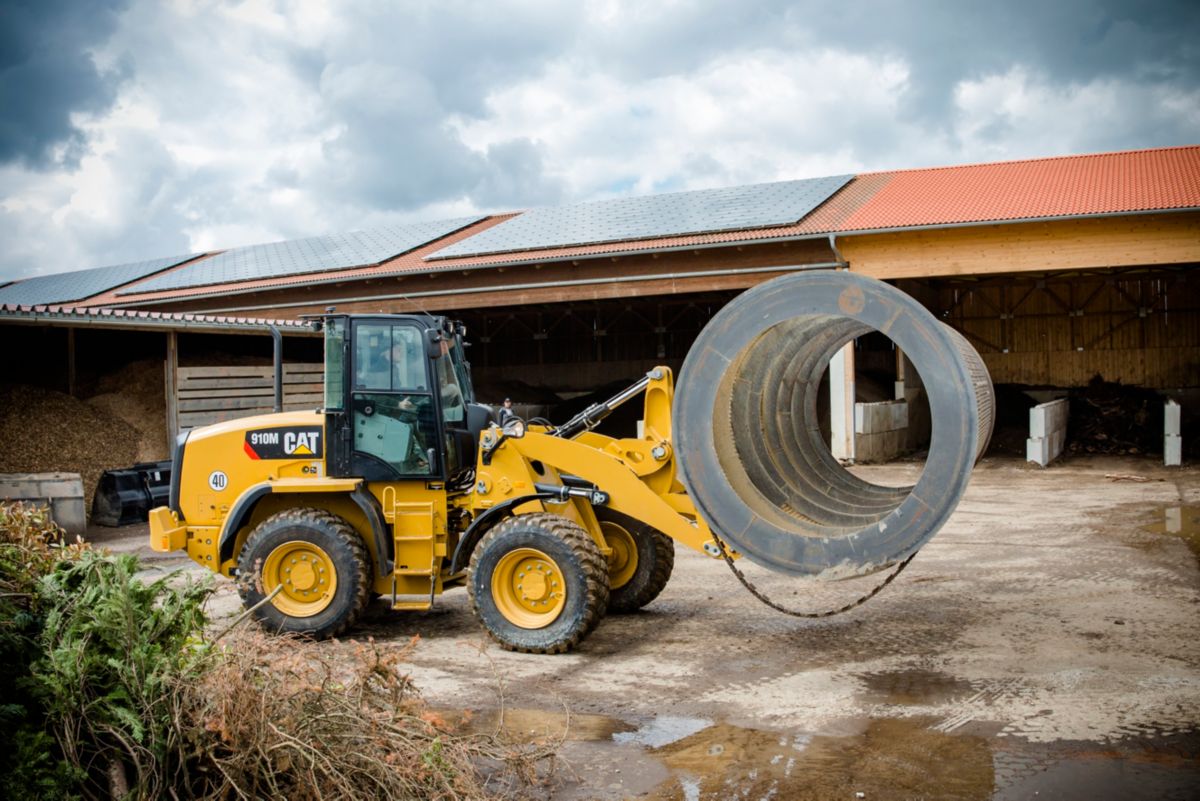

910M Compact Wheel Loader

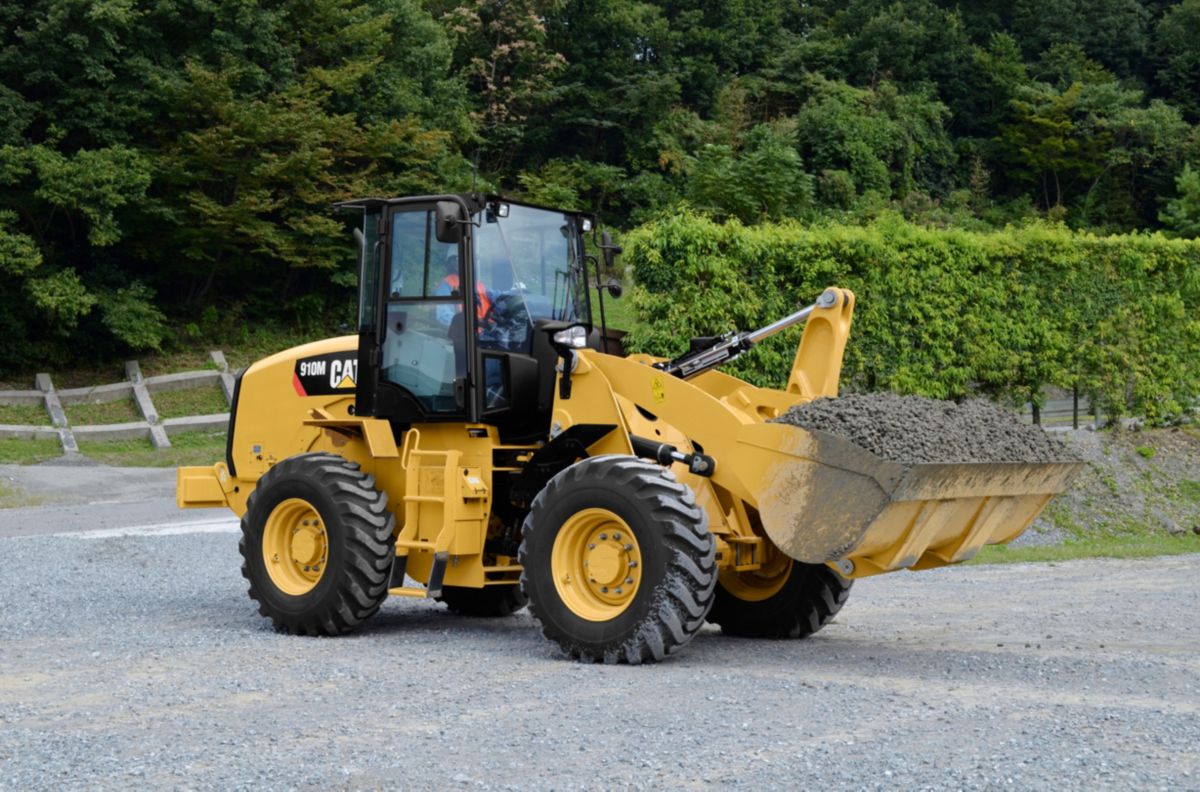

910M Compact Wheel Loader
910M Compact Wheel Loader
910M Compact Wheel Loader

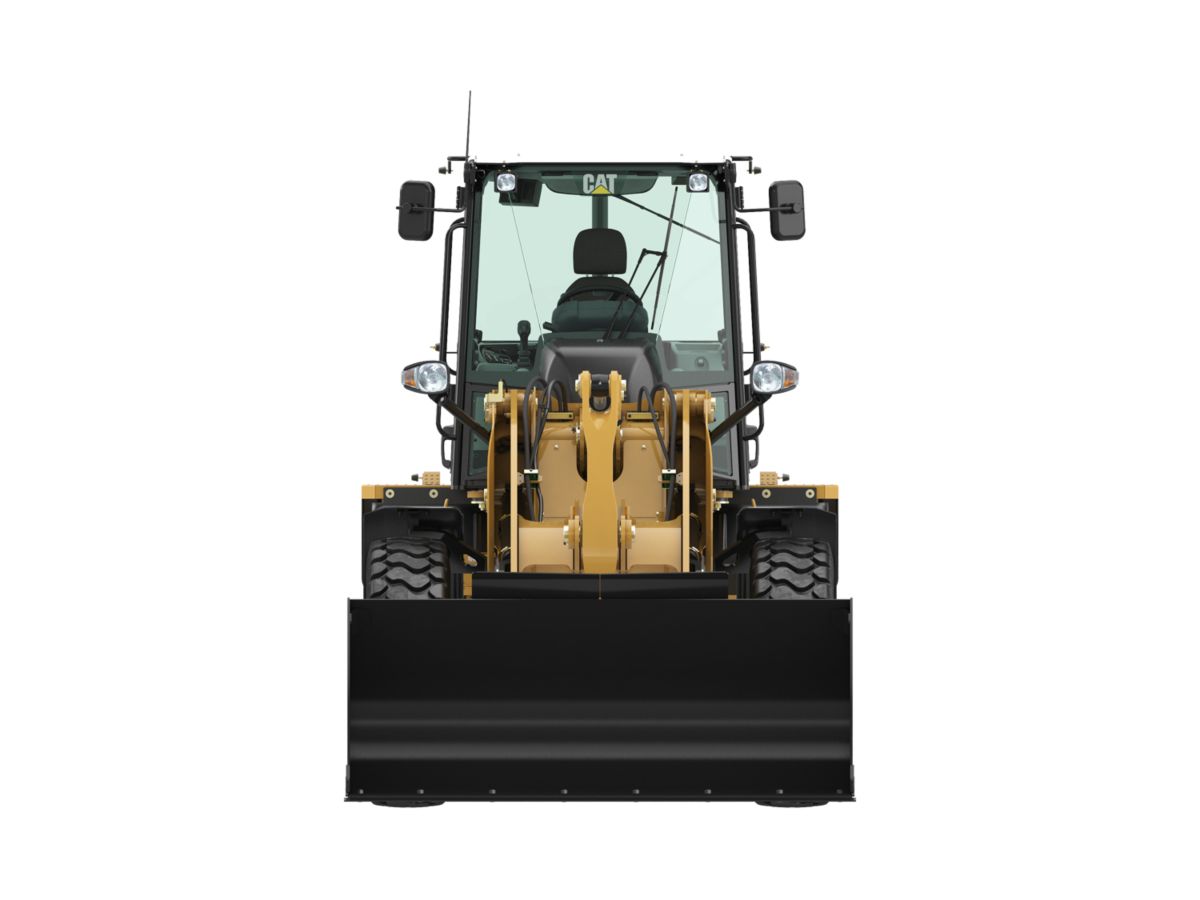

Front View

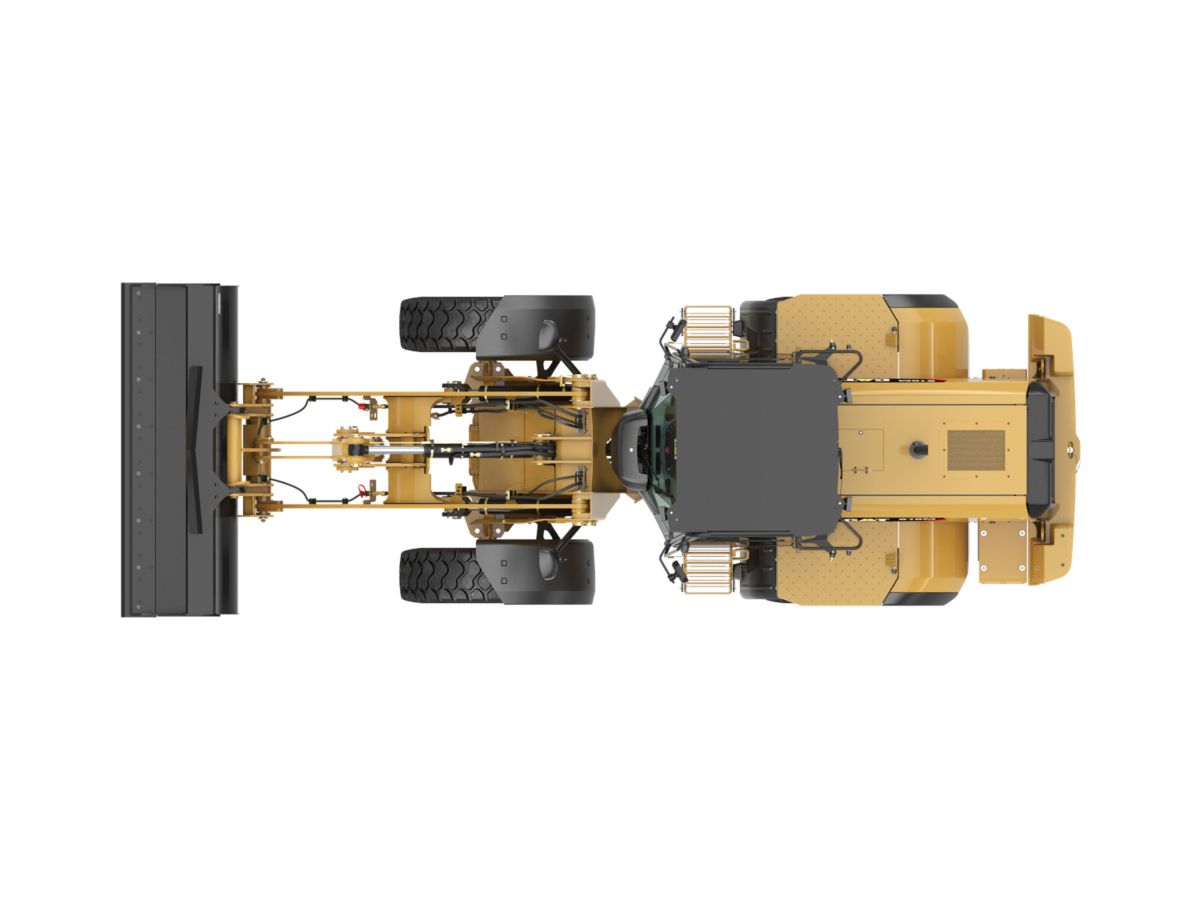

Top View

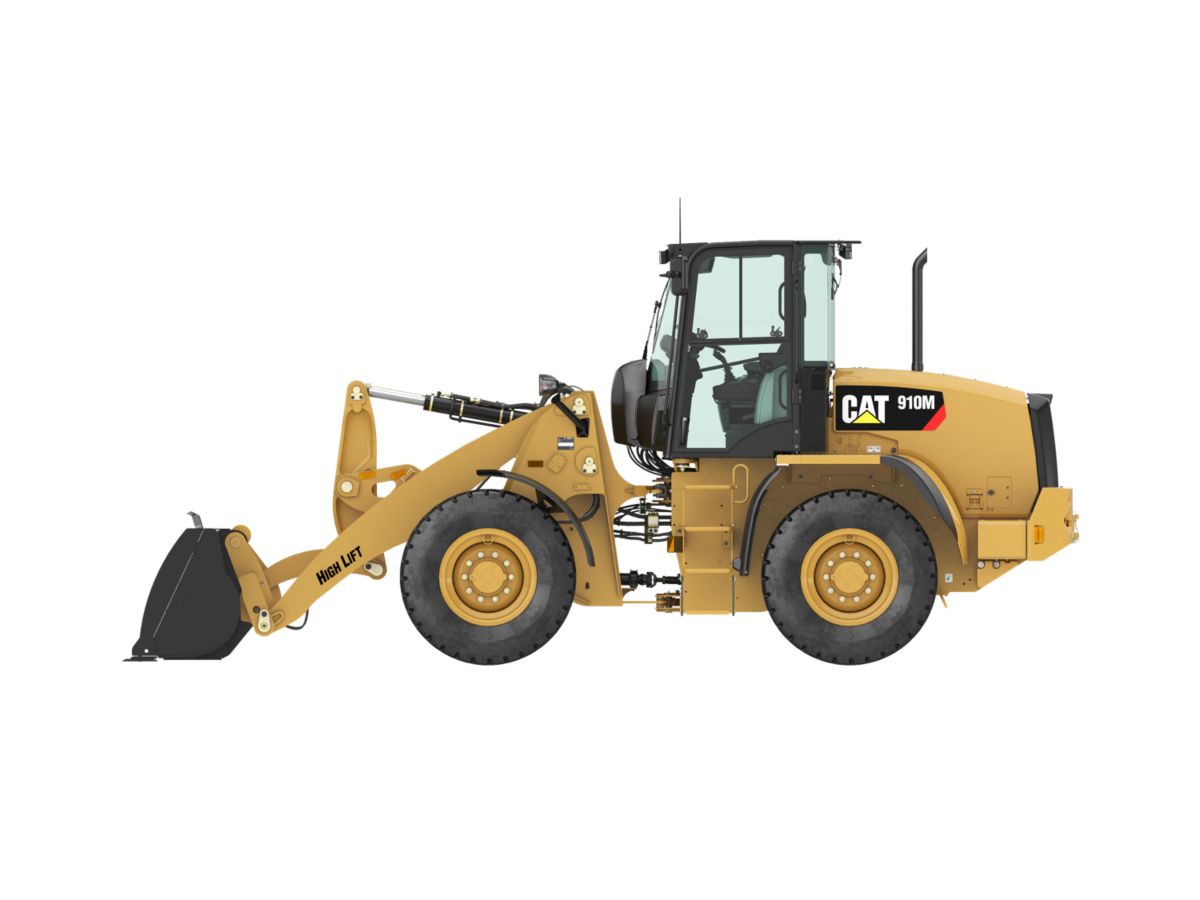

Left View

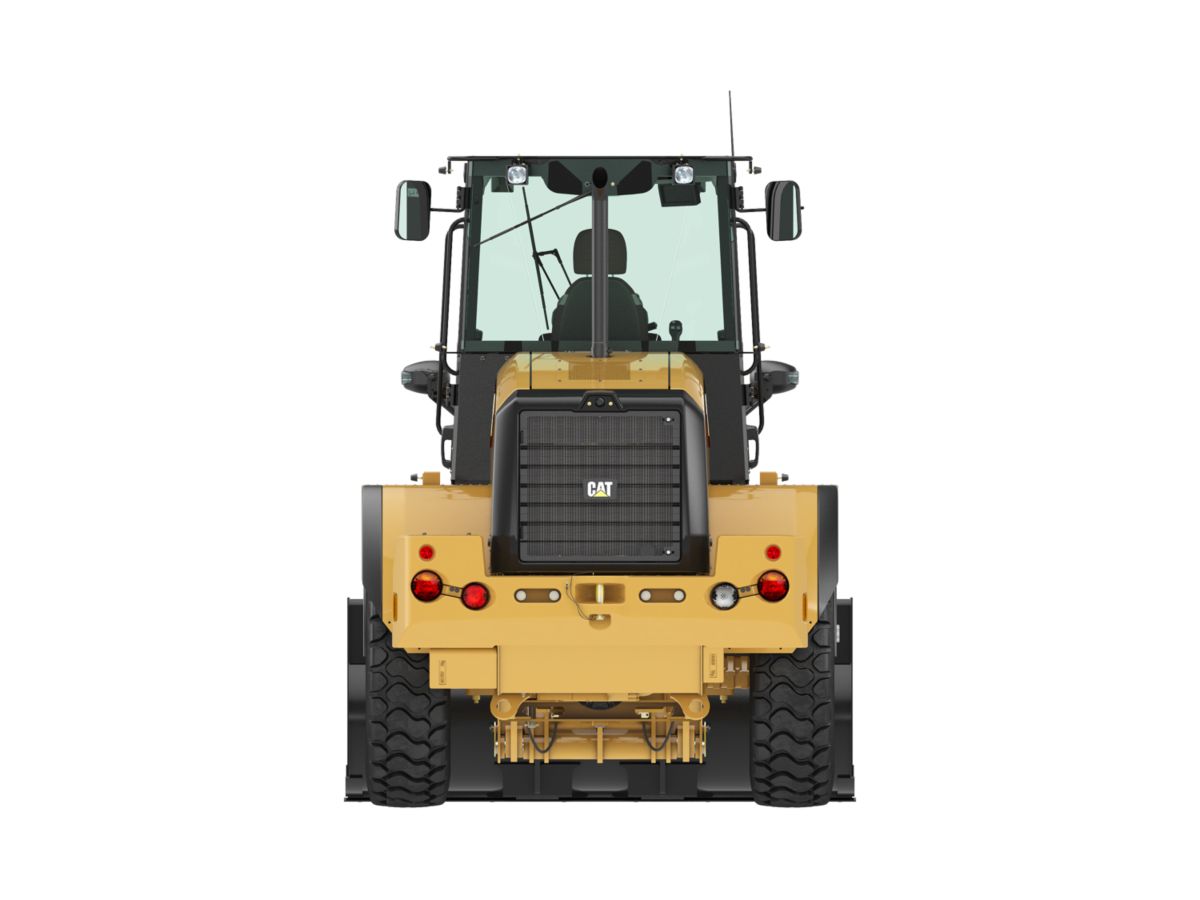

Rear View

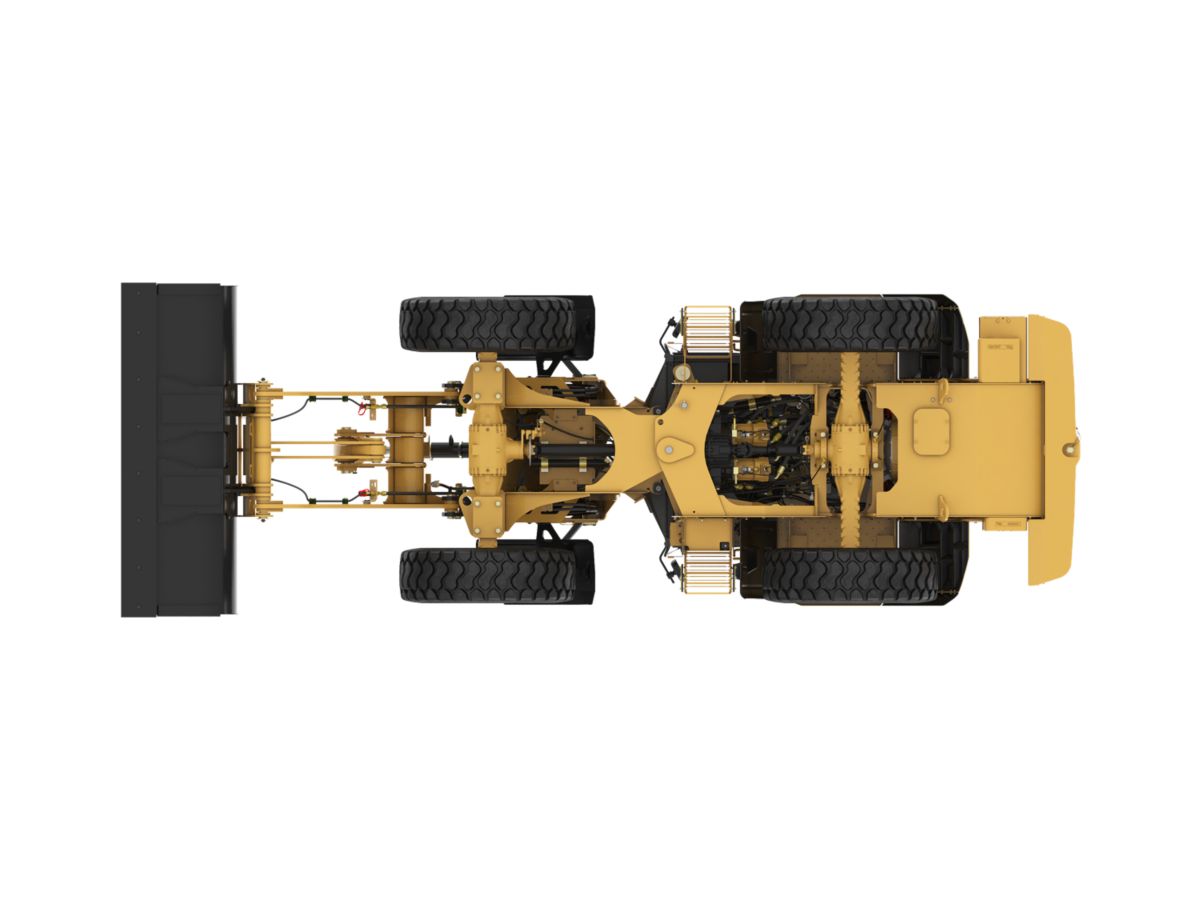

Bottom View
Right View
US
Metric

Overview

The Cat® 910M Wheel Loader sets the standard for productivity, fuel efficiency and operator comfort. The improved optimized Z-bar loader linkage delivers the quick loading performance of a traditional Z-bar with the parallelism and load handling capability of a toolcarrier.

Engine

Net Power
97.00 hp
72.00 kW
Engine Model
Cat C4.4 ACERT™
Maximum Gross Power: Maximum Engine Speed
2350.00 RPM
2350.00 RPM
Maximum Gross Power - ISO 14396
100.00 HP
74.00 kW
Maximum Gross Power - SAE J1995
102.00 HP
76.00 kW
Maximum Gross Power: ISO 14396 (DIN)
101.00 hp
74.00 kW
Rated Net Power: Rated Engine Speed
2200.00 RPM
2200.00 RPM
Rated Net Power - SAE J1349
96.00 HP
72.00 kW

Weights

Operating Weight
17893.00 lb
8116.00 kg

Operating Specifications

Rated Bucket Capacity
2.50 yd3
1.90 m3

Service Refill Capacities

Cooling System
5.70 gal
21.50 L
Fuel Tank
40.70 gal
154.00 L
Hydraulic System (including tank)
25.90 gal
98.00 L
Engine Crankcase
2.30 gal
8.80 L

Buckets

Bucket Capacities
1.3 m3-1.9 m3 (1.7 yd3-2.5 yd3)

Engine

Rated Net Power - ISO 9249
97.00 HP
72.00 kW
Rated Net Power - ISO 9249 (DIN)
98.00 HP
72.00 kW
Maximum Gross Torque - SAE J1995
336.00 ft·lbf
455.00 N·m
Maximum Gross Torque: ISO 14396
332.00 lbf-ft
450.00 N·m
Maximum Net Torque: SAE J1349
325.00 lbf-ft
441.00 N·m

Engine - Tier 4 Final/Stage IV

Maximum Net Torque - ISO 9249
329.00 ft·lbf
446.00 N·m

Engine

Displacement
268.00 in3
4.40 L
Bore
4.13 in
105.00 mm
Stroke
5.00 in
127.00 mm
Emissions
Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
Note
Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.

Steering

Steering Articulation Angle - Each Direction
40.00 °
40.00 °
Maximum Flow - Steering Pump
17.00 gal/min
66.00 l/min
Maximum Working Pressure – Steering Pump
2683.00 psi
18500.00 kPa
Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed
3.20 s
3.20 s
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left
3.75 turns
3.75 turns

Loader Hydraulic System

Maximum Flow – Implement Pump
32.00 gal/min
122.00 L/min
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow
24.00 gal/min
90.00 l/min
Maximum Flow - Implement Pump - 4th Function, Maximum Flow
24.00 gal/min
90.00 l/min
Maximum Working Pressure – Implement Pump
3408.00 psi
23500.00 kPa
Relief Pressure - Tilt Cylinder
4931.00 psi
34000.00 kPa
Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure
3046.00 psi
21000.00 kPa
Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure
3046.00 psi
21000.00 kPa
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift
5.20 s
5.20 s
Hydraulic Cycle Time - Dump, at Maximum Reach
1.40 s
1.40 s
Hydraulic Cycle Time - Rackback
2.20 s
2.20 s
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level
3.70 s
3.70 s
Hydraulic Cycle Time - Total Cycle Time
12.50 s
12.50 s

Service Refill Capacities

Axles - Front Center Differential
2.00 gal (US)
7.50 l
Axles - Rear Center Differential
2.00 gal (US)
7.50 l
Hydraulic Tank
14.50 gal
55.00 L
Diesel Exhaust Fluid (DEF) Tank
5.00 gal (US)
18.90 l
Note
DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.

Transmission

Forward and Reverse - Low Range, Speed Range 1*
6.30 mile/h
10.00 km/h
Forward and Reverse - Low Range, Speed Range 2*
12.50 mile/h
20.00 km/h
Forward and Reverse - High Range
25.00 mile/h
40.00 km/h
Note
*Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.

Tires

Standard Size
15.5-25 12PR
Other Choices Include
15.5-R25; 17.5-25 12PR; 17.5-25 12PR L2; 17.5-R25 XHA * L3; 17.5-R25 * L2/L3 PC RM; 17.5-25 16PR L3, 3PC Rim; 17.5-25 GY L2/L3; 17.5-25 12PR L2, SNOW; Flexport�
Note
Other tire choices are available. Contact your Cat dealer for details.
Note
In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Note
Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Cab

ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level II
Note
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note
The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 77 dB(A).
Note (3)
The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 103 dB(A).
Note (4)
*The measurements were conducted with the cab doors and windows closed.

Axles

Front
Fixed; Locking differential (standard)
Rear
Oscillating �11 degrees; Locking differential (Standard)

Service Refill Capacities

Transmission
0.90 gal
3.40 L

Engine

Maximum Gross Power
100.00 hp
74.00 kW
Net Power
97.00 HP
72.00 kW
Engine Model
Cat C4.4 ACERT�
Maximum Gross Power - ISO 14396 (DIN)
101.00 HP
74.00 kW
Maximum Gross Power - Maximum Engine Speed
2350.00 r/min
2350.00 r/min
Rated Net Power - Rated Engine Speed
2200.00 r/min
2200.00 r/min

Weights

Operating Weight
17893.00 lb
8116.00 kg

Service Refill Capacities

Cooling System
5.70 gal (US)
21.50 l
Fuel Tank
40.70 gal (US)
154.00 l
Engine Crankcase
2.30 gal (US)
8.80 l
Hydraulic System - Including Tank
25.90 gal (US)
98.00 l

Operating Specifications

Rated Bucket Capacity
2.50 yd³
1.90 m³

Engine

Maximum Gross Power
100.00 HP
74.00 kW

Buckets

Bucket Capacities
1.3-1.9 m3 (1.7-2.5 yd3)

Cab

ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level II
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)
The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 77 dB(A).

Engine

Bore
4.13 in
105.00 mm
Displacement
268.00 in³
4.40 l
Emissions
Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
Maximum Gross Torque - ISO 14396
332.00 ft·lbf
450.00 N·m

Engine - Tier 4 Final/Stage IV

Maximum Net Torque - SAE J1349
325.00 ft·lbf
441.00 N·m

Engine

Note
Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
Stroke
5.00 in
127.00 mm

Loader Hydraulic System

Maximum Flow - Implement Pump
32.00 gal/min
122.00 l/min
Maximum Working Pressure - Implement Pump
3408.00 psi
23500.00 kPa

Service Refill Capacities

Hydraulic Tank
14.50 gal (US)
55.00 l
Transmission
0.90 gal (US)
3.40 l

Steering

Maximum Working Pressure - Steering Pump
2683.00 psi
18500.00 kPa

Tires

Note (1)
Other tire choices are available. Contact your Cat dealer for details.
Note (2)
In certain applications, the loader's productive capabilities may exceed the tire's tonnes-km/h (ton-mph) capabilities.
Note (3)
Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Features

Efficiently Powerful

With high full turn tipping loads, powerful breakout forces and increased engine power the M Series delivers a balanced solution for all customer applications.

Work Made Easy

The Cat® Optimized Z-bar Loader linkage combines the digging efficiency of a traditional Z-bar with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control. Multi-function work has never been easier with dedicated pumps for each system, allowing the operator to simultaneously lift, steer and drive without compromise.

Enjoy All Day Comfort

A spacious, safe, quiet and comfortable operator environment helps keep you relaxed and productive throughout the day. Experience superior all around visibility with a pillarless front windshield, clean hydraulic linesrouting as well as in-line engine mounting for excellent rear visability. Electro-hydraulic controls featuring low effort joystick for lift and tilt functions along with integrated Forward/Neutral/Reverse switch, differential lock trigger and optional third and fourth auxiliary functions.

  • Climate controlled cab with heated rear glass
  • Information at a glance with large LCD display on front console
  • Heated seat option for added comfort
  • Exclusive electro-hydraulic cylinder snubbing
  • An extra eye on the job site with optional* rearview camera capability

*Standard in Europe.

Hydraulic and Controls

State of the art electro-hydraulic system provides low effort, fine control with fast cycle times. All-in-one joystick helps keep eyes on the work. Operator can adjust machine responsiveness with the push of a button, which allows the operator to set up the machine exactly the way they want it based on the application.

Tuned Drivetrain

Smooth shifting and powerful acceleration is matched with modulated hydrostatic braking in the inching/braking pedal, creating a rhythm for material moving. Creeper and electronic engine speed control makes broom and snow blower work easy. Operator tunes between smooth or aggressive shifting with the push of a button.

Sales Features

Optimized Z-bar Loader Linkage

The Cat Optimized Z-bar Loader linkage combines the digging efficiency of a traditional Z-bar with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control.

Work Tools

The 910M features the Cat exclusive, Performance Series Buckets, as well as high visibility pallet forks. These tools enhance productivity and are available with either an Integrated Toolcarrier (IT) or ISO (wide) coupler style. Legacy coupler tools such as brooms, grapple buckets, multi-purpose buckets and other work tools remain compatible.

Hydraulic and Controls

State of the art electro-hydraulic system provides low effort, fine control with fast cycle times. All-in-one joystick helps keep eyes on the work. Operator can adjust machine responsiveness with the push of a button, which allows the operator to set up the machine exactly the way they want it based on the application.

Tuned Drivetrain

Smooth shifting and powerful acceleration is matched with modulated hydrostatic braking in the inching/braking pedal, creating a rhythm for material moving. Creeper and electronic engine speed control makes broom and snow blower work easy. Operator tunes between smooth or aggressive shifting with the push of a button.

Cab

All around visibility is further enhanced with the availability of a rearview camera. The deluxe cab ensures operator comfort with a heated, air suspension seat and easy to use controls. Available features such as Implement and Hystat Aggressiveness, Ride Control, Lift and Tilt Kickouts, Engine Speed Control and Rimpull Control allow the operator to customize the machine via a soft touch keypad.

Serviceability

Extended service intervals and excellent service access make daily checks quick and easy allowing you to get to work sooner.

Efficiently Powerful

High full turn tipping loads, powerful breakout forces and increased engine power the M Series delivers a balanced solution for all customer applications.

Standard Fuel Savings

Features such as Eco Mode, On Demand Cooling Fan, and Auto Engine Idle Shutdown make the 910M both powerful and fuel efficient.
