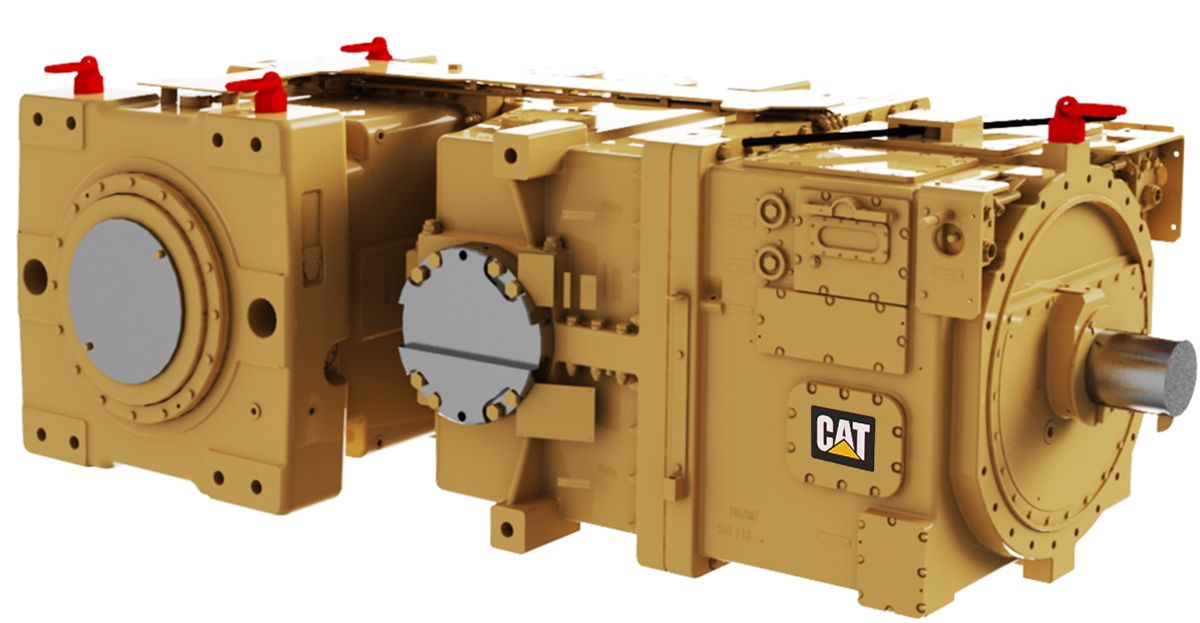

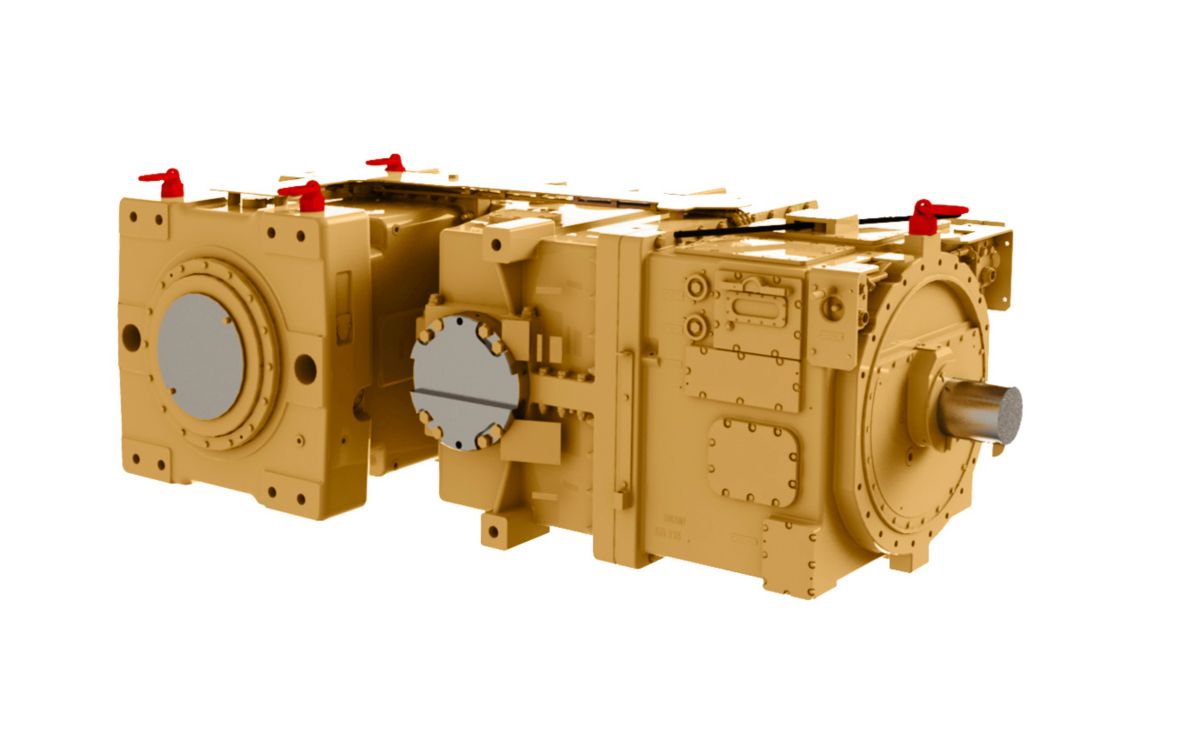

Overview

Specifications

Maximum Output Torque for a Short Duration (3 sec.)
848196.00 ft-lb
1150000.00 N·m
Maximum Input Speed - Motor Speed
1,782 rpm
Weight - Without Oil - In-line Drive System
36165.00 lb
16400.00 null

Shaft Design

Input Shaft - Cylindrical
DIN 5480-W 140×4
Output Shaft with Internal Toothing
DIN 5480-N 360×10

Requirements of Cooling Water

Maximum Water Inlet Temperature
25° C/298.15 K (77° F/298.15 K)
Required Cooling Water Quantity
23.80 gal/min
90.00 l/min

Dimensions

KP-115 CST - Height
51.10 in
1300.00 mm
KP-115 CST - Length
141.60 in
3600.00 mm
KP-115 CST - Width
79.80 in
2029.00 mm
P-115 CST - Height
51.10 in
1300.00 mm
P-115 CST - Length
110.60 in
2811.00 mm
P-115 CST - Width
55.10 in
1400.00 mm

Typical Application

Description
Chain Type Longwall Machinery like Armored Face Conveyors (AFC)

Maximum Output Torque (for 3 sec) Tmax [N·m]

KP-115 CST/P-115 CST
848196.00 lb/ft
1150000.00 N·m
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39
1800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 46
1800 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39
2,937 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 46
2,480 hp

Capacity

KP-115 CST - Gearbox Weight - Without Oil
52851.00 lb
23980.00 null
KP-115 CST - Oil Quantity
212.00 gal (US)
1300.00 l
P-115 CST - Gearbox Weight - Without Oil
36145.00 lb
16400.00 null
P-115 CST - Oil Quantity
132.00 gal (US)
700.00 l
