Overview

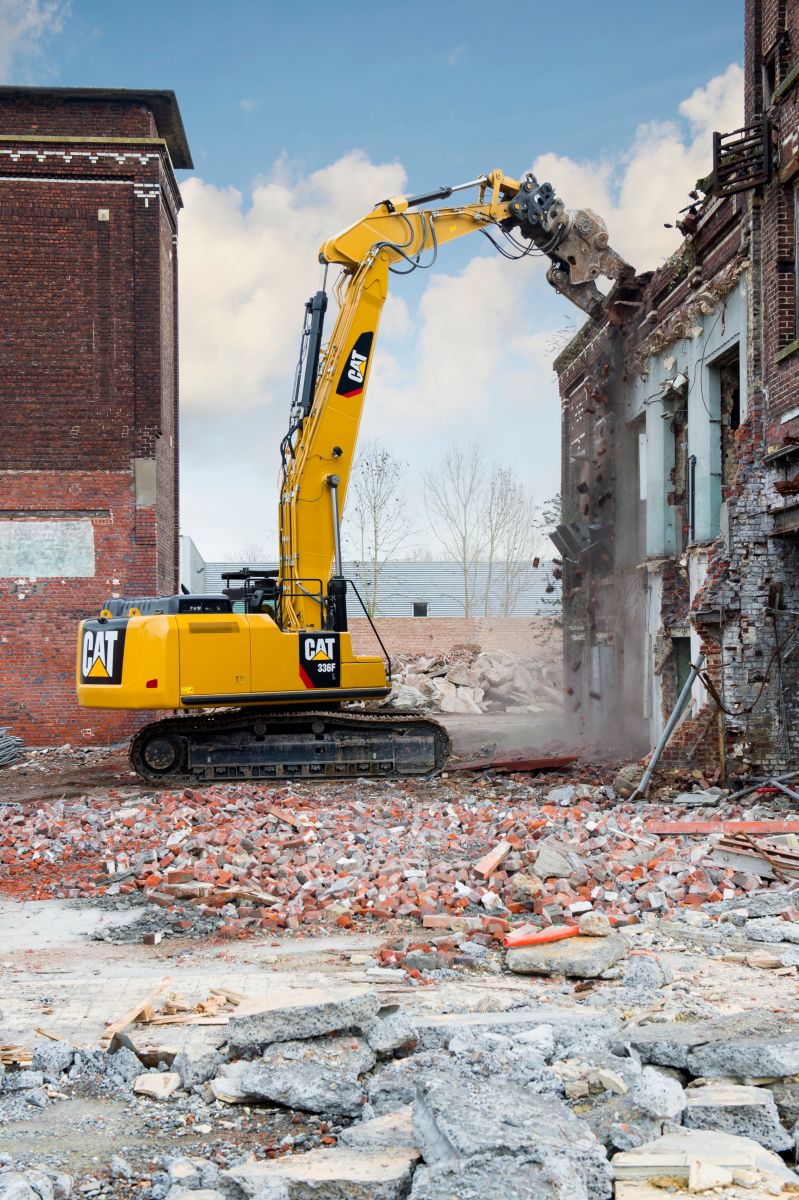

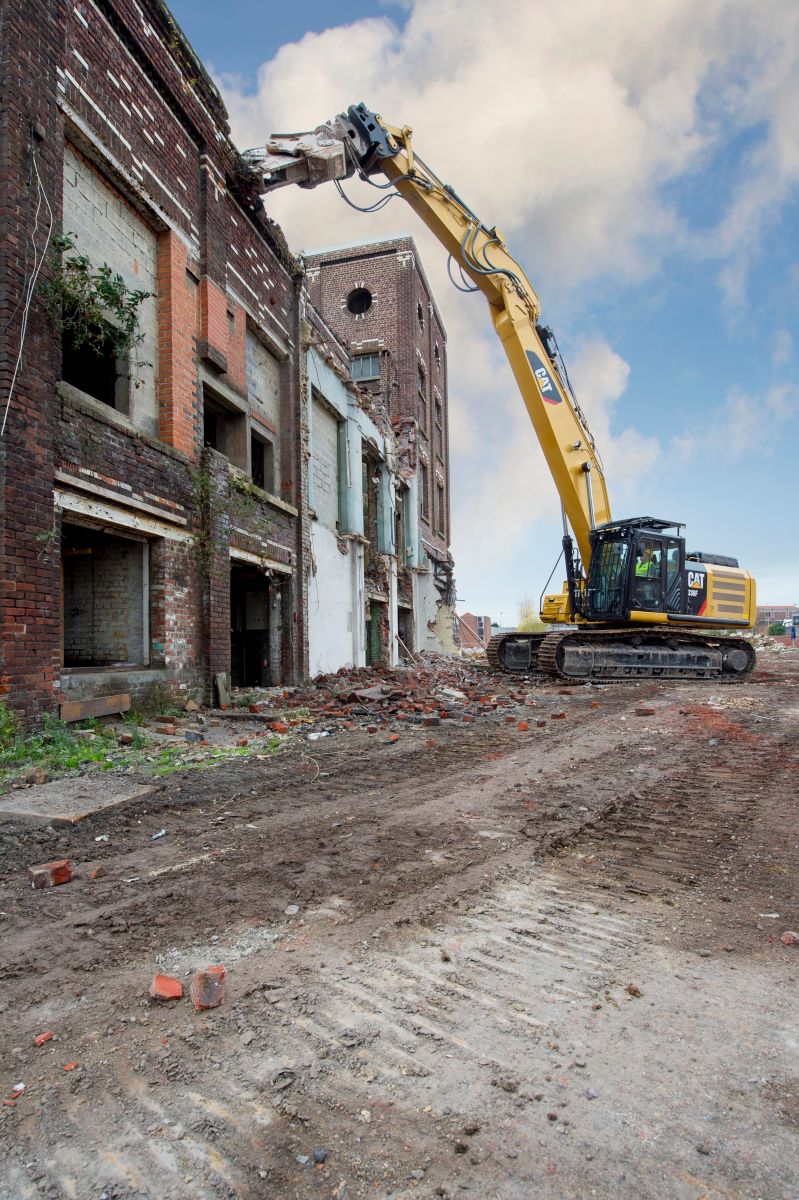

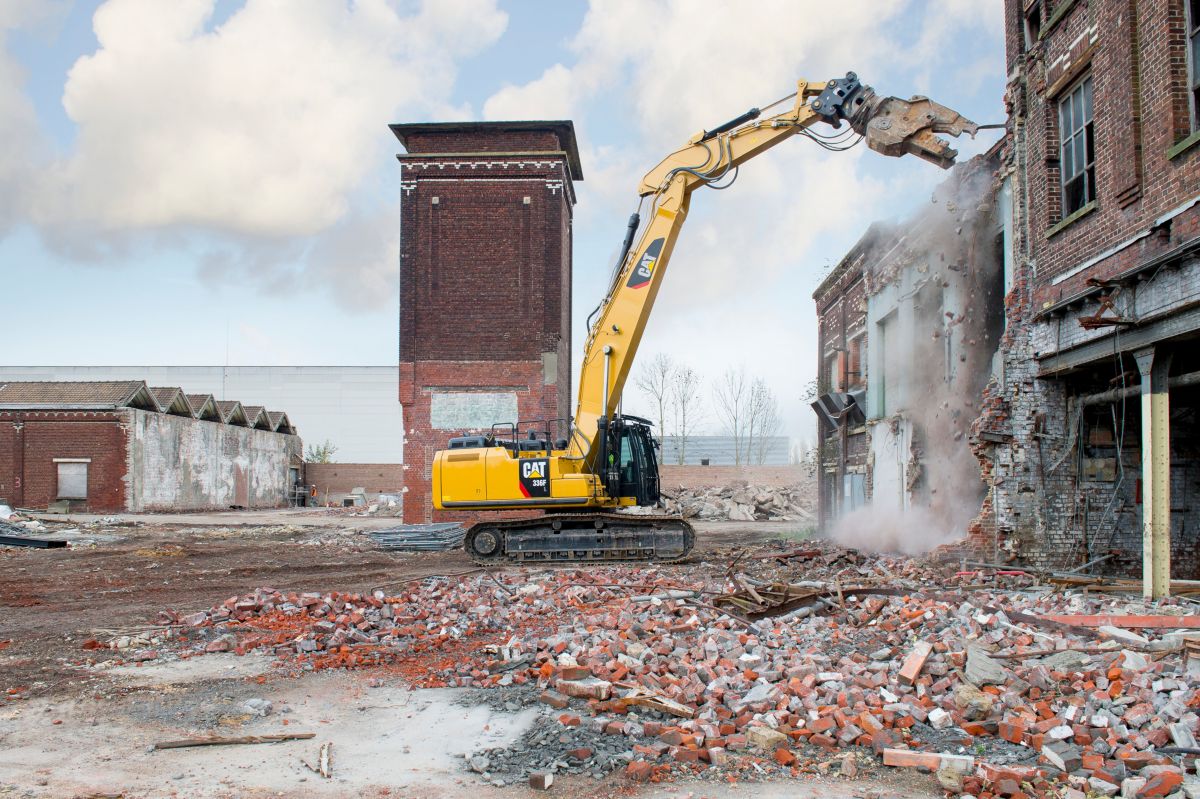

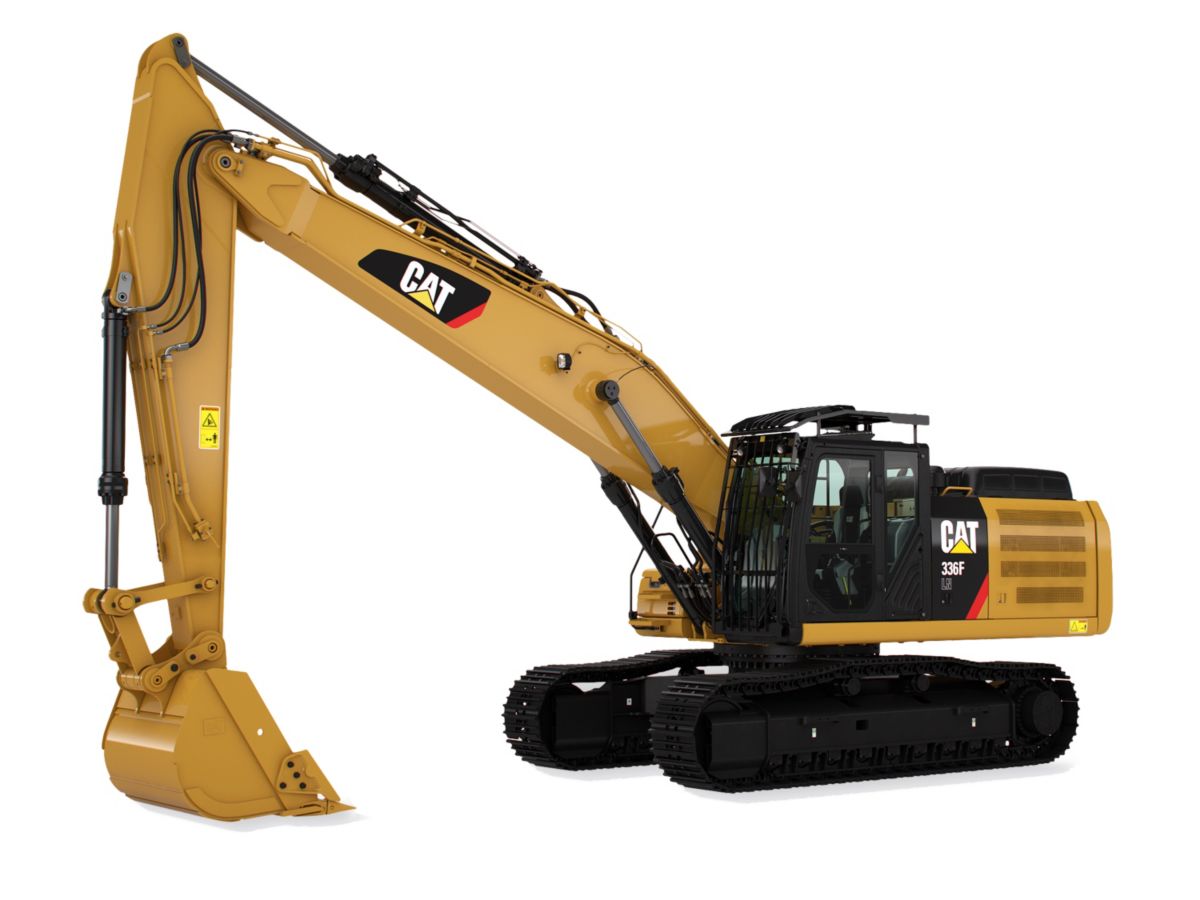

The 336F Straight Boom is purposely designed to take on all your sorting, low-level demolition and above ground-level tasks. Compared to the 336F Reach Boom, the 336F Straight Boom achieves superior performance above ground level, by offering a significant height increase in the working range with excellent lift capacity above ground level.

Engine

Engine Model
Cat C9.3 ACERT
Net Flywheel Power
306.00 HP
228.00 kW
Gross Power – SAE J1995
238 kW (319 hp/324 PS)
Engine Power – ISO 14396
234 kW (313 hp/318 PS)
Net Power – SAE J1349
228 kW (306 hp/310 PS)
Bore
4.53 in
115.00 mm
Stroke
5.87 in
149.00 mm
Displacement
568.00 in3
9.30 L

Weights

Operating Weight
89900.00 lb
40800.00 kg
Maximum Weight
89900.00 lb
40800.00 kg

Hydraulic System

Main System - Maximum Flow - Total
151.00 gal/min
570.00 l/min
Swing System - Maximum Flow
74.00 gal/min
279.00 l/min
Maximum Pressure – Equipment (lift mode)
5076.00 psi
35000.00 kPa
Maximum Pressure – Travel
5076.00 psi
35000.00 kPa
Maximum Pressure - Travel
5076.00 psi
35000.00 kPa
Maximum Pressure - Swing
4061.00 psi
28000.00 kPa
Pilot System - Maximum Flow
8.00 gal/min
29.00 l/min
Pilot System - Maximum Pressure
595.00 psi
4100.00 kPa

Drive

Maximum Travel Speed
3.00 mile/h
4.80 km/h
Maximum Drawbar Pull
65352.00
291.00 kN

Service Refill Capacities

Fuel Tank Capacity
164.00 gal
620.00 L
Cooling System
11.00 gal
43.00 L
Engine Oil - With Filter
8.00 gal (US)
32.00 l
Swing Drive - Each
5.00 gal (US)
19.00 l
Final Drive (each)
2.00 gal
8.00 L
Hydraulic System Oil - Including Tank
100.00 gal (US)
380.00 l
Hydraulic Tank Oil
46.00 gal (US)
175.00 l
DEF Tank
11.00 gal
41.00 L

Swing

Swing Speed
8.80 rpm
8.80 rpm
Swing Torque
80144.00 lbf-ft
109.00 kN·m

Sound

Exterior – ISO 6395:2008*
106.00 dB(A)
106.00 dB(A)
Interior - ISO 6396:2008
73.00 dB(A)
73.00 dB(A)

Dimensions* - Straight Boom - 6.9 m (22'8"); 3.9 m (12'10") Stick; 2.28 m3 (2.98 yd3) Bucket

Shipping Height
12.25 ft
3740.00 mm

Dimensions*: Straight Boom – 6.9 m (22'8"); 3.9 m (12'10") Stick; 2.28 m3 (2.98 yd3) Bucket

Shipping Length
37.33 ft
11370.00 mm

Dimensions* - Straight Boom - 6.9 m (22'8"); 3.9 m (12'10") Stick; 2.28 m3 (2.98 yd3) Bucket

Tail Swing Radius
11.50 ft
3500.00 mm

Dimensions*: Straight Boom – 6.9 m (22'8"); 3.9 m (12'10") Stick; 2.28 m3 (2.98 yd3) Bucket

Length to Center of Rollers
13.25 ft
4040.00 mm

Dimensions* - Straight Boom - 6.9 m (22'8"); 3.9 m (12'10") Stick; 2.28 m3 (2.98 yd3) Bucket

Track Length
16.50 ft
5040.00 mm
Ground Clearance
1.67 ft
520.00 mm
Track Gauge - Long Undercarriage
8.50 ft
2590.00 mm
Track Gauge - Long Narrow Undercarriage
7.83 ft
2390.00 mm
Transport Width - Long Undercarriage
10.50 ft
3190.00 mm
Transport Width - Long Narrow Undercarriage
9.83 ft
2990.00 mm
Cab Height
10.42 ft
3170.00 mm
Cab Height - With Top Guard
11.42 ft
3480.00 mm
Counterweight Clearance
4.00 ft
1220.00 mm
Note
*Dimensions may vary depending on bucket selection.

Dimensions* - Straight Boom - 6.9 m (22'8"); 3.2 m (10'6") Stick; 2.28 m3 (2.98 yd3) Bucket

Shipping Height
11.42 ft
3480.00 mm
Shipping Length
37.67 ft
11480.00 mm
Tail Swing Radius
11.50 ft
3500.00 mm
Length - Center of Rollers
13.25 ft
4040.00 mm
Track Length
16.50 ft
5040.00 mm
Ground Clearance
1.67 ft
520.00 mm
Track Gauge - Long Undercarriage
8.50 ft
2590.00 mm
Track Gauge - Long Narrow Undercarriage
7.83 ft
2390.00 mm

Engine

Net Power – ISO 9249
228 kW (306 hp/310 PS)

Hydraulic System

Pilot System – Maximum Pressure
595.00 psi
4100.00 kPa

Sound

Note
*As per European Union Directive 2000/14/EC as amended by 2005/88/EC.

Dimensions* - Straight Boom - 6.9 m (22'8"); 3.2 m (10'6") Stick; 2.28 m3 (2.98 yd3) Bucket

Transport Width - Long Undercarriage
10.50 ft
3190.00 mm
Transport Width - Long Narrow Undercarriage
9.83 ft
2990.00 mm
Cab Height
10.42 ft
3170.00 mm
Cab Height - With Top Guard
11.42 ft
3480.00 mm
Counterweight Clearance
4.00 ft
1220.00 mm
Note
*Dimensions may vary depending on bucket selection.

Working Ranges* - Straight Boom - 6.9 m (22'8"); 3.9 m (12'10") Stick; 2.28 m3 (2.98 yd3) Bucket

Maximum Digging Depth
21.75 ft
6640.00 mm
Maximum Reach - Ground Level
40.50 ft
12340.00 mm
Maximum Cutting Height
45.17 ft
13760.00 mm
Maximum Loading Height
33.67 ft
10260.00 mm
Minimum Loading Height
11.08 ft
3370.00 mm
Maximum Depth Cut for 2440 mm (8'0") Level Bottom
21.33 ft
6510.00 mm
Maximum Vertical Wall Digging Depth
18.42 ft
5610.00 mm
Note
*Dimensions may vary depending on bucket selection.

Working Ranges* - Straight Boom - 6.9 m (22'8"); 3.2 m (10'6") Stick; 2.28 m3 (2.98 yd3) Bucket

Maximum Digging Depth
19.50 ft
5940.00 mm
Maximum Reach - Ground Level
38.17 ft
11630.00 mm
Maximum Cutting Height
43.08 ft
13120.00 mm
Maximum Loading Height
31.50 ft
9610.00 mm
Minimum Loading Height
13.08 ft
3990.00 mm
Maximum Depth Cut for 2440 mm (8'0") Level Bottom
19.00 ft
5790.00 mm
Maximum Vertical Wall Digging Depth
16.33 ft
4970.00 mm
Note
*Dimensions may vary depending on bucket selection.

Engine

Engine Model
Cat C9.3 ACERT
Bore
4.53 in
115.00 mm
Displacement
568.00 in³
9.30 l
Engine Power - ISO 14396
234 kW (313 hp/318 PS)
Gross Power - SAE J1995
238 kW (319 hp/324 PS)
Stroke
5.87 in
149.00 mm

Weights

Maximum Weight
89900.00 lb
40800.00 kg
Operating Weight
89900.00 lb
40800.00 kg

Swing

Swing Speed
8.80 r/min
8.80 r/min
Swing Torque
80144.00 ft·lbf
109.00

Dimensions* - Straight Boom - 6.9 m (22'8"); 3.9 m (12'10") Stick; 2.28 m3 (2.98 yd3) Bucket

Length - Center of Rollers
13.25 ft
4040.00 mm
Shipping Length
37.33 ft
11370.00 mm

Engine

Net Power - SAE J1349
228 kW (306 hp/310 PS)

Hydraulic System

Auxiliary Circuit - High Pressure
5367.00 psi
37000.00 kPa
Auxiliary Circuit - Medium Pressure
3359.00 psi
23000.00 kPa
Maximum Pressure - Equipment - Lift Mode
5076.00 psi
35000.00 kPa

Sound

Exterior - ISO 6395:2008*
106.00 dB(A)
106.00 dB(A)

Service Refill Capacities

Cooling System
11.00 gal (US)
43.00 l
DEF Tank
11.00 gal (US)
41.00 l
Final Drive - Each
2.00 gal (US)
8.00 l
Fuel Tank Capacity
164.00 gal (US)
620.00 l

Engine

Net Power - ISO 9249
228 kW (306 hp/310 PS)
Features

Performance

  • The C9.3 ACERT™ engine meets U.S. EPA Tier 4 Final and EU Stage IV emission standards.
  • Power modes help you more actively manage fuel consumption.
  • The heavy lift mode increases machine system pressure to improve lift – a nice benefit in certain situations.
  • The SmartBoom™ reduces stress and vibrations transmitted to the machine and cab, especially during hammer work.

Cat® Connect Technology

  • Cat Connect technology solutions increase production, minimize operating costs, and optimize return on investment by offering LINK and DETECT technologies.
  • VisionLink® provides wireless access to machine operating data such as location, hours, idle time, fuel usage, productivity, and diagnostic codes to optimize performance.

Maintenance

  • Routine maintenance items like grease points and fluid taps are easy to reach at ground level.
  • The side-by-side cooling system enables easy cleaning.
  • Service door design helps prevent debris entry.
  • Multiple S·O·SSM ports and pressure diagnostic taps help prevent maintenance downtime.

Comfort

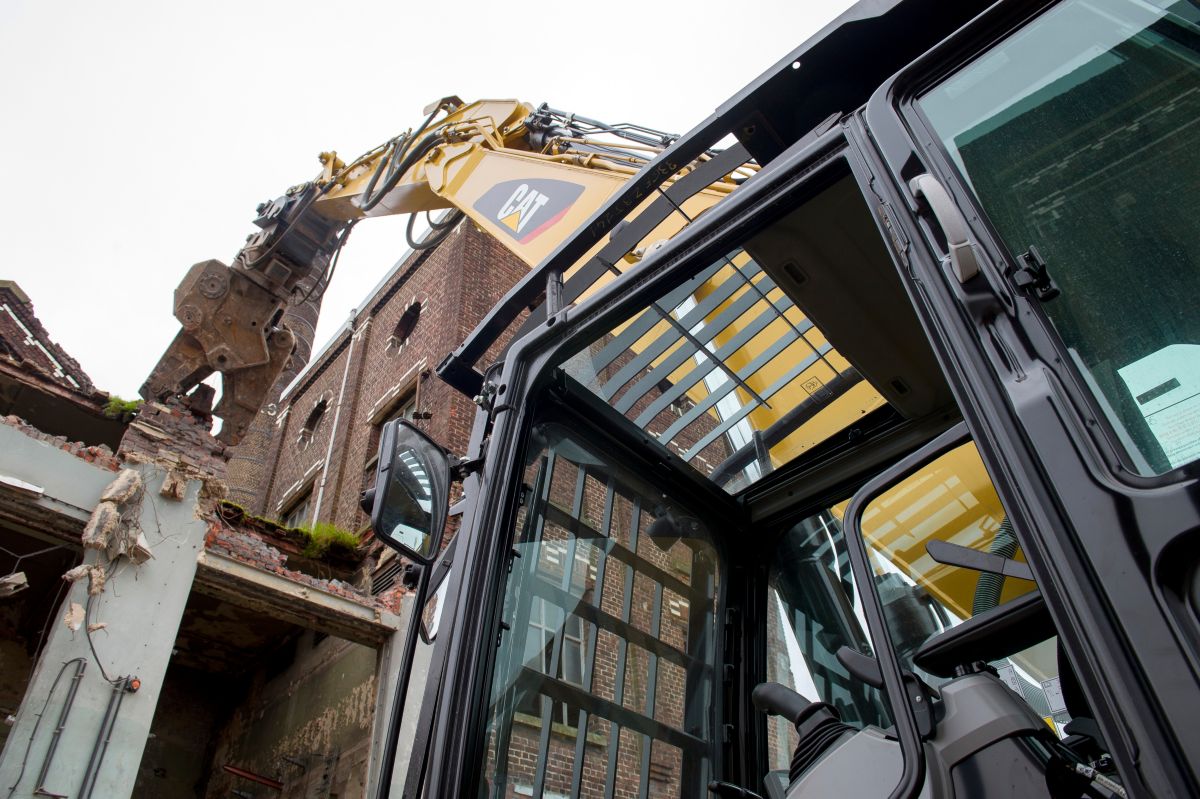

  • The full-size roll-over protective structure (ROPS) certified cab is quiet and comfortable.
  • Joystick consoles and armrests are adjustable. Seats are adjustable and feature air suspension and heated and cooled options.

Versatility

  • Demolition work is quick and easy with a Cat shear or multiprocessor or hammer.
  • A Cat coupler lets you swap between attachments in seconds without leaving the cab.
  • Tool control option remembers pressures and flows for up to 20 tools to enhance uptime.

Durability

  • Booms and sticks are built for long service.
  • Box-section structures with multi-plate fabrications, castings, and forgings are used in high-stress areas. Track shoes, links, rollers, idlers, and final drives are built with high-tensile-strength steel.
  • Greased track link between pins and bushings increases undercarriage life and reduces noise.

Safety

  • Smart refuel fills the machine quickly from an external fuel source, it automatically stops when the fuel tank is full or the fuel source is empty, eliminating guess work and premature pump wear.
  • The rearview and optional side-view cameras enhance visibility to help make operators more effective and efficient.
  • Extended hand and guard rails allow for safer climbing to the upper deck, and anti-skid plates reduce slipping hazards in all types of weather conditions.
