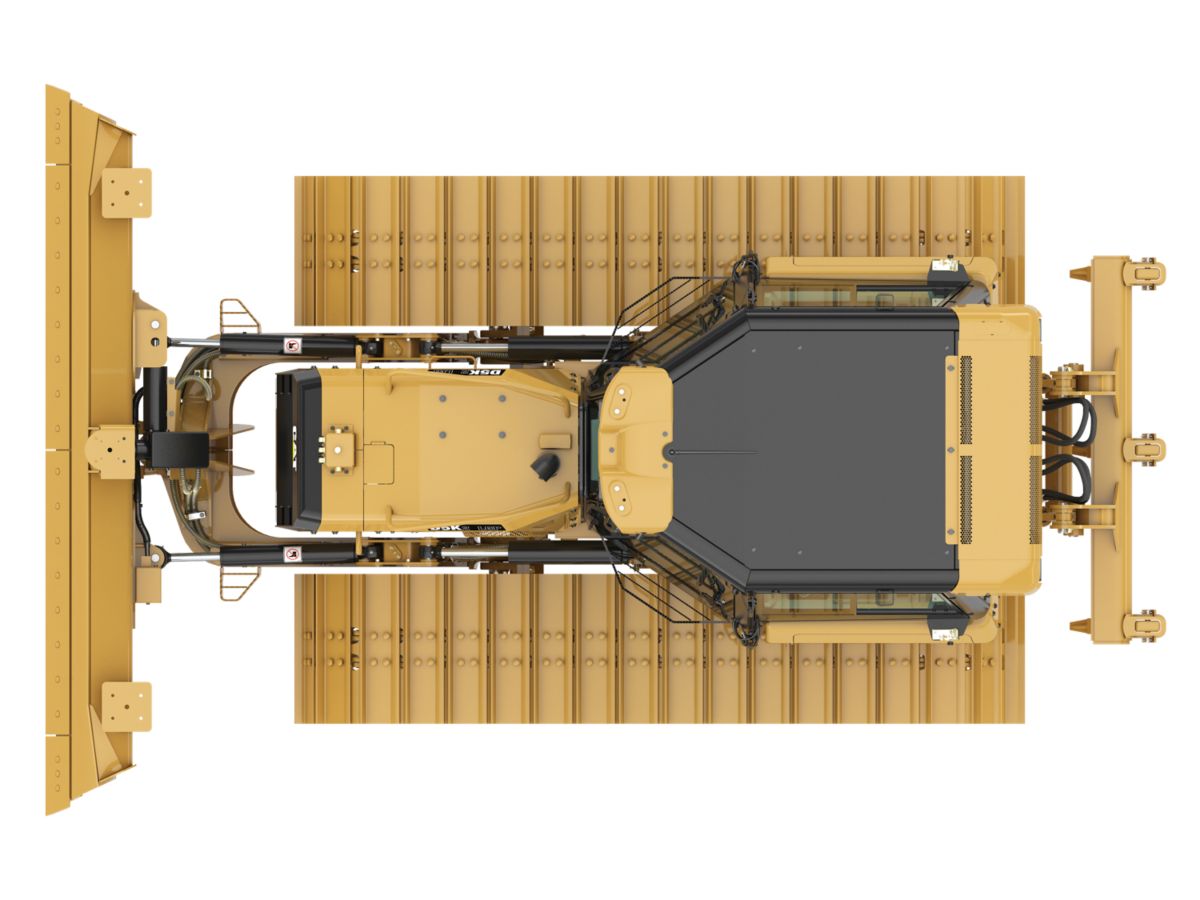

Overview

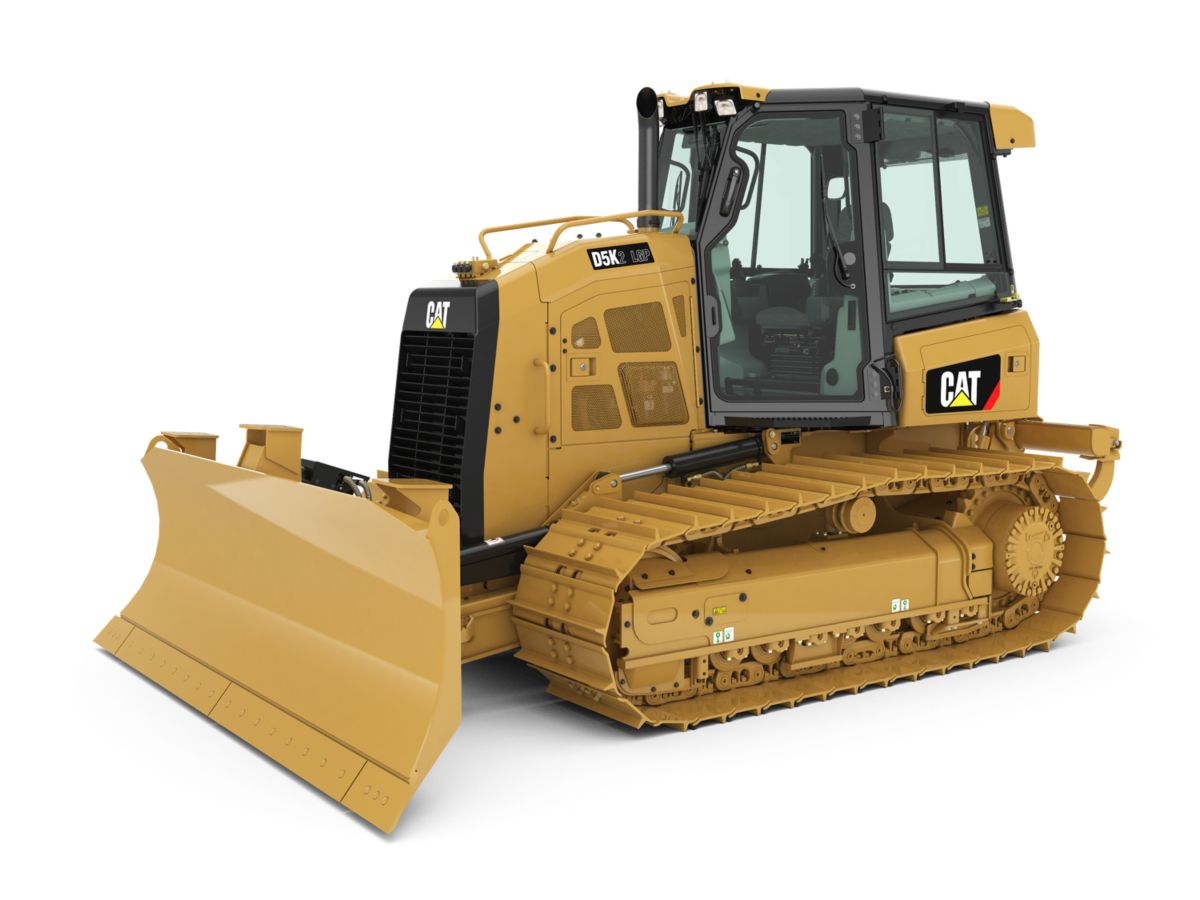

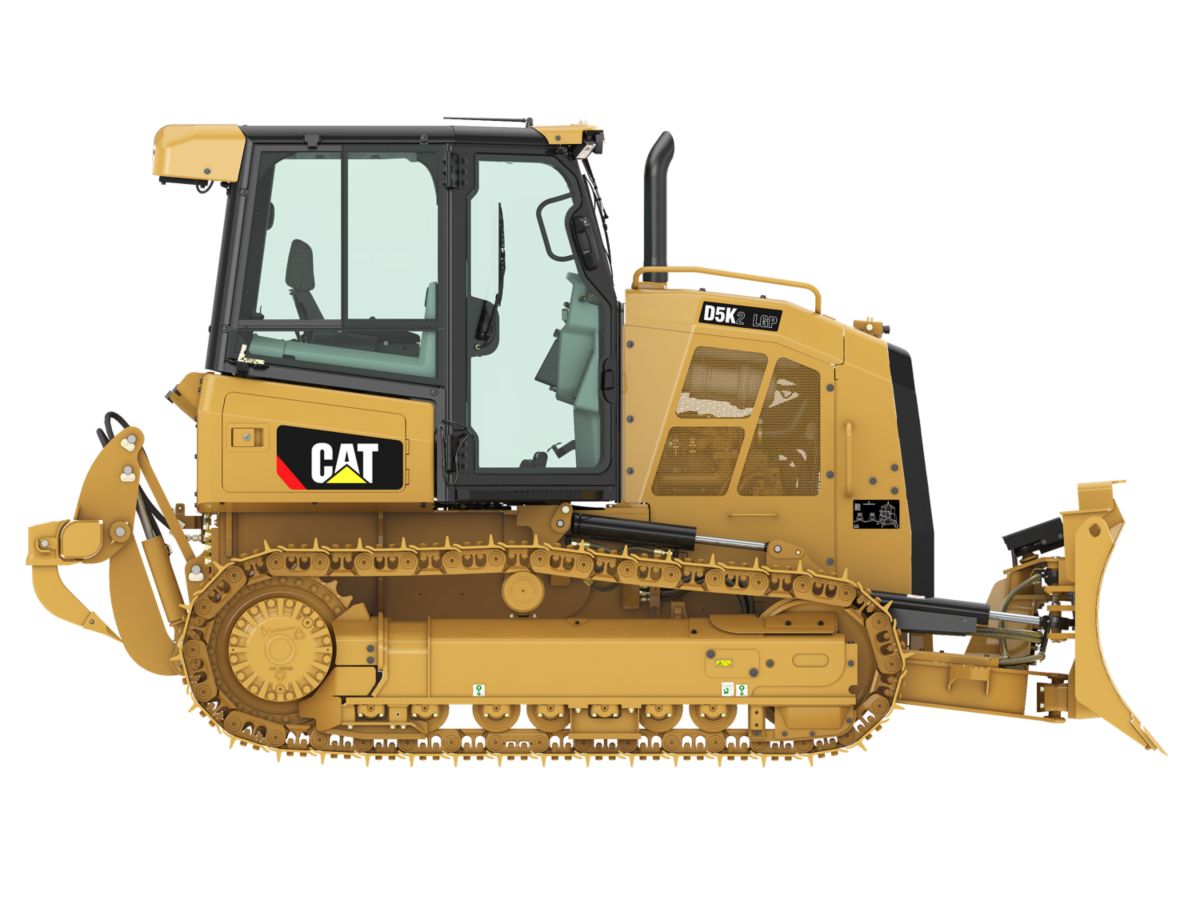

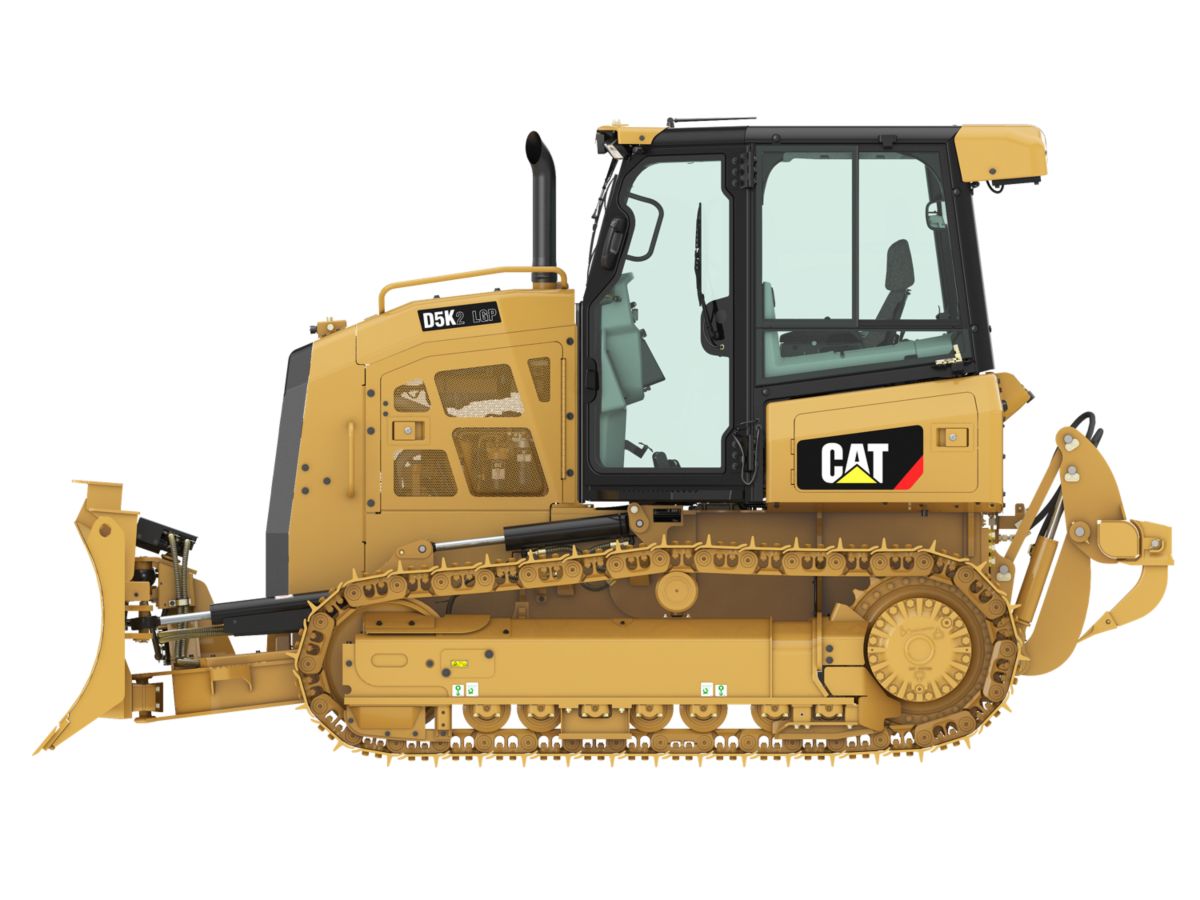

Experience the best finish grading tractors in the industry. The Cat® D3K2, D4K2 and D5K2 Track-Type Tractors deliver superior performance and comfort with lower operating costs.

Engine

Engine Model
Cat C4.4 ACERT
Power - Net
104.00 HP
77.60 kW
Displacement
269.00 in3
4.40 L
Rated Net Power - 2,200 rpm - SAE J1349
104.00 HP
77.60 kW
Rated Net Power @ 2,200 rpm – ISO 9249/EEC 80/1269
104.00 hp
77.60 kW
Note
Engine meets Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) emission standards.
Bore
4.13 in
105.00 mm
Stroke
5.00 in
127.00 mm

Weights

Operating Weight - XL
20313.00 lb
9214.00 kg
Operating Weight - LGP
20992.00 lb
9522.00 kg

Transmission

Drive Pumps
1
Track Motors
2
Relief Valve Settings
7033.00 psi
48500.00 kPa
Maximum Travel Speed - Forward
5.60 mile/h
9.00 km/h
Maximum Travel Speed - Reverse
6.20 mile/h
10.00 km/h

Service Refill Capacities

Fuel Tank
51.50 gal
195.00 L
Crankcase - With Filter
2.91 gal (US)
11.00 l
Final Drive - Each - XL
2.60 gal (US)
10.00 l
Final Drive - Each - LGP
2.60 gal (US)
10.00 l
Cooling System
5.92 gal
22.40 L
Transmission - Hydraulic Tank
15.70 gal (US)
59.50 l

Hydraulic Controls

Pump Output
17.70 gal/min
68.00 l/min
Relief Valve Settings
2988.00 psi
20600.00 kPa

Winch

Weight
1345.00 lb
610.00 kg
Winch Drive
Hydrostatic
Control
Hydraulic
Speed
Variable
Winch Length
27.76 in
705.00 mm
Overall Width
29.20 in
741.00 mm
Drum Diameter
10.00 in
254.00 mm
Drum Width
10.80 in
274.00 mm
Throat Clearance
6.75 in
171.50 mm
Rope Diameter - Recommended
0.63 in
16.00 mm
Rope Diameter - Optional
0.75 in
19.00 mm
Drum Capacity - Recommended Cable
371.00 ft
113.00 m
Drum Capacity - Optional Cable
256.00 ft
78.00 m
Maximum Line Pull - Bare Drum
40000.00 lb
18144.00 kg
Maximum Line Pull - Full Drum
25000.00 lb
11340.00 kg
Maximum Line Speed - Bare Drum
131.00 ft/min
40.00 m/min
Maximum Line Speed - Full Drum
207.00 ft/min
63.00 m/min

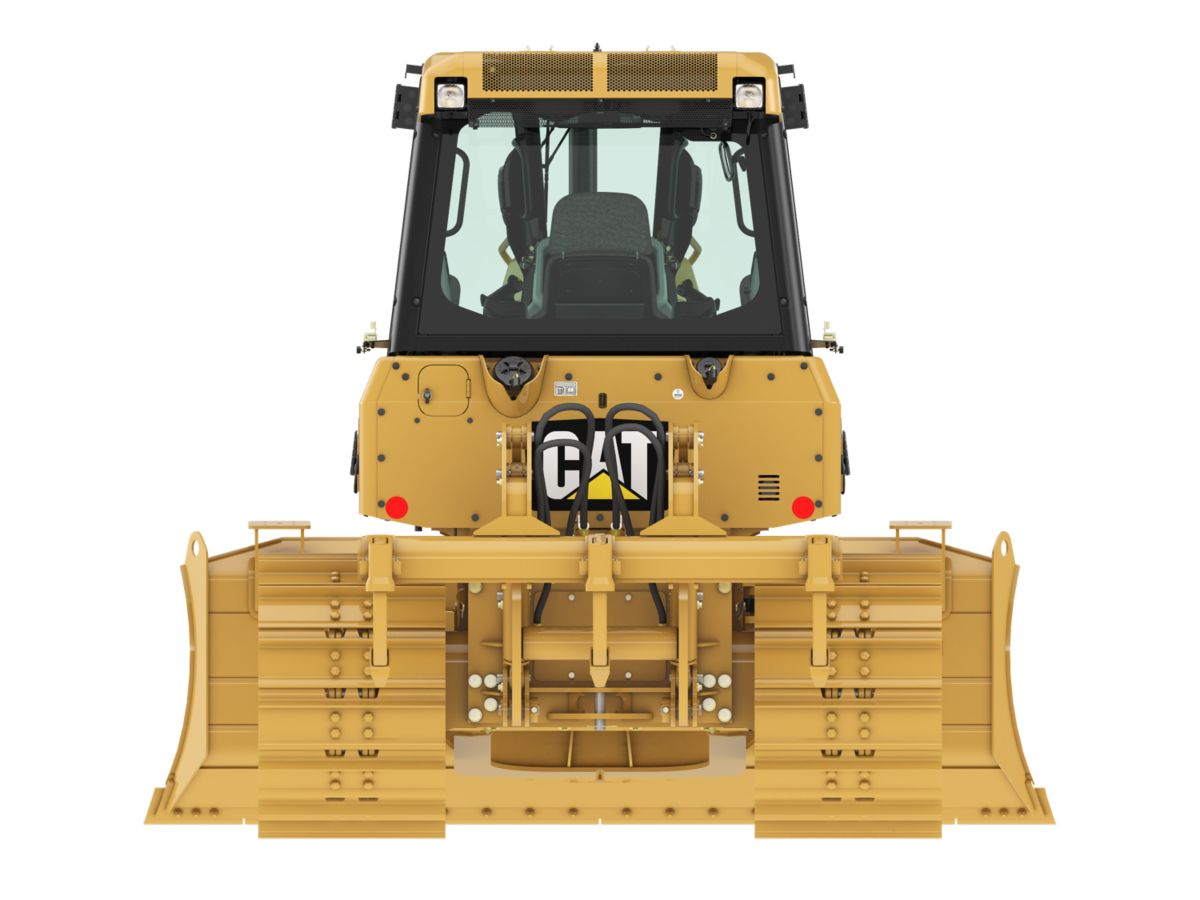

Ripper

Type
Parallelogram
Number of Shanks
3
Maximum Digging Depth
13.30 in
337.50 mm
Maximum Reach - Ground Line
21.90 in
555.00 mm
Maximum Ground Clearance Under Tip
17.60 in
448.00 mm
Overall Width
67.30 in
1710.00 mm
Height
6.50 in
165.00 mm
Weight
1222.00 lb
554.00 kg

Undercarriage

Shoe Width - XL
20.00 in
510.00 mm
Shoe Width - LGP
26.00 in
660.00 mm
Length - Track on Ground - XL
91.00 in
2310.00 mm
Length - Track on Ground - LGP
91.00 in
2310.00 mm
Track Gauge - XL
63.00 in
1600.00 mm
Track Gauge - LGP
69.00 in
1750.00 mm
Ground Contact Area - XL
3652.00 in²
23562.00 cm²
Ground Contact Area - LGP
4726.00 in²
30492.00 cm²
Ground Pressure - XL
5.60 psi
38.60 kPa
Ground Pressure - LGP
4.50 psi
31.10 kPa
Ground Contact Area - LGP, 762 mm (30 in)
5514.00 in²
35574.00 cm²
Ground Pressure - LGP, 762 mm (30 in)
3.93 psi
27.10 kPa
Shoe Width - LGP, 762 mm (30 in)
30.00 in
762.00 mm
Track Gauge - LGP, 762 mm (30 in)
73.20 in
1860.00 mm

Weights

Operating Weight - LGP, 762 mm/30 in
21442.00 lb
9726.00 kg
Note
Specs are for machine equipped with dozer blade, canopy ROPS, back-up alarm, operator, coolant, lubricants and full fuel tank.

Cab

Sound Levels - ISO 6396:2008
79.00 dB(A)
79.00 dB(A)
Sound Levels - SAE J1166 FEB2008
79.00 dB(A)
79.00 dB(A)
ROPS
ISO 6396:2008
FOPS
ISO 3449:2005 Level II

Undercarriage

Number of Rollers (each side)
7
Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage
40
Number of Shoes - Each Side - SystemOne Undercarriage
36
Length - Track on Ground - LGP, 762 mm (30 in)
91.00 in
2310.00 mm

Service Refill Capacities

Diesel Exhaust Fluid (DEF) Tank
4.90 gal
19.00 L

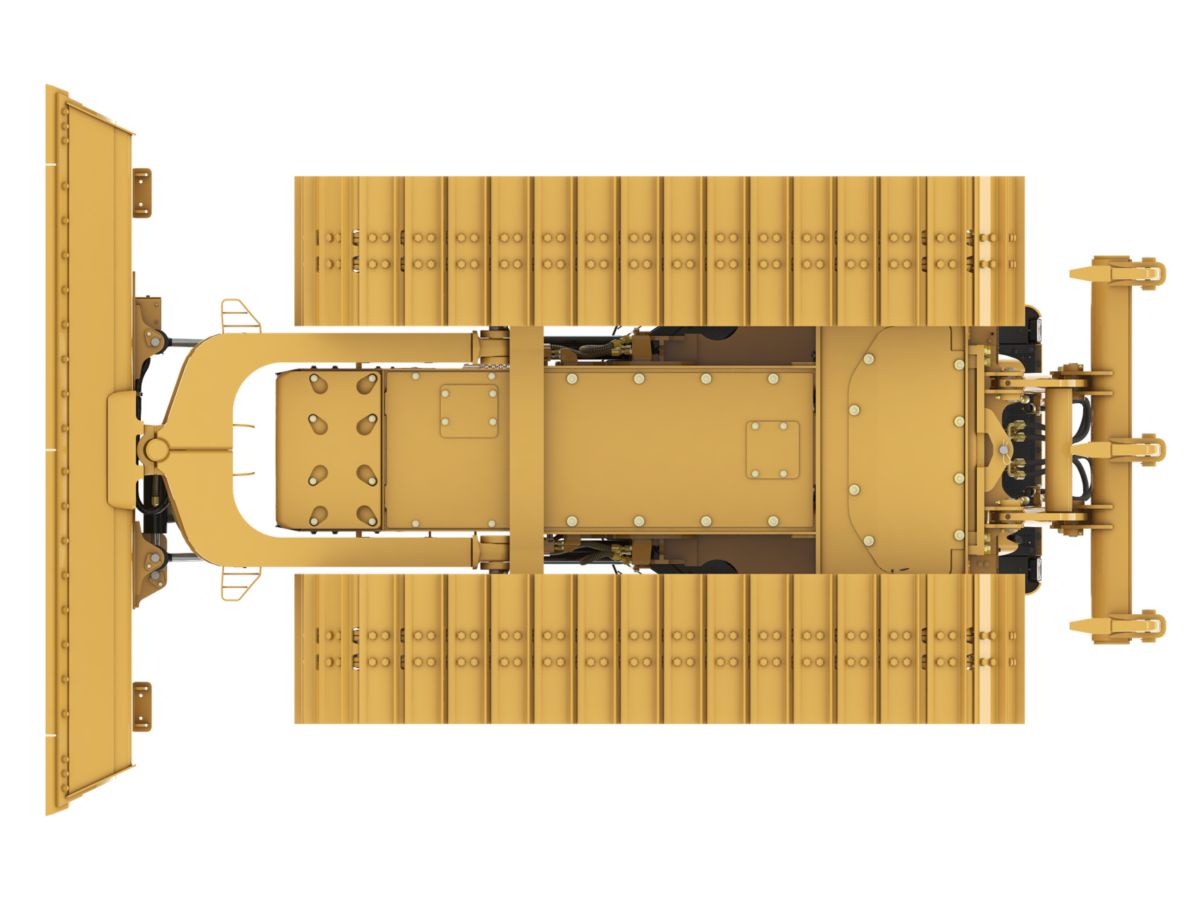

Dimensions

Track Gauge - XL
63.00 in
1600.00 mm
Track Gauge - LGP
68.90 in
1750.00 mm
Track Gauge - LGP, 770 mm (30 in)
73.20 in
1860.00 mm
Width - Tractor - Standard Shoes - No Blade - XL
83.10 in
2110.00 mm
Width - Tractor - Standard Shoes - No Blade - LGP
94.90 in
2410.00 mm
Width - Tractor - Standard Shoes - No Blade - LGP (770 mm/30 in)
103.50 in
2630.00 mm
Overall Length - With Blade - XL
170.10 in
4309.00 mm
Overall Length - With Blade - LGP
169.10 in
4309.00 mm
Overall Length - With Blade - LGP, 770 mm (30 in) Shoes
169.10 in
4309.00 mm
Length - Basic Tractor - Without Blade - XL
128.50 in
3265.00 mm
Length - Basic Tractor - Without Blade - LGP
128.50 in
3265.00 mm
Length - Basic Tractor - Without Blade - LGP, 770 mm (30 in) Shoes
128.50 in
3265.00 mm
Tractor Height - XL
109.00 in
2769.00 mm
Tractor Height - LGP
109.00 in
2769.00 mm
Tractor Height - LGP, 770 mm (30 in)
109.00 in
2769.00 mm
Ground Clearance - XL
13.00 in
332.00 mm
Ground Clearance - LGP
13.00 in
332.00 mm
Ground Clearance - LGP, 770 mm (30 in) Shoes
13.00 in
332.00 mm

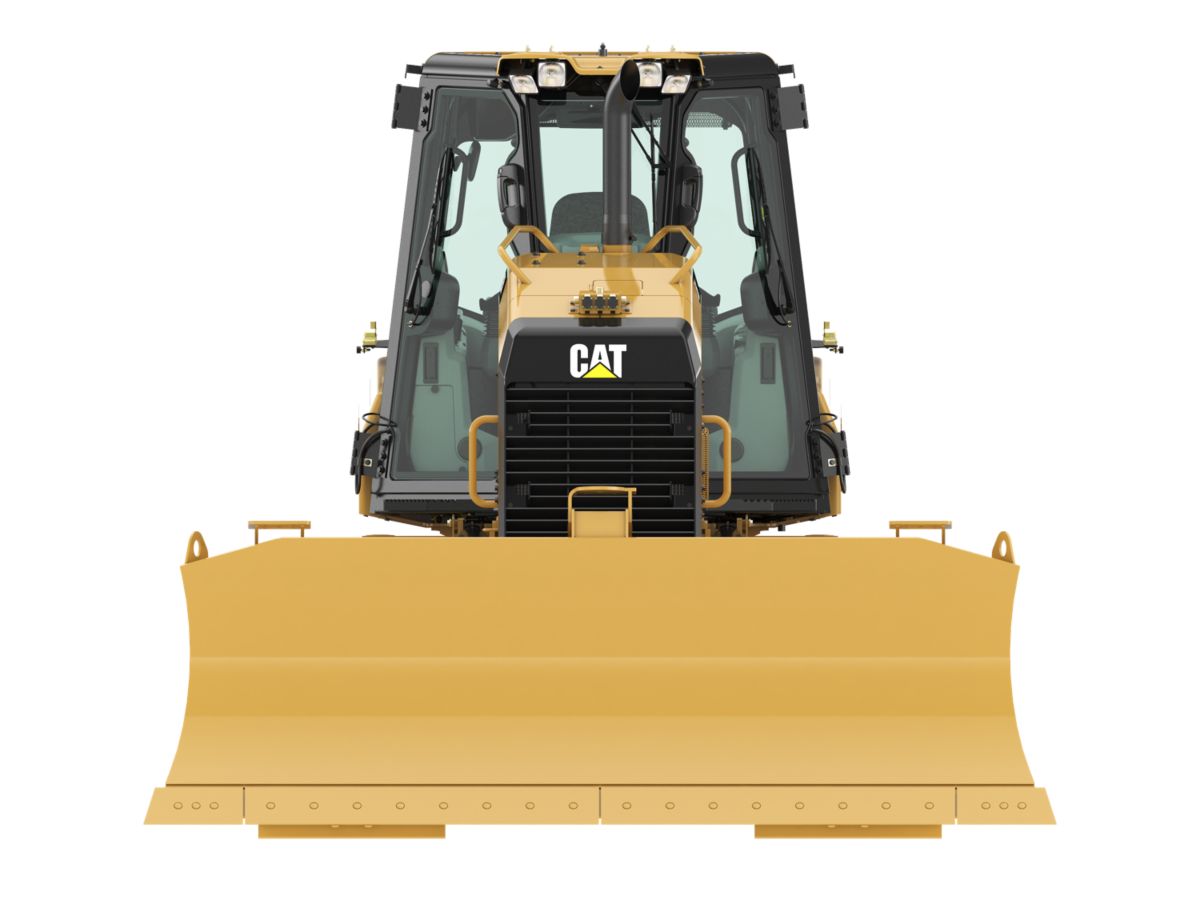

BLADE: Blade Width - XL
109.50 in
2782.00 mm
BLADE: Blade Width - Intermediate
115.00 in
2921.00 mm
BLADE: Blade Width - LGP
126.70 in
3220.00 mm
BLADE: Blade Height - XL
42.20 in
1073.00 mm
BLADE: Blade Height - Intermediate
39.80 in
1010.00 mm
BLADE: Blade Height - LGP
39.80 in
1010.00 mm
BLADE: Blade Lift Height - XL
30.20 in
767.00 mm
BLADE: Blade Lift Height - Intermediate
30.20 in
767.00 mm
BLADE: Blade Lift Height - LGP
30.20 in
767.00 mm
BLADE: Digging Depth - XL
23.10 in
586.00 mm
BLADE: Digging Depth - Intermediate
22.50 in
572.00 mm
BLADE: Digging Depth - LGP
22.50 in
572.00 mm
BLADE: Blade Cutting Edge Angle, Adjustable - XL
52° to 58°
BLADE: Blade Cutting Edge Angle, Adjustable - Intermediate
52° to 58°
BLADE: Blade Cutting Edge Angle, Adjustable - LGP
52° to 58°
BLADE: Maximum Tilt - XL
15.80 in
402.00 mm
BLADE: Maximum Tilt - Intermediate
17.60 in
448.00 mm
BLADE: Maximum Tilt - LGP
17.60 in
448.00 mm
BLADE: Maximum Angle (either side) - XL
25°
BLADE: Maximum Angle (either side) - Intermediate
25°
BLADE: Maximum Angle (either side) - LGP
25°
BLADE: Blade Width at Maximum Angle - XL
103.80 in
2636.00 mm
BLADE: Blade Width at Maximum Angle - Intermediate
105.10 in
2669.00 mm
BLADE: Blade Width at Maximum Angle - LGP
115.80 in
2940.00 mm
BLADE: Blade Capacity (SAE) - XL
2.86 yd³
2.19 m³
BLADE: Blade Capacity (SAE) - Intermediate
2.73 yd³
2.09 m³
BLADE: Blade Capacity (SAE) - LGP
3.06 yd³
2.34 m³

Engine

Engine Model
Cat C4.4
Displacement
269.00 in³
4.40 l
Bore
4.13 in
105.00 mm
Stroke
5.00 in
127.00 mm
Note
Engine meets U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final) emission standards.
Rated Net Power - 2,200 rpm - ISO 9249/EEC 80/1269
104.00 HP
77.60 kW

Service Refill Capacities

Cooling System
5.92 gal (US)
22.40 l
Fuel Tank
51.50 gal (US)
195.00 l

Cab

FOPS
ISO 3449:2005 Level II
ROPS
ISO 6396:2008

Service Refill Capacities

Diesel Exhaust Fluid (DEF) Tank
4.90 gal (US)
19.00 l

Undercarriage

Number of Rollers - Each Side
7

Weights

Note
Specs are for machine equipped with dozer blade, canopy ROPS, back-up alarm, operator, coolant, lubricants and full fuel tank.
Features

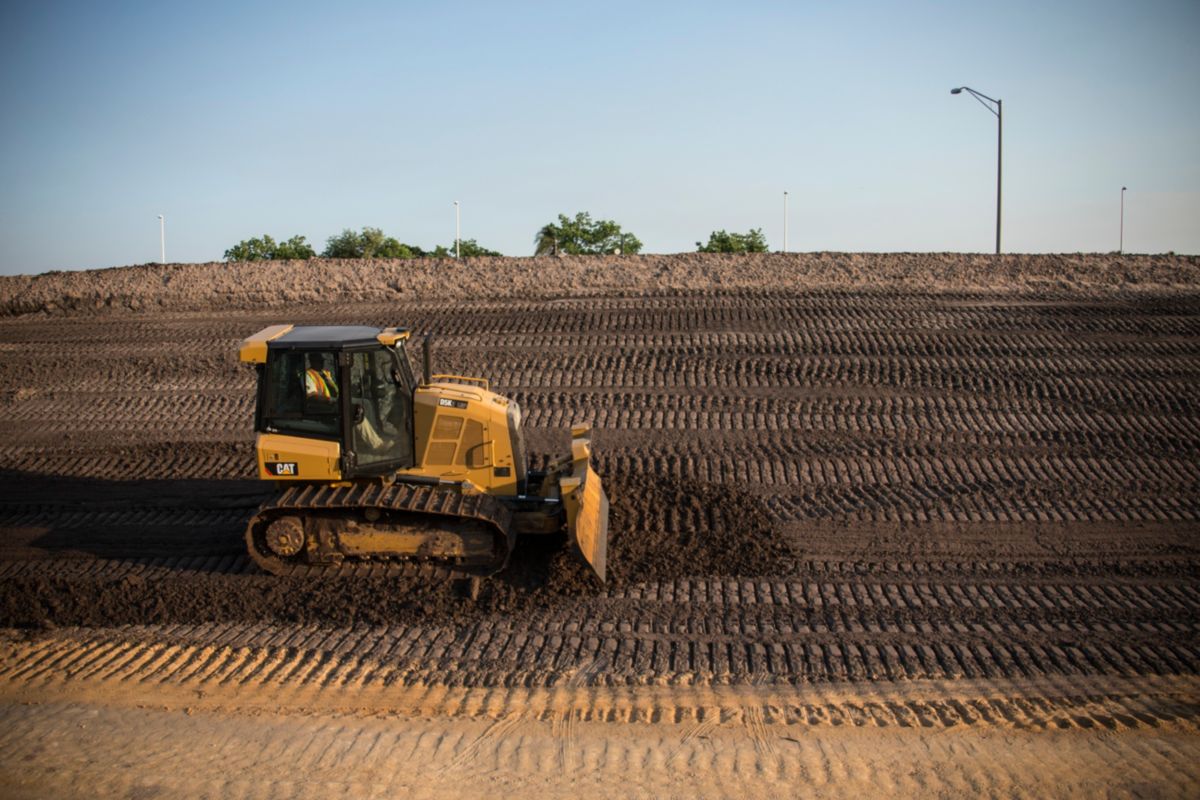

Grade with ease and accuracy

The D5K2 Dozer offers numerous grade control features to enable operators to grade with increased accuracy. Features such as Cat® GRADE with 3D, Cat GRADE with Slope Assist, AccuGrade and Slope Indicate allows for a smooth finish grade for both new and experienced operators every time.

Choices for any Application

The family of Small Dozers offers a choice of both track frames and undercarriages.

Track frames are available in two configurations:

• XL undercarriage - where flotation and side stability are not extreme
• LGP undercarriage - for soft underfoot conditions where additional flotation is required

Undercarriages are available in two configurations:

• Sealed and Lubricated Track (SALT) Undercarriage
– Track is not bushing limited
– May require pin and bushing turn

• SystemOne™ Undercarriage
– Track is bushing limited
– Bushing rotates continuously
– Does not require bushing turn
– Designed to maximize the life of all undercarriage components

All Day Comfort

The spacious, comfortable cab helps keep you relaxed and productive throughout the day.
• Quiet environment
• Wide door openings for easy entry/exit
• Dash mounted air vents for improved air circulation
• Air suspension seat for a more comfortable ride
• Air conditioning for greater comfort in all climates
• New ventilated seat (optional)
• Heated seat and heated control handles (optional)

Easy Serviceability Access

Long service intervals and easy maintenance keep the machine up and running to lower your owning and operating costs.
• Large, hinged door on the left side of the engine compartment for easy access to all regular engine maintenance points
• Grouped pressure taps for quick testing and troubleshooting of the hydraulic system
• Easy ground level access to hydraulic filters located in the left rear service compartment

Sales Features

Features:

Standard Equipment
  • ELECTRICAL
    • Alternator, 12 volt, 120 Amp, heavy duty brushless
    • Alarm, backup
    • Batteries (2), heavy duty, maintenance free, 2,000 CCA
    • Diagnostic connector
    • Horn, electric
    • Lights, halogen, 2 front and 2 rear
    • Starter, electric, 12 volt
  • OPERATOR STATION
    • ROPS/FOPS canopy
    • Seat, air suspended, cloth or vinyl
    • Seatbelt, retractable 76 mm (3 in)
    • Foot pads, dash
    • Electronic Monitoring System with: – Gauges for engine coolant temperature, hydraulic oil temperature and fuel level – Travel speed limiter, electronic – Engine RPM and gear display – Hour meter, electric – Engine air cleaner service indicator, electronic – Water-in-fuel indicator, electronic
    • Slope Indicate
    • Throttle switch, rotary
    • Eco mode
    • Controls, seat mounted, fore/aft adjustment
    • Armrests, adjustable
    • Mirror, rearview, inside
    • Single pedal combining deceleration and braking functions
    • Independent forward/reverse speed settings
    • Power port, 12 volt
    • Coat hook
    • Storage compartment
    • Cup holder
    • Floor mat, rubber, heavy duty
  • HYDRAULICS
    • Hydraulics, 3 valve
    • Load sensing hydraulics
    • Single lever, three function control
    • Hydraulic pump and oil
    • Stable blade control
  • POWER TRAIN
    • Cat C4.4 diesel engine, turbocharged, U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final) certified with aftertreatment
    • Aftercooler, Air-to-Air (ATAAC)
    • Aluminum bar plate cooling system (radiator, power train)
    • Air cleaner with precleaner, automatic dust ejection and under-hood intake
    • Dual path, closed-loop hydrostatic transmission
    • Electric fuel priming pump
    • Fuel/water separator
    • Automatic Traction Control
  • UNDERCARRIAGE
    • SALT Undercarriage
    • 7 roller track frame
    • Track rollers, lifetime lubricated
    • Carrier rollers
    • Track adjusters, hydraulic
    • Guards, front/rear guiding
    • Master link
  • OTHER STANDARD EQUIPMENT
    • Cat Product Link™ PL631 Satellite/PL641 Cellular
    • C-Frame, VPAT, hydraulic cylinders and lines
    • Lockable engine enclosures
    • Front pull device
    • Rigid drawbar
    • Ecology drains (engine, power train and implement oil and engine coolant)
    • Scheduled oil sampling ports (engine, power train implement oil)
    • Vandalism protection
    • Heavy duty crankcase guard
  • ANTIFREEZE
    • Extended life coolant, –37° C (–35° F)
Optional Equipment
  • ELECTRICAL
    • Integrated four front halogen lights, two rear halogen lights
  • POWER TRAIN
    • Drive, auxiliary
    • Installation, winch
  • UNDERCARRIAGE
    • Track Pairs, XL: – Track, 510 mm (20 in) MS SystemOne
    • Track Pairs, LGP: – Track, 660 mm (26 in) MS SystemOne – Track, 762 mm (30 in) MS SystemOne
  • OPERATOR STATION
    • Cab with air conditioning*
    • Cab, polycarbonate windows and air conditioning*
    • Seat, air suspension, choice of: – Vinyl, heated seat with heated controls – Cloth, heated seat with heated controls – Cloth, heated and ventilated seat with heated controls
    • Radio, AM/FM, Bluetooth
    • Sound suppression
    • *Air Conditioning System: The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg) of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.
  • HYDRAULICS
    • Hydraulics, 4 valve for use with ripper
    • Hydraulics, 4 valve for use with winch
  • GUARDS
    • Guard, rear, heavy duty
    • Grill, radiator, heavy duty
    • Guard, track guiding, center
    • Guard, track roller, full length
    • Screen, rear, cab
    • Screen, side, cab
    • Screen, rear, canopy
    • Screen, front and doors, canopy
    • Sweeps, front
    • Sweeps, rear
  • BLADES
    • VPAT XL blade
    • VPAT LGP blade
    • VPAT Intermediate blade
  • REAR ATTACHMENTS
    • Drawbar, towing
    • Mounting, winch
    • Ripper, parallelogram, includes three shanks and teeth
  • REAR ATTACHMENT CONTROL
    • Control, ripper
    • Control, winch
    • Control, ripper and winch
  • MACHINE CONTROL AND GUIDANCE
    • Installation, AccuGrade ready, includes Cat Grade Control Slope Assist
    • Power Pitch blade control
  • STARTING AIDS
    • Heater, engine, coolant, 120 volt
    • Starting aid, ether
  • OTHER ATTACHMENTS
    • Machine Security System
  • ANTIFREEZE
    • Extended life coolant, –50° C (–58° F)
  • FIELD INSTALLED ATTACHMENT
    • Winch, hydrostatic
