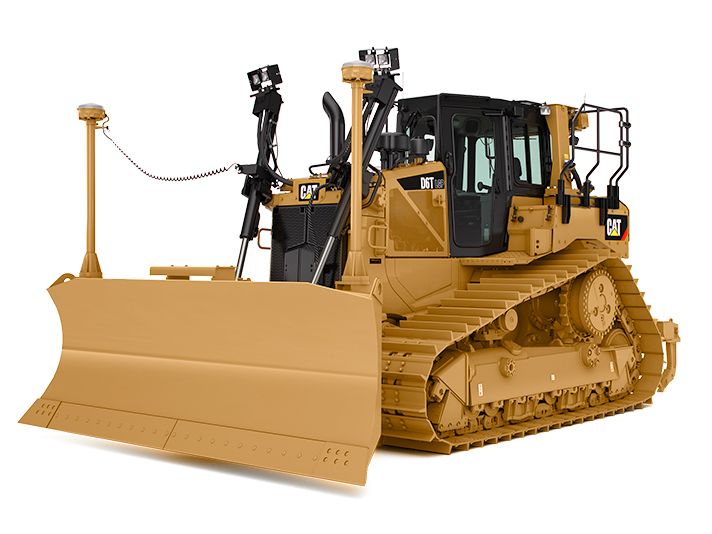

D6T Track-Type Tractor

US
Metric

Overview

The Cat D6T dozer has earned a global reputation for outstanding versatility. The D6T has the pushing power you want for heavy dozing applications and the fine control you need for finish grading – all in one easy-to-transport machine. A choice of configurations, undercarriage and track, rear implements and blades give you multiple options to put together a machine ideally suited to the work you do day after day. Industry leading resale value helps you get the most from your equipment investment. The D6T meets U.S. EPA Tier 4 Final emission standards.

Engine

Engine Model
Cat® C9.3 ACERT™
Flywheel Power
207.00 hp
154.00 kW
Bore
4.50 in
115.00 mm
Stroke
5.90 in
149.00 mm
Displacement
567.00 in3
9.30 L
Emissions
U.S. EPA Tier 4 Final
Engine Power (Maximum) – ISO 14396
255.00 hp
190.00 kW
Engine Power (Maximum) – ISO 14396 (DIN)
258.00 hp
190.00 kW
Engine Power (Maximum) – SAE J1995
257.00 hp
192.00 kW
Net Power (Maximum) – ISO 9249/SAE J1349
241.00 hp
180.00 kW
Net Power (Maximum) – ISO 9249/SAE J1349 (DIN)
244.00 hp
180.00 kW
Net Power (Rated) – ISO 9249/SAE J1349
207.00 hp
154.00 kW
Net Power (Rated) – ISO 9249/SAE J1349 (DIN)
210.00 hp
154.00 kW

Weights

Operating Weight
46263.00 lb
20985.00 kg
Operating Weight – LGP A
52954.00 lb
24020.00 kg
Shipping Weight – LGP S/A
43664.00 lb
19806.00 kg
Shipping Weight – XL A/SU
39138.00 lb
17753.00 kg
Shipping Weight – XW A/SU
40596.00 lb
18414.00 kg
Operating Weight – XL A
46791.00 lb
21306.00 kg
Operating Weight – XL SU
46263.00 lb
20985.00 kg
Operating Weight – XL VPAT
52167.00 lb
23663.00 kg
Shipping Weight – XL VPAT
47165.00 lb
21394.00 kg
Operating Weight – XW A
48922.00 lb
22191.00 kg
Operating Weight – XW SU
48034.00 lb
21788.00 kg
Operating Weight – XW VPAT
53170.00 lb
24118.00 kg
Shipping Weight – XW VPAT
45840.00 lb
20793.00 kg
Operating Weight – LGP S
50490.00 lb
22902.00 kg
Operating Weight – LGP VPAT
53651.00 lb
24336.00 kg
Shipping Weight – LGP VPAT
48521.00 lb
22009.00 kg

Blades: 6 SU – XL

Capacity
7.26 yd3
5.55 m3
Width
10.70 ft
3260.00 mm
Height
4.60 ft
1407.00 mm
Digging Depth
19.70 in
501.00 mm
Ground Clearance
46.50 in
1180.00 mm
Maximum Tilt
32.00 in
812.00 mm
Weight
2949.80 lb
1338.00 kg

Blades: 6A – XL

Capacity
5.17 yd3
3.95 m3
Width
13.70 ft
4160.00 mm
Height
3.80 ft
1151.00 mm
Digging Depth
21.80 in
555.00 mm
Ground Clearance
43.80 in
1112.00 mm
Maximum Tilt
16.70 in
424.00 mm
Weight
2633.60 lb
1194.60 kg

Blades: 6 VPAT – XL

Capacity
6.07 yd3
4.64 m3
Width
12.80 ft
3880.00 mm
Height
4.20 ft
1294.00 mm
Digging Depth
31.20 in
792.00 mm

Transmission

1.0 Forward
2.30 mph
3.70 km/h
1.5 Forward
3.00 mph
4.70 km/h
2.0 Forward
4.10 mph
6.50 km/h
2.5 Forward
5.10 mph
8.20 km/h
3.0 Forward
7.00 mph
11.30 km/h
1.0 Reverse
3.00 mph
4.80 km/h
1.5 Reverse
3.80 mph
6.10 km/h
2.0 Reverse
5.20 mph
8.30 km/h
2.5 Reverse
6.50 mph
10.50 km/h
3.0 Reverse
9.00 mph
14.40 km/h
0.5 Forward
1.70 mph
2.70 km/h
0.5 Reverse
2.20 mph
3.50 km/h
0.7 Forward
2.10 mph
3.30 km/h
0.7 Reverse
2.60 mph
4.20 km/h
1.7 Forward
3.60 mph
5.80 km/h
1.7 Reverse
4.60 mph
7.40 km/h
2.7 Forward
6.20 mph
10.00 km/h
2.7 Reverse
7.90 mph
12.70 km/h
Drawbar Pull: 0.5-1.0 Forward
86000.00 lbf
382.00 kN
Drawbar Pull: 1.5-2.0 Forward
49800.00 lbf
221.00 kN
Drawbar Pull: 2.5-3.0 Forward
26800.00 lbf
119.00 kN
Drawbar Pull: 2.5-3.0 Forward
26800.00 lbf
119.00 kN

Service Refill Capacities

Fuel Tank
108.70 gal
411.00 L
Cooling System
13.40 gal
51.00 L
Engine Crankcase
6.50 gal
24.60 L
Power Train
39.10 gal
148.00 L
Final Drives (each)
3.60 gal
13.50 L
Roller Frames (each)
6.60 gal
25.00 L
Pivot Shaft Compartment
1.30 gal
5.00 L
Hydraulic Tank
17.30 gal
65.50 L
DEF Tank
4.50 gal
17.10 L

Winch

Cable Ferrule Size (O.D. × Length)
54 mm × 67 mm (2.1 in × 2.6 in)
Control
Mechanical
Maximum Bare Drum – Line Pull
89800.00 lb
40700.00 kg
Maximum Bare Drum – Line Speed
130.00 ft/min
39.60 m/min
Maximum Full Drum – Line Pull
76300.00 lb
34600.00 kg
Maximum Full Drum – Line Speed
224.00 ft/min
68.30 m/min
Rope Diameter – Optional
1.00 in
25.00 mm
Rope Diameter – Recommended
0.88 in
22.00 mm
Weight
2652.00 lb
1203.00 kg
Winch Drive
Mechanical
Winch Model
PA56
Oil Capacity
17.80 gal
67.00 L
Increased Tractor Length – XL/XW
20.40 in
516.00 mm
Increased Tractor Length – LGP
14.40 in
365.00 mm
Drum Diameter
10.00 in
254.00 mm
Drum Capacity – 22 mm (0.88 in)
288.70 ft
88.00 m
Drum Capacity – 25 mm (1.0 in)
219.80 ft
67.00 m

Standards

ROPS/FOPS
ROPS meets ISO 3471:2008, FOPS meets ISO 3449:2005 Level II
Cab
Meets appropriate standards
Brakes
Brakes meet the International Standard ISO 10265:2008

Hydraulic Controls – Pump

Angle Cylinder Flow – VPAT
50.00 gal/min
190.00 L/min
Pump Output – Fan
25.00 gal/min
93.00 L/min
Pump Output – Implement
54.00 gal/min
205.00 L/min
Pump Output – Steering
52.00 gal/min
195.00 L/min
Lift Cylinder Flow
54.00 gal/min
205.00 L/min
Tilt Cylinder Flow
29.00 gal/min
110.00 L/min
Ripper Cylinder Flow
54.00 gal/min
205.00 L/min

Drive Train

Type
Mechanical

Ripper

Maximum Clearance Raised (under tip)
20.20 in
514.00 mm
Maximum Penetration Force
14747.00 lb
65.60 kN
Pocket Spacing
39.40 in
1000.00 mm
Pryout Force
26190.00 lb
116.50 kN
Ramp Angle
26 degrees
Shank Gauge
78.80 in
2000.00 mm
Shank Section
74 mm × 175 mm (2.9 in × 6.9 in)
Weight – With One Shank
3302.00 lb
1498.00 kg
Type
Fixed Parallelogram
Number of Pockets
3
Overall Beam Width
87.00 in
2202.00 mm
Beam Cross Section
219 mm × 304 mm (8.8 in × 12 in)
Maximum Penetration
18.00 in
457.00 mm
Weight – Each Additional Shank
161.00 lb
73.00 kg

Hydraulic Controls – Pressures

Maximum Operating Pressures – Non-VPAT
2800.00 psi
19300.00 kPa
Maximum Operating Pressures – VPAT
3125.00 psi
21550.00 kPa
Relief Pressures – Non-VPAT
3150.00 psi
21700.00 kPa
Relief Pressures – VPAT
3540.00 psi
24400.00 kPa
Steering
5800.00 psi
40000.00 kPa

Blades: 6 VPAT – XL

Ground Clearance
41.50 in
1053.00 mm
Maximum Tilt
16.10 in
410.00 mm
Weight
3680.60 lb
1669.50 kg

Blades: 6 SU – XW

Capacity
7.38 yd3
5.64 m3
Width
11.70 ft
3560.00 mm
Height
4.60 ft
1407.00 mm
Digging Depth
19.70 in
502.00 mm
Ground Clearance
46.50 in
1180.00 mm
Maximum Tilt
31.20 in
791.00 mm
Weight
3120.40 lb
1415.40 kg

Blades: 6A – XW

Capacity
5.69 yd3
4.35 m3
Width
14.80 ft
4520.00 mm
Height
3.80 ft
1153.00 mm
Digging Depth
21.30 in
541.00 mm
Ground Clearance
44.80 in
1139.00 mm
Maximum Tilt
16.70 in
424.00 mm
Weight
2865.20 lb
1299.60 kg

Blades: 6 VPAT – XW

Capacity
6.57 yd3
5.02 m3
Width
13.70 ft
4160.00 mm
Height
4.20 ft
1294.00 mm
Digging Depth
29.30 in
743.00 mm
Ground Clearance
43.40 in
1102.00 mm
Maximum Tilt
17.40 in
442.00 mm
Weight
3888.40 lb
1763.80 kg

Blades: 6S LGP

Capacity
4.96 yd3
3.79 m3
Width
13.30 ft
4063.00 mm
Height
3.60 ft
1108.00 mm
Digging Depth
23.20 in
590.00 mm
Ground Clearance
43.10 in
1094.00 mm
Maximum Tilt
28.90 in
735.00 mm
Weight
2622.20 lb
1189.70 kg

Blades: 6A – LGP

Capacity
6.46 yd3
4.94 m3
Width
16.70 ft
5070.00 mm
Height
3.80 ft
1150.00 mm
Digging Depth
33.60 in
853.00 mm
Ground Clearance
39.50 in
1004.00 mm
Maximum Tilt
24.30 in
618.00 mm
Weight
3211.00 lb
1456.50 kg

Blades: 6 VPAT – LGP

Capacity
6.57 yd3
5.02 m3
Width
13.70 ft
4160.00 mm
Height
4.20 ft
1294.00 mm
Digging Depth
29.30 in
743.00 mm
Ground Clearance
43.40 in
1102.00 mm
Maximum Tilt
17.40 in
442.00 mm
Weight
3888.40 lb
1763.80 kg
Sales Features

Power and Performance

Built to get the job done

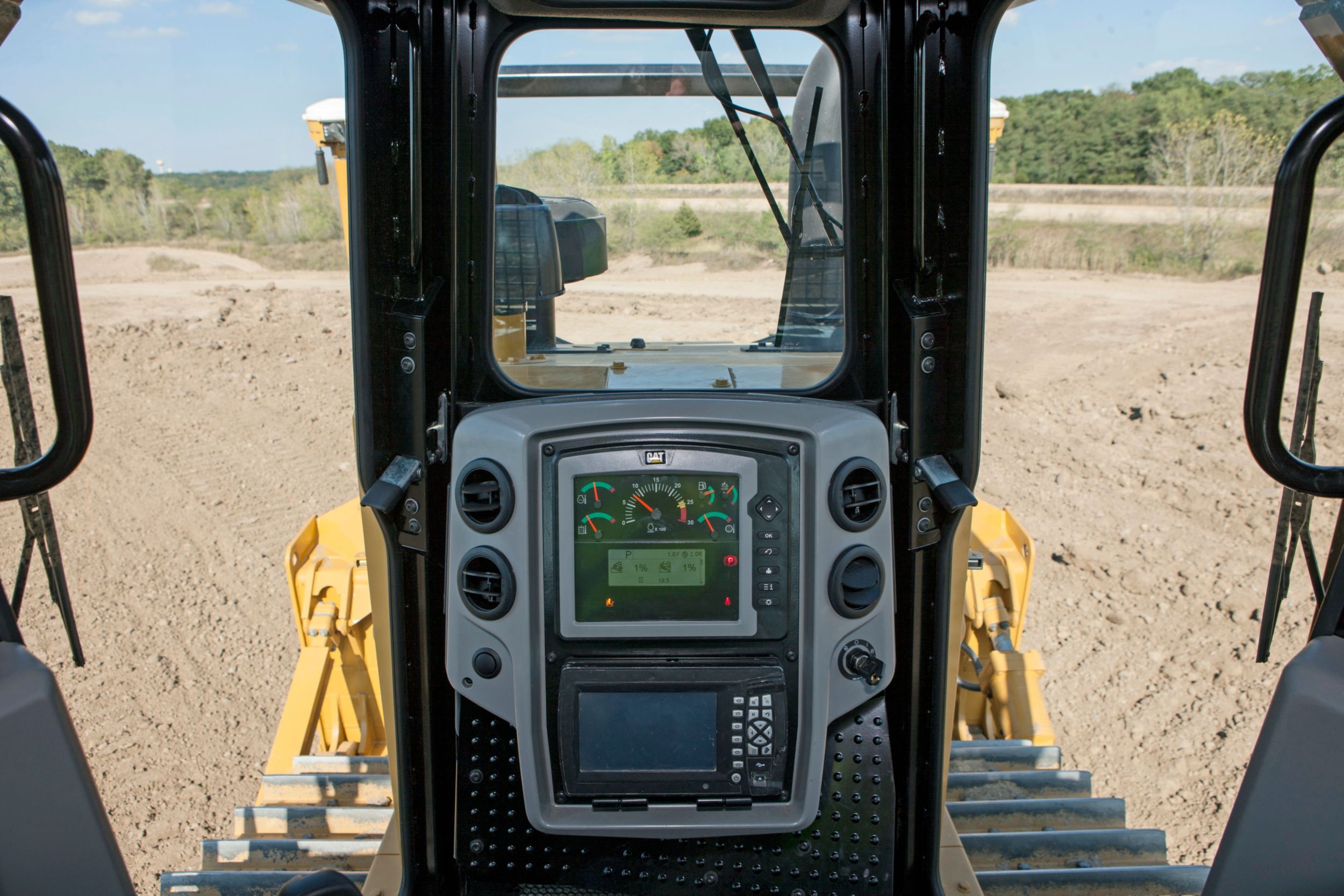

Operator Environment

Comfort and productivity

Emissions Technology

Proven, integrated solutions

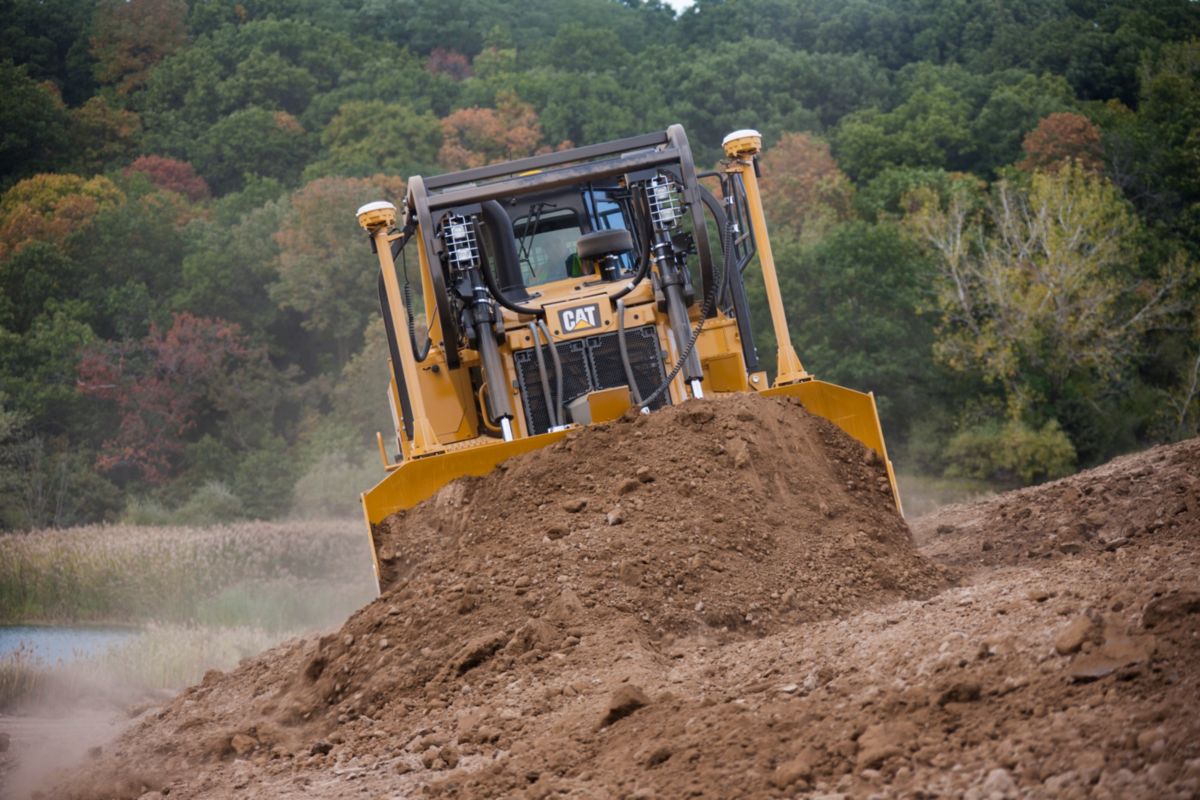

Integrated Technologies

Monitor, manage and enhance job site operations

Equipped for the Job

Optimize your machine

Safety

Designed with protection in mind

Sustainability

Built for the next generation

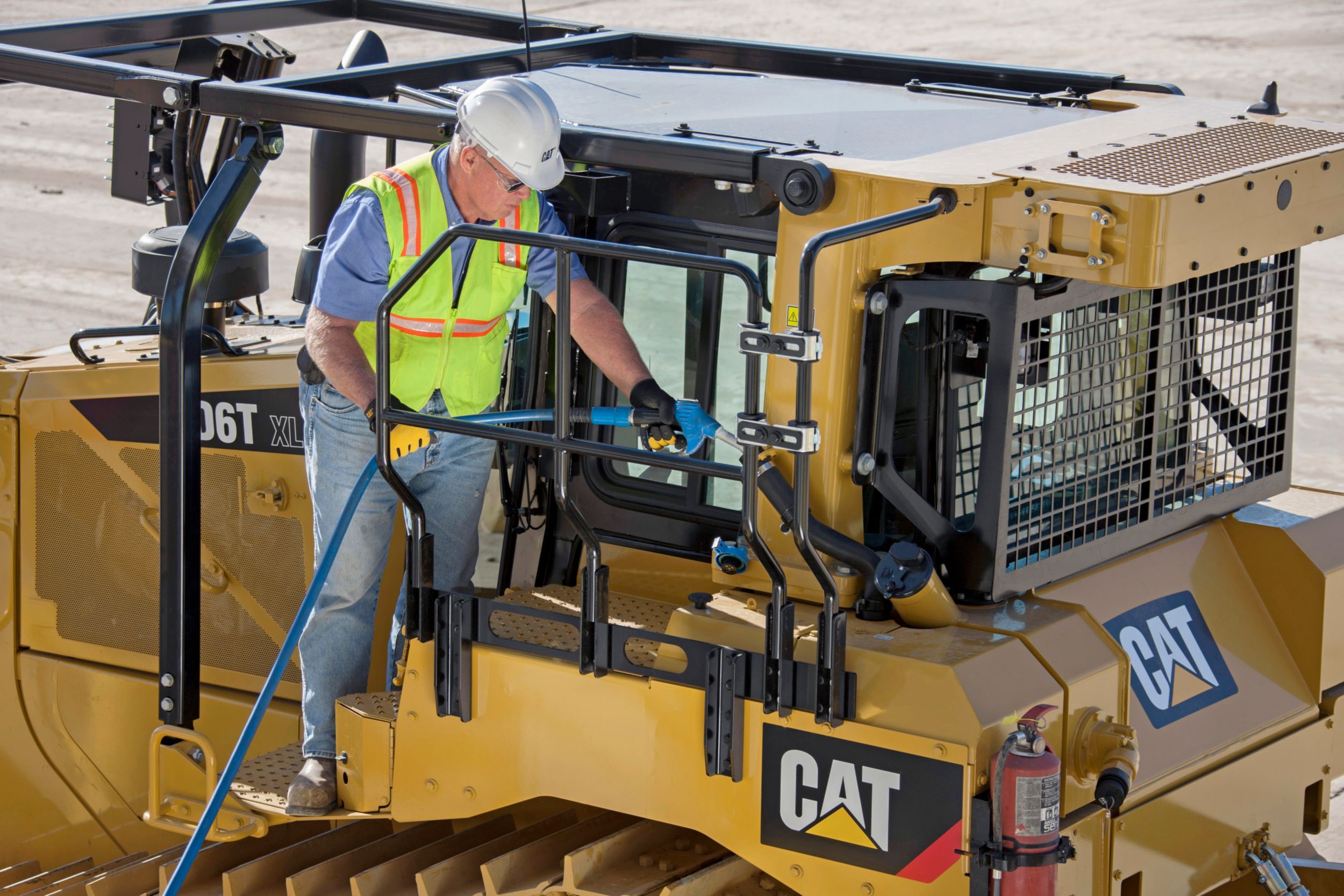

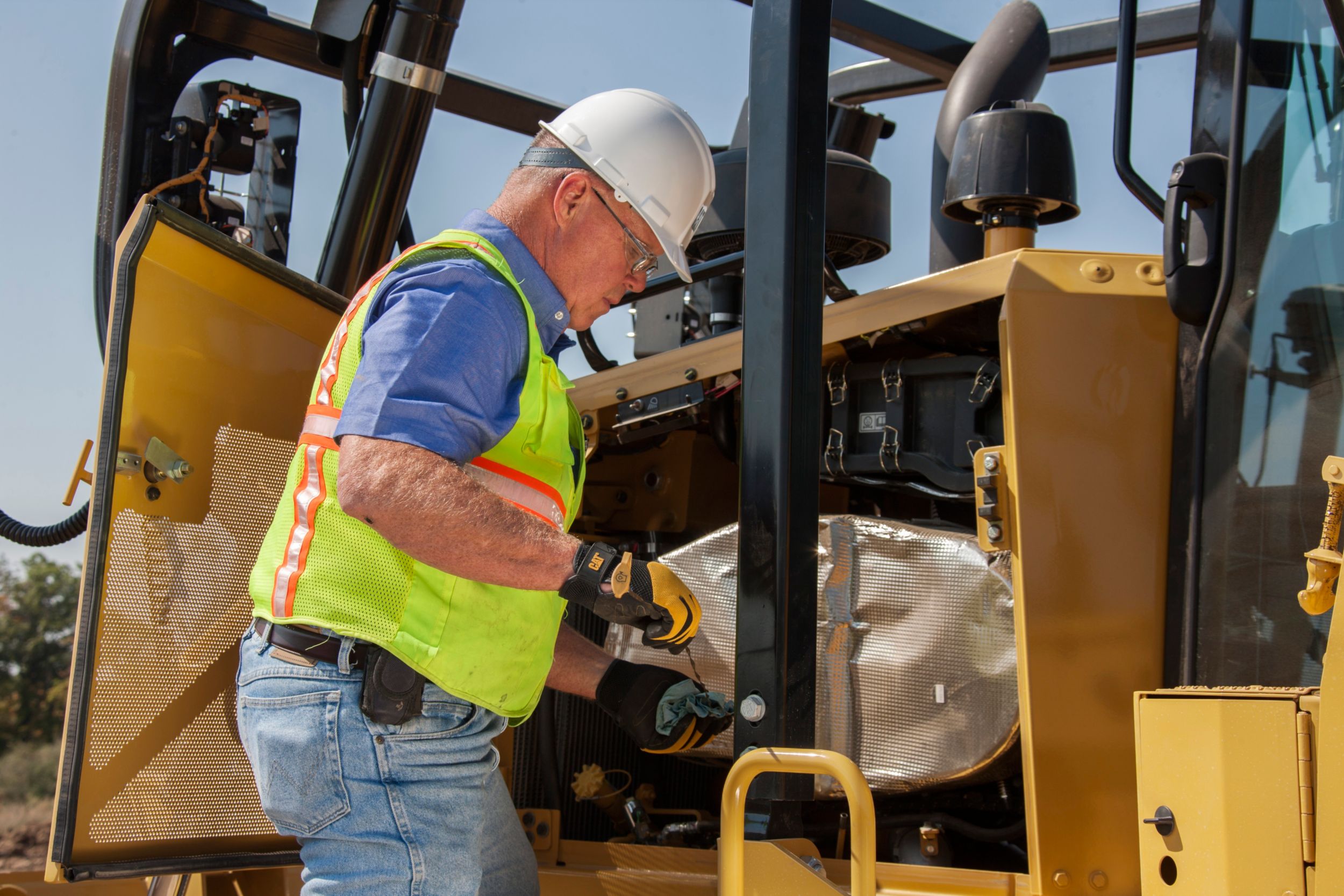

Serviceability and Customer Support

When uptime counts

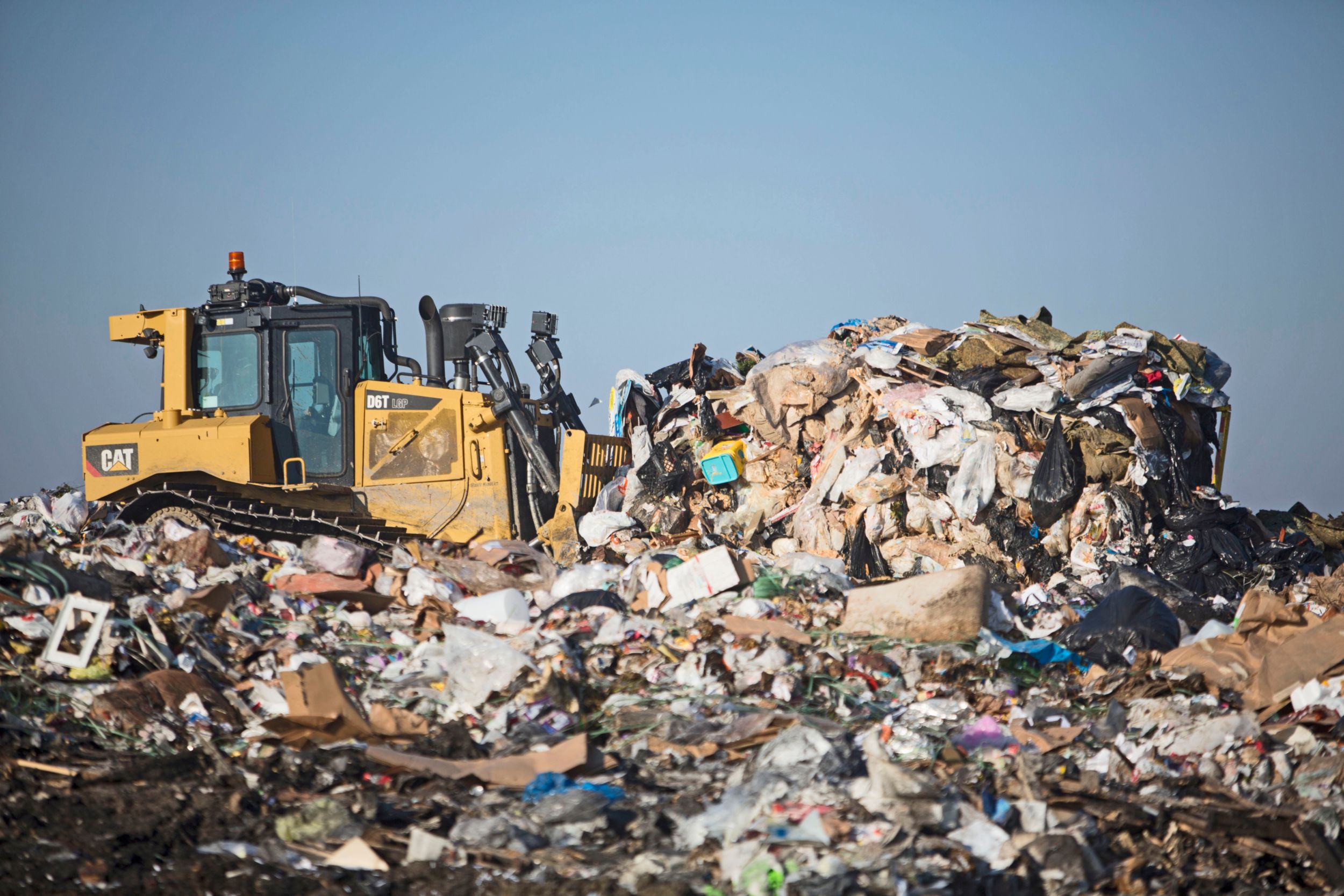

Special Arrangements

Purpose-built for performance
Standard Equipment
  • POWER TRAIN
    • C9.3 ACERT diesel engine
    • U.S. EPA Tier 4 Final emission standards
    • Air cleaner, Strata tube precleaner with dust ejection
    • Air filter with electronic service ind.
    • Aftercooler – Air to Air (ATAAC)
    • Coolant, extended life
    • Enhanced Auto Shift (EAS)
    • Drains, ecology, power train
    • Fan, hydraulic, cold weather
    • Final drives, single reduction planetary
    • Fuel priming pump, electric
    • Jacket water heater
    • Parking brake, electronic
    • Radiator, aluminum bar plate
    • Radiator, HD guard
    • Shift management: – Automatic directional and downshift – Controlled throttle, load compensated
    • Starting aid, ether, automatic
    • Starter, heavy duty
    • Torque divider
    • Transmission, electronically controlled powershift
    • Turbocharger, wastegate
    • Water separator
  • UNDERCARRIAGE
    • SystemOne Track Group
    • Carrier rollers
    • Clamp master link
    • Equalizer bar
    • Guards, end track guiding
    • Idlers, center tread, lifetime lubricated
    • Rollers, lifetime lubricated
    • Track, lifetime lubricated
    • Track roller frames, tubular
    • Track adjusters, hydraulic
    • Sprocket rim segments, replaceable
  • ELECTRICAL
    • Alarm, backup
    • Alternator, 150 amp
    • Batteries, two maintenance free 12V (1,400 cca) (24V system), heavy duty
    • Converter, two 10 amp 12V outlets
    • Connector, diagnostic
    • Electric start, 24V
    • Horn, forward warning
    • Hour meter, electronic
  • OPERATOR ENVIRONMENT
    • A/C, ROPS mounted condenser
    • Armrest, adjustable
    • Cab, ROPS/FOPS, sound suppressed, pressurized
    • Cupholders
    • Decelerator and brake pedals
    • Electro-hydraulics implement and steering controls
    • Six gauge cluster (engine coolant temperature, power train oil, hydraulic oil temperature, fuel level, engine rpm display/gear display, DEF level)
    • Foot pads, dash
    • Glove box
    • Heater
    • Hour meter, electronic
    • Mirror, rearview
    • Power train control module: – Throttle dial, electronic – Enhanced Auto Shift (EAS) control – Shift Management Dial
    • Radio ready
    • Seat, cloth, air-suspension
    • Seat belt, retractable 76 mm (3 in)
    • Wipers, two speed
  • OTHER STANDARD EQUIPMENT
    • CD ROM parts book
    • Engine enclosures, perforated
    • Front pull device
    • Guards, hinged bottom
    • Ground level service center with remote electrical disconnect and secondary shutdown switch and hour meter
    • Hood, perforated
    • Hydraulics, independent steering and work tool and fan pumps
    • Hydraulics, load sensing, dozer lift and tilt
    • Mounting, lift cylinder
    • Oil cooler, hydraulic
    • Radiator doors, perforated, louvered, hinged
    • S·O·S sampling ports
    • Vandalism protection for fluid compartments and battery box
  • TECHNOLOGY
    • Cat Slope Indicate
    • Product Link
    • Stable Blade Control
Optional Equipment
  • POWER TRAIN
    • Fan, auto reversing
    • Oil change system, power train
    • Fuel system, fast fill
    • Precleaner with screen

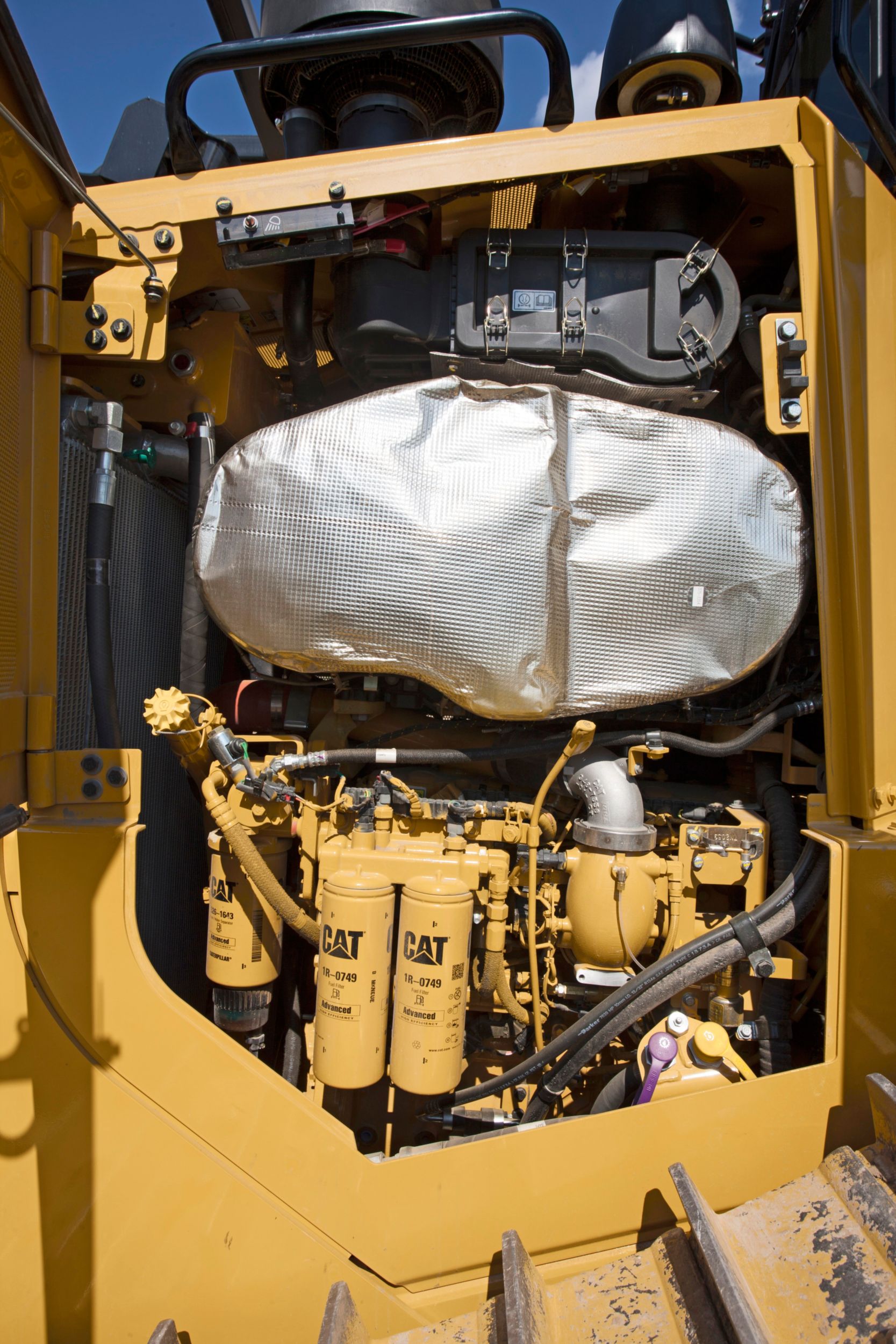

    • Thermal shield including insulated CEM
  • UNDERCARRIAGE
    • XL machines
    • XW machines
    • LGP machines
    • XL VPAT machines
    • XW VPAT machines
    • LGP VPAT machines: – Sealed and Lubricated Heavy-Duty Track Group
    • Track Pairs (XL Non-VPAT Roller Frame, 41 Section): – Moderate Service Shoes (SystemOne) • 560 mm (22 in) • 610 mm (24 in) – Moderate Service Shoes (Heavy Duty) • 560 mm (22 in) • 610 mm (24 in) – Extreme Service Shoes (SystemOne) • 560 mm (22 in) • 610 mm (24 in) • 610 mm (24 in) Clipped • 560 mm (22 in) Center Hole • 610 mm (24 in) Center Hole – Extreme Service Shoes (Heavy Duty) • 560 mm (22 in) • 610 mm (24 in) • 610 mm (24 in) Trapezoidal
    • Track Pairs (XW Non-VPAT Roller Frame, 41 Section): – Moderate Service Shoes (SystemOne) • 610 mm (24 in) • 760 mm (30 in) • 710 mm (28 in) – Moderate Service Shoes (Heavy Duty) • 610 mm (24 in) • 760 mm (30 in) – Extreme Service Shoes (SystemOne) • 610 mm (24 in) • 610 mm (24 in) Clipped • 760 mm (30 in) • 760 mm (30 in) Center Hole – Extreme Service Shoes (Heavy Duty) • 610 mm (24 in) • 760 mm (30 in) • 760 mm (30 in) Trapezoidal
    • Track Pairs (LGP Non-VPAT Roller Frame, 45 Section): – Moderate Service Shoes (SystemOne) • 910 mm (36 in) – Moderate Service Shoes (Heavy Duty) • 910 mm (36 in) – Extreme Service Shoes (SystemOne) • 910 mm (36 in) • 760 mm (30 in) Center Hole • 910 mm (36 in) Center Hole – Extreme Service Shoes (Heavy Duty) • 760 mm (30 in) • 760 mm (30 in) Trapezoidal • 910 mm (36 in) Trapezoidal – Self Cleaning Track (Heavy Duty) • 990 mm (39 in)
    • Track Pairs (XL VPAT Roller Frame, 41 Section): – Moderate Service Shoes (SystemOne) • 560 mm (22 in) – Moderate Service Shoes (Heavy Duty) • 560 mm (22 in) – Extreme Service Shoes (SystemOne) • 560 mm (22 in) • 560 mm (22 in) Center Hole • 610 mm (24 in) Offset • 610 mm (24 in) Offset, Clipped – Extreme Service Shoes (Heavy Duty) • 560 mm (22 in)
    • Track Pairs (XW VPAT Roller Frame, 41 Section): – Moderate Service Shoes (SystemOne) • 610 mm (24 in) • 710 mm (28 in) • 710 mm (28 in) Clipped – Moderate Service Shoes (Heavy Duty) • 610 mm (24 in) • 710 mm (28 in) • 710 mm (28 in) Trapezoidal – Extreme Service Shoes (SystemOne) • 610 mm (24 in) • 610 mm (24 in) Clipped • 710 mm (28 in) • 610 mm (24 in) Center Hole – Extreme Service Shoes (Heavy Duty) • 610 mm (24 in) • 710 mm (28 in)
    • Track Pairs (LGP VPAT Roller Frame, 45 Section): – Offset Moderate Service Shoes (SystemOne) • 790 mm (31 in) – Offset Moderate Service Shoes (Heavy Duty) • 790 mm (31 in) – Offset Extreme Service Shoes (SystemOne) • 790 mm (31 in)
  • HYDRAULICS
    • Control arrangement – ripper
    • Control arrangement – winch
    • Control arrangement – ripper/winch
  • STARTERS, BATTERIES AND ALTERNATORS
    • Alternator, 150 amp
    • Alternator, 150 amp, ducted
    • Heater, engine coolant, 120V
  • ELECTRICAL
    • Lights 6, basic
    • Lights 10, premium
  • OPERATOR ENVIRONMENT
    • Camera, rear vision
    • Glass, dual pane and precleaner
    • Standard Plus seat: – Cloth, heated cushions, air suspension
    • Premium seat: – Cloth with leather bolsters – Heated and ventilated cushions – Air suspension
  • TECHNOLOGY PRODUCTS
    • AccuGrade Ready
    • Cat Grade Control 3D
    • Product Link Cellular
    • Product Link Satellite
  • GUARDS
    • Guard, rear tractor
    • Guard, final drive, clamshell
    • Guard, final drive seals
    • Guard, idler seals
    • Heavy duty guard package
    • Hitch, front
    • Screen, rear cab
    • Sweeps package
    • Towing device, pull-hook
  • TRACK GUIDING GUARD ARRANGEMENTS (SystemOne)
    • Guide, track, moderate service
    • Guide/guard, track, full length
  • OTHER ATTACHMENTS
    • Counterweights and drawbars
    • Counterweight, rear
    • Counterweight, rear slab
    • Counterweight, additional
    • Drawbar, rigid short
    • Drawbar, rigid long
  • WINCH ARRANGEMENTS
    • PA56 winch package, standard speed
    • PA56 winch package, slow speed
    • Fairlead, 3 rollers
    • Fourth roller
  • BLADES
    • VPAT XL, Bulldozer
    • VPAT XW, Bulldozer
    • VPAT LGP, Bulldozer
    • 6SU XL
    • 6SU XL, Landfill
    • 6SU XW
    • 6SU XW, Landfill
    • 6A XL
    • 6A XW
    • 6A LGP
    • 6S LGP
    • 6S LGP, Landfill
  • GROUND ENGAGING TOOLS
    • Ripper, multi-shank
    • Tooth, multi-shank ripper
    • Tooth, straight, 1 shank
    • Teeth, straight, set of 2
    • Teeth, straight, set of 3
  • MISCELLANEOUS
    • Seal group
  • SPECIAL ARRANGEMENTS
    • Forestry Arrangement
    • Waste Handling Arrangement
    • Waste Handling Arrangement VPAT
