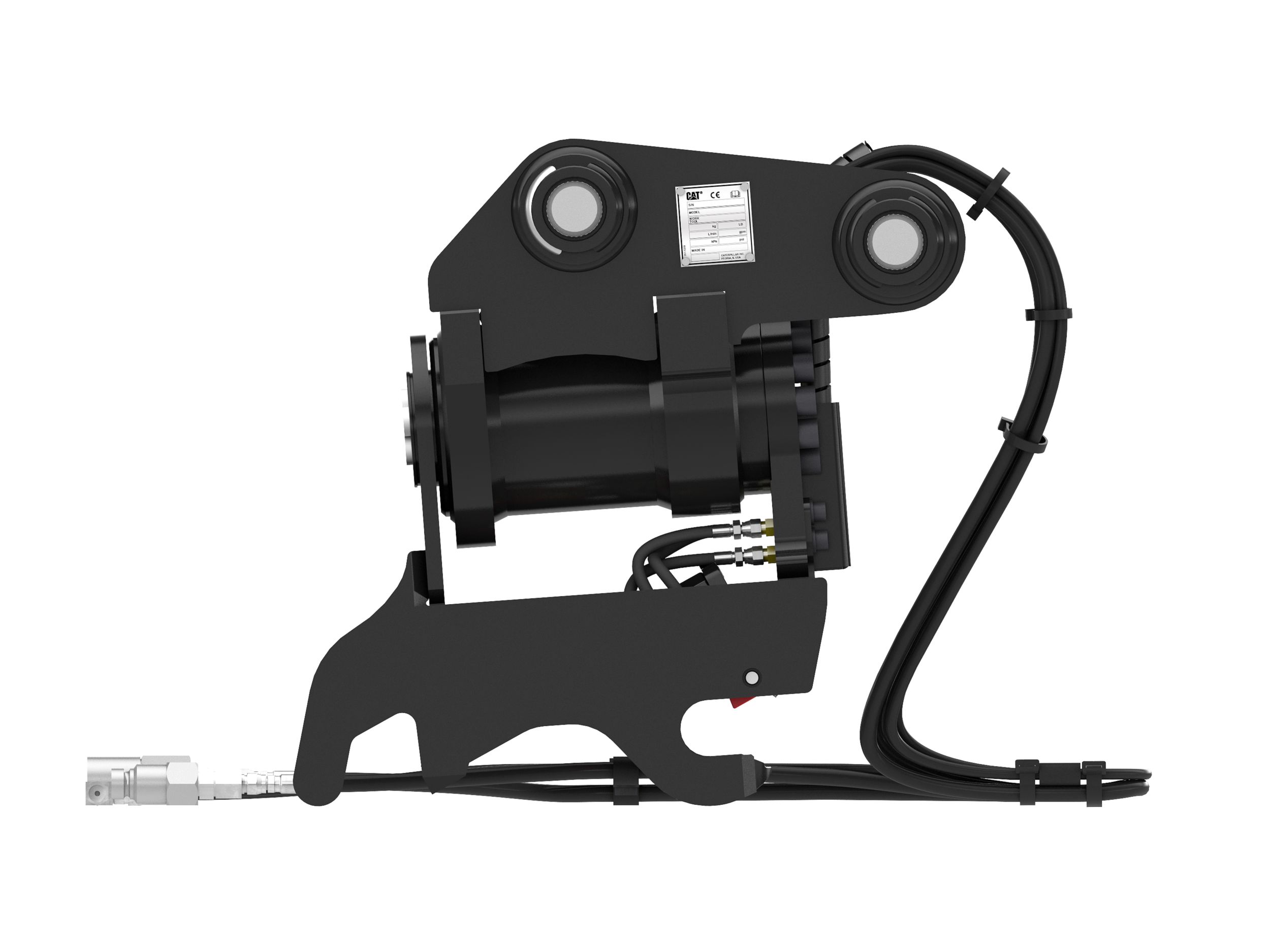

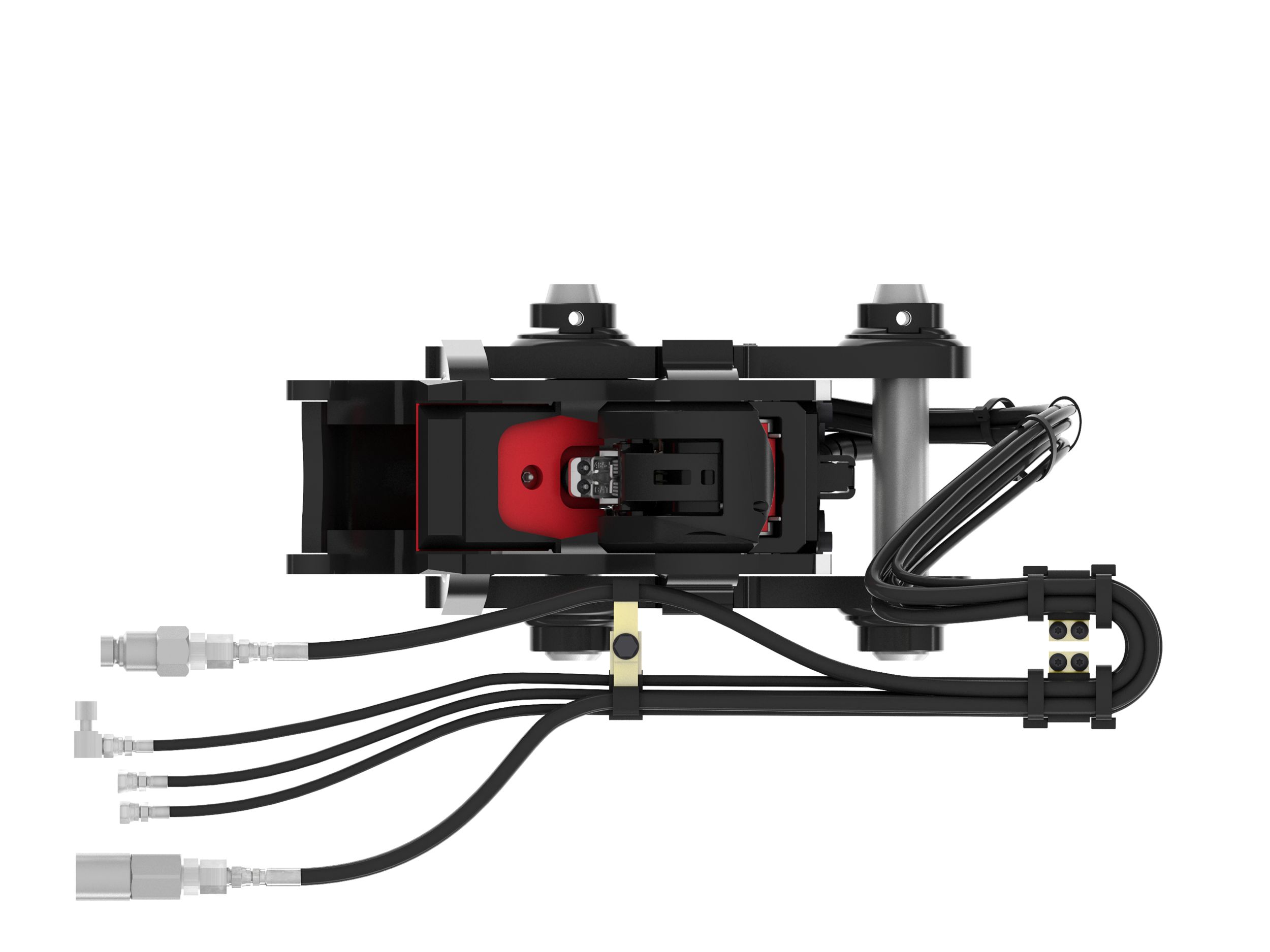

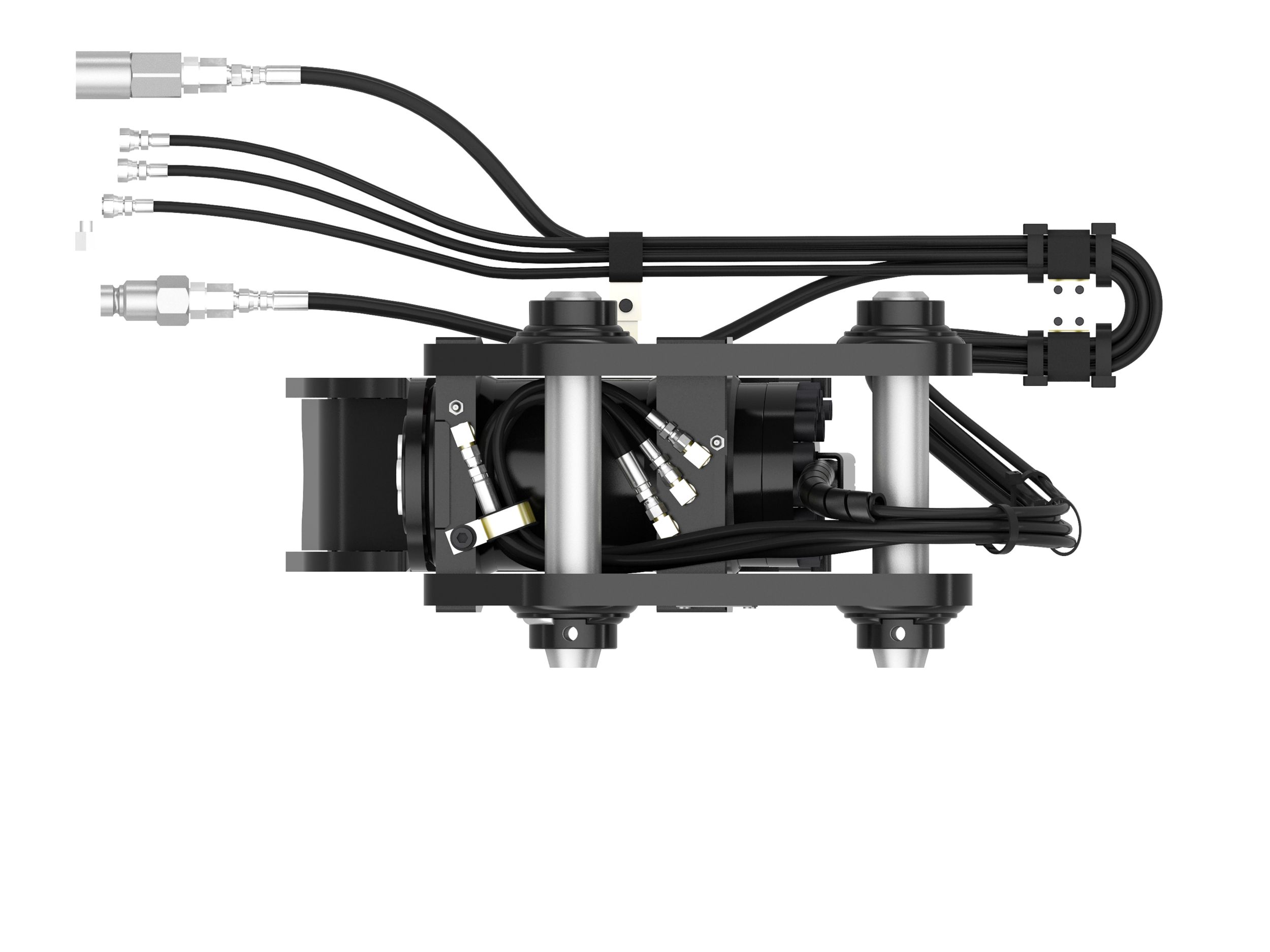

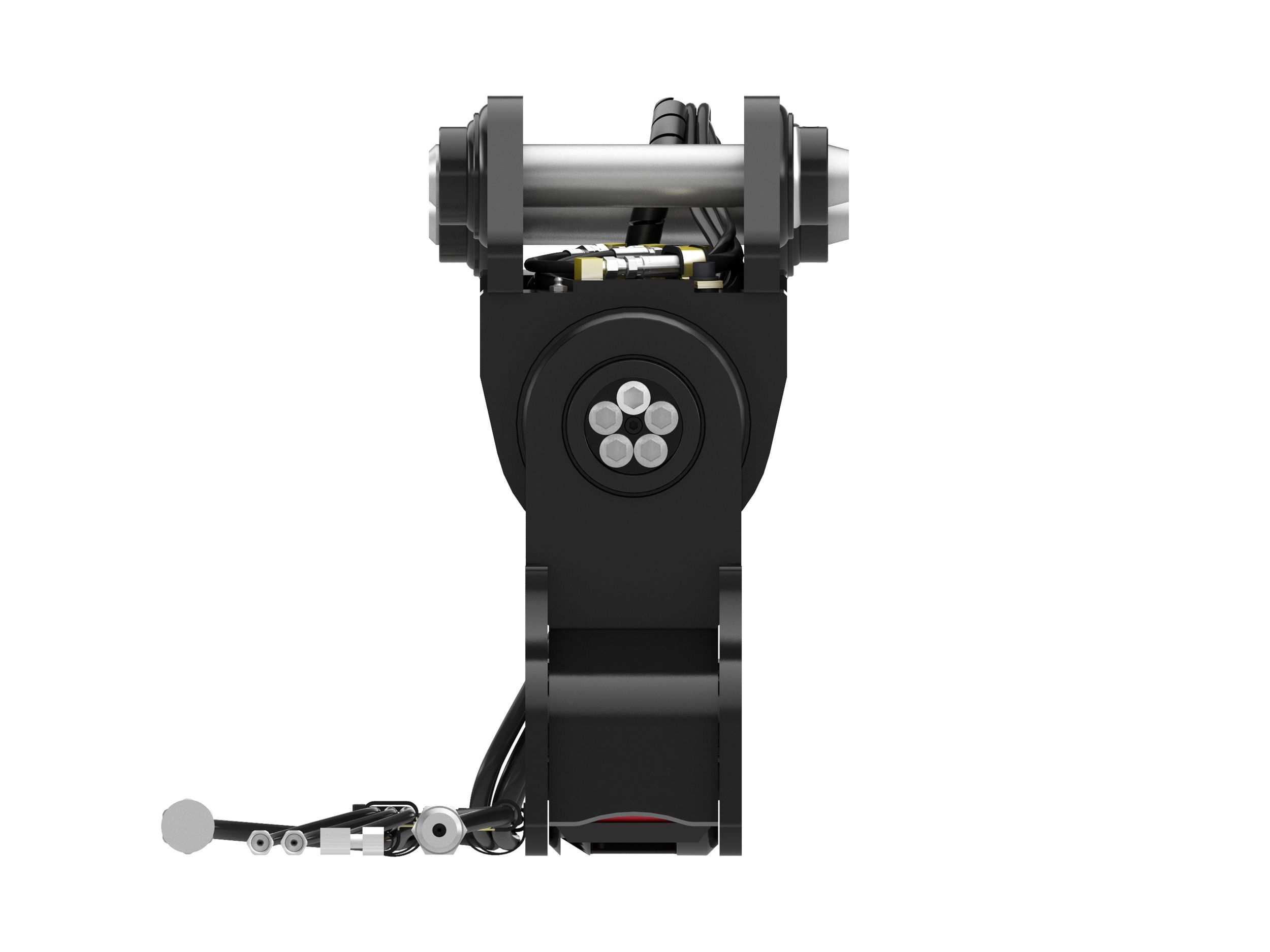

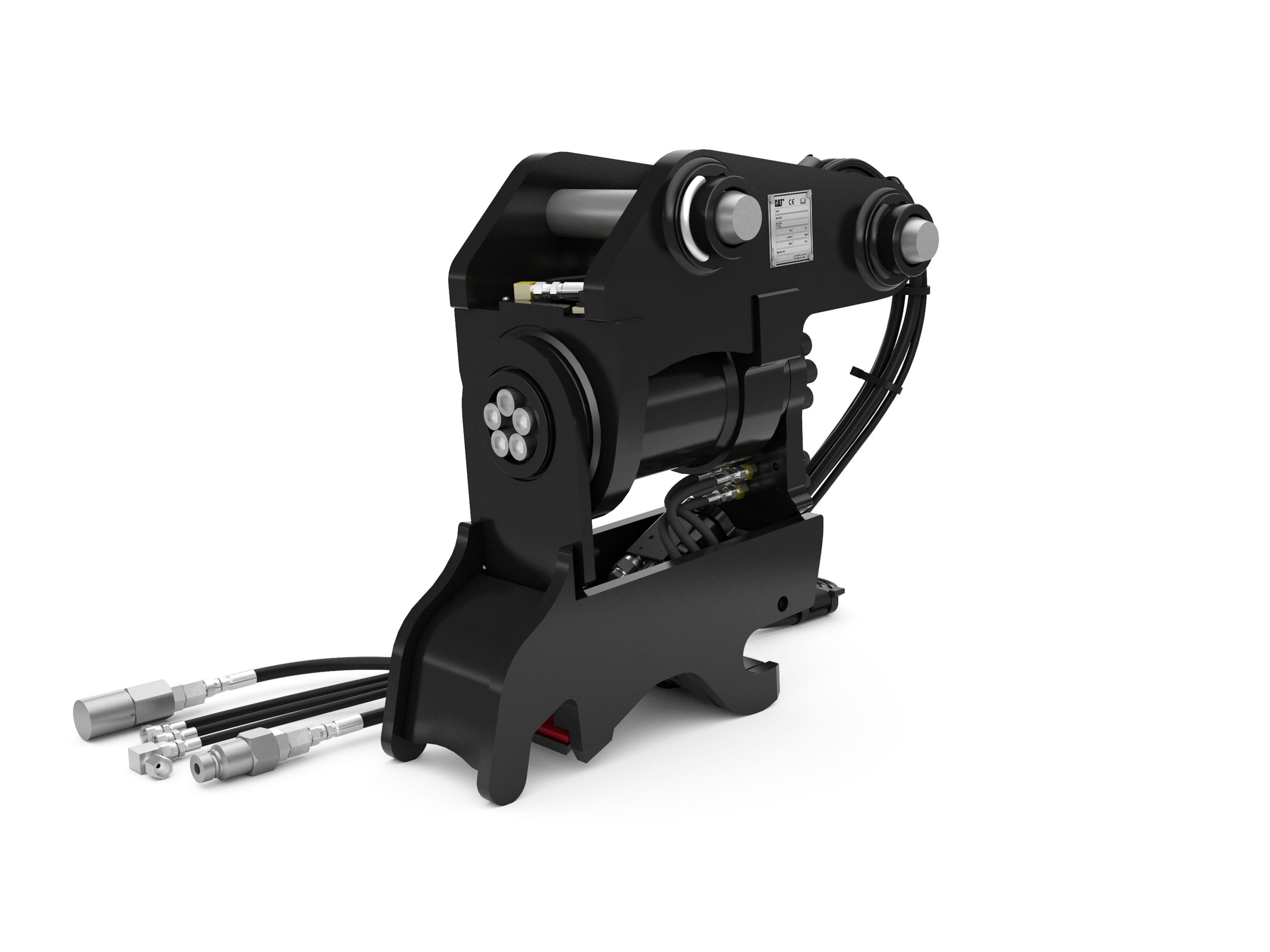

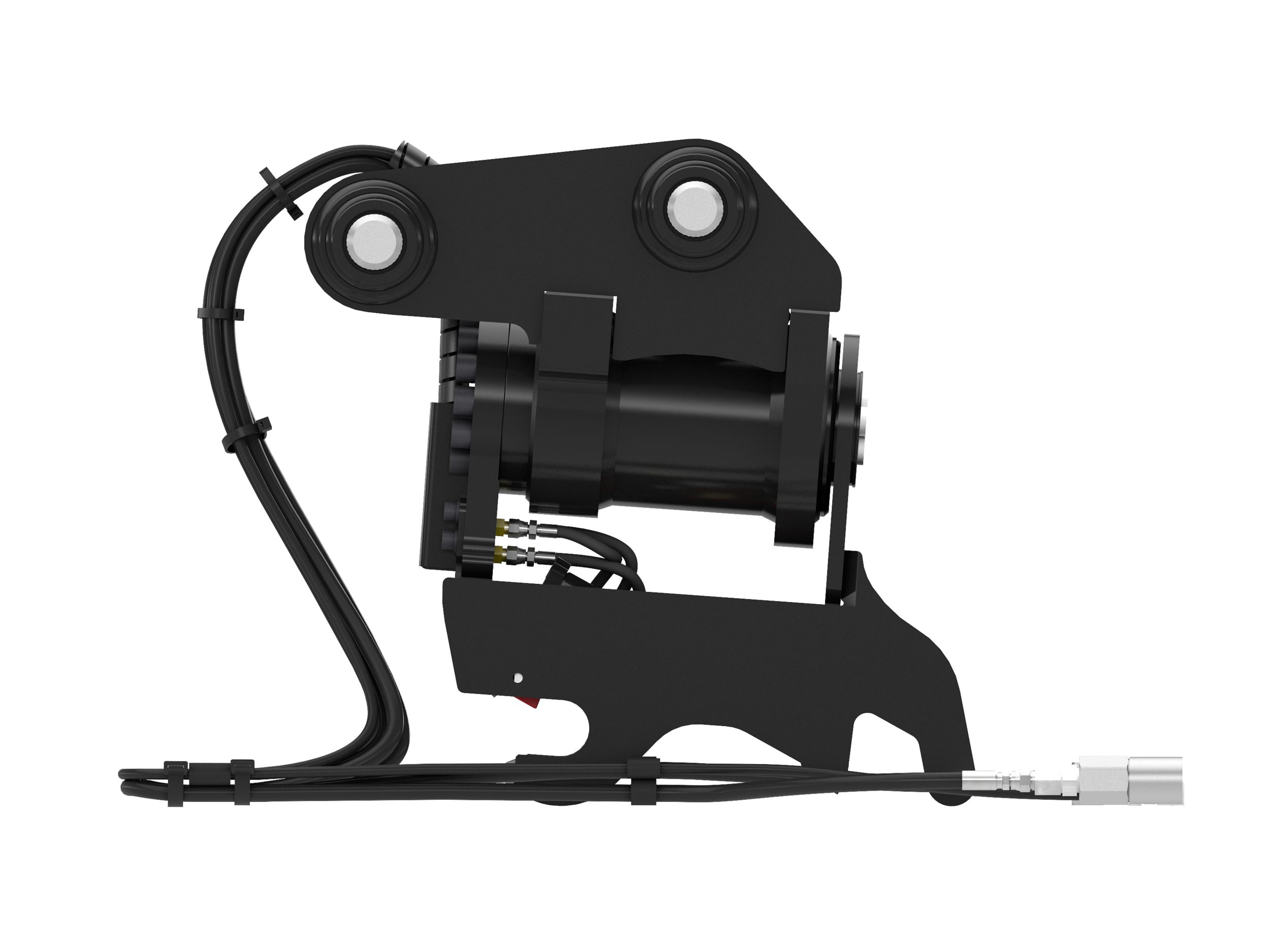

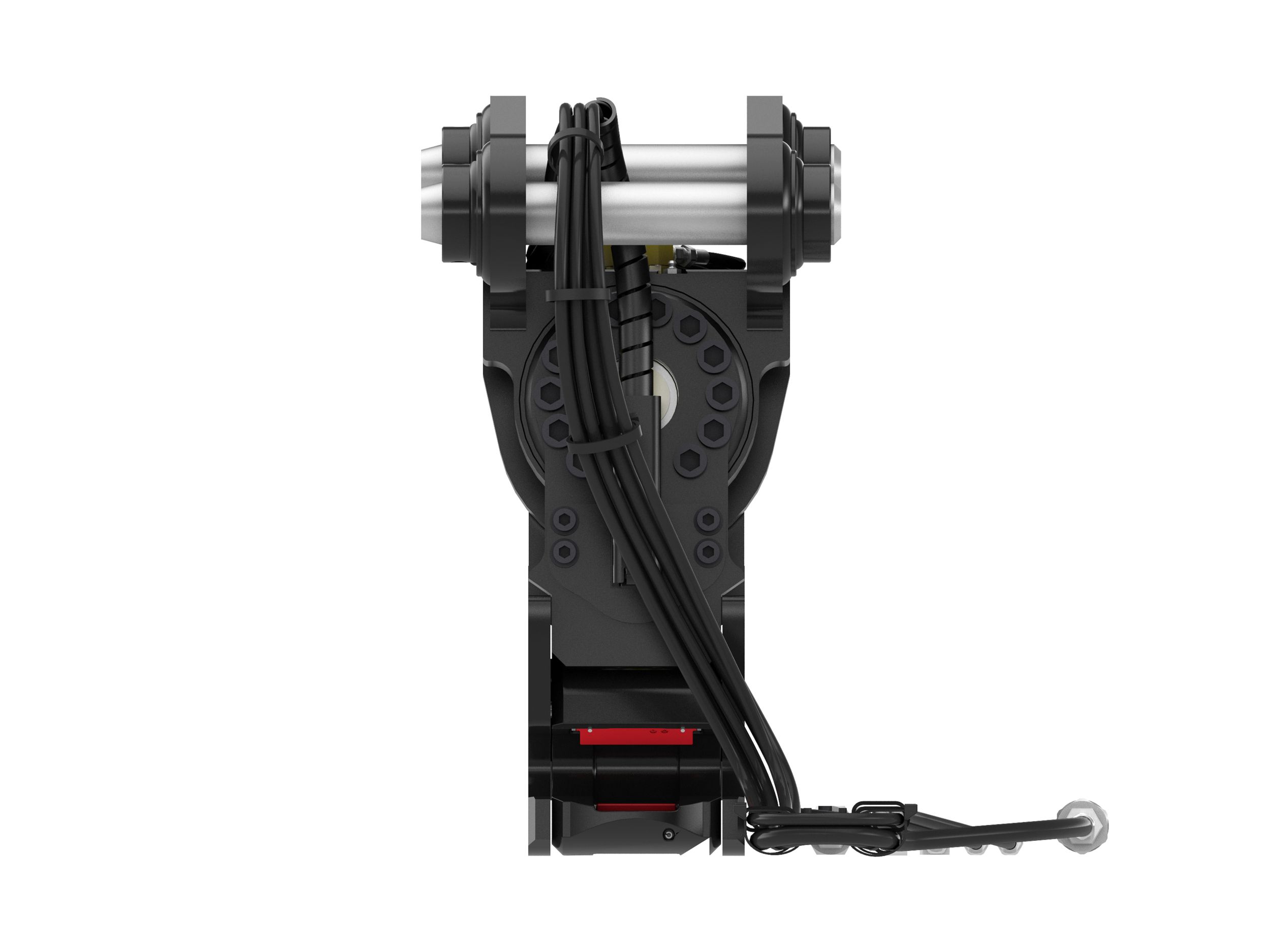

Tilting Dual Lock Pin Grabber Coupler For 5 Ton Mini Excavators

US
Metric

Overview

Cat® Tilting Dual Lock Pin Grabber Couplers - Mini Excavator allow work tools to be changed quickly - improving overall production and increasing machine versatility. The Tilting Dual Lock Coupler maintains a tight fit with an innovative wedge design throughout the life of the coupler. It can be used with compatible pin-on work tools and in front shovel mode with buckets. The Tilting Dual Lock Coupler also comes with a visible locking mechanism for added security.
Weight
255.70 lb
116.00 kg
Overall Width
11.70 in
298.00 mm
Length
22.60 in
574.00 mm
Overall Height
21.50 in
546.00 mm
Drive Method
Helical Rotary Actuator
Hydraulic Flow
7.6-15.1 lpm (2-4 gpm)
Hydraulic Pressure - Actuator
3002.30 psi
207.00 bar
Hydraulic Pressure - Coupler
3655.00 psi
252.00 bar
Pin Diameter
1.80 in
45.00 mm
Machine Class
5 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed
Tilt Angle Range +/-
180 degrees
