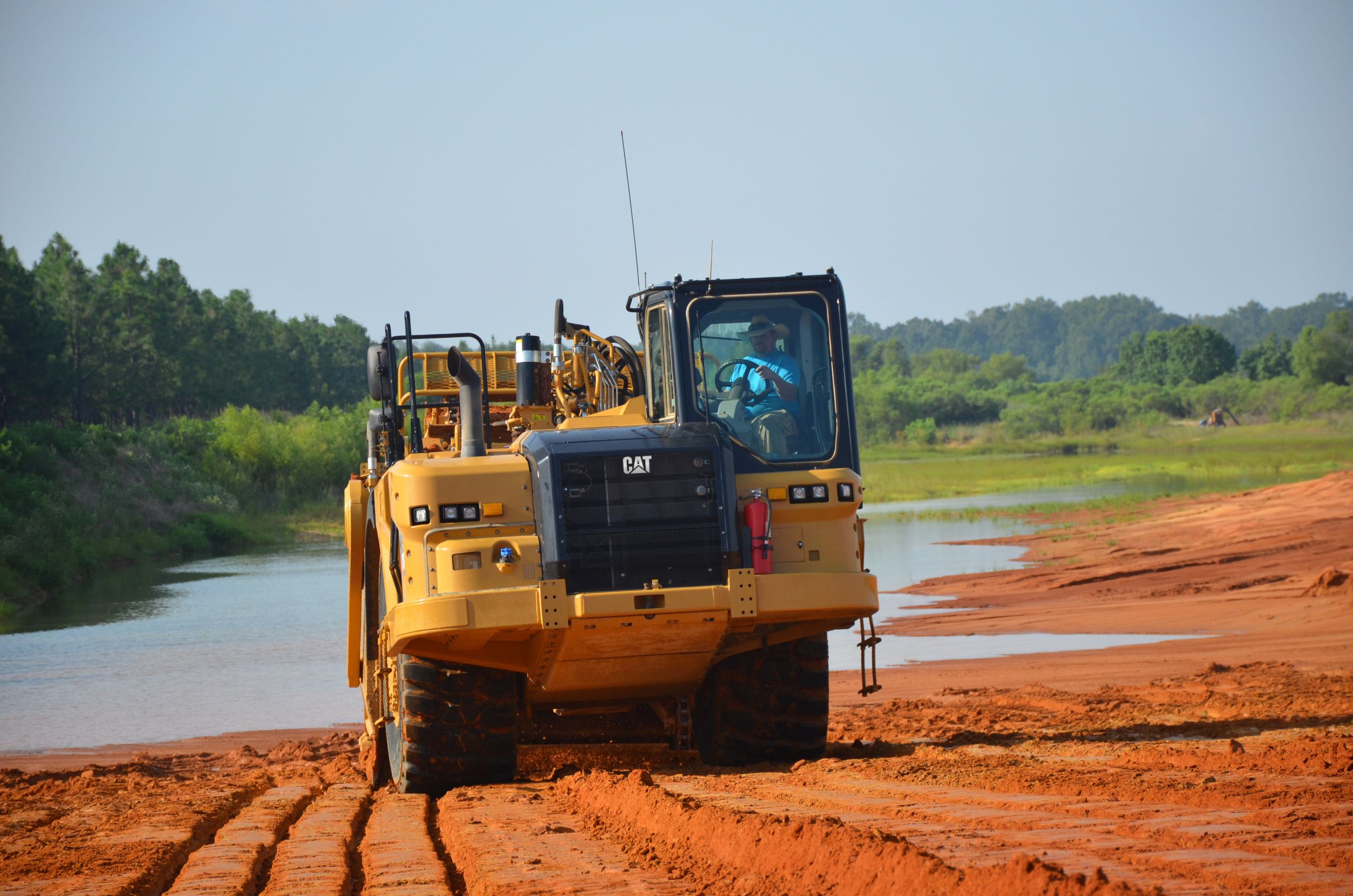

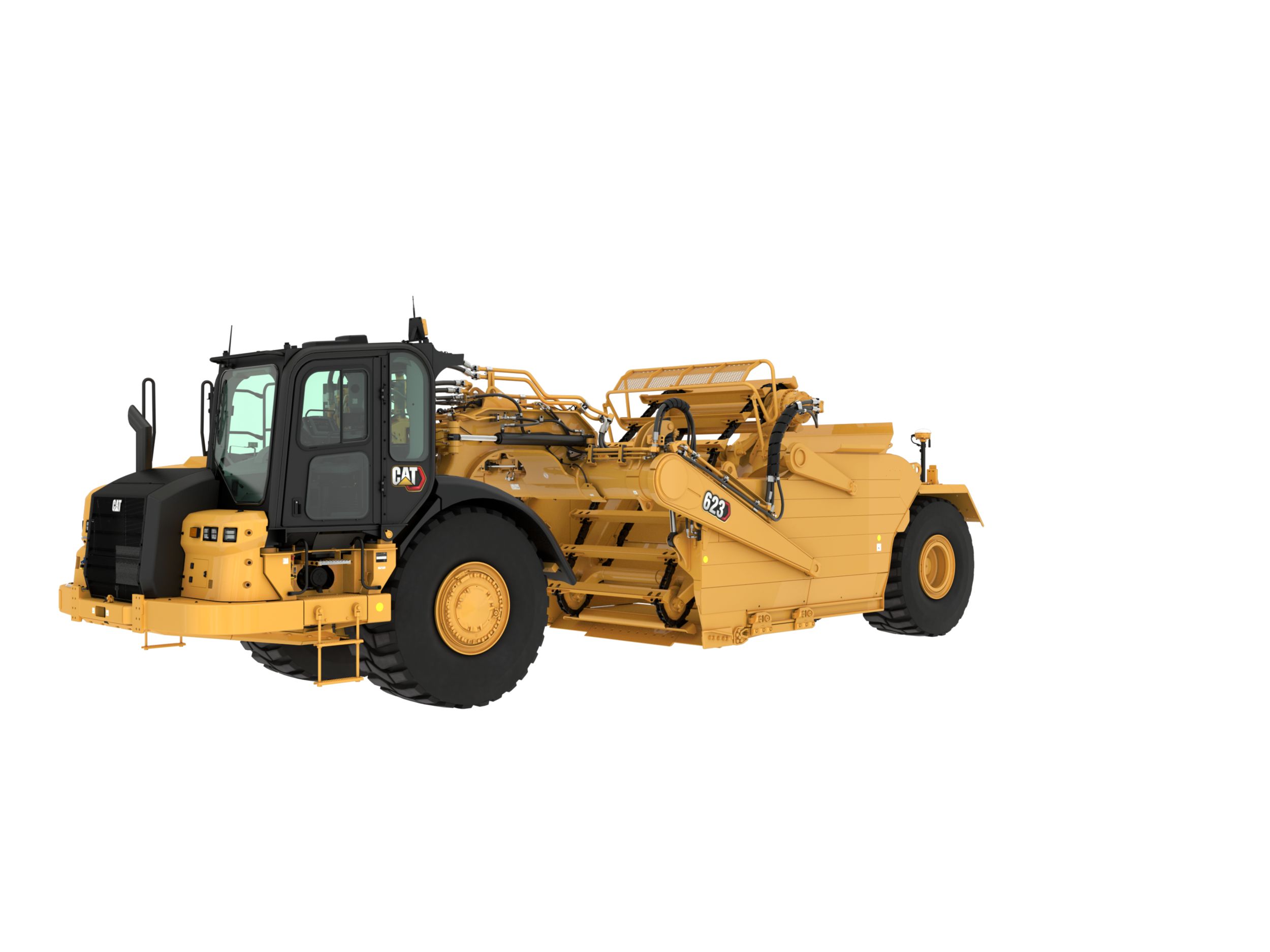

Overview

Quick loading, high travel speeds and the ability to load and dump on the run yield fast cycle times, allowing Cat Wheel Tractor-Scrapers to consistently deliver high productivity at the lowest cost per ton.

Engine

Flywheel Power - Tractor/Scraper
304 kW (407 hp)

Scraper Bowl

Scraper Capacity - Heaped
23.00 yd³
17.60 m³

General

Top Speed - Loaded
33.50 mile/h
53.90 km/h

Engine

Engine Model
Cat® C13
Rated Engine RPM
2000.00 r/min
2000.00 r/min
Flywheel Power - Tractor
407.00 hp
304.00 kW
Note
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards, or equivalent to U.S. EPA Tier 2, or equivalent to U.S. EPA Tier 3 and EU Stage IIIA.

General

Overall Width
11.80 ft
3.57 m
Overall Shipping Height
12.37 ft
3.77 m
Scraper Capacity - Heaped
23.00 yd³
17.60 m³
Scraper Capacity - Struck
18.80 yd³
14.40 m³
Rated Load
25 038 kg (55,200 lb); 25.1 tonnes (27.6 tons)
Width - Cut
10.40 ft
3.14 m
Maximum Depth of Cut
10.30 in
262.00 mm
Maximum Depth of Spread
18.30 in
465.00 mm
180° Curb-to-Curb Turning Width
38.71 ft
11.80 m
Tires - Tractor Drive
33.25R29**E3
Tires - Scraper
33.25R29**E3

Transmission

Top Speed - Loaded
33.50 mile/h
53.90 km/h

Travel Speeds - Runout

Transmission Gear - First
3.10 mile/h
5.00 km/h
Transmission Gear - Second
5.50 mile/h
8.90 km/h
Transmission Gear - Third
7.50 mile/h
12.10 km/h
Transmission Gear - Fourth
10.10 mile/h
16.30 km/h
Transmission Gear - Fifth
13.60 mile/h
21.90 km/h
Transmission Gear - Sixth
18.40 mile/h
29.60 km/h
Transmission Gear - Seventh
24.80 mile/h
39.90 km/h
Transmission Gear - Eighth
33.50 mile/h
53.90 km/h
Transmission Gear - Reverse
5.70 mile/h
9.20 km/h

Service Refill Capacities

Final Drive - Each
5.00 gal (US)
19.00 l

Service Refill Capacities - Tractor

Differential
41.70 gal (US)
158.00 l

Service Refill Capacities

Crankcase
9.70 gal (US)
37.00 l
Transmission System
25.50 gal (US)
97.00 l
Fuel Tank
216.09 gal (US)
818.00 l
Hydraulic System
21.93 gal (US)
83.00 l

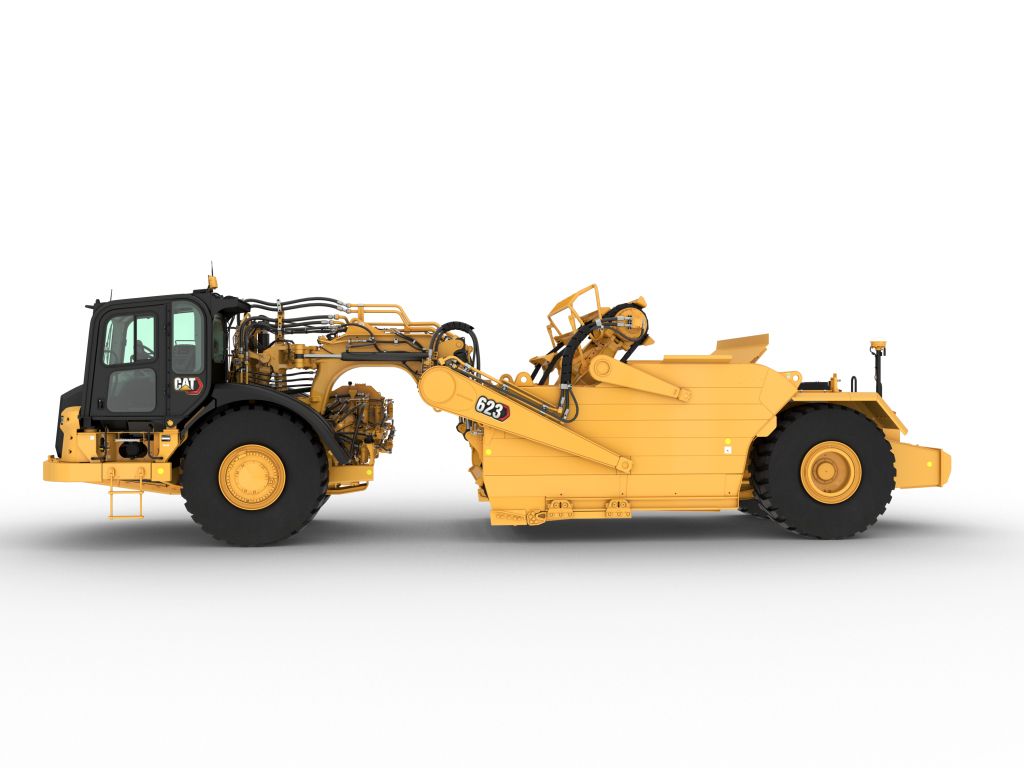

Dimensions

Height - Overall Shipping
158.90 in
4037.00 mm
Length - Overall Machine
542.00 in
13767.00 mm
Axle to Vertical Hitch Pin
17.00 in
432.00 mm
Width - Overall Machine
141.10 in
3585.00 mm
Width - Overall Machine - Ladder Down
149.20 in
3790.00 mm
Height - Top of Cab
142.60 in
3621.00 mm
Height - Scraper Blade Maximum
20.50 in
520.00 mm
Width - Tractor
133.10 in
3381.00 mm
Width - Inside of Bowl
120.00 in
3048.00 mm
Width - Outside Rear Tires
128.90 in
3275.00 mm
Front of Tractor to Front Axle
122.80 in
3119.00 mm
Wheel Base
329.50 in
8370.00 mm
Rear Axle - Rear of Machine
89.70 in
2278.00 mm
Ground Clearance - Tractor
21.90 in
557.00 mm

Cab

Exterior Sound Level
The exterior sound power level for the standard machine (ISO 6395:2008) is 114 dB(A).
ROPS/FOPS
Meets ISO standards

Safety Criteria Compliance Standards

Steering System
ISO 5010:2007
Rollover Protection Structure (ROPS)
ISO 3471:2008 for up to 17 084 kg (37,664 lb)
Falling Object Protective Structure (FOPS)
ISO 3449:2005 Level II
Reverse Alarm
ISO 9533:2010
Brakes
ISO 3450:2011
Seat Belt
SAE J386:JUN1985

Implement Cycle Times

Ejector Extend
6.50 s
6.50 s
Ejector Retract
9.70 s
9.70 s
Bowl Lower
3.50 s
3.50 s
Bowl Raise
3.00 s
3.00 s

Dimensions

Width - Rear Tire Centers
90.20 in
2290.00 mm

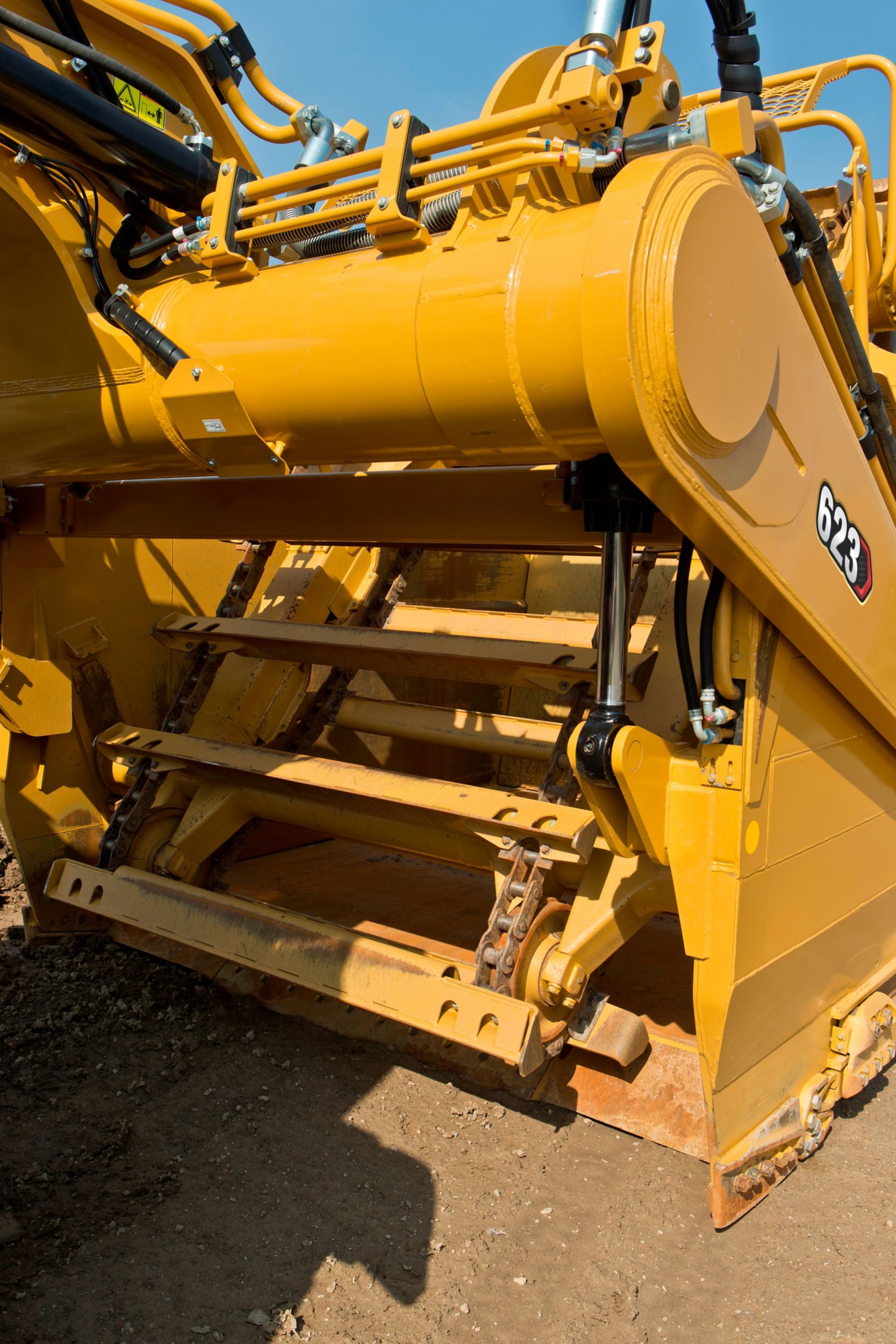

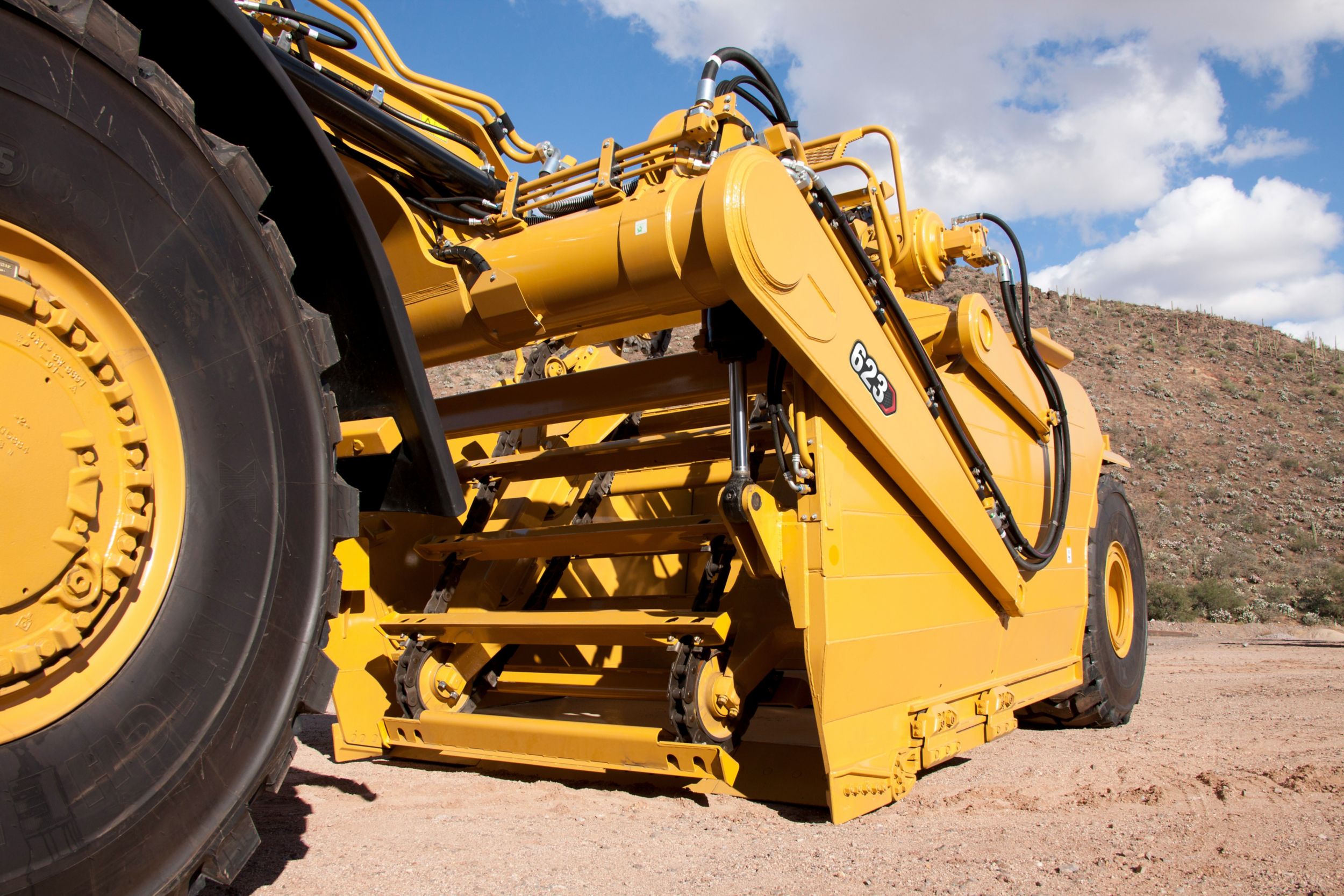

Height - Top of Elevator
148.30 in
3768.00 mm

General

Number of Flights
15
Maximum Floor Opening
4.40 ft
1.34 m
Overall Length
45.18 ft
13.77 m
Elevator Flight Spacing
20.00 in
520.00 mm

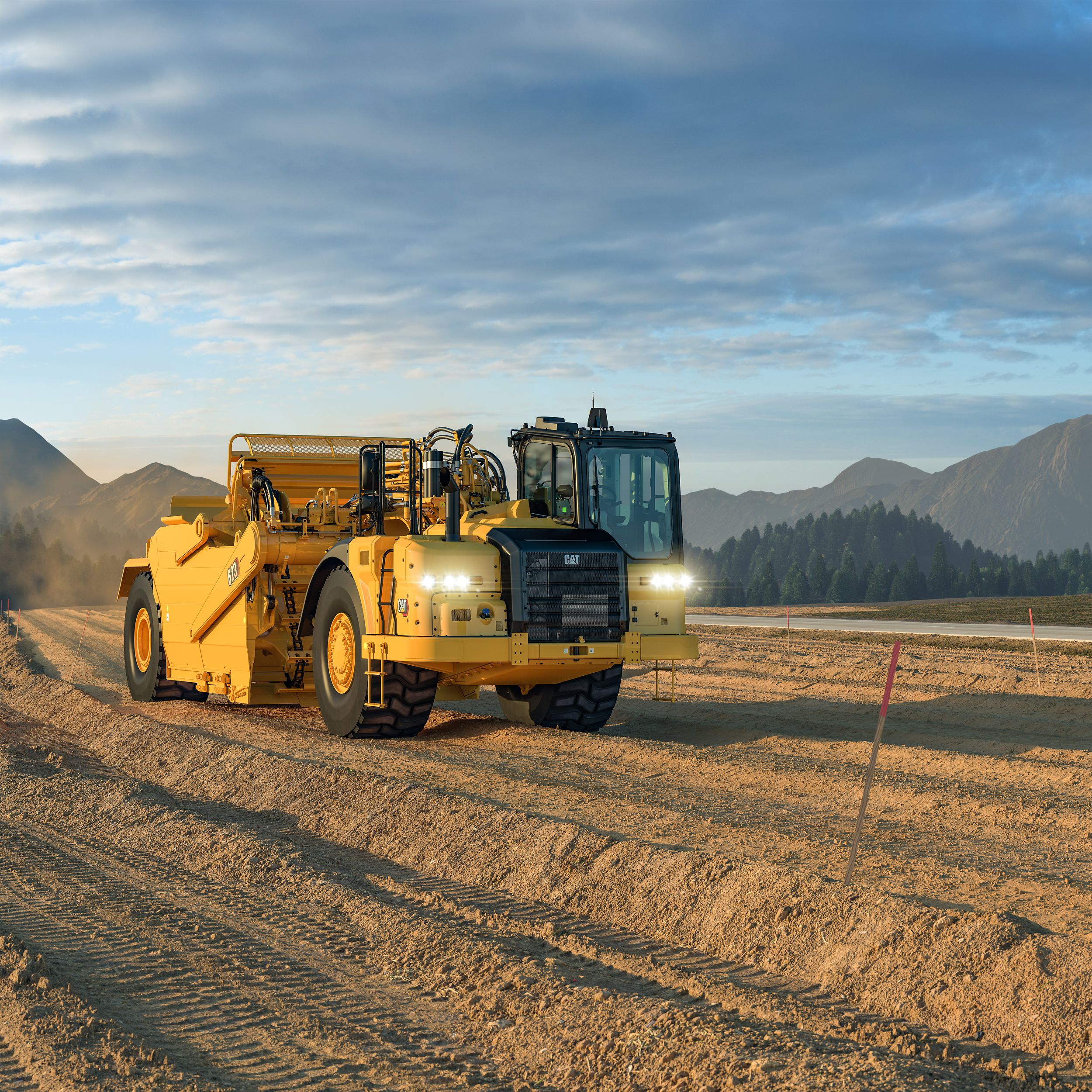

Features

BE MORE PRODUCTIVE

WORK IN COMFORT

DESIGNED FOR SAFETY

EASY TO OPERATE

INTEGRATED CAT TECHNOLOGIES

EXECUTE EFFICIENCY

Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • INTEGRATED TECHNOLOGIES
    • Sequence Assist, Cat Payload
  • POWER TRAIN - TRACTOR
    • Cat C13
    • Cat engine brake
    • Electric start, 24 Volt
    • Air cleaner, dry type with precleaner
    • Fan, hydraulic
    • Ground level engine shutdown
    • Radiator, aluminum unit core, 9 fins per inch
    • Guard, crankcase
    • Muffler (only for less or non-regulated regions engine arrangement only)
    • Starting aid, ether
  • BRAKING SYSTEM
    • Primary and secondary, wet disc, hydraulic
    • Primary and secondary, wet disc, hydraulic
    • Throttle lock
    • Parking , hydraulic released, spring applied
  • TRANSMISSION
    • Programmable top gear selection
    • Ground speed control
    • Machine speed limit
    • Guard, power train
    • Differential lock protection
    • Differential lock
    • Transmission hold
    • ECPC control
    • Standard tire spin reduction
    • 8-speed planetary power shift
    • APECS software
  • ELECTRICAL - TRACTOR
    • Alternator, 150 Amp
    • Batteries (4), 12V, 1,000 CCA, maintenance free, high output
    • Electrical system, 24V
    • Starting/charging receptacle
  • LIGHTING SYSTEM - TRACTOR
    • Headlights, halogen
    • LED Floodlights
    • Turn Signals with hazard Function
    • Bowl (1)
    • Cutting Edge (2)
    • Halogen sdie vision (2)
  • ELECTRICAL - SCRAPER
    • Alarm, backup
  • LIGHTING SYSTEM - SCRAPER
    • Trun signals with hazard function, LED
    • Brake lights, LED
  • OPERATOR ENVIRONMENT - TRACTOR
    • HVAC system, heat, AC, defrost
    • Thermostat control of HVAC system
    • Coat hook
    • Lunchbox platform with holding strap
    • Diagnostic connection (2)
    • 12V power ports (2)
    • Differential lock (1)
    • Dome courtesy light
    • Horn, electric
    • T-Handle implement control
    • Mirror, rearview
    • Radio ready
    • ROPS/FOPS cab, pressurized
    • Seat belt, static two-piece
    • Seat, Cat Advanced Ride Management (ARM), Cat Comfort Series 3, rotates 30 degrees
    • Steering wheel, tilt, telescoping, padded
    • Windows, right side emergency egress
    • Windows, sliding
    • Windows, laminated, zipped in
    • Windshield wipers, front and rear windows, includes washers
    • Door lock
    • Messenger Display
  • KEYPAD SWITCHES
    • Information mode on Messenger Display
    • Throttle lock
    • Hazard lights
    • Retarding level select
    • Work lights on/off
    • Wipers/washers
  • SAFETY TAB ROCKER SWITCHES
    • Parking Brake
    • Regeneration control
  • GAUGES, WARNINGS INCLUDE:
    • Coolant temperature
    • Gear selection
    • Fuel level
    • Bail down
    • Cushion hitch
    • Engine oil temperature
    • Brake system
    • System voltage
    • Regeneration required
    • High beam lights
    • Implement lockout
    • Throttle lock
    • Ejector auto
    • Park brake
    • Action lamp
    • Hydraulic oil temperature
    • Differential lock (1)
    • Secondary steering
    • Transmission hold
    • Apron float
    • Engine speed, rpm
  • FLUIDS
    • Extended Life Coolant to -37� C (-34� F)
  • OTHER STANDARD EQUIPMENT - TRACTOR
    • Advanced cushion hitch
    • Accumulators (cushion hitch) with Canadian Registration Number (CRN)
    • Fast oil change
    • Fenders, non-metallic
    • Heater, engine coolant 120V
    • Rims (2)
    • Tow pin, front
    • Vandalism locks
    • Heater, engine coolant 120V
  • BOWL
    • 17.6 m³ (23 yd³), heaped
    • 13.5 m� (17.6 yd�), struck
  • OTHER STANDARD EQUIPMENT - SCRAPER
    • Vandalism locks
    • Elevator with 15 flights
    • Hydraulic position sensing cylinders (bowl lift and apron)
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • STEERING ARRANGEMENTS
    • Secondary Steering Arrangement
  • INTEGRATED TECHNOLOGIES
    • Product Link
    • Cat Grade Control, Cat Payload, Sequence Assist and Load Assist
  • OTHER ATTACHMENTS
    • Camera arrangement - WAVS
    • Steering lock - external
    • Cab beacon
    • Air horn
    • Air horn and beacon
    • Fender, scraper
    • Wiring group
    • Year of manufacture plate
  • WORK LIGHT ATTACHMENTS
    • HID work lights
  • AMBIENT CAPABILITY ARRANGEMENTS
    • Cooling, high ambient HRC
    • Extended Life Coolant, -50� C (-58� F)
    • Cooling, high ambient LRC
    • Cooling, low ambient LRC
  • SERVICE INSTRUCTIONS
    • Film arrangement - U.S. (ANSI)
    • Film arrangement - International (ISO)
