Overview

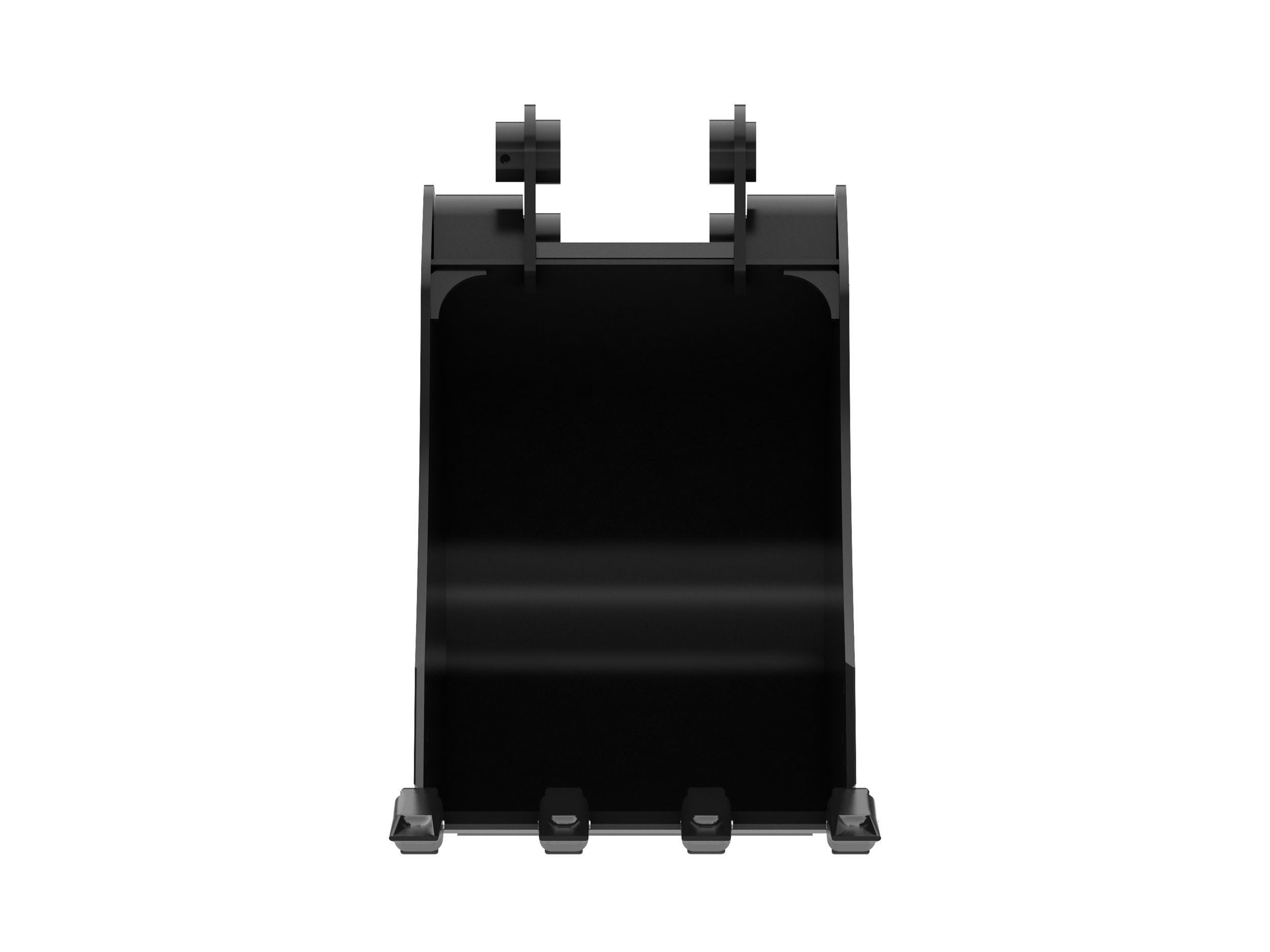

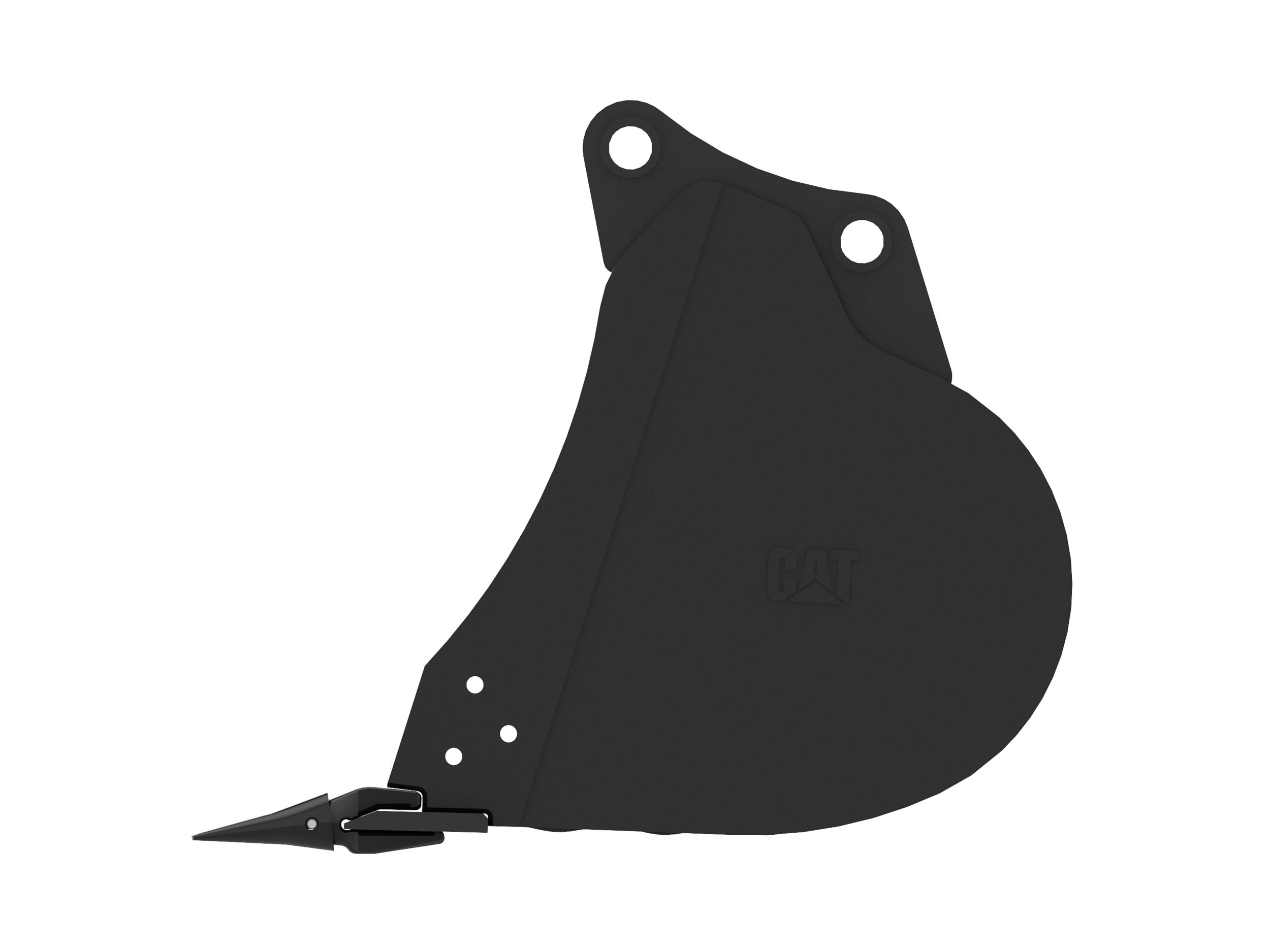

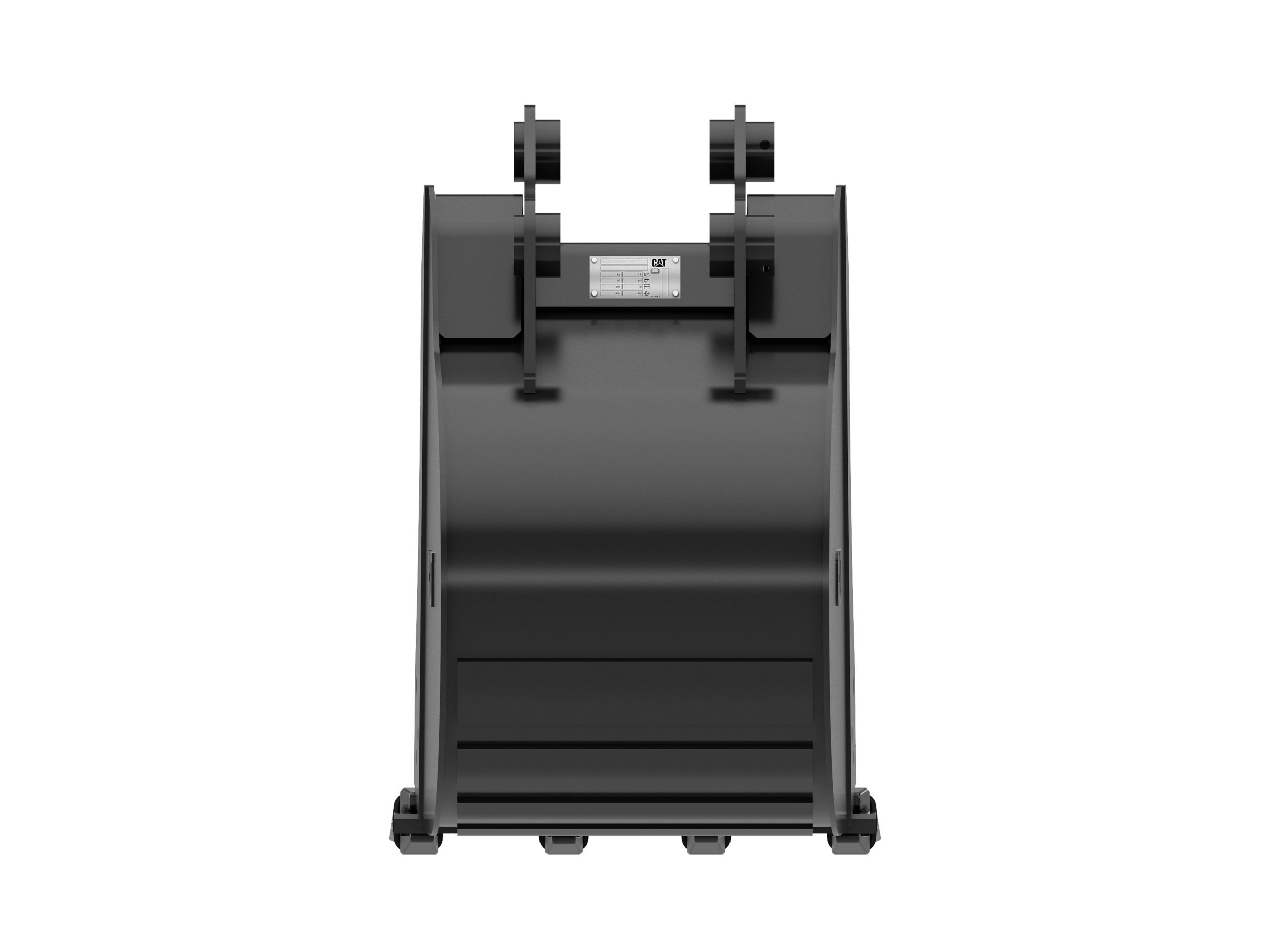

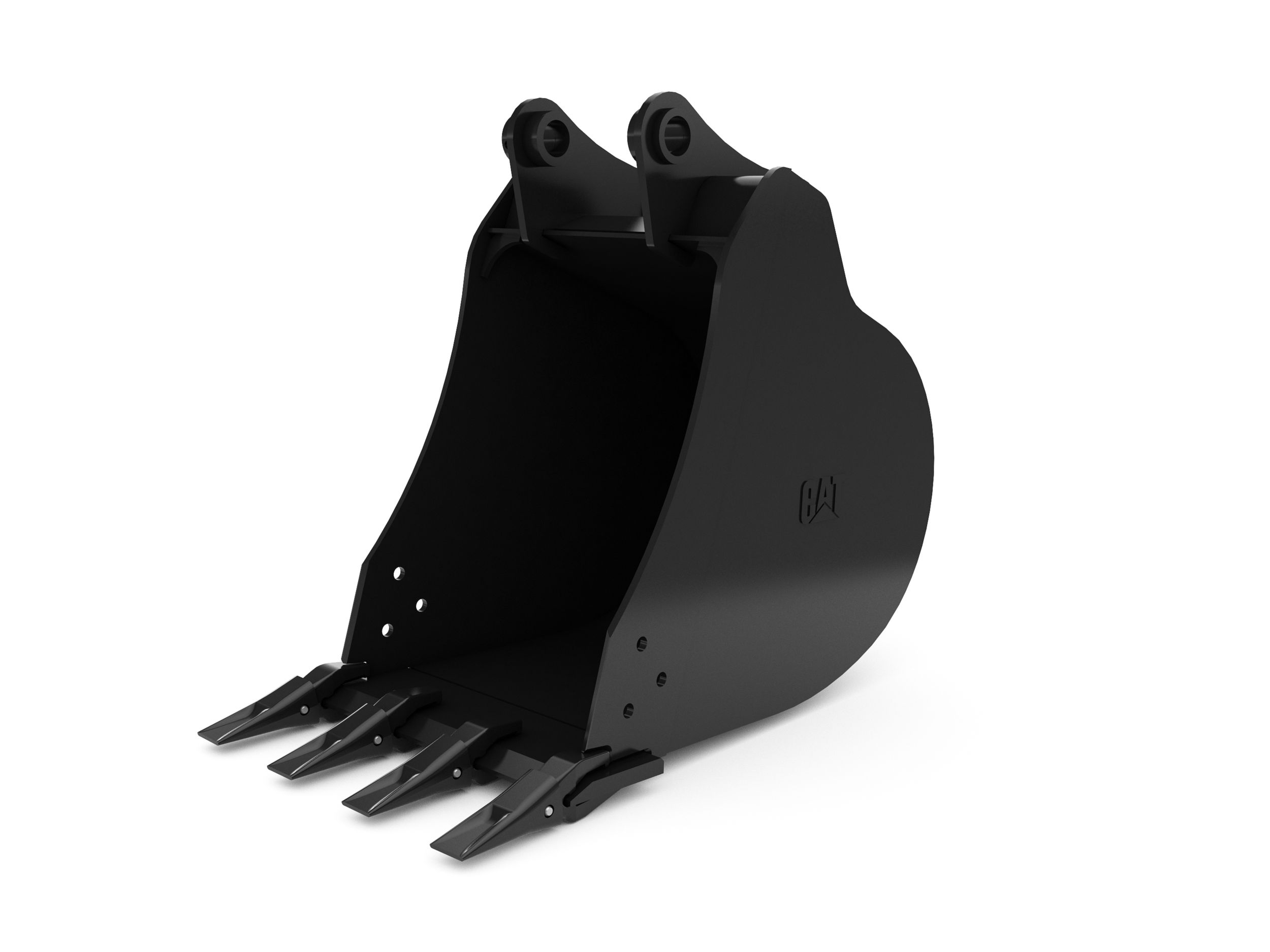

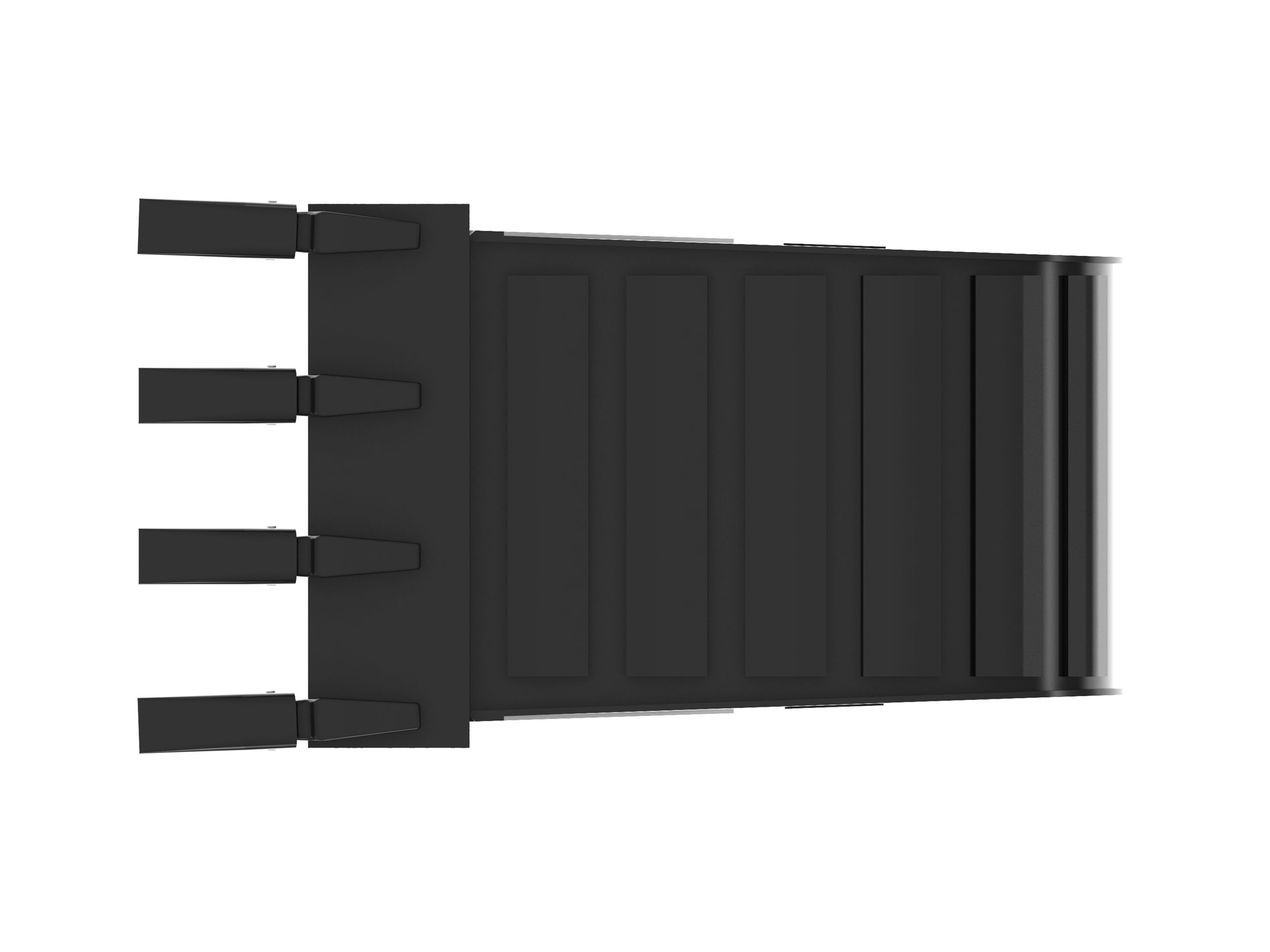

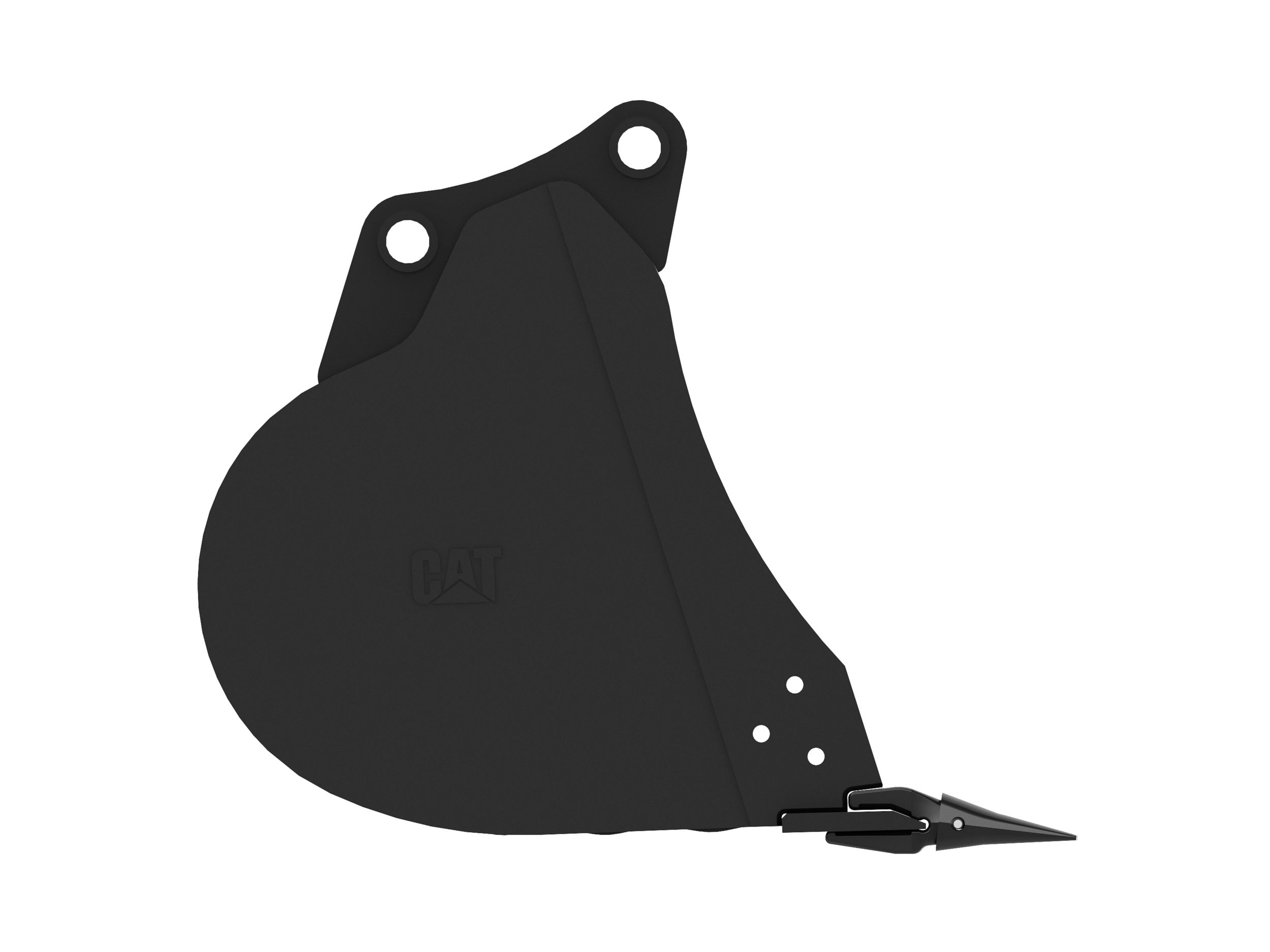

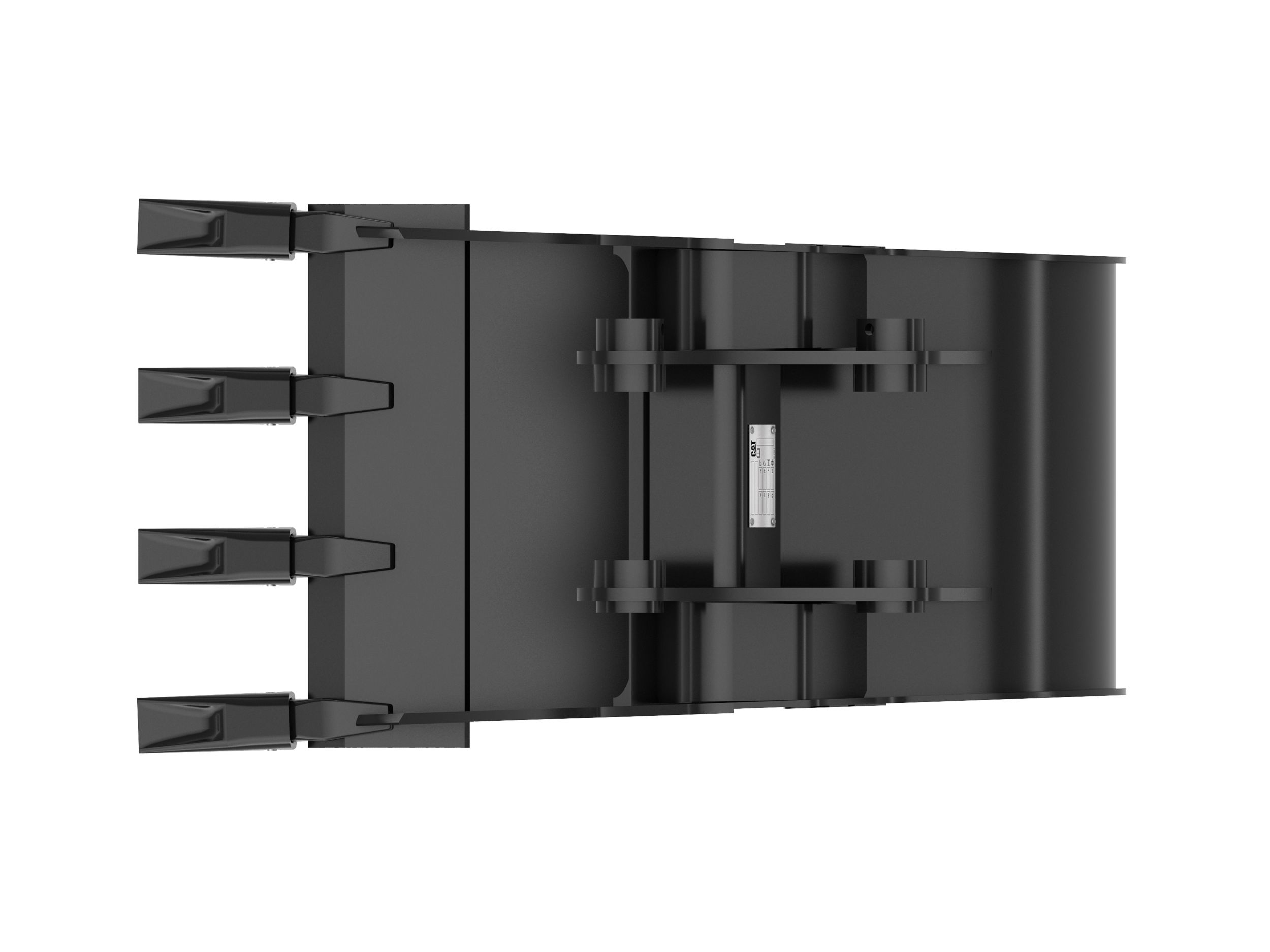

Designed to optimize the performance of the Cat® Mini Hydraulic Excavator in a wide variety of applications and materials. Heavy Duty Capacity Buckets are well suited for moving large quantities of material, such as during truck loading applications and are capable of moving greater volumes of material than the Heavy Duty Buckets. These buckets are machine-specific and are not interchangeable between machine model sizes.
Width
20.00 in
508.00 mm
Capacity
5.10 ft³
144.39 l
Weight
240.30 lb
109.00 kg
Base Edge Thickness
0.80 in
20.00 mm
Tip Radius
33.50 in
850.59 mm
Interface Type
Pin On
Features

Application

Especially suited for moving large quantities of material, such as during truck loading applications, and are capable of moving greater volumes of material than the heavy duty buckets.

Bucket Design

Formed back wrapper design enhances bucket loading ability and production.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Tapered Bucket Sidewalls

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
