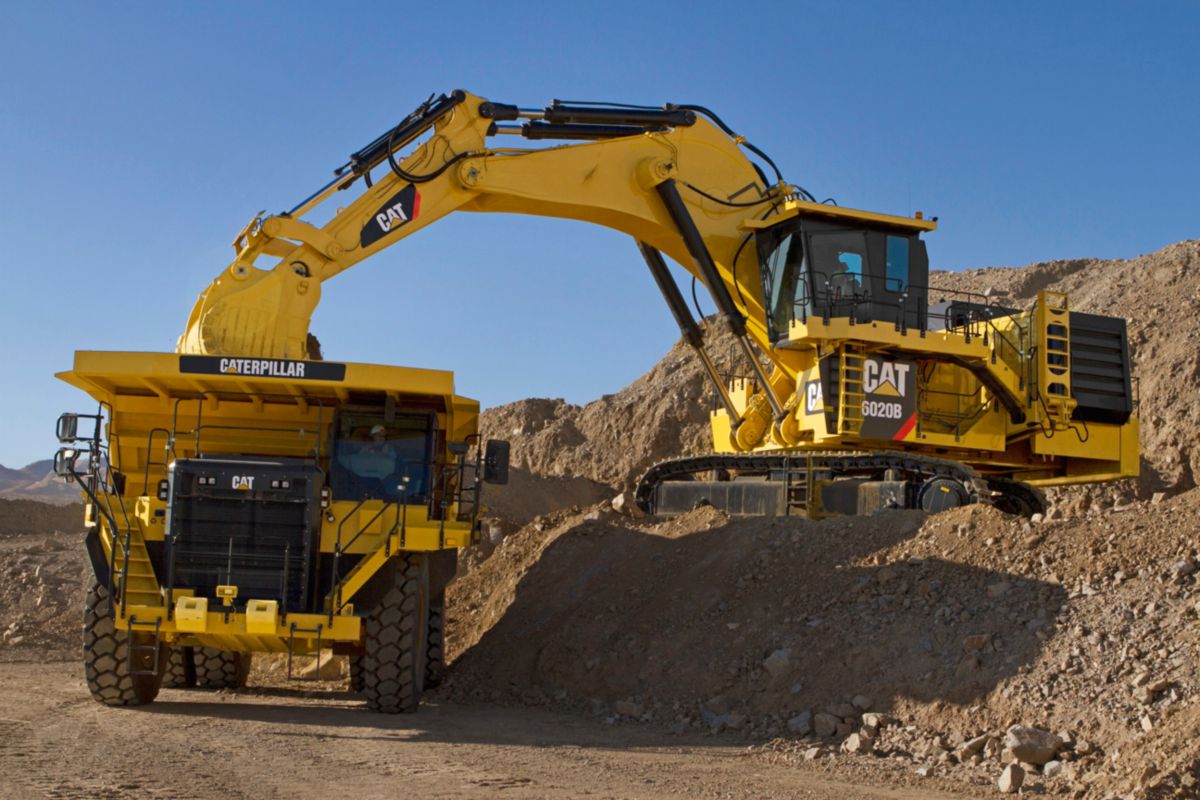

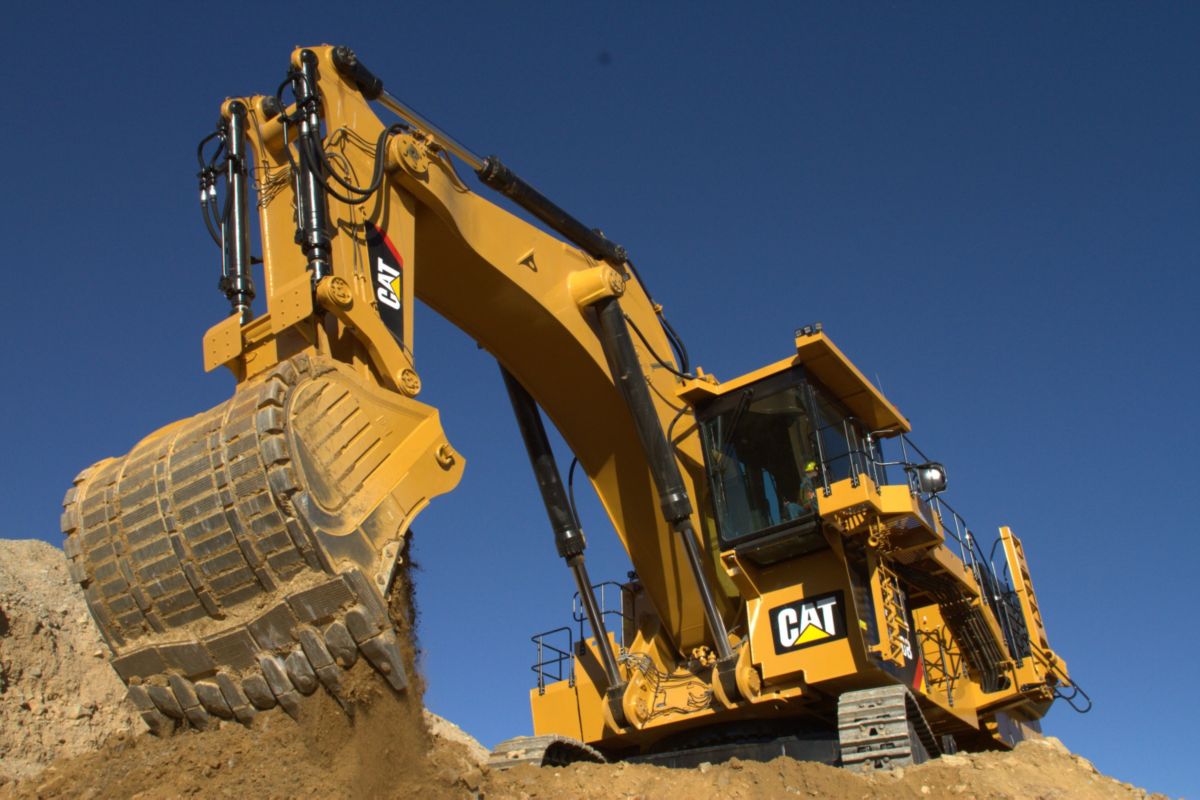

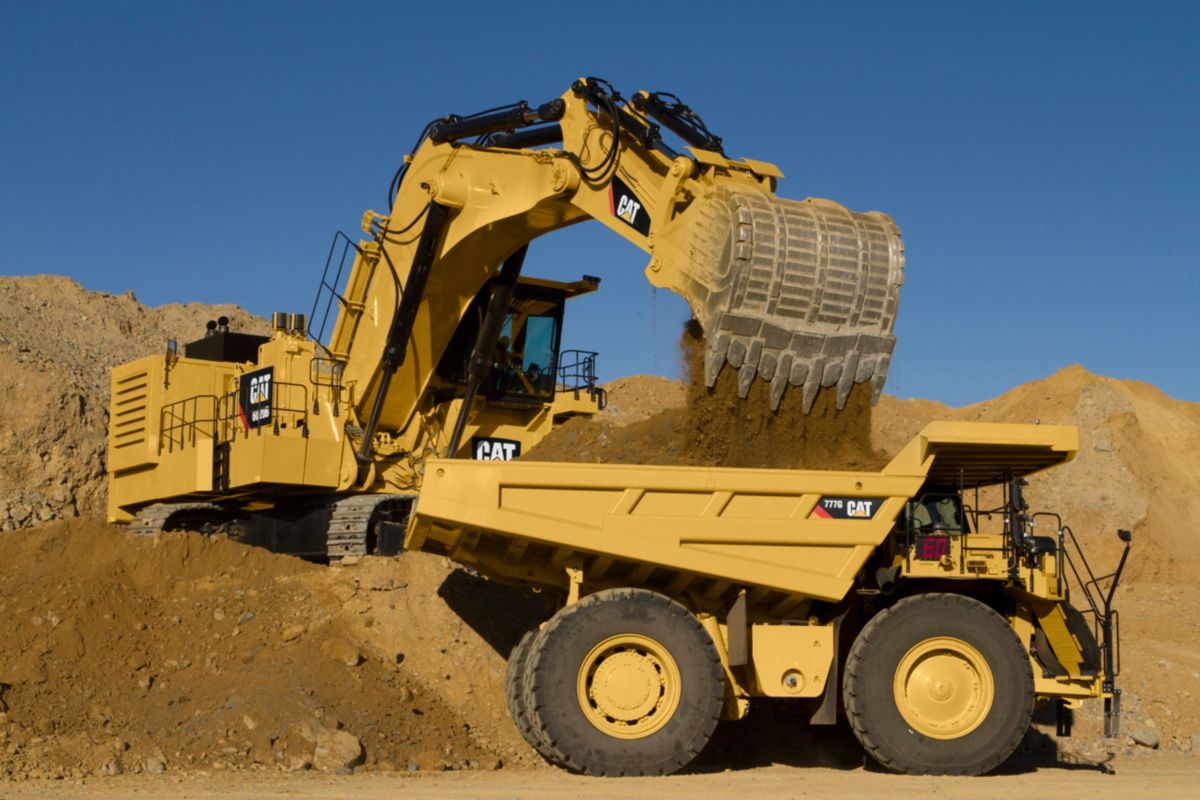

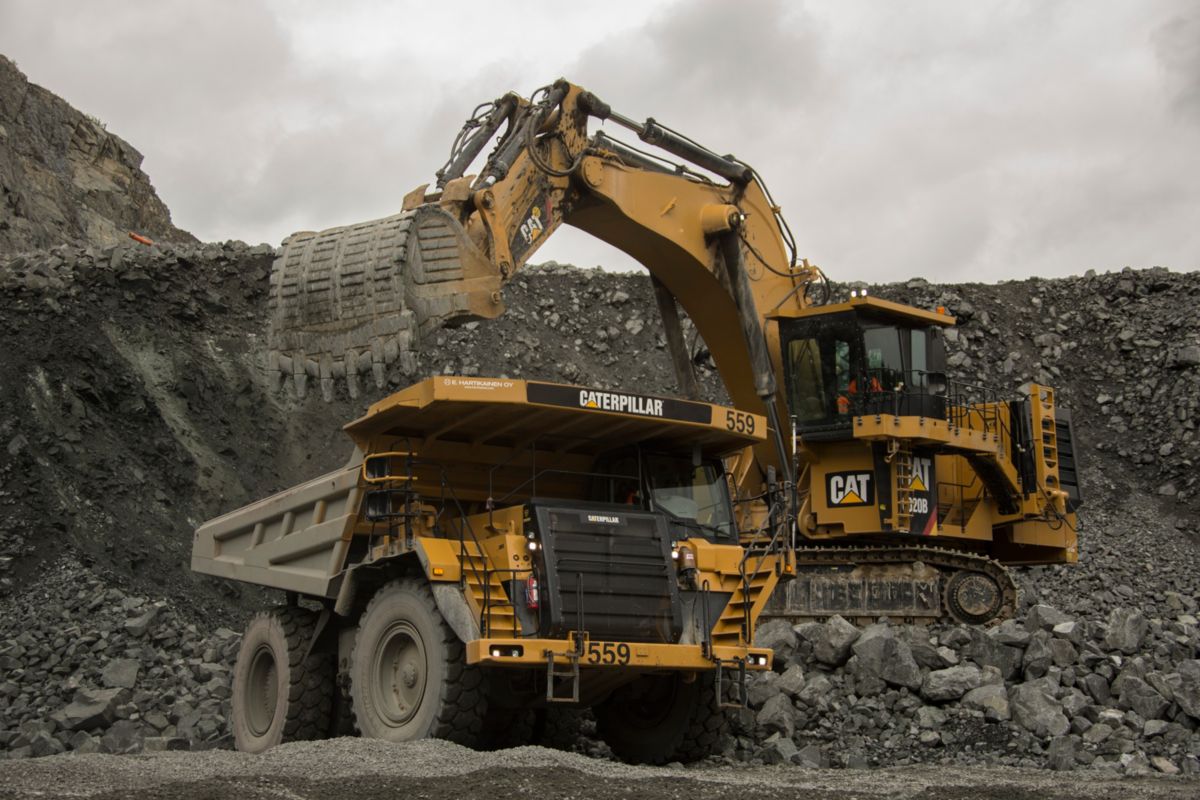

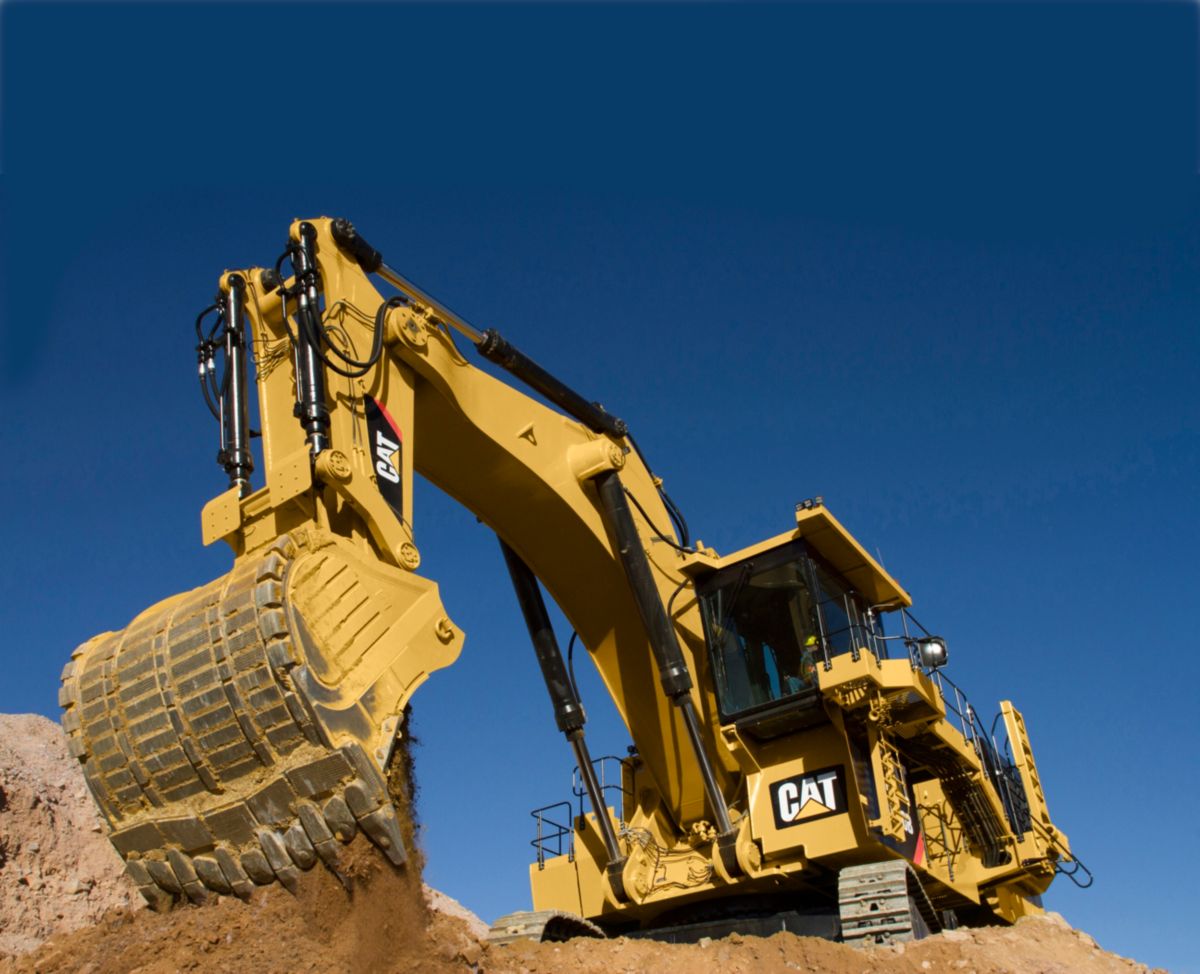

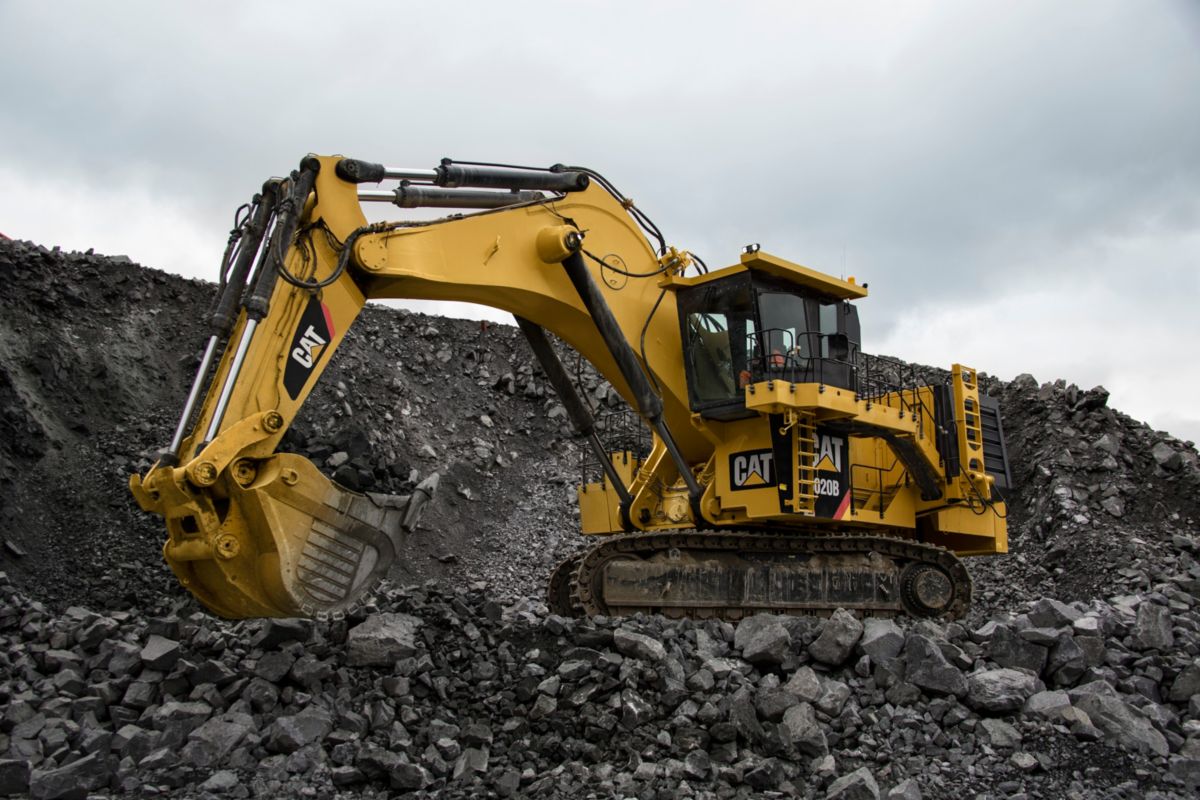

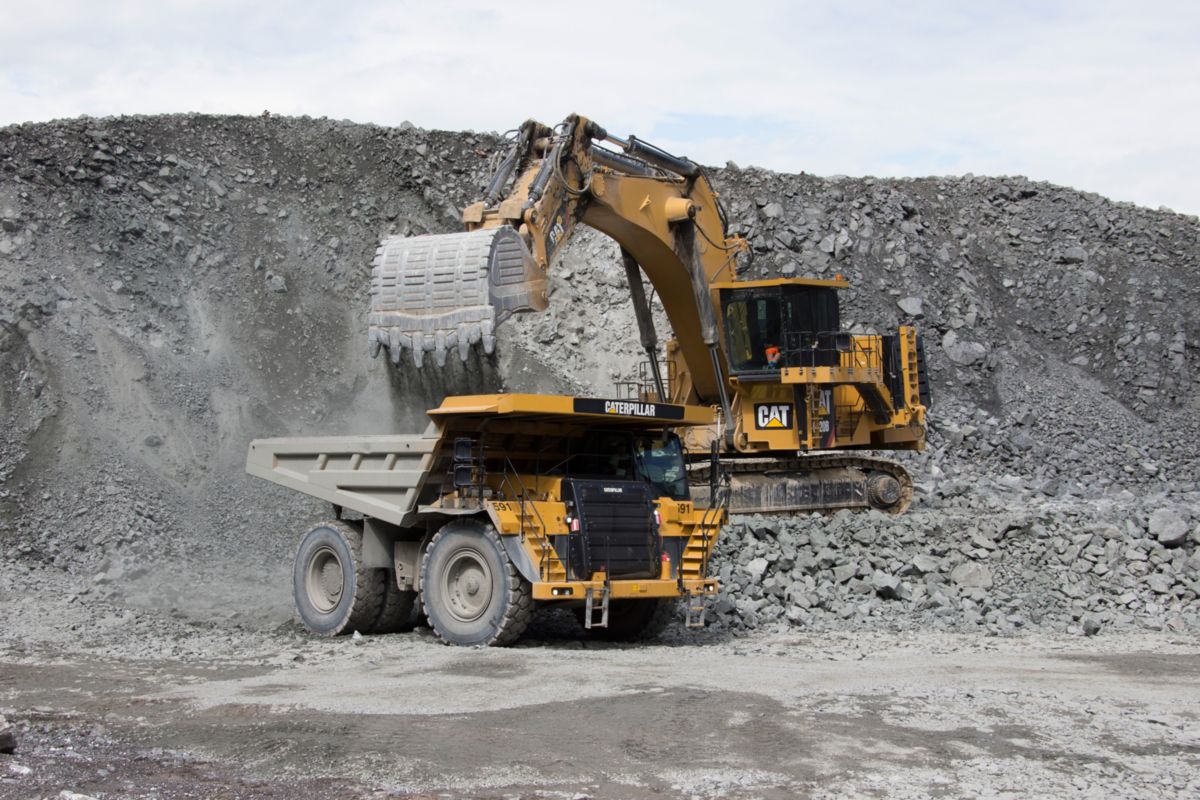

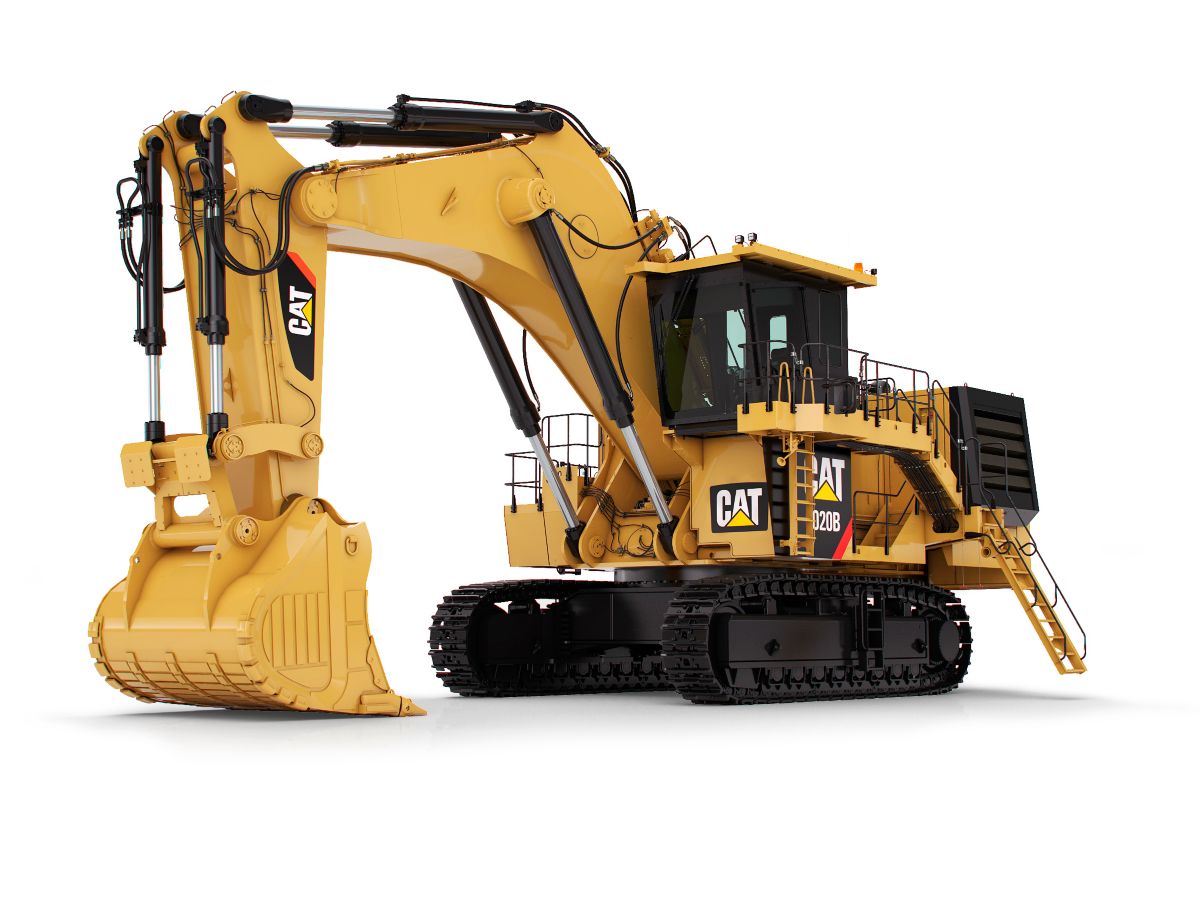

General
Engine Output - SAE J1995
Standard Bucket Capacity
9.0 - 15.4 m3 (11.8 - 20.1 yd³)
Operating Weight – Backhoe
Operating Weights - Backhoe
Operating Weight
507500.00 lb
230200.00 kg
Centralized Service Area
Equipped With (1)
Quick couplings for: – Diesel fuel
– Engine coolant
– Pump transmission gear oil
– Engine oil (oil pan)
– Hydraulic oil
Equipped With (3)
Indicator light for hydraulic tank full
Features
Centralized service area accessible from ground level.
Backhoes
Maximum Material Density - Loose
Weight - Including Standard Wear Package
Electrical System
Batteries (12V each) - In Series/Parallel Installation
Battery Isolation Relays
manual lockable disconnect switch and automatic disconnect relay
Components (1)
Emergency stop buttons inside cab, accessible from all seating locations, and engine module
Components (2)
Additional ground-level emergency stop
Components
9 LED high-brightness working flood lights: – 7 for working area – 2 for rear end
Components (6)
1 beacon lamp on cab roof
Components
1 beacon lamp on cab roof
Diesel Engine
Diesel Engines
Aspiration
Turbocharged and air-to-air aftercooled
Components (1)
Hydraulically driven radiator fan with variable electronically controlled fan speed
Components (5)
Additional high-capacity water separator including electric priming pump
Components (6)
Large fuel tank allows for 24 hour machine operation
Diesel Engine
Components
Large fuel tank allows for 24 hour machine operation
Diesel Engines
Diesel Engine
Emission Standards
U.S. EPA Tier 2 equivalent
Diesel Engines
Fuel Tank Capacity
951.00 gal (US)
3600.00 l
Maximum Altitude - Without Deration - Above Sea Level
Diesel Engine
Rated Gross Power SAE J1995
778 kW (1,043 hp, 1,800 min-1)
Diesel Engines
Rated Net Power - ISO 3046/1
778 kW (1,043 hp, 1,800 min-1)
Diesel Engine
Rated Net Power SAE J1349
778 kW (1,043 hp, 1,800 min-1)
Diesel Engines
Attachment
Buckets equipped with:
– Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds
Type
Boom and stick torsion-resistant with welded box design
Type
High‑tensile steel with solid steel castings at pivot areas
Type
Boom and stick stress-relieved after welding
Type
Catwalks with rails at boom
Type
Float valve for boom down function
Hydraulic System with Electronic Pump Management
Electronic Pump Management Contains (1)
Electronic load limit control
Electronic Pump Management Contains (2)
Dedicated circuit pump allocation
Electronic Pump Management Contains (3)
Automatic return of main pumps to zero flow
Electronic Pump Management Contains (4)
Automatic rpm reduction of engine speed during working breaks
Electronic Pump Management Contains (5)
Reduced oil flow of main pumps at high hydraulic oil temperature and at high engine temperature
Features (1)
Pressure cut-off function for all main pumps
Features (2)
Cooling of pump transmission gear oil
Filters (1)
Full-flow high-pressure filters (100 μm) for main pumps, installed directly behind each pump
Filters (2)
Full-flow filters (10 μm) for complete return circuit
Filters (3)
Full-flow filters (10 μm) for cooling return circuit
Filters (4)
Pressure filters (6 μm) for servo circuit
Filters (5)
Transmission oil filter (40 μm)
Main Pumps
6 × variable swash plate pumps
Maximum Pressure - Attachment
Maximum Pressure, Swing – Acceleration
Maximum Swing Oil Flow
216.00 gal/min
783.00 l/min
Maximum Total Oil Flow
621.00 gal/min
2350.00 L/min
Automatic Lubrication System
Capacity of Grease Barrel
Type (2)
Grease supplied to swing roller bearing, all pivot points of attachment, and swing gearbox bearing
Type (3)
System condition and failures displayed by Board Control System
Type
System condition and failures displayed by Board Control System
Undercarriage
Bottom Rollers - Each Side
Components (1)
Forged double-grouser track pads
Components (5)
Automatic hydraulic retarder valve to prevent overspeed on downhill travel
Components (2)
Chain links connected by hardened pins and bushings
Components (3)
All running surfaces of sprockets, idlers, rollers and track chain links hardened
Components (4)
Fully hydraulic self-adjusting track tensioning system with accumulator
Gradeability - Travel Drives
Parking Brakes
Wet multiple disc brake, spring loaded/hydraulically released
Support Rollers - Each Side
Travel Drives - Each Side
1 planetary transmission with 2 two-stage axial piston motors
Travel Speed - 1st Stage - Maximum
Travel Speed - 2nd Stage - Maximum

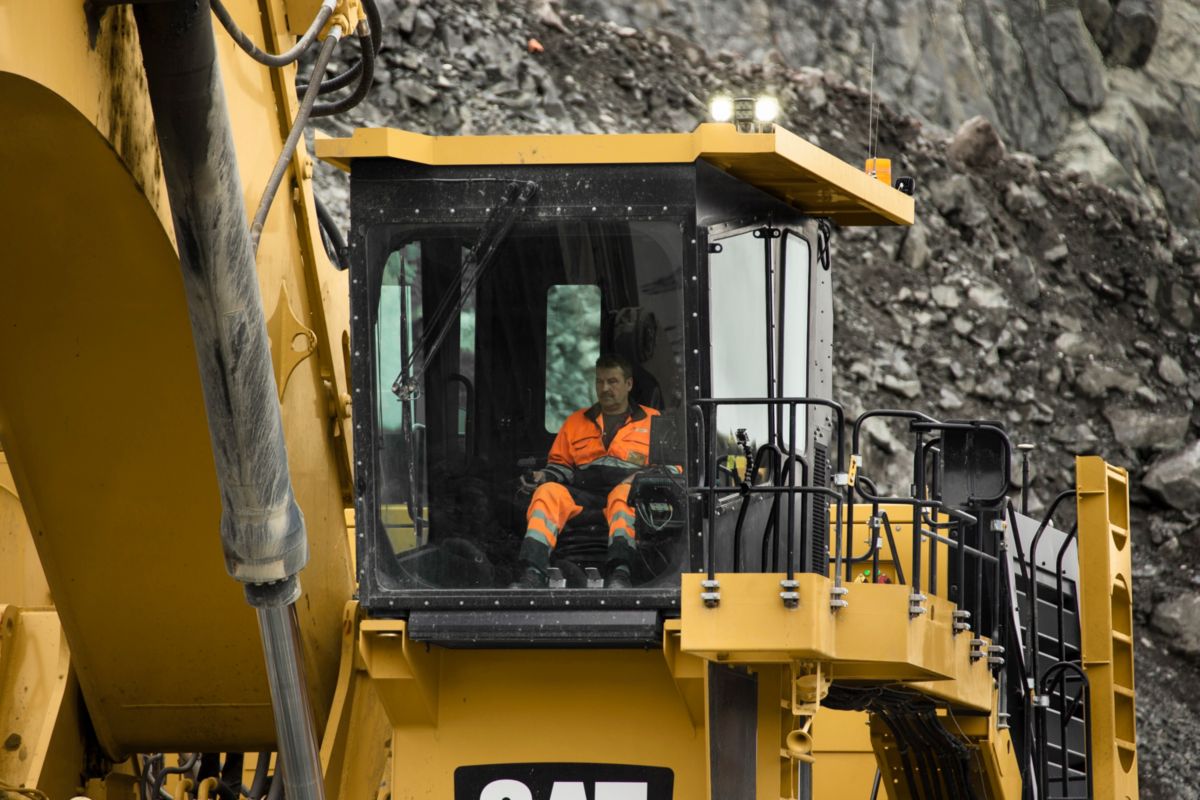

Operator's Cab
Components (1)
Large cab floor window with removable grating for easy cleaning
Components (10)
Machine access via retractable access stairway, stairway angle approximately 45°, hydraulically operated
Components (3)
Safety switch in operator's seat for automatic motion shutdown
Components (4)
Joystick integrated in adjustable seat armrest
Components (5)
Full sized trainer seat with safety belt and work table
Components (6)
Auxiliary fold-away seat with safety belt for 3rd person
Components (8)
Windshield with parallel intermittent wiper/washer
Components (7)
Operator Protective Guard (rock guard; approved according to ISO 10262:1998 [Top Guard]) compliant
Operator’s Cab
Operator's Cab
Components (2)
Pneumatically cushioned and multi-adjustable operator seat with lumbar support, safety belt, head- and armrests
Operator’s Cab
Internal Dimensions of Cab: Height
Internal Dimensions of Cab: Length
Internal Dimensions of Cab: Width
Operator's Cab
New BCS Features (1)
Robust instrument panel including large (254 mm/10 in) color touch screen
New BCS Features (4)
Fault memory capabilities
New BCS Features (5)
USB, Lan (TCP/IP) and CAN BUS interfaces for data export
Operator’s Cab
New BCS Features:
USB, Lan (TCP/IP) and CAN BUS interfaces for data export
Operator's Cab
New Board Control System (BCS) Features:
Electronic monitoring, data logging and diagnostic system for vital signs & service data of engines, hydraulic & lube system
Operator's Eye Level (approximate)
Hydraulic Oil Cooling
Features
Cooling system fully independent of all main circuits, i.e. controlled cooling capacity available whenever engine is running
Features (3)
Superior cooling efficiency to ensure optimum oil temperature
Features (2)
Variable electronically controlled flow of oil through cooler and fan speed
Oil Flow of Cooling Pumps
211.00 gal/min
800.00 L/min
Swing System
Features
Open swing circuit with auto slow down when joysticks in neutral
Features (2)
All slew ring raceways and grease tub for internal gearing supplied by automatic, central lubrication system
Parking Brake
Wet multiple-disc brake, spring-loaded/hydraulically released
Swing Drive
2 compact planetary transmissions with axial piston motors
Swing Ring
Triple-race roller bearing with sealed internal gearing
Engine
Bucket
Standard Bucket Capacity - Backhoe (Heaped 1:1)
Operating Specifications
Working Range
Digging Forces
Hydraulic System with Electronic Pump Management
Maximum Pressure - Swing - Deceleration
Maximum Total Oil Flow
621.00 gal/min
2350.00 l/min
Hydraulic Tank Capacity
740.00 gal (US)
2800.00 l
Electrical System
Components (3)
9 LED high-brightness working flood lights: – 7 for working area
– 2 for rear end
Hydraulic Oil Cooling
Features (1)
Cooling system fully independent of all main circuits, i.e. controlled cooling capacity available whenever engine is running
Oil Flow of Cooling Pumps
211.00 gal/min
800.00 l/min
Operator's Cab
Components (11)
Additional emergency ladder in close proximity to emergency escape window
Internal Dimensions of Cab - Height
Internal Dimensions of Cab - Length
Internal Dimensions of Cab - Width
New BCS Features (2)
On-screen troubleshooting assistance
Swing System
Features (1)
Open swing circuit with auto slow down when joysticks in neutral
Undercarriage
Automatic Lubrication System
Type (1)
Single-circuit progressive system with hydraulically driven heavy-duty pump and electronic time control
Attachment
Buckets Equipped With
– Special liner material covering main wear areas inside and outside
– Lip shrouds
– Wing shrouds
– Heel shrouds
Type (1)
Boom and stick torsion-resistant with welded box design
Type (2)
High-tensile steel with solid steel castings at pivot areas
Type (3)
Boom and stick stress-relieved after welding
Type (4)
Catwalks with rails at boom
Type (5)
Float valve for boom down function
Operating Weights - Backhoe
Diesel Engines
Components (2)
Micro processed engine management
Emission Standards
U.S. EPA Tier 2 equivalent
Rated Gross Power - SAE J1995
778 kW (1,043 hp, 1,800 min-1)
Rated Net Power - SAE J1349
778 kW (1,043 hp, 1,800 min-1)
Hydraulic System with Electronic Pump Management
Maximum Pressure - Swing - Acceleration
Maximum Pressure - Travel
Backhoes
Digging Forces
Electrical System
Components (4)
2 LED high-brightness access flood lights
Engine
Hydraulic System with Electronic Pump Management
Total Volume of Hydraulic Oil
925.00 gal (US)
3500.00 l
Operating Specifications
Working Ranges
Diesel Engine - Equivalent to Tier 2
Aspiration
Turbocharged and air-to-air aftercooled
Components (1)
Hydraulically driven radiator fan with variable electronically controlled fan speed
Components (2)
Micro processed engine management
Components (5)
Additional high-capacity water separator including electric priming pump
Components (6)
Large fuel tank allows for 24 hour machine operation
Diesel Engine - Lesser Regulated
Emissions
Meets China Nonroad Stage III emissions standards, equivalent to Tier 2
Diesel Engine - Equivalent to Tier 2
Fuel Tank Capacity
951.00 gal (US)
3600.00 l
Diesel Engine - Lesser Regulated
Diesel Engine - Equivalent to Tier 2
Maximum Altitude without Deration
3622 m (11,884 ft) – above sea level (a.s.l.)
Diesel Engine - Lesser Regulated
Diesel Engine - Equivalent to Tier 2
Diesel Engine - Tier 4 Final
Aspiration
Turbocharged and air-to-air aftercooled
Components (2)
Dual Diesel Oxidation Catalysts (DOCs)
Components (4)
Hydraulically driven radiator fan with variable electronically controlled fan speed
Components (5)
Micro processed engine management
Components (8)
Additional high-capacity water separator including electric priming pump
Components (9)
Large fuel tank allows for 24 hour machine operation
Diesel Engine - Highly Regulated
Emissions
Meets Tier 4 Final and Stage V emissions standards
Diesel Engine - Tier 4 Final
Fuel Tank Capacity
951.00 gal (US)
3600.00 l
Diesel Engine - Highly Regulated
Diesel Engine - Tier 4 Final
Maximum Altitude without Deration
2925 m (9,600 ft) – above sea level (a.s.l.)
Diesel Engine - Highly Regulated
Diesel Engine - Tier 4 Final
Engine - Equivalent to U.S. EPA Tier 2
Engine - U.S. EPA Tier 4 Final
General
Engine Output - SAE J1995
Note
Specifications shown above apply to a Backhoe configuration. A frontless configuration is also available.
