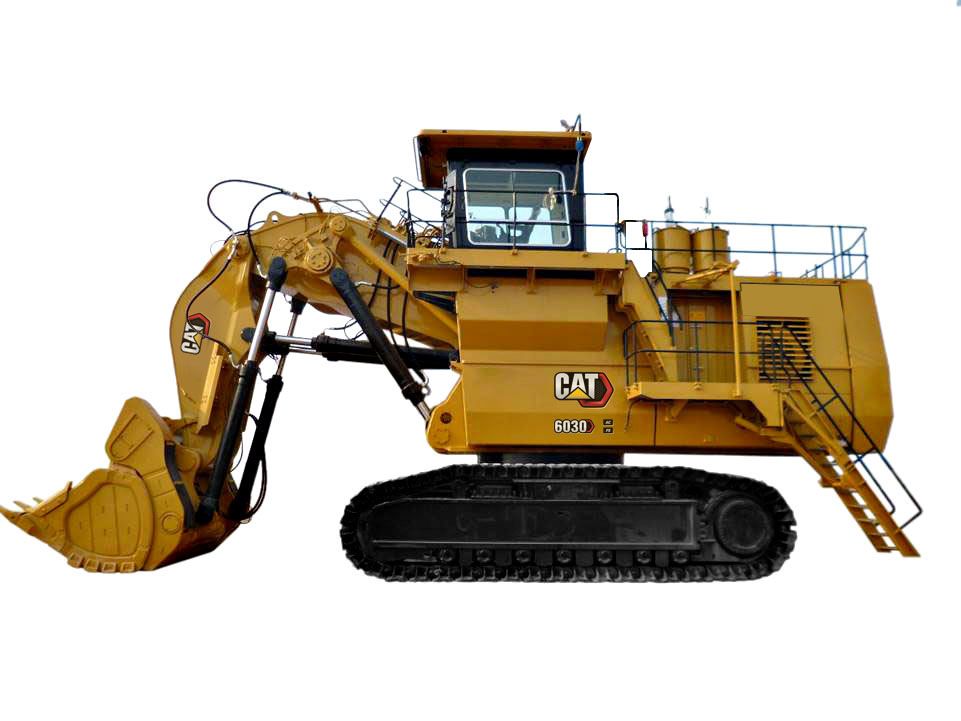

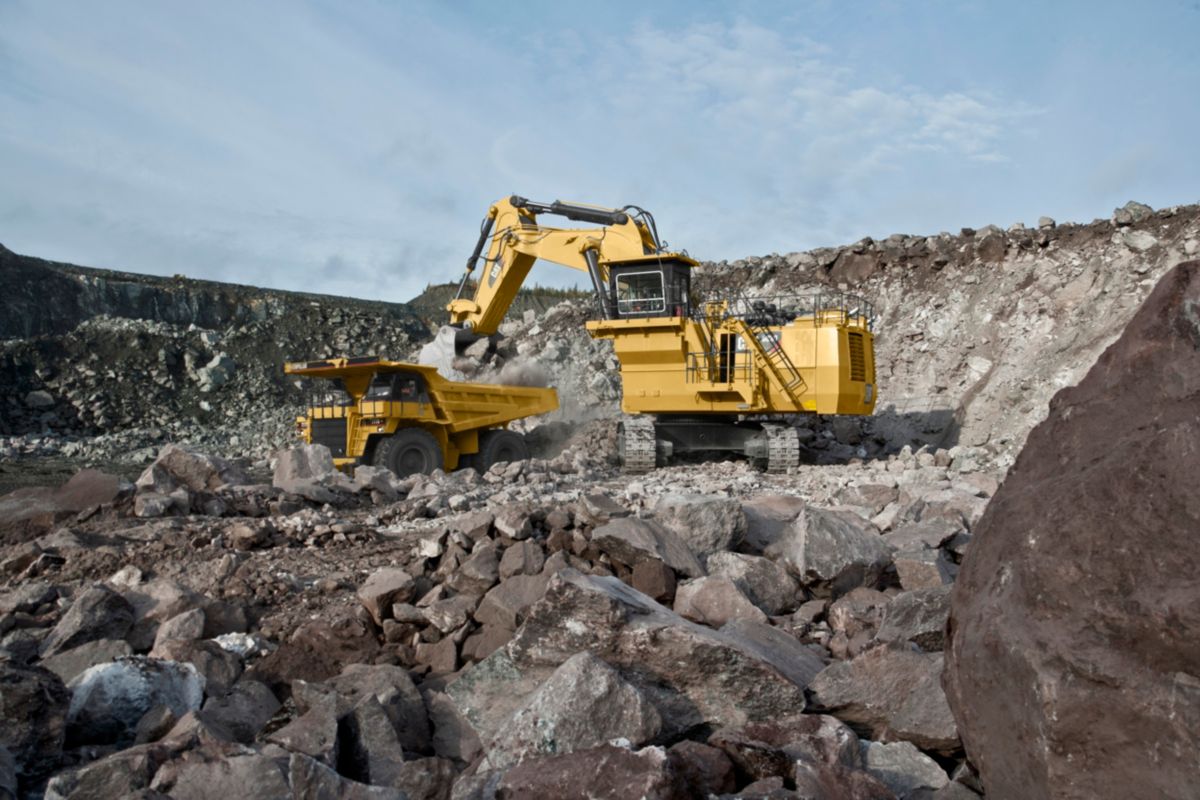

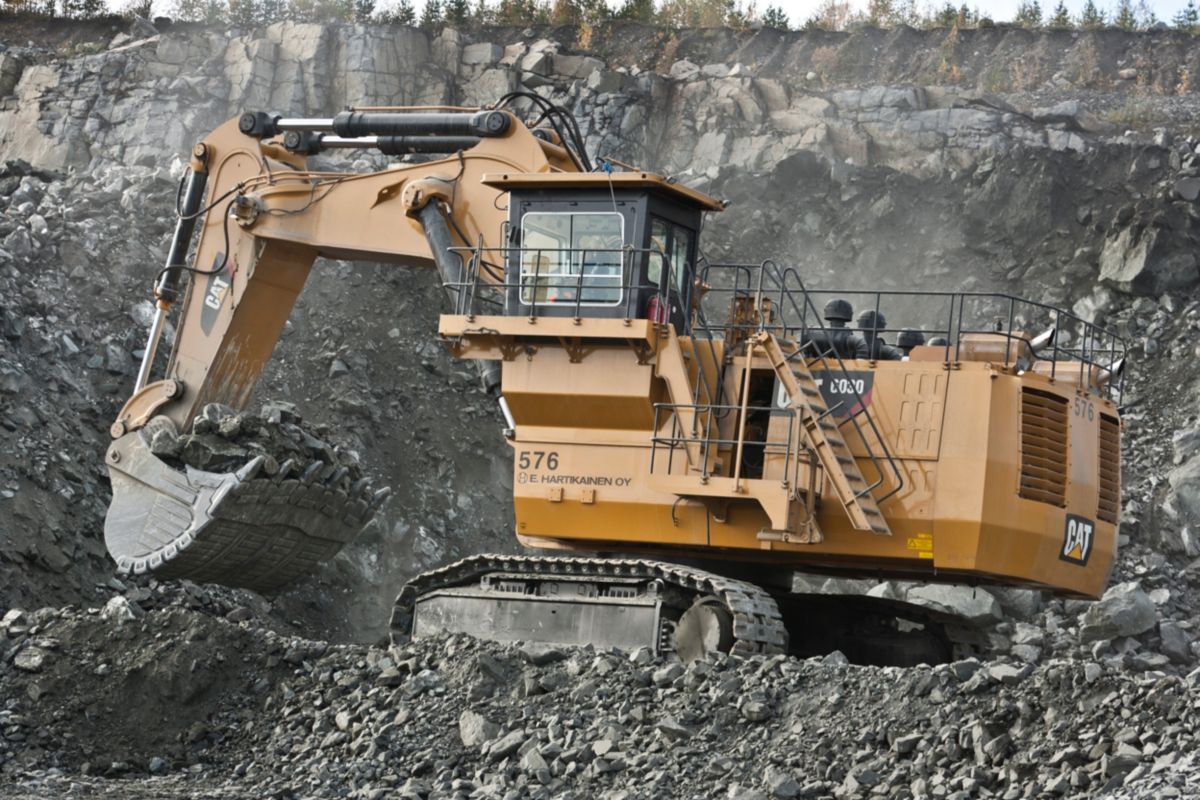

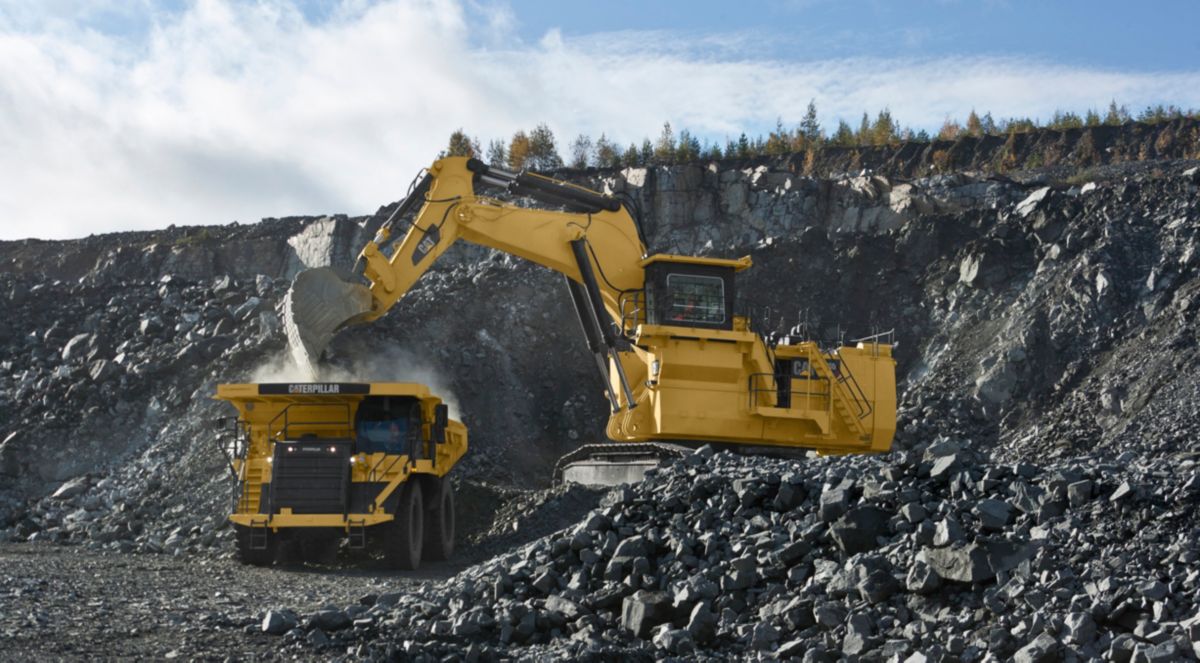

6030 AC Hydraulic Mining Shovel

Request A Quote 6030 AC Attachments New and Used Inventory

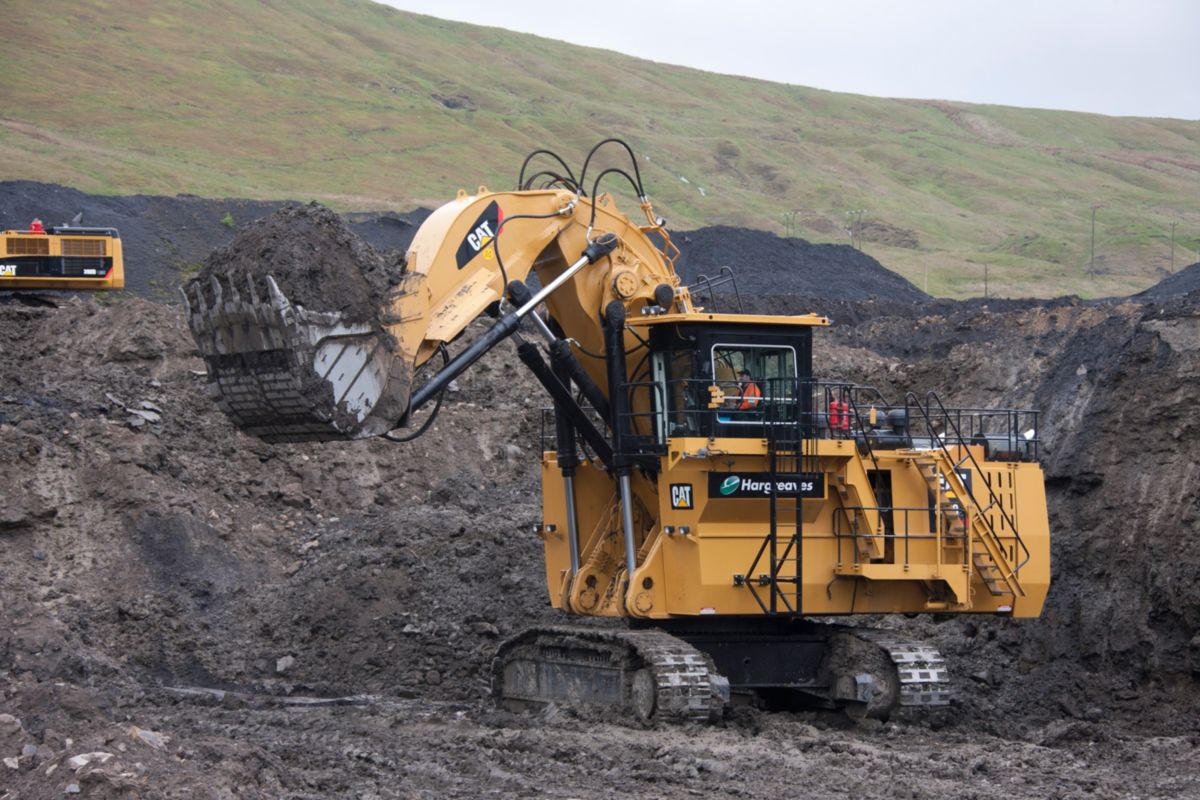

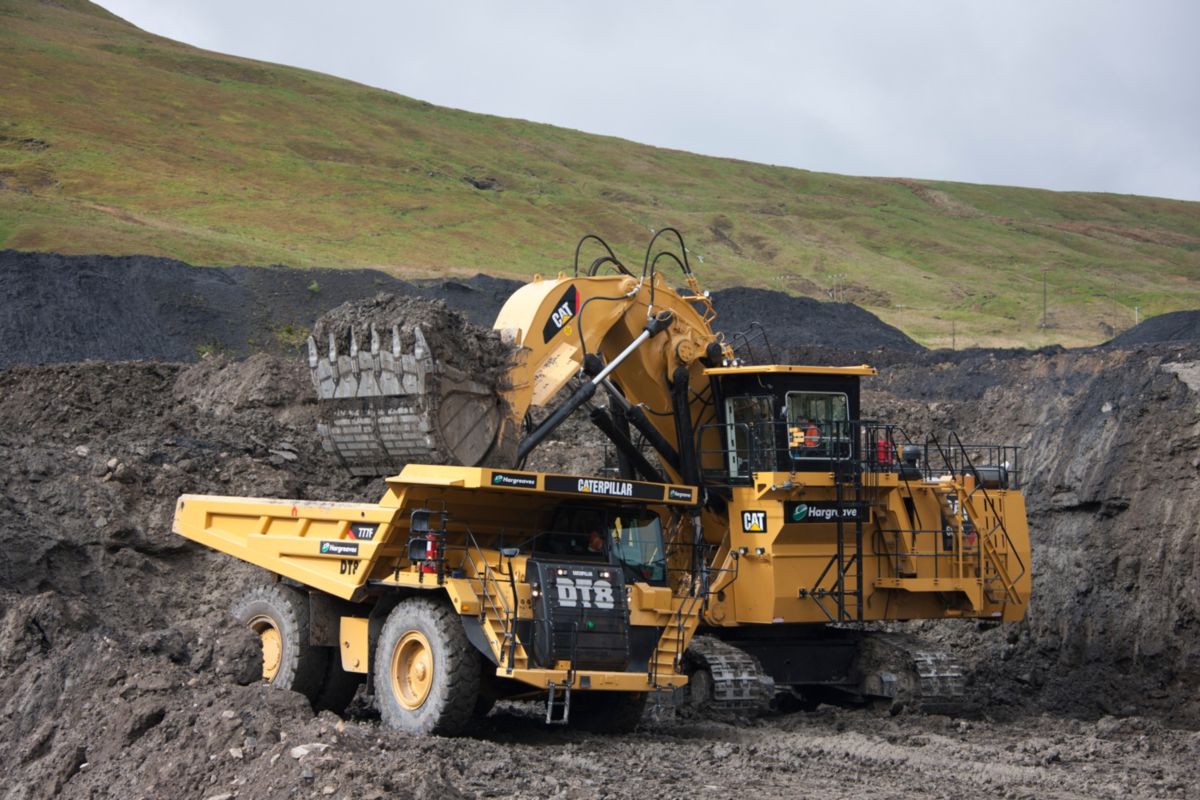

6030 AC FS Hydraulic Mining Shovel
US
Metric

Overview

We understand the challenges you face, the importance of reliability, and the relationship between uptime and productivity. That's why we continually strive to produce the safest, most reliable and productive hydraulic shovels possible. Offering the widest payload range of any manufacturer in the industry, the ability to optimally pair with our popular line of mining trucks, and the support of our world-class Cat dealer network, we are uniquely positioned to partner with you to help achieve your productivity targets. We understand what matters to you. Our hydraulic shovels are built with you in mind. Because in mining, every day matters and every load counts.

Electric Motor - 6030 AC/6030 AC FS

Output
1000 kW

General

Bucket Payload
34.00 ton (US)
30.00 t
Operating Weight
324.00 ton (US)
294.00 t
Note
Specifications shown above apply to Face Shovel configuration.

Electric Motor - 6030 AC/6030 AC FS

Type
Squirrel cage induction motor
Voltage
6.6 kV ± 10% (other on request)
Rated Current IN
110 A (at 6.6 kV)
Frequency
50 Hz (60 Hz on request)
Revolutions
1,500 min-1 (1,800 min-1 at 60 Hz)
Starting current
350% of IN (197% of IN optional)

Electrical System

System Voltage
24 V
Batteries (12V each) - In Series/Parallel Installation - Cat Version
2 X 210 Ah 12 V each; 210 Ah 24 V in total

Operating Weights

6030 - Standard Track Pads
3.25 ft
1000.00 mm
6030 - Operating Weight
648810.00 lb
294300.00 kg
6030 - Ground Pressure
31.70 psi
21.90 N/cm²

Service Refill Capacities

Hydraulic Tank
745.00 gal (US)
2820.00 l
Hydraulic System - Including Tank
872.00 gal (US)
3300.00 l
Cooling System
25.00 gal (US)
95.00 l
Swing Drive
20.00 gal (US)
76.00 l
Grease Tank
119.00 gal (US)
450.00 l

Hydraulic System with Pump Managing System

Main Pumps
4 x variable swash plate pumps
Main Pumps - Maximum Oil Flow - AC Version
4 x 543 L/min (4 x 143 gal/min)
Maximum Pressure - Attachment
4495.00 psi
310.00 bar
Maximum Pressure - Travel
5220.00 psi
360.00 bar
Swing Pumps
2 x reversible swash plate double pumps
Swing Pumps - Maximum Oil Flow - AC Version
2 x 426 L/min (2 x 113 gal/min)
Maximum Pressure - Swing Pumps
5075.00 psi
350.00 bar

Hydraulic Oil Cooling

Oil Flow of Cooling Pumps - AC Version
2 x 459 L/min (2 x 121 gal/min)
Features (1)
2 Fans
Features (2)
Fan speed is thermostatically controlled
Diameter - Fan
48.00 in
1220.00 mm
Features (3)
Cooling system is fully independent

Swing System

Swing Drive
2 compact planetary transmissions with axial piston motors
Parking Brakes
Wet multiple-disc brake, spring-loaded/hydraulically released
Maximum Swing Speed - AC Version
5.00 r/min
5.00 r/min
Swing Ring
Triple-race roller bearing with sealed internal gearing
Features (1)
Swing circuit is closed-loop with torque control

Undercarriage

Components (3)
Fully hydraulic self-adjusting track tensioning system with membrane accumulator
Components (5)
Automatic hydraulic retarder valve to prevent over-speed on downhill travel
Track Pads - Each Side
44
Components (2)
All running surfaces of sprockets, idlers, rollers and pad links, as well as teeth contact areas of sprocket and pad links, are hardened
Gradeability - Travel Drives - Approximate
50.00 %
50.00 %
Components (1)
Cast double-grouser track pads with bushings connected by hardened full floating pins
Bottom Rollers - Each Side
7
Travel Drives - Each Side
1 planetary transmission with 2 two-stage axial piston motors
Support Rollers - Each Side
2 plus a skid plate in between
Parking Brakes
Fully hydraulic self-adjusting track tensioning system with membrane accumulator
Components (4)
1 planetary transmission with 2 two-stage axial piston motors

Operator's Cab

Operator's Eye Level - Approximately
21.33 ft
6.50 m
Internal Dimensions of Cab - Length
7.22 ft
2200.00 mm
Internal Dimensions of Cab - Width
5.25 ft
1600.00 mm
Internal Dimensions of Cab - Height
7.05 ft
2150.00 mm
Components (1)
Under roof mounted heating ventilating and air conditioning system
Components (2)
External sun shields at side and rear windows
Components (3)
Robust instrument panel including large colored BCS screen with transflective technology
Components (4)
Board Control System (BCS) electronic monitoring and data logging system for vital signs and service data of engines, hydraulic system and lubrication system
Components (5)
Powered 38° access ladder
Components (6)
Emergency egress safety harness
Components (7)
Switch in seat cushion to automatically neutralize the hydraulic controls when operator leaves the seat
Components (8)
Pneumatically cushioned and multi-adjustable comfort seat with lumbar support, seat heating, safety belt, head- and armrests
Components (9)
Roller blinds at all windows
Components (10)
Windshield with parallel intermittent wiper/washer
Components (11)
All-round safety glass, armored windshield and sliding side window
Components (12)
Operator Protective Guard (Top Guard) (ISO 10262:1998 Level II)
Components (13)
Joystick controls integrated in independently adjustable seat consoles
Components (14)
Fold-away auxiliary seat with safety belt

Attachments

All buckets (FS and BH) are equipped with a wear package consisting of: (1)
Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth
All buckets (FS and BH) are equipped with a wear package consisting of: (2)
Wing shrouds on side walls and heel shrouds at bottom edges
Shovel attachment with unique TriPower kinematics ensuring the following main features: (1)
Automatic roll-back limiter to prevent material spillage and kinematic assistance to hydraulic forces
Shovel attachment with unique TriPower kinematics ensuring the following main features: (2)
Horizontal automatic constant-angle bucket guidance €“ Vertical automatic constant-angle bucket guidance
Shovel attachment with unique TriPower kinematics ensuring the following main features: (3)
Constant boom momentum throughout the whole lift arc and crowd force assistance
Type (1)
Catwalks with rails at booms
Type (2)
Special wear packages for highly abrasive materials on request
Type (3)
Pressure-free lowering of boom and stick by means of a float valve
Type (4)
Welding procedures allow for internal counter-welding (double prep weld) wherever possible
Type (5)
Booms and sticks are stress-relieved after welding
Type (6)
Booms and sticks are torsion-resistant, welded box design of high-tensile steel with solid steel castings at pivot areas

Bucket

Bucket Capacity - Face Shovel (heaped 2:1)
21.60 yd³
16.50 m³

Digging Forces

Maximum Crowd Force
291700.00 lbf
1298.00 kN
Maximum Breakout Force
214390.00 lbf
954.00 kN

Working Ranges

Maximum Digging Height
45.60 ft
13.90 m
Maximum Digging Reach
44.90 ft
13.70 m
Maximum Digging Depth
8.20 ft
2.50 m

Automatic Lubrication System

Capacity - Grease Container
120.00 gal (US)
450.00 l
Type (1)
Dual-circuit system with hydraulically driven heavy-duty pump and electronic time relay control to adjust the pause/lube times
Type (2)
Connected to the lubrication system are the swing roller bearing with internal gearing and all pivot points of attachment, bucket and cylinders
Type (3)
Lubricated pinion for greasing of internal gearing of swing ring
Type (4)
System failures displayed by Board Control System
Type (5)
Grease filters (200 µm) between service station and container as well as directly behind grease pump

Retractable Service Station

Installation
Retractable, easily accessible, ground-level service station installed underneath the engine module

Electrical System - Diesel Drive

Components (5)
14 LED service lights

Swing System

Maximum Swing Speed - Diesel Version
4.60 r/min
4.60 r/min

Diesel Engines

Maximum Altitude - Without Deration - At 25° C (77° F) Above Sea Level
1640.00 ft
500.00 m
Bore
5.42 in
137.70 mm
Make/Model
2 — Cat C27 ACERT

Engine

Engine Model
2 — Cat® C27 ACERT„¢

Operating Weights

6030 FS - Operating Weight
648810.00 lb
294300.00 kg

General

Engine Output - SAE J1995
1530.00 HP
1140.00 kW

Diesel Engines

Components (2)
Micro processed engine management

Operating Weights

6030 FS - Ground Pressure
31.70 psi
21.90 N/cm²

Operating Specifications

Operating Weight - Backhoe
326.00 t
296.00 t

Diesel Engines

Displacement
1648.00 in³
27.00 l

Bucket

Bucket Capacity - Backhoe (heaped 1:1)
22.20 yd³
17.00 m³

Engine

Note
Electric drive option available (1000 kW) on 6030 AC/6030 AC FS

Operating Specifications

Bucket Payload
34.00 t
30.00 t

Diesel Engines

Stroke
6.00 in
152.40 mm
Components (1)
Hydraulically driven radiator fan with electronically controlled fan speed

Operating Specifications

Operating Weight - Face Shovel
324.00 t
294.00 t

Hydraulic System with Pump Managing System

Hydraulic Tank Capacity - Approximately
660.00 gal (US)
2500.00 l

Engine

Net Power - SAE J1349
1530.00 HP
1140.00 kW

Diesel Engines

Components (4)
Two-stage fuel filter, including water separator
Aspiration
Turbocharged and charge air-cooled

Hydraulic System with Pump Managing System

Swing Pumps - Maximum Oil Flow - Diesel Version
2 — 394 L/min (2 — 104 gal/min)

Electrical System - Diesel Drive

System Voltage
24V

Engine

Gross Power - SAE J1995
1530.00 HP
1140.00 kW

Electrical System - Diesel Drive

Components (4)
2 LED high-brightness access flood lights

Diesel Engines

Alternators
2 — 150A
Components (3)
Heavy-duty air filters
Total Rated Net Power - SAE J1349
1140 kW 1,800 min-1 (1,530 hp 1,800 min-1)

Electrical System - Diesel Drive

Batteries in Series/Parallel Installation
4 — 210 Ah €“ 12V each; 420 Ah €“ 24V in total

Diesel Engines

Total Rated Gross Power - SAE J1995
1140 kW 1,800 min-1 (1,530 hp 1,800 min-1)

Hydraulic System with Pump Managing System

Total Volume of Hydraulic Oil - Approximately
925.00 gal (US)
3500.00 l

Diesel Engines

Total Rated Net Power - ISO 3046/1
1140 kW 1,800 min-1 (1,530 hp 1,800 min-1)
Components (5)
Additional high-capacity water separator

Electrical System - Diesel Drive

Components (1)
Battery isolation relays

Diesel Engines

Number of Cylinders - Each Engine
12

Operating Weights

Note
Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, and lubricants.
6030 FS - Standard Track Pads
3.25 ft
1000.00 mm

Diesel Engines

Fuel Tank Capacity
1339.00 gal (US)
5070.00 l
Emissions
Meets U.S. EPA Tier 2 equivalent emission standards

Electrical System - Diesel Drive

Components (3)
12 LED high-brightness working flood lights €“ 8 for working area €“ 2 for rear end

Hydraulic Oil Cooling

Oil Flow of Cooling Pumps - Diesel Version
2 — 467 L/min (2 — 123 gal/min)

Electrical System - Diesel Drive

Components (2)
Emergency stop switches accessible from ground level and in engine module

Hydraulic Oil Cooling

Diameter - Fan
2 — 1220 mm (2 — 48 in)

Hydraulic System with Pump Managing System

Main Pumps - Maximum Oil Flow - Diesel Version
4 — 552 L/min (4 — 146 gal/min)

Undercarriage

Travel Speed
2 Stages
Travel Speed - 1st Stage - Maximum
0.90 mile/h
1.40 km/h
Travel Speed - 2nd Stage - Maximum
1.70 mile/h
2.70 km/h
Maximum Tractive Force
367880.00 lbf
1637.00 kN
Features

Robust Drive Systems

Durability and Reliability

Higher Productivity and Greater Efficiency

TriPower System (Face Shovel Machines)

Safe and Comfortable Operator Environment

Cat MineStar System and Technology Solutions

Front Attachment Options and Structures

Safety

Customer Support

Serviceability

Sustainability

Optional Equipment
  • GENERAL
    • Export crating
    • Custom paint
  • SUPERSTRUCTURE
    • Oil change interval extension for engine oil up to 1,000 hours
    • Hydraulic service crane on superstructure with auxiliary engine
    • Round container for a standard 200 L (53 gal) grease barrel (instead of 450 L (119 gal) grease container)
    • Cold-weather package
  • CAB
    • Cab heating
    • Dual (redundancy) HVAC system
    • Camera monitoring system
    • Windshield guard (FOGS)
  • UNDERCARRIAGE
    • Track pad width 800 mm (2 ft 7 in) or 1200 mm (3 ft 11 in)
    • Cover plate under carbody (belly plate)
