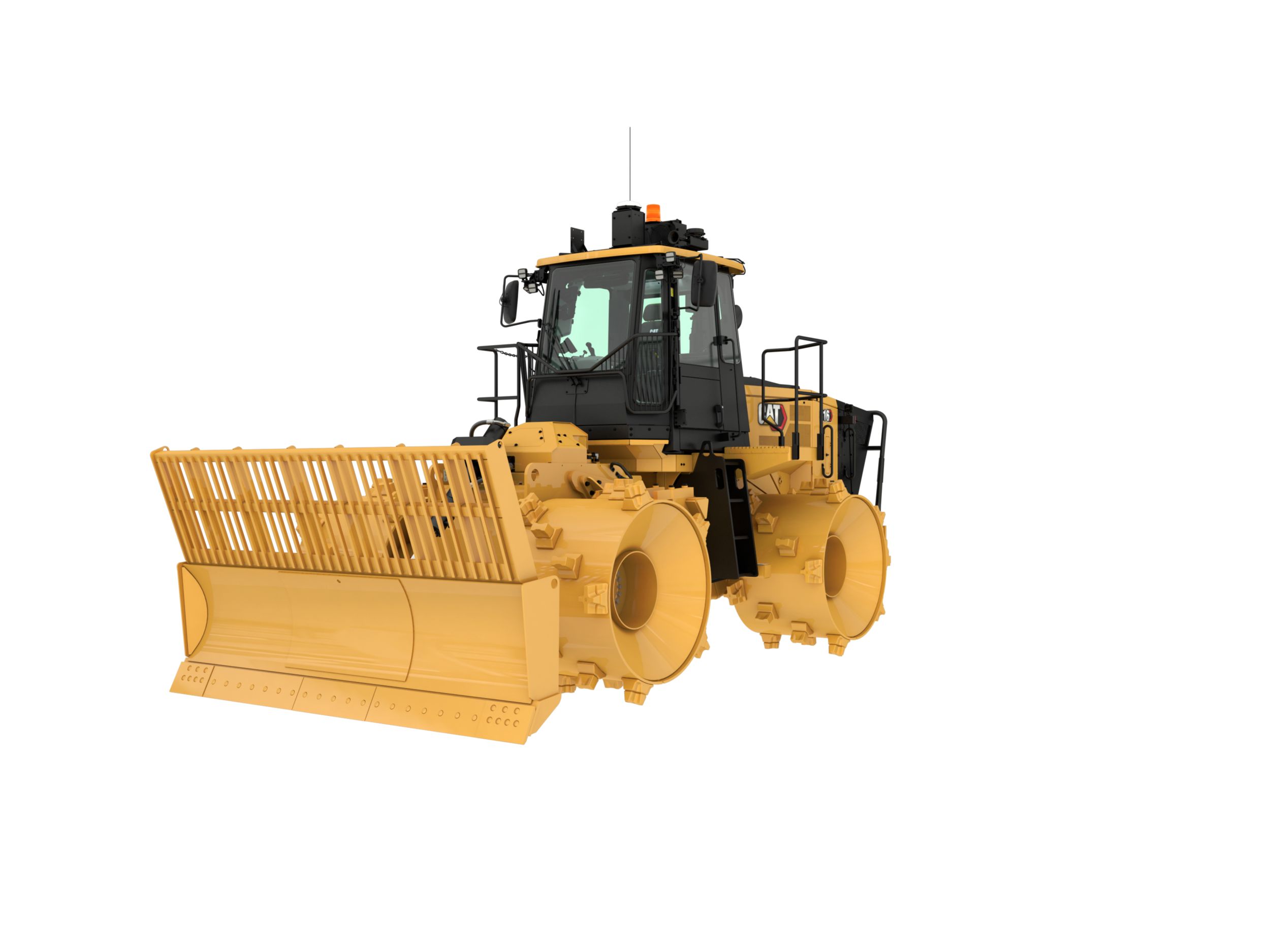

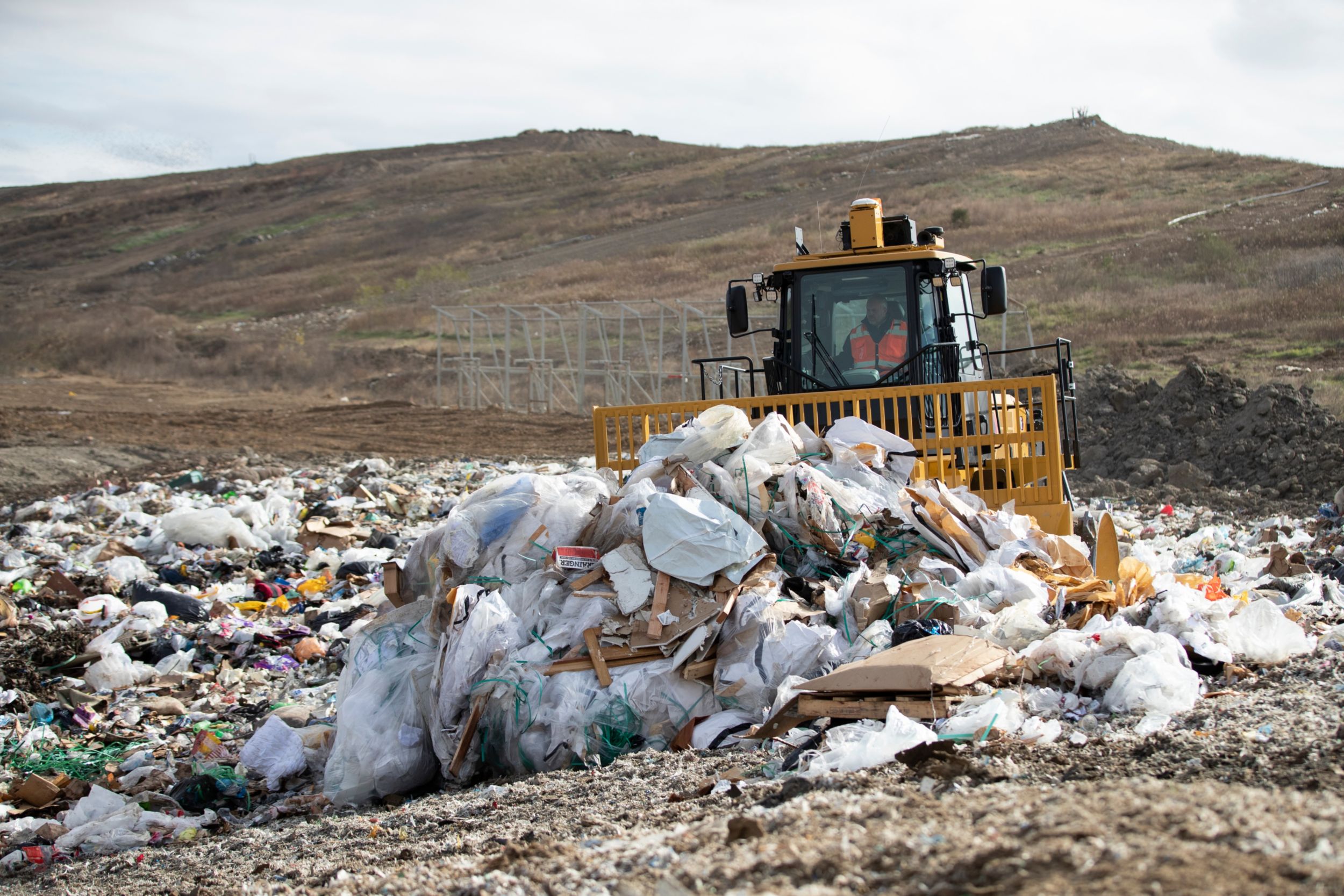

816 Landfill Compactor

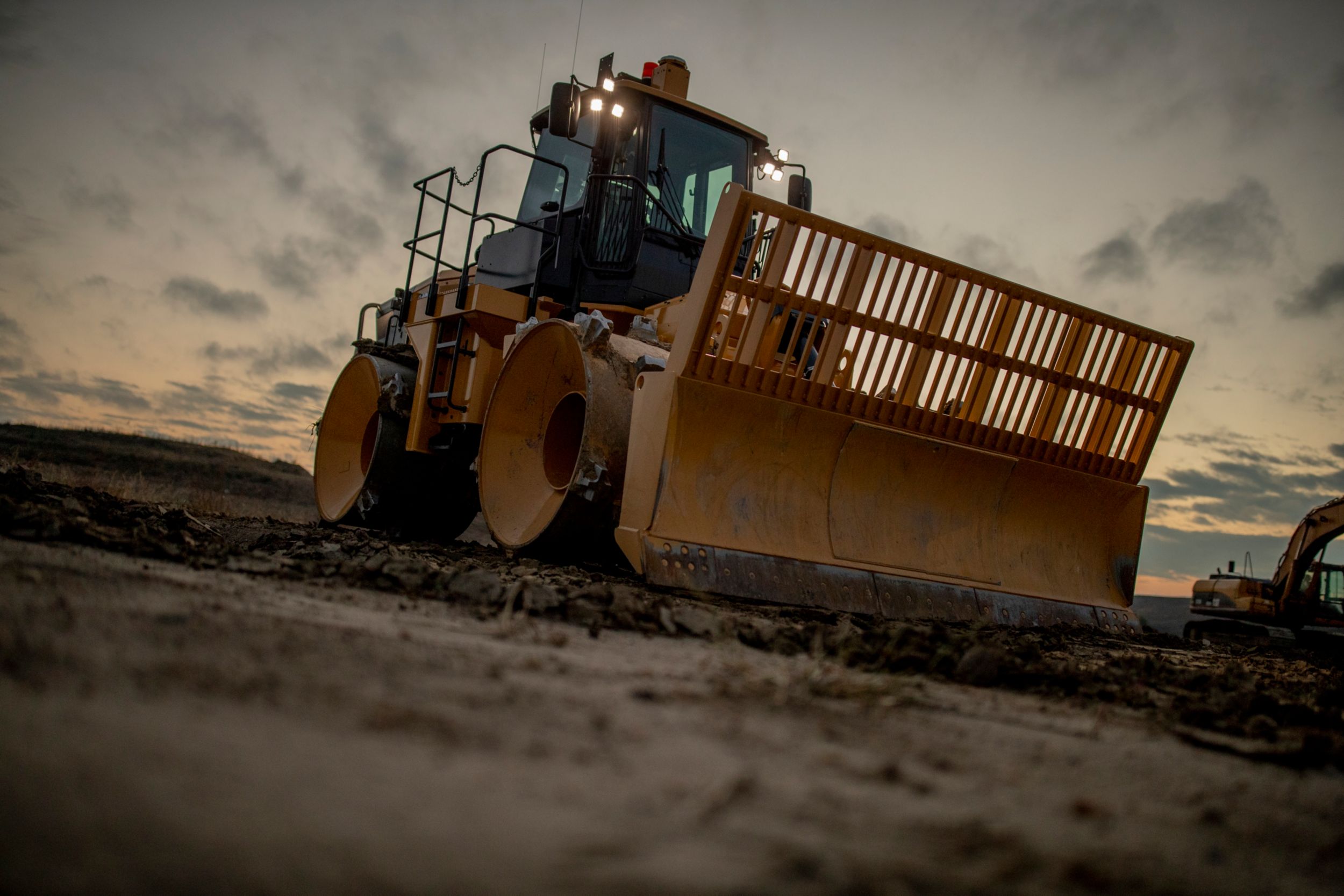

816 Landfill Compactor

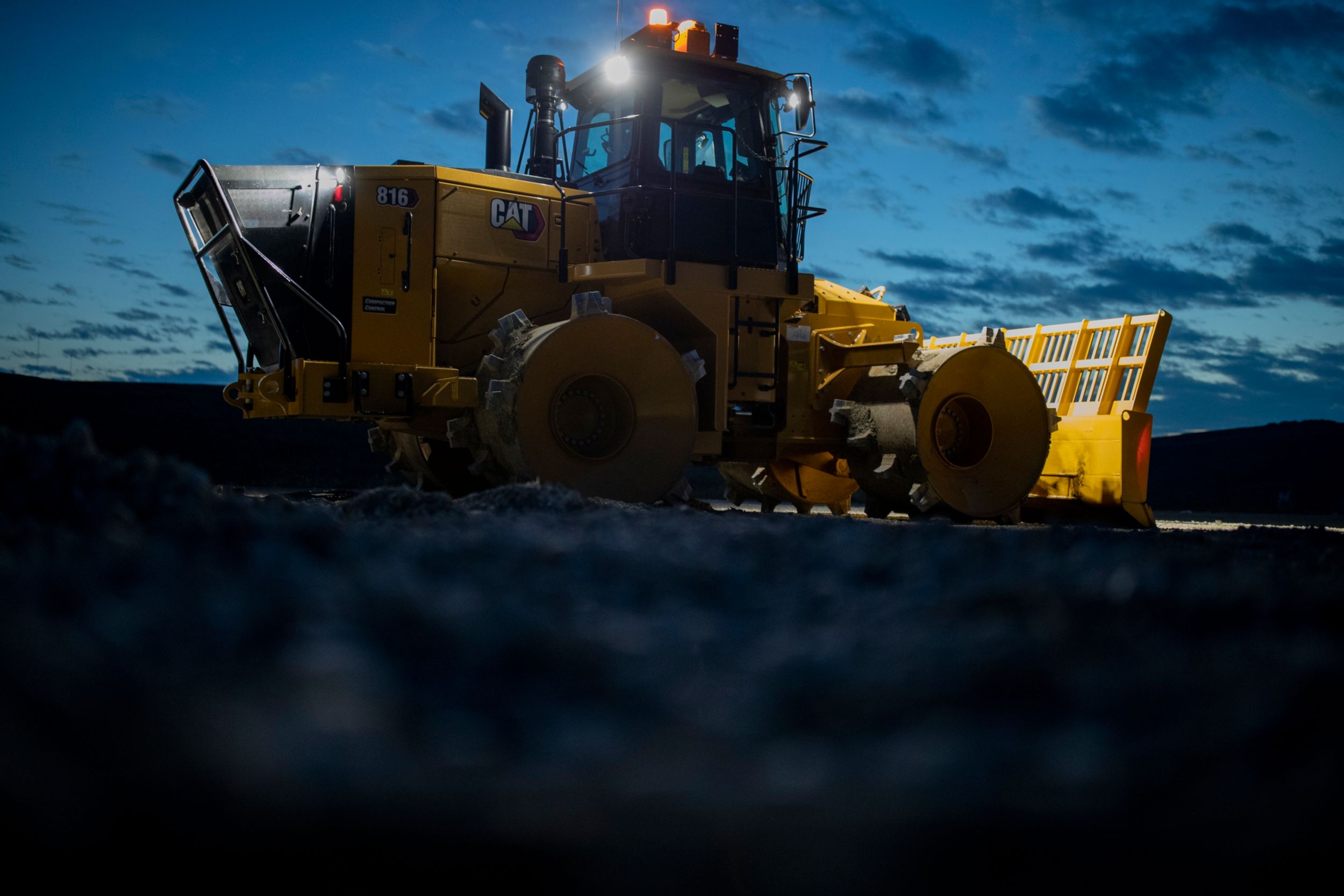

816 Landfill Compactor

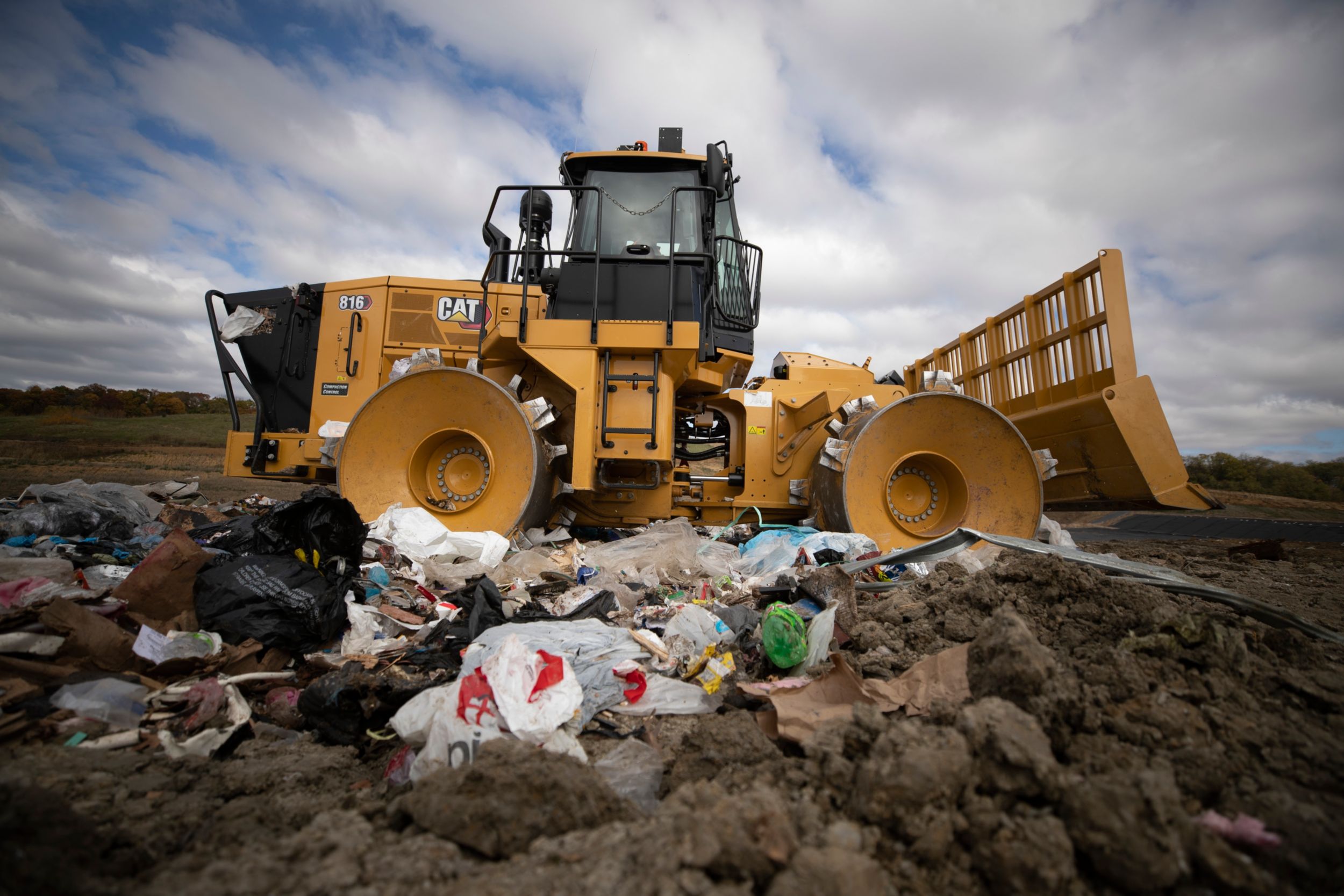

816 Landfill Compactor
816 Landfill Compactor
816 Landfill Compactor
US
Metric

Overview

Cat Landfill Compactors are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to operate more efficiently and safely. Introduced in 1972, the 816 has been the industry leader for over 45 years. Focused on helping our customers succeed, we have continued to build upon each new series. The 816 continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.

Engine - Tier 4 Final/EU Stage V

Gross Power (SAE J1995:2014)
284.00 HP
212.00 kW
Net Power (SAE J1349:2011)
249.00 HP
186.00 kW
Engine Model
Cat C7.1
Emissions
Meets U.S. EPA Tier 4 Final/ EU Stage V/Japan 2014/ Korea Tier 4 Final emission standards
Rated Speed
2200.00 r/min
2200.00 r/min
Peak Torque - 1,400 rpm
902.00 ft-lb
1223.00 N·m
Torque Rise
52%
Bore
4.10 in
105.00 mm
Displacement
427.80 in³
7.01 l
Stroke
5.30 in
135.00 mm

Engine

Stroke
5.30 in
135.00 mm
Displacement
427.80 in³
7.01 l
Emissions
Meets U.S. EPA Tier 4 Final/EU Stage V emission standards or meets U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards
Low Idle Speed
800.00 r/min
800.00 r/min

Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA

Engine Model
Cat C7.1
Emissions
Brazil MAR-1 and China Nonroad Stage III, equivalent to Tier 3/EU Stage IIIA
Rated Speed
2200.00 r/min
2200.00 r/min
Net Power (SAE J1349:2011)
249.00 HP
186.00 kW
Peak Torque - 1,400 rpm
749.00 ft-lb
1016.00 N·m
Torque Rise
26%
Bore
4.10 in
105.00 mm
Stroke
5.30 in
135.00 mm
Displacement
427.80 in³
7.01 l

Transmission

Transmission Type
Cat Planetary Power Shift
Travel Speeds - Forward - First
4.10 mile/h
6.70 km/h
Travel Speeds - Forward - Second
7.50 mile/h
12.00 km/h
Travel Speeds - Reverse - First
4.80 mile/h
7.70 km/h
Travel Speeds - Reverse - Second
8.50 mile/h
12.00 km/h

Hydraulic System

Pump Flow at 2,111 rpm
23.50 gal/min
89.00 l/min
Cylinders, Double Acting - Lift, Bore and Stroke
120 mm × 915 mm (4.7 in × 36.0 in)
Maximum Supply Pressure
2930.00 psi
20200.00 kPa
Main Relief Pressure
3190.00 psi
22000.00 kPa

Hydraulic System - Steering

Steering System - Circuit
Pilot, Load Sensing
Steering System - Pump
Piston – Variable Displacement
Maximum System Flow
147 L/min @ 2,111 rpm (38.8 gal/min @ 2,111 rpm)
Steering Pressure Limited
4003.00 psi
27600.00 kPa
Vehicle Articulation Angle
84.00 °
84.00 °

Axles

Front
Planetary – Fixed
Rear
Planetary – Oscillating
Oscillation Angle
±6°

Service Brake

Brakes
Single Disc Wet (Enclosed) 2 WHL

Parking Brake

Brakes
Drum and Shoe, Spring Applied, Hydraulic Released

Service Refill Capacities

Fuel Tank
132.10 gal (US)
500.00 l
Cooling Systems - Tier 4 Final/EU Stage V
21.40 gal (US)
81.00 l
Cooling System - Tier 3/Stage IIIA Equivalent
19.30 gal (US)
73.00 l
Engine Crankcase
5.30 gal (US)
20.00 l
Transmission
14.80 gal (US)
56.00 l
Differential - Final Drives - Front
11.40 gal (US)
43.00 l
Differential - Final Drives - Rear
11.40 gal (US)
43.00 l
Hydraulic System - Implement/Steering
46.20 gal (US)
175.00 l
Hydraulic Tank Only
19.80 gal (US)
75.00 l
Note
All non-road Tier 4 Final and Stage V diesel engines are required to use: – Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm for the EPA, 10 ppm for the EU (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specifications. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1.

Operating Specifications - Tier 4 Final/EU Stage V

Operating Weight
57345.00 lb
26052.00 kg

Operating Specifications - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA

Operating Weight
56793.00 lb
25760.00 kg

Sound Performance - Tier 4 Final/EU Stage V - Standard

Machine Sound Level (ISO 6396)
70.00 dB(A)
70.00 dB(A)
Machine Sound Level (ISO 6395)
111.00 dB(A)
111.00 dB(A)

Sound Performance - Tier 4 Final/EU Stage V - Suppression

Machine Sound Level (ISO 6396)
70.00 dB(A)
70.00 dB(A)
Machine Sound Level (ISO 6395)
109.00 dB(A)
109.00 dB(A)

Sound Performance - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Standard

Machine Sound Level (ISO 6396)
70.00 dB(A)
70.00 dB(A)
Machine Sound Level (ISO 6395)
112.00 dB(A)
112.00 dB(A)

Weights

Operating Weight
56899.00 lb
25809.00 kg

Dimensions (Approximate)

Height - Top of Beacon
14.30 ft
4368.00 mm
Height to Top of Air Conditioning Condenser
13.70 ft
4161.00 mm
Height - Cab Roof
12.70 ft
3878.00 mm
Height - Top of Exhaust Pipe
11.60 ft
3547.00 mm
Height - Top of Hood
9.10 ft
2770.00 mm
Height to Top of Rear Compactor Guard
8.20 ft
2499.00 mm
Ground Clearance to Hitch
1.70 ft
519.00 mm
Ground Clearance to Bottom of Bumper
2.70 ft
818.00 mm
Centerline of Rear Axle to Bumper
6.50 ft
1990.00 mm
Centerline of Rear Axle to Rear Compactor Guard
8.60 ft
2614.00 mm
Hitch to Centerline of Front Axle
5.50 ft
1675.00 mm
Wheel Base
11.00 ft
3350.00 mm
Width over Front Striker Bars
9.80 ft
3000.00 mm
Width over Rear Striker Bars
10.00 ft
3036.00 mm
Width over Platform
10.30 ft
3140.00 mm
Width over Drums
11.00 ft
3338.00 mm

Wheels

Combination Tips (Weight Group)
13554.00 lb
6148.00 kg
Plus Tips - Weight (Group)
13982.00 lb
6342.00 kg
Paddle Tips - Weight (Group)
13126.00 lb
5954.00 kg
Chopper Tips (Weight Group)
12639.00 lb
5733.00 kg
Outside Diameter
67.60 in
1717.00 mm
Drum Diameter
55.10 in
1400.00 mm
Drum Width
40.00 in
1016.00 mm
Feet Per Row
5
Feet Per Wheel
20
Replaceable
Weld On
Width Over Drums
131.40 in
3338.00 mm
Tip Height
6.25 in
159.00 mm

Straight Blade

Capacity
13.08 yd³
10.00 m³
Height
6.40 ft
1961.00 mm
Height of Cutting Edge
3.20 ft
990.00 mm
Turning Radius - Inside Corner of Blade
9.50 ft
2910.00 mm

Wheels

Plus Tips - Width over Drums
131.40 in
3338.00 mm
Plus Tips - Drum Diameter
55.10 in
1400.00 mm
Paddle Tips - Drum Width
40.00 in
1016.00 mm
Combo Wheels - Width over Drums
131.40 in
3338.00 mm
Combo Wheels - Tip Height
6.25 in
159.00 mm
Combo Wheels - Weight (Group)
13554.00 lb
6148.00 kg
Paddle Tips - Width over Drums
131.40 in
3338.00 mm
Paddle Tips - Tips per Wheel
20
Paddle Tips - Tip Height
6.25 in
159.00 mm
Combo Wheels - Replaceable
Welded
Combo Wheels - Outside Diameter
67.60 in
1717.00 mm
Combo Wheels - Drum Width
40.00 in
1016.00 mm
Paddle Tips - Outside Diameter
67.60 in
1717.00 mm
Plus Tips - Drum Width
40.00 in
1016.00 mm
Plus Tips - Tips per Row
5

Engine

Maximum Altitude - Without Derating
9842.52 ft
3000.00 m

Wheels

Combo Wheels - Drum Diameter
55.10 in
1400.00 mm
Paddle Tips - Replaceable
Welded
Plus Tips - Tips per Wheel
20
Plus Tips - Outside Diameter
67.60 in
1717.00 mm
Plus Tips - Tip Height
6.25 in
159.00 mm
Paddle Tips - Tips per Row
5
Combo Wheels - Tips per Row
5
Plus Tips - Replaceable
Welded
Paddle Tips - Drum Diameter
55.10 in
1400.00 mm
Combo Wheels - Tips per Wheel
20

Engine - Tier 4 Final/EU Stage V

Net Power (ISO 9249:2007)
249.00 HP
186.00 kW
Engine Power (ISO 14396:2002)
275.00 HP
205.00 kW
High Idle Speed
2270.00 r/min
2270.00 r/min
Low Idle Speed
800.00 r/min
800.00 r/min
Maximum Altitude without Derating
9842.50 ft
3000.00 m
Note
*Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator.

Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA

Gross Power (SAE J1995:2014)
286.00 HP
213.00 kW
Engine Power (ISO 14396:2002)
275.00 HP
205.00 kW
High Idle Speed
2270.00 r/min
2270.00 r/min
Low Idle Speed
800.00 r/min
800.00 r/min
Maximum Altitude without Derating
9842.50 ft
3000.00 m
Note
*Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator.

Hydraulic System - Lift/Tilt

Lift/Tilt System - Circuit
Pilot operated LS valve with EH
Lift/Tilt System
Variable displacement piston
Maximum Flow at 2,200 rpm
23.50 gal/min
89.00 l/min
Relief Valve Setting - Lift/Tilt
3190.00 psi
22000.00 kPa
Pilot System
Open center, fixed displacement gear
Pilot Relief Valve Setting
3046.00 psi
21000.00 kPa

Hydraulic System - Steering

Maximum Flow at 2,200 rpm
38.80 gal/min
147.00 l/min
Relief Valve Setting - Steering
4003.00 psi
27600.00 kPa
Total Steering Angle
84
Steering Cycle Times - High Idle
3.00 s
3.00 s
Steering Cycle Times - Low Idle
8.20 s
8.20 s

Service Refill Capacities

Diesel Exhaust Fluid Tank*
4.20 gal (US)
16.00 l

Braking System

Service Brakes
Single Disc Wet (Enclosed) 2 WHL
Parking Brake
Drum and Shoe, Spring Applied, Hydraulic Released

Sound Performance - Tier 4 Final/EU Stage V - Standard

Operator Sound Level (ISO 6396)
70.00 dB(A)
70.00 dB(A)

Sound Performance - Tier 4 Final/EU Stage V - Suppression

Operator Sound Level (ISO 6396)
70.00 dB(A)
70.00 dB(A)

Sound Performance - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Standard

Operator Sound Level (ISO 6396)
70.00 dB(A)
70.00 dB(A)

Sound Performance - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Suppression

Operator Sound Level (ISO 6396)
70.00 dB(A)
70.00 dB(A)

Dimensions (Approximate)

Overall Machine Length with Straight Blade
25.60 ft
7806.00 mm
Features

OPERATOR COMFORT AND CONTROL

TOP-TIER SERVICE AND SUPPORT

POWERFUL EFFICIENCY

PRODUCTIVITY WITH TECHNOLOGY

WHEEL TIPS BUILT TO PERFORM

Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • POWER TRAIN
    • Advanced Productivity Electronic Control Shifting (APECS)
    • Air to air aftercooler
    • Brakes, full hydraulic, enclosed, wet multiple disc service brakes
    • Cat clean emission module (Tier 4 Final/Stage V only)
    • Electro-hydraulic parking brake
    • Electronic Clutch Pressure Control (ECPC)
    • Engine, Cat C7.1 (configured for two emissions options): – Tier 4 Final/Stage V – Tier 3/EU Stage IIIA equivalent
    • Engine driven cooling fan (suction)
    • Fuel priming pump (electric)
    • Fuel to air cooler
    • Ground level engine shutoff
    • Muffler (under hood) (Tier 3/Stage IIIA equivalent only)
    • Radiator, unit core
    • Starting aid (ether)
    • Throttle lock
    • Transmission, planetary with 2F/2R speed range control
    • Torque converter
  • ELECTRICAL
    • Alarm, back-up
    • Alternator (150 amp)
    • Batteries, maintenance free
    • Electrical system (24 volt)
    • Ground level lockable master disconnect switch
    • Light, warning unswitched (LED strobe)
    • Lighting system (front and rear)
    • Starter, electric
    • Starting receptacle for emergency start
  • OPERATOR ENVIRONMENT
    • 12-volt power port for mobile phone or laptop connection
    • AccuGrade™ mapping (ready)
    • Air conditioner with roof mounted condenser
    • Cab, sound-suppressed pressurized
    • Camera, rear vision
    • Coat and hard hat hooks
    • Finger tip shifting controls
    • Flip-up armrest
    • Heater and defroster
    • Horn, electric
    • Hydraulic controls – floor mounted
    • Implement hydraulic lockout
    • Instrumentation, gauges: – DEF fluid level (Tier 4 Final/Stage V only) – Engine coolant temperature – Fuel level – Hydraulic oil temperature – Speedometer/tachometer – Torque convertor temperature
    • Instrumentation, warning indicators: – Action alert system, three categories – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp – Parking brake status
    • Internal four-post rollover protective structure (ROPS/FOPS)
    • Light, (dome) cab
    • Lunch box and beverage holders
    • Mirror, internal (panoramic)
    • Mirrors, heated rearview (externally mounted)
    • Radio, CB ready
    • Radio ready for entertainment: – Antenna – Speakers – Converter (12-volt 10-15 amp)
    • Seat belt with minder, retractable, 76 mm (3") wide
    • STIC control system with lockout
    • Sun visor, front
    • Tinted glass
    • Transmission gear (indicator)
    • Vital Information Management System (VIMS): – Graphical information display – External data port – Customizable operator profiles – Event indicator light on rear grill
    • Wet-arm wipers/washers (front and rear): – Intermittent wipers (front and rear)
    • Seat, Cat Premium Plus (Leather)
  • GUARDS
    • Guards, axle (front and rear)
    • Guard, cab window
    • Guards, crankcase and power train, hinged
    • Guard, driveshaft
    • Guard, radiator
    • Striker bars
  • FLUIDS
    • Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
  • OTHER STANDARD EQUIPMENT
    • DEF tank fill gauge (Tier 4 Final/Stage V only)
    • Doors, service access (locking)
    • Ecology drains for engine, radiator, transmission, hydraulic tank
    • Engine, crankcase, 500 hour interval with CJ-4 oil
    • Emergency egress
    • Fire suppression ready
    • Fuel tank, 500 L (132 gal)
    • Hitch, drawbar with pin
    • Hoses, Cat XT™
    • Hydraulic, engine, and transmission oil coolers
    • Oil change system, high speed
    • Oil sampling valves
    • Steering, load sensing
    • Total hydraulic filtration system
    • Vandalism protection caplocks
    • Venturi stack
  • STANDARD ATTACHMENTS – OPERATOR ENVIRONMENT
    • Glass (window): – rubber-mounted glass
    • Horn group (standard)
    • Horn group (trumpet)
    • Lights – cab: – Standard or LED
    • Mirrors – cab: – Standard or heated
    • Precleaner – cab: – Standard or powered
    • Seat – cab: – Standard or heated and ventilated
  • STANDARD ATTACHMENTS – POWER TRAIN
    • Axles: – Axle arrangement (no spin front) – Axle arrangement (no spin rear) – Axle arrangement (no spin front and rear)
  • STANDARD ATTACHMENTS – SPECIAL ARRANGEMENTS
    • Engine precleaners: – Turbine or dual stage
  • STANDARD ATTACHMENTS – BLADES
    • Dozer Arrangement – Standard (No Blade)
    • Dozer Arrangement – Straight Blade
    • Dozer Arrangement – Tilt (No Blade)
  • STANDARD ATTACHMENTS – TECHNOLOGY PRODUCTS
    • Product Link: – GSM, satellite
  • STANDARD ATTACHMENTS – WHEELS AND CLEANER BARS
    • Wheels and tips: – Wheel arrangement (6.25" plus tip) – Wheel arrangement (6.25" paddle tip) – Wheel arrangement (6.25" plus and paddle) – Wheels, chopper
    • Bar group – cleaner (cleaner fingers and striker bar)
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Radio, AM/FM/AUX/USB/BLUETOOTH
  • FLUIDS
    • Antifreeze, –50° C (–58° F)
  • SPECIAL ARRANGEMENTS
    • Engine: – Sound suppression
  • STARTING AIDS
    • Heater, engine coolant, 120V
    • Heater, engine coolant, 240V
  • MISCELLANEOUS
    • Film (ANSI) (Tier 4 Final/Stage V only)
    • EU certification (Tier 4 Final/Stage V only)
    • Plate – year of manufacture (Tier 3/EU Stage IIIA equivalent only)
