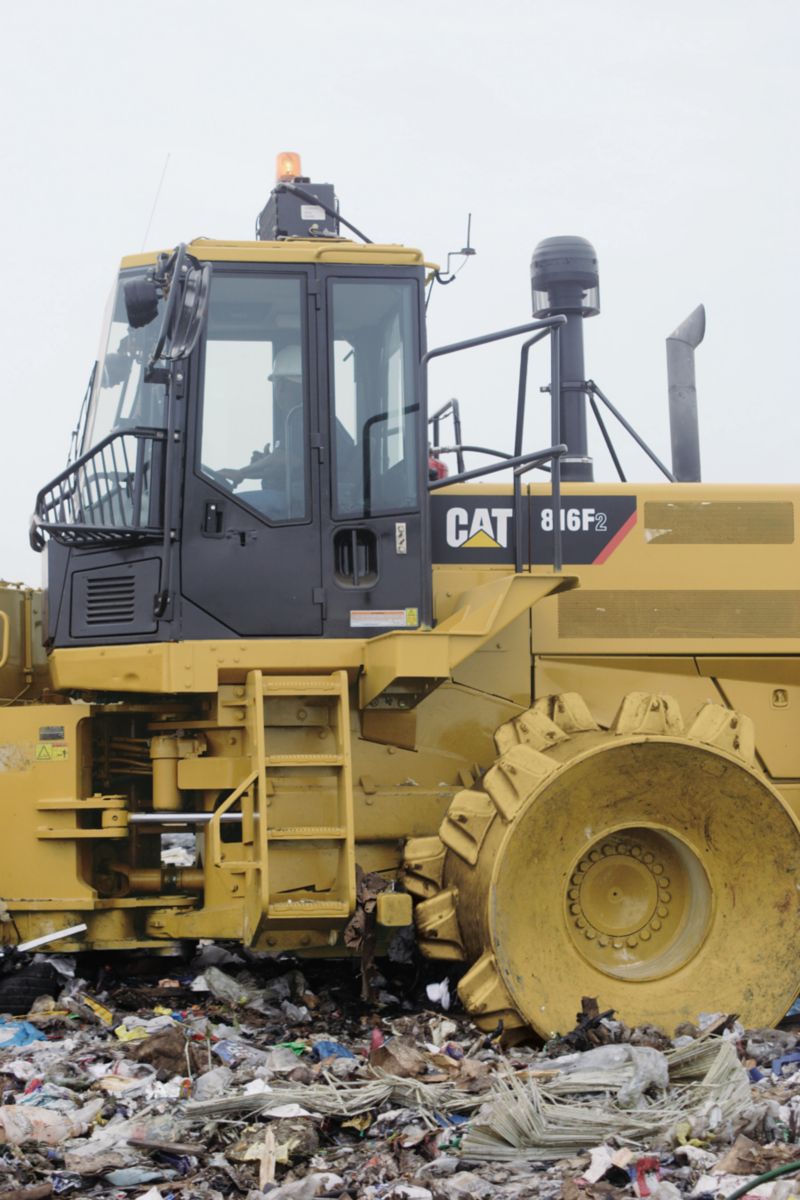

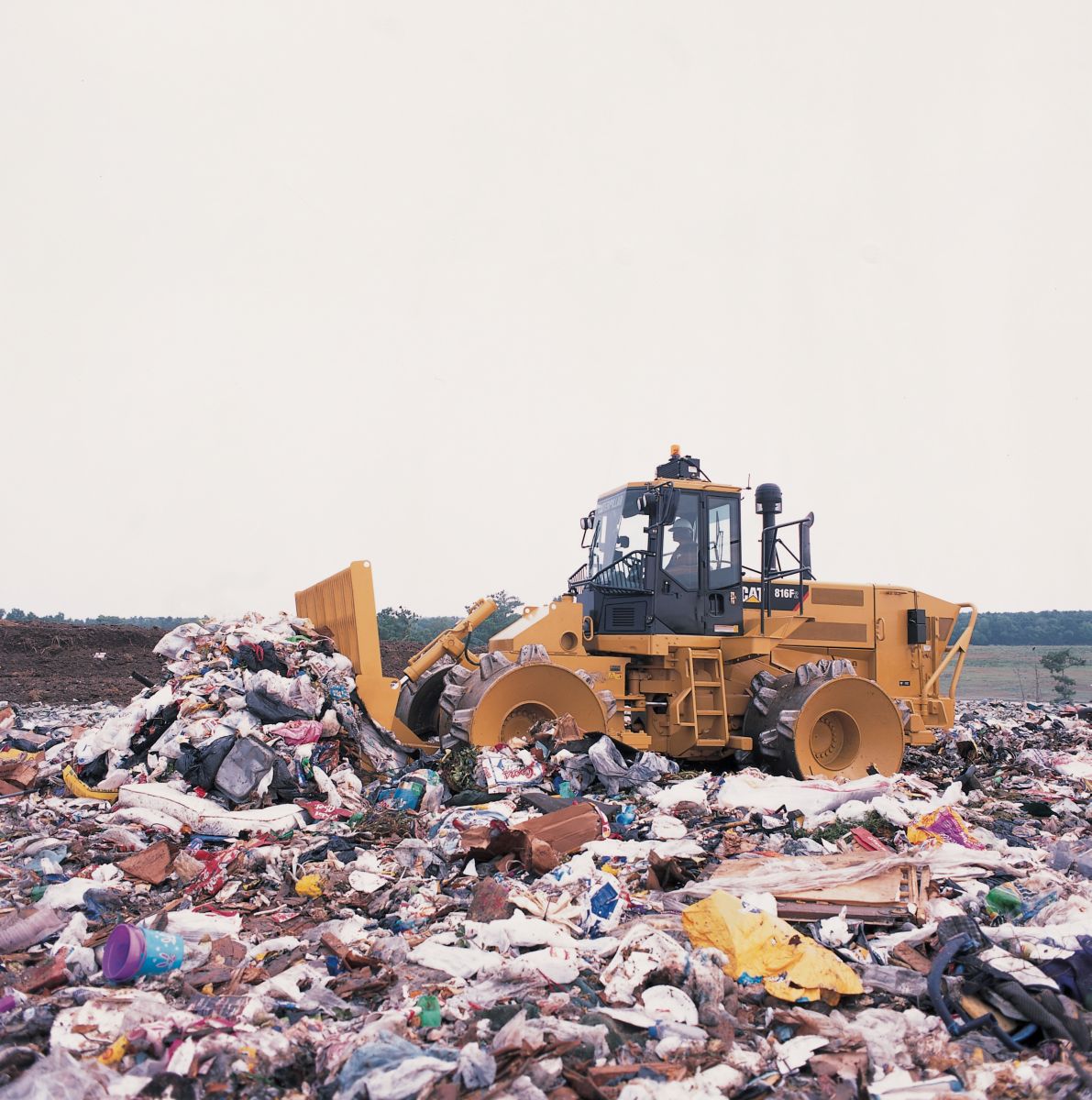

816F Series 2 Landfill Compactor

US
Metric

Overview

One World, One Machine. The Cat® 816F Series 2 Landfill Compactor offers...Exceptional trash protection, Greater productivity, Excellent machine stability and operator comfort, while meeting worldwide U.S. Environmental Protection Agency Tier 3 emissions regulations and Stage IIIA EU Emissions Directive 97/68/EC. Combine all this with the finest customer support system in the world through the Caterpillar dealer network and you get the lowest operating costs with the best up-time in the industry.

Weights

Operating Weight
52364.00 lb
23748.00 kg

Engine

Gross Power
253.00 hp
189.00 kW
Net Power
232.00 hp
173.00 kW
Engine Model
Cat® C9 ACERT™
Net Power ISO 3046-2
232.00 HP
173.00 kW
Net Power ISO 9249
235.00 hp
175.00 kW
SAE J1349
232.00 hp
173.00 kW
EEC 80/1269
235.00 hp
175.00 kW
Torque Rise
19.00 %
19.00 %
Bore
4.40 in
112.00 mm
Stroke
5.90 in
149.00 mm
Displacement
537.00 in3
8.80 L

Transmission

Forward 1
3.50 mph
5.60 km/h
Forward 2
5.90 mph
9.50 km/h
Reverse 1
4.00 mph
6.30 km/h
Reverse 2
6.60 mph
10.60 km/h

Hydraulic System

Vane Pump Output at 2015 rpm and 6900 kPa (1000 psi)
29.60 gal/min
112.00 l/min
Relief Valve Setting
2248.00 psi
15500.00 kPa
Lift Cylinder Bore x Stroke
120.65 mm x 913.9 mm 4.75 in x 36 in

Axles

Front
Fixed
Oscillating Rear
±8°

Brakes

Standards
Meet OSHA regulations

Wheels - Plus Tip Teeth with Abrasion Resistant Material (ARM)

Drum Width
3.33 ft
1016.00 mm
Drum Diameter
4.25 ft
1300.00 mm
Tips per Wheel
20

Wheels - Chevron-Pattern, Chopper Blades

Drum Width
3.33 ft
1016.00 mm
Drum Diameter
4.25 ft
1300.00 mm
Blades per Wheel
20

Straight Blade

Width - Over End Bits
11.90 ft
3657.00 mm
Moldboard - Length
11.67 ft
3556.00 mm
Height
6.27 ft
1914.00 mm

Service Refill Capacities

Fuel Tank
117.80 gal
446.00 L
Cooling System
14.50 gal
55.00 L
Crankcase
9.00 gal
34.00 L
Transmission
13.20 gal
50.00 L
Differential - Final Drives - Front
11.40 gal (US)
43.00 l
Differential - Final Drives - Rear
11.40 gal (US)
43.00 l
Hydraulic System (including Tank)
36.20 gal
137.00 L
Hydraulic Tank
23.20 gal
88.00 L

Cab

ROPS/FOPS
Meet SAE and ISO standards

Sound Performance

Standards
Meet required sound standards

Operating Specifications

Ground Clearance
1.50 ft
456.00 mm

Dimensions (Approximate)

Height to Top of Cab with A/C
12.75 ft
3801.00 mm
Height - Top of Exhaust Pipe
11.36 ft
3462.00 mm
Height to Top of Hood
8.16 ft
2489.00 mm
Ground Clearance - Bumper
2.64 ft
804.00 mm
Ground Clearance - Striker Bars
2.13 ft
650.00 mm
Centerline of Rear Axle to Edge of Bumper
6.22 ft
1896.00 mm
Centerline of Rear Axle to Hitch
5.50 ft
1675.00 mm
Wheelbase
10.90 ft
3350.00 mm
Length - With Blade on Ground
25.76 ft
7854.00 mm
Width over Wheels
10.95 ft
3338.00 mm
Width - Over End Bits - Blade
11.99 ft
3657.00 mm
Turning Radius - Outside End Bits
21.21 ft
6464.00 mm
Blade Width - Straight
11.67 ft
3556.00 mm
Drum Width
3.33 ft
1016.00 mm
Ground Clearance
1.49 ft
456.00 mm

Engine

Gross Power
253.00 HP
189.00 kW
Net Power
232.00 HP
173.00 kW
Engine Model
Cat® C9 ACERT™
Net Power - ISO 9249
235.00 HP
175.00 kW
SAE J1349
232.00 HP
173.00 kW
EEC 80/1269
235.00 HP
175.00 kW
Torque Rise
19.00 %
19.00 %
Bore
4.40 in
112.00 mm
Stroke
5.90 in
149.00 mm
Displacement
537.00 in³
8.80 l

Transmission

Forward - 1
3.50 mile/h
5.60 km/h
Forward - 2
5.90 mile/h
9.50 km/h
Reverse - 1
4.00 mile/h
6.30 km/h
Reverse - 2
6.60 mile/h
10.60 km/h

Axles

Front
Fixed

Service Refill Capacities

Fuel Tank
117.80 gal (US)
446.00 l
Cooling System
14.50 gal (US)
55.00 l
Crankcase
9.00 gal (US)
34.00 l
Transmission
13.20 gal (US)
50.00 l
Hydraulic System - Including Tank
36.20 gal (US)
137.00 l
Hydraulic Tank
23.20 gal (US)
88.00 l

Weights

Operating Weight
52364.00 lb
23748.00 kg

Operating Specifications

Ground Clearance
1.50 ft
456.00 mm

Dimensions (Approximate)

Height - Top of Cab with A/C
12.75 ft
3801.00 mm
Height - Top of Hood
8.16 ft
2489.00 mm
Wheel Base
10.90 ft
3350.00 mm
Width - Over Wheels
10.95 ft
3338.00 mm
Ground Clearance
1.49 ft
456.00 mm
Features

Complete Customer Support

Trash Protection and Cooling System

Tips and Wheels

Serviceability

Power Train

Operator's Station

Landfill Blades

Sales Features

Trash Protection and Cooling System

Designed to keep your operation working in one of the toughest heavy equipment applications...the solid waste landfill.

Tips and Wheels

Caterpillar offers a choice of tips and blades welded on our own steel wheels that will fit your needs. No matter what your choice may be, it is part of the total system our compactors offer: maximum production, performance and compaction.

Power Train

The Cat power train makes dependable performance a standard feature.

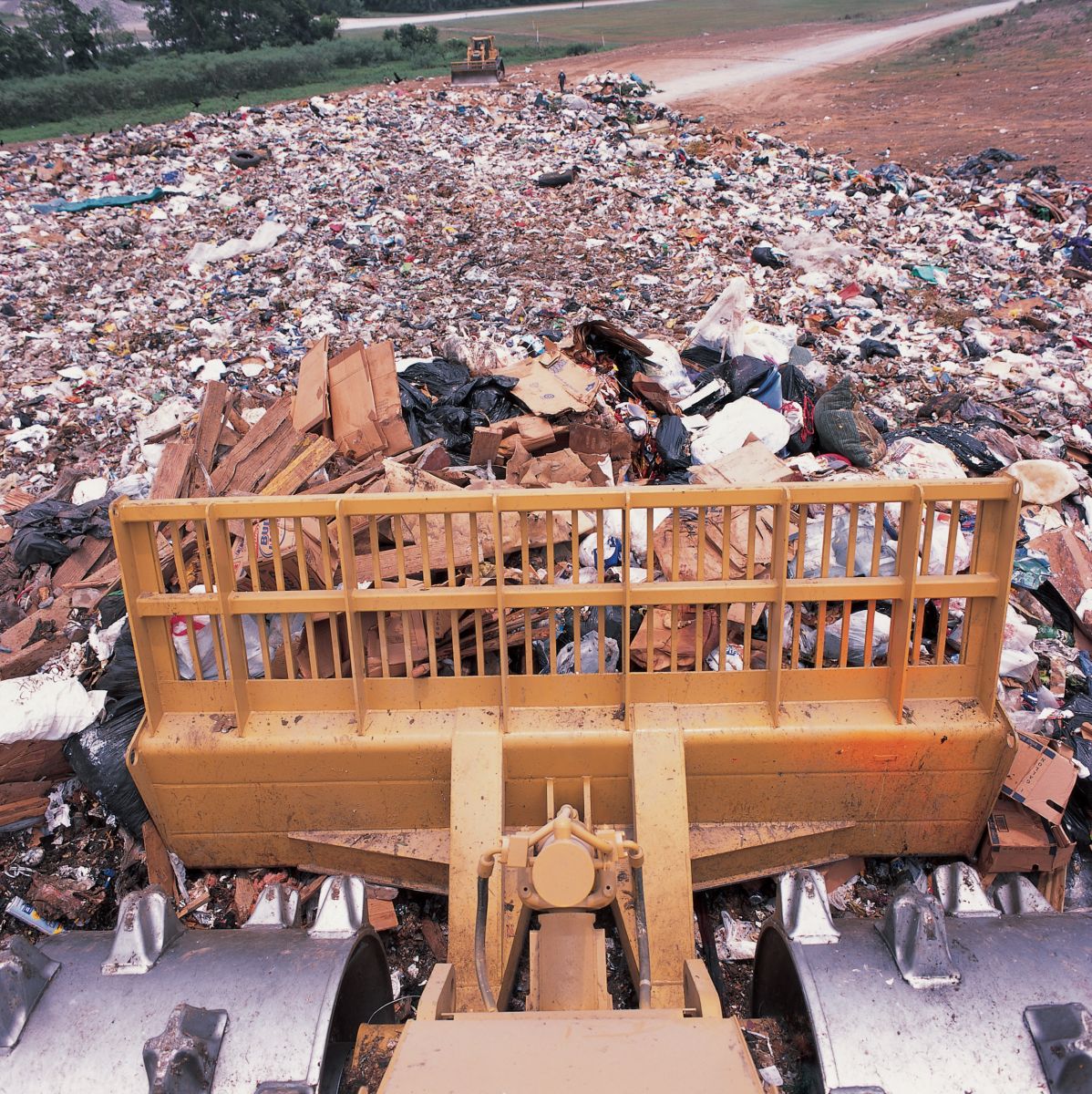

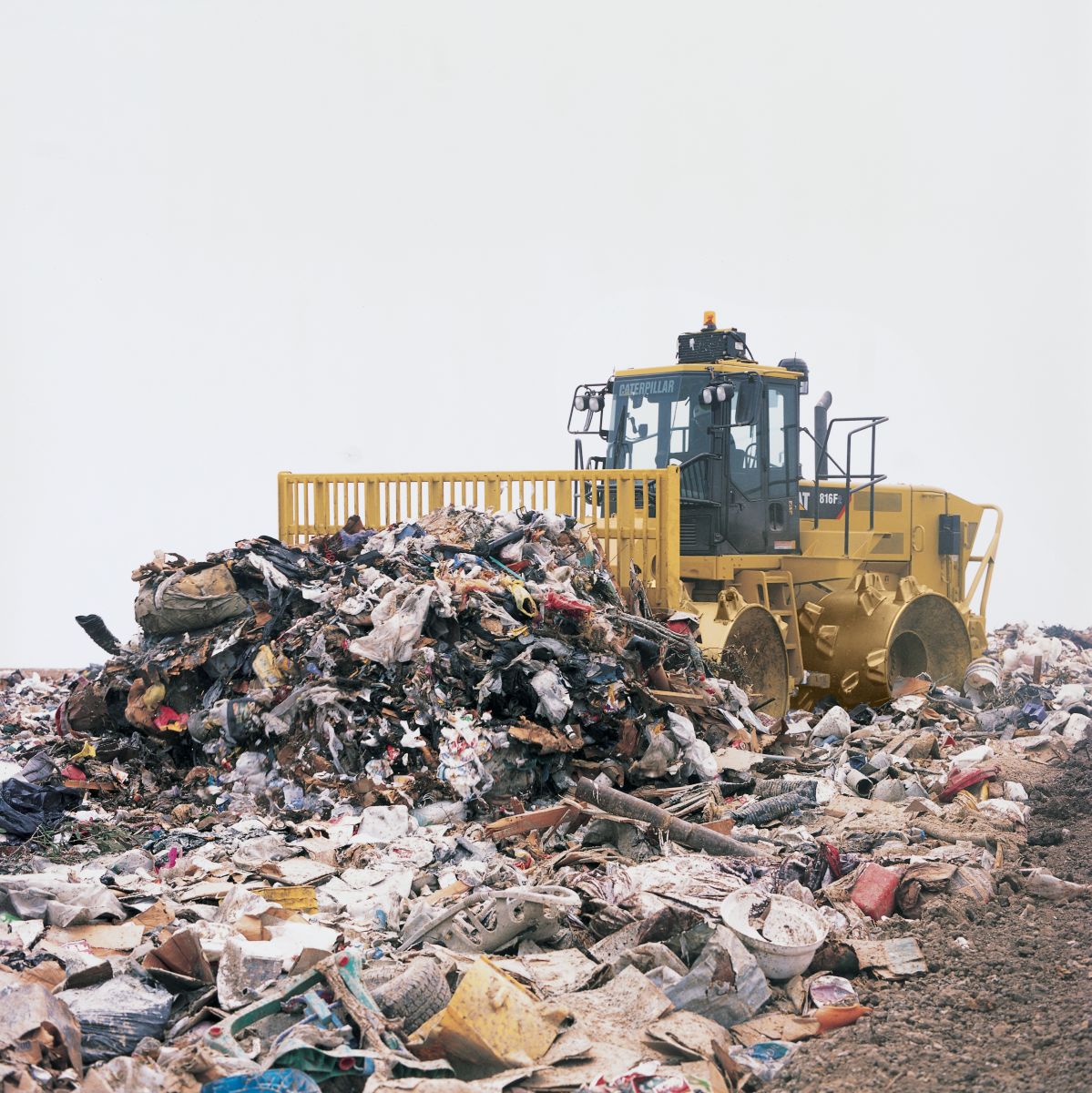

Landfill Blades

Several blade options are available to match your spreading and dozing requirements.

Operator's Station

Comfort and control - a top quality operator's station helps maximize productivity.

Serviceability

If maintenance is simple and accessible, it gets done.

Complete Customer Support

When you buy a Cat machine, you also get the Caterpillar total commitment to customer support from the true landfill equipment experts...the Caterpillar dealer network.
Standard Equipment
  • ELECTRICAL
    • Alarm, backup
    • Alternator (80 amp)
    • Batteries, maintenance-free (2)
    • Diagnostic connectors
    • Lighting system, halogen (front, rear and cab-mounted)
    • Starting and charging system (24-volt)
    • Starting receptacle for emergency starts
  • GUARDS
    • Axle (front and rear)
    • Drive shaft
    • Hinged crankcase
    • Hydraulic tank
    • Power train
    • Steering cylinder
  • OPERATOR ENVIRONMENT
    • Air conditioner, roof-mounted
    • Blade control system locks
    • Cab, pressurized and sound suppressed (ROPS/FOPS)
    • Coat hook
    • Cigar lighter and ashtray
    • Caterpillar Monitoring System
    • Dome light (cab)
    • Fuses, blade style (in-cab)
    • Heater and defroster
    • Horn, electric (steering wheel mounted)
    • Hydraulic steering
    • Lunchbox and beverage holders
    • Mirrors, rearview (internally-mounted)
    • Seat, KAB mechanical suspension
    • Seat belt, retractable, 76 mm (3 in) wide
    • Wet-arm wipers/washers (front and rear)
  • POWER TRAIN
    • Brakes, fully hydraulic, enclosed, wet-disc
    • Engine, Cat® C9 ACERT™
    • Engine cooling fan (suction)
    • Fuel priming pump (electric)
    • Muffler
    • Radiator, Next Generation Modular (NGMR)
    • Starting aid (ether)
    • Torque converter
    • Transmission, planetary (2 forward/2 reverse speeds)
  • OTHER STANDARD EQUIPMENT
    • Cat O-ring face seals/couplings
    • XT™ hoses
    • Coolers
    • Hitch, drawbar with pin
    • Hood, metallic with lockable service doors
    • Hydraulic oil cooler
    • Oil sampling valves
    • Striker bars (all wheels)
    • Vandalism protection caplocks
    • Wheels (1016 mm/40 in) with weld-on Plus Tips with extended inner rim
  • BULLDOZER
    • Bulldozer blade, hydraulics and linkage are not included in standard equipment
  • ANTIFREEZE
    • Premixed 50 percent concentration of Extended Life Coolant with freeze protection to -34° C (-29° F)
