Overview

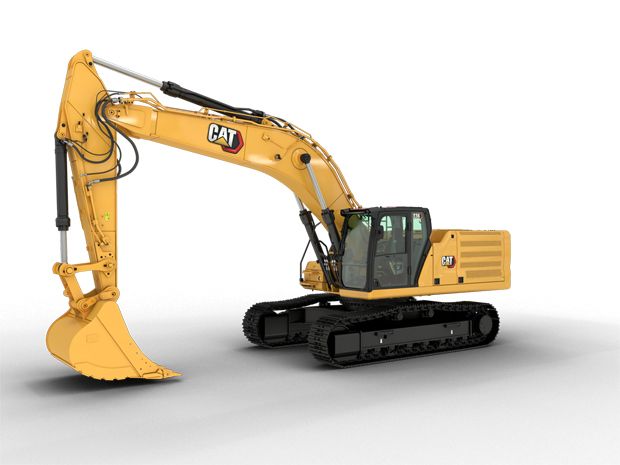

The Cat® 336 excavator brings premium performance with simple-to-use technologies like Cat GRADE with 2D, Grade Assist, and Payload – all standard equipment from the factory to boost your operator efficiencies up to 45 percent. Combine these features with a new cab, longer maintenance intervals that lower your maintenance costs up to 15 percent, and a power system thatimproves fuel efficiency up to 15 percent and you have a low-cost-per-unit-of-production excavator that’s perfect for your applications.

Not all features available in all regions. Consult your Cat dealer for specific configurations available in your region.

Engine

Engine Model
Cat C9.3B
Net Flywheel Power
311.00 HP
232.00 kW
Net Power - ISO 9249/SAE J1349
311.00 HP
232.00 kW
Gross Power - ISO 14396/SAE J1995
314.00 HP
234.00 kW
Engine RPM - Operation
1550.00 r/min
1550.00 r/min
Engine RPM - Travel
1800.00 r/min
1800.00 r/min
Bore
5.00 in
115.00 mm
Stroke
6.00 in
149.00 mm
Displacement
568.00 in³
9.30 l

Hydraulic System

Main System - Maximum Flow - Implement
147.00 gal/min
558.00 l/min
Maximum Pressure - Equipment - Implement
5076.00 psi
35000.00 kPa
Maximum Pressure - Equipment - Lift Mode
5511.00 psi
38000.00 kPa
Maximum Pressure - Travel
5076.00 psi
35000.00 kPa
Maximum Pressure - Swing
4264.00 psi
29400.00 kPa

Swing Mechanism

Swing Speed
8.75 r/min
8.75 r/min
Maximum Swing Torque
106228.00 ft·lbf
144.00 kN·m

Weights

Operating Weight
81900.00 lb
37200.00 kg
Note
Long undercarriage, Reach boom, R3.9DB (12'10") stick, GDC 2.27 m3 (2.97 yd3) bucket, 850 mm (33") triple grouser shoes, 6.8 mt (14,991 lb) counterweight.

Service Refill Capacities

Fuel Tank Capacity
158.50 gal (US)
600.00 l
Cooling System
10.50 gal (US)
40.00 l
Engine Oil - With Filter
8.50 gal (US)
32.00 l
Swing Drive - Each
4.80 gal (US)
18.00 l
Final Drive - Each
2.10 gal (US)
8.00 l
Hydraulic System - Including Tank
98.50 gal (US)
373.00 l
Hydraulic Tank
42.50 gal (US)
161.00 l
DEF Tank
21.10 gal (US)
80.00 l

Dimensions

Boom
Reach 6.5 m (21'4")
Stick
Reach 3.9 m (12'10")
Bucket
GDC 2.27 m³ (2.97 yd³)
Shipping Height - Top of Cab
10.40 ft
3170.00 mm
Handrail Height
10.40 ft
3160.00 mm
Shipping Length
36.70 ft
11200.00 mm
Tail Swing Radius
11.60 ft
3530.00 mm
Counterweight Clearance
4.10 ft
1250.00 mm
Ground Clearance
1.70 ft
510.00 mm
Track Length to Center of Rollers
13.30 ft
4040.00 mm
Track Gauge - Long Undercarriage
8.50 ft
2590.00 mm
Transport Width - 850 mm (33”) Shoes
11.30 ft
3440.00 mm

Working Ranges & Forces

Boom
Reach 6.5 m (21'4")
Stick
Reach 3.9 m (12'10")
Bucket
GDC 2.27 m³ (2.97 yd³)
Maximum Digging Depth
26.90 ft
8200.00 mm
Maximum Reach at Ground Level
38.50 ft
11730.00 mm
Maximum Cutting Height
35.20 ft
10740.00 mm
Maximum Loading Height
24.60 ft
7490.00 mm
Minimum Loading Height
6.20 ft
1900.00 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
26.40 ft
8060.00 mm
Maximum Vertical Wall Digging Depth
20.90 ft
6360.00 mm
Bucket Digging Force - SAE
41900.00 lbf
186.00 kN
Bucket Digging Force - ISO
47160.00 lbf
210.00 kN
Stick Digging Force - SAE
31630.00 lbf
141.00 kN
Stick Digging Force - ISO
32400.00 lbf
144.00 kN

Dimensions

Track Length to Center of Rollers - Long Undercarriage
0.00
1800.00 r/min
Transport Width - 700 mm (28") Shoes
425.00 HP
424.00 HP
Length to Center of Rollers - Standard Undercarriage
316.00 kW
1800.00 r/min
Track Length - Standard Undercarriage
424.00 HP
130.00 mm
Track Length - Long Undercarriage
316.00 kW
1650.00 r/min
Length to Center of Rollers - Long Undercarriage
1650.00 r/min
317.00 kW
Transport Width - 600 mm (24”) Shoes
5.00 in
0.00

Dimensions - Long Fix Undercarriage: Reach Boom 6.9 m; R3.35TB Stick; 3.1 m3 Bucket

Track Gauge
157.00 mm
0.00

Operating Weights

Minimum - Reach Configuration
6.00 in
0.00

Working Ranges - Mass Boom - 7.0 m (23'0"); M2.57WB (8'5") Stick

Maximum Depth Cut for 2440 mm (8'0") Level Bottom
12.50 l
0.00

Hydraulic System

Stick Cylinder - Bore
763.00 in³
0.00
VB Family Bucket Cylinder - Bore
779.00 l/min
0.00

Weights

Maximum Weight**
35000.00 kPa
0.00

Dimensions - Reach Boom - 6.9 m (22'8

Shipping Height
5076.00 psi
0.00

Hydraulic System

UB Family Bucket Cylinder - Bore
38000.00 kPa
39.10 ft

Working Ranges - Long Variable Gauge Undercarriage: Heavy-Duty Boom R6.9m (22'8

Minimum Loading Height
5511.00 psi
0.00

Drive

Maximum Gradeability - Based on Engine Operation
3771

Working Ranges - Reach Boom - 6.5 m (21'4

Stick Digging Force (ISO)
26000.00 kPa
0.00

Working Ranges - Heavy Duty - R6.9 m (22'8

Maximum Digging Depth
35000.00 kPa
0.00

Working Ranges - Long Variable Gauge Undercarriage: Heavy-Duty Boom R6.9m (22'8

Maximum Cutting Height
5076.00 psi
0.00

Sound Performance

Exterior Sound
8.44 r/min
0.00

Dimensions - Reach Boom - 7.8 m (25'7

Cab Height
8.44 r/min
0.00

Dimensions - Reach Boom - 10.0 m (32'10

Tail Swing Radius
187.00 kN·m
0.00

Engine

Net Power
105200.00 lb
43390.00 lbf

Dimensions - Reach Boom - 6.5m (21'4

Shipping Length
47700.00 kg
0.00

Hydraulic System

Maximum Flow - Swing System
0.00
0.00
DB Bucket Cylinder - Stroke
715.00 l
0.00

Working Ranges - HD Reach Boom - 6.5 m (21'4

Minimum Loading Height
188.90 gal (US)
0.00

Sound Performance

Spectator Sound - ISO 6395
52.00 l
0.00

Dimensions - Mass Boom - 6.18 m (20'3

Transport Width - 600 mm (24”) Shoes
13.70 gal (US)
0.00

Dimensions - Long Fix Undercarriage: Reach Boom 6.9 m; R3.35TB Stick; 3.1 m3 Bucket

Track Length
40.00 l
0.00

Dimensions - Reach Boom - 6.5 m (21'4

Handrail Height
10.60 gal (US)
0.00

Dimensions - Reach Boom - 6.9 m; R3.35TB HD Stick

Counterweight Clearance*
40.00 gal (US)
0.00

Service Refill Capacities

Swing Drive - Each
10.60 l
0.00

Engine

Net Power - SAE J1349/ISO 9249
15

Dimensions - HD Reach Boom - 6.50 m (21'4

Tail Swing Radius
4.00 gal (US)
0.00

Standards

DEF
145.3

Dimensions - Long Fix Undercarriage: Heavy-Duty R6.9m (22'8

Cab Height - With Top Guard
550.00 l
0.00

Dimensions - Long Variable Gauge Undercarriage - Reach Boom - 6.9 m; R3.35TB Stick; 2.1 m3 Bucket

Track Width - 600 mm - Extended
217.00 l
0.00

Dimensions - Heavy Duty - R6.9 m (22'8

Cab Height - With Top Guard
57.30 gal (US)
0.00

Dimensions - Mass Boom - 7.0 m (23'0

Track Gauge - Retracted
46.00 l
0.00

Working Ranges - Reach Boom - 6.9 m (22'8

Bucket Digging Force - SAE
12.20 gal (US)
0.00

Dimensions - Standard Undercarriage: Reach Boom 6.9 m; R3.35TB Stick; 3.1 m3 Bucket

Track Gauge
0.00
0.00

Dimensions - Mass Boom - 7.25 m (23'9

Track Gauge
0.00
0.00

Dimensions - Long Fix Undercarriage: Heavy-Duty R6.9m (22'8

Ground Clearance - Without Shoe Lug Height
0.00
0.00

Hydraulic System

VB2 Family Bucket Cylinder - Stroke
10.60 ft
0.00

Dimensions - Reach Boom - 6.5 m (21'4

Counterweight Clearance
3230.00 mm
0.00

Dimensions - Reach Boom - 6.9 m; R3.35TB HD Stick

Shipping Length
11.10 ft
0.00

Hydraulic System

WB Family Bucket Cylinder - Bore
3370.00 mm
0.00

Dimensions - Long Variable Gauge Undercarriage - Heavy-Duty Boom R6.9m (22'8

Ground Clearance - With Shoe Lug Height
11920.00 mm
0.00

Working Ranges - Long Variable Gauge Undercarriage: Heavy-Duty Boom R6.9m (22'8

Maximum Reach - Ground Level
12.30 ft
0.00

Working Ranges - Reach Boom - 6.5 m (21'4

Maximum Vertical Wall Digging Depth
3760.00 mm
0.00

Swing

Maximum Swing Torque
1280.00 mm
0.00
Swing Speed
4.20 ft
0.00

Working Ranges - Long Fix Undercarriage: Heavy-Duty Boom R6.9m (22'8

Minimum Loading Height
1.60 ft
0.00

Dimensions - Reach Boom - 6.5 m (21'4

Handrail Height
475.00 mm
0.00

Working Ranges - Reach Boom - 6.5 m (21'4

Maximum Reach - Ground Level
4360.00 mm
0.00

Hydraulic System

Main System - Maximum Flow - Total
14.30 ft
0.00

Working Ranges - Reach Boom - 7.8 m (25'7

Maximum Vertical Wall Digging Depth
11.90 ft
0.00

Dimensions - Reach Boom - 6.5 m (21'4

Track Gauge
3640.00 mm
0.00

Working Ranges - Reach Boom - 6.9 m (22'8

Maximum Vertical Wall Digging Depth
0.00
0.00

Dimensions - Reach Boom - 6.9 m; R3.35TB HD Stick

Ground Clearance
0.00
0.00

Dimensions - Reach Boom - 10.0 m (32'10

Shipping Length
0.00
0.00

Service Refill Capacities

DEF Tank (ISO 2224-1)
7660.00 mm
0.00

Working Ranges - Mass Boom - 7.25 m (23'9

Maximum Cutting Height
25.10 ft
0.00

Dimensions - ES & HD Reach Booms - 6.50 m (21'4

Shipping Height
11730.00 mm
0.00

Hydraulic System

Main System - Maximum Flow (× 2 pumps) - Implement
38.50 ft
0.00

Track

Number of Track Rollers - Each Side - Standard Undercarriage (Fixed Gauge)
35.5

Dimensions - Reach Boom - 6.5 m (21'4

Shipping Height - Top of Cab
10820.00 mm
0.00

Working Ranges - HD Reach Boom - 6.5 m (21'4

Maximum Loading Height
7430.00 mm
0.00

Working Ranges - Reach Boom - 6.5 m (21'4

Maximum Cutting Height
24.40 ft
0.00

Dimensions - Reach Boom - 6.5m (21'4

Shipping Height - Top of Cab
9.00 ft
0.00

Working Ranges - Reach Boom - 6.9 m (22'8

Maximum Depth Cut for 2240 mm (8 ft) Level Bottom
2750.00 mm
0.00

Working Ranges - HD Reach Boom - 6.5 m (21'4"); R3.2DB (10'6") Stick

Maximum Depth Cut for 2440 mm (8'0") Level Bottom
24.70 ft
0.00

Working Ranges - HD Reach Boom - 6.5 m (21'4

Maximum Reach - Ground Level
7520.00 mm
0.00
Maximum Cutting Height
19.10 ft
0.00

Working Ranges - Heavy Duty - R6.9 m (22'8

Maximum Reach - Ground Level
5830.00 mm
0.00

Dimensions - Standard Undercarriage: Reach Boom 6.9 m; R3.35TB Stick; 3.1 m3 Bucket

Shipping Length
53050.00 lbf
0.00

Dimensions - Mass Boom - 6.18 m (20'3

Handrail Height
236.00 kN
0.00

Hydraulic System

Maximum Flow - Auxiliary Circuit - High Pressure
60250.00 lbf
0.00

Working Ranges - Heavy Duty - R6.9 m (22'8

Maximum Loading Height
268.00 kN
0.00

Machine Weight

Operating Weight*
193.00 kN
0.00

Dimensions - HD Reach Boom - 6.50 m; R3.2BD Stick; 1.5 m3 Bucket

Cab Height - With Top Guard
199.00 kN
0.00

Hydraulic System

Boom Cylinder - Stroke
44740.00 lbf
0.00

Engine

Engine Power - ISO 9249
311.00 HP
232.00 kW
Engine Power - ISO 14396
314.00 HP
234.00 kW

Hydraulic System

Main System - Maximum Flow
558 l/min (147 gal/min)
Maximum Pressure - Equipment
5076.00 psi
35000.00 kPa

Service Refill Capacities

Engine Oil
8.50 gal (US)
32.00 l

Dimensions

Track Length
16.60 ft
5030.00 mm
Track Gauge
8.50 ft
2590.00 mm
Transport Width
11.30 ft
3440.00 mm
Features

PERFORMANCE WITH LESS FUEL

  • Increase operating efficiency up to 45 percent with standard Cat technologies that lower operator fatigue and operating costs, including fuel consumption and daily maintenance.
  • Get up to 15 percent higher fuel efficiency — more work per unit of fuel — than the Cat 336F excavator.
  • The C9.3B engine can run on biodiesel up to B20 and meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
  • Match the excavator to the job with three power modes — Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to digging conditions, providing max power when needed and reducing power when it isn’t to help save fuel.
  • The high-efficiency hydraulic fan cools the engineon demand to help reduce fuel consumption; an optional reverse function enables you to clean cores quickly.
  • The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.
  • Advansys™ bucket tips increase penetration and improve cycle times. Tip changes can be done quickly with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
  • Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
  • Don’t let the temperature stop you from working. This excavator has a high-ambient capability of 52° C (125° F) and cold start capability of –18° C (0° F).

PRODUCTIVITY WITH TECHNOLOGY

  • Boost productivity up to 45 percent versus traditional grading with standard Cat GRADE with 2D system – includes indicate-only and laser capability.
  • Standard Grade Assist: Stay on grade – simply and effortlessly – with single-lever digging.
  • Set your desired bucket angle and let Bucket Assist automatically maintain the angle in sloping, leveling, fine grading, and trenching applications.
  • Keep the tracks on ground in lifting and hard digging with Boom Assist.
  • Automatically stop excavator swing at operator-defined set points in truck loading and trenching applications with Swing Assist, which will help you use less effort and consume less fuel.
  • Standard Cat PAYLOAD on-board weighing system: Achieve precise load targets and increase loading efficiency with on-the-go weighing and real-time estimates of your payload without swinging.
  • Combine Payload with VisionLink® and remotely manage your production targets or take payload data with you. The monitor’s USP port lets you download your results from one shift all the way up to 30 days of work so can manage your progress without needing an internet connection or VisionLink® subscription.
  • Upgrade to optional Cat GRADE with Advanced 2D: Create and edit grade designs with ease on a second high-resolution 254 mm (10 in) touchscreen monitor.
  • Upgrade to optional Cat GRADE with 3D: Create and edit designs with ease and see the front linkage’s full range of motion on a second high-resolution 254 mm (10 in) touchscreen monitor.
  • Know the excavator’s exact position relative to GPS and GLONASS systems. The machine automatically compensates for excavator pitch and roll caused by sloping ground conditions.
  • Already invested in another brand’s 3D system? No problem. Standard Cat technology like GRADE with 2D can readily integrate with that system to give you the precise results you need.
  • Remote Troubleshoot connects you to a dealer service pro to help solve your problem and quickly get you to work.
  • Remote Flash works around your schedule to ensure your machine’s software is up to date for optimal performance.
  • The Cat App helps you manage fleet location, hours, and maintenance schedules; it also alerts you for required maintenance and even allows you to request service from your local Cat dealer.
  • Standard Product Link™ provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through VisionLink online interface, helping you improve job site efficiency with lower operating costs.

WORK IN COMFORT

  • Choose between Deluxe and Premium cabs — both with automatic climate control.
  • Stay warm with the Deluxe heated seat; stay warm and cool with the Premium heated and ventilated seat.
  • Get in and out of the cab easier using the tip-up left console.
  • Advanced viscous mounts reduce cab vibration up to 50 percent over previous excavator models.
  • Control the excavator comfortably with easy-to-reach controls all located in front of you.
  • Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles.
  • Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.

SIMPLE TO OPERATE

  • Start the engine with a push button; use a Bluetooth key fob, smartphone app, or the unique Operator ID function.
  • Program each joystick button, including power mode, response, and pattern, using Operator ID; the machine will remember what you set each time you go to work.
  • Program up to four depth and slope offsets so you can easily get to grade without a grade checker — a real time saver and safety enhancer on the jobsite.
  • Protect your hammer from overworking. Auto hammer stop warns you after 15 seconds of continuous firing and then automatically shuts it off after 30 seconds — all to prevent wear and tear on the attachment and excavator.
  • Automatic hydraulic oil warm up gets you to work faster in cold temperatures and helps prolong the life of components.
  • Navigate quickly on the standard high-resolution 254 mm (10 in) touchscreen monitor or with the aid of the jog dial control.
  • A second 254 mm (10 in) monitor is available for the Cat GRADE with Advanced 2D and Cat GRADE with 3D.
  • Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.

REDUCED MAINTENACE COSTS

  • Expect up to 15 percent less maintenance cost than the 336F due to extended service intervals. (Savings calculated over 12,000 machine hours.)
  • Check hydraulic system oil and easily drain fuel system water and fuel tank water from ground level.
  • Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
  • Change all fuel filters at a synchronized 1,000 hours. Oil and fuel filters grouped and located on right-hand side of machine for easy maintenance.
  • The new air intake filter with precleaner has double the dust holding capacity of the previous air intake filter.
  • The new hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000 hour replacement interval – 50 percent longer than previous filter designs.
  • The new high-efficiency hydraulic fan has an optional automatic reverse function to keep cores free from debris, eliminating the need for any operator interaction.
  • S·O·S ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.

BUILT-IN SAFETY FEATURES

  • Standard 2D E-fenceis integrated right out of the factory, which prevents the excavator from moving outside of operator-defined set points.
  • Lift Assist helps you avoid tipping by letting you know if your load is within the excavator’s safe working range limits.
  • The standard ROPS cab meets ISO 12117-2:2008 requirements.
  • A travel direction indicator helps operators know which way to activate the travel levers.
  • Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.
  • A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
  • Rear and right-hand-sideview cameras arestandard. Upgrade to 360° visibility and you’ll easily visualize objects and personnel around the excavator in a single view.
  • Serrated steps and anti-skid punch plate on the service platform help prevent slipping.
Standard Equipment
  • CAB
    • ROPS, sound suppression
    • High-resolution 254 mm (10") LCD touchscreen monitor
    • Heated seat with air-adjustable suspension (Deluxe only)
    • Heated and cooled seat with automatic adjustable suspension (Premium only)
  • ENGINE
    • Three selectable modes: Power, Smart, and Eco
    • Automatic engine speed control
    • Up to 3300 m (10,830 ft) altitude capability
    • 52° C (126° F) high-ambient cooling capacity
    • -18° C (0° F) cold start capability
    • Double element air filter with integrated precleaner
    • Remote disable
    • Biodiesel capability up to B20
  • HYDRAULIC SYSTEM
    • Boom and stick regeneration circuit
    • Electronic main control valve
    • Automatic hydraulic oil warm up
    • Reverse swing damping valve
    • Automatic swing parking brake
    • High performance hydraulic return filter
    • Two speed travel
    • Bio hydraulic oil capability
  • UNDERCARRIAGE AND STRUCTURES
    • Towing eye on base frame
  • ELECTRICAL SYSTEM
    • Maintenance-free 1000 CCA batteries (x2)
    • Centralized electrical disconnect switch
    • LED chassis light, LH and RH boom lights, cab lights
  • CAT TECHNOLOGY
    • Cat Product Link
    • Cat GRADE with 2D
    • Cat GRADE with Assist
    • Cat PAYLOAD
    • E-Fence
    • Lift Assist
    • Remote Services capability
  • SERVICE AND MAINTENANCE
    • Grouped location of engine oil & fuel filters
    • Scheduled Oil Sampling (S.O.S) ports
  • SAFETY AND SECURITY
    • Caterpillar One Key security system
    • Lockable external tool / storage box
    • Lockable door, fuel, and hydraulic tank locks
    • Lockable fuel drain compartment
    • Service platform with anti-skid plate & recessed bolts
    • RH handrail & hand hold (ISO 2867:2011 Compliant)
    • Standard visibility mirror package
    • Signaling / warning horn
    • Ground-level secondary engine shutoff switch
    • Rearview camera
Optional Equipment
  • ENGINE
    • Cold start block heaters
    • Hydraulic reverse fan
    • -32° C (-25° F) cold start capability
    • Hydraulic reverse fan
  • HYDRAULIC SYSTEM
    • Heavy lift mode
    • Combined two-way auxiliary circuit
    • Medium-pressure auxiliary circuit
    • Quick coupler circuit
  • UNDERCARRIAGE AND STRUCTURES
    • Long undercarriage
    • 6.8 mt (14,991 lb) counterweight
    • 7.56 mt (16,667 lb) counterweight
    • 600mm (24") triple grouser track shoes
    • 600mm (24") HD triple grouser track shoes
    • 600mm (24") double grouser track shoes
    • 700mm (28") triple grouser track shoes
    • 850mm (33") triple grouser track shoes
  • BOOMS AND STICKS
    • 6.18m (20'3") Mass boom
    • 6.5m (21'4") Reach boom
    • 6.5m (21'4") HD Reach boom
    • 2.55m (8'4") stick
    • 3.2m (10'6") stick
    • 3.9m (12'10") stick
  • CAT TECHNOLOGY
    • Cat GRADE with Advanced 2D
    • Cat GRADE with 3D
  • SERVICE AND MAINTENANCE
    • QuickEvac™ maintenance ready
    • Electric refueling pump with automatic shutoff
    • Electric refueling pump with automatic shutoff
  • SAFETY AND SECURITY
    • Right-hand-side camera
    • 360° Visibility
    • Sideview camera
    • Boom lowering check valve
    • Stick lowering check valve
    • 360° Visibility
    • Rearview camera
