Overview

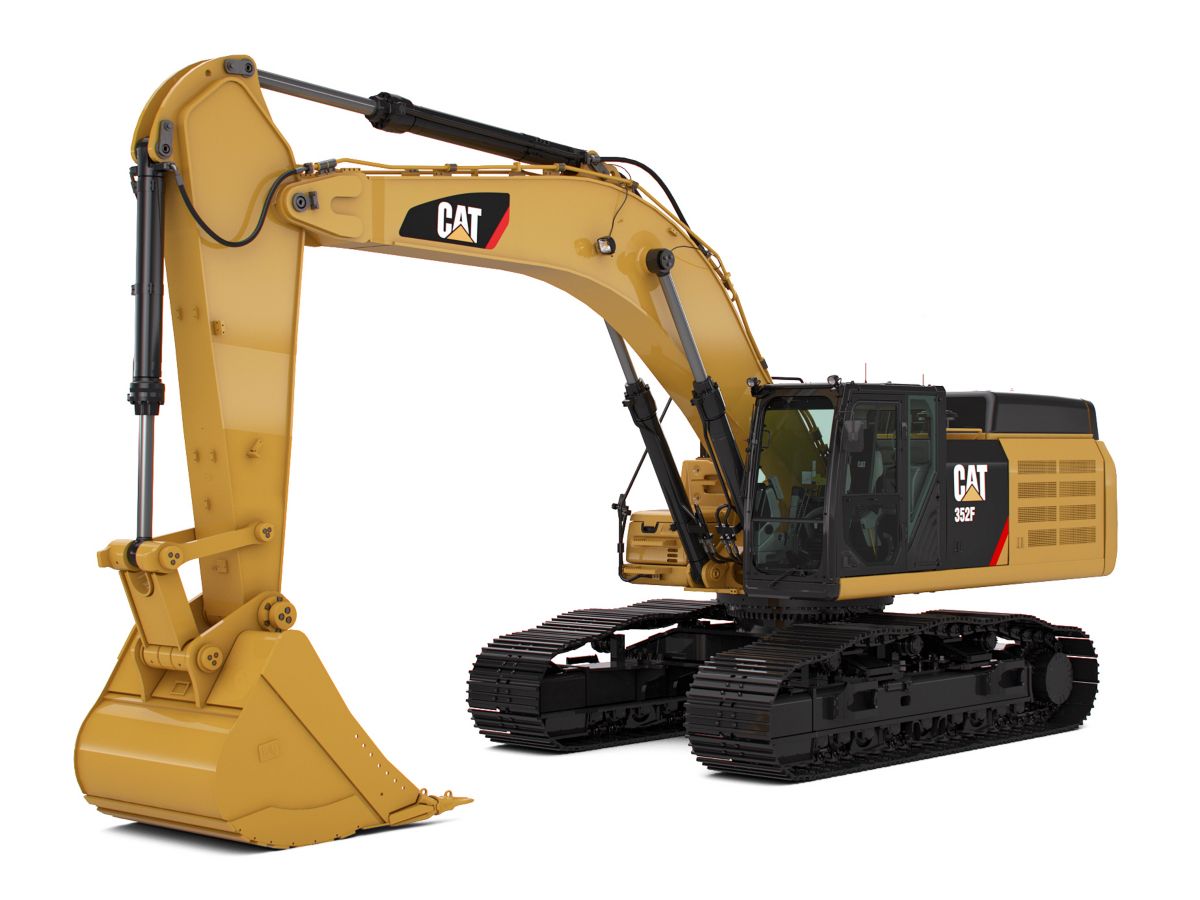

The 352F L is built to keep your production numbers up and your owning and operating costs down while giving you all the power, fuel efficiency, and reliability you need to succeed.

Engine

Net Power - ISO 9249
417.00 HP
311.00 kW
Engine Model
Cat C13
Engine Power - ISO 14396
425.00 HP
317.00 kW
Bore
5.12 in
130.00 mm
Stroke
6.18 in
157.00 mm
Displacement
763.00 in³
12.50 l

Hydraulic System

Main System - Maximum Flow
770 l/min (203 gal/min)
Maximum Pressure - Equipment
5076.00 psi
35000.00 kPa
Maximum Pressure - Equipment - Lift Mode
5512.00 psi
38000.00 kPa
Maximum Pressure - Travel
5076.00 psi
35000.00 kPa
Maximum Pressure - Swing
3989.00 psi
27500.00 kPa

Swing Mechanism

Swing Speed
8.70 r/min
8.70 r/min
Maximum Swing Torque
137924.00 ft·lbf
187.00 kN·m

Weights

Operating Weight
112200.00 lb
50900.00 kg

Service Refill Capacities

Fuel Tank Capacity
190.00 gal (US)
720.00 l
Cooling System
13.20 gal (US)
50.00 l
Engine Oil
10.00 gal (US)
38.00 l
Swing Drive - Each
2.60 gal (US)
10.00 l
Final Drive - Each
4.00 gal (US)
15.00 l
Hydraulic System - Including Tank
150.60 gal (US)
570.00 l
Hydraulic Tank
107.50 gal (US)
407.00 l
DEF Tank
11.00 gal (US)
41.00 l

Dimensions

Boom
Heavy-Duty R6.9 m (22'8")
Stick
R3.35TB HD (11'0")
Shipping Height - Top of Cab
11.58 ft
3570.00 mm
Shipping Length
38.58 ft
11800.00 mm
Tail Swing Radius
12.17 ft
3730.00 mm
Counterweight Clearance
4.67 ft
1430.00 mm
Ground Clearance
2.33 ft
710.00 mm
Track Length
17.50 ft
5350.00 mm
Track Length to Center of Rollers
14.30 ft
4340.00 mm
Track Gauge
7.83 ft
2390.00 mm
Transport Width
10.33 ft
3180.00 mm

Working Ranges & Forces

Maximum Digging Depth
24.67 ft
7510.00 mm
Boom
Heavy-Duty R6.9 m (22'8")
Stick
R3.35TB HD (11'0")
Maximum Reach at Ground Level
38.42 ft
11710.00 mm
Maximum Cutting Height
36.00 ft
10970.00 mm
Maximum Loading Height
24.83 ft
7580.00 mm
Minimum Loading Height
9.50 ft
2900.00 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
24.17 ft
7360.00 mm
Maximum Vertical Wall Digging Depth
18.67 ft
5680.00 mm
Features

PERFORMANCE WITH LESS FUEL

  • The C13 engine meets U.S. EPA Tier 4 Final and EU Stage IV emission standards.
  • Automatic engine speed control lowers rpm based on load for reduced fuel consumption.
  • Power modes help you more actively manage fuel consumption.

TECHNOLOGY THAT PUSHES PROFITS

  • Cat technologies increase production, minimize operating costs, and optimize return on investment.
  • VisionLink® provides wireless access to machine operating data such as location, hours, idle time, fuel usage, productivity, and diagnostic codes to optimize performance.
  • Cat GRADE provides real-time cut and fill information to assist you in attaining grades and slopes more quickly and accurately.

REDUCED MAINTENANCE TIME

  • Routine maintenance items like grease points and fluid taps are easy to reach at ground level.
  • The side-by-side cooling system enables easy cleaning.
  • Multiple S∙O∙S ports and pressure diagnostic taps help prevent maintenance downtime.

DESIGNED FOR OPERATORS

  • The full-size roll-over protective structure (ROPS) certified cab is quiet and comfortable.
  • Joystick consoles and armrests are adjustable. Seats are adjustable and feature air suspension and heated and cooled options.
  • The LCD monitor is easy to navigate and programmable in 44 languages.

PURPOSE-BUILT CAT ATTACHMENTS

  • Demolition work is quick and easy with a Cat shear or multiprocessor.

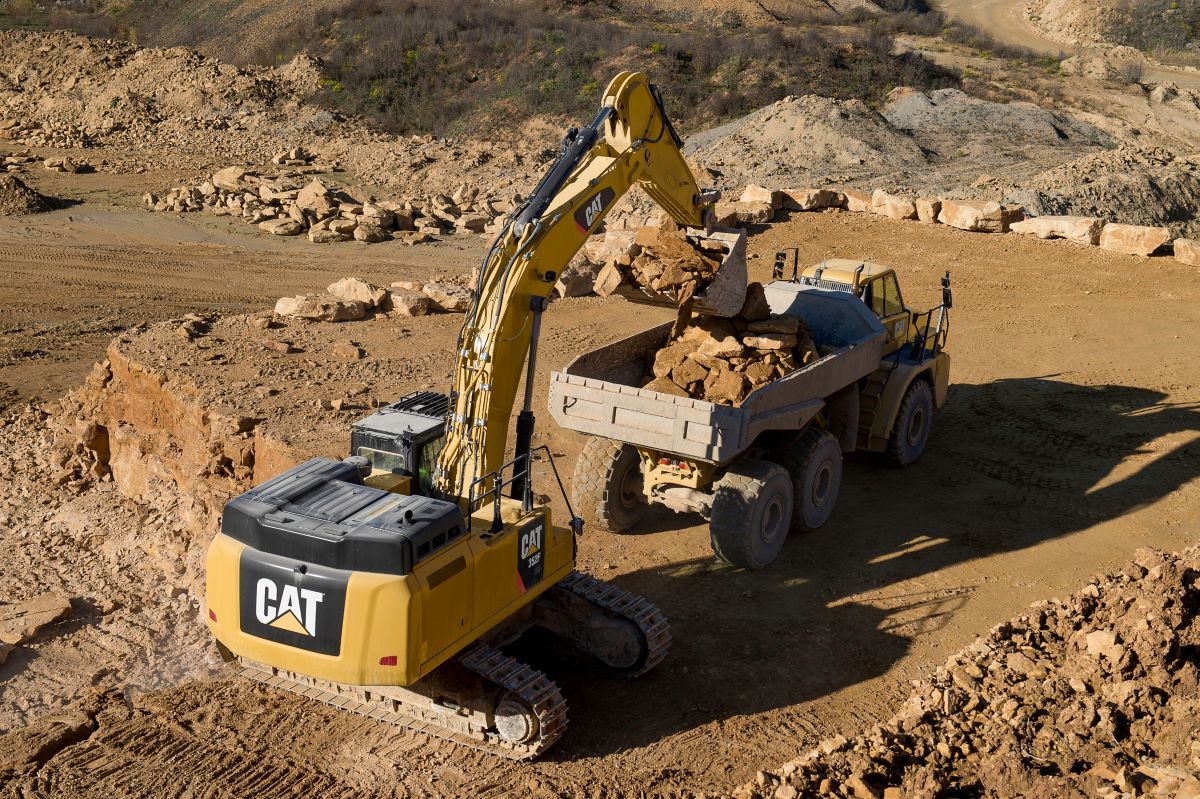

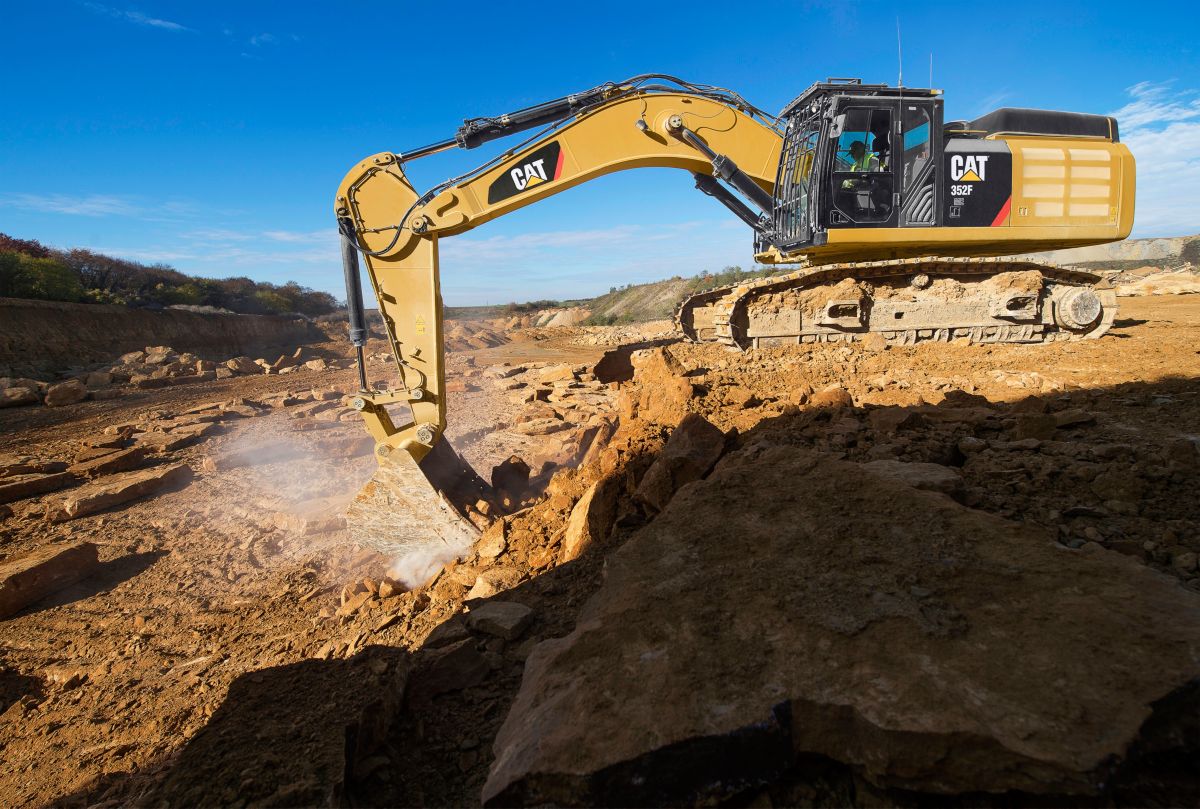

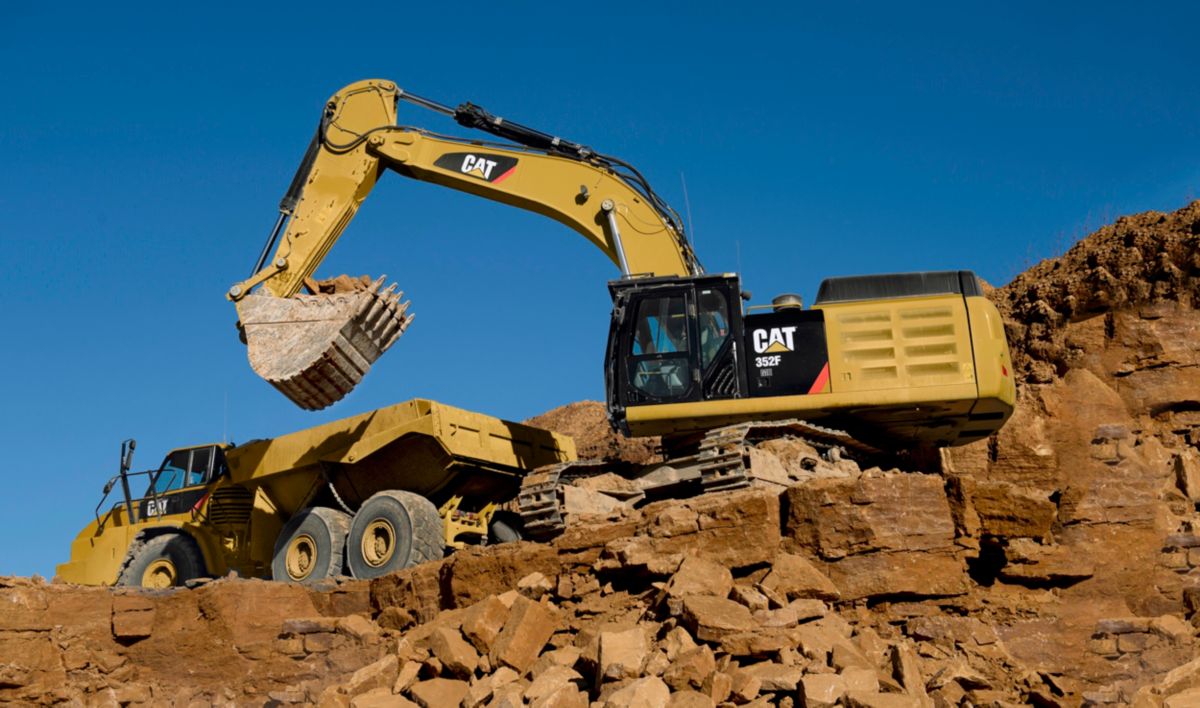

  • Quarry work is no problem with a purpose-built Cat bucket and hammer.
  • A Cat coupler lets you swap between attachments in seconds without leaving the cab.
  • Tool control option remembers pressures and flows for up to 20 tools to enhance uptime.

BUILT TO PERFORM

  • Booms and sticks are built for long service.
  • Box-section structures with multi-plate fabrications, castings, and forgings are used in high-stress areas.
  • Greased track link between pins and bushings increases undercarriage life and reduces noise.

SAFETY FIRST

  • Smart refuel fills the machine quickly from an external fuel source and automatically stops when the fuel tank is full or the fuel source is empty.
  • The rearview and sideview cameras enhance visibility to help make operators more effective and efficient.
  • Extended hand and guard rails allow for safer climbing to the upper deck, and anti-skid plates reduce slipping hazards in all types of weather conditions.
