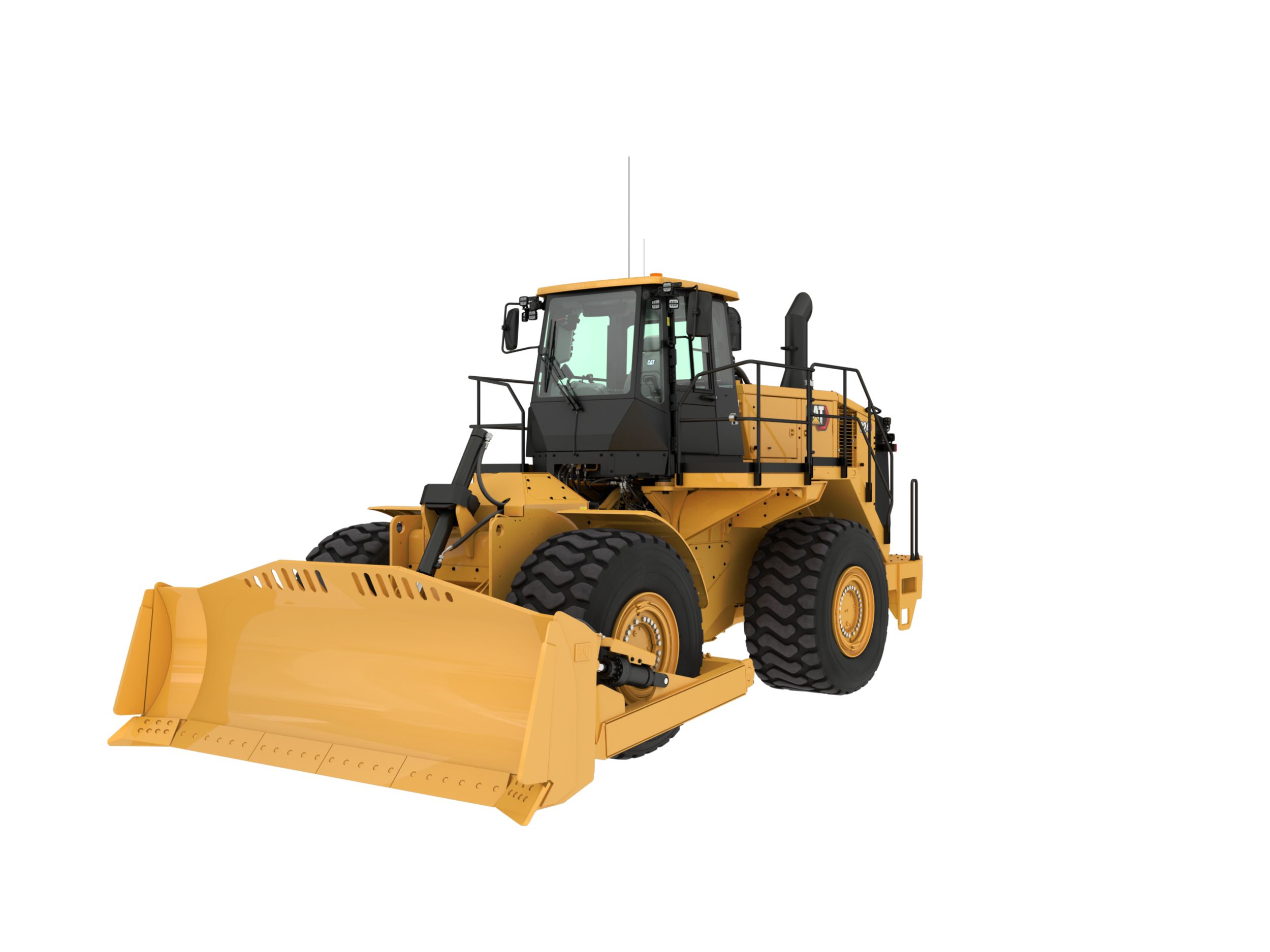

824 Wheel Dozer

Request A Quote 824 Attachments New and Used Inventory
824 Wheel Dozer
824 Wheel Dozer
824 Wheel Dozer
824 Wheel Dozer
824 Wheel Dozer
US
Metric

Overview

Cat wheel dozers are designed with durability built in, ensuring maximum availability through multiple lifecycles. With optimized performance and simplified serviceability, our machines allow you to support your jobsite efficiently and safely while lowering owning and operating costs. The 824 continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.

Engine

Engine Model
Cat® C15
Rated Speed
1800.00 r/min
1800.00 r/min
Net Power - ISO 9249
405.00 HP
302.00 kW
Torque Rise
33%
Bore
5.40 in
137.20 mm
Stroke
6.70 in
171.40 mm
Displacement
927.60 in³
15.20 l
Emissions
Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emissions standards. The other meets Brazil MAR-1 emission standards, emitting equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Note (1)
Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator.
Gross Power
435.00 HP
324.00 kW

Operating Specifications

Chip Scoop Operating Weight
83820.00 lb
38020.00 kg
Coal Scoop Operating Weight
80756.00 lb
36631.00 kg

Transmission

Transmission Type
Cat planetary - powershift - ECPC
Forward - 1
3.80 mile/h
6.10 km/h
Forward - 2
6.90 mile/h
11.10 km/h
Forward - 3
12.20 mile/h
19.60 km/h
Forward - 4
21.60 mile/h
34.80 km/h
Reverse - 1
4.30 mile/h
7.00 km/h
Reverse - 2
7.80 mile/h
12.60 km/h
Reverse - 3
13.90 mile/h
22.40 km/h
Reverse - 4
24.70 mile/h
39.70 km/h

Hydraulic System - Lift/Tilt

Cylinders, Double Acting - Lift, Bore and Stroke
120 mm × 1070 mm (4.7 in × 42.1 in)
Cylinder, Double Acting - Tilt and Tip, Bore and Stroke
140 mm × 230 mm (5.5 in × 9.1 in)

Hydraulic System - Steering

Steering System - Circuit
Pilot operated, load sensing
Steering System - Pump
Variable displacement piston
Relief Valve Setting - Steering
3481.00 psi
24000.00 kPa

Service Refill Capacities

Cooling System
30.60 gal (US)
116.00 l
Engine Crankcase
9.00 gal (US)
34.00 l
Transmission
17.40 gal (US)
66.00 l
Fuel Tank
206.60 gal (US)
782.00 l
Differential - Final Drives - Front
26.40 gal (US)
100.00 l
Differential - Final Drives - Rear
29.10 gal (US)
110.00 l
Hydraulic Tank Only
35.40 gal (US)
134.00 l
Hydraulic System - Implement/Steering
56.50 gal (US)
214.00 l
AC Refrigerant
20 hg
AC Oil
4.94 fl oz (US)
146.00 ml
Note (1)
All nonroad Tier 4 Final, EU Stage V, and Japan 2014 (Tier 4 Final) diesel engines are required to use: – Ultra low sulfur diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. – Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases***: • Up to B20 biodiesel (FAME)** • Up to 100% HVO and GTL renewable fuels – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel exhaust fluid (DEF) that meets all requirements defined in ISO 22241-1:2006. * Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with aftertreatment devices can use up to B20. Engines with no aftertreatment devices can use higher blends, up to B100. *** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 2.0 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes (3.15 tons).

Axles

Front
Planetary – Fixed
Rear
Planetary – Oscillating
Oscillation Angle
±11°

Braking System

Parking Brake
Drum and shoe, spring applied, hydraulic released

Sound Performance - Standard

Operator Sound Level (ISO 6396:2008)
73.00 dB(A)
73.00 dB(A)

Sound Performance - Suppression

Operator Sound Level (ISO 6396:2008)
72.00 dB(A)
72.00 dB(A)

Sound Performance - Standard

Machine Sound Level (ISO 6395:2008)
113.00 dB(A)
113.00 dB(A)

Sound Performance - Suppression

Machine Sound Level (ISO 6395:2008)
110.00 dB(A)
110.00 dB(A)

Dimensions (Approximate)

Height to Top of Beacon
14.50 ft
4422.00 mm
Height - Top of Exhaust Stack
14.20 ft
4332.00 mm
Height - Top of Hood
10.50 ft
3204.00 mm
Centerline of Front Axle to Hitch
6.10 ft
1850.00 mm
Wheel Base
12.10 ft
3700.00 mm
Length - With Blade on Ground - Straight Blade
27.60 ft
8422.00 mm
Height - Top of Cab
13.50 ft
4100.00 mm
Ground Clearance
1.80 ft
534.40 mm

Scoops

Coal Scoop Carry Capacity
17.50 yd³
13.40 m³
Coal Scoop Doze Capacity
35.00 yd³
26.80 m³
Chip Scoop Carry Capacity
27.00 yd³
20.60 m³
Chip Scoop Doze Capacity
54.00 yd³
41.20 m³

Dimensions (Approximate)

Ground Clearance - Bumper
2.80 ft
852.00 mm

Engine

Net Power - SAE J1349:2011
405.00 hp
302.00 kW
Net Power - ISO 9249:2007
405.00 hp
302.00 kW
Engine Power - ISO 14396:2002
426.00 hp
318.00 kW
Gross Power - SAE J1995:2014
434.00 hp
324.00 kW
Peak Net Torque (1,300 rpm)
1479.00 lbf·ft
2005.00 N·m
Maximum Altitude without Derating (U.S. EPA Tier 4 Final/EU Stage V)
9298.00 ft
2834.00 m
Maximum Altitude without Derating (U.S. EPA Tier 3/EU Stage IIIA)
9098.00 ft
2773.00 m
High Idle Speed
2300.00 r/min
2300.00 r/min
Low Idle Speed
800.00 r/min
800.00 r/min
Note (2)
Two engine emission configurations are available. One meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emissions standards. The other meets Brazil MAR-1 emission standards, emitting equivalent to U.S. EPA Tier 3 and EU Stage IIIA.

Operating Specifications

Operating Weight – Straight Blade (Tier 4 Final/Stage V)
74966.00 lb
34004.00 kg

Hydraulic System - Lift/Tilt

Pump Flow at 1,800 rpm
30.90 gpm
117.00 L/min
Main Relief Pressure
3771.00 psi
26000.00 kPa
Maximum Supply Pressure
3495.00 psi
24100.00 kPa

Hydraulic System - Steering

Bore
4.50 in
114.30 mm
Stroke
22.70 in
576.00 mm
Max Flow at 1,800 rpm
44.90 gpm
170.00 L/min
Vehicle Articulation Angle
86°

Service Refill Capacities

Diesel Exhaust Fluid Tank (For Tier 4 Final/Stage V Only)
8.50 gal (US)
32.00 l

Braking System

Brakes
Multi-disc wet (enclosed) 4 WHL

Dimensions (Approximate)

Ground Clearance to Trunnion
1.45 ft
441.40 mm
Width Over Guardrails
10.94 ft
3336.00 mm
Centerline of Rear Axle to Edge of Bumper
9.28 ft
2830.00 mm

Sound Performance

Operator Sound Level (ISO 6396:2008) - Standard
73.00 dB(A)
73.00 dB(A)
Machine Sound Level (ISO 6395:2008) - Standard
113.00 dB(A)
113.00 dB(A)
Operator Sound Level (ISO 6396:2008) - Suppression
72.00 dB(A)
72.00 dB(A)
Machine Sound Level (ISO 6395:2008) - Suppression
110.00 dB(A)
110.00 dB(A)
Note 1
The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at 70% of maximum engine cooling fan speed.
Note 2
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Note
The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at 70% of maximum engine cooling fan speed.

Straight Blade

Capacity
6.60 yd³
5.00 m³
Width Over End Bits
177.40 in
4507.00 mm
Height
48.40 in
1230.00 mm
Dig Depth
17.60 in
448.00 mm
Ground Clearance
41.60 in
1057.00 mm
Maximum Tilt
45.90 in
1167.00 mm
Turning Radius – Outside Corner of Blade
23.70 ft
7227.00 mm
Turning Radius – Inside Corner of Blade
10.15 ft
3093.00 mm

Straight Push Plate Blade

Capacity
6.60 yd³
5.00 m³
Width Over End Bits
177.40 in
4507.00 mm
Height
48.40 in
1230.00 mm
Dig Depth
17.60 in
448.00 mm
Ground Clearance
41.60 in
1057.00 mm
Maximum Tilt
45.90 in
1167.00 mm
Turning Radius – Outside Corner of Blade
23.20 ft
7099.00 mm
Turning Radius – Inside Corner of Blade
10.20 in³
3120.00 mm

Semi-Universal Blade

Capacity
10.00 yd³
7.70 m³
Width Over End Bits
174.10 in
4421.00 mm
Height
61.10 in
1551.00 mm
Dig Depth
18.80 in
477.00 mm
Ground Clearance
42.00 in
1068.00 mm
Maximum Tilt
44.10 in
1120.00 mm
Turning Radius – Outside Corner of Blade
23.80 ft
7260.00 mm
Turning Radius – Inside Corner of Blade
10.80 ft
3313.00 mm

Universal Blade

Capacity
10.00 yd³
7.70 m³
Width Over End Bits
171.30 in
4352.00 mm
Height
53.10 in
1350.00 mm
Dig Depth
18.10 in
461.00 mm
Ground Clearance
41.40 in
1051.00 mm
Maximum Tilt
44.60 in
1132.00 mm
Turning Radius – Outside Corner of Blade
23.90 ft
7299.00 mm
Turning Radius – Inside Corner of Blade
11.30 ft
3468.00 mm

Coal Blade

Capacity
21.20 yd³
16.20 m³
Width Over End Bits
189.00 in
4798.00 mm
Height
68.70 in
1745.00 mm
Dig Depth
18.60 in
472.00 mm
Ground Clearance
42.20 in
1072.00 mm
Maximum Tilt
48.90 in
1242.00 mm
Turning Radius – Outside Corner of Blade
24.90 ft
7590.00 mm
Turning Radius – Inside Corner of Blade
11.40 ft
3496.00 mm

Extended Wear Blade

Capacity
10.60 yd³
8.10 m³
Width Over End Bits
171.60 in
4357.00 mm
Height
53.10 in
1350.00 mm
Dig Depth
18.10 in
461.00 mm
Ground Clearance
41.40 in
1051.00 mm
Maximum Tilt
44.60 in
1132.00 mm
Turning Radius – Outside Corner of Blade
23.90 ft
7296.00 mm
Turning Radius – Inside Corner of Blade
11.40 ft
3475.00 mm

Sound Performance - Tier 4 Final / Stage V

Operator Sound Pressure Level (ISO 6396:2008)
73.00 dB(A)
73.00 dB(A)
Machine Sound Power Level (ISO 6395:2008)
113.00 dB(A)
113.00 dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*
72.00 dB(A)
72.00 dB(A)
Machine Sound Power Level (ISO 6395:2008)**
110.00 dB(A)
110.00 dB(A)
Note (1)
* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives”
Note (2)
** European Union Directive “2000/14/EC” as amended by “2005/88/EC.” and UK Noise Regulation 2001 No. 1701
Note (3)
The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (4)
The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (5)
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Sound Performance - Tier 3 / Stage IIIA

Operator Sound Pressure Level (ISO 6396:2008)
73.00 dB(A)
73.00 dB(A)
Machine Sound Power Level (ISO 6395:2008)
113.00 dB(A)
113.00 dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*
72.00 dB(A)
72.00 dB(A)
Machine Sound Power Level (ISO 6395:2008)**
110.00 dB(A)
110.00 dB(A)
Note (1)
* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives”
Note (2)
** European Union Directive “2000/14/EC” as amended by “2005/88/EC.” and UK Noise Regulation 2001 No. 1701
Note (3)
The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (4)
The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (5)
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Operating Specifications

Blade Capacity Range
5.1-16.2 m3 (6.6-21.2 yd3)

Dimensions (Approximate)

Centerline of Rear Axle to Edge of Bumper
9.30 ft
2830.00 mm
Features

Long-Term Value And Durability

Efficiency And Productivity

Safety First

Integrated Cat® Technologies

Work In Comfort

Reduce Environmental Impact

Save On Service And Maintenance

Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • SAFETY
    • Camera, rear vision
    • Alarm, back-up
    • Light, warning switched (LED strobe)
    • Lighting, access stairway
    • Cat Detect: Object Detection (ready)
    • Mirror, internal (panoramic)
    • Mirrors, rearview (externally mounted)
    • Seat belt with minder, retractable, 76 mm (3 in) wide
    • Steering and Transmission Integrated Control (STIC™) system with lockout
    • Emergency platform egress
    • Stairway, left and right rear access
    • Toe kicks
  • EFFICIENCY
    • Hydraulically driven demand fan
  • POWERTRAIN
    • Air-to-air aftercooler
    • Auto shift
    • Brakes, full hydraulic, enclosed, wet multiple disc service brakes
    • Cat Clean Emission Module (Tier 4 Final/Stage V)
    • Electro-hydraulic parking brake
    • Electronic Clutch Pressure Control (ECPC)
    • Engine, Cat C15 meets Tier 4 Final/Stage V emission standards, or emits equivalent to U.S. EPA Tier 3/EU Stage IIIA emission standards
    • Fuel priming pump (electric)
    • Fuel-to-air cooler
    • Integrated braking system
    • Muffler (under hood) (Tier 3/Stage IIIA)
    • Radiator, Aluminum Modular (AMR)
    • Separated cooling system
    • Single Clutch Speed Shifting (SCSS)
    • Throttle lock
    • Torque converter with Lock Up Clutch (LUC)
    • Transmission, planetary, with (4F/4R) speed range control
  • COLD WEATHER
    • Starting aid (ether) automatic
    • Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
  • ELECTRICAL
    • Alternator, 150 amp
    • Batteries, maintenance-free (4 – 1,000 CCA)
    • Electrical system, 24V
    • Lighting system, halogen (front and rear)
    • Lights, directional (rear)
    • Starter, electric (heavy duty)
  • OPERATOR ENVIRONMENT
    • Radio, CB (ready)
    • 12V power port for mobile phone or laptop connection
    • Air conditioner
    • Cab, sound-suppressed pressurized, internal four-post rollover protective structure/falling objects protective structure (ROPS/FOPS), radio ready for entertainment includes antenna, speakers, converter (12-volt 10/15-amp), and power port
    • Cab door, sliding window (LH)
    • Coat and hard hat hooks
    • Electro-hydraulic tilt and tip controls
    • Fingertip shifting controls
    • Flip-up armrest
    • Heater and defroster
    • Horn, electric
    • Implement hydraulic lockout
    • Instrumentation, gauges: – Diesel exhaust fluid (DEF) level (U.S. EPA Tier 4 Final/Stage V) – Engine coolant temperature – Fuel level – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
    • Instrumentation, warning indicators: – Action alert system, three categories – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp – Parking brake status
    • Cab precleaner, powered
    • Light, (dome) cab
    • Lunch box and beverage holders
    • Seat, premium plus containing forced air heating and cooling, two-way thigh adjustment, power lumbar and back bolster adjustment, ride stiffness adjustment, dynamic end dampening, and leather finish
    • Sun visor, front
    • Rubber mounted, laminated, tinted glass
    • Transmission gear (indicator)
    • Vital Information Management System (VIMS™): – Graphical information display – External data port – Customizable operator profiles
    • Wet-arm wipers/washers (front and rear): – Intermittent wipers (front and rear)
  • OTHER
    • Guard, driveshaft
    • Guards, crankcase and powertrain
    • Fold-down exhaust stack for shipping
    • Fuel tank, 782 L (207 gal)
    • Hitch, drawbar with pin
    • Hoses, Cat XT™
    • Hydraulic, engine, and transmission oil coolers
    • Vandalism protection caplocks
    • Venturi stack
  • SERVICE
    • Ground level emergency engine shutdown switch
    • Ground level lockable master battery disconnect switch
    • Auxiliary jump start receptacle
    • Doors, service access (locking)
    • Ecology drains for engine, radiator, transmission, hydraulic tank
    • Engine, crankcase, 500 hour interval with CJ-4 oil
    • Engine precleaner
    • Fire suppression ready
    • Oil change system, high speed
    • Oil sampling valves
    • Product Link™
    • Lighting underhood
    • Total hydraulic filtration system
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Radio, AM/FM/AUX/USB/Bluetooth®
  • OTHER
    • Counterweight, front
  • SOUND
    • Sound suppression
  • ELECTRICAL
    • Lighting system, LED
  • SERVICE
    • Tire Pressure Monitoring System
    • Dual stage engine precleaner
  • COLD WEATHER
    • Heater, engine coolant, 120V
    • Heater, engine coolant, 240V
    • Antifreeze, –50° C (–58° F)
    • Arctic hydraulic oil
    • Mirrors, heated
  • POWERTRAIN
    • No-spin rear axle
