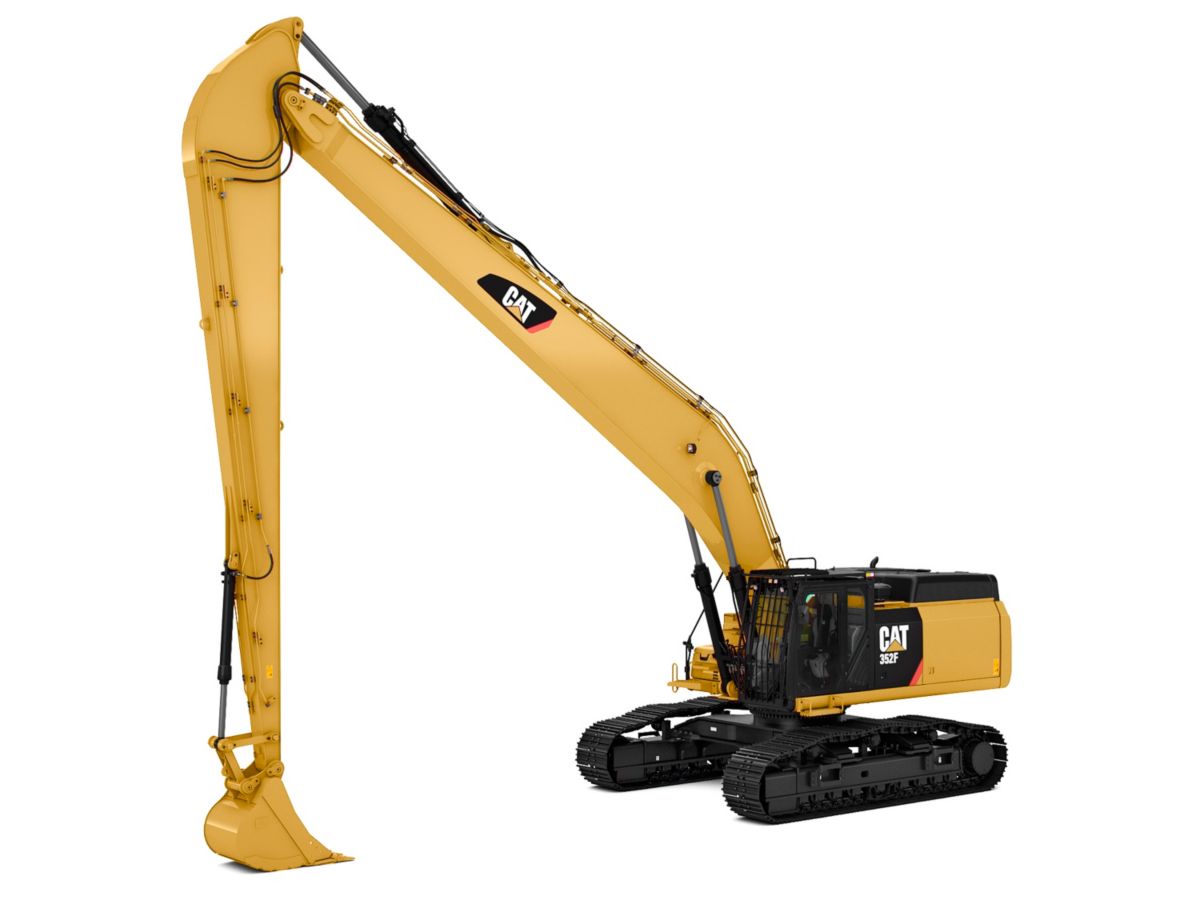

352F LRE Long Reach Excavation Hydraulic Excavator

US
Metric

Overview

The Cat 352F LRE Long Reach Excavation Hydraulic Excavator is built to keep your production numbers up and your owning and operating costs down. Not only does the machine's ACERT engine meet EU Stage IV emission standards, but it does so while giving you all the power, fuel efficiency, and reliability you need to succeed. Where the real power comes in is through the hydraulic system. You can literally move tons of material all day long with a great deal of speed and precision. When you add in a quiet operator environment that keeps you comfortable and productive, service points that make your routine maintenance easy, and multiple Cat work tools that help you take on a variety of jobs, you simply won't find better Long Reach Excavation machines.

Engine

Engine Model
Cat® C13
Net Power
408.00 HP
304.00 kW

Weights

Operating Weight
130955.00 lb
59400.00 kg

Swing Mechanism

Swing Torque
109528.00 ft·lbf
148.50 kN·m

Engine

Stroke
6.20 in
157.00 mm

Sound Performance

Operator Sound Pressure Level - ISO 6396:2008*
69.00 dB(A)
69.00 dB(A)

Hydraulic System

Maximum Flow - Pilot System
7.10 gal/min
27.00 l/min
Stick Cylinder - Bore
7.48 in
190.00 mm

Engine

Bore
5.10 in
130.00 mm

Hydraulic System

Maximum Flow - Swing System
102.00 gal/min
385.00 l/min
Boom Cylinder - Stroke
147.60 in
3748.00 mm

Drive

Maximum Travel Speed
2.90 mile/h
4.70 km/h

Sound Performance

Note (2)
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.

Hydraulic System

Maximum Flow - Auxiliary Circuit - High Pressure
79.00 gal/min
300.00 l/min
Boom Cylinder - Bore
6.69 in
170.00 mm

Service Refill Capacities

Swing Drive - Each
2.60 gal (US)
10.00 l
Fuel Tank Capacity
190.00 gal (US)
720.00 l

Engine

Displacement
763.00 in³
12.50 l

Standards

Cab/FOGS
SAE J1356 FEB88, ISO 10262:1998

Engine

Power - ISO 14396
317 kW (431 PS)

Drive

Maximum Drawbar Pull
74187.00 lbf
330.00 kN

Sound Performance

Exterior Sound Power Level - ISO 6395:2008*
106.00 dB(A)
106.00 dB(A)

Track

Number of Shoes - Each Side
52 pieces

Service Refill Capacities

Final Drive - Each
4.00 gal (US)
15.00 l
Hydraulic Tank Oil
108.00 gal (US)
407.00 l

Hydraulic System

Maximum Pressure - Equipment
5076.00 psi
35000.00 kPa

Service Refill Capacities

Cooling System
13.20 gal (US)
50.00 l

Hydraulic System

B1 Bucket Cylinder - Stroke
109.80 in
2788.00 mm

Track

Number of Track Rollers - Each Side
9 pieces

Service Refill Capacities

Hydraulic System Oil - Including Tank
151.00 gal (US)
570.00 l

Hydraulic System

B1 Bucket Cylinder - Bore
4.72 in
120.00 mm

Engine

Power - ISO 9249
304 kW (413 PS)

Hydraulic System

Stick Cylinder - Stroke
169.50 in
4306.00 mm

Weights

Maximum Weight
130955.00 lb
59400.00 kg

Engine

Gross Power - SAE J1995
322 kW (438 PS)

Hydraulic System

Maximum Pressure - Pilot System
598.00 psi
4120.00 kPa
Maximum Pressure - Travel
5076.00 psi
35000.00 kPa
Maximum Flow - Auxiliary Circuit - Medium Pressure
11.90 gal/min
45.00 l/min

Standards

Brakes
ISO 10265:2008

Hydraulic System

Maximum Flow - Main System
203.00 gal/min
770.00 l/min

Track

Number of Carrier Rollers - Each Side
3 pieces

Service Refill Capacities

DEF Tank
10.80 gal (US)
41.00 l

Standards

DEF
ISO 22241:2006

Hydraulic System

Maximum Pressure - Equipment - Heavy Lift
5511.00 psi
38000.00 kPa

Drive

Maximum Gradeability
30°/70%

Hydraulic System

Maximum Pressure - Swing
3989.00 psi
27500.00 kPa

Service Refill Capacities

Engine Oil - With Filter
10.00 gal (US)
38.00 l

Sound Performance

Note (1)
*as per European Union Directive 2000/14/EC as amended by 2005/88/EC

Standards

Cab - ROPS
ISO 12117-2:2008

Swing Mechanism

Swing Speed
8.70 r/min
8.70 r/min
Features

Fuel Efficient

Easy to Operate

Reliable and Productive

Cat Attachments

Durable Structures

Serviceable

Integrated Technologies

Complete Customer Care
