Overview

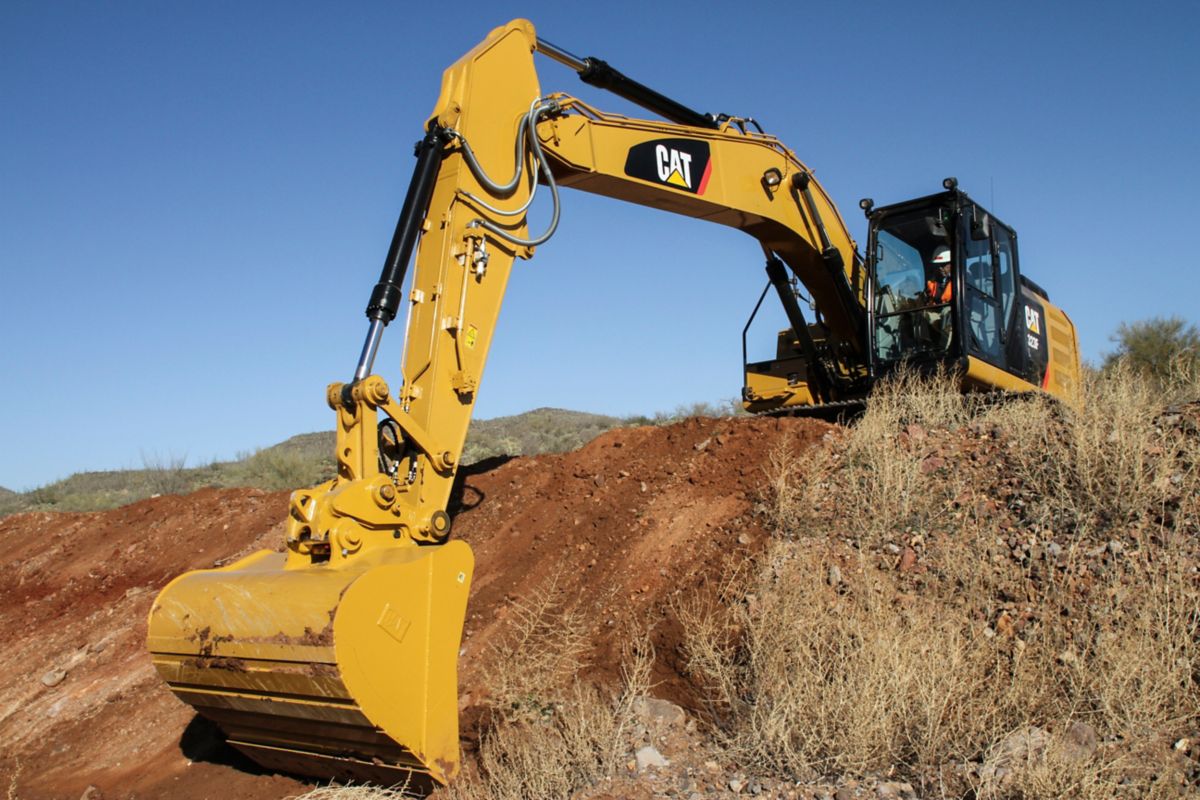

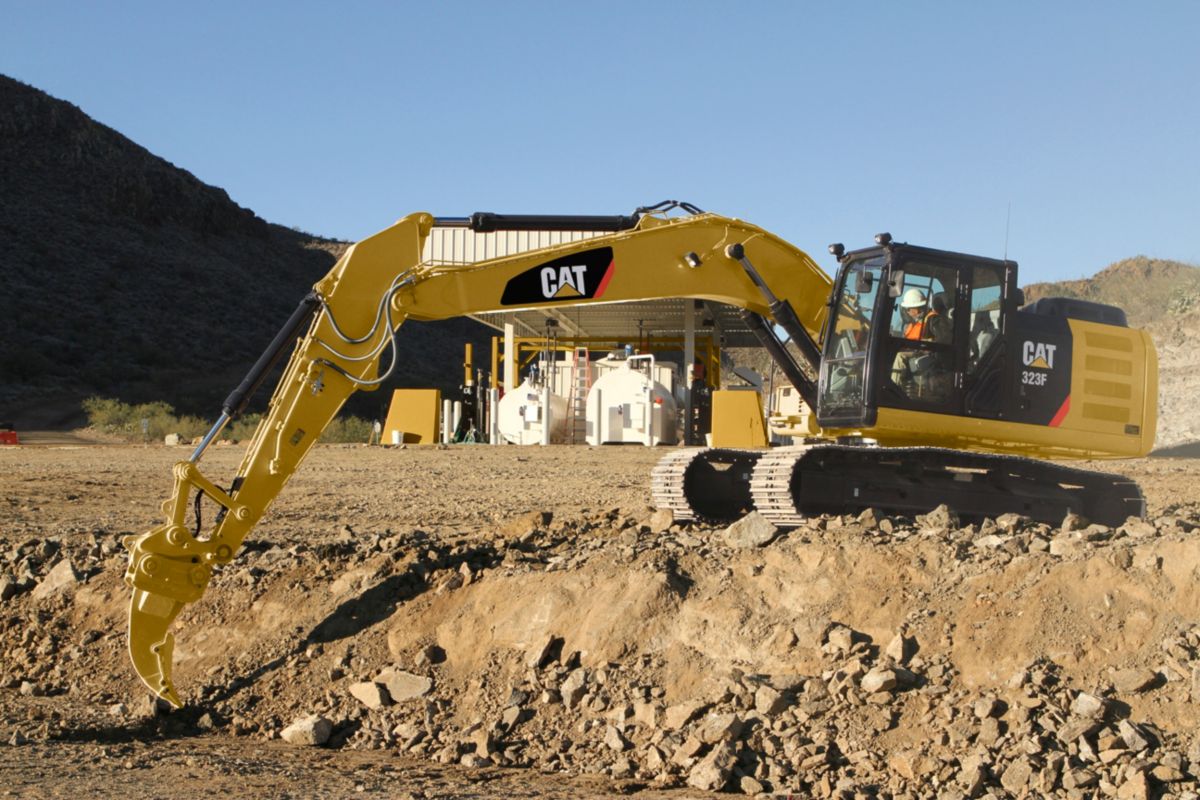

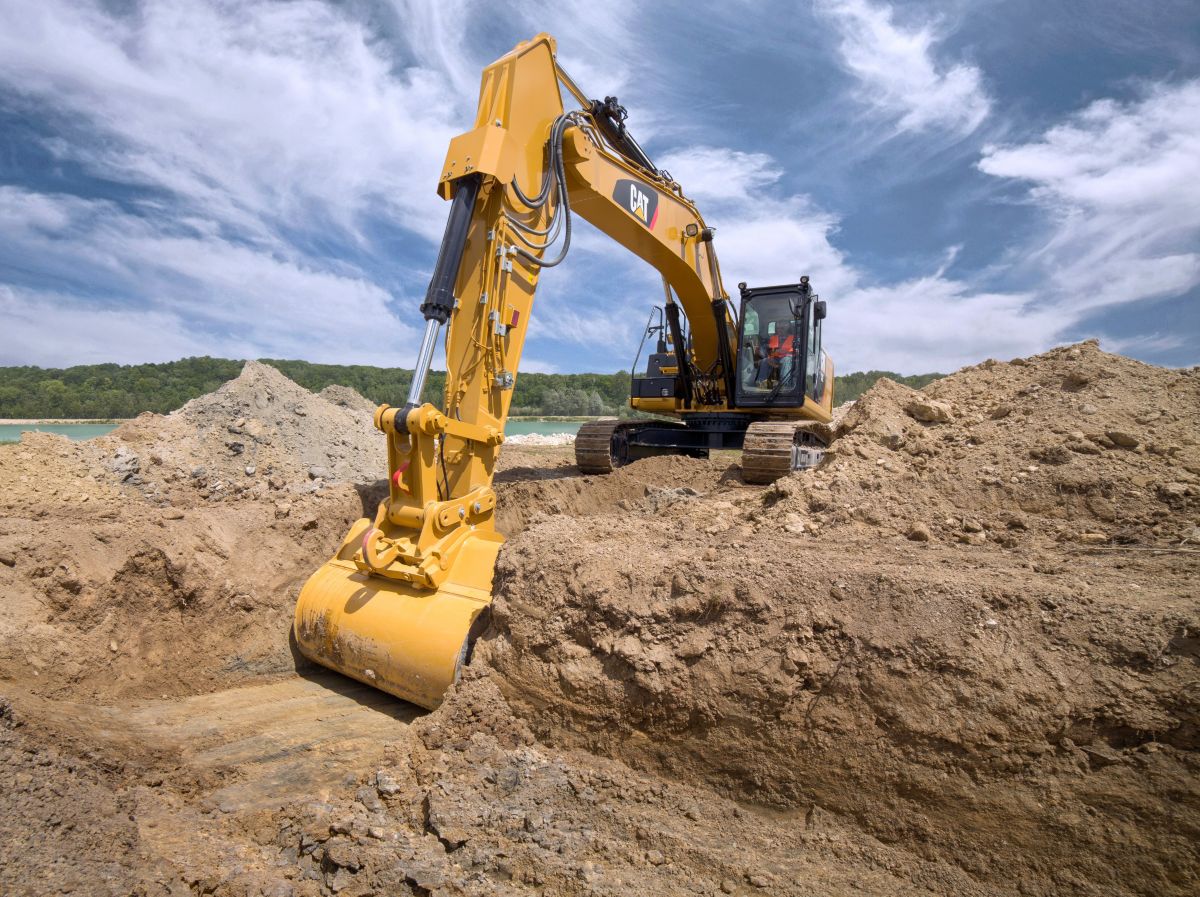

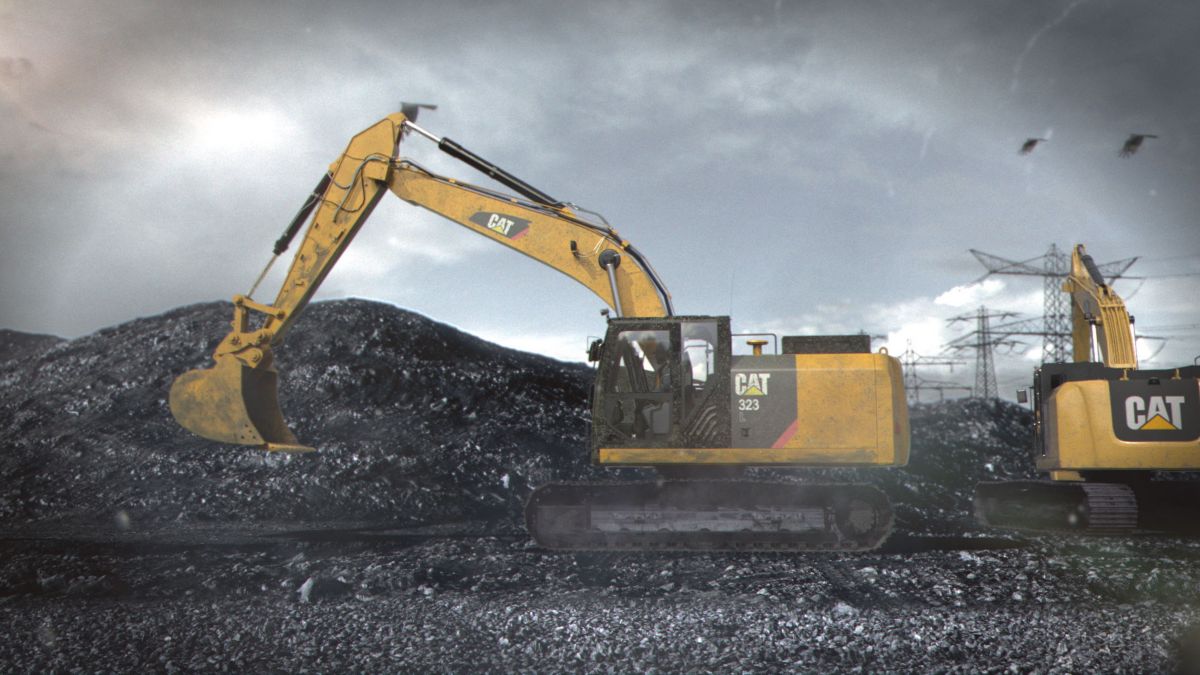

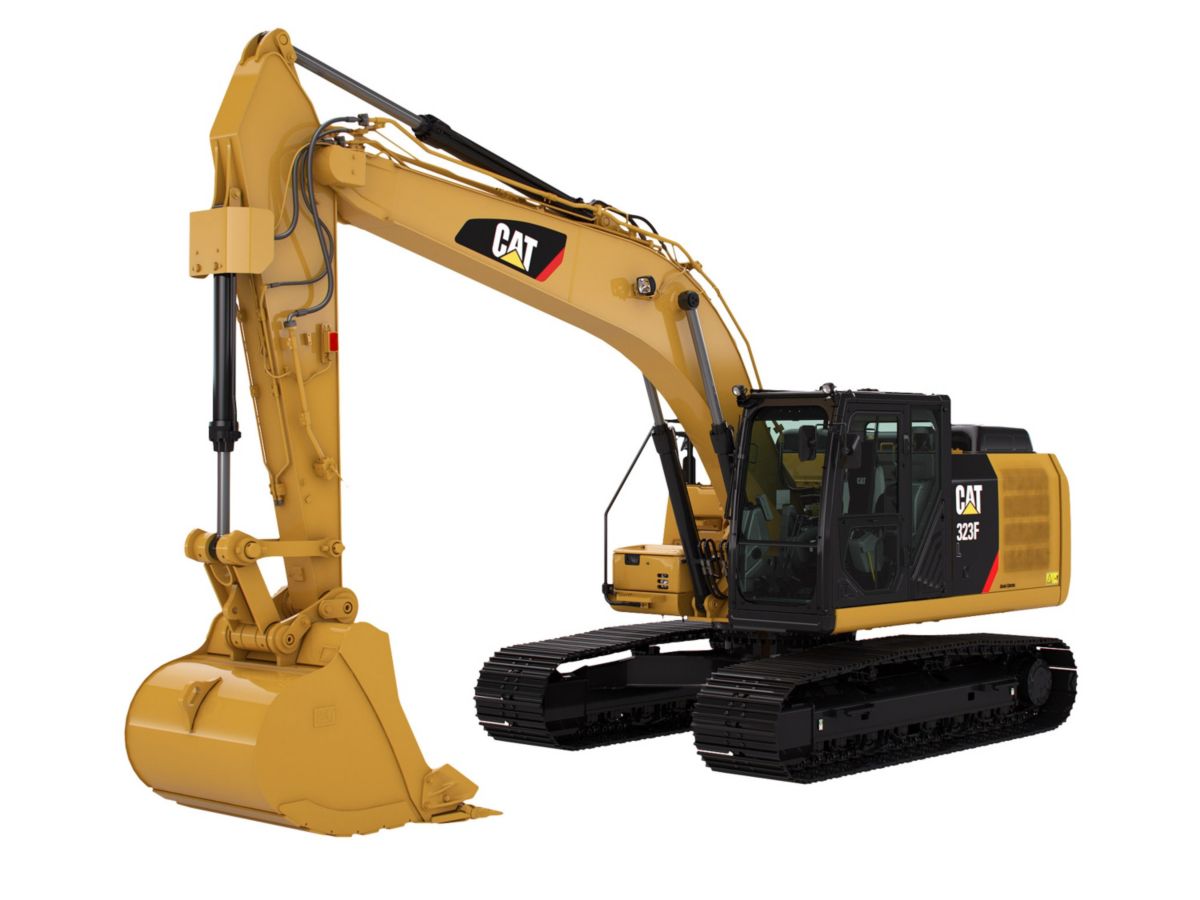

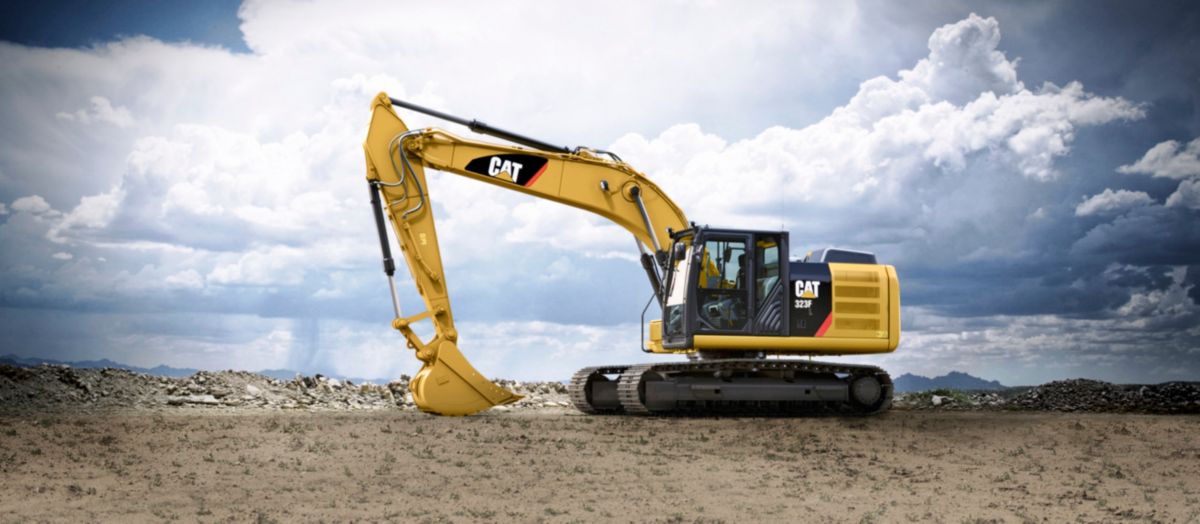

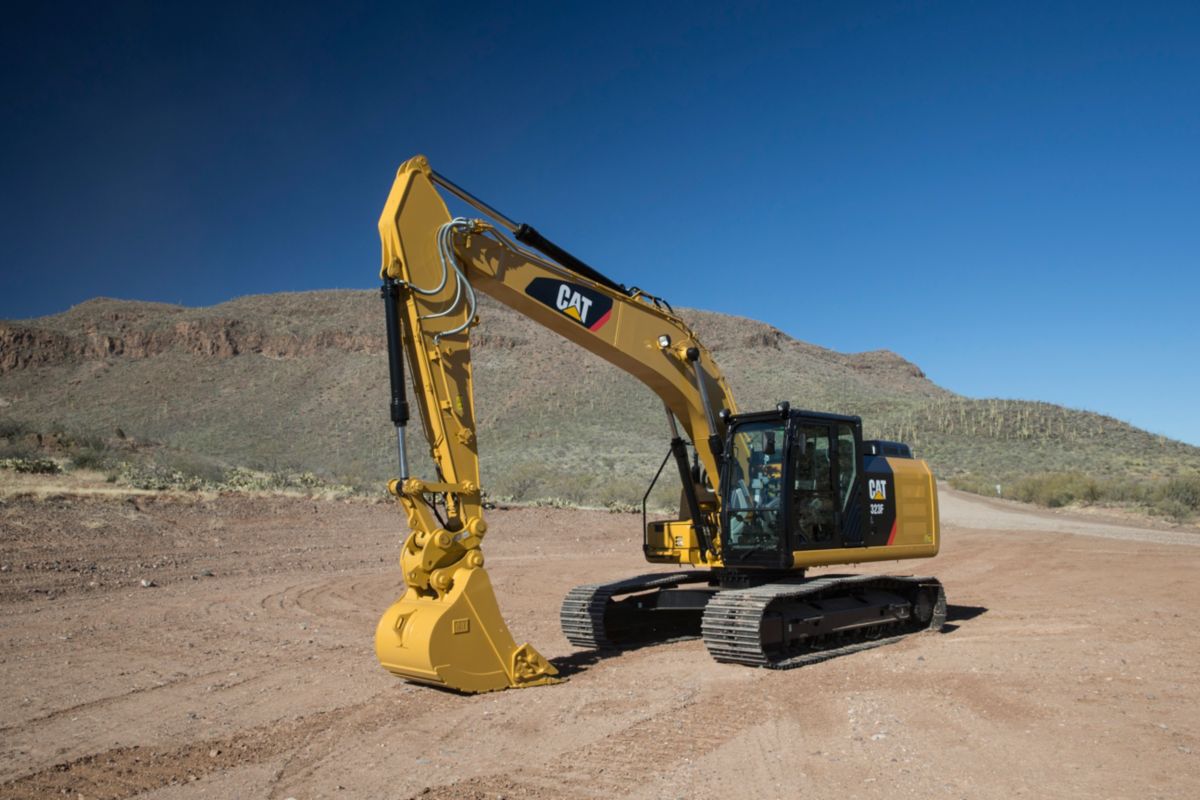

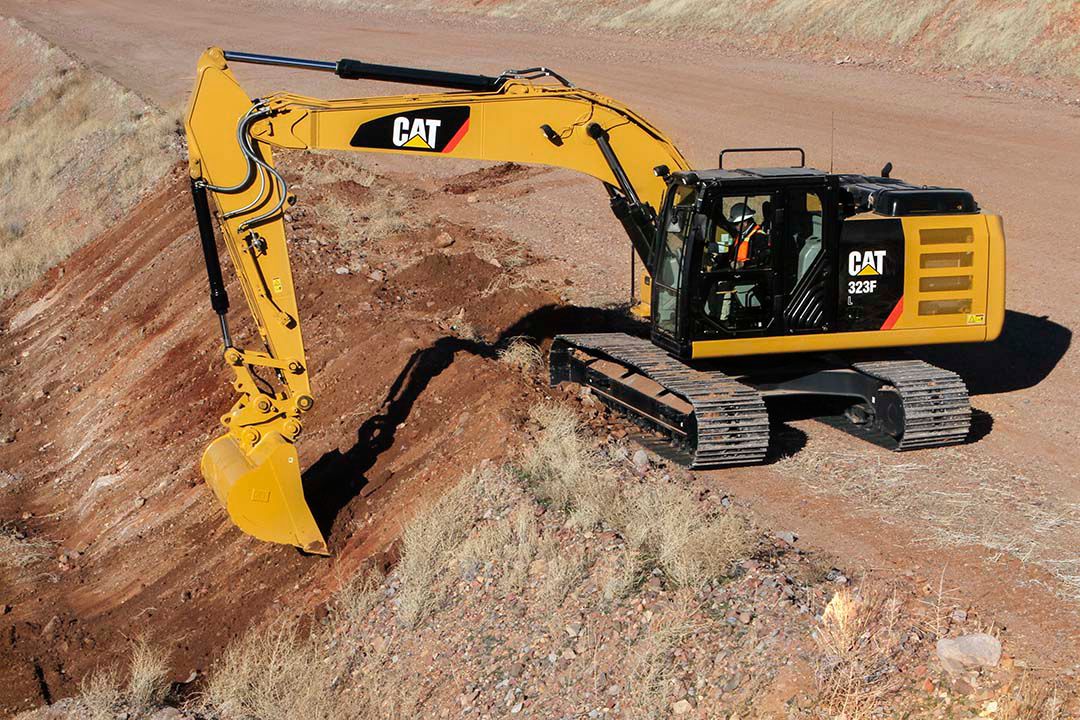

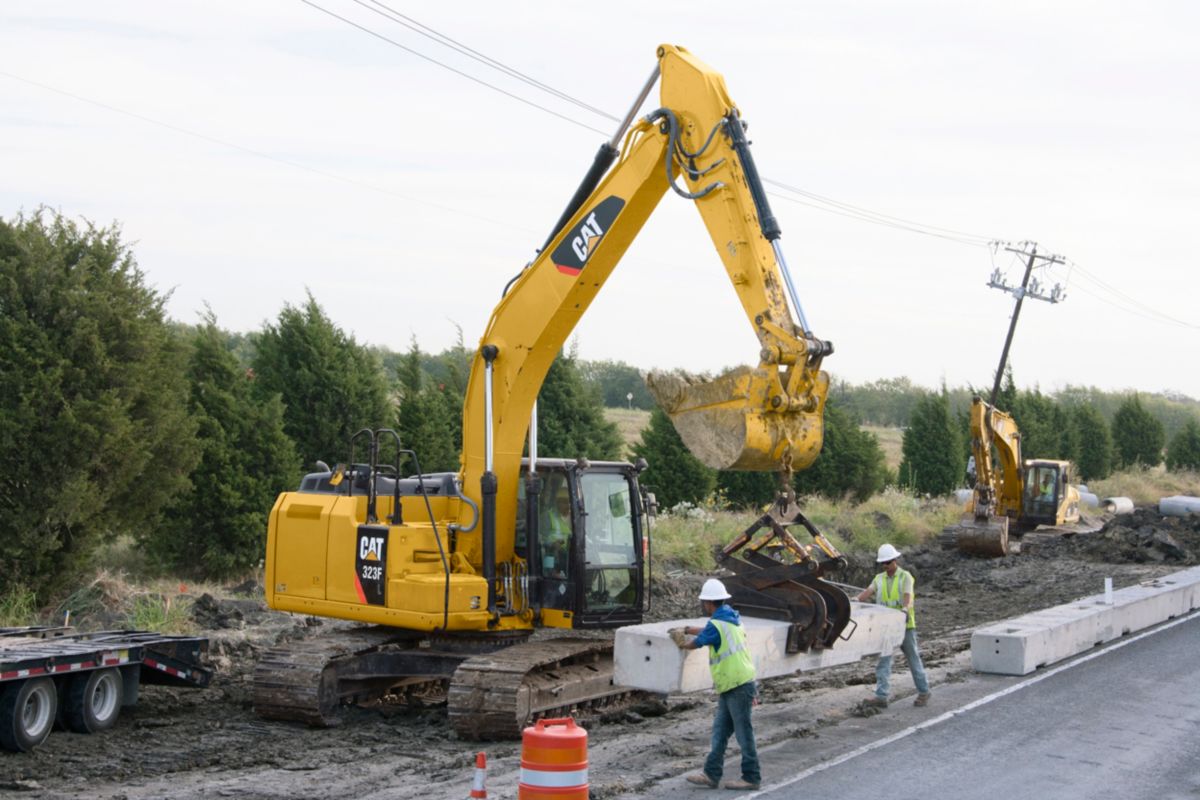

The Cat® 323F L is the most efficient machine in its size class. Cat GRADE with Assist, nearly endless configurations, and multiple Cat work tool options will help you quickly take on all your 23-ton tasks.

Engine

Engine Model
Cat C7.1 ACERT
Net Flywheel Power
161.00 hp
120.00 kW
Gross Power – SAE J1995
164.00 hp
122.00 kW
Net Power – SAE J1349
161.00 hp
120.00 kW
Bore
4.10 in
105.00 mm
Stroke
5.30 in
135.00 mm
Displacement
433.00 in3
7.10 L

Weights

Operating Weight
50900.00 lb
23100.00 kg
Note
Long undercarriage, 4.1 mt (4.5 t) counterweight, R5.7 (18'8") boom, R2.9 (9'6") stick, HD 1.19 m3 (1.56 yd3) bucket and 790 mm (31 in) HD shoes.

Hydraulic System

Main System – Maximum Flow (Total)
112.00 gal/min
423.00 L/min
Maximum Pressure - Equipment - Heavy Lift
5511.00 psi
38000.00 kPa
Maximum Pressure - Equipment - Normal
5076.00 psi
35000.00 kPa
Maximum Pressure – Travel
5076.00 psi
35000.00 kPa
Maximum Pressure – Swing
3698.00 psi
25500.00 kPa
Pilot System – Maximum Flow
5.30 gal/min
20.00 L/min
Pilot System – Maximum Pressure
569.00 psi
3920.00 kPa

Drive

Maximum Travel Speed
3.40 mph
5.50 km/h
Maximum Drawbar Pull
46090.00 lbf
205.00 kN

Swing

Swing Speed
11.00 rpm
11.00 rpm
Swing Torque
45580.00 lbf-ft
61.80 kN·m

Service Refill Capacities

Fuel Tank Capacity
108.30 gal
410.00 L
Cooling System
7.90 gal
30.00 L
Engine Oil
6.60 gal
25.00 L
Swing Drive (each)
2.10 gal
8.00 L
Final Drive (each)
2.10 gal
8.00 L
Hydraulic System (including tank)
68.70 gal
260.00 L
Hydraulic Tank
42.00 gal
159.00 L
DEF Tank
5.30 gal
20.00 L

Sound Performance

ISO 6396 – Operator Noise (Closed)
68.00 dB(A)
68.00 dB(A)
ISO 6395 – Spectator Noise
100.00 dB(A)
100.00 dB(A)

Engine

Engine rpm: Operation
1500.00 rpm
1500.00 rpm
Engine rpm: Travel
1800.00 rpm
1800.00 rpm

Dimensions - HD Reach Boom - 5.7 m (18'8"); R2.9 (9'6") Stick

Shipping Height
10.25 ft
3130.00 mm
Shipping Length
31.33 ft
9540.00 mm
Tail Swing Radius
9.25 ft
2830.00 mm
Length - Center of Rollers
12.00 ft
3650.00 mm
Track Length
14.67 ft
4460.00 mm
Ground Clearance
1.50 ft
450.00 mm
Track Gauge
7.83 ft
2380.00 mm
Transport Width - 600 mm (24 in) Shoes
9.75 ft
2980.00 mm
Transport Width - 700 mm (28 in) Shoes
10.08 ft
3080.00 mm
Transport Width - 790 mm (31 in) Shoes
10.42 ft
3170.00 mm
Handrail Height
9.92 ft
3010.00 mm
Counterweight Clearance
3.33 ft
1020.00 mm
Note
With HD 1.19 m3 (1.56 yd3) bucket and 790 mm (31 in) shoes.

Working Ranges - HD Reach Boom - 5.7 m (18'8"); R2.9 (9'6") Stick

Maximum Digging Depth
22.08 ft
6720.00 mm
Maximum Reach - Ground Level
32.33 ft
9860.00 mm
Maximum Cutting Height
30.75 ft
9370.00 mm
Maximum Loading Height
21.33 ft
6490.00 mm
Minimum Loading Height
7.08 ft
2170.00 mm
Maximum Depth Cut for 2440 mm (8'0") Level Bottom
21.50 ft
6550.00 mm
Maximum Vertical Wall Digging Depth
16.58 ft
5060.00 mm

Engine

Engine Model
Cat C7.1 ACERT
Net Flywheel Power
161.00 HP
120.00 kW
Bore
4.10 in
105.00 mm
Stroke
5.30 in
135.00 mm
Displacement
433.00 in³
7.10 l
Gross Power - SAE J1995
164.00 HP
122.00 kW
Net Power - SAE J1349
161.00 HP
120.00 kW

Weights

Operating Weight
50900.00 lb
23100.00 kg
Note
Long undercarriage, 4.1 mt (4.5 t) counterweight, R5.7 (18'8") boom, R2.9 (9'6") stick, HD 1.19 m3 (1.56 yd3) bucket and 790 mm (31 in) HD shoes.

Service Refill Capacities

Fuel Tank Capacity
108.30 gal (US)
410.00 l
Cooling System
7.90 gal (US)
30.00 l
Engine Oil
6.60 gal (US)
25.00 l
Final Drive - Each
2.10 gal (US)
8.00 l
Hydraulic System - Including Tank
68.70 gal (US)
260.00 l
Hydraulic Tank
42.00 gal (US)
159.00 l
DEF Tank
5.30 gal (US)
20.00 l
Swing Drive - Each
2.10 gal (US)
8.00 l

Swing

Swing Speed
11.00 r/min
11.00 r/min
Swing Torque
45580.00 ft·lbf
61.80 kN·m

Drive

Maximum Drawbar Pull
46090.00 lbf
205.00 kN
Maximum Travel Speed
3.40 mile/h
5.50 km/h

Hydraulic System

Main System - Maximum Flow - Total
112.00 gal/min
423.00 l/min
Maximum Pressure - Swing
3698.00 psi
25500.00 kPa
Maximum Pressure - Travel
5076.00 psi
35000.00 kPa
Pilot System - Maximum Flow
5.30 gal/min
20.00 l/min
Pilot System - Maximum Pressure
569.00 psi
3920.00 kPa

Sound Performance

ISO 6395 - Spectator Noise
100.00 dB(A)
100.00 dB(A)
ISO 6396 - Operator Noise (Closed)
68.00 dB(A)
68.00 dB(A)

Engine

Engine RPM - Operation
1500.00 r/min
1500.00 r/min
Engine RPM - Travel
1800.00 r/min
1800.00 r/min
Features

Technology

  • Cat Grade Control Depth and Slope helps operators work more productively and accurately with less rework.
  • Optional Cat GRADE with ASSIST automates boom and bucket movements, including tilt buckets, to help operators of all skill levels dig flat bases and the right slopes every time.
  • Product Link™/VisionLink® connects owners to their equipment, providing access to machine location, hours, fuel consumption, idle time, events, and diagnostic codes.

Performance

  • The machine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards and consumes up to 5% less fuel than the machine it replaces.
  • Power modes and constant engine speed control help manage fuel consumption.
  • Smooth, controlled lifting without time limit is available with the Heavy Lift function.
  • Maximum breakout force is available at all times.

Versatility

  • Heavy-duty reach, heavy counterweight, and super long reach options help you take on any job.
  • Cat buckets, thumbs, and compactors make utility and finishing work fast and flawless.
  • Cat hammers, grapples, shears, and multi-processors make demolition work quick and easy.
  • Cat couplers let you swap between attachments in seconds without leaving the cab.
  • See the whole money-making attachment lineup at www.cat.com/attachments.

Maintenance

  • Routine maintenance items like grease points and fluid taps are reachable at ground level.
  • Service doors prevent debris entry and latch in place to enhance service speed.
  • The cooling system adjusts up and out of the way to make maintenance easy.

Comfort

  • The full-size roll-over protective structure (ROPS) certified cab is quiet and comfortable.
  • Automatic climate control helps maintain consistent cab temperature.
  • Joystick consoles and armrests are adjustable.
  • Seats are adjustable and feature air suspension and heated and cooled options.
  • Monitor is easy to navigate and programmable in 42 languages.

Durability

  • Robot welded, Caterpillar designed booms and sticks are built for long service and backed with a three year, 10,000 hour warranty.
  • Cat XT™ hydraulic hose can stand up to high pressures over the long haul.
  • Upper and lower frames are reinforced, and box-section structures with multi-plate fabrications, castings, and forgings are used in high-stress areas.
  • Greased track link between pins and bushings increase undercarriage life.
  • Heavy-duty bottom guards protect components from track debris and site material.
