Overview

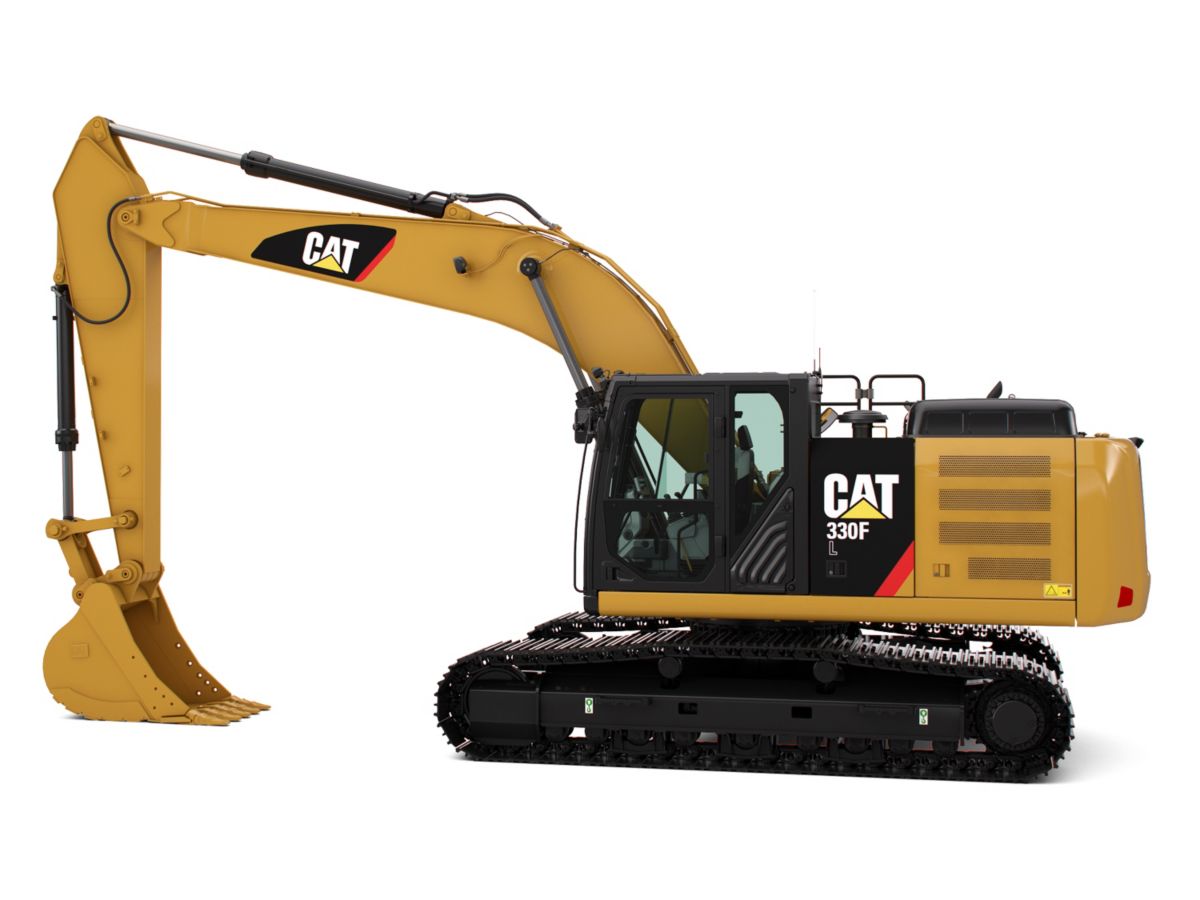

The 330F L is a powerful, reliable, fuel-efficient machine. The C7.1 ACERT™ engine teamed with Caterpillar's state-of-the-art hydraulic system give you the ability to move tons of material all day long with tremendous speed and precision.

Engine

Engine Model
Cat C7.1 ACERT
Net Flywheel Power
235.00 hp
175.00 kW
Gross Power – SAE J1995
239.00 hp
178.00 kW
Net Power – SAE J1349
235.00 hp
175.00 kW
Bore
4.13 in
105.00 mm
Stroke
5.31 in
135.00 mm
Displacement
428.00 in3
7.01 L

Hydraulic System

Main System – Maximum Flow (total)
130.00 gal/min
494.00 L/min
Maximum Pressure – Equipment: Heavy Lift
5511.00 psi
38000.00 kPa
Maximum Pressure – Equipment: Normal
5076.00 psi
35000.00 kPa
Maximum Pressure – Travel
5366.00 psi
37000.00 kPa
Maximum Pressure – Swing
3974.00 psi
27400.00 kPa
Pilot System – Maximum Flow
6.10 gal/min
23.00 L/min
Pilot System – Maximum Pressure
595.00 psi
4100.00 kPa

Drive

Maximum Travel Speed
3.20 mph
5.10 km/h
Maximum Drawbar Pull
55528.00 lbf
247.00 kN

Weights

Operating Weight
69950.00 lb
31730.00 kg

Machine Weights

Minimum Operating Weight*
64220.00 lb
29130.00 kg
Maximum Operating Weight**
69950.00 lb
31730.00 kg
Note
*6.15 m (20'2") Reach Boom, R2.65CB2 (8'8") Stick, 600 mm (24") TG Shoes, 5.8 mt (6.3 t) Counterweight, 1.76 m3 (2.30 yd3) GD Bucket.
Note
**10.2 m (33'6") SLR Boom, 7.85 m (25'9") Stick, 800 mm (31") TG Shoes, 6.75 mt (7.4 t) Counterweight, 0.53 m3 (0.70 yd3) Bucket.

Swing

Swing Speed
9.60 rpm
9.60 rpm
Maximum Swing Torque
77350.00 lbf-ft
105.00 kN·m

Service Refill Capacities

Fuel Tank Capacity
137.40 gal
520.00 L
Cooling System
7.90 gal
30.00 L
Engine Oil (with filter)
6.30 gal
24.00 L
Swing Drive (each)
2.30 gal
9.00 L
Final Drive (each)
1.60 gal
6.00 L
Hydraulic System (including tank)
81.90 gal
310.00 L
Hydraulic Tank
46.20 gal
175.00 L
DEF Tank
10.80 gal
41.00 L

Sound Performance

ISO 6396 – Operator Noise (closed)
72.00 dB(A)
72.00 dB(A)
ISO 6395 – Spectator Noise
104.00 dB(A)
104.00 dB(A)

Dimensions - Reach Boom - 6.15 m (20'2

Shipping Height*
11.08 ft
3370.00 mm
Shipping Length
34.08 ft
10390.00 mm
Tail Swing Radius
10.17 ft
3090.00 mm
Length - Center of Rollers
13.08 ft
3990.00 mm
Track Length
15.92 ft
4860.00 mm
Ground Clearance
1.58 ft
490.00 mm
Track Gauge
8.50 ft
2590.00 mm
Transport Width
10.83 ft
3290.00 mm
Transport Width - 600 mm (24 in) Shoes
10.50 ft
3190.00 mm
Transport Width - 800 mm (32 in) Shoes
11.08 ft
3390.00 mm
Cab Height - With Top Guard
10.67 ft
3240.00 mm
Counterweight Clearance**
3.67 ft
1110.00 mm
Note (1)
*Including shoe lug height.
Note (2)
**Without shoe lug height.

Working Ranges - Reach Boom - 6.15 m (20'2

Maximum Digging Depth
23.75 ft
7250.00 mm
Maximum Reach - Ground Level
35.00 ft
10680.00 mm
Maximum Cutting Height
32.83 ft
10010.00 mm
Maximum Loading Height
22.83 ft
6950.00 mm
Minimum Loading Height
7.50 ft
2290.00 mm

Maximum Depth Cut for 2440 mm (8'0") Level Bottom
23.25 ft
7090.00 mm

Working Ranges - Reach Boom - 6.15 m (20'2

Maximum Vertical Wall Digging Depth
19.58 ft
5980.00 mm

Engine

Engine (rating) RPM
1800.00 rpm
1800.00 rpm
Engine (operation) RPM
1750.00 rpm
1750.00 rpm

Drive

Maximum Gradeability
35°/70%

Engine

Engine Model
Cat C7.1 ACERT
Net Flywheel Power
235.00 HP
175.00 kW
Bore
4.13 in
105.00 mm
Stroke
5.31 in
135.00 mm
Displacement
428.00 in³
7.01 l
Gross Power - SAE J1995
239.00 HP
178.00 kW
Net Power - SAE J1349
235.00 HP
175.00 kW

Weights

Operating Weight
69950.00 lb
31730.00 kg

Machine Weight

Maximum Operating Weight**
69950.00 lb
31730.00 kg
Minimum Operating Weight*
64220.00 lb
29130.00 kg
Note (1)
*6.15 m (20'2") Reach Boom, R2.65CB2 (8'8") Stick, 600 mm (24") TG Shoes, 5.8 mt (6.3 t) Counterweight, 1.76 m3 (2.30 yd3) GD Bucket.
Note (2)
**10.2 m (33'6") SLR Boom, 7.85 m (25'9") Stick, 800 mm (31") TG Shoes, 6.75 mt (7.4 t) Counterweight, 0.53 m3 (0.70 yd3) Bucket.

Service Refill Capacities

Fuel Tank Capacity
137.40 gal (US)
520.00 l
Cooling System
7.90 gal (US)
30.00 l
Final Drive - Each
1.60 gal (US)
6.00 l
Hydraulic System - Including Tank
81.90 gal (US)
310.00 l
Hydraulic Tank
46.20 gal (US)
175.00 l
DEF Tank
10.80 gal (US)
41.00 l
Engine Oil - With Filter
6.30 gal (US)
24.00 l
Swing Drive - Each
2.30 gal (US)
9.00 l

Swing

Maximum Swing Torque
77350.00 ft·lbf
105.00
Swing Speed
9.60 r/min
9.60 r/min

Drive

Maximum Drawbar Pull
55528.00
247.00 kN
Maximum Travel Speed
3.20 mile/h
5.10 km/h

Hydraulic System

Main System - Maximum Flow - Total
130.00 gal/min
494.00 l/min
Maximum Pressure - Equipment - Heavy Lift
5511.00 psi
38000.00 kPa
Maximum Pressure - Equipment - Normal
5076.00 psi
35000.00 kPa
Maximum Pressure - Swing
3974.00 psi
27400.00 kPa
Maximum Pressure - Travel
5366.00 psi
37000.00 kPa
Pilot System - Maximum Flow
6.10 gal/min
23.00 l/min
Pilot System - Maximum Pressure
595.00 psi
4100.00 kPa

Sound Performance

ISO 6395 - Spectator Noise
104.00 dB(A)
104.00 dB(A)
ISO 6396 - Operator Noise (Closed)
72.00 dB(A)
72.00 dB(A)

Drive

Maximum Gradeability
35°/70%

Engine

Engine RPM - Operation
1750.00 r/min
1750.00 r/min
Engine RPM - Rating
1800.00 r/min
1800.00 r/min
Features

Performance

  • Smooth multi-function control is built in for easy operation.
  • The Heavy Lift mode increases maximum pressure, reducing engine speed and pump flow to improve controllability.
  • The emissions package works behind the scenes and won't interrupt the job process.

Efficiency

  • The C7.1 ACERT engine meets U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 emission standards, and the diesel particulate filter requires no maintenance.
  • Integrated electronics, fuel, air, and aftertreatment reduce fuel consumption and emissions.
  • The machine can run on up to B20 biodiesel fuel when blended with ultra-low-sulfur diesel for fuel-saving flexibility.
  • Three power modes – high, standard, and eco – help manage fuel consumption.
  • Automatic engine speed control lowers rpm based on load for reduced fuel consumption.

Versatility

  • Utility and finishing work are fast and flawless with a Cat® compactor, thumb, finishing bucket or tilt bucket.
  • Demolition work is easy with a Cat hammer, grapple, shear, or multi-processor.
  • Couplers let you swap between attachments in seconds without leaving the cab.

Technology

  • Optional Cat GRADE with ASSIST automates boom and bucket movements, including tilt buckets, to help operators of all skill levels dig flat bases and the right slopes every time.
  • Product Link™/VisionLink® connects owners to their equipment, providing access to machine location, hours, fuel consumption, idle time, events, and diagnostic codes.
  • Cat Grade Control Depth and Slope helps operators work more productively and accurately with less rework.

Maintenance

  • Routine maintenance items like grease points and fluid taps are reachable at ground level.
  • The service door design helps prevent debris entry, and doors latch in place to enhance ease of service.
  • The cooling system is to make maintenance easy.

Comfort

  • The full-size roll-over protective structure (ROPS) certified cab is quiet and comfortable.
  • Automatic climate control helps maintain consistent cab temperature.
  • Joystick consoles and armrests are adjustable.
  • Seats are adjustable and feature air suspension and heated and cooled options.
  • The LCD monitor is easy to navigate and programmable in 44 languages.

Durability

  • The large swing bearing is secured with elongated bolts to help handle the most swing-intensive work.
  • Abrasion-resistant Cat XT™-6 hose can stand up to high pressures over the long haul.
  • Booms and sticks are built for long service.
  • Box-section structures with multi-plate fabrications, castings, and forgings are used in high-stress areas.
  • Greased track link between pins and bushings increases undercarriage life and reduces noise.
