Overview

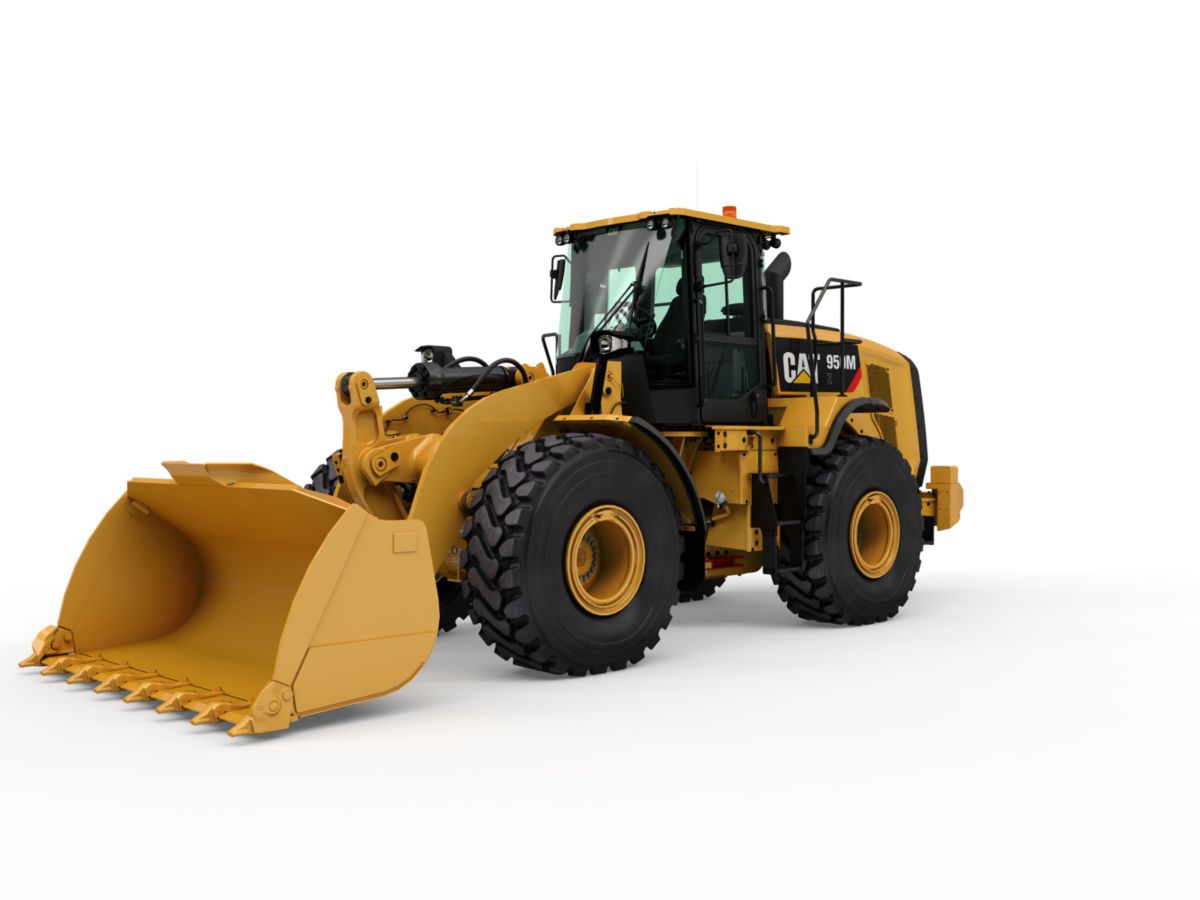

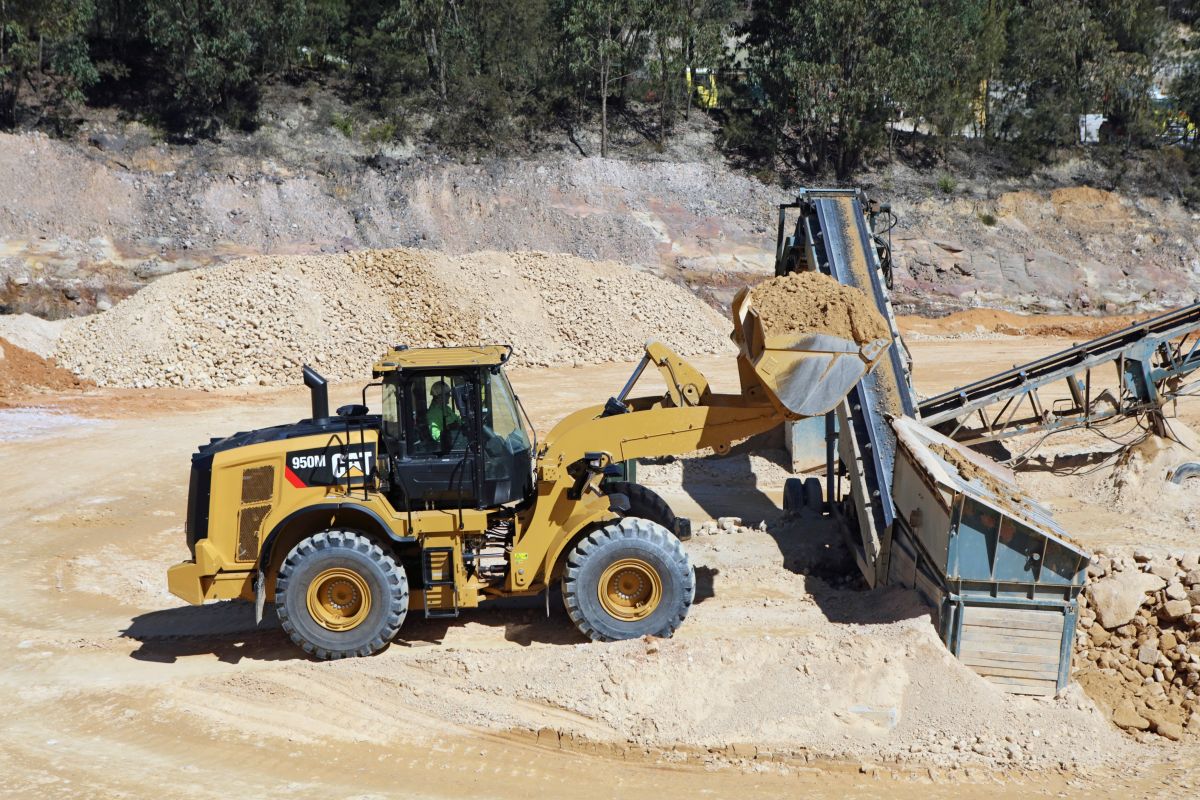

The new 950M Wheel Loader has an ACERT™ engine equipped with a combination of proven electronic, fuel, and air components. Applying proven technologies systematically and strategically lets us meet our customers’ high expectations for productivity, fuel efficiency, reliability and service life. Deep system integration results in reduced emissions, improved performance and improved fuel economy without interrupting machine performance making it seamless to operators. Optional configurations are available. (Optional configuration and equipment may vary from region to region. Consult your Caterpillar representative for further details.)

Engine

Net Power – ISO 9249
248.00 hp
185.00 kW
Engine Model
Cat C7.1 ACERT
Max Gross Power @ 2,000 rpm – SAE J1995
263.00 hp
196.00 kW
Max Gross Power @ 2,000 rpm – ISO 14396
261.00 hp
195.00 kW
Displacement
428.00 in3
7.01 L
Max Gross Power @ 2,000 rpm – ISO 14396 (metric)
265.00 hp
195.00 kW
Max Net Power @ 2,000 rpm – SAE J1349
248.00 hp
185.00 kW
Max Net Power @ 2,000 rpm – ISO 9249
248.00 hp
185.00 kW
Max Net Power @ 2,000 rpm – ISO 9249 (metric)
252.00 hp
185.00 kW
Peak Gross Torque (1,400 rpm) – SAE J1995
777.00 lbf-ft
1053.00 N·m
Peak Gross Torque (1,400 rpm) – ISO 14396
774.00 lbf-ft
1050.00 N·m

Weights

Operating Weight
42360.00 lb
19214.00 kg

Buckets

Bucket Capacities
2.5-9.2 m³ (3.3-12.0 yd³)

Hydraulic System

Hydraulic Cycle Time – Total
9.10 Seconds
9.10 Seconds
Implement Pump Type
Variable Axial Piston
Implement System: Maximum Pump Output (2,150 rpm)
76.00 gal/min
286.00 L/min
Implement System: Maximum Operating Pressure
4250.00 psi
29300.00 kPa

Service Refill Capacities

Cooling System
15.60 gal
59.00 L
Crankcase
5.80 gal
22.00 L
Transmission
11.40 gal
43.00 L
Differentials and Final Drives – Front
11.40 gal
43.00 L
Differentials and Final Drives – Rear
11.40 gal
43.00 L
Hydraulic Tank
33.00 gal
125.00 L
Fuel Tank
72.60 gal
275.00 L

Transmission

Forward 1
4.30 mph
6.90 km/h
Forward 2
7.50 mph
12.00 km/h
Forward 3
12.00 mph
19.30 km/h
Forward 4
16.00 mph
25.70 km/h
Forward 5
24.50 mph
39.50 km/h
Reverse 1
4.30 mph
6.90 km/h
Reverse 2
7.50 mph
12.00 km/h
Reverse 3
16.00 mph
25.70 km/h

Operating Specifications

Breakout Force
40690.00 lbf
181.00 kN
Static Tipping Load – Full 40° Turn – No Tire Deflection
25926.00 lb
11760.00 kg
Static Tipping Load – Full 40° Turn – with Tire Deflection
24262.00 lb
11005.00 kg

Sound

With Cooling Fan Speed at Maximum Value: Operator Sound Pressure Level (ISO 6396:2008)
70.00 dB(A)
70.00 dB(A)
With Cooling Fan Speed at Maximum Value: Exterior Sound Power Level (ISO 6395:2008)
107.00 dB(A)
107.00 dB(A)
With Cooling Fan Speed at Maximum Value: Exterior Sound Pressure Level (SAE J88:2013)
75 dB(A)*

Engine

Maximum Net Torque (1,400 rpm)
726.00 lbf-ft
984.00 N·m

Weights

Note
Weight based on a machine configuration with Michelin 23.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link, manual diff lock/open axles (front/rear), power train guard, secondary steering, sound suppression and a 3.1 m3 (4.1 yd3) general purpose bucket with BOCE.

Bucket Capacities

Bucket Range
2.5-9.2 m³ (3.3-12.0 yd³)

Transmission

Note
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius.

Sound

Note
*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value:** Operator Sound Pressure Level (ISO 6396:2008)
69.00 dB(A)
69.00 dB(A)
With Cooling Fan Speed at 70% of Maximum Value:** Exterior Sound Power Level (ISO 6395:2008)
104 LWA***
Note
**For machines in countries that adopt the “EU Directives.”

Operating Specifications

Note
For a machine configuration as defined under “Weight.”
Note
Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.

Dimensions – Standard Lift

Height to Top of Hood
8.83 ft
2697.00 mm
Height to Top of Exhaust Pipe
11.17 ft
3413.00 mm
Height to Top of ROPS
11.33 ft
3446.00 mm
Ground Clearance
1.17 ft
367.00 mm
Center Line of Rear Axle to Edge of Counterweight
6.33 ft
1942.00 mm
Center Line of Rear Axle to Hitch
5.50 ft
1675.00 mm
Wheelbase
11.00 ft
3350.00 mm
Overall Length (without bucket)
22.67 ft
6906.00 mm
Hinge Pin Height at Carry Height
2.08 ft
647.00 mm
Hinge Pin Height at Maximum Lift
13.25 ft
4027.00 mm
Lift Arm Clearance at Maximum Lift
10.75 ft
3280.00 mm
Rack Back at Maximum Lift
59 degrees
Rack Back at Carry Height
46 degrees
Rack Back at Ground
38 degrees
Maximum Width over Tires (loaded)
9.33 ft
2822.00 mm
Tread Width
7.00 ft
2140.00 mm
Note
All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.

Dimensions – High Lift

Height to Top of Hood
8.83 ft
2697.00 mm
Height to Top of Exhaust Pipe
11.17 ft
3413.00 mm
Height to Top of ROPS
11.33 ft
3446.00 mm
Ground Clearance
1.17 ft
367.00 mm
Center Line of Rear Axle to Edge of Counterweight
6.83 ft
2071.00 mm
Center Line of Rear Axle to Hitch
5.50 ft
1675.00 mm
Wheelbase
11.00 ft
3350.00 mm
Overall Length (without bucket)
24.58 ft
7488.00 mm
Hinge Pin Height at Carry Height
2.58 ft
782.00 mm
Hinge Pin Height at Maximum Lift
14.83 ft
4527.00 mm
Lift Arm Clearance at Maximum Lift
11.92 ft
3634.00 mm
Rack Back at Maximum Lift
56 degrees
Rack Back at Carry Height
49 degrees
Rack Back at Ground
42 degrees
Maximum Width over Tires (loaded)
9.33 ft
2822.00 mm
Tread Width
7.00 ft
2140.00 mm
Note
All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.

Sound

Note
***European Union Directive “2000/14/EC” as amended by “2005/88/EC.”

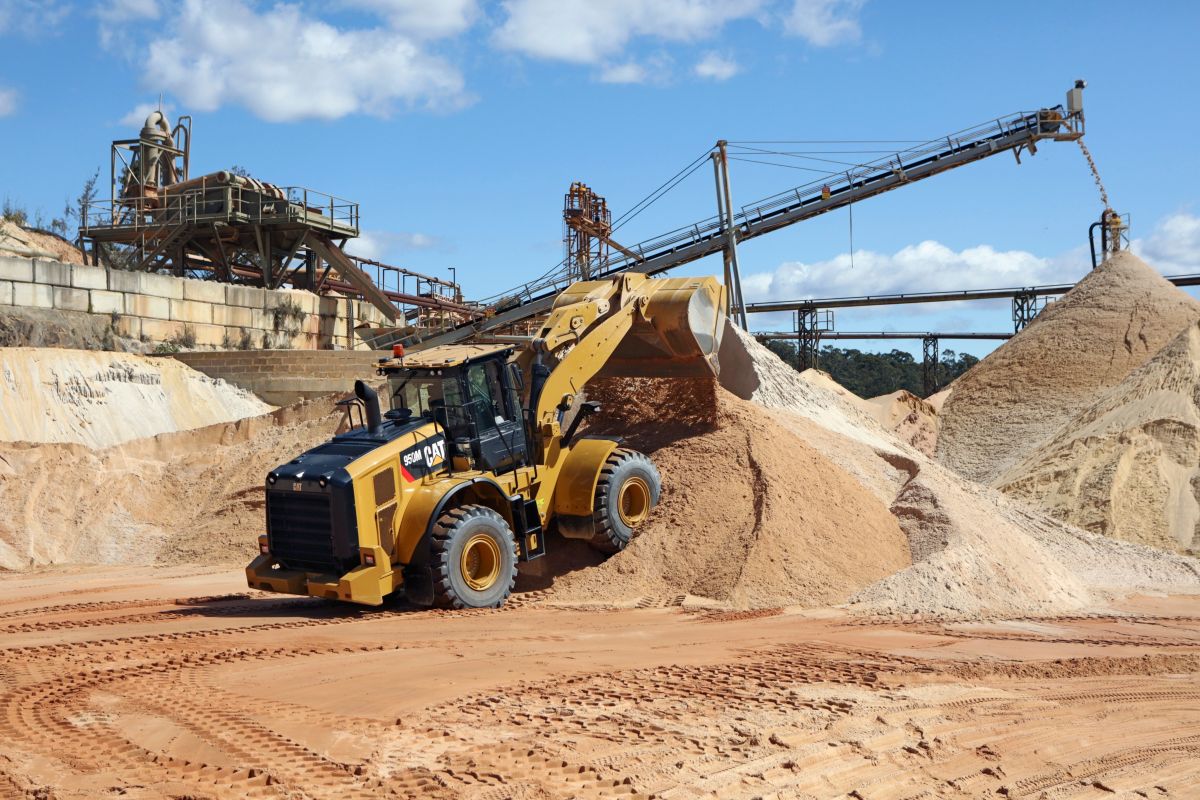

Features

Key Features

Benefits to help get your work done efficiently and effectively

RELIABILITY, PRODUCTIVITY AND FUEL EFFICIENCY

  • 10% more fuel efficient than K Series*
  • Up to 25% more efficient than H Series*
*Fuel efficiency is measured in mass of material moved per volume of fuel burned. Average efficiency improvement as tested and analyzed for an average composite cycle and stand configuration with variations per comparable model with and without economy mode active. Factors influence result variation such as, but not limited to, machine configuration, operator technique, machine application, climate, etc.

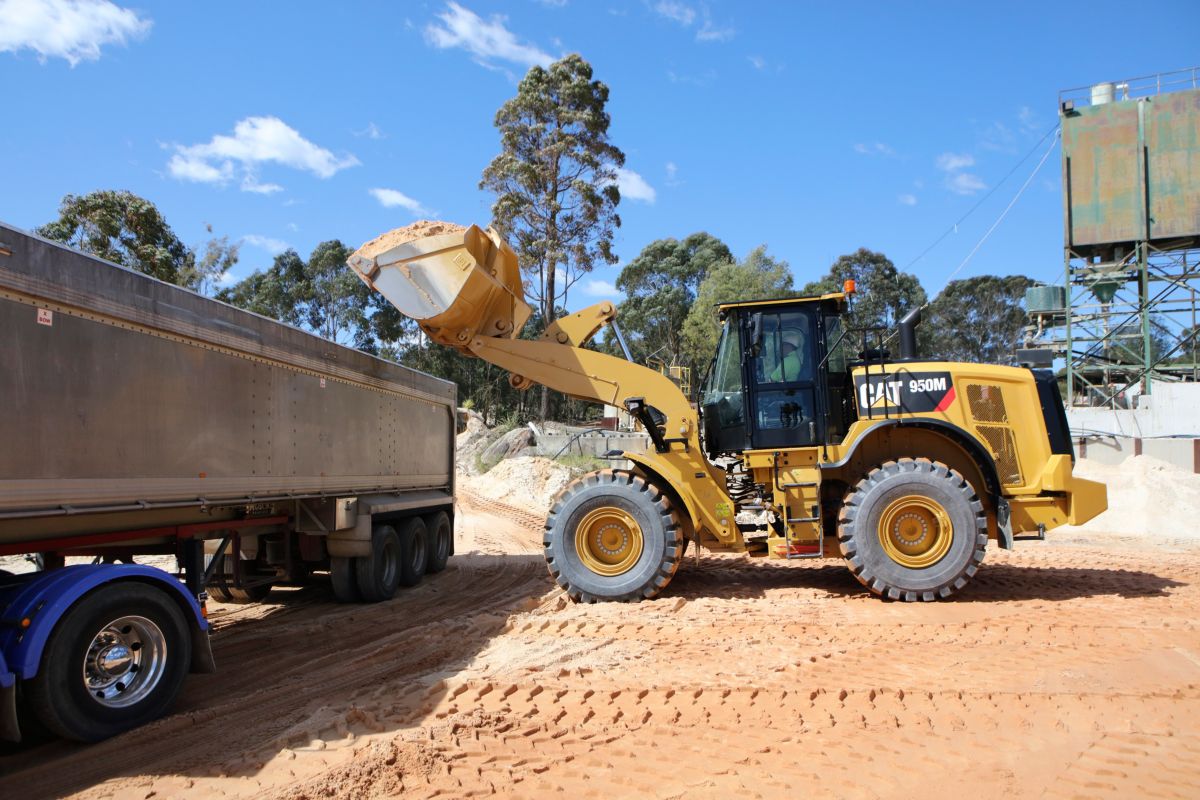

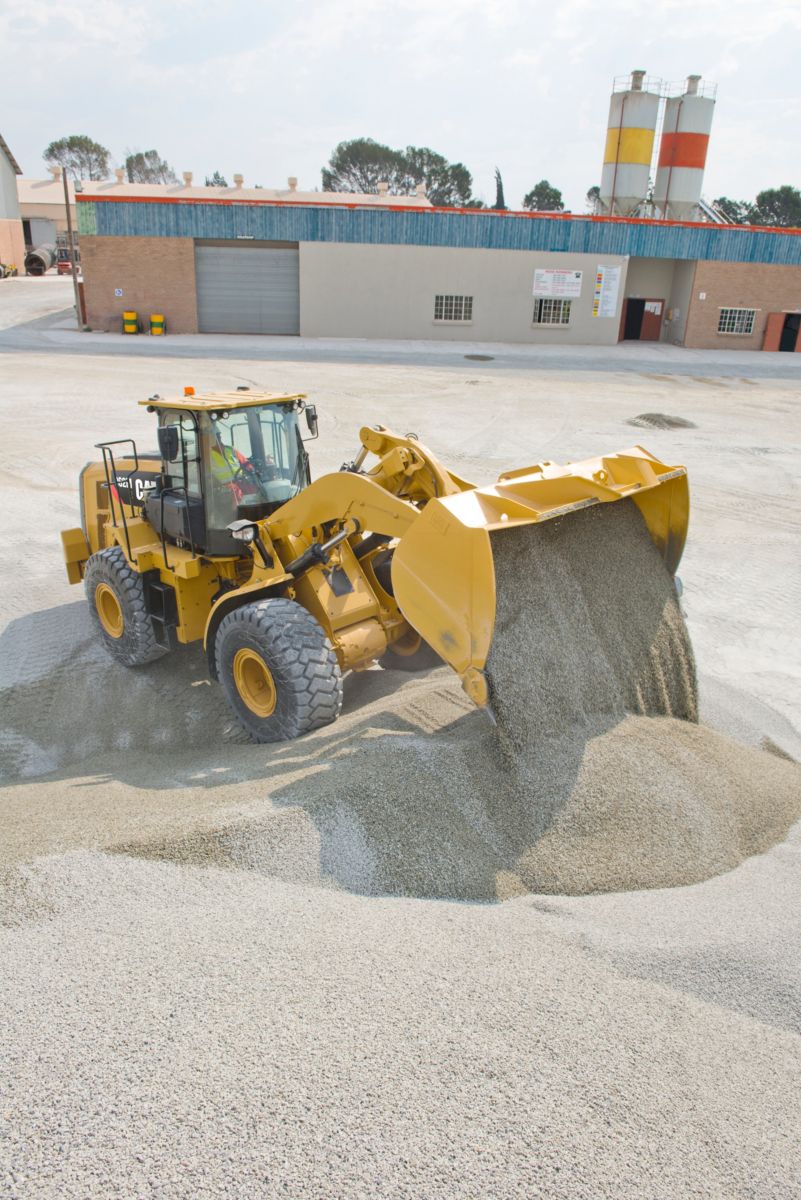

Linkage and Work Tools

  • Performance Series buckets and range of work tools
  • Optimized Z-bar with best-in-class visibility
  • Increased tilt capacity at height, equal to payload
  • Fusion™ « zero-offset » coupler (option)

Engine and Aftertreatment Advancements

  • Cat® C7.1 ACERT
  • Meets U.S. EPA Tier 3/EU Stage IIIA equivalent emissions standards
  • Productive Economy Mode

Transmission Advancements

  • 5-speed powershift transmission with single clutch speed shifts and torque based down shifts
  • Lock up clutch torque converter with lock-to-lock shifting
  • Split flow oil system and multi-viscosity oil

Axle Advancements

  • On-the-go disc-type front differential locks (front and rear fully automatic option)
  • Caliper disc parking brake
  • Bevel gear shrouds

Next Generation Hydraulic Systems

  • Next generation main valve
  • Next generation ride control system with dual accumulators
  • Next generation implement pump with increased displacement
  • Full flow and kidney loop filtration
  • Load-sensing hydraulics with simultaneous hydraulic functions
  • 3rd and 4th function (option)

EASE OF OPERATION – Best-in-class Operator Environment

  • Optimized all-around visibility
  • Steering wheel (E-H joystick steering option)
  • Touch screen multifunction color display with integrated controls and rearview camera
  • Stair-like ingress and egress
  • New wider door and increased glass area
  • Seat-mounted fingertip electro-hydraulic implement controls
  • Large convex rearview mirrors with integrated spot mirror
  • Remote door opening (option)
  • Automatic climate control
  • Viscous cab mounts
  • Low operator sound levels

EASE OF OPERATION – Advanced Technology with Cat Connect

  • Link technologies, like Product Link™ to monitor equipment and manage production using online VisionLink® software
  • Payload technologies, like Cat Production Measurement (option) to measure payloads and optimize productivity
  • Detect technologies, like the rear vision camera to keep people safe and help the operator work more productively

SERVICE ACCESS

  • One-piece tilting hood with side and rear doors
  • Centralized service centers for hydraulic and electrical components
  • Windshield cleaning platform and harness tie-off
