US
Metric

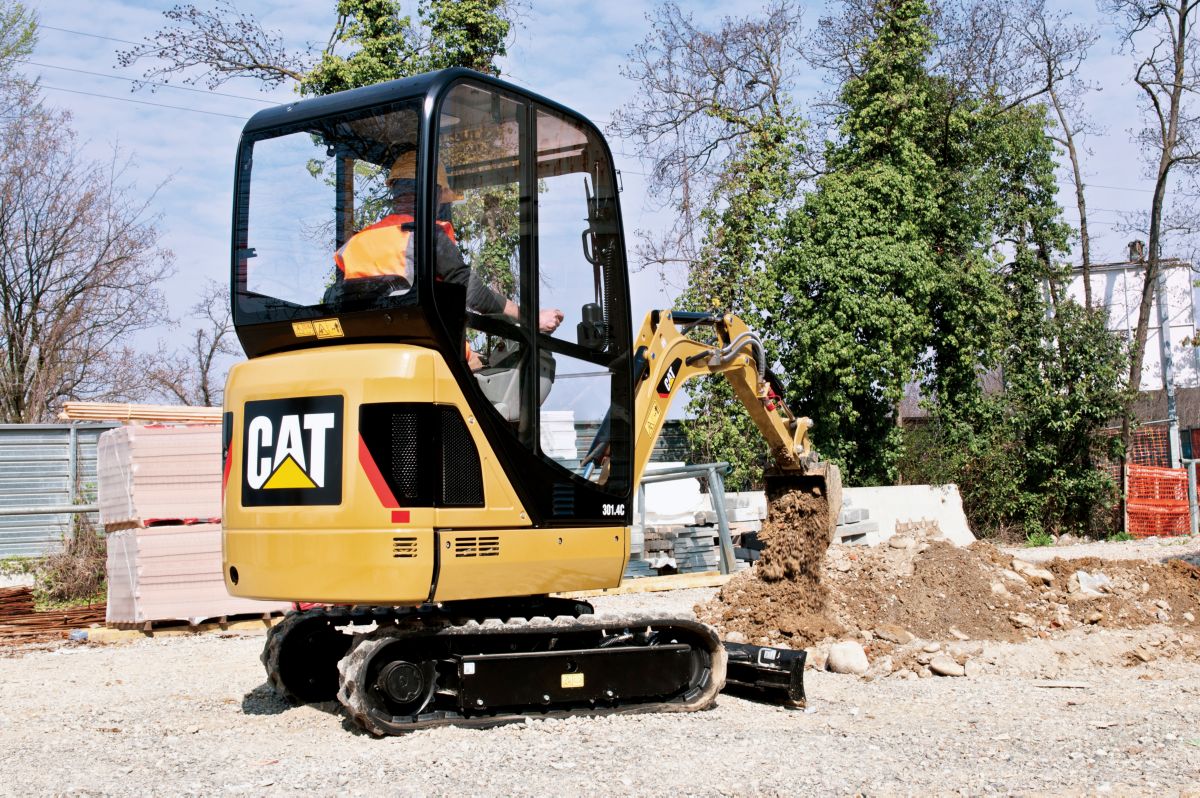

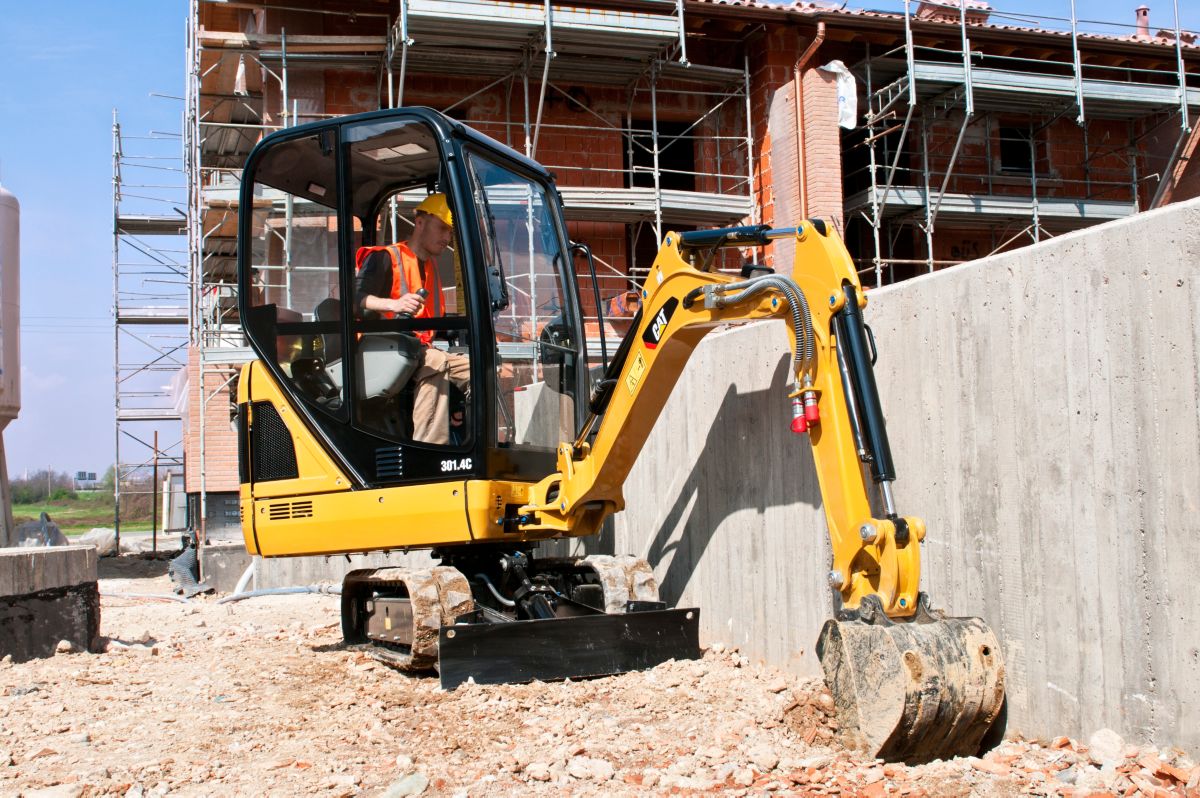

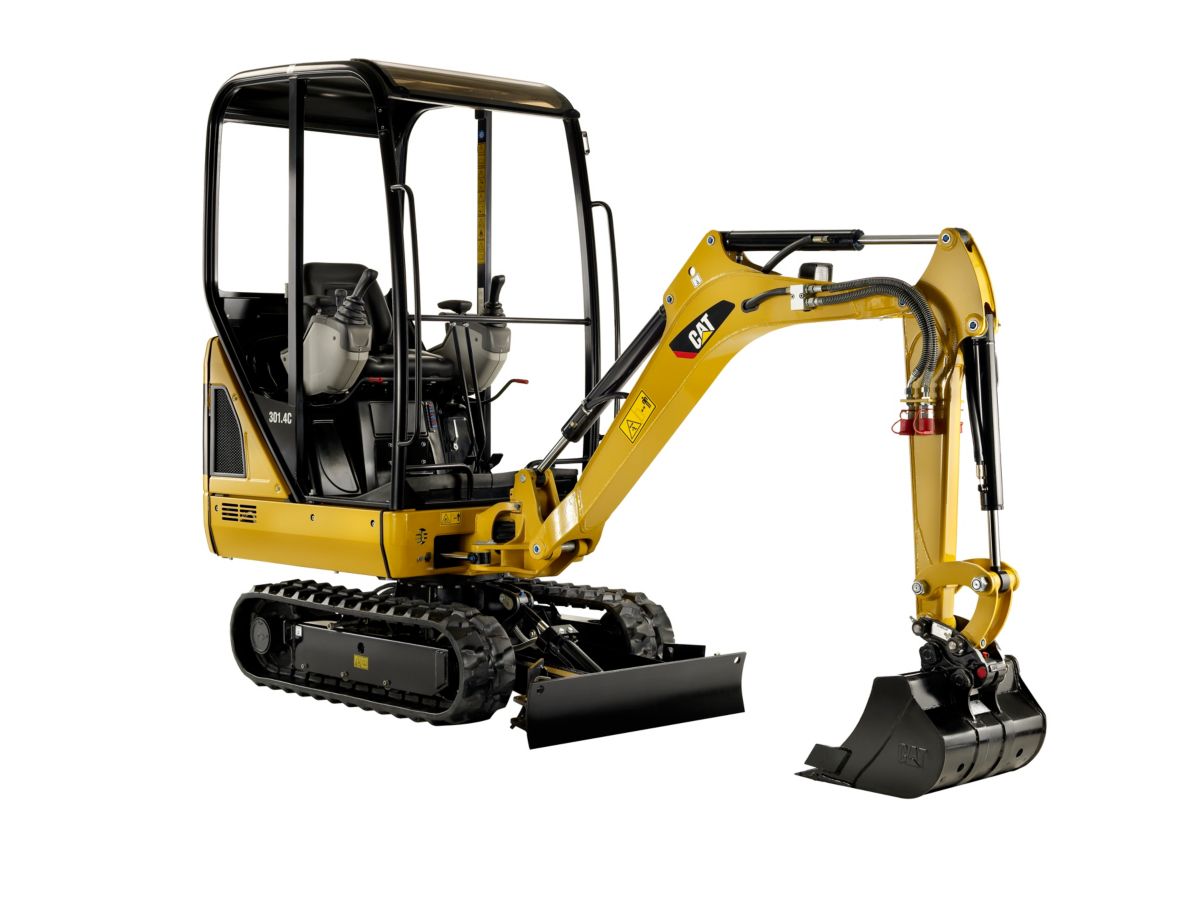

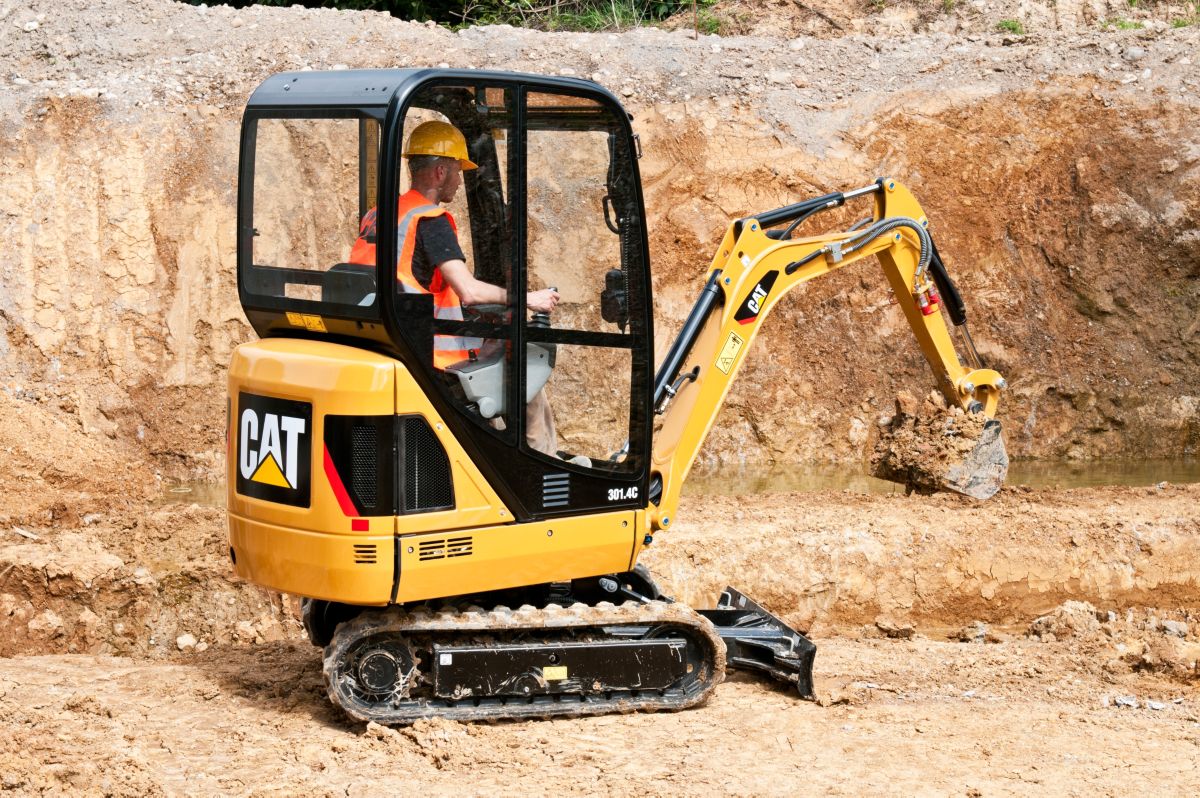

Overview

Engine

Engine Model
Yanmar 3TNV76
Net Power
17.70 hp
13.20 kW
Gross Power
24.30 hp
17.90 kW
Displacement
68.10 in3
1116.00 cm3
Rated Net Power (ISO 9249)
17.70 hp
13.20 kW

Weights

Operating Weight
3241.00 lb
1470.00 kg
Operating Weight - With Cab
3241.00 lb
1470.00 kg
Note
Weights do not include worktools.
Operating Weight - With Cab and Extending Undercarriage
3435.00 lb
1558.00 kg
Operating Weight with Canopy
3042.00 lb
1380.00 kg
Operating Weight - With Canopy and Extending Undercarriage
3236.00 lb
1468.00 kg

Dimensions (Approximate) – Standard Stick

Height
7.47 ft
2276.00 mm
Maximum Digging Depth
7.25 ft
2210.00 mm

Dimensions (Approximate) - Standard Stick

Maximum Digging Depth - Dozer Blade Below Ground
10.40 in
264.00 mm
Maximum Digging Height
11.13 ft
3393.00 mm
Maximum Digging Radius
12.14 ft
3700.00 mm

Dimensions (Approximate) – Standard Stick

Maximum Dumping Height
7.88 ft
2403.00 mm

Dimensions (Approximate) - Standard Stick

Maximum Lift of Dozer Blade Above Ground
8.30 in
211.00 mm
Maximum Reach - On the Ground
11.93 ft
3636.00 mm
Maximum Swing Angle of Boom System to the Left
73°
Maximum Swing Angle of Boom System to the Right
49°
Maximum Vertical Digging Depth
4.86 ft
1482.00 mm
Minimum Boom Swing Radius
4.89 ft
1490.00 mm
Tail Swing Radius
3.53 ft
1075.00 mm

Dimensions (Approximate) – Standard Stick

Track Length
4.79 ft
1460.00 mm
Undercarriage Width – Extended
4.27 ft
1300.00 mm
Undercarriage Width – Retracted
3.25 ft
990.00 mm
Width
2.40 ft
730.00 mm

Travel System

Travel Speed - 1st Gear
1.50 mile/h
2.40 km/h
Travel Speed - 2nd Gear
2.50 mile/h
4.10 km/h
Gradeability
30°/58%
Track Width
9.06 in
230.00 mm

Hydraulic System

Operating Pressure - Equipment
2901.00 psi
200.00 bar
Operating Pressure - Travel
2901.00 psi
200.00 bar
Operating Pressure - Swing
2176.00 psi
150.00 bar
Max. Bucket Force
3597.00 lb
16.00 kN
Maximum Stick Force
1596.00 lb
7.10 kN
Pump Flow at 2,200 rpm
9.20 gal/min
35.00 L/min

Blade

Width
38.60 in
980.00 mm
Height
9.10 in
232.00 mm
Dig Depth
10.40 in
264.00 mm
Lift Height
8.30 in
211.00 mm

Service Refill Capacities

Fuel Tank Capacity
6.30 gal
24.00 L
Hydraulic Tank Capacity
5.30 gal (US)
20.00 l

Operating Specifications

Machine Overhang
16.70 in
424.00 mm
Stick Length - Long
43.20 in
1100.00 mm
Stick Length - Standard
37.10 in
940.00 mm

Dimensions (Approximate) - Long Stick

Height
7.47 ft
2276.00 mm
Width
2.40 ft
730.00 mm
Undercarriage Width - Retracted
3.25 ft
990.00 mm
Undercarriage Width - Extended
4.27 ft
1300.00 mm
Maximum Digging Depth
7.78 ft
2370.00 mm
Maximum Vertical Digging Depth
5.33 ft
1626.00 mm
Maximum Digging Height
11.51 ft
3507.00 mm
Maximum Dumping Height
8.26 ft
2517.00 mm
Maximum Digging Radius
12.63 ft
3850.00 mm
Maximum Reach - On the Ground
12.44 ft
3791.00 mm
Tail Swing Radius
3.53 ft
1075.00 mm
Maximum Lift of Dozer Blade Above Ground
8.30 in
211.00 mm
Maximum Digging Depth - Dozer Blade Below Ground
10.40 in
264.00 mm
Track Length
4.79 ft
1460.00 mm
Maximum Swing Angle of Boom System to the Right
49°
Maximum Swing Angle of Boom System to the Left
73°
Minimum Boom Swing Radius
4.89 ft
1490.00 mm

Engine

Engine Model
Yanmar 3TNV76
Net Power
17.70 HP
13.20 kW
Gross Power
24.30 HP
17.90 kW
Displacement
68.10 in³
1116.00 cm³
Rated Net Power - ISO 9249
17.70 HP
13.20 kW

Weights

Operating Weight
3241.00 lb
1470.00 kg
Note
Weights do not include worktools.
Operating Weight - With Canopy
3042.00 lb
1380.00 kg

Dimensions (Approximate) - Standard Stick

Height
7.47 ft
2276.00 mm
Maximum Digging Depth
7.25 ft
2210.00 mm
Maximum Dumping Height
7.88 ft
2403.00 mm
Track Length
4.79 ft
1460.00 mm
Undercarriage Width - Extended
4.27 ft
1300.00 mm
Undercarriage Width - Retracted
3.25 ft
990.00 mm
Width
2.40 ft
730.00 mm

Hydraulic System

Operating Pressure - Equipment
2901.00 psi
200.00 bar
Operating Pressure - Travel
2901.00 psi
200.00 bar
Operating Pressure - Swing
2176.00 psi
150.00 bar
Maximum Bucket Force
3597.00 lb
16.00 kN
Pump Flow at 2,200 rpm
9.20 gal/min
35.00 l/min

Blade

Width
38.60 in
980.00 mm

Service Refill Capacities

Fuel Tank Capacity
6.30 gal (US)
24.00 l

Operating Specifications

Stick Length - Long
43.20 in
1100.00 mm
Features

Versatility

Performance and Durability

Productive Comfort

Customer Support

Sales Features

Versatility

Easy to transport and greater site access

Performance and Durability

Powerful operation and greater uptime

Productive Comfort

Large operator environment; ergonomic control layout

Customer Support

Low operating costs with excellent services and options
Standard Equipment
  • 1-way and 2-way (combined function) auxiliary hydraulic lines
  • 230 mm (9.06 in) rubber track
  • Boom mounted light
  • Canopy with Tip-Over Protection (TOPS) ISO 12117
  • Control pattern changer (not available in Europe)
  • Dozer blade
  • Hydraulic oil cooler
  • Maintenance free battery
  • Retractable seat belt
  • Suspension seat, vinyl covered
  • Travel pedals
Optional Equipment
  • Bio oil
  • Boom check valve
  • Cab, radio ready with FOPS ISO 10262 (Level 1), Tip-Over Protection (TOPS) ISO 12117, heater/defroster, interior light and windscreen wiper/washer
  • Custom color paint
  • Ecology drain for engine oil
  • Front screen guard for canopy
  • Hydraulic quick coupler lines
  • Mechanical quick coupler
  • Mirror pack
  • Radio ready preparation
  • Roof mounted cab worklights
  • Rotating beacon
  • Suspension seat, fabric covered
  • Telescopic undercarriage and blade extensions (900-1300 mm [35.4-51.2 in]) (standard in North America)
  • Toolkit
  • Travel alarm
