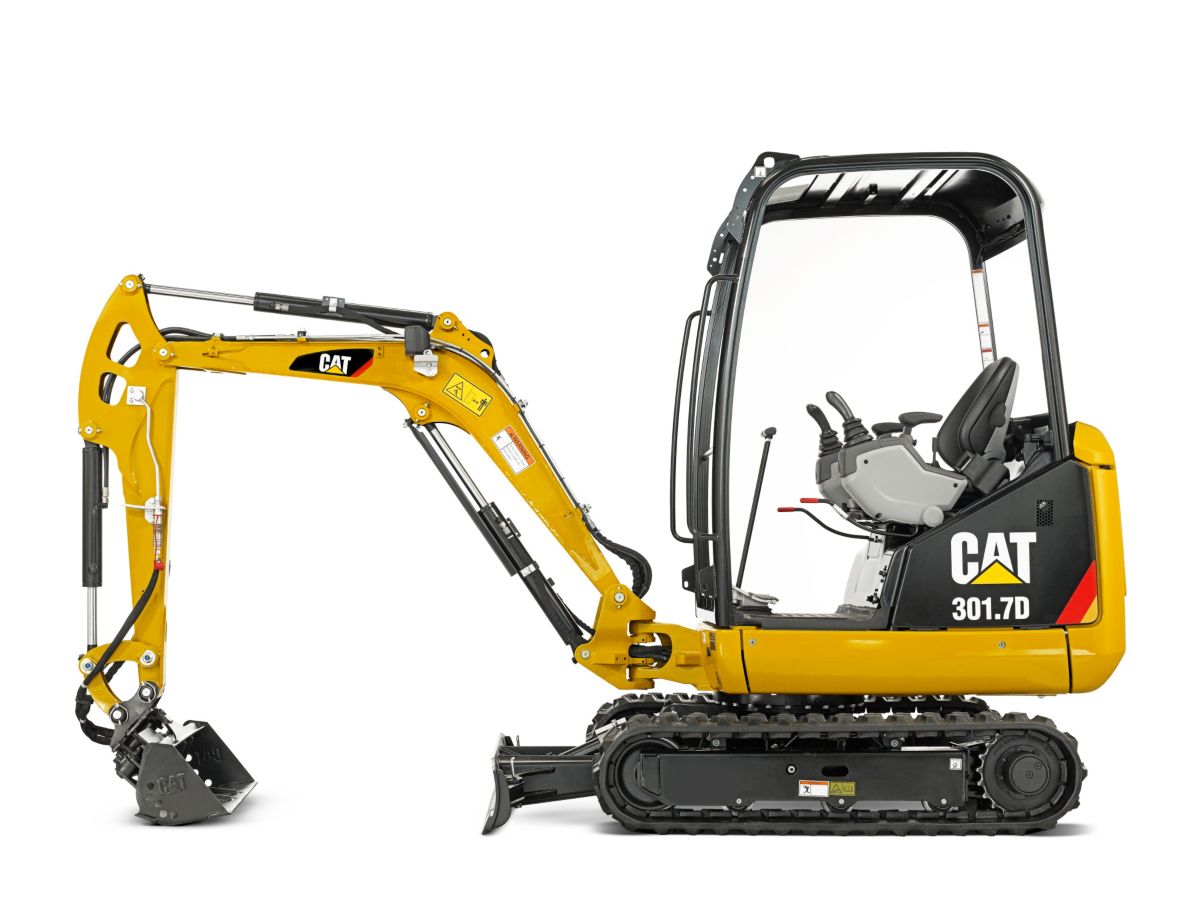

The Cat® 301.7D gives you a blend of power, control and stability to make your working day easier and more productive.

Engine

Engine Model
Yanmar 3TNV76
Net Power
17.70 hp
13.20 kW
Displacement
40.00 in3
1116.00 cm3
Gross Power (ISO 14396)
24.30 hp
17.90 kW
Rated Net Power - 2,200 rpm - ISO 9249
17.70 HP
13.20 kW

Weights

Operating Weight
3810.00 lb
1728.00 kg
Operating Weight - With Cab
3792.00 lb
1720.00 kg
Operating Weight - With Cab and Extending Undercarriage
4068.00 lb
1845.00 kg
Operating Weight with Canopy
3550.00 lb
1610.00 kg
Operating Weight - With Canopy and Extending Undercarriage
3825.00 lb
1735.00 kg

Travel System

Gradeability
30°/58%
Travel Speed
2.8 km/h/5.6 km/h (1.74 mph/3.48 mph)

Hydraulic System

Operating Pressure - Equipment
2900.00 psi
200.00 bar
Operating Pressure - Travel
2900.00 psi
200.00 bar
Operating Pressure - Swing
1813.00 psi
125.00 bar
Auxiliary Circuits - Primary
30 L/min at 170 bar (8 gal/min at 2,465 psi)
Auxiliary Circuits - Secondary
17 L/min at 200 bar (4.5 gal/min at 2,900 psi)
Maximum Bucket Force
4226.00 lb
18.80 kN
Maximum Stick Force - Long Stick
2203.00 lb
9.80 kN
Maximum Stick Force - Standard Stick
2518.00 lb
11.20 kN
Pump Flow at 2,200 rpm
1.70 gal/min
6.40 l/min

Blade

Width
39.00 in
990.00 mm
Height
9.00 in
230.00 mm
Dig Depth - Standard Blade
12.50 in
317.00 mm
Lift Height - Standard Blade
8.00 in
197.00 mm

Service Refill Capacities

Fuel Tank Capacity
6.30 gal
24.00 L
Hydraulic Tank Capacity
5.50 gal (US)
21.00 l

Dimensions (Approximate) - Long Stick

Boom Swing Angle - LH
77°/64°
Boom Swing Angle - RH
48.00 °
48.00 °
Height
7.51 ft
2290.00 mm
Length - Undercarriage - Extending
5.25 ft
1600.00 mm
Length - Undercarriage - Fixed
4.74 ft
1445.00 mm
Maximum Boom Offset (LH)
1.18 ft
360.00 mm
Maximum Boom Offset (RH)
1.71 ft
520.00 mm
Maximum Dig Height
11.79 ft
3595.00 mm
Maximum Digging Depth
7.87 ft
2400.00 mm
Maximum Dozer Dig Depth
1.00 ft
320.00 mm
Maximum Dozer Lift Height
8.00 in
200.00 mm
Maximum Dump Height
8.56 ft
2610.00 mm
Maximum Reach - Ground Level
12.78 ft
3895.00 mm
Maximum Vertical Dig Depth
5.31 ft
1620.00 mm
Tail Swing Radius
3.84 ft
1170.00 mm
Transport Length - Arm Lowered
12.65 ft
3855.00 mm
Undercarriage Width (Extended)
4.27 ft
1300.00 mm
Undercarriage Width (Retracted)
3.25 ft
990.00 mm
Width
3.25 ft
990.00 mm

Operating Specifications

Machine Overhang
19.50 in
495.00 mm
Stick Length - Long
46.00 in
1180.00 mm
Stick Length - Standard
39.60 in
980.00 mm

Dimensions (Approximate) - Standard Stick

Boom Swing Angle - LH
77°/64°
Boom Swing Angle - RH
48.00 °
48.00 °
Height
7.51 ft
2290.00 mm
Length - Undercarriage - Extending
5.25 ft
1600.00 mm
Length - Undercarriage - Fixed
4.74 ft
1445.00 mm
Maximum Boom Offset - LH
1.18 ft
360.00 mm
Maximum Boom Offset - RH
1.71 ft
520.00 mm
Maximum Dig Height
11.43 ft
3485.00 mm
Maximum Digging Depth
7.22 ft
2200.00 mm
Maximum Dozer Dig Depth
1.00 ft
320.00 mm
Maximum Dozer Lift Height
8.00 in
200.00 mm
Maximum Dump Height
8.20 ft
2500.00 mm
Maximum Reach - Ground Level
12.14 ft
3700.00 mm
Maximum Vertical Dig Depth
4.69 ft
1430.00 mm
Tail Swing Radius
3.84 ft
1170.00 mm
Transport Length - Arm Lowered
12.65 ft
3855.00 mm
Undercarriage Width - Extended
4.27 ft
1300.00 mm
Undercarriage Width - Retracted
3.25 ft
990.00 mm
Width
3.25 ft
990.00 mm

Engine

Engine Model
Yanmar 3TNV76
Net Power
17.70 HP
13.20 kW
Displacement
40.00 in³
1116.00 cm³
Gross Power - ISO 14396
24.30 HP
17.90 kW

Weights

Operating Weight
3810.00 lb
1728.00 kg
Operating Weight - With Canopy
3550.00 lb
1610.00 kg

Hydraulic System

Operating Pressure - Equipment
2900.00 psi
200.00 bar
Operating Pressure - Travel
2900.00 psi
200.00 bar
Operating Pressure - Swing
1813.00 psi
125.00 bar

Blade

Width
39.00 in
990.00 mm

Service Refill Capacities

Fuel Tank Capacity
6.30 gal (US)
24.00 l

Dimensions (Approximate) - Standard Stick

Maximum Dump Height
8.20 ft
2500.00 mm
Tail Swing Radius
3.84 ft
1170.00 mm

Dimensions (Approximate) - Long Stick

Height
7.51 ft
2290.00 mm
Maximum Boom Offset - LH
1.18 ft
360.00 mm
Maximum Boom Offset - RH
1.71 ft
520.00 mm
Maximum Digging Depth
7.87 ft
2400.00 mm
Maximum Dozer Dig Depth
1.00 ft
320.00 mm
Tail Swing Radius
3.84 ft
1170.00 mm
Undercarriage Width - Extended
4.27 ft
1300.00 mm
Undercarriage Width - Retracted
3.25 ft
990.00 mm
Width
3.25 ft
990.00 mm

Operating Specifications

Stick Length - Long
46.00 in
1180.00 mm
Features

Performance



Versatility



Productive Comfort



Engine and Serviceability



Sales Features

Performance

Powerful digging combined with smooth control.

Versatility

Flexibility built in for a variety of jobs.

Productive Comfort

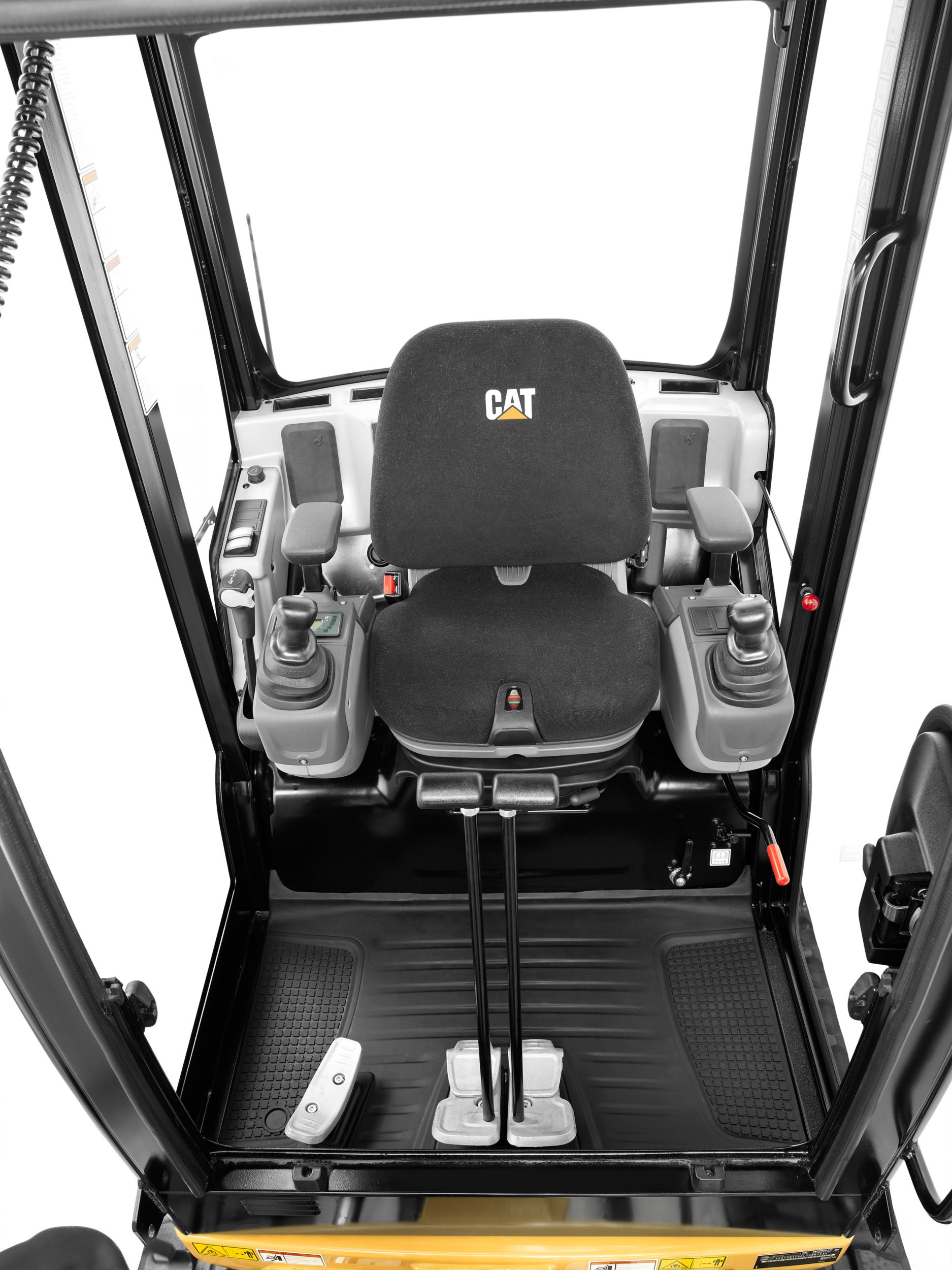

Large operator environment and ergonomic control layout.

Engine and Serviceability

Superior power with easy access and minimal maintenance requirements keep you working.
Standard Equipment
  • Working light mounted to boom
Optional Equipment
  • Additional hydraulic circuit diverted from bucket cylinder
  • Auto engine idle
  • Boom stick or dozer blade check valve
  • Cab, radio ready - ROPS and TOPS protection
  • Cab top guard to ISO 10262 (Level 1)
  • Cab/canopy lights
  • Extending undercarriage
  • Joystick mounted proportional auxiliary control with flow control
  • Long dozer blade
  • Long stick
  • Mirror pack
  • Removable swing stop
  • Second auxiliary lines
  • Suspension seat, fabric covered
