Overview

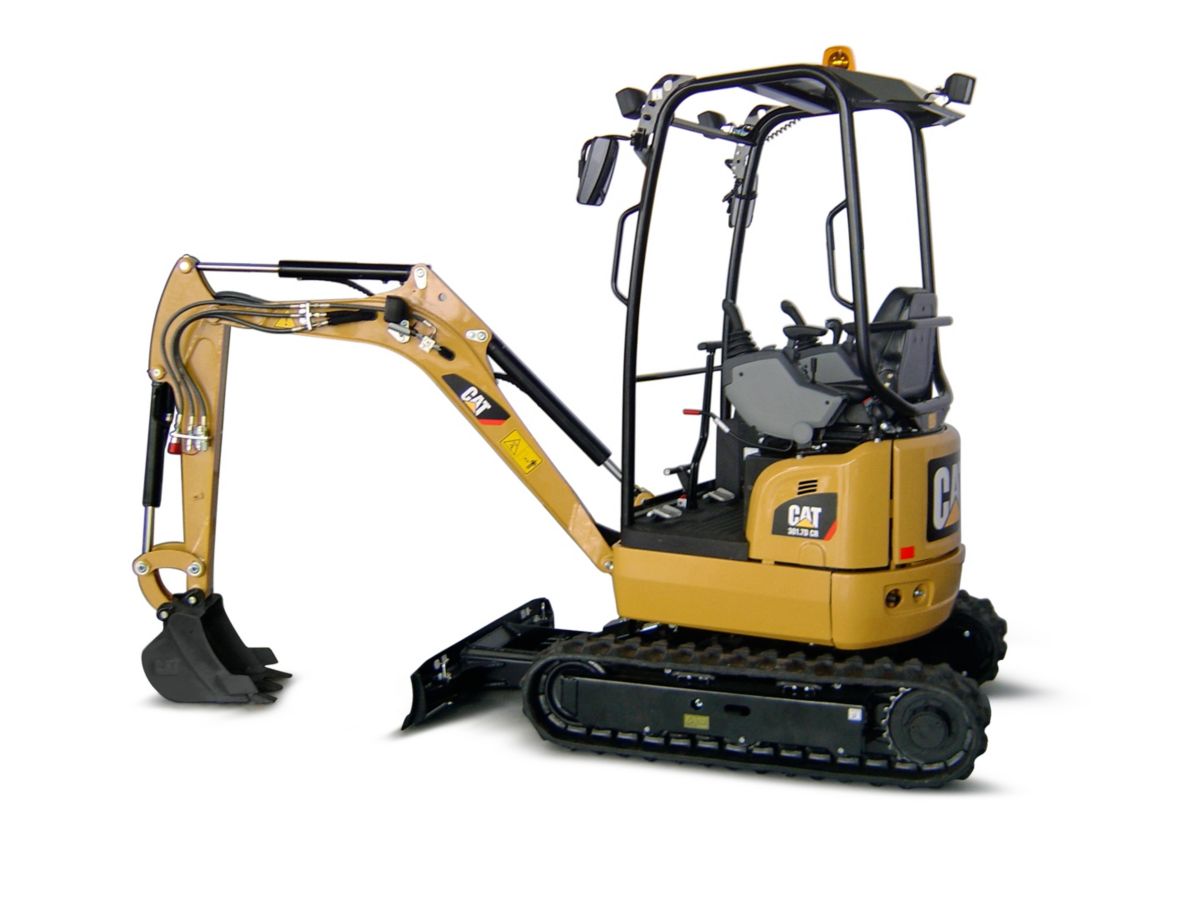

The new Cat® 301.7D CR gives you a blend of power, control and stability to make your working day easier and more productive.

Engine

Engine Model
Yanmar 3TNV76
Net Power
17.70 hp
13.20 kW
Displacement
40.00 in3
1116.00 cm3
Gross Power (ISO 14396)
24.30 hp
17.90 kW
Rated Net Power - 2,200 rpm - ISO 9249
17.70 HP
13.20 kW

Weights

Operating Weight
3726.00 lb
1690.00 kg
Operating Weight with Canopy
3726.00 lb
1690.00 kg
Transport Weight - With Canopy
3550.00 lb
1610.00 kg

Travel System

Gradeability
30°/58%
Travel Speed
2.8 km/h-5.6 km/h (1.74 mph-3.48 mph)

Hydraulic System

Operating Pressure - Equipment
3481.00 psi
240.00 bar
Operating Pressure - Travel
3481.00 psi
240.00 bar
Operating Pressure - Swing
2610.00 psi
180.00 bar
Auxiliary Circuits - Primary and Secondary - Maximum Flow
9.00 gal/min
35.00 l/min
Auxiliary Circuits - Primary and Secondary - Maximum Pressure
3335.00 psi
230.00 bar
Maximum Bucket Force
3190.00 lb
14.20 kN
Maximum Stick Force - Long Stick
1640.00 lb
7.30 kN
Maximum Stick Force - Standard Stick
1890.00 lb
8.40 kN
Pump Flow at 2,200 rpm
10.50 gal/min
39.60 l/min

Blade

Height
9.00 in
230.00 mm
Dig Depth
15.00 in
390.00 mm
Lift Height
11.00 in
271.00 mm
Width
990 mm/1300 mm (3 ft 3 in/4 ft 3 in)

Service Refill Capacities

Fuel Tank Capacity
5.00 gal
19.00 L
Hydraulic Tank Capacity
5.30 gal (US)
20.00 l

Dimensions (Approximate) - Long Stick

Boom Swing Angle - LH
65°
Boom Swing Angle - RH
57°
Height
7.75 ft
2362.00 mm
Length - Undercarriage - Extending
5.27 ft
1607.00 mm
Maximum Boom Offset (LH)
1.37 ft
418.00 mm
Maximum Boom Offset (RH)
1.75 ft
533.00 mm
Maximum Dig Height
11.64 ft
3548.00 mm
Maximum Digging Depth
8.14 ft
2481.00 mm
Maximum Dozer Dig Depth
1.28 ft
390.00 mm
Maximum Dozer Lift Height
11.00 in
271.00 mm
Maximum Dump Height
8.38 ft
2555.00 mm
Maximum Reach - Ground Level
13.11 ft
3995.00 mm
Maximum Vertical Dig Depth
5.64 ft
1718.00 mm
Tail Swing Radius
660 mm/722 mm (2'1"/2'4")
Transport Length - Arm Lowered
11.76 ft
3584.00 mm
Undercarriage Width (Extended)
4.27 ft
1300.00 mm
Undercarriage Width (Retracted)
3.25 ft
990.00 mm
Width
2.40 ft
730.00 mm

Operating Specifications

Counterweight
110.00 lb
50.00 kg
Stick Length - Long
43.20 in
1100.00 mm
Stick Length - Standard
37.10 in
940.00 mm

Dimensions (Approximate) - Standard Stick

Boom Swing Angle - LH
65°
Boom Swing Angle - RH
57°
Height
7.75 ft
2362.00 mm
Length - Undercarriage - Extending
5.27 ft
1607.00 mm
Maximum Boom Offset - LH
1.37 ft
418.00 mm
Maximum Boom Offset - RH
1.75 ft
533.00 mm
Maximum Dig Height
11.27 ft
3434.00 mm
Maximum Digging Depth
7.61 ft
2321.00 mm
Maximum Dozer Dig Depth
1.28 ft
390.00 mm
Maximum Dozer Lift Height
11.00 in
271.00 mm
Maximum Dump Height
8.00 ft
2441.00 mm
Maximum Reach - Ground Level
12.60 ft
3842.00 mm
Maximum Vertical Dig Depth
5.18 ft
1578.00 mm
Tail Swing Radius
660 mm/722 mm (2'1"/2'4")
Transport Length - Arm Lowered
11.76 ft
3584.00 mm
Undercarriage Width - Extended
4.27 ft
1300.00 mm
Undercarriage Width - Retracted
3.25 ft
990.00 mm
Width
2.40 ft
730.00 mm

Engine

Engine Model
Yanmar 3TNV76
Net Power
17.70 HP
13.20 kW
Displacement
68.10 in³
1116.00 cm³
Gross Power - ISO 14396
24.30 HP
17.90 kW

Weights

Operating Weight
3726.00 lb
1690.00 kg
Operating Weight - With Canopy
3726.00 lb
1690.00 kg

Hydraulic System

Operating Pressure - Equipment
3481.00 psi
240.00 bar
Operating Pressure - Travel
3481.00 psi
240.00 bar
Operating Pressure - Swing
2610.00 psi
180.00 bar

Service Refill Capacities

Fuel Tank Capacity
5.00 gal (US)
19.00 l

Dimensions (Approximate) - Standard Stick

Maximum Dump Height
8.00 ft
2441.00 mm

Dimensions (Approximate) - Long Stick

Height
7.75 ft
2362.00 mm
Maximum Boom Offset - LH
1.37 ft
418.00 mm
Maximum Boom Offset - RH
1.75 ft
533.00 mm
Maximum Digging Depth
8.14 ft
2481.00 mm
Maximum Dozer Dig Depth
1.28 ft
390.00 mm
Undercarriage Width - Extended
4.27 ft
1300.00 mm
Undercarriage Width - Retracted
3.25 ft
990.00 mm
Width
2.40 ft
730.00 mm

Operating Specifications

Stick Length - Long
43.20 in
1100.00 mm
Features

Compact Radius

Versatility

Operator Station

Engine and Service Access

Sales Features

Compact Radius

Productivity in confined areas with zero tail swing

Versatility

Flexibility built in for a variety of jobs

Operator Station

Simple, easy operation allows the operator to focus on production

Engine and Service Access

Powerful engine with load sensing hydraulics and minimal maintenance
Standard Equipment
  • 230 mm rubber track
  • Canopy - ROPS and TOPS protection
  • Dozer blade
  • Extending undercarriage
  • Hammer/2 way lines
  • Hydraulic oil cooler
  • Maintenance free battery
  • Retractable seat belt
  • Standard stick
  • Suspension seat, vinyl covered
  • Travel steering bars
  • Working light mounted to boom
Optional Equipment
  • 2nd auxiliary lines with flow adjust
  • Boom stick or dozer blade check valve
  • Front and rear lights
  • Long stick
  • Mirror pack
  • Operator rear weather cover
  • Suspension seat, fabric covered
  • Top cab guard to ISO 10262 (Level 1)
