Overview

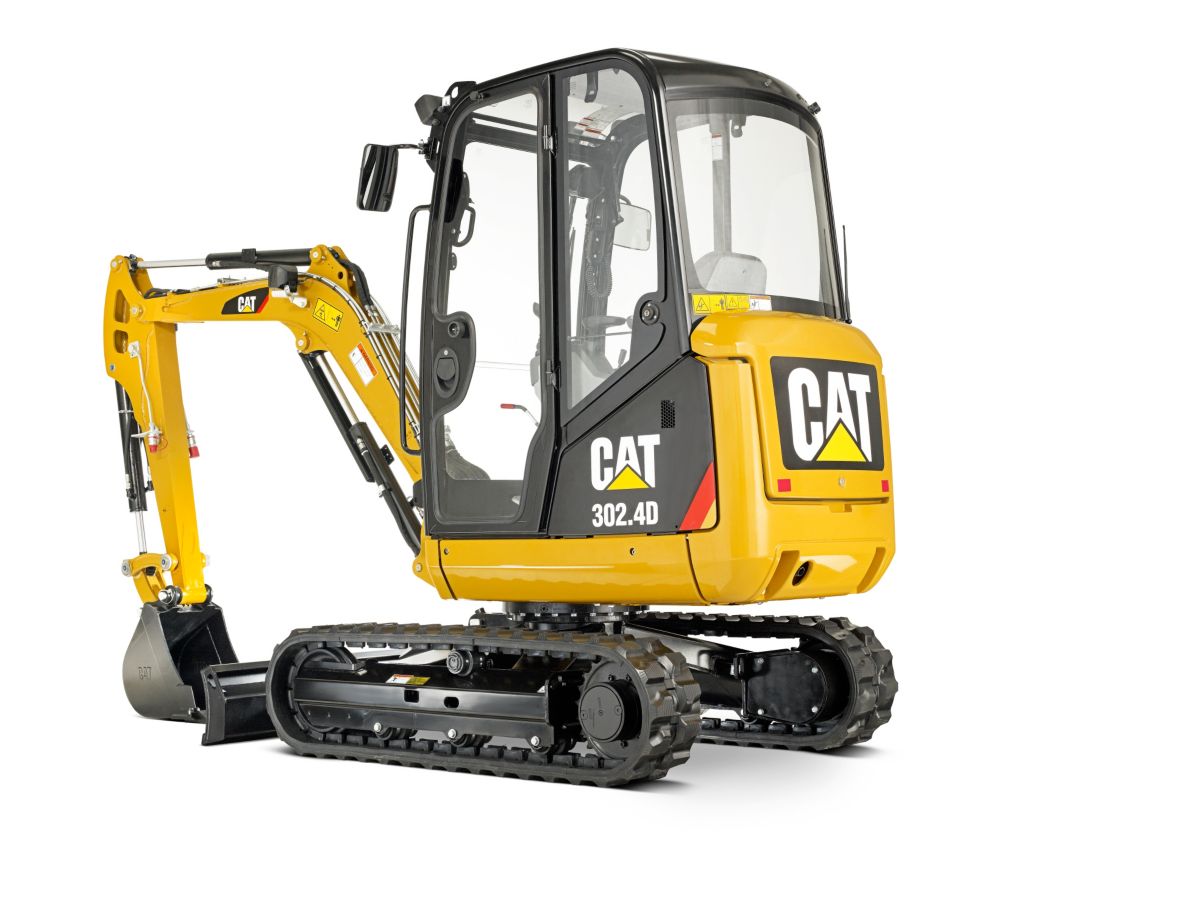

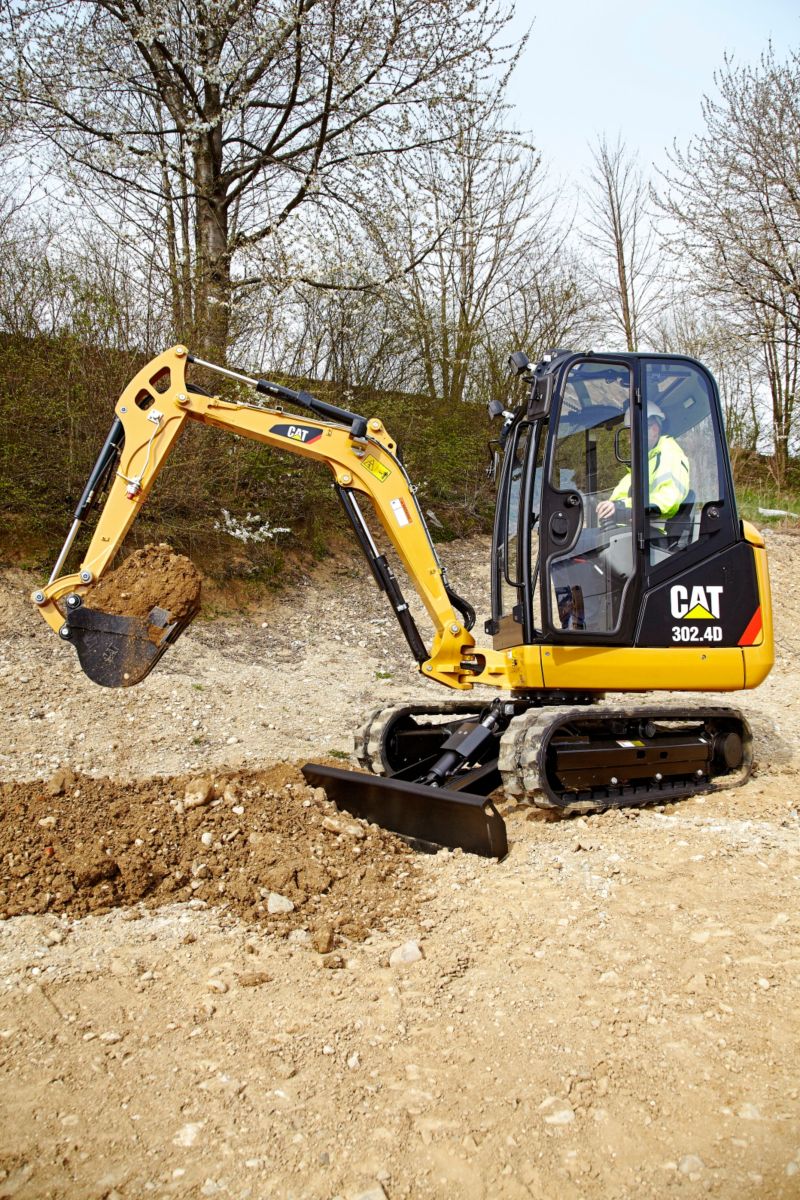

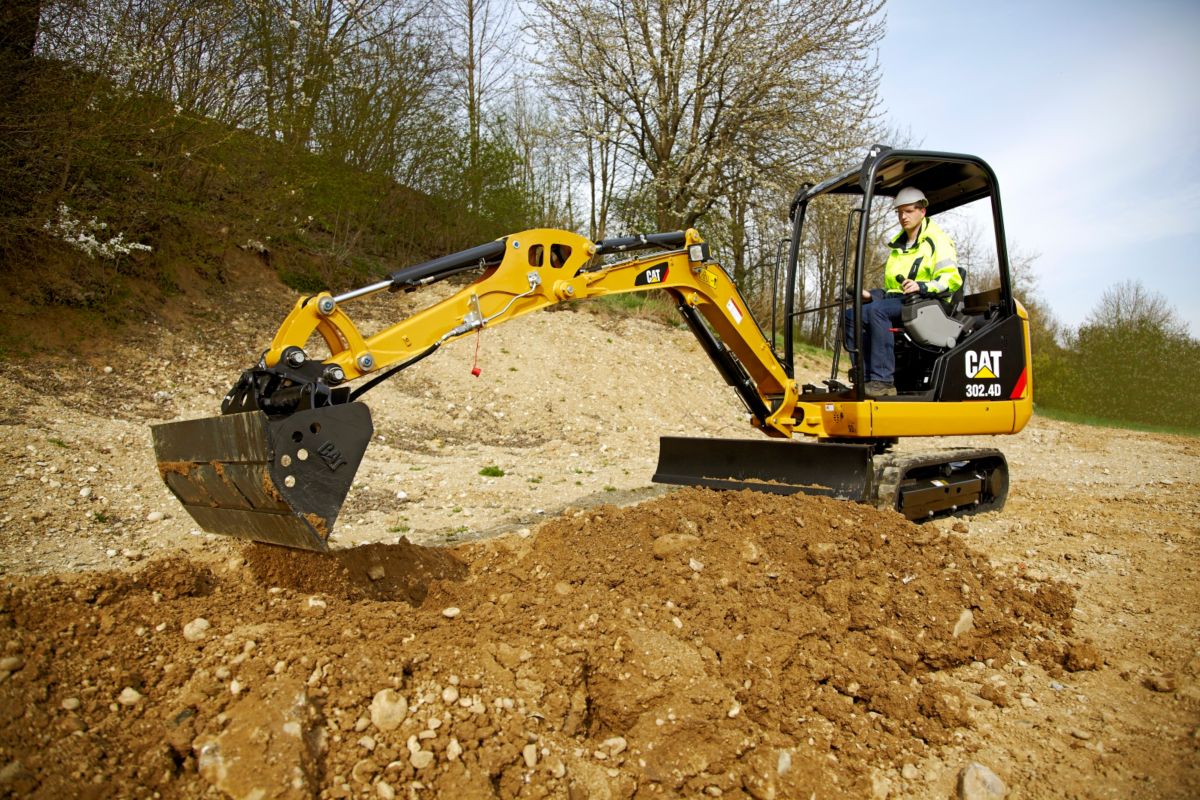

The Cat® 302.4D provides power and efficiency so that you can get the best out of your job without ever feeling the strain. You can be assured of faster, more powerful digging with a smoother response.

Engine

Engine Model
Yanmar 3TNV76
Net Power
17.70 hp
13.20 kW
Displacement
40.00 in3
1116.00 cm3
Gross Power (ISO 14396)
24.30 hp
17.90 kW
Rated Net Power - 2,200 rpm - ISO 9249
17.70 HP
13.20 kW

Weights

Operating Weight
5115.00 lb
2320.00 kg
Operating Weight - With Cab
5115.00 lb
2320.00 kg
Operating Weight with Canopy
4872.00 lb
2210.00 kg
Transport Weight - With Cab
4795.00 lb
2175.00 kg
Transport Weight - With Canopy
4553.00 lb
2065.00 kg

Travel System

Gradeability
30°/58%
Travel Speed
2.5 km/h-4 km/h (1.55 mph-2.5 mph)

Hydraulic System

Operating Pressure - Equipment
3481.00 psi
240.00 bar
Operating Pressure - Travel
3481.00 psi
240.00 bar
Operating Pressure - Swing
2176.00 psi
150.00 bar
Auxiliary Circuits - Primary
30 L/min at 170 bar (8 gal/min at 2,465 psi)
Auxiliary Circuits - Secondary
17 L/min at 200 bar (4.5 gal/min at 2,900 psi)
Maximum Bucket Force
4900.00 lb
21.80 kN
Maximum Stick Force - Long Stick
2990.00 lb
13.30 kN
Maximum Stick Force - Standard Stick
3372.00 lb
15.00 kN
Pump Flow @ 2,200 rpm
26.1 + 26.1 + 19.4 + 6.4 L/min (6.9 + 6.9 + 5.1 + 1.7 gal/min)

Dimensions (Approximate) - Standard Stick

Boom Swing Angle - LH
77°/64°
Boom Swing Angle - RH
48.00 °
48.00 °
Height
7.84 ft
2390.00 mm
Length - Undercarriage
6.00 ft
1840.00 mm
Maximum Boom Offset (LH)
14.00 in
360.00 mm
Maximum Boom Offset (RH)
20.00 in
520.00 mm
Maximum Dig Height
12.96 ft
3950.00 mm
Maximum Digging Depth
7.87 ft
2400.00 mm
Maximum Dozer Dig Depth
13.00 in
335.00 mm
Maximum Dozer Lift Height
12.00 in
300.00 mm
Maximum Dump Height
9.00 ft
2750.00 mm
Maximum Reach - Ground Level
13.19 ft
4020.00 mm
Maximum Vertical Dig Depth
5.15 ft
1570.00 mm
Tail Swing Radius
3.84 ft
1170.00 mm
Transport Length - Arm Lowered
13.22 ft
4030.00 mm
Width
4.59 ft
1400.00 mm

Dimensions (Approximate) - Long Stick

Boom Swing Angle - LH
77°/64°
Boom Swing Angle - RH
48.00 °
48.00 °
Height
7.84 ft
2390.00 mm
Length - Undercarriage
6.00 ft
1840.00 mm
Maximum Boom Offset - LH
14.00 in
360.00 mm
Maximum Boom Offset - RH
20.00 in
520.00 mm
Maximum Dig Height
13.35 ft
4070.00 mm
Maximum Digging Depth
8.53 ft
2600.00 mm
Maximum Dozer Dig Depth
13.00 in
335.00 mm
Maximum Dozer Lift Height
12.00 in
300.00 mm
Maximum Dump Height
9.42 ft
2870.00 mm
Maximum Reach - Ground Level
13.85 ft
4220.00 mm
Maximum Vertical Dig Depth
5.74 ft
1750.00 mm
Tail Swing Radius
3.84 ft
1170.00 mm
Transport Length - Arm Lowered
13.22 ft
4030.00 mm
Width
4.59 ft
1400.00 mm

Blade

Width
55.00 in
1400.00 mm
Height
11.80 in
300.00 mm
Dig Depth
13.00 in
334.00 mm
Lift Height
11.50 in
294.00 mm

Service Refill Capacities

Fuel Tank Capacity
6.30 gal
24.00 L
Hydraulic Tank Capacity
5.00 gal (US)
19.00 l

Operating Specifications

Machine Overhang
18.10 in
460.00 mm
Stick Length - Long
49.20 in
1250.00 mm
Stick Length - Standard
42.00 in
1050.00 mm

Engine

Engine Model
Yanmar 3TNV76
Net Power
17.70 HP
13.20 kW
Displacement
40.00 in³
1116.00 cm³
Gross Power - ISO 14396
24.30 HP
17.90 kW

Weights

Operating Weight
5115.00 lb
2320.00 kg
Operating Weight - With Canopy
4872.00 lb
2210.00 kg

Hydraulic System

Operating Pressure - Equipment
3481.00 psi
240.00 bar
Operating Pressure - Travel
3481.00 psi
240.00 bar
Operating Pressure - Swing
2176.00 psi
150.00 bar
Pump Flow at 2,200 rpm
26.1 + 26.1 + 19.4 + 6.4 L/min (6.9 + 6.9 + 5.1 + 1.7 gal/min)

Blade

Width
55.00 in
1400.00 mm

Service Refill Capacities

Fuel Tank Capacity
6.30 gal (US)
24.00 l

Dimensions (Approximate) - Standard Stick

Maximum Boom Offset - LH
14.00 in
360.00 mm
Maximum Boom Offset - RH
20.00 in
520.00 mm
Maximum Dozer Dig Depth
13.00 in
335.00 mm
Maximum Dump Height
9.00 ft
2750.00 mm
Tail Swing Radius
3.84 ft
1170.00 mm

Dimensions (Approximate) - Long Stick

Height
7.84 ft
2390.00 mm
Maximum Digging Depth
8.53 ft
2600.00 mm
Tail Swing Radius
3.84 ft
1170.00 mm
Width
4.59 ft
1400.00 mm

Operating Specifications

Stick Length - Long
49.20 in
1250.00 mm
Features

Versatility

Performance

Productive Comfort

Maintenance and Service

Sales Features

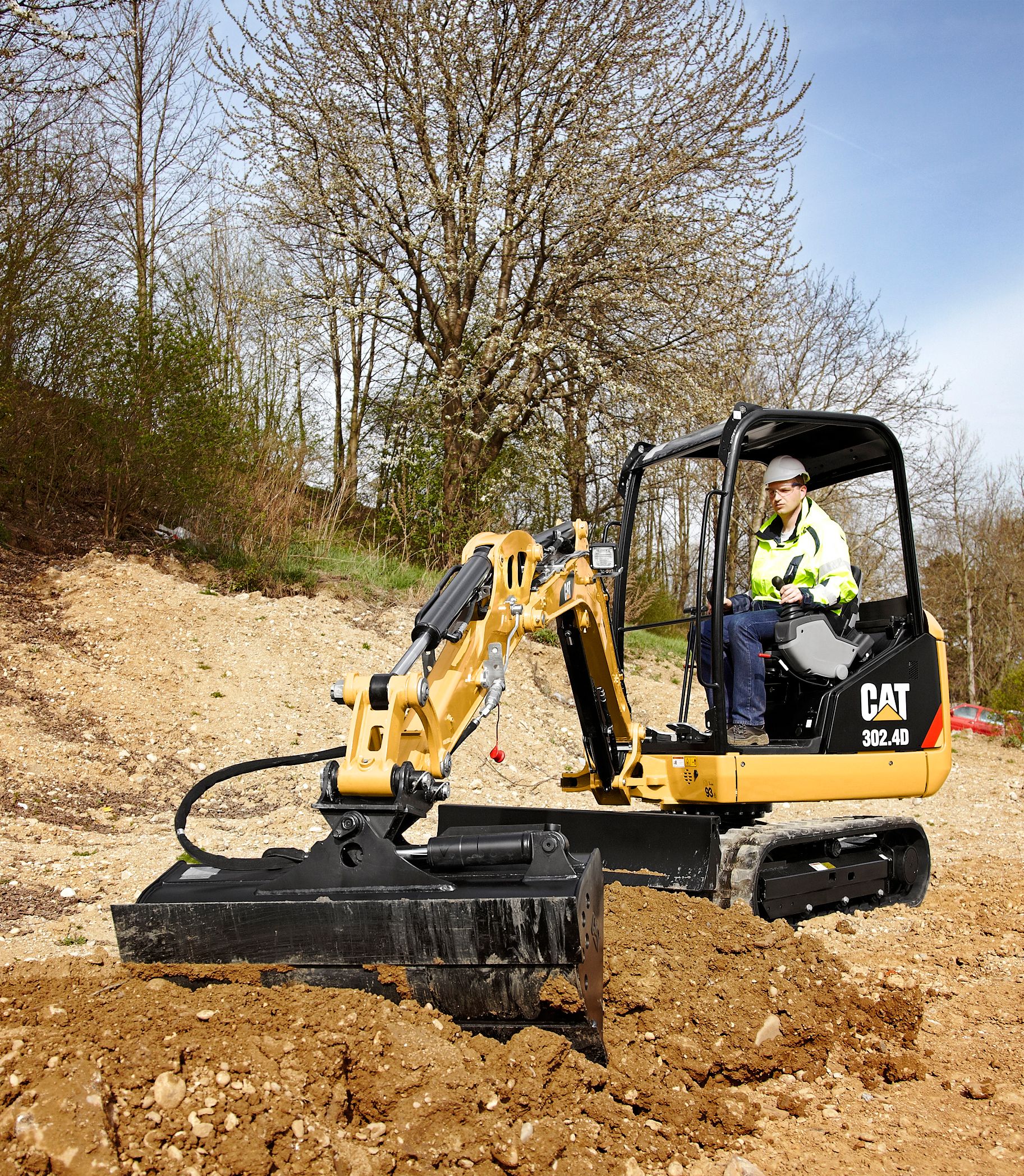

Versatility

Flexible and functional for all jobs.

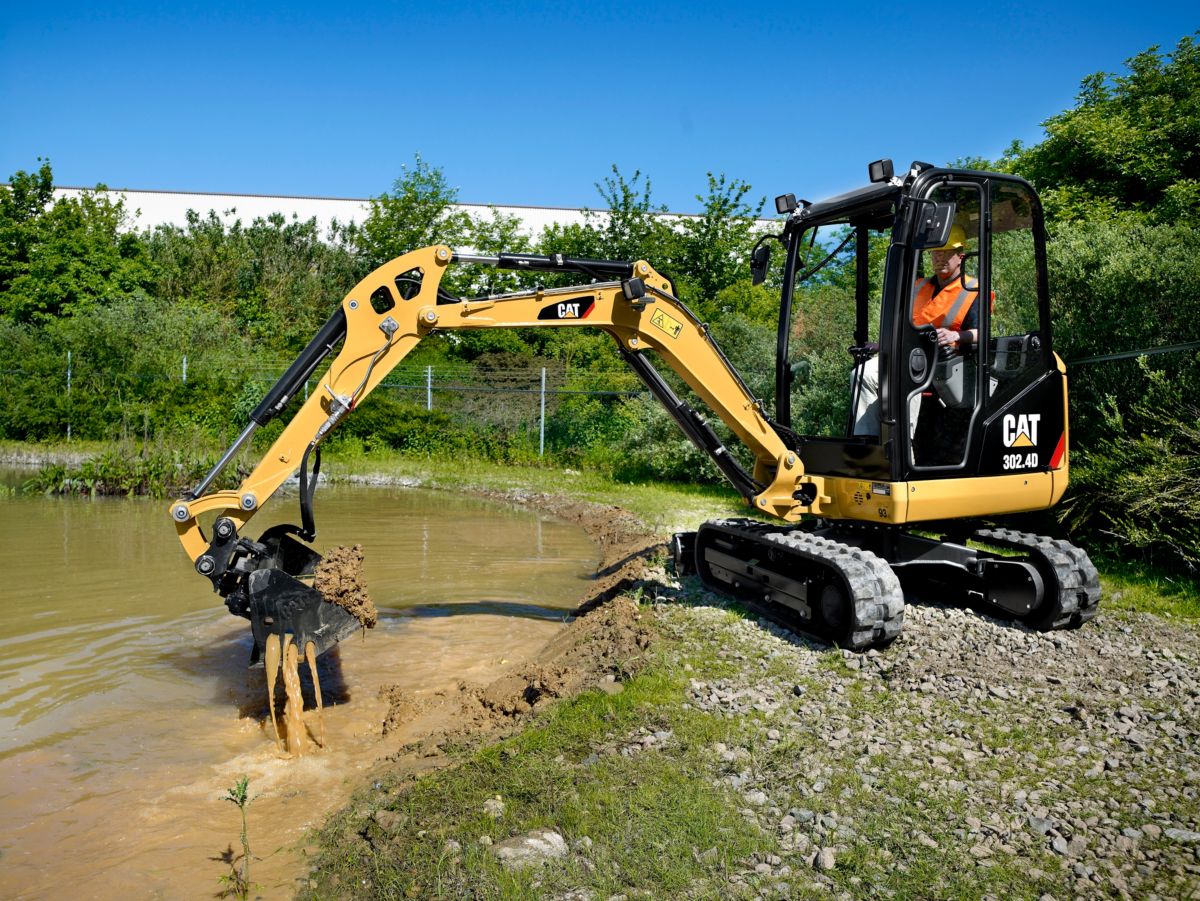

Performance

Powerful operation and greater uptime.

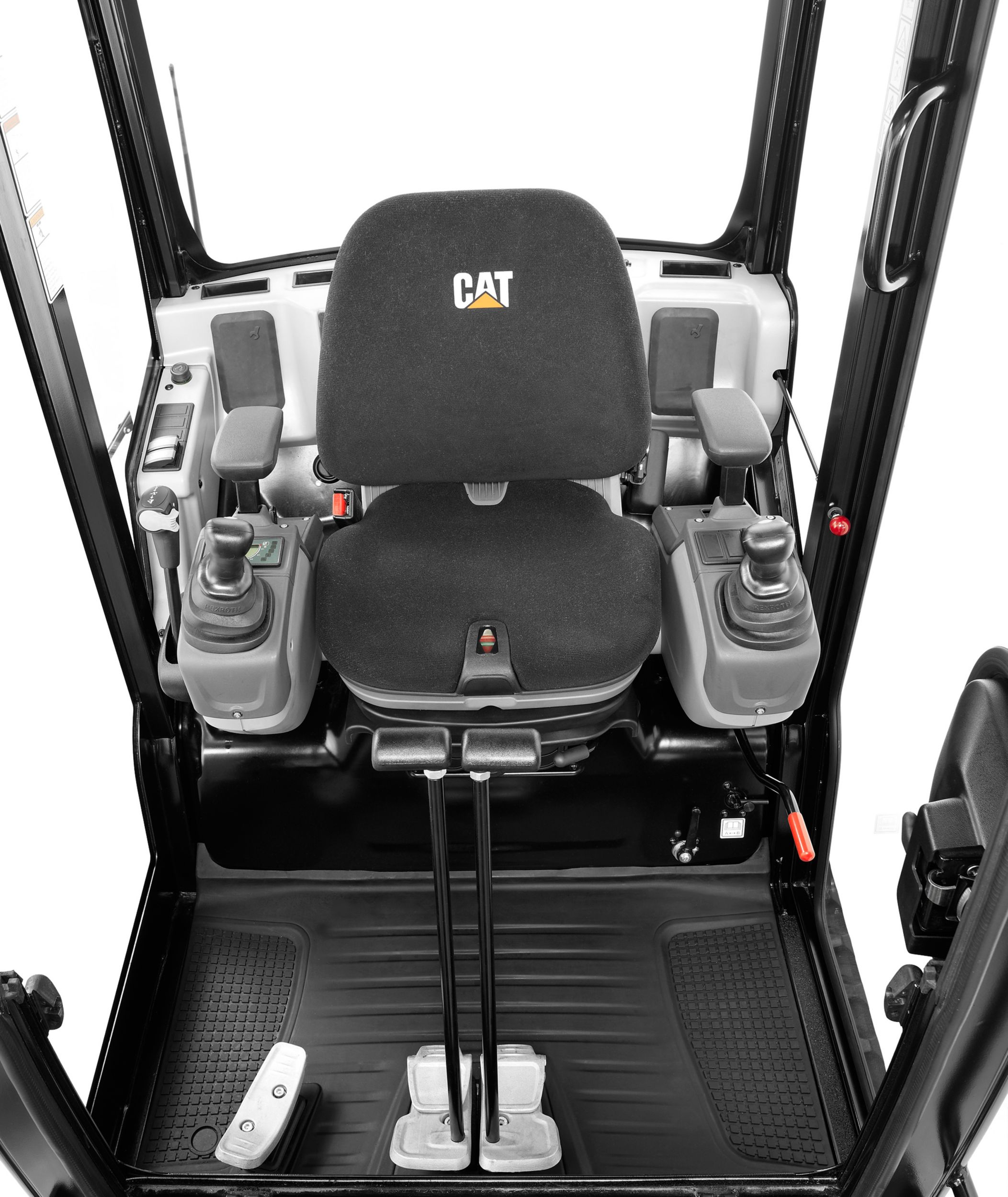

Productive Comfort

Large operator environment and ergonomic control layout.

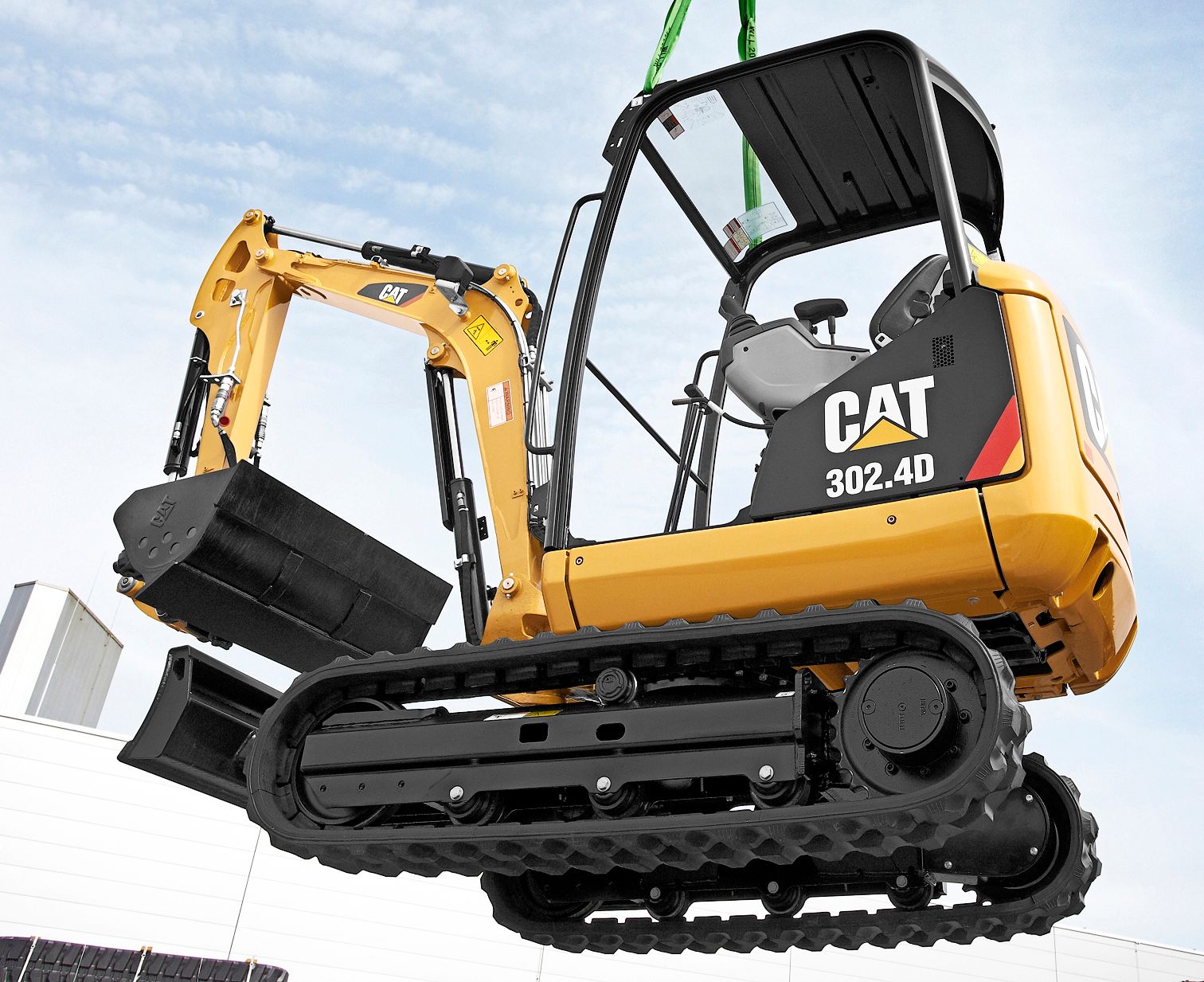

Maintenance and Service

Easy access and minimal maintenance requirements keep you working.
Standard Equipment
  • Working light mounted to boom
Optional Equipment
  • Additional hydraulic circuit diverted from bucket cylinder
  • Auto engine idle
  • Boom stick or dozer blade check valve
  • Cab, radio ready - ROPS and TOPS protection, heater/defroster and windscreen washer/wiper
  • Cab top guard to ISO 10262 (Level 1)
  • Cab/canopy lights
  • Joystick mounted proportional auxiliary control with flow control
  • Long stick
  • Mirror pack
  • Removable swing stop
  • Second auxiliary lines
  • Suspension seat, fabric covered
