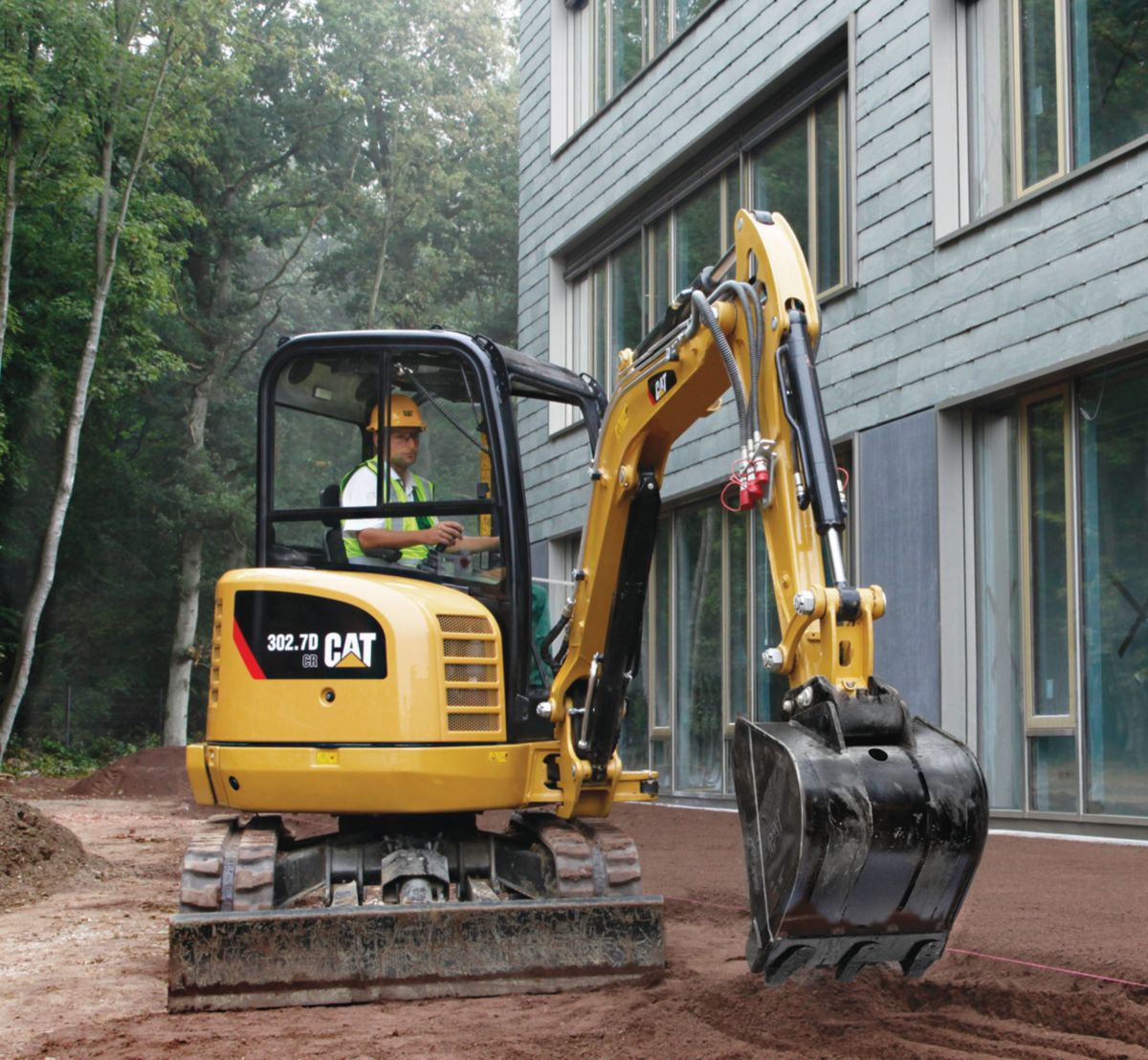

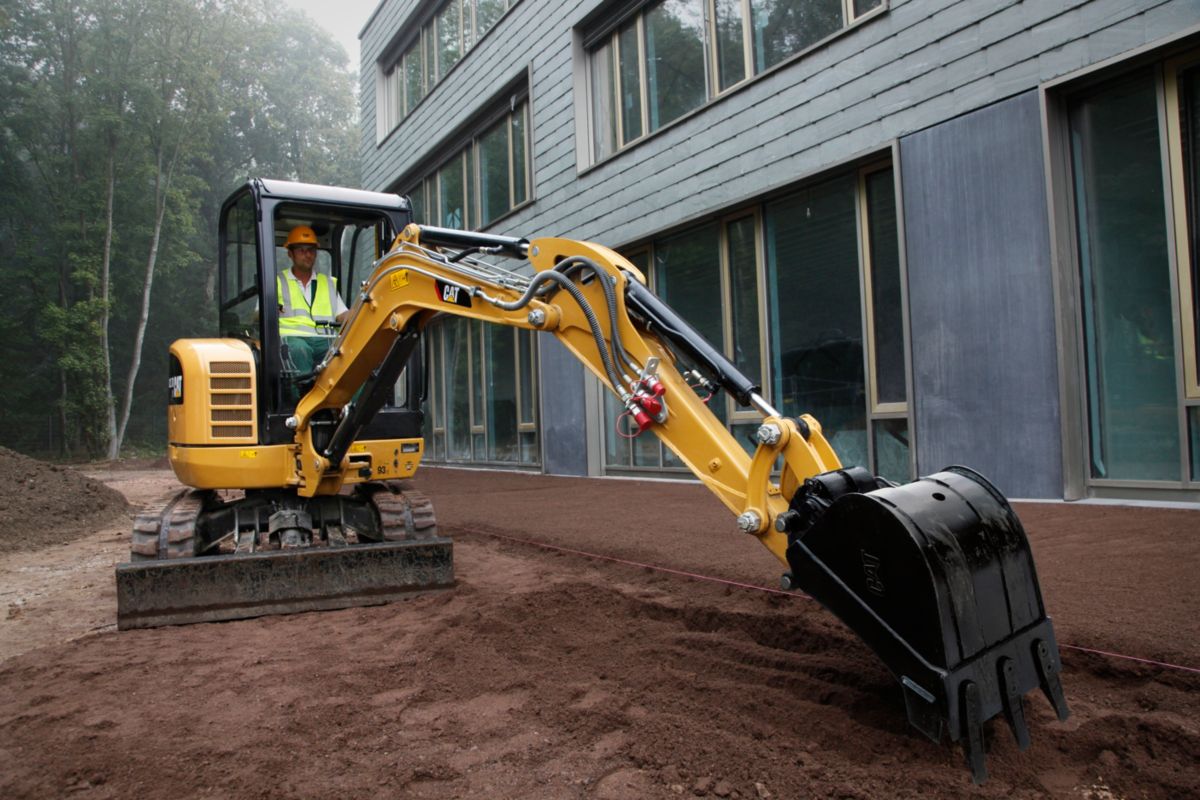

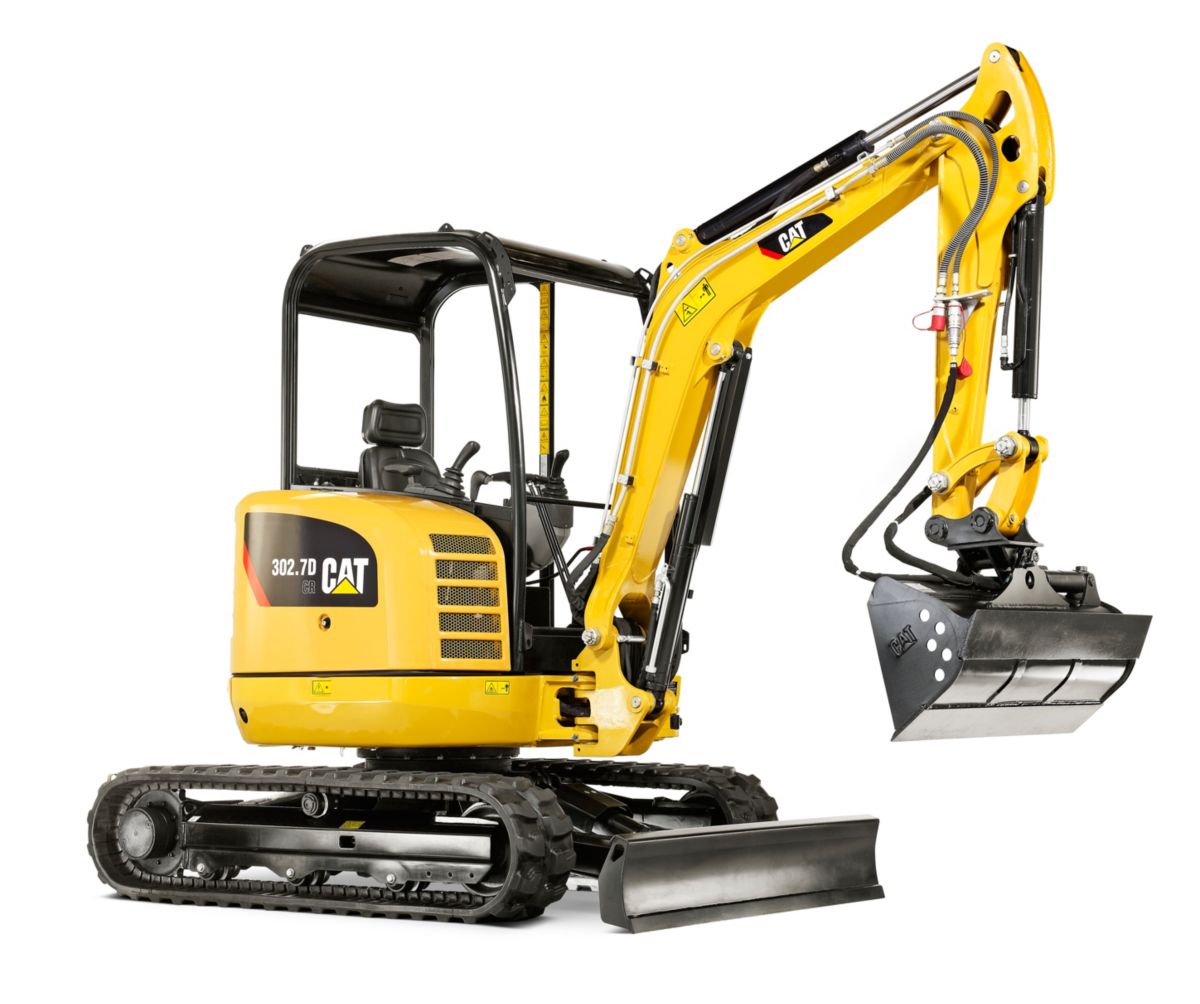

Overview

Engine

Engine Model
Yanmar 3TNV76
Net Power
20.70 hp
15.20 kW
Gross Power
24.30 hp
17.90 kW
Displacement
68.00 in3
1115.00 cm3
Rated Net Power (ISO 9249)
20.70 hp
15.20 kW

Weights

Operating Weight
5890.00 lb
2670.00 kg
Operating Weight - With Cab
6239.00 lb
2830.00 kg
Operating Weight with Canopy
5681.00 lb
2577.00 kg

Dimensions

Boom swing angle (Left)
75.00 Degrees
75.00 Degrees
Boom swing angle (Right)
50.00 Degrees
50.00 Degrees
Height
7.90 ft
2408.00 mm
Length of undercarriage
79.00 in
2006.00 mm
Maximum Dig Height
4170/4300 mm (13 ft 8 in/14 ft 1 in)
Maximum Digging Depth
2544/2744 mm (8 ft 4 in/9 ft 0 in)
Maximum Dozer Dig Depth
16.00 in
419.00 mm
Maximum Dozer Lift Height
15.00 in
380.00 mm
Maximum Dumping Height
2840/2970 mm (9 ft 4 in/9 ft 8 in)
Maximum Reach
4613/4805 mm (15 ft 1 in/15 ft 10 in)
Maximum Reach - Ground Level
4481/4681 (14 ft 8 in/15 ft 5 in)
Maximum Vertical Dig Depth
1962/2152 mm (6 ft 5 in/7 ft 1 in)
Minimum front linkage swing radius
21.00 in
533.00 mm
Tail swing radius
30.00 in
760.00 mm
Track width
30.00 in
764.00 mm
Transport Length - Arm Lowered
14.00 ft
4255.00 mm
Width
5.15 ft
1570.00 mm

Travel System

Gradeability
30°/58%
Travel Speed
2.1 km/h/3.8 km/h (1.30 mph/2.36 mph)

Hydraulic System

Operating Pressure - Equipment
3263.00 psi
225.00 bar
Operating Pressure - Travel
3263.00 psi
225.00 bar
Operating Pressure - Swing
2987.00 psi
206.00 bar
Auxiliary Circuits - Primary
52.2 L/min at 225 bar (13.8 gal/min at 3,263 psi)
Auxiliary Circuits - Secondary
30.8 L/min at 206 bar (8.1 gal/min at 2,988 psi)
Maximum Bucket Force
5058.00 lb
22.50 kN
Maximum Stick Force - Standard/Long
15.4 kN/13.6 kN (3,462 lbf/3,057 lbf)
Pump Flow at 2,500 rpm
23.60 gal/min
89.40 l/min

Blade

Width
61.90 in
1570.00 mm
Height
11.40 in
290.00 mm
Dig Depth
16.50 in
419.00 mm
Lift Height
15.00 in
380.00 mm

Service Refill Capacities

Fuel Tank Capacity
9.30 gal
35.20 L
Hydraulic Tank Capacity
7.00 gal (US)
26.50 l

Engine

Engine Model
Yanmar 3TNV76
Net Power
20.70 HP
15.20 kW
Gross Power
24.30 HP
17.90 kW
Displacement
68.00 in³
1115.00 cm³
Rated Net Power - ISO 9249
20.70 HP
15.20 kW

Weights

Operating Weight
6239.00 lb
2830.00 kg
Operating Weight - With Canopy
6034.00 lb
2737.00 kg

Dimensions

Boom Swing Angle - Left
75.00 °
75.00 °
Boom Swing Angle - Right
50.00 °
50.00 °
Height
7.90 ft
2408.00 mm
Length - Undercarriage
79.00 in
2006.00 mm
Minimum Front Linkage Swing Radius
21.00 in
533.00 mm
Tail Swing Radius
30.00 in
760.00 mm
Track Width
30.00 in
764.00 mm
Width
5.15 ft
1570.00 mm

Hydraulic System

Operating Pressure - Equipment
3263.00 psi
225.00 bar
Operating Pressure - Travel
3263.00 psi
225.00 bar
Operating Pressure - Swing
2987.00 psi
206.00 bar

Blade

Width
61.90 in
1570.00 mm

Service Refill Capacities

Fuel Tank Capacity
9.30 gal (US)
35.20 l

Engine

Note
Engine meets U.S. EPA Tier 4 Final/EU Stage V emission standards.
Features

Compact Dimensions: Reduced damage – Operator confidence – Increased productivity

Performance and Durability: Powerful hydraulics – Robust construction – Work tool ready

User Friendly Operation: Comfortable productivity

Serviceability/Maintenance: Easy access for both maintenance and daily inspection

Customer Support: Low operating costs with excellent services and options

Sales Features

Compact Dimensions

Reduced damage - Operator confidence - Increased productivity

Performance and Durability

Powerful hydraulics - Robust construction - Work tool ready

User Friendly Operation

Comfortable productivity

Serviceability/Maintenance

Easy access for both maintenance and daily inspection

Customer Support

Low operating costs with excellent services and options
Standard Equipment
  • STANDARD EQUIPMENT
    • 1-way and 2-way (combined function) auxiliary hydraulic lines
    • 300 mm rubber track
    • Canopy with Tip Over Protection (TOPS) ISO 12117
    • Dozer blade with float function
    • Hydraulic oil cooler
    • Maintenance free battery
    • Retractable seat belt
    • Suspension seat, vinyl covered
    • Travel pedals
    • Working light mounted to boom
Optional Equipment
  • OPTIONAL EQUIPMENT
    • Additional hydraulic circuit diverted from bucket cylinder
    • Auto idle (Standard in North America)
    • Bio oil
    • Boom check valve
    • Cab, radio ready with FOPS ISO 10262 (Level 1), Tip Over Protection (TOPS) ISO 12117, heater/defroster, interior light and windscreen wiper
    • Custom color paint
    • Ecology drain for engine oil
    • Ecology drain for hydraulic tank
    • Front screen guard for cab and canopy
    • Joystick mounted proportional auxiliary control
    • Mechanical quick coupler
    • Mirror pack
    • Rotating beacon
    • Suspension seat, fabric covered
    • Thumb ready stick (Standard in North America)
