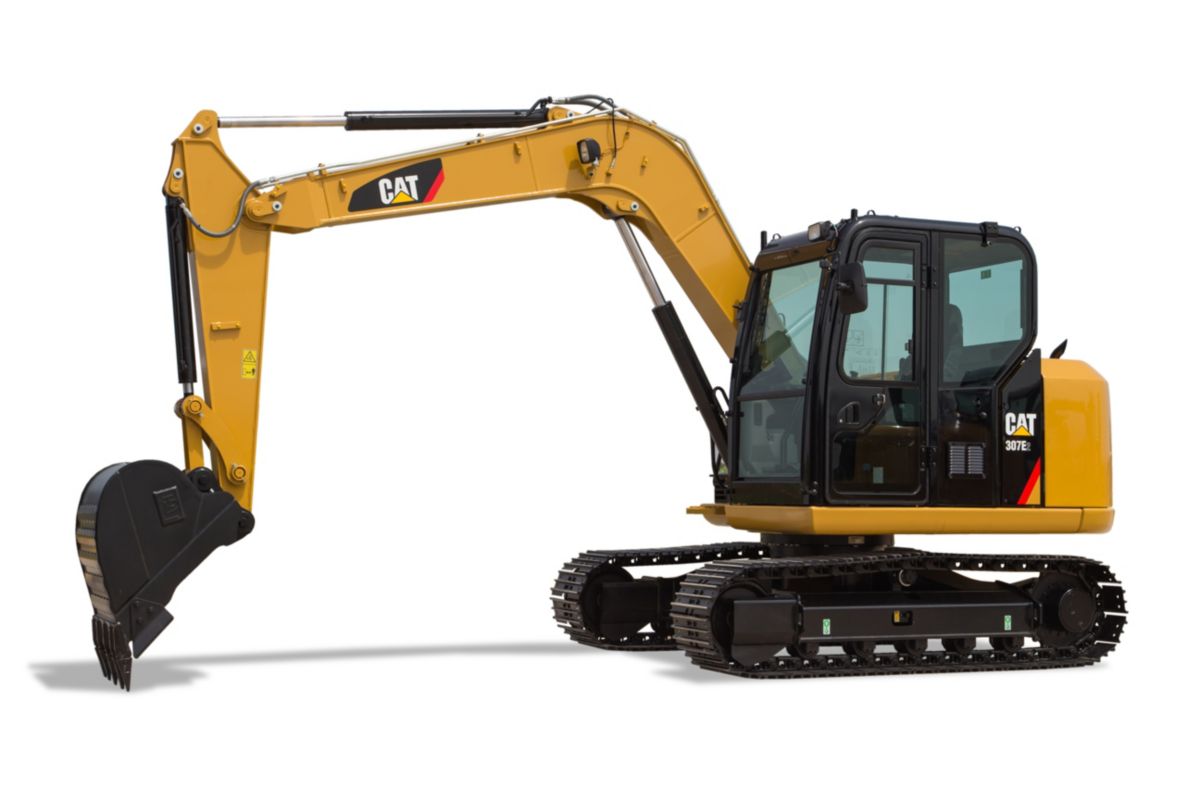

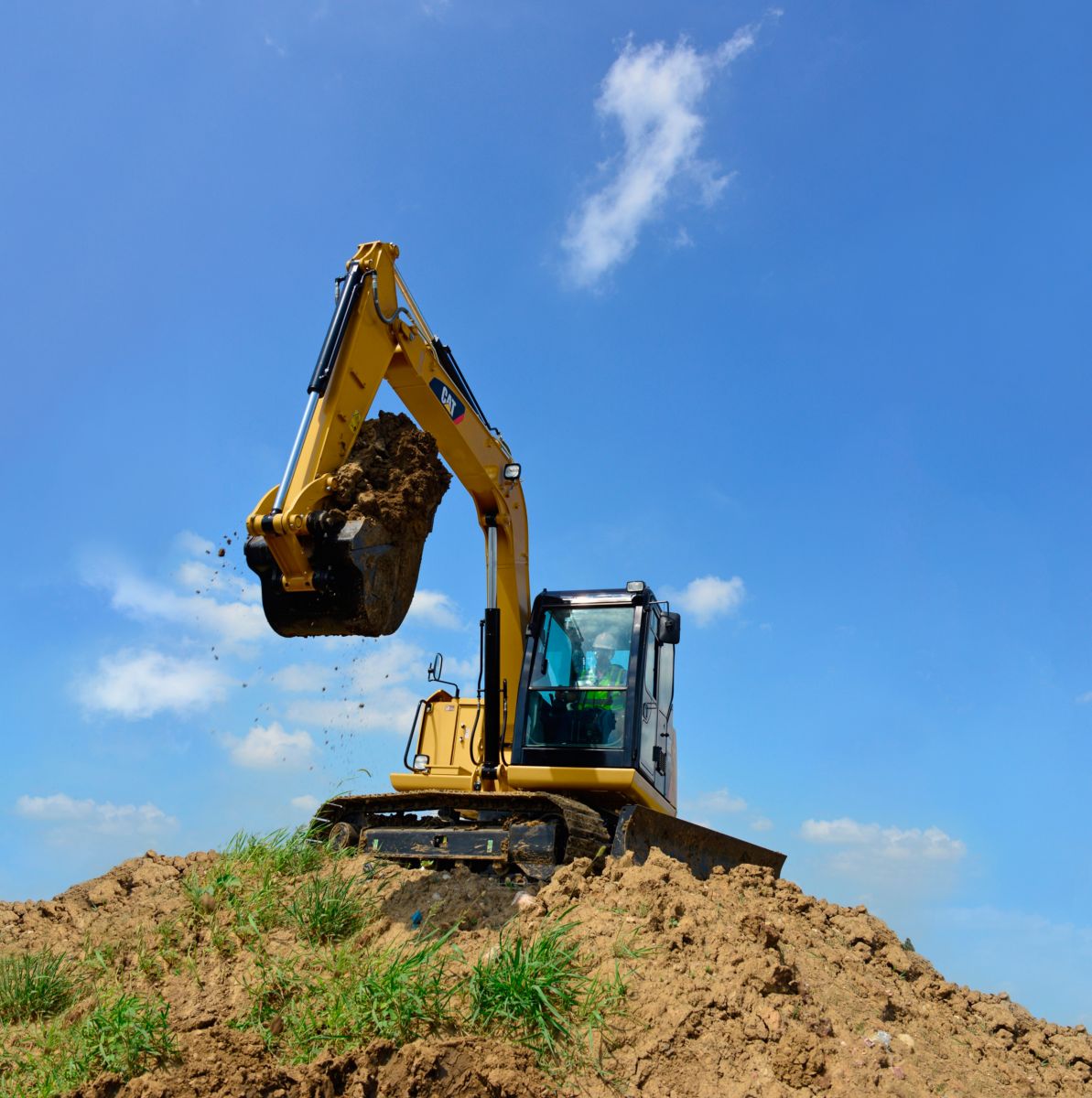

307E2 Mini Hydraulic Excavator

US
Metric

Overview

The Cat® 307E2 Mini Hydraulic Excavator delivers high performance, durability and versatility in a standard tail swing design to help you work in a variety of applications.

Engine

Engine Model
Cat® C2.4 Turbo
Net Power
50.60 hp
37.70 kW
Bore
3.40 in
87.00 mm
Displacement
146.50 in3
2.40 L
Gross Power (ISO 14396)
53.10 hp
39.60 kW
Note
Meets U.S. EPA Tier 4 Final and EU Stage IIIB emission standards.
Rated Net Power - 2,200 rpm - ISO 9249/EEC 80/1269
50.60 HP
37.70 kW
Stroke
4.00 in
102.40 mm

Weights

Operating Weight
16028.00 lb
7270.00 kg
Operating Weight - With Cab
16028.00 lb
7270.00 kg

Travel System

Ground Pressure
4.92 psi
33.90 kPa
Gradeability (maximum)
20°
Maximum Traction Force – High Speed
7599.00 lbf
33.80 kN
Maximum Traction Force – Low Speed
13331.00 lbf
59.30 kN
Maximum Traction Force - High Speed
7599.00 lbf
33.80 kN
Maximum Traction Force - Low Speed
13331.00 lbf
59.30 kN

Hydraulic System

Operating Pressure - Travel
4061.00 psi
28000.00 kPa
Load sensing hydraulics with variable displacement piston pump.
Operating Pressure - Swing
4061.00 psi
28000.00 kPa
Digging Force – Stick (standard)
8340.00 lbf
37.10 kN
Auxiliary Circuit - Primary (280 bar/4,061 psi)
33.80 gal/min
128.00 l/min
Auxiliary Circuit - Secondary (280 bar/4,061 psi)
8.70 gal/min
33.00 l/min
Operating Pressure – Equipment
4061.00 psi
28000.00 kPa
Operating Pressure – Swing
4061.00 psi
28000.00 kPa
Operating Pressure – Travel
4061.00 psi
28000.00 kPa
Pump Flow at 2,400 rpm
40.90 gal/min
154.00 L/min

Swing System

Machine Swing Speed
10.20 rpm
10.20 rpm
Note
Automatic swing break, spring applied, hydraulic release.

Blade

Width
90.60 in
2300.00 mm
Height
17.50 in
445.00 mm
Dig Depth
15.30 in
390.00 mm
Lift Height
13.80 in
350.00 mm

Service Refill Capacities

Cooling System
3.70 gal
14.00 L
Engine Oil
2.90 gal
11.00 L
Hydraulic Tank
13.50 gal
51.00 L
Fuel Tank
35.70 gal
135.00 L
Hydraulic System
20.60 gal
78.00 L

Operating Specifications

Machine Overhang
1.20 ft
358.00 mm
Stick Length – Standard
5.50 ft
1670.00 mm

Cab

Average Exterior Sound Pressure
98 dB(A) ISO 6395 – Dynamic Test

Weights

Note (1)
Weight with steel tracks with rubber pads, bucket, operator (75 kg/165 lb), full fuel and auxiliary lines.
Note (2)
Weight varies depending on machine configuration.

Travel System

Note (1)
Each track is driven by one independent 2-speed motor.
Note (2)
Drive modules are integrated into the roller frame for total protection.
Note (3)
Straight line travel when tracking and operating the front linkage simultaneously.

Undercarriage

Number of Carrier Rollers
1 per side
Number of Track Rollers
5 per side
Track Roller Type
Center flange

Dimensions - Standard Stick

Dig Depth
13.40 ft
4070.00 mm
Vertical Wall
11.90 ft
3630.00 mm
Maximum Reach - Ground Level
20.20 ft
6160.00 mm
Maximum Reach
20.70 ft
6300.00 mm
Maximum Dig Height
23.80 ft
7240.00 mm
Maximum Dump Clearance
17.00 ft
5190.00 mm
Boom In Reach
5.50 ft
1690.00 mm
Tail Swing - Standard Counterweight
5.70 ft
1750.00 mm
Maximum Blade Height
1.30 ft
390.00 mm
Maximum Blade Depth
1.10 ft
350.00 mm
Boom Height - Shipping Position
8.60 ft
2630.00 mm
O/A Shipping Height
8.60 ft
2630.00 mm
Swing Bearing - Height
2.50 ft
775.00 mm
O/A Undercarriage Length
9.00 ft
2760.00 mm
O/A Shipping Length
19.90 ft
6080.00 mm
Track Belt/Shoe Width
1.50 ft
450.00 mm
O/A Track Width
7.20 ft
2200.00 mm

Engine

Engine Model
Cat® C2.4 Turbo
Net Power
50.60 HP
37.70 kW
Bore
3.40 in
87.00 mm
Displacement
146.50 in³
2.40 l
Gross Power - ISO 14396
53.10 HP
39.60 kW
Note
Meets U.S. EPA Tier 4 Final and EU Stage IIIB emission standards.
Stroke
4.00 in
102.40 mm

Weights

Operating Weight
16028.00 lb
7270.00 kg

Travel System

Ground Pressure
4.92 psi
33.90 kPa
Gradeability - Maximum
20°
Travel Speed - High
3.17 mile/h
5.10 km/h
Travel Speed - Low
1.99 mile/h
3.20 km/h

Hydraulic System

Digging Force - Bucket
11375.00 lbf
50.60 kN
Digging Force - Stick - Standard
8340.00 lbf
37.10 kN
Note
Load sensing hydraulics with variable displacement piston pump.
Operating Pressure - Equipment
4061.00 psi
28000.00 kPa
Pump Flow at 2,400 rpm
40.90 gal/min
154.00 l/min

Swing System

Machine Swing Speed
10.20 r/min
10.20 r/min
Note
Automatic swing break, spring applied, hydraulic release.

Blade

Width
90.60 in
2300.00 mm

Service Refill Capacities

Cooling System
3.70 gal (US)
14.00 l
Engine Oil
2.90 gal (US)
11.00 l
Hydraulic Tank
13.50 gal (US)
51.00 l
Fuel Tank
35.70 gal (US)
135.00 l
Hydraulic System
20.60 gal (US)
78.00 l

Operating Specifications

Stick Length - Standard
5.50 ft
1670.00 mm

Undercarriage

Number of Carrier Rollers
1 per side
Number of Track Rollers
5 per side
Track Roller Type
Center flange
Features

QUALITY

The standard tail swing design incorporates a counterweight that extends further back on the machine for greater stability. The standard tail swing paired with a fixed boom on the 307E2 provides superior reach and lift. The operator environment includes a high quality suspension seat, easy to adjust armrests and 100% pilot controls which offer consistent and long-lasting controllability.

EFFICIENCY

High Definition Hydraulic System provides a load sensing and flow sharing capability leading to operational precision, efficient performance and greater controllability. Power on Demand provides optimal efficiency and performance the moment you need it. This automatic system ensures fuel efficiency through appropriate engine rating to meet all operational needs as required.

VERSATILITY

Broad range of Cat Work Tools make the Cat Mini Excavator a versatile machine, able to meet the requirements of any job site. 180 degrees of bucket rotation provides greater material retention during truck loading and easier flat wall digging without having to reposition the machine.

PERFORMANCE

Front shovel bucket orientation provides the operator with more ways to get the job done faster. COMPASS Control Panel is a standard feature that allows the operator to easily adjust auxiliary flows to achieve the optimal work tool performance, activate auto idle for improved fuel efficiency and utilize the security system to ensure protection of valuable assets with the simple touch of a button. The Site Reference System included in the COMPASS monitor provides output from pitch and roll sensors to aid in grading and level trenching. This impacts accuracy and productivity for job site finishing. Rearview camera improves operator productivity and efficiency through increased visibility, making work easier to complete.

SERVICEABILITY

Convenient service and maintenance requirements include ease of access to daily check points, 500 hour engine oil and filter change period, 500 hour grease interval on front implement, S·O·SSM oil sampling valve and overall long term durability.

QUALITY

All Cat Mini Excavators from 3.5 metric tons to 8 metric tons are ROPS, TOPS and Top Guard Level II certified and include the Cat Interlock (hydraulic lockout) System, a certified accumulator which allows for auxiliary pressure to be released, making connecting and disconnecting work tools safer and easier, and a travel alarm. All of these safety features are standard on the E2 model lineup (travel alarm optional in Europe).

Sales Features

QUALITY

The standard tail swing design incorporates a counterweight that extends further back on the machine for greater stability. The standard tail swing paired with a fixed boom on the 307E2 provides superior reach and lift. The operator environment includes a high quality suspension seat, easy to adjust armrests and 100% pilot controls which offer consistent and long-lasting controllability.

EFFICIENCY

High Definition Hydraulic System provides a load sensing and flow sharing capability leading to operational precision, efficient performance and greater controllability. Power on Demand provides optimal efficiency and performance the moment you need it. This automatic system ensures fuel efficiency through appropriate engine rating to meet all operational needs as required.

VERSATILITY

Broad range of Cat Work Tools make the Cat Mini Excavator a versatile machine, able to meet the requirements of any job site. 180 degrees of bucket rotation provides greater material retention during truck loading and easier flat wall digging without having to reposition the machine.

PERFORMANCE

Front shovel bucket orientation provides the operator with more ways to get the job done faster. COMPASS Control Panel is a standard feature that allows the operator to easily adjust auxiliary flows to achieve the optimal work tool performance, activate auto idle for improved fuel efficiency and utilize the security system to ensure protection of valuable assets with the simple touch of a button. The Site Reference System included in the COMPASS monitor provides output from pitch and roll sensors to aid in grading and level trenching. This impacts accuracy and productivity for job site finishing. Rearview camera improves operator productivity and efficiency through increased visibility, making work easier to complete.

SERVICEABILITY

Convenient service and maintenance requirements include ease of access to daily check points, 500 hour engine oil and filter change period, 500 hour grease interval on front implement, S·O·SSM oil sampling valve and overall long term durability.

QUALITY

All Cat Mini Excavators from 3.5 metric tons to 8 metric tons are ROPS, TOPS and Top Guard Level II certified and include the Cat Interlock (hydraulic lockout) System, a certified accumulator which allows for auxiliary pressure to be released, making connecting and disconnecting work tools safer and easier, and a travel alarm. All of these safety features are standard on the E2 model lineup (travel alarm optional in Europe).
Standard Equipment
  • ENGINE
    • Cat C2.4 diesel engine (meets U.S. EPA Tier 4 Final/EU Stage IIIB emission standards)
    • Automatic engine idle
    • Automatic engine shut-off
    • Automatic two speed travel
    • Diesel Particulate Filter (North America only)
    • Diesel Oxidation Catalyst (North America only)
    • Fuel and water separator
    • Power on demand
  • HYDRAULIC SYSTEM
    • 1-way and 2-way (combined function)
    • Accumulator
    • Automatic swing parking brake
    • Auxiliary hydraulic lines
    • Adjustable auxiliary relief
    • Auxiliary line quick disconnects
    • Boom lowering check valve (available only in Europe)
    • Cat interlock system: hydraulic lockout
    • Continuous auxiliary flow
    • Ecology drain
    • Hydraulic oil cooler
    • High definition hydraulics
    • Load sensing/flow sharing
    • Quick coupler lines
    • Secondary auxiliary hydraulic lines
    • Stick lowering check valve (available only in Europe)
  • OPERATOR ENVIRONMENT
    • 100% pilot control ergonomic joysticks
    • Adjustable armrests
    • Air conditioning/heat
    • COMPASS: complete, operation, maintenance, performance and security system
      • Multiple languages
    • Cup holder
    • High back suspension seat, heated
    • Hydraulic neutral lockout bar
    • Interior light
    • Literature holder
    • Pattern changer (optional in Europe)
    • Radio (optional in Europe)
    • Site reference system: leveling
    • Tool storage area
    • Travel control pedals with hand levers
    • Washable floor mat
    • Windshield wiper
  • UNDERCARRIAGE
    • Dozer blade with float function
    • Tie down eyes on track frame
    • Towing eye on base frame
  • FRONT LINKAGE
    • 180 degree bucket rotation
    • Certified lifting eye on bucket linkage (optional in Europe)
    • Front shovel capable
    • Thumb ready stick
  • ELECTRICAL
    • 12 volt electrical system
    • 60 ampere alternator
    • 650 CCA maintenance free battery
    • Fuse box
    • Ignition key start/stop switch
    • Slow blow fuse
    • Warning horn
  • LIGHTS AND MIRRORS
    • Cab and boom light with time delay capability
    • Mirror, rear view, cab left
  • SAFETY AND SECURITY
    • Anti-theft system (COMPASS)
    • Battery disconnect
    • Caterpillar Corporate “One Key” System
    • Door locks
    • Lockable fuel cap
    • Rearview camera
    • Retractable seat belt
    • Roll Over Protective Structure (ROPS) (ISO 12117-2)
    • Tip Over Protective Structure (TOPS) (ISO 12117)
    • Top guard – ISO 10262 (Level II)
    • Travel alarm (optional in Europe)
Optional Equipment
  • ENGINE
    • Engine block heater
  • UNDERCARRIAGE
    • Track, triple grouser (steel), 450 mm (18 in)
    • Track, triple grouser (steel) with rubber pad, 450 mm (18 in)
  • FRONT LINKAGE
    • Quick coupler: manual or hydraulic
    • Thumb
    • Buckets
    • Full range of performance matched work tools
      • Auger, hammer, shear, ripper
  • LIGHTS AND MIRRORS
    • Mirror, cab rear
  • SAFETY AND SECURITY
    • Front wire mesh guard
    • Front steel plate guard
    • Rain guard
  • TECHNOLOGY
    • Product Link™
