Overview

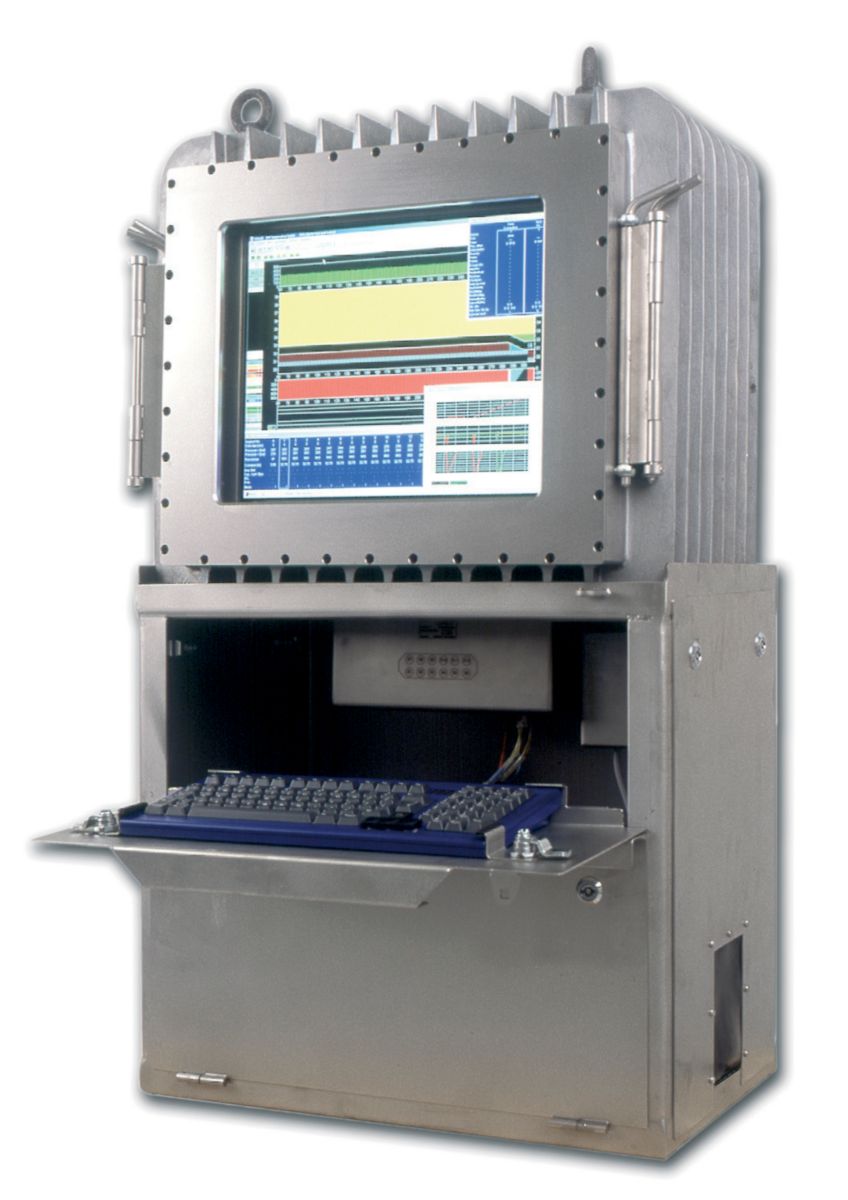

Whether for comprehensive date acquisition, safe and secure date exchange with surface, PC-visualisation of current longwall data, or central control and maintenance of machines - the Cat main control unit MCU2 meets all the hardware and software requirements for underground mining. The MCU2 has a rugged housing for use in explosion-hazard areas.

Components

Operating System
Windows 7
Processor
Intel Core i7, 2.1 GHz
RAM Memory
4 GB
Data Memory
2 × 120 GB SSD
Display
19.00 in
48.30 cm
Hard Drive - 1 TB
2.50 in
6.40 cm
Input Equipment
Keyboard with integrated mouse
Resolution
1280:1024

Weights

Approximate Weight
441.00 lb
200.00 null

Intrinsically Safe Interfaces

Ethernet Via Fiber-Optic Cable
9 μm
Type (1)
COM 3 BIDI SKK24
Type (2)
COM 1 BIDI SKK24
Type (3)
COM 4 BIDI SKK24
Type (4)
COM 2 BIDI SKK24

Electrical Power Supply

Interface
Non-intrinsically safe USB interface
Power Supply of the Explosion-Proof Part
110-240V AC
Power Supply of the Intrinsically Safe Part
12V DC, maximum 2A

Certifications and Identification

Certifications
ATEX (within system: MA and GOST)
Temperature Range
-20° C to +60° C (-4° F to +140° F)
Type of Protection
I M2 EEx ib I

Dimensions (Approximate)

Height
17.72 in
450.00 mm
Length - Large Base
45.08 in
1145.00 mm
Length - Small Base
37.20 in
945.00 mm
Width
24.80 in
630.00 mm
Width
24.80 in
630.00 mm
